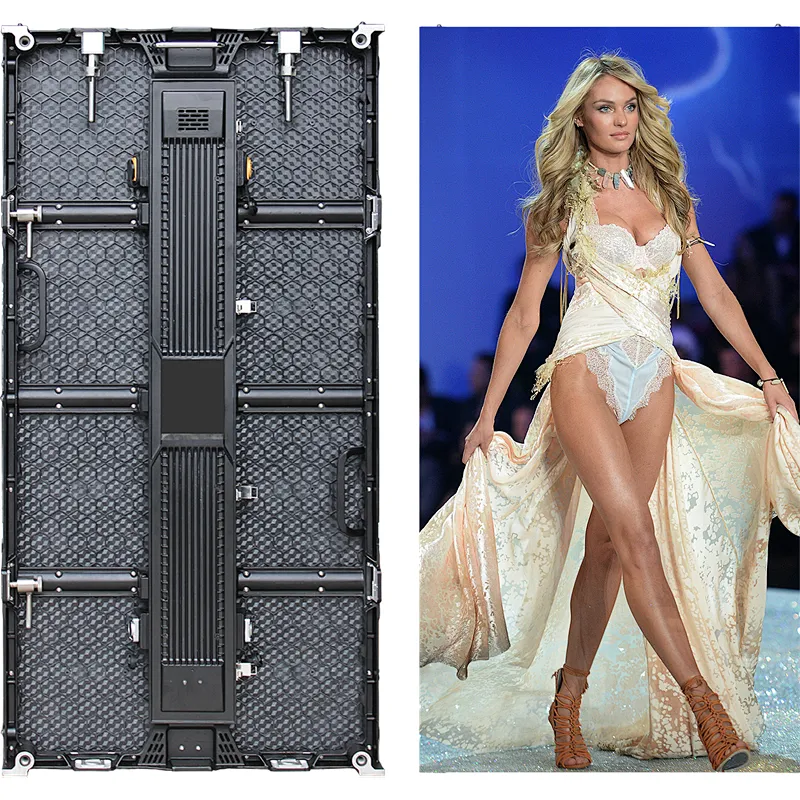

LED display panel , outdoor rental p3.9 LED display panel , cost effective LED display panel

Usage:Outdoor
Certificate:CE ROHS FCC
Brightness:4000
Viewing angle:160H/160V
Module size:250x250mm
Pixel pitch:3.91mm
Cabinet size:500x1000mm
Refresh rate:1920Hz
Screen Dimension:500*1000
Pixels:3.9mm
Place of Origin:CN;GUA
Application:Outdoor
Color:full color
Panel Size:500*1000mm
Pixel Pitch:3.91mm
Model Number:TO3.9
Brand Name:LEDFUL

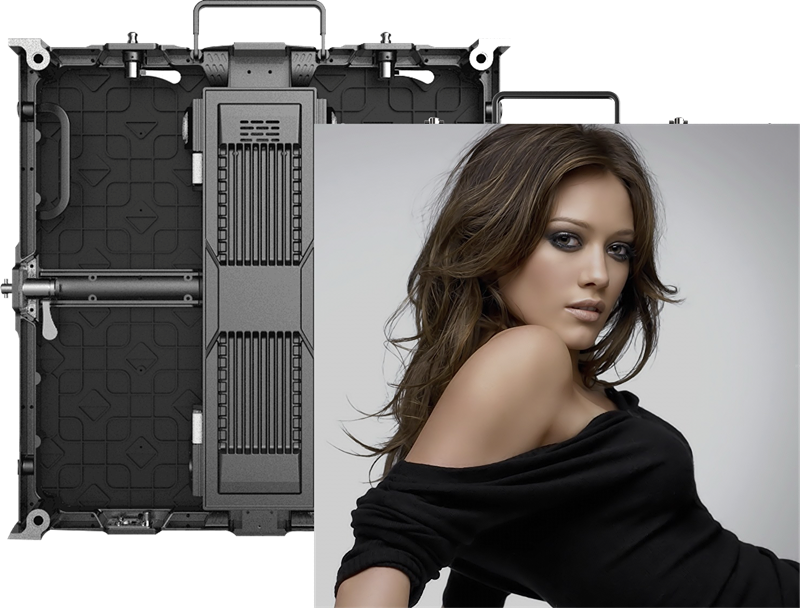

Product Description

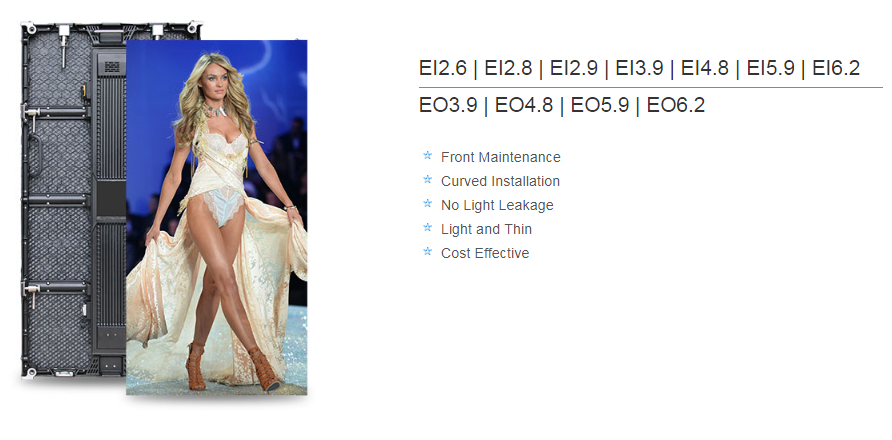

E Series

Indoor & Outdoor Rental LED Display

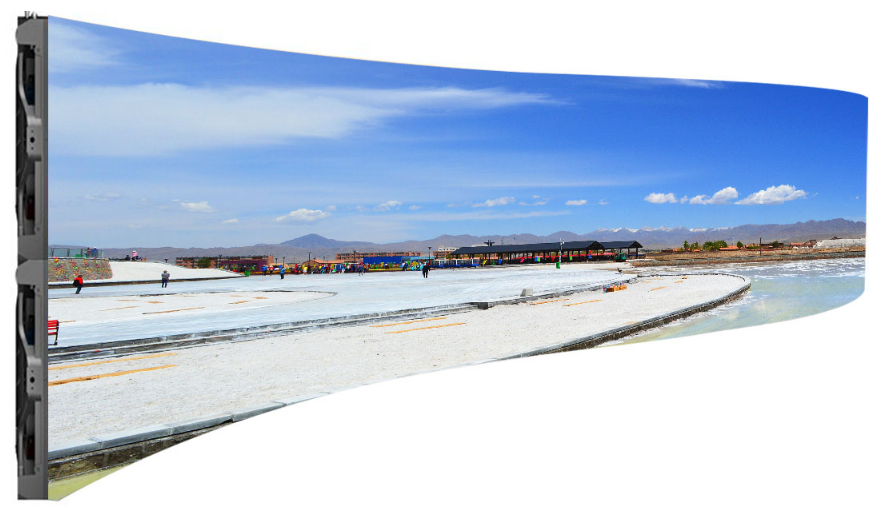

Curved Installation

Curved with every 2.5° between -10°and 10°, which can make convex and concave

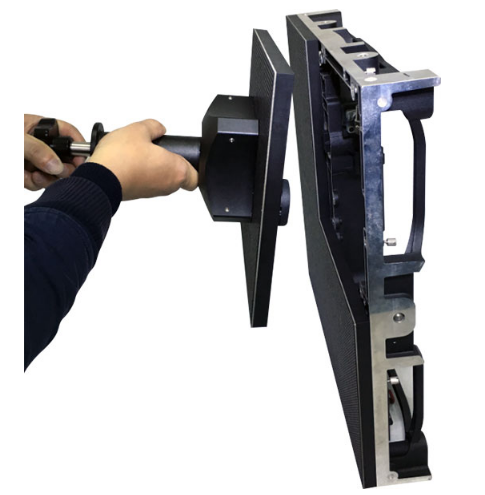

Front Maintenance

The magnet LED modules can be removed by tools on front side.

Cost Effective Option

E series is"double L series"which will save cost and time during installation.
L series and E series can be installed together for various installation.

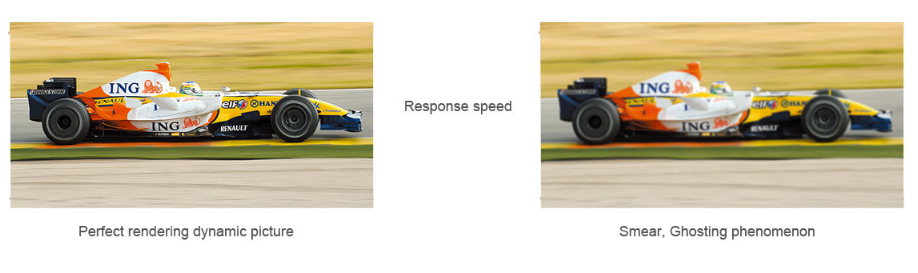

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,

while playing the high speed dynamic images in an LED Screen,

it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

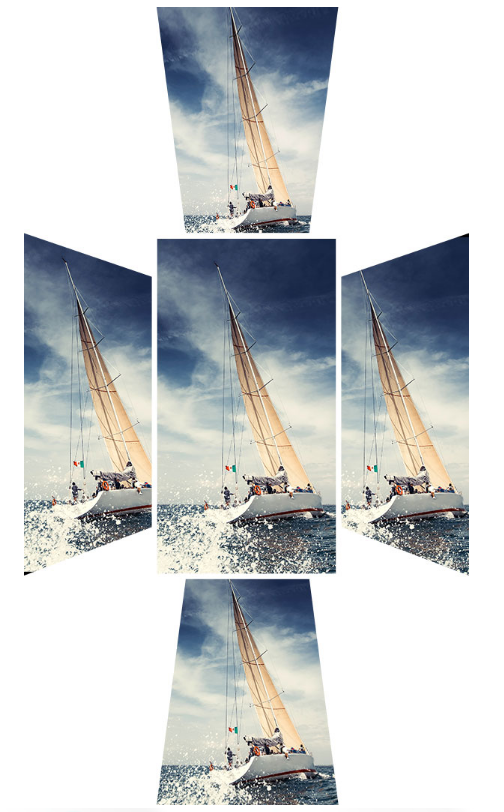

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.

Seeing from five directions, it would be still the natural and clear image in an LED display.

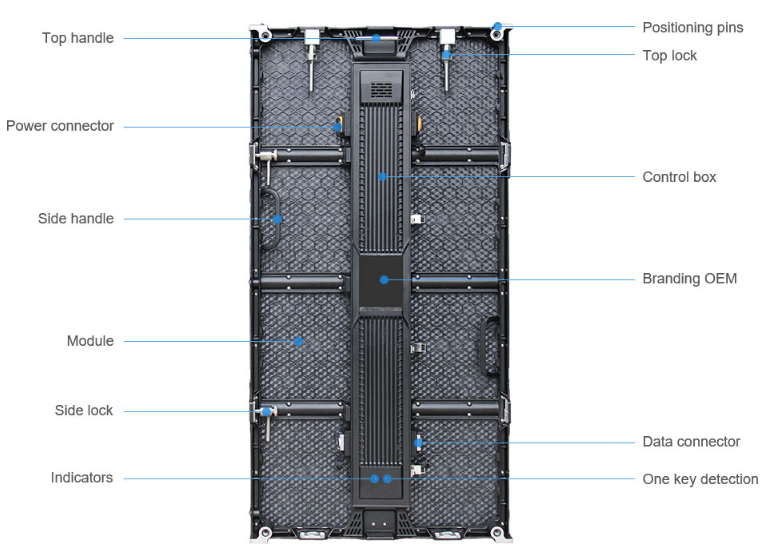

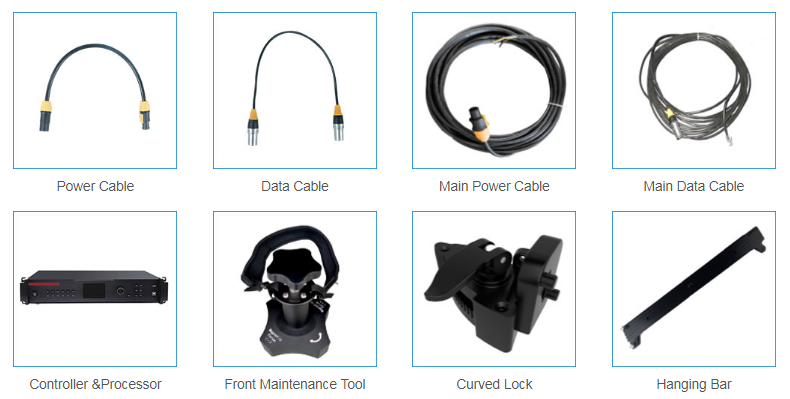

Accessories

Parameter

E Series Outdoor	EO 3.9
Pixel Pitch(mm)	3.91mm
Pixel Matrix Per Sq.m	65536
Pixel Configuration	SMD1921
Brightness (nits)	≥4000
Scan	1/16
Cabinet Resolution	128×256
Power Con. (Max / Avg)	750/ 230 w/sq.m
Module Dimension	250x250mm / 0.82x0.82ft

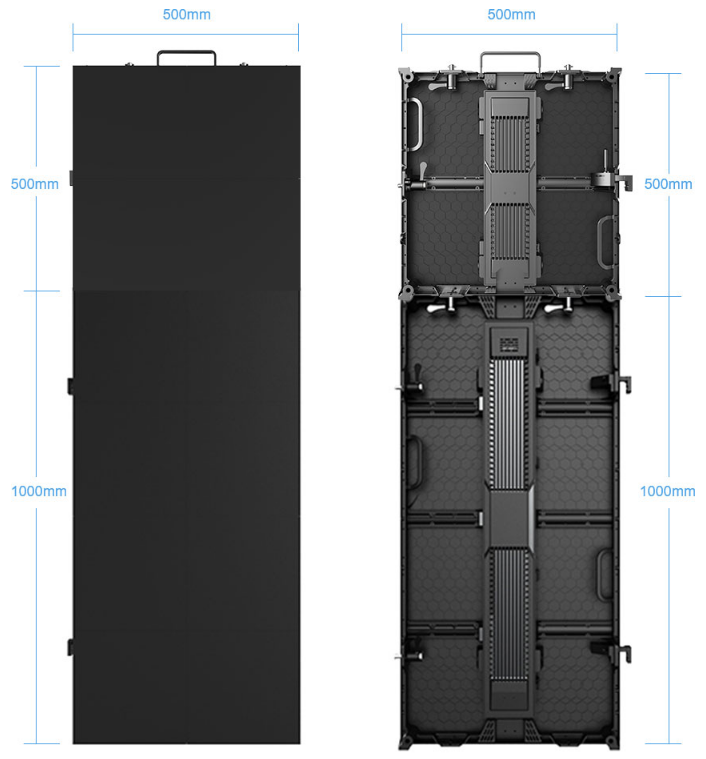

Cabinet Dimension	500x1000x80mm / 1.64x3.28x0.26ft
Cabinet Weight	13kg / 28.66Ib (( Die-casting Aluminum)
Service Access	Front / Rear
Rotation Angle	-10° and +10°
Refresh Rate (HZ)	1920
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
IP Rate	IP65
Input Voltage (AC)	110 / 240

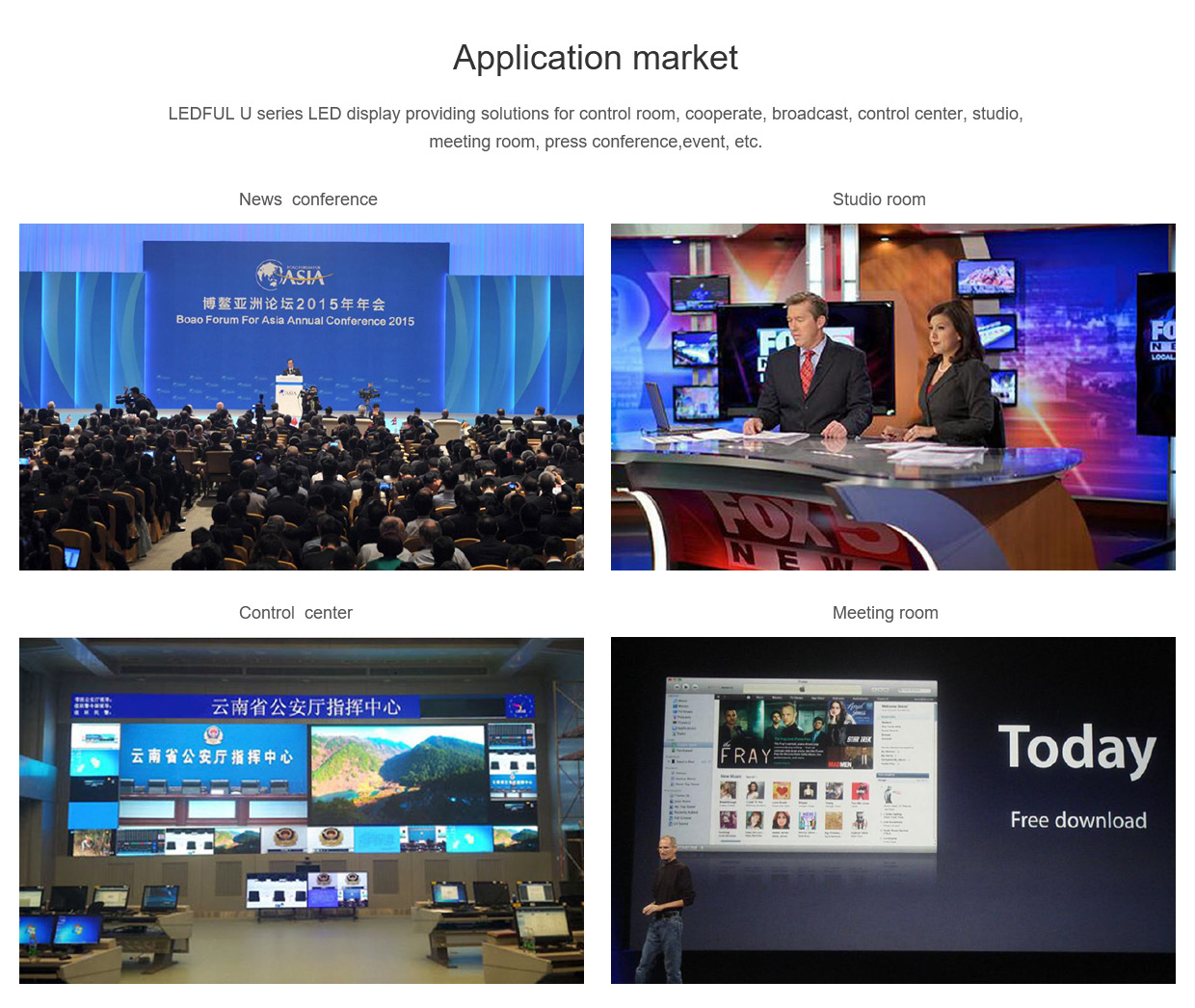

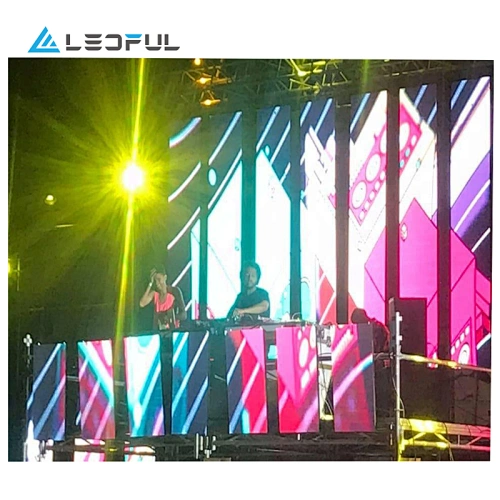

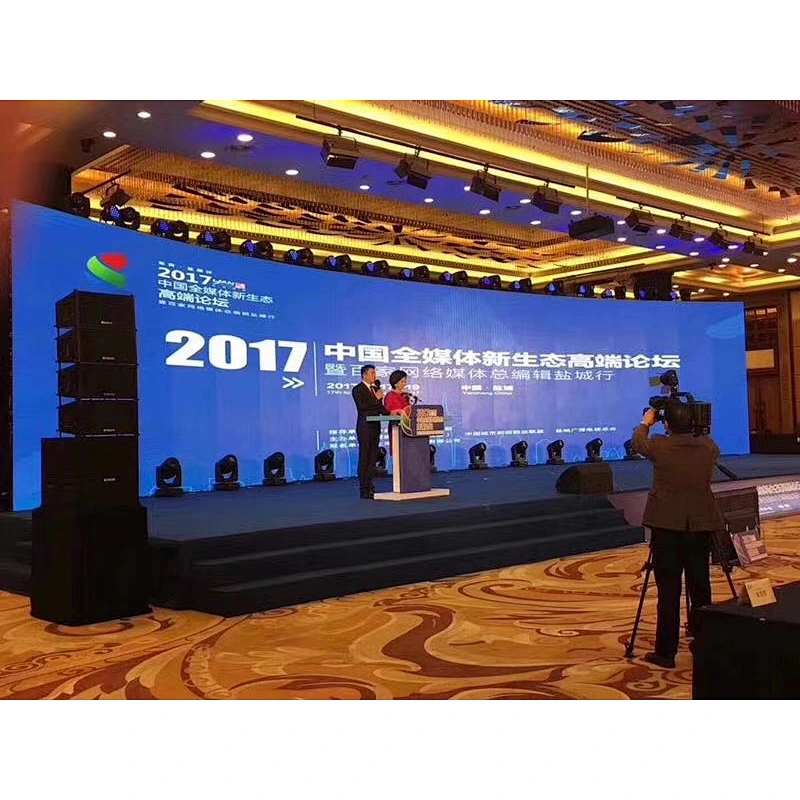

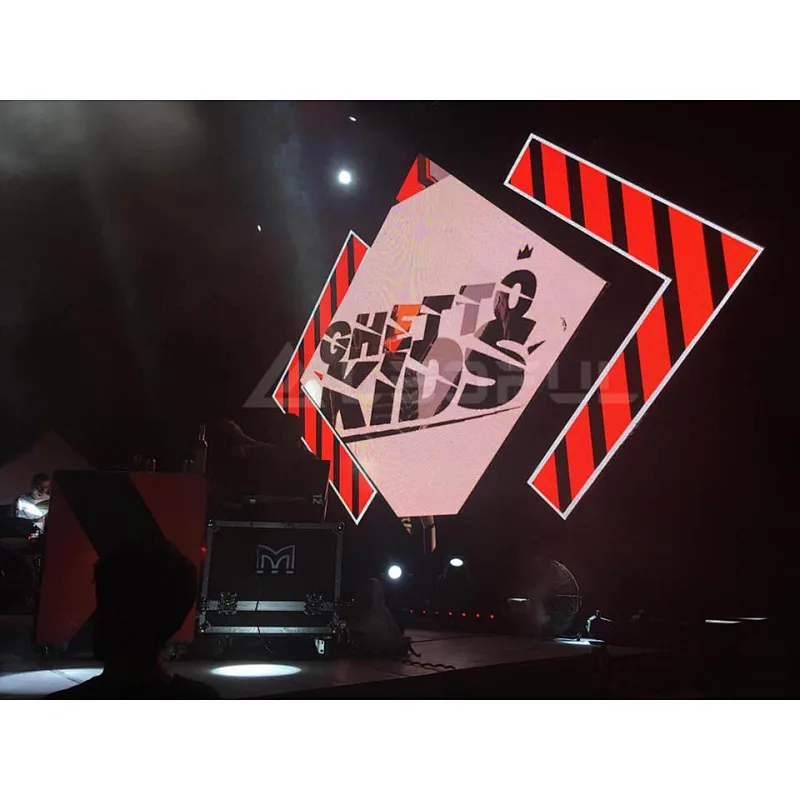

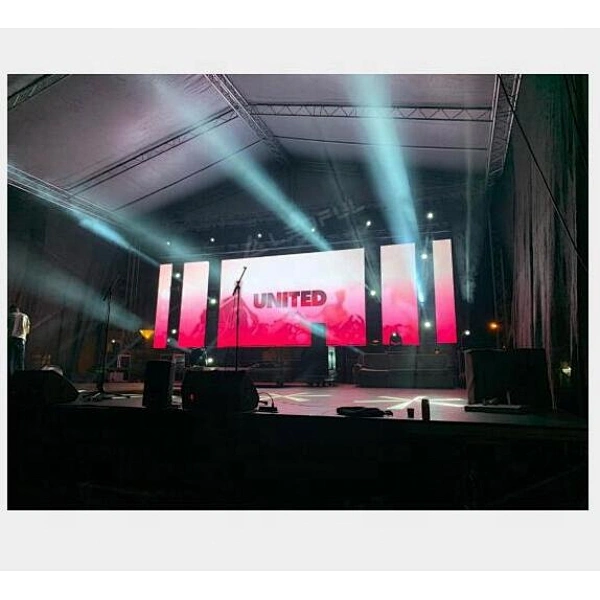

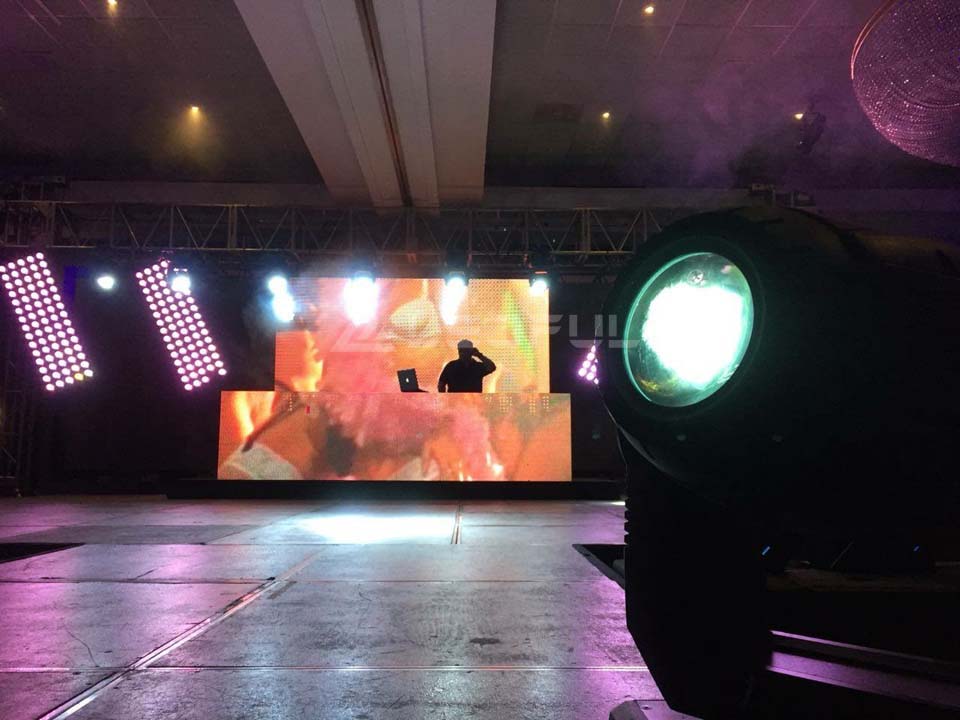

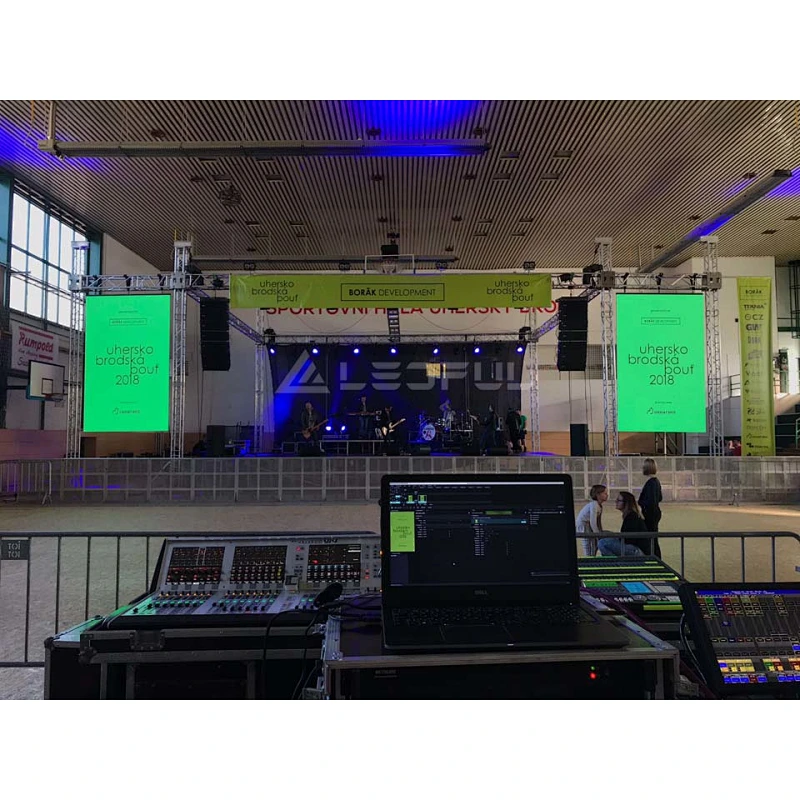

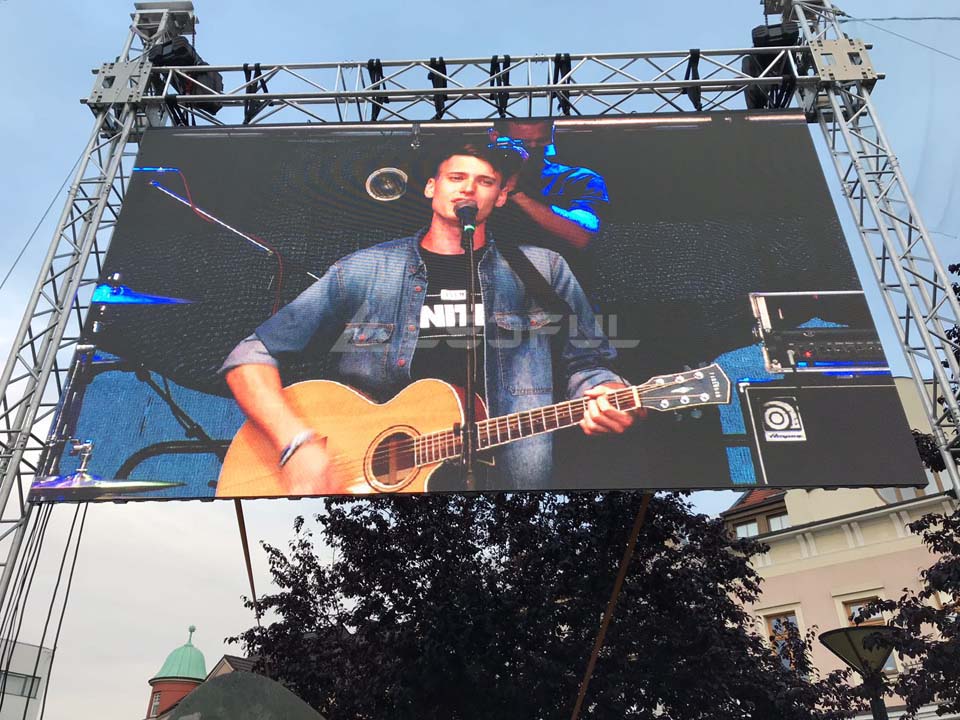

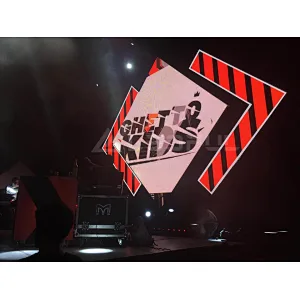

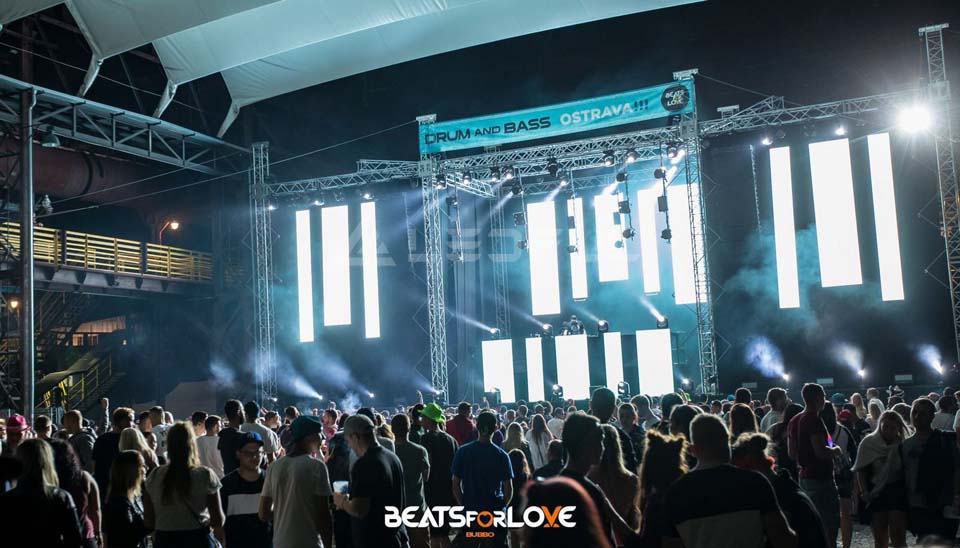

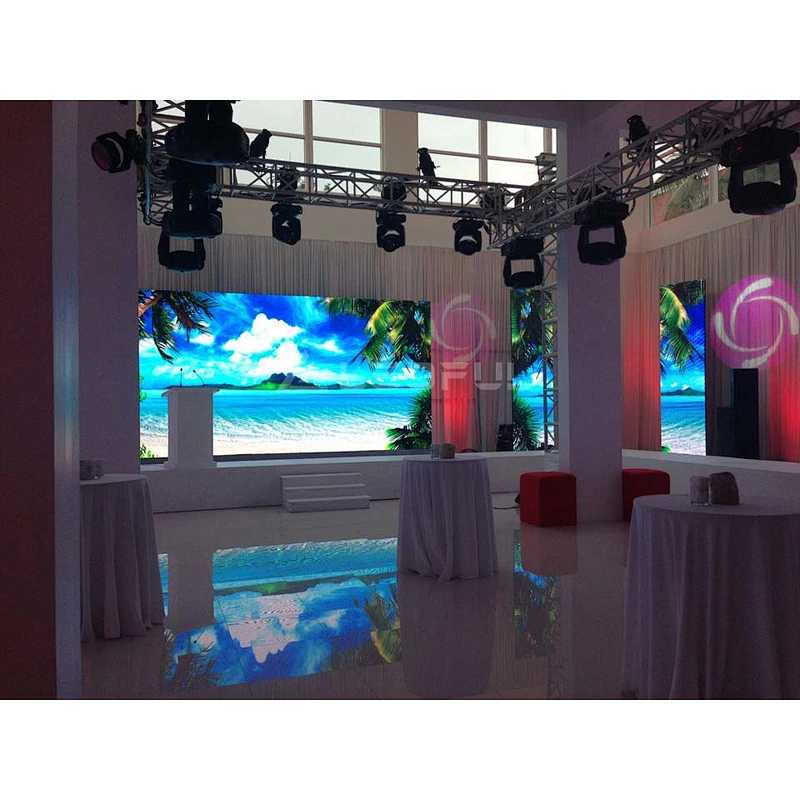

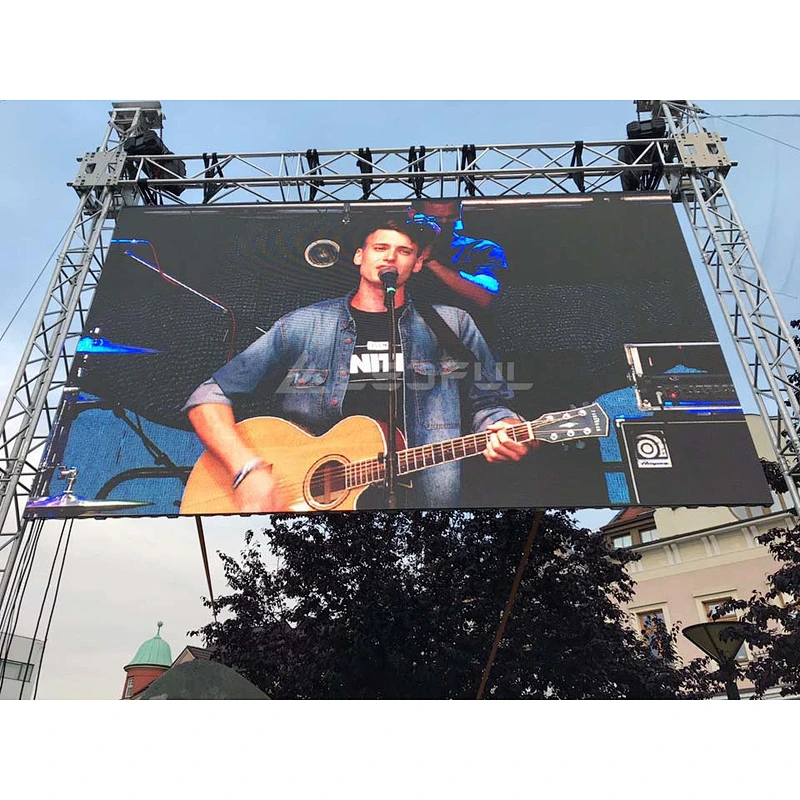

Application

Our Company

Top LED Display Manufacturer

LEDFUL founded in 2008

Total 209 employees in LEDFUL 3~5 years warranty on LED screen

Exported to 83 countries and regions Top reliable LED display manufacturer

Over 5,600 successful projects in the world

R&D staff occupied 10% of all the employees.CE, RoHS, FCC, CCC, ISO9001:2008 standard

Professional, High Efficient and Caring

One-stop solution provider More designs and more solutions

Wireless control, 4G, Wifi, Cluster control

Truss hanging, stacking, touring, LED ceiling, video floor

Irregular shaped, flex, curved, round, sphere, cubic, customized
Focus on the improvement and innovation of rental LED cabinets
High efficient and enthusiastic team to make reliable LED display
Our partners are Media Companies, Stage Designer, Project Manager,

Pro Audio, Light and Video companies, AV Rental Equipment companies,

Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

Product Certificates

Our Service

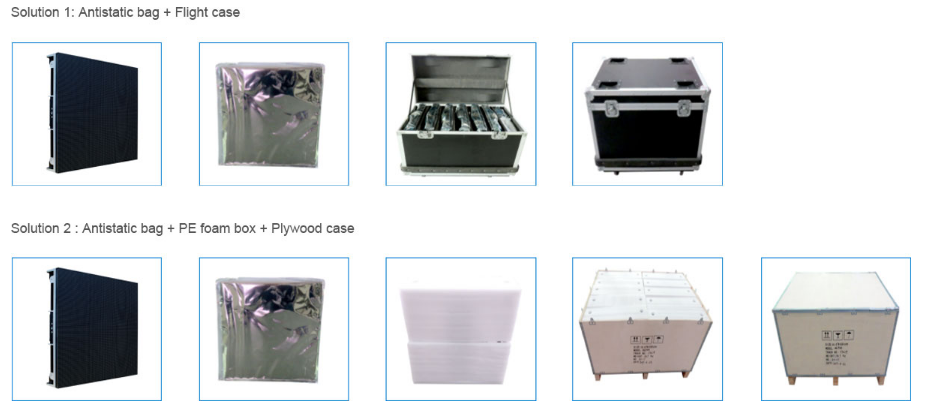

Packing & Delivery

FAQ

Q1. Are you trading company or manufacturer ?

A: We are led display manufacturer

Q2. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q3. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4:Minimum distance of the audience? (Viewing distance)

P2/3/4/5/6mm: From 2/3/4/5/6 meter and more

P10/12/16/20/25: From 10/12/16/20/25 meter and more

This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

Q5:How To Play The TVs On LED Display Panel?

LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.
1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
