- Front Installation
- Full Front Service
- Black SMD LED
- Die Casting Aluminum

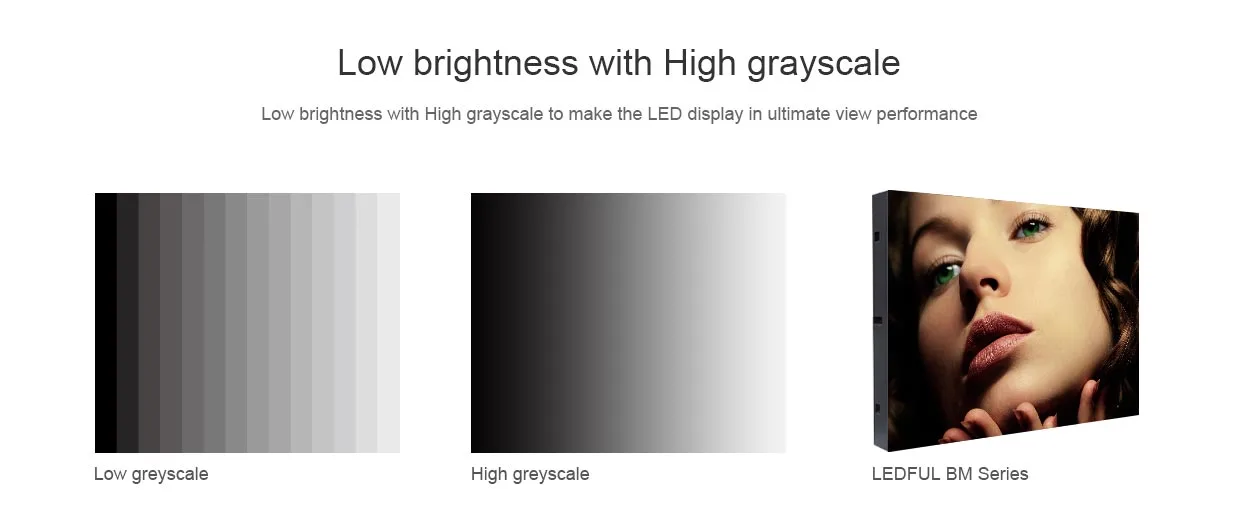

- High Grayscale
- High Refresh
- Light and Thin
- Application:fine pitch advertising screens
- Color:colorful
- Panel Size:480x540mm
- Pixel Pitch:2.5
- Model Number:QS2.5
- Brand Name:LEDFUL
- Pixel Pitch(mm):2.5
- Application:Concert
- Item:Led Display Wall
- Color:Full-color
- Certificate:CE ROHS FCC
- Brightness:1000nits
- Warranty:3years
- Product name:Led Video Display Panel
- Module size:240*180 mm
- Service Access:Full Front
Product Description
QS Series
·Fine Pitch·Wall Mounted·Front Installation·Full Front Service LED display
QS1.6 | QS1.8 | QS2 | QS2.5 | QS3

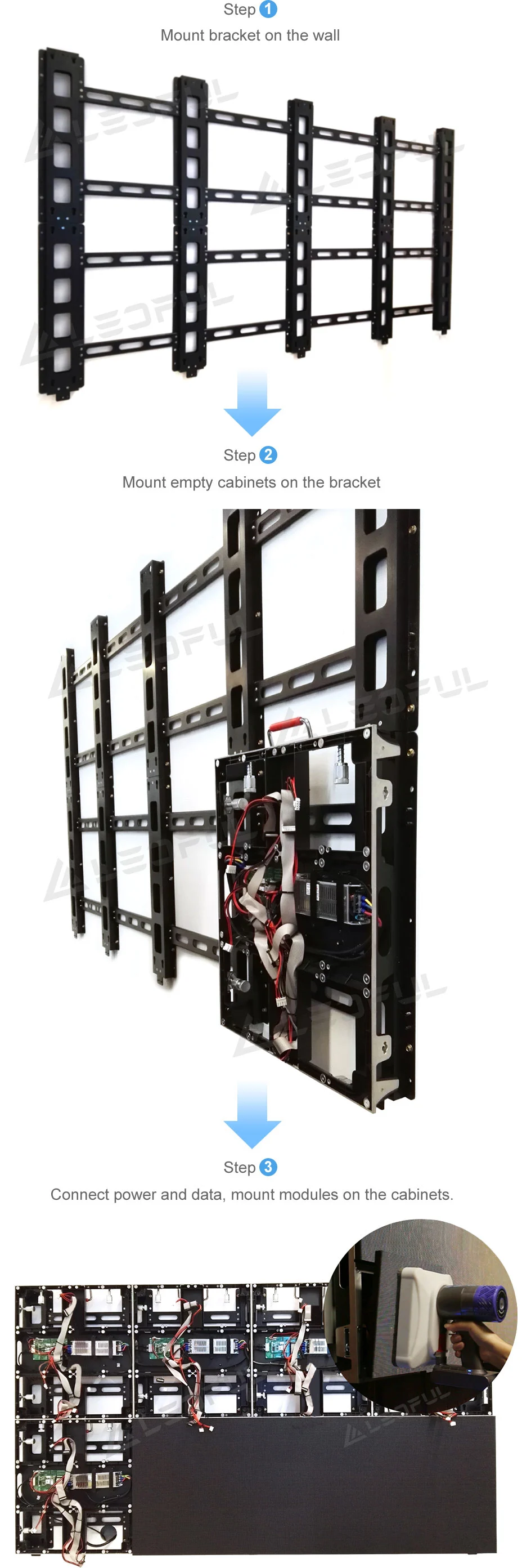

How to install LED cabinets in front side?

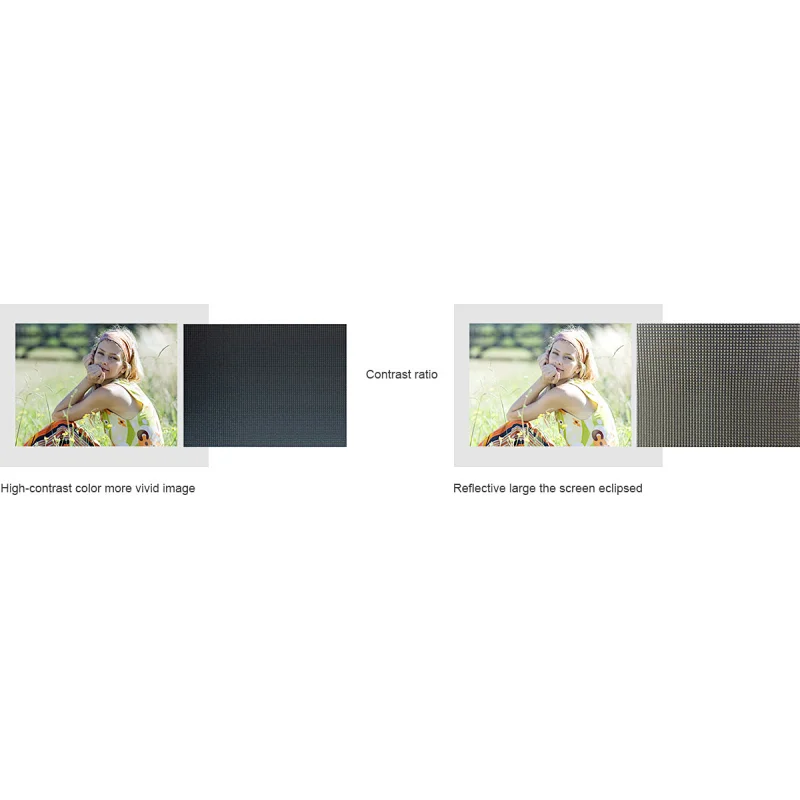

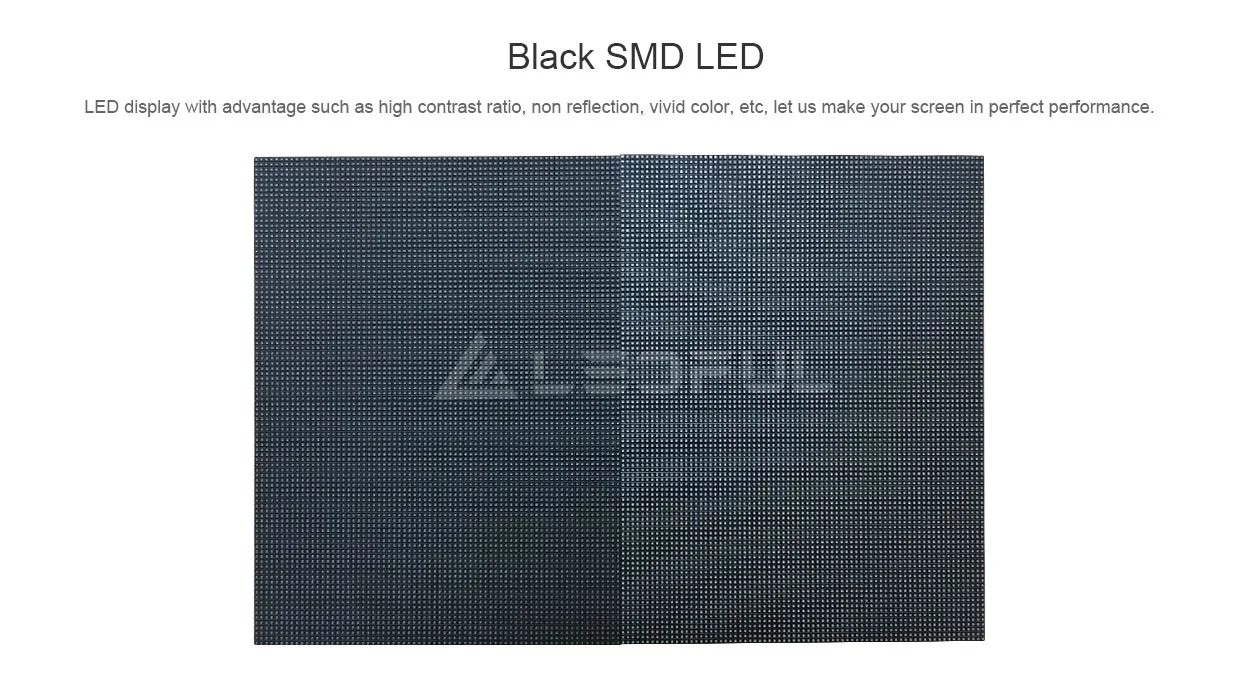

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

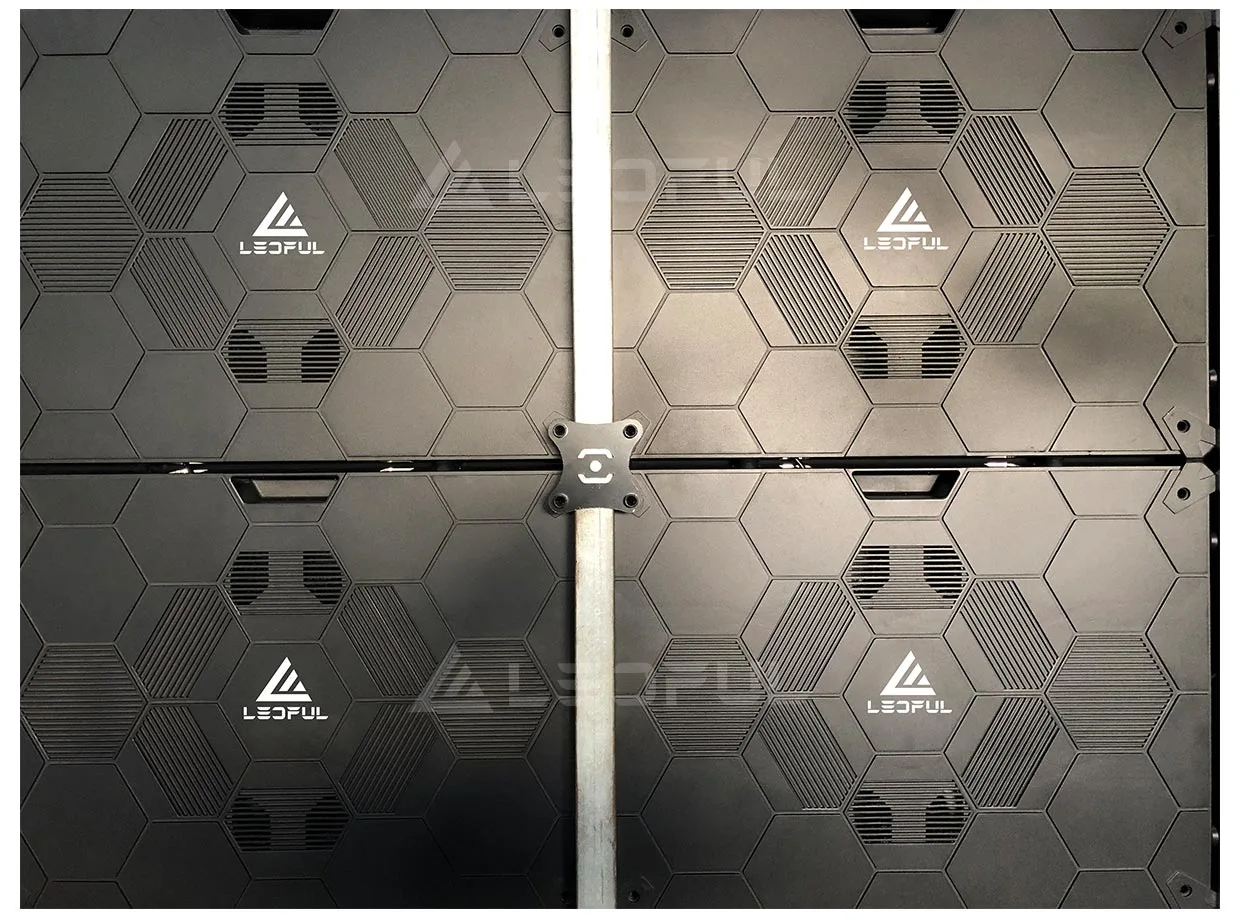

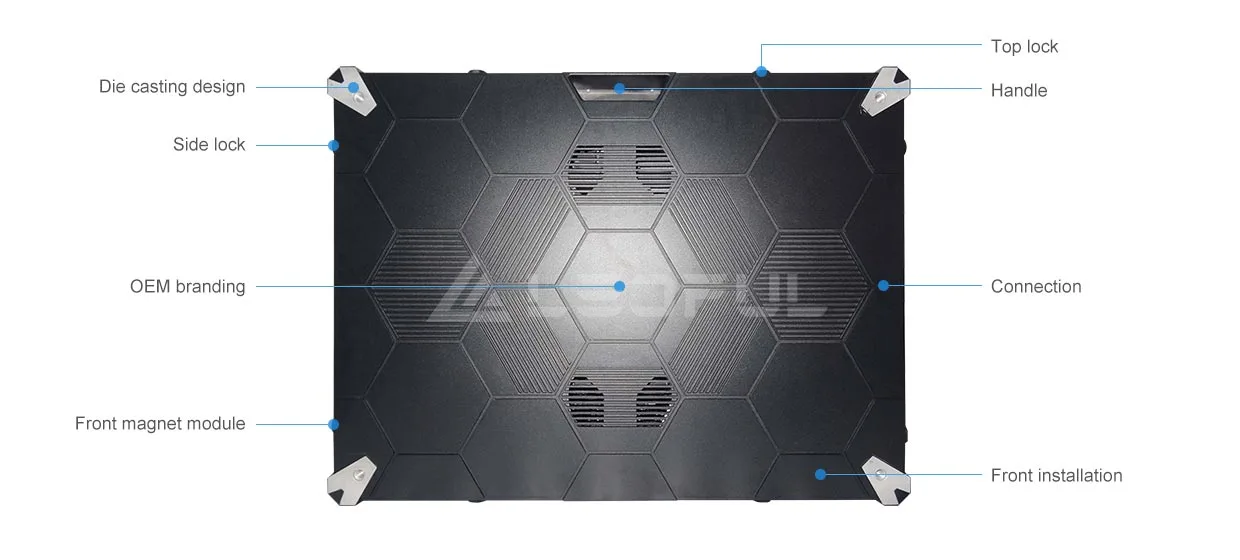

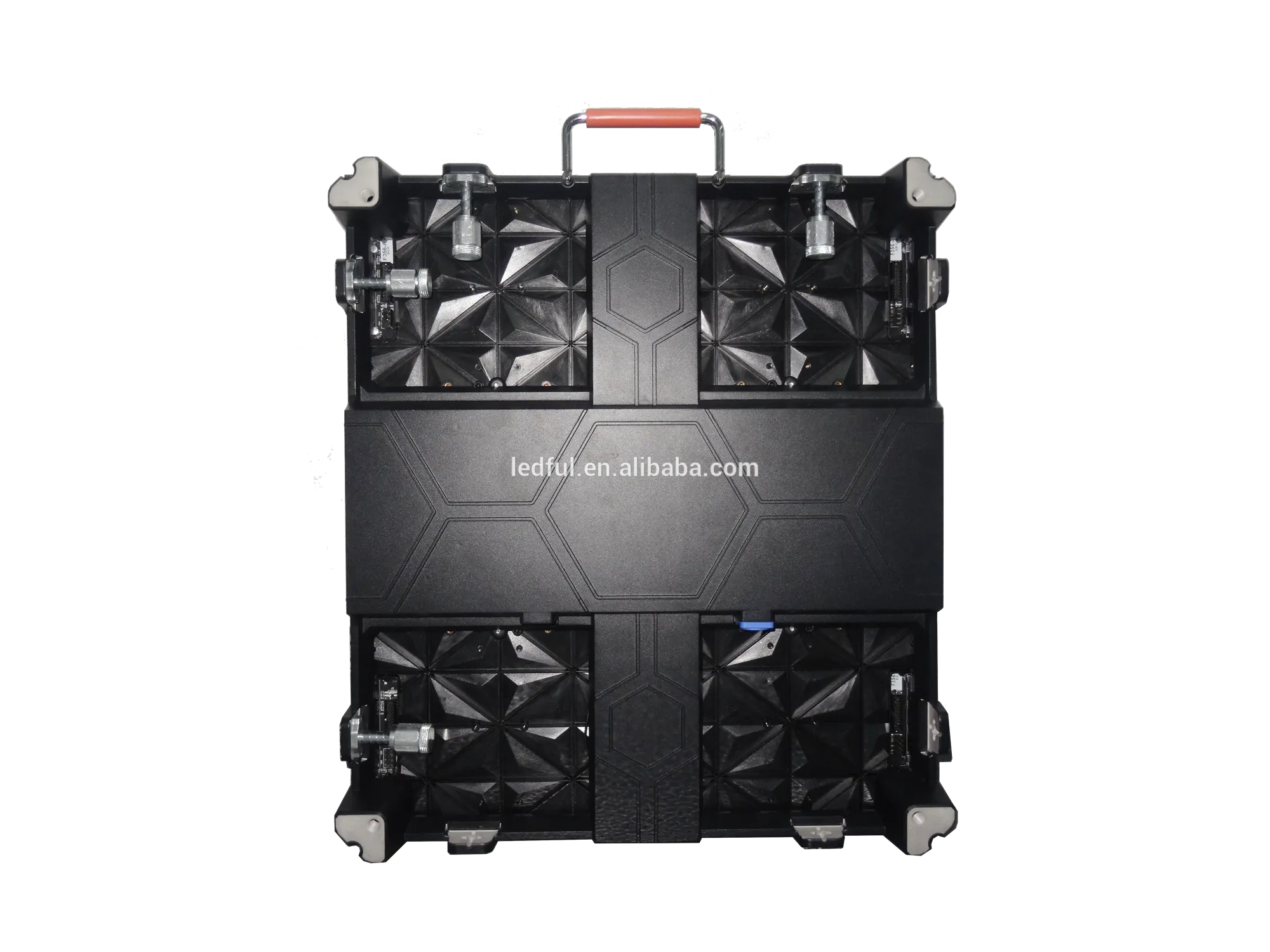

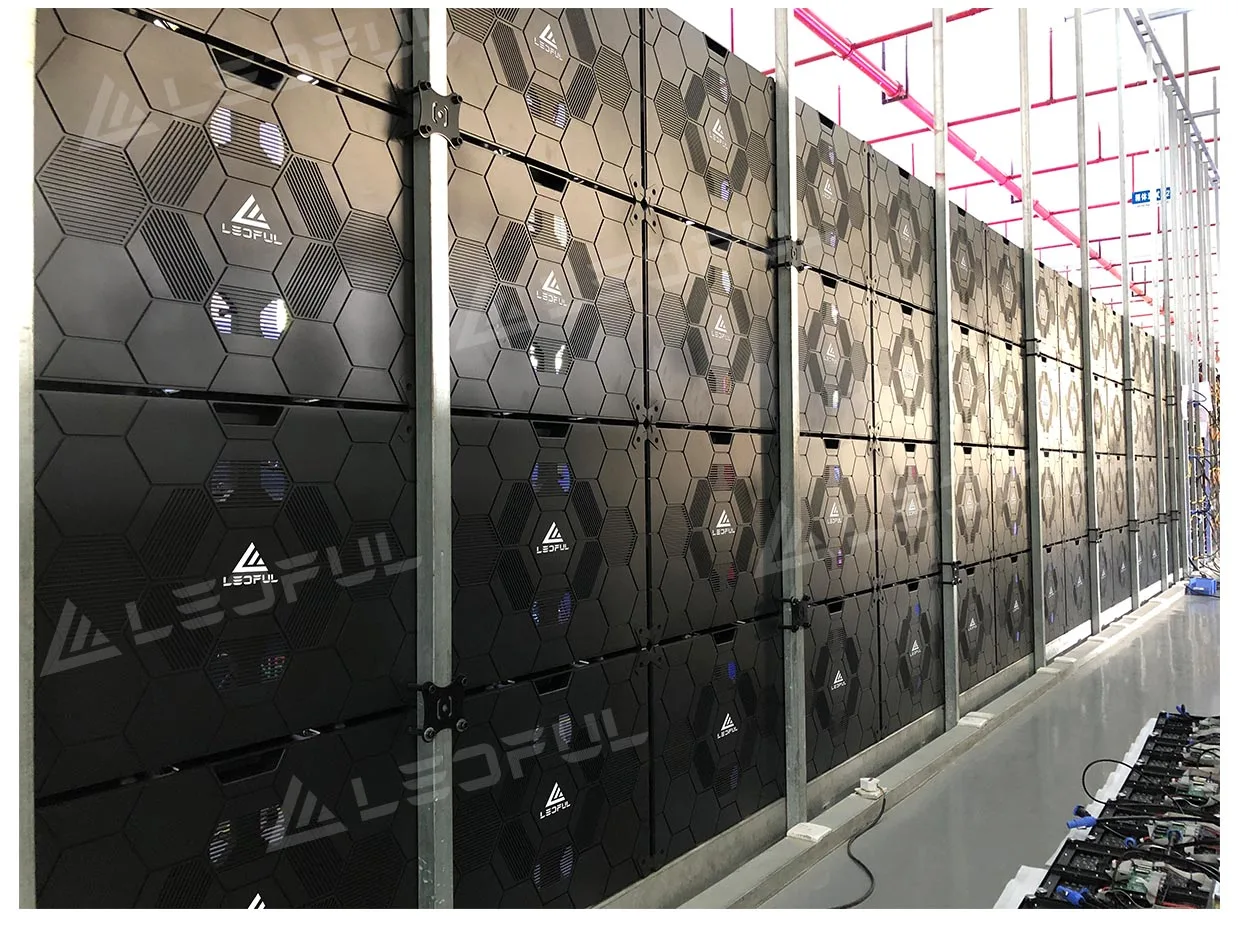

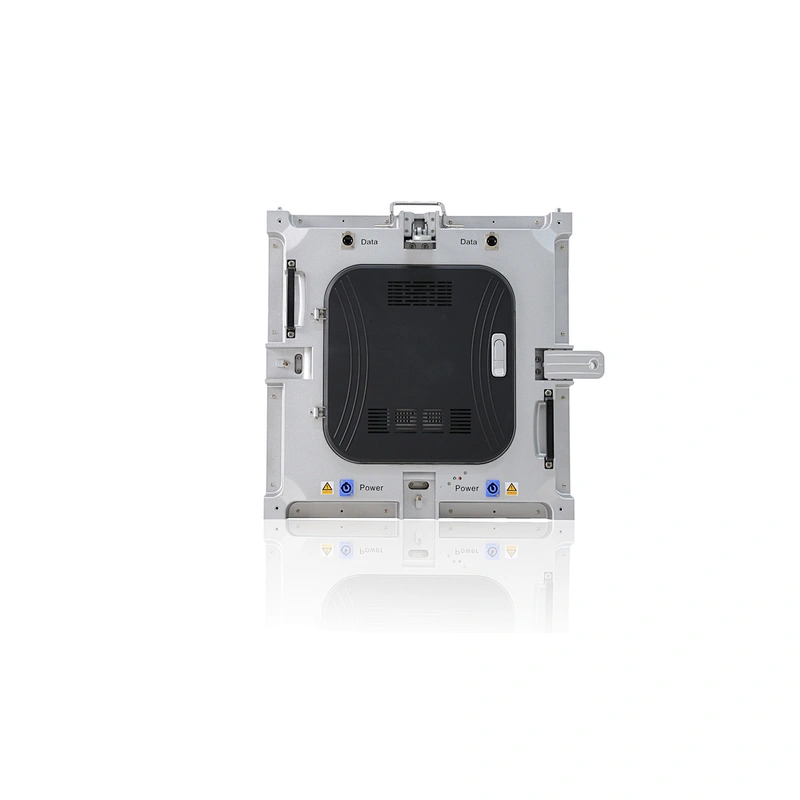

Back view and aging photos
Details Images
Value | QS1.6 | QS1.8 | QS2 | QS2.5 | QS3 | ||||||
Pixel Pitch(mm) | 1.667 | 1.86 | 2 | 2.5 | 3.33 | ||||||
Pixel Matrix Per Sq.m | 360,000 | 288,888 | 250,000 | 160,000 | 90,000 | ||||||
Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | ||||||
Brightness (nits) | 1000 | 1000 | 1000 | 1000 | 1000 | ||||||
Scan | 1/48 | 1/43 | 1/40 | 1/32 | 1/24 | ||||||
Cabinet Resolution | 384x288 | 344x258 | 320x240 | 256X192 | 192X144 | ||||||
Power Con. (Max / Avg) | 500/150 w/sq.m | ||||||||||
Module Dimension | 240x180mm | ||||||||||
Cabinet Weight | 9kg / 19.84Ib ( Die-casting Aluminum) | ||||||||||
Cabinet Dimension | 480x540mm | ||||||||||
Service Access | Full Front | ||||||||||
Refresh Rate (HZ) | ≥3840 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 160 / 160 | ||||||||||
IP Rate | IP41 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||

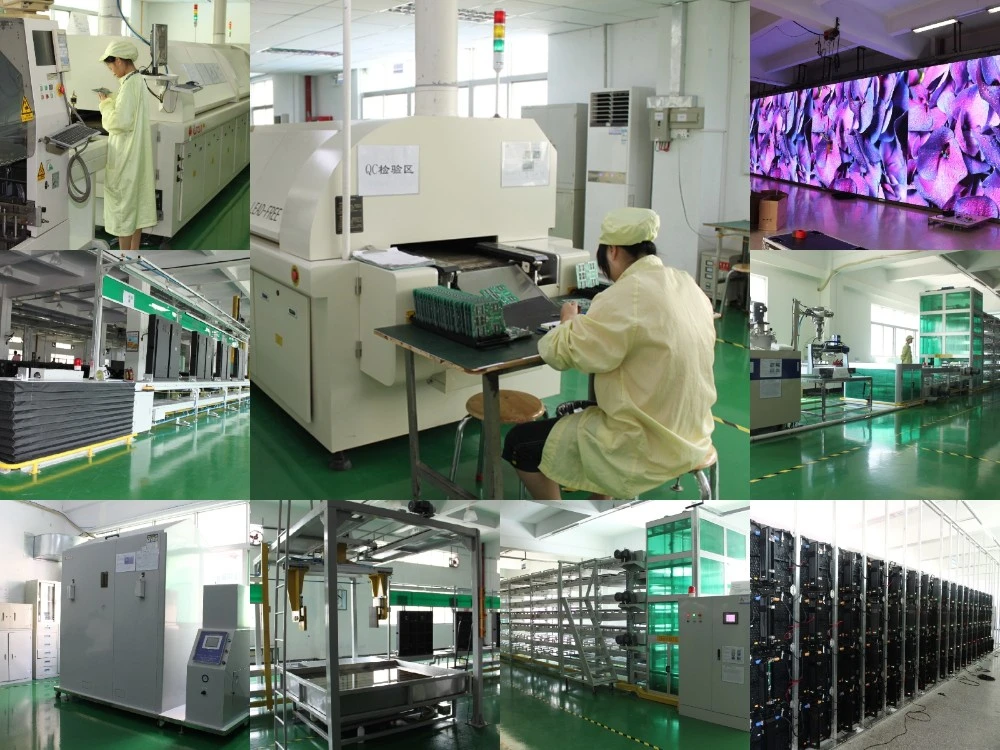

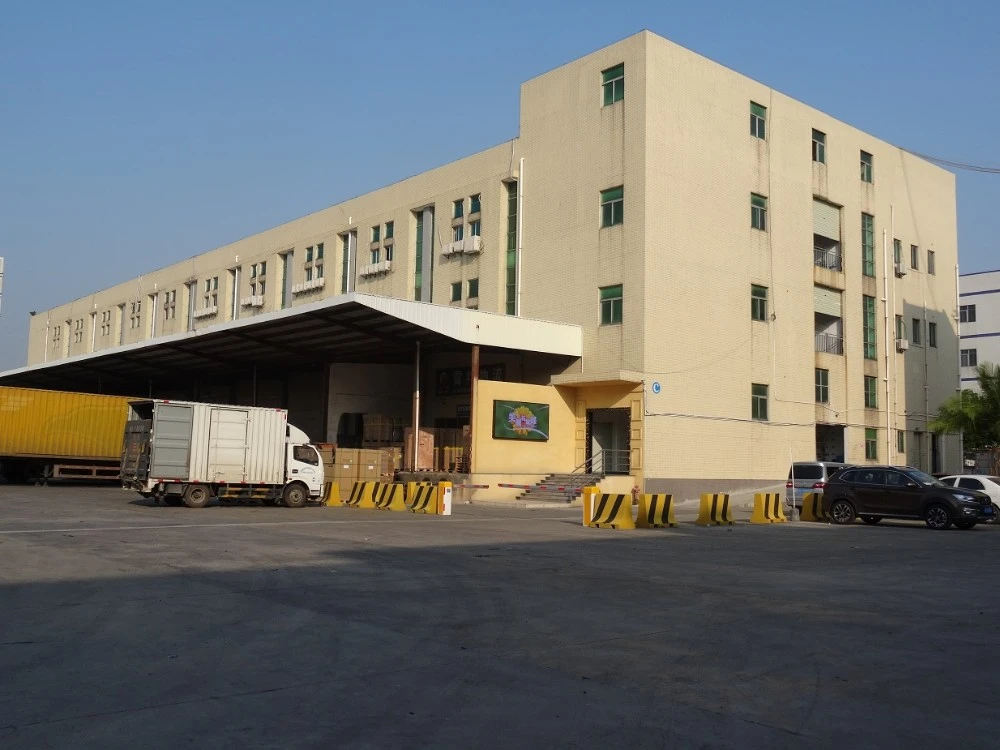

Company Profile
Top LED Display Manufacturer
LEDFUL founded in 2008 Total 209 employees in LEDFUL 3~5 years warranty on LED screen Exported to 83 countries and regions
Top reliable LEDdisplay manufacturer Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.
CE, RoHS, FCC, CCC, ISO9001:2008 standard
Professional, High Efficient and Caring
One-stop solution provider
More designs and more solutions Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic,customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
More designs and more solutions Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic,customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
Certifications
Our Advantages
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
P10/12/16/20/25: From 10/12/16/20/25 meter and more
This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.
Q5:How To Play The TVs On LED Display Panel?
A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.
1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
