- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Pixels:4.81mm
- Screen Dimension:500*1000
- Brightness:1000nits
- Refresh rate:3840
- Viewing angle:160H/160V
- Certificate:CE ROHS FCC
- Module size:250x250mm
- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:500*1000
- Pixel Pitch:4.8
- Model Number:HI4.8
- Brand Name:LEDFUL
Product Description

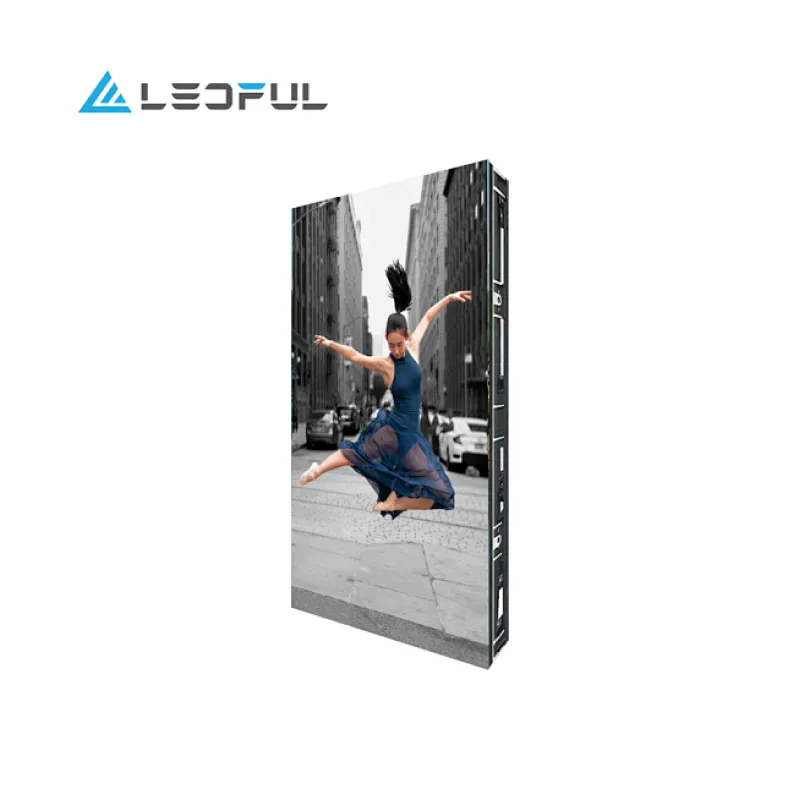

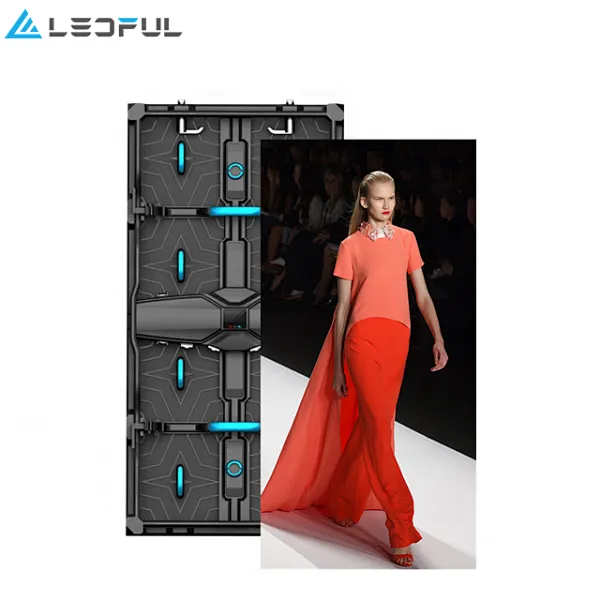

H Series
Fashion LED Event LED Display

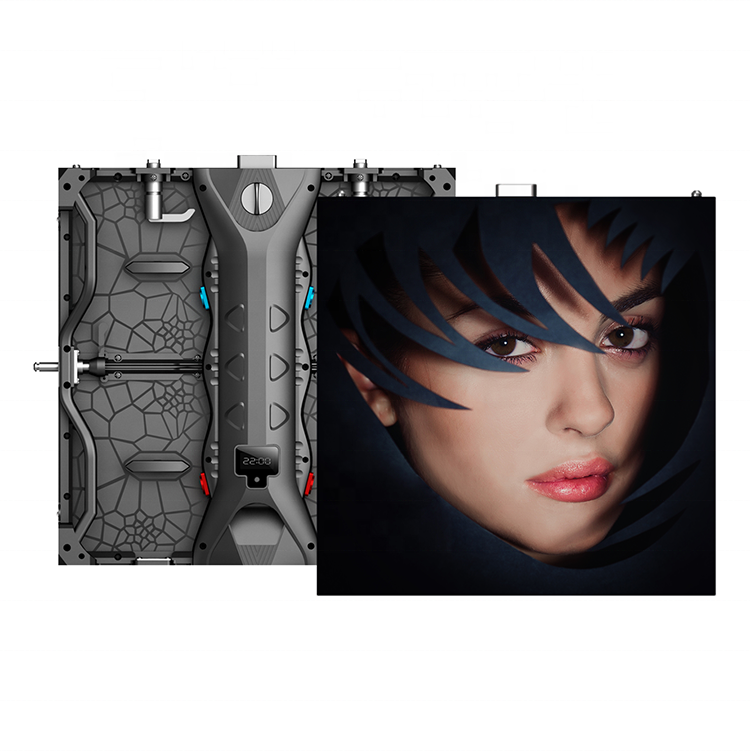

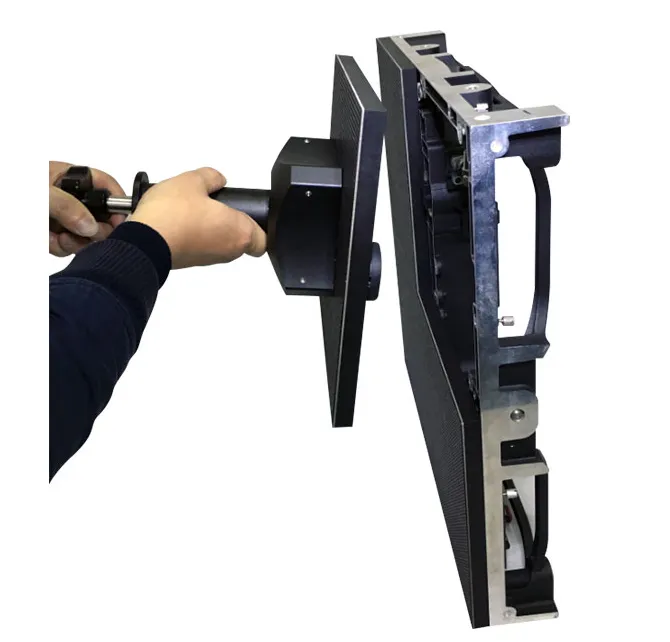

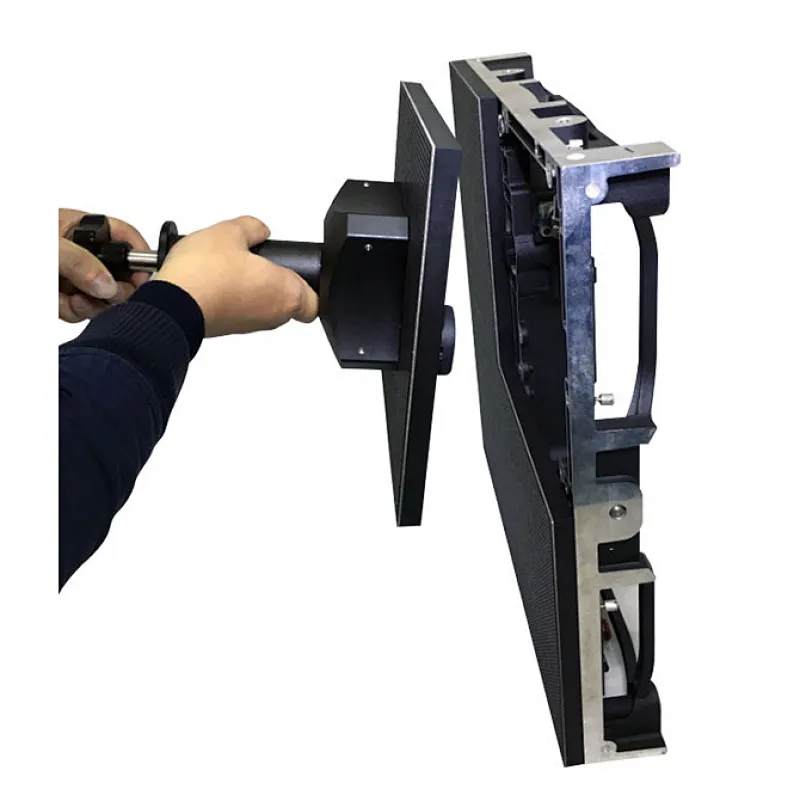

Front Maintenance
The magnet LED modules can be removed by tools on front side.

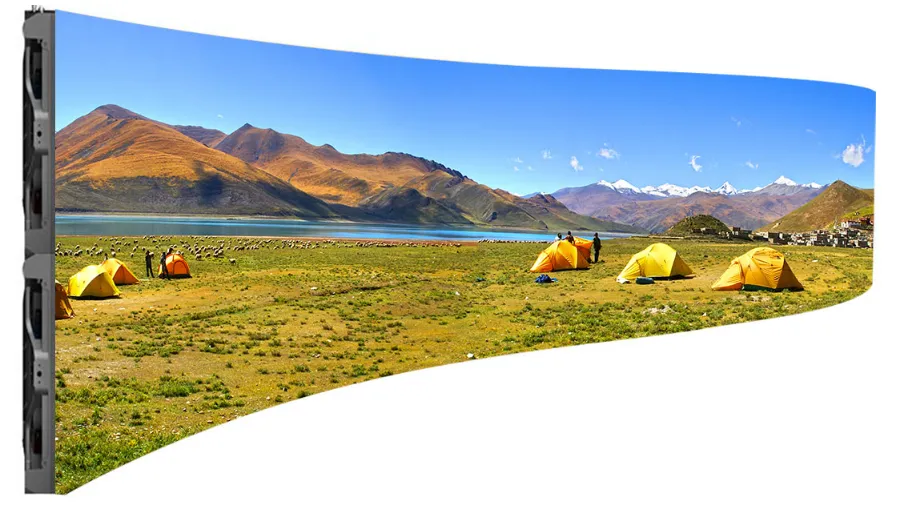

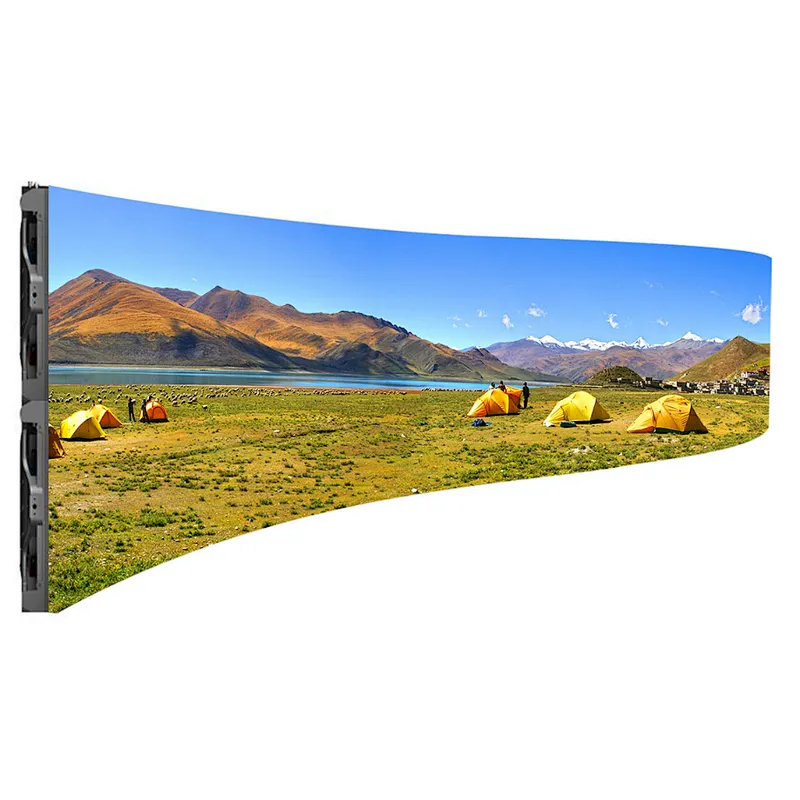

Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.

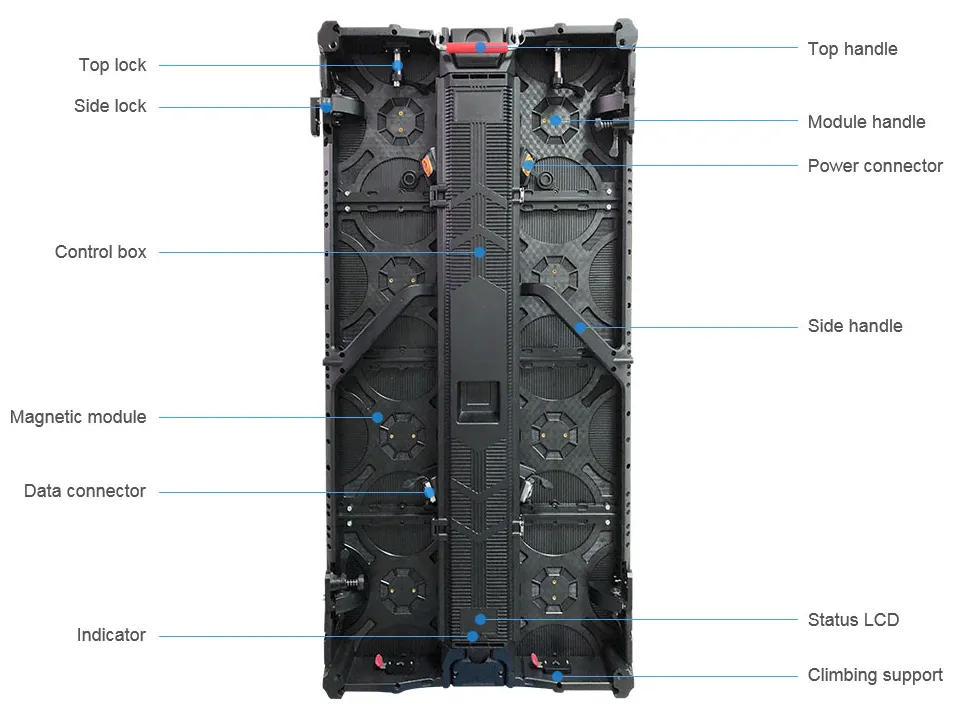

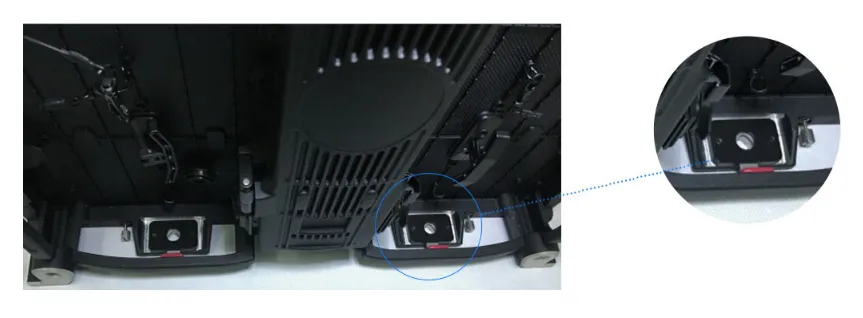

Climbing Support
Climbing structure can help you make convenient maintenance

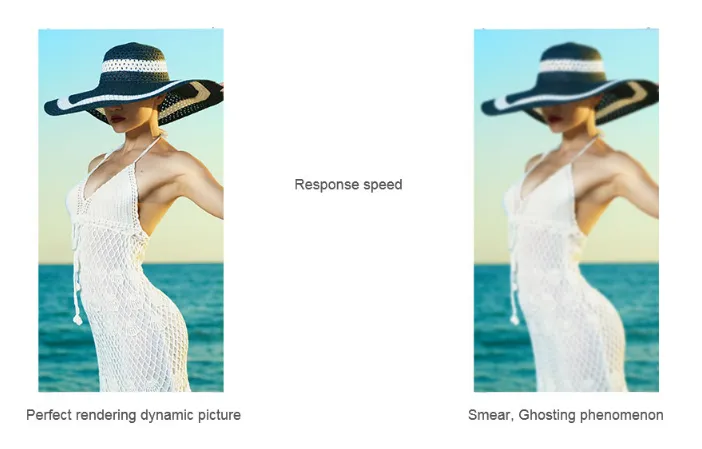

Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

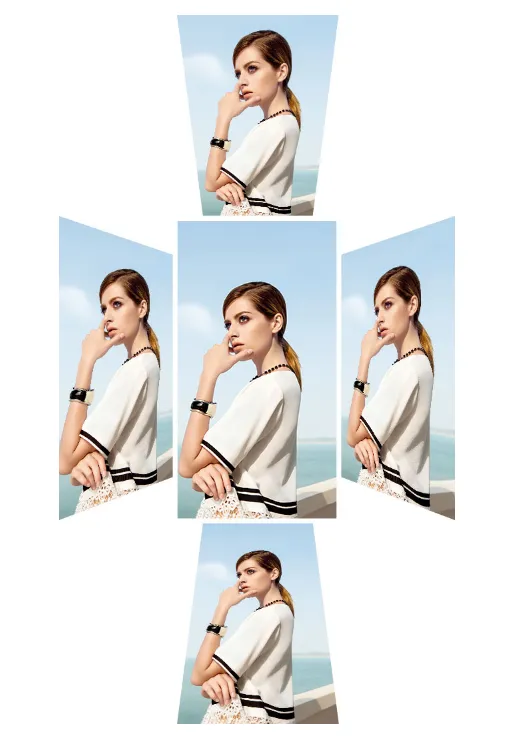

Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display

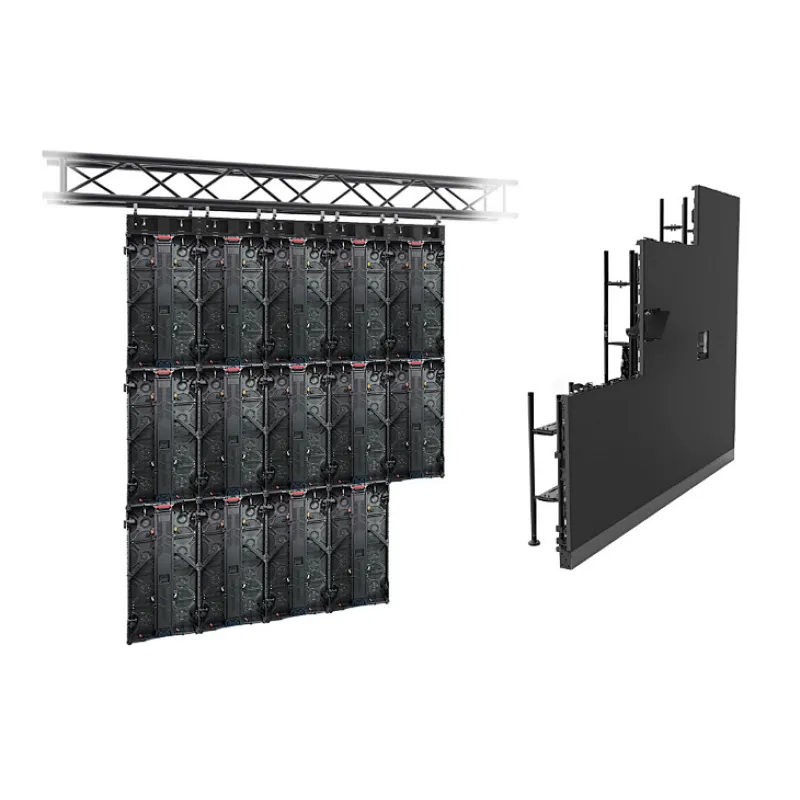

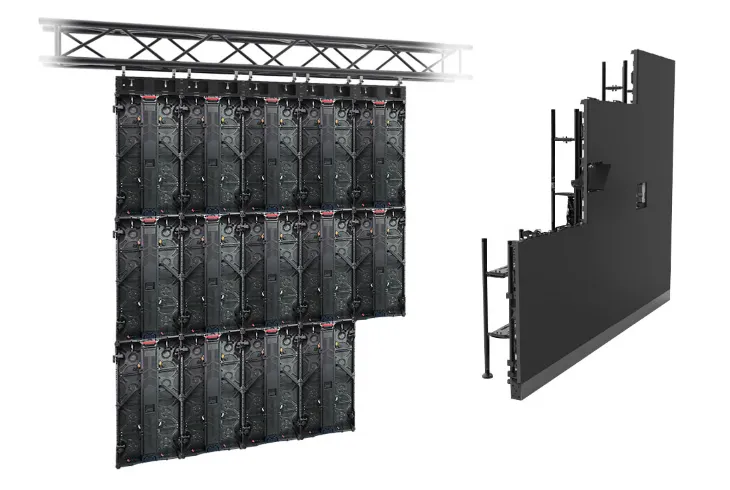

Faster & Easier Installation
Hanging or stacking, H series with light and thin features makes installation faster and easier.

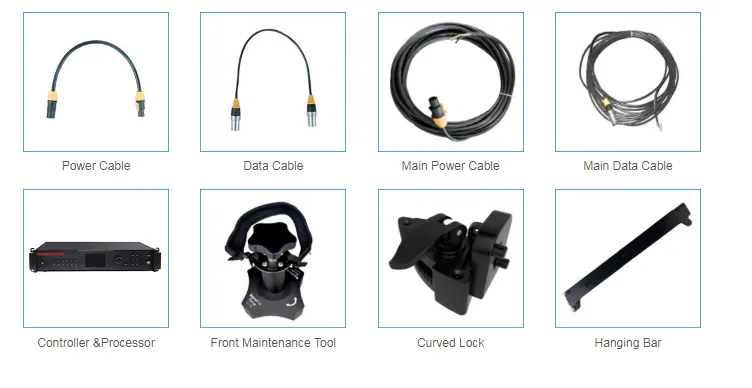

Accessories
Parameter
D Series Outdoor | HI3.9 | HI 4.8 | HI5.9 | HI6.2 | |||
Pixel Pitch(mm) | 3.91mm | 4.81mm | 5.95mm | 6.25mm | |||
Pixel Matrix Per Sq.m | 65536 | 43264 | 28224 | 25600 | |||
Pixel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | |||
Brightness (nits) | 1300 | 1300 | 1300 | 1300 | |||
Scan | 1/16 | 1/13 | 1/7 | 1/10 | |||
Cabinet Resolution | 128×128 | 104×104 | 84×84 | 80×80 | |||
Power Con. (Max / Avg) | 750 / 200 w/sq.m | 700 / 220 w/sq.m | 700 / 200 w/sq.m | 680 / 190 w/sq.m | |||
Module Dimension | 250x250mm / 0.82x0.82ft | ||||||
Cabinet Dimension | 500x500x78mm / 1.64x1.64x0.25ft | ||||||
Cabinet Weight | 7kg / 15.4Ib (( Die-casting Aluminum) | ||||||
Service Access | Front / Rear | ||||||
Rotation Angle | -7.5° and +7.5° | ||||||
Refresh Rate (HZ) | 2880 | ||||||
Grey Scale (bit) | 16 | ||||||
Viewing Angle (H/V) | 140 / 140 | ||||||
IP Rate | IP65 | ||||||
Input Voltage (AC) | 110 / 240 | ||||||

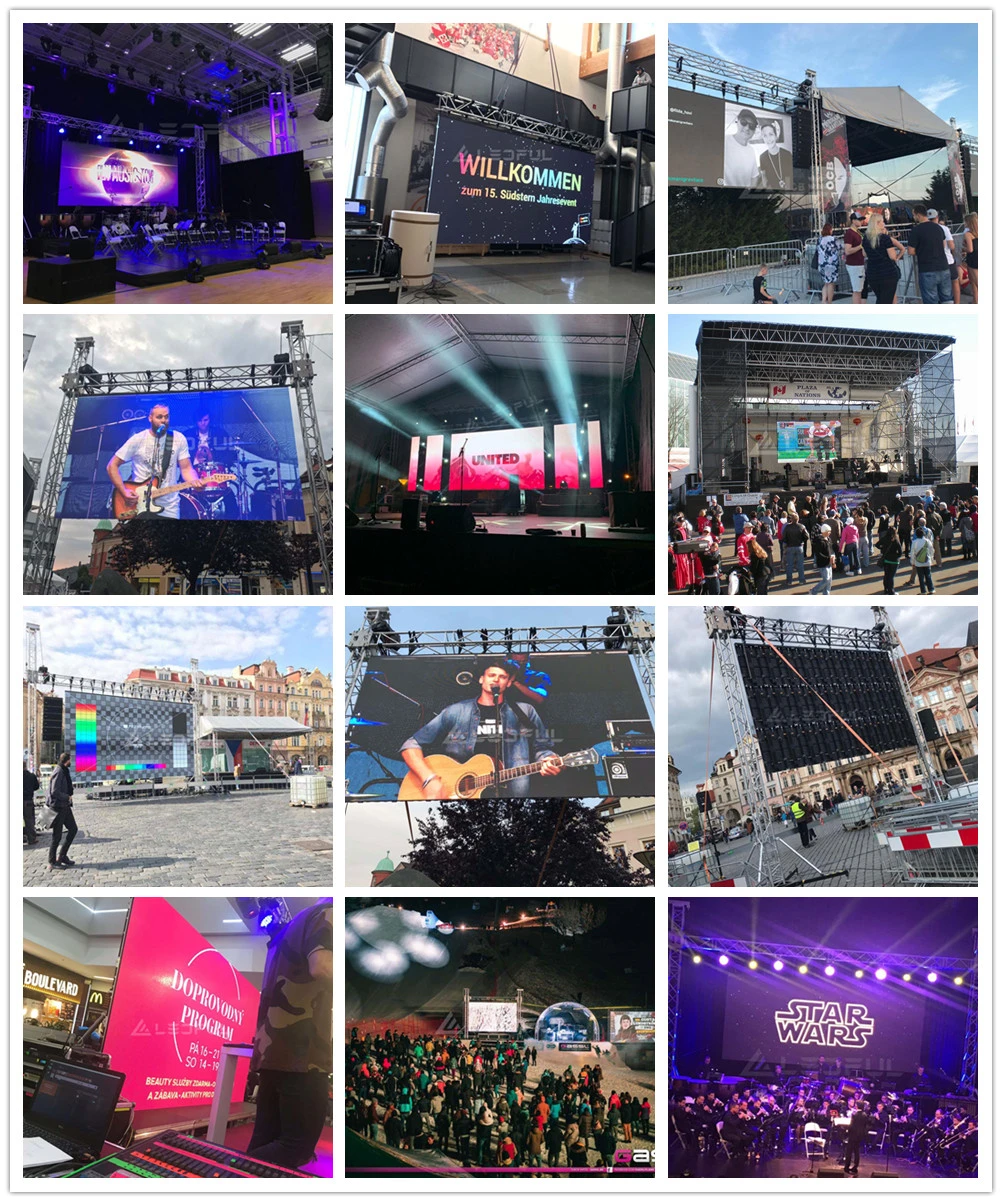

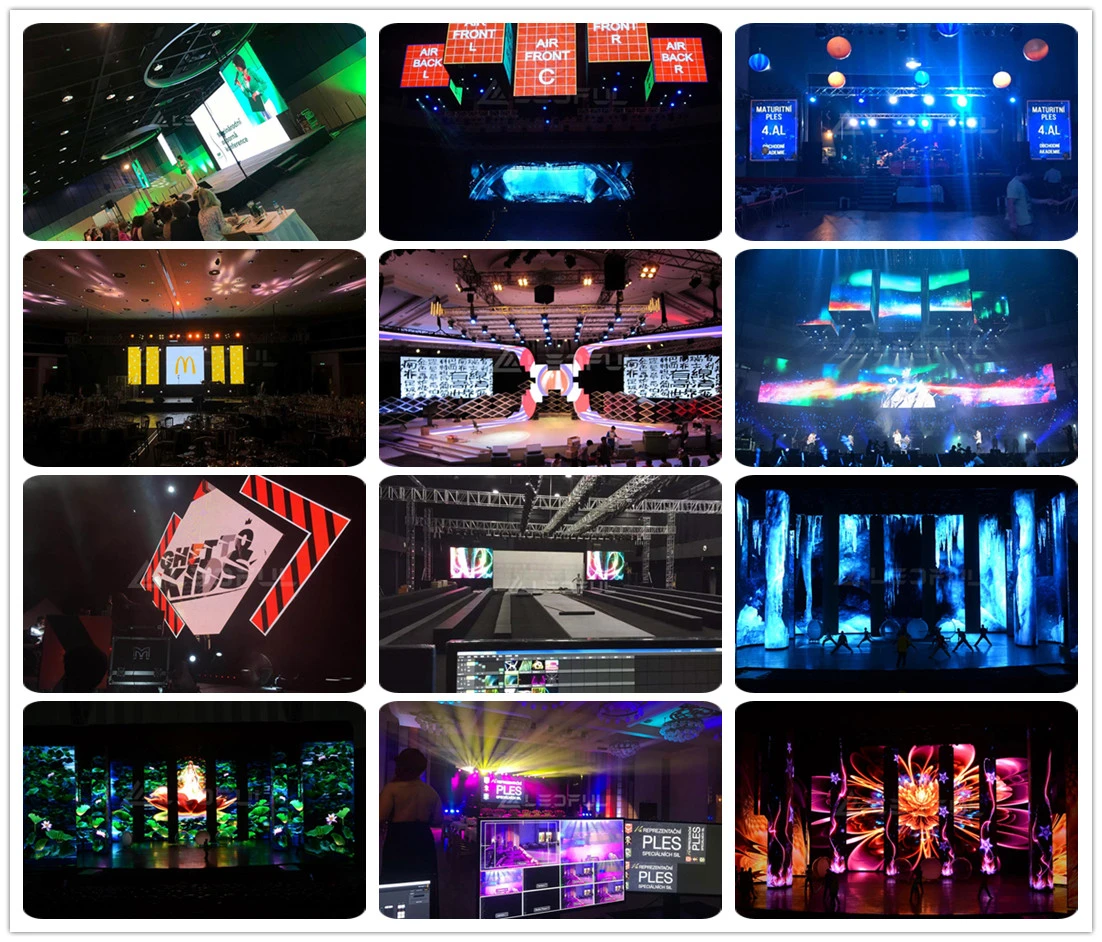

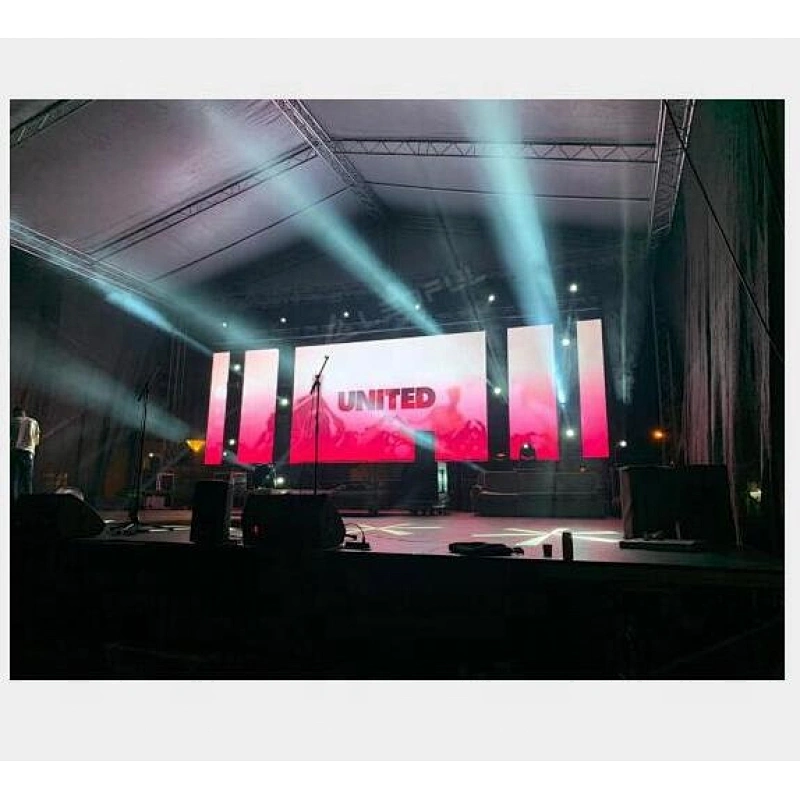

Application
Below are the customer reviews of our products, you can see their recognition of our product quality and service attitude
Our ultimate pursuit is to satisfy our customers. LEDFUL has been focusing on the export of LED display for 12 years, relying on the sincere service to customers, high requirements for products and high standards for details

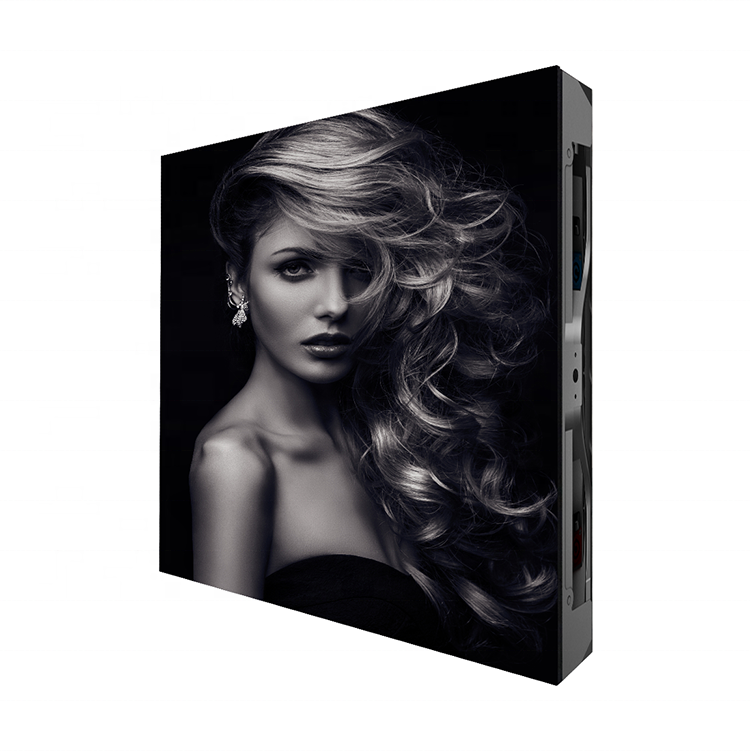

Related Products
Our Company
Top LED Display Manufacturer
LEDFUL founded in 2008 Total 209 employees in LEDFUL
3~5 years warranty on LED screen Exported to 83 countries and regions Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.CE, RoHS, FCC, CCC, ISO9001:2008 standard
Our Service
FAQ
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more This very important optio determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.
Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent
Q6. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: What is the control system?
A: We use Nova control system.
Q9: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
