SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000
SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000
SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000
SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000
SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000
SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000
SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000

SMD Indoor P4 round stage background P3.9 Rental 500x1000mm led display video wall panel 500*1000

  • Minimum order quantity1
  • Supply Ability2000.0 / Month
  • Country of OriginYANTIAN,SHEKOU
  • Categories: 500*1000 E Series
    Model NO.: EI3.9
    • Usage:indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:video
    • Warranty: 3 Years:LED chip: Epistar
    • Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
    • Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
    • Application: Rental:Control system: Linsn /Nova
    • Input Voltage (AC): 110V / 240V:Viewing Angle (H/V): 140 / 140
    • Screen Dimension:500*1000mm
    • Pixels:3.91mm
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:EI3.9
    • Brand Name:LEDFUL
    Product Description



    E Series

    Indoor & Outdoor Rental LED Display




    EI2.6 | EI2.8 | EI2.9 | EI3.9 | EI4.8 | EI5.9 | EI6.2

    EO3.9 | EO4.8 | EO5.9 | EO6.2

    ★Front Maintenance
    ★Curved Installation
    ★No Light Leakage
    ★Light and Thin
    ★Cost Effective

    Product Name
    EI 3.9
    Pixel Pitch(mm)
    3.91mm
    Pixel Matrix Per Sq.m
    65536
    Pixel Configuration
    SMD2121
    Scan
    1/16
    Cabinet Resolution
    128×256
    Power Con. (Max / Avg)
    700 / 220w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft

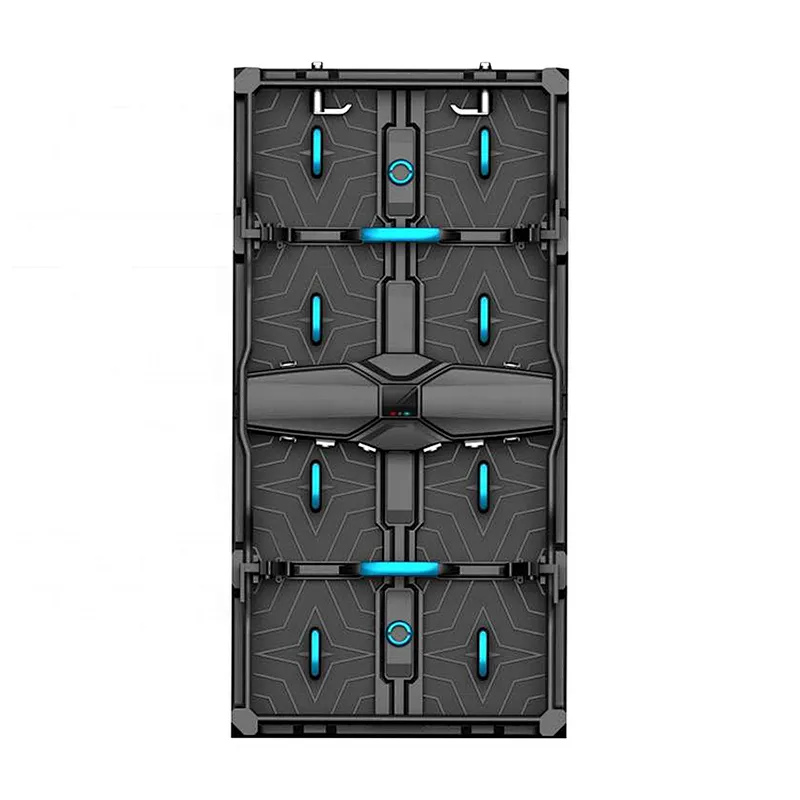

    Cabinet Dimension
    500x1000x80mm / 1.64x3.28x0.26ft
    Cabinet Weight
    13kg / 28.66Ib (( Die-casting Aluminum)
    Service Access
    Front / Rear
    Rotation Angle
    -10° and +10°
    Brightness (nits)
    ≥1000
    Refresh Rate (HZ)
    3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP31
    Input Voltage (AC)
    110 / 240

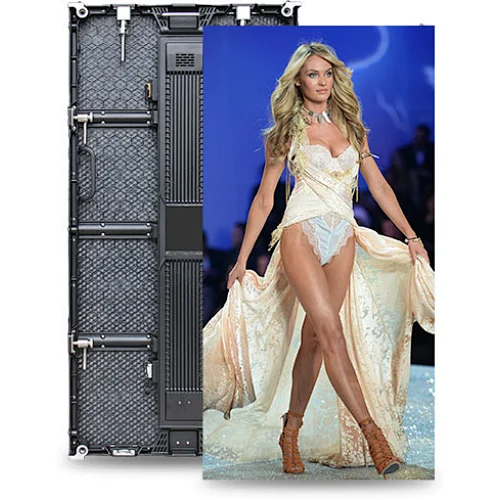

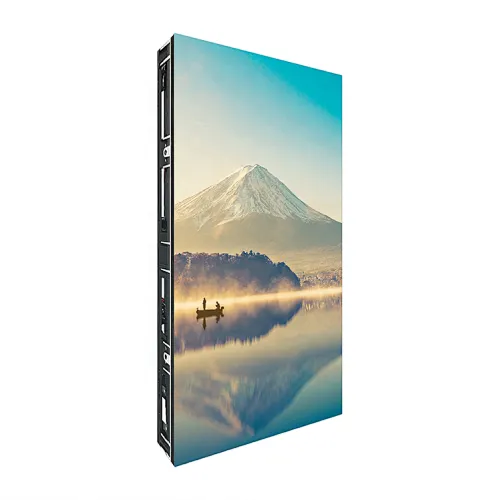

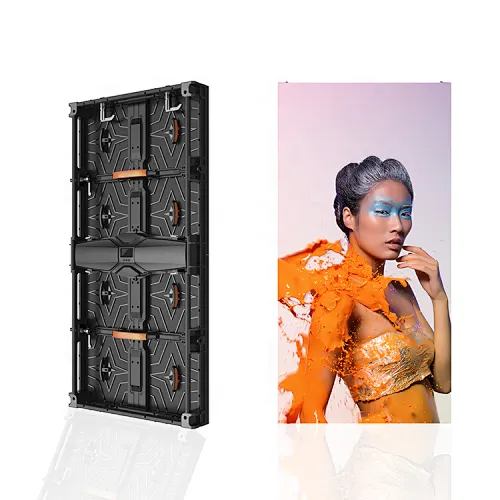

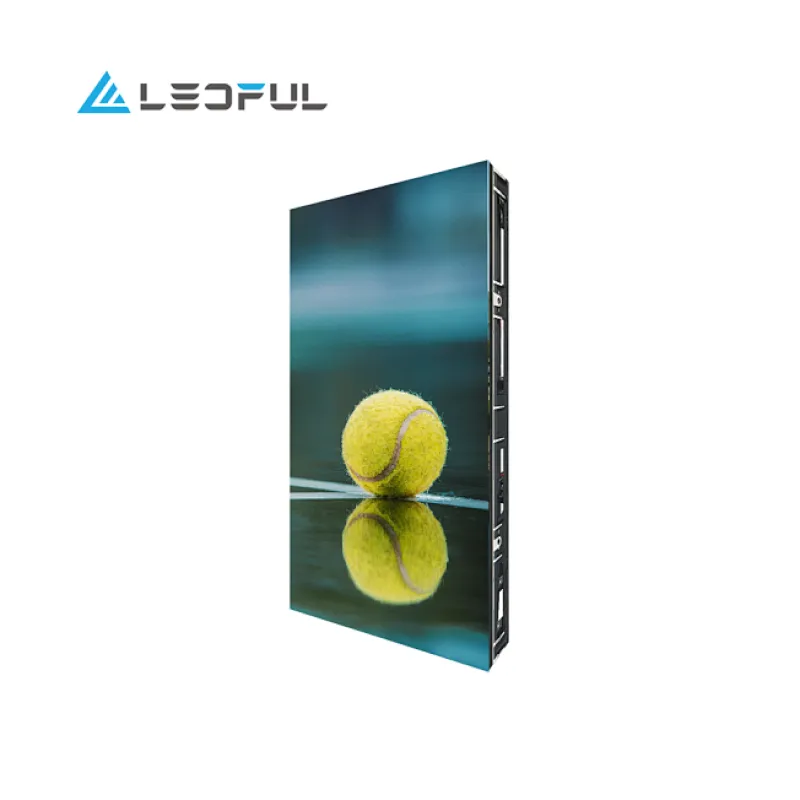

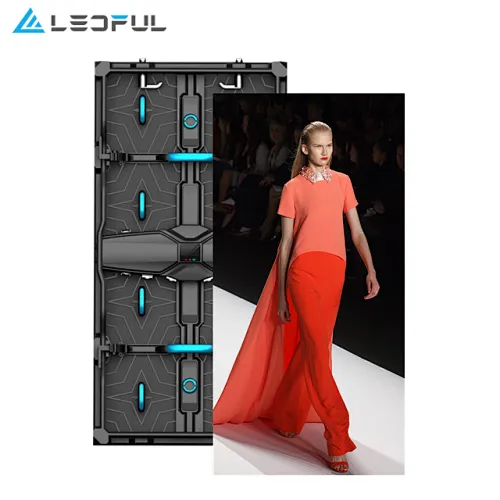

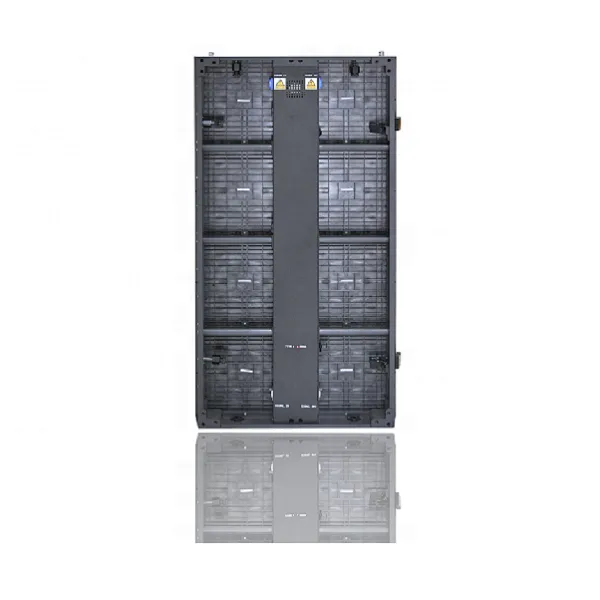

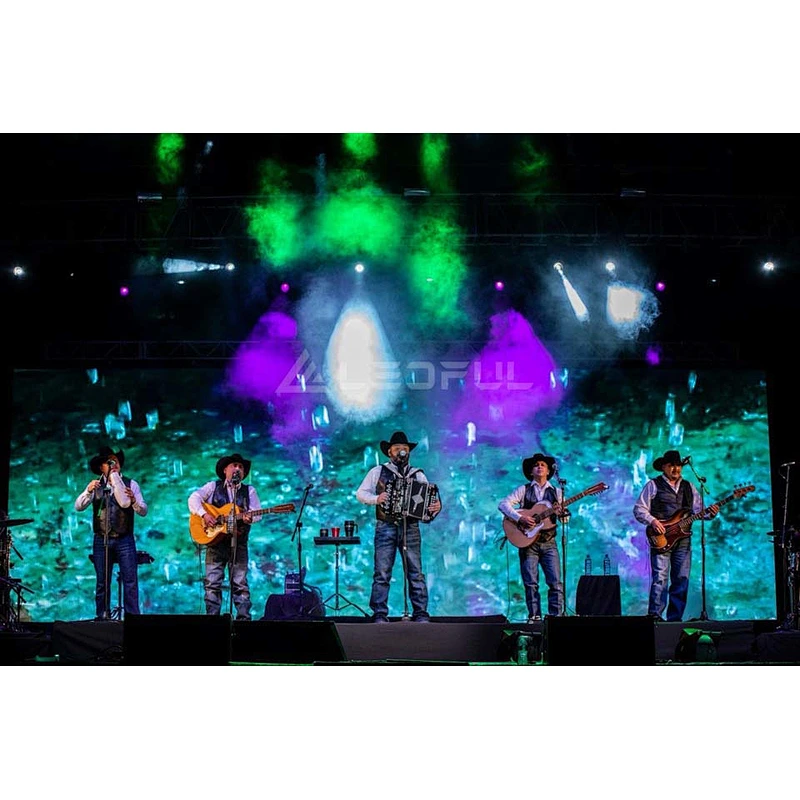

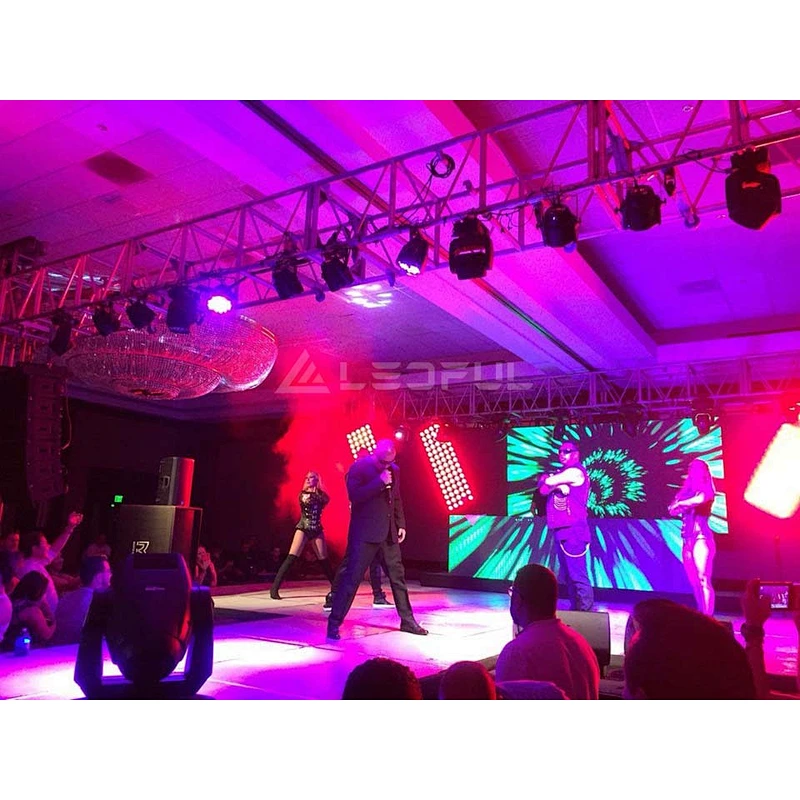

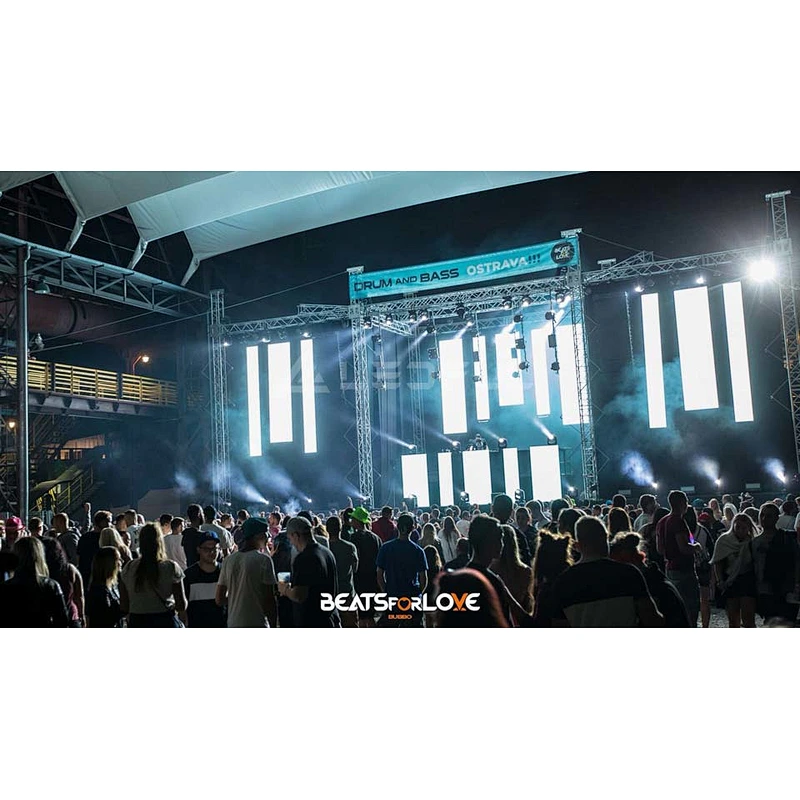

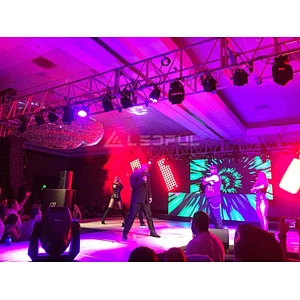

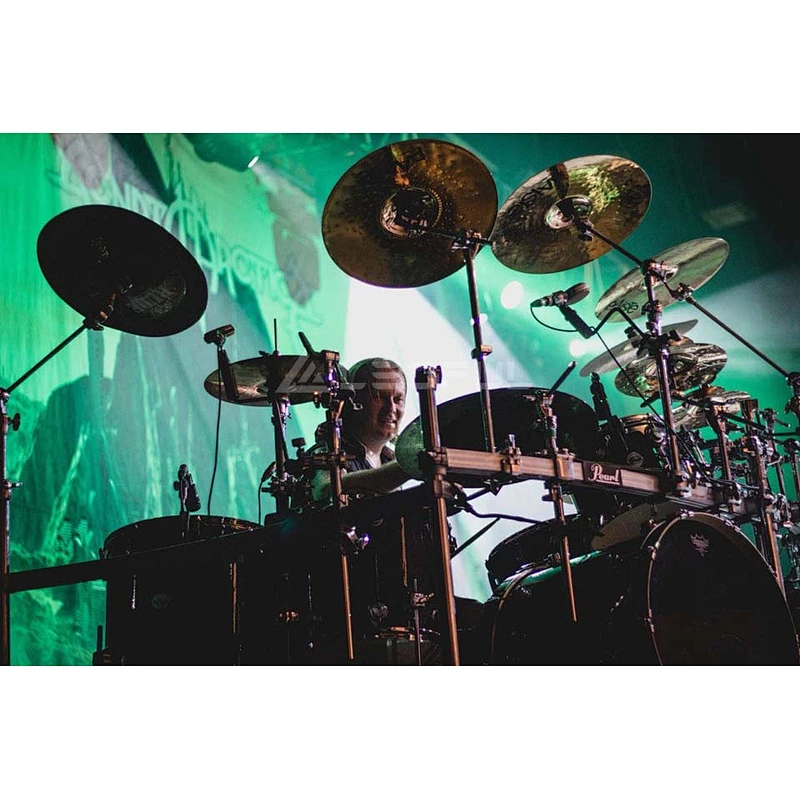

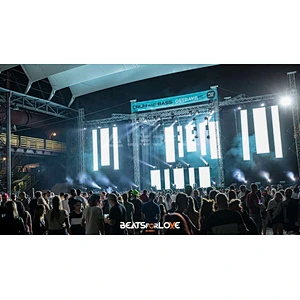

    Products Show

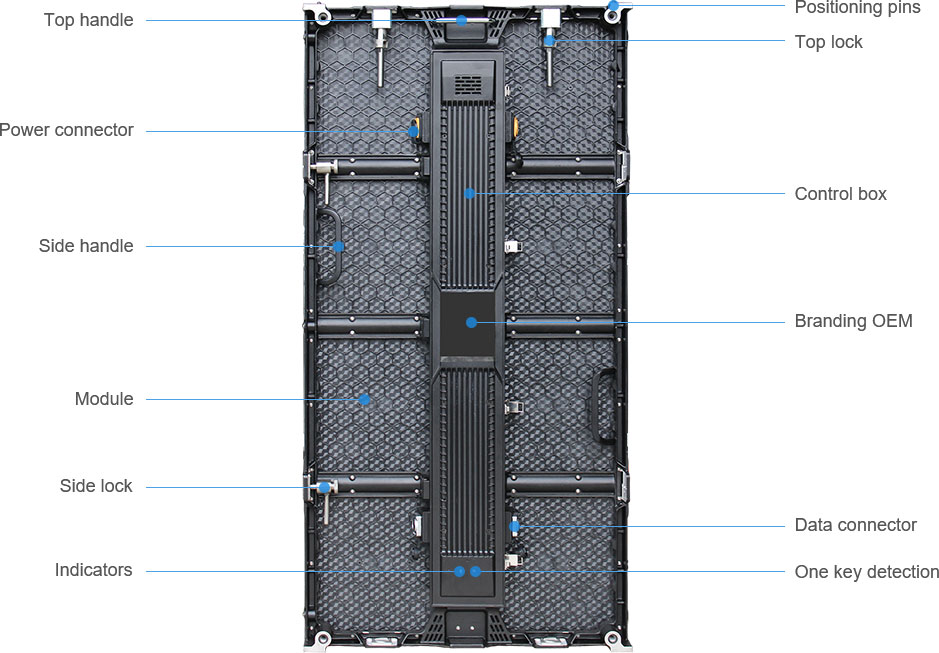

    Details

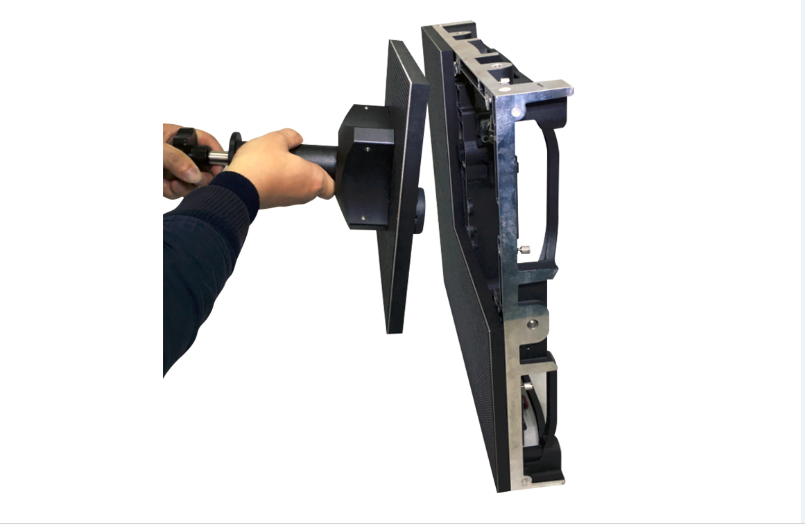

    Front Maintenance

    The magnet LED modules can be removed by tools on front side.




    Curved Installation

    Curved with every 2.5° between -10°and 10°, which can make convex and concave.

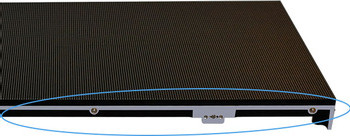

    No light leakage trouble

    No light leakage design with specific strips on side of cabinet and behind neighbour module.

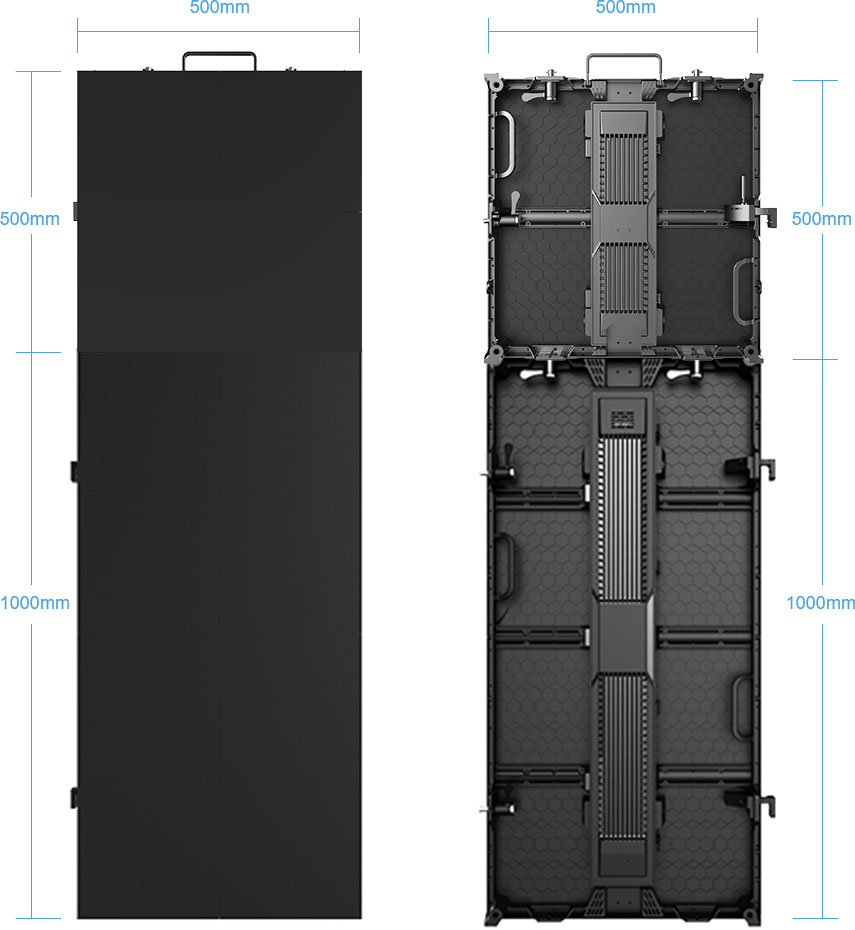

    Cost Effective Option

    E series is"double L series"which will save cost and time during installation.
    L series and E series can be installed together for various installation.

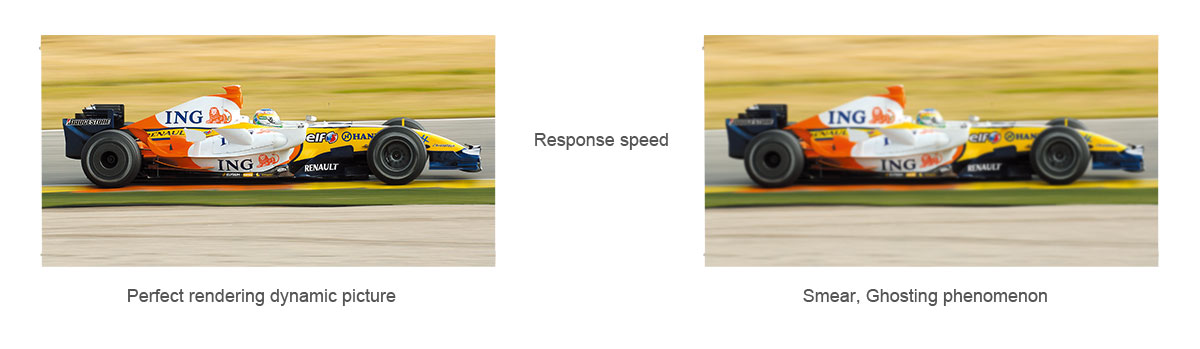

    Ultra Fast Response

    The response speed exceeds the response limit of the naked eyes,
    while playing the high speed dynamic images in an LED Screen,
    it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

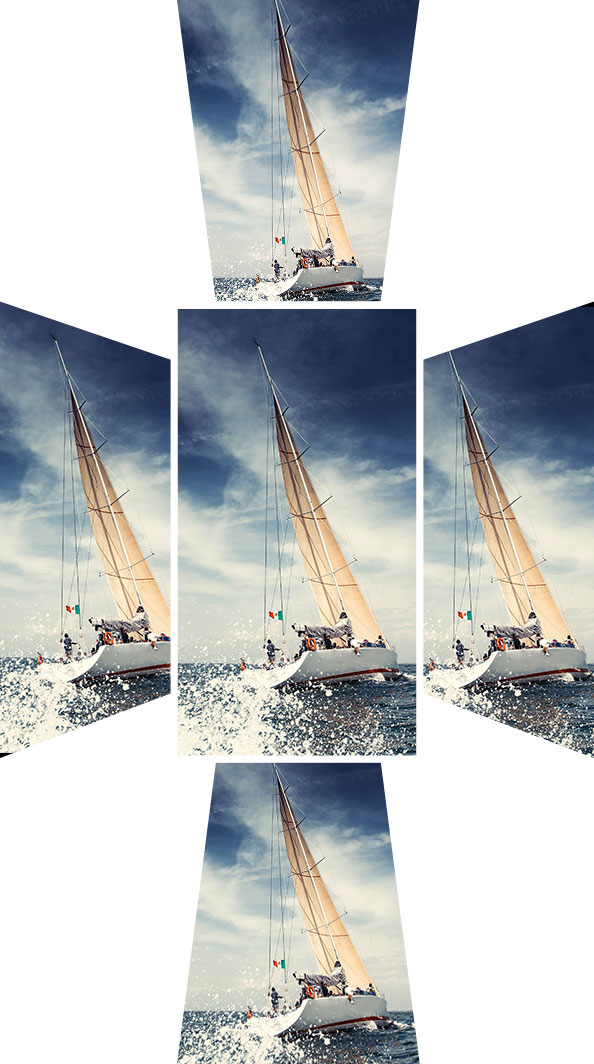

    Ultra Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle.
    Seeing from five directions, it would be still the natural and clear image in an LED display.

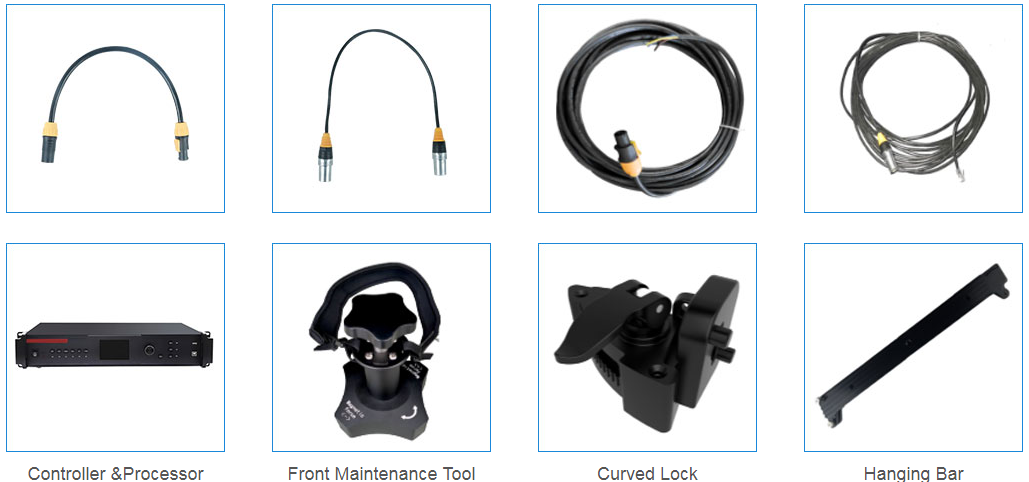

    Accessories


    Our Company
    Packing & Delivery

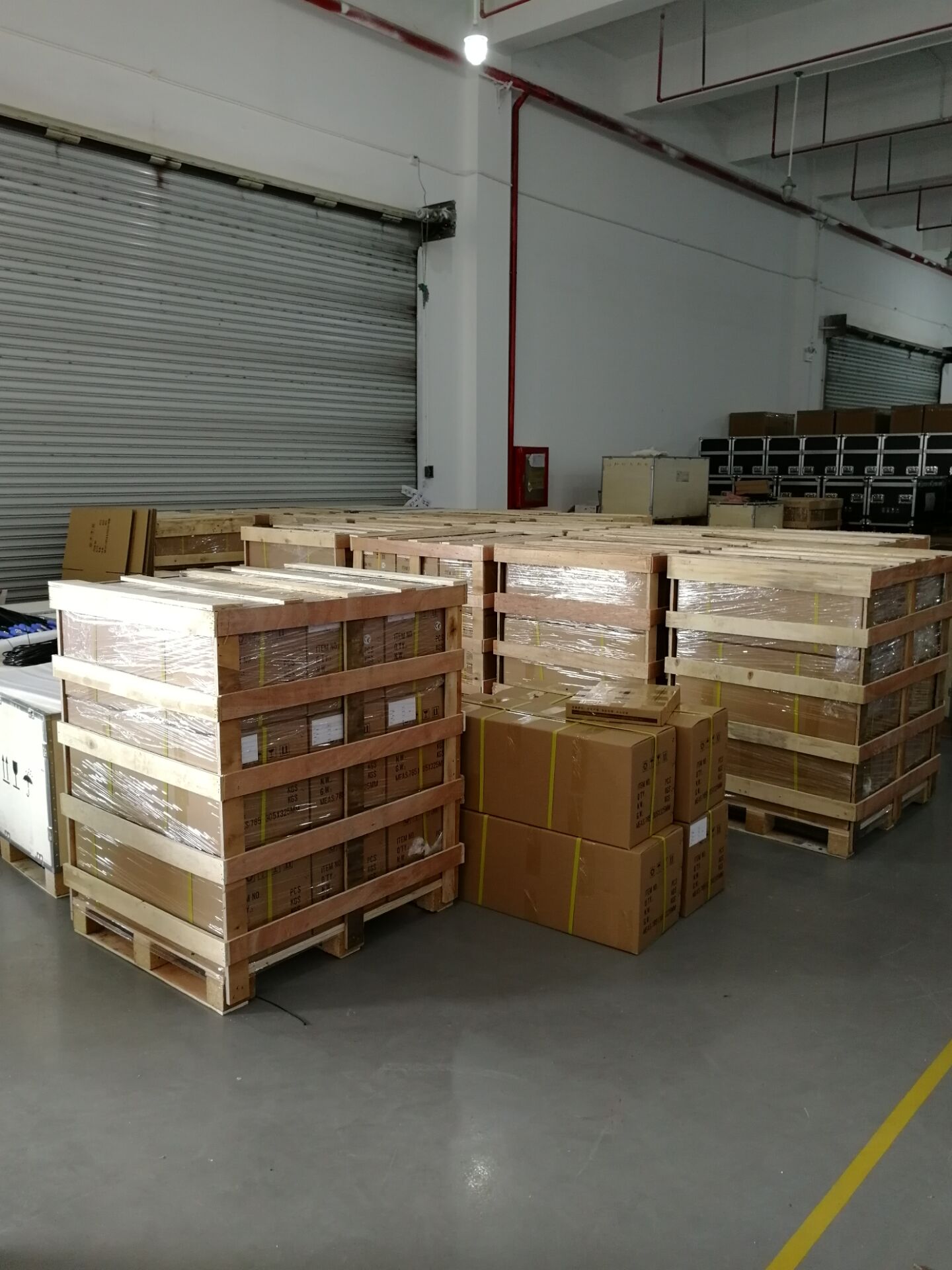

    Packaging
    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

    Shipping
    1. By sea or by air;
    2. Customer specified freight forwarder or negotiable mode of transport;
    3. Delivery Time: 15-25 days for batch goods.


    Plywood box

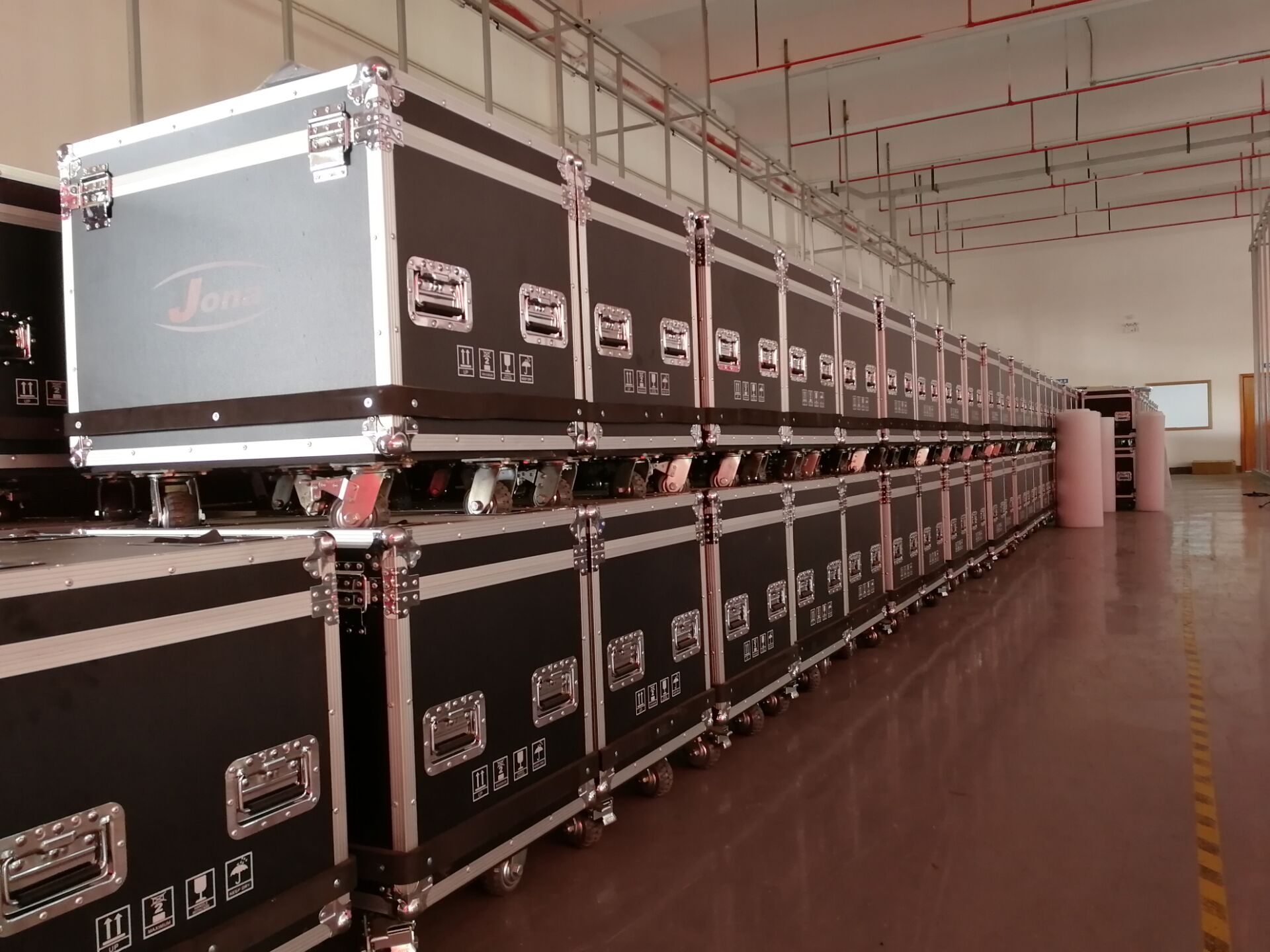

    Flight case
    EPE(Expandable Polyethylene)
    Our Service


    1)Reply your inquiry in 24 working hours.
    2)Customized design is available ,OEM & ODM are welcomed.
    3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
    4)Guidance service: We can guide on line if customers have questions about the installation and usage.
    For large project, we provide your engineer free training, or our engineer can go to customer's country for on-site guidance.
    5) Warranty period: 3 years after shipment.

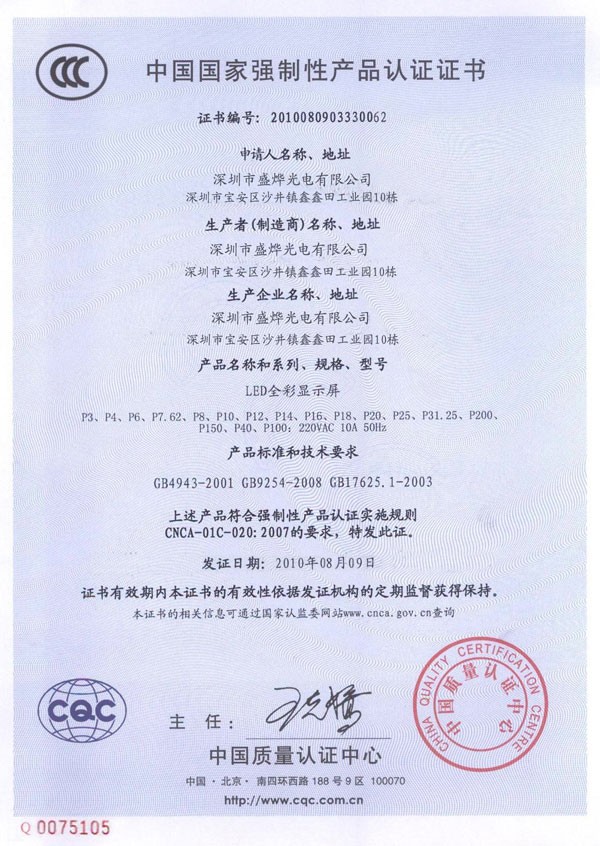

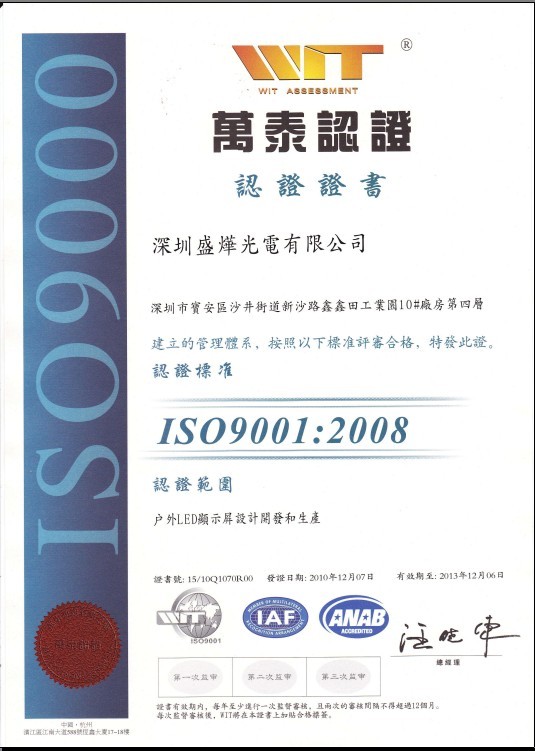

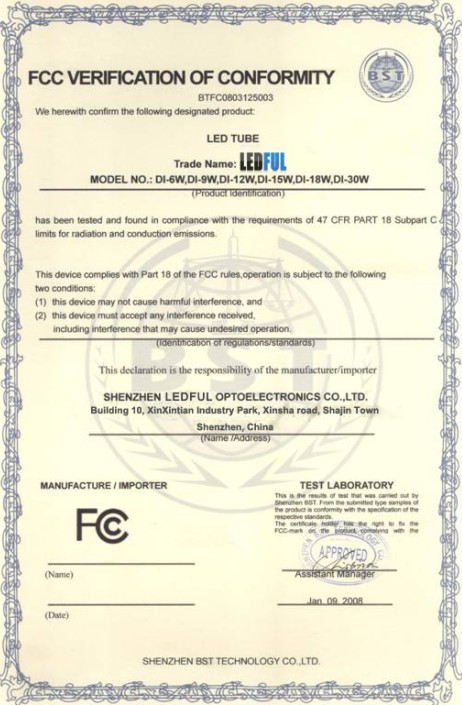

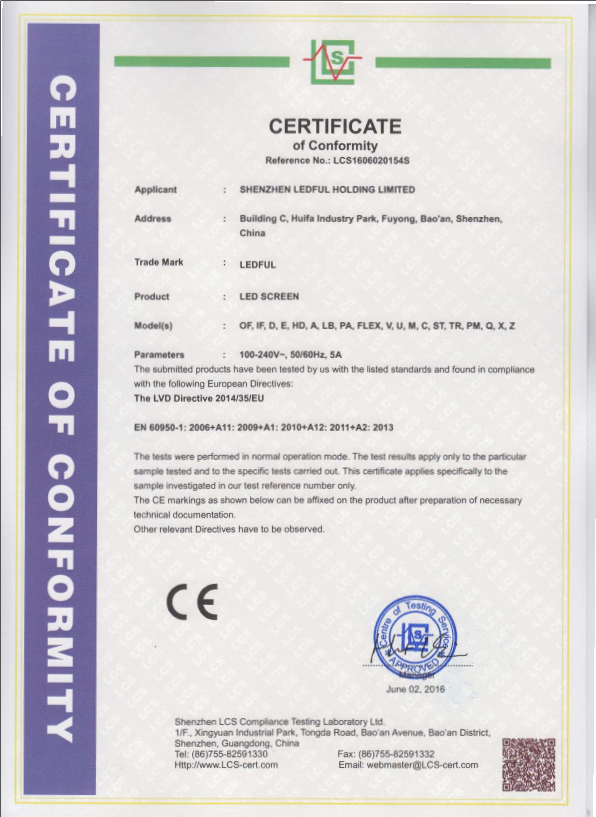

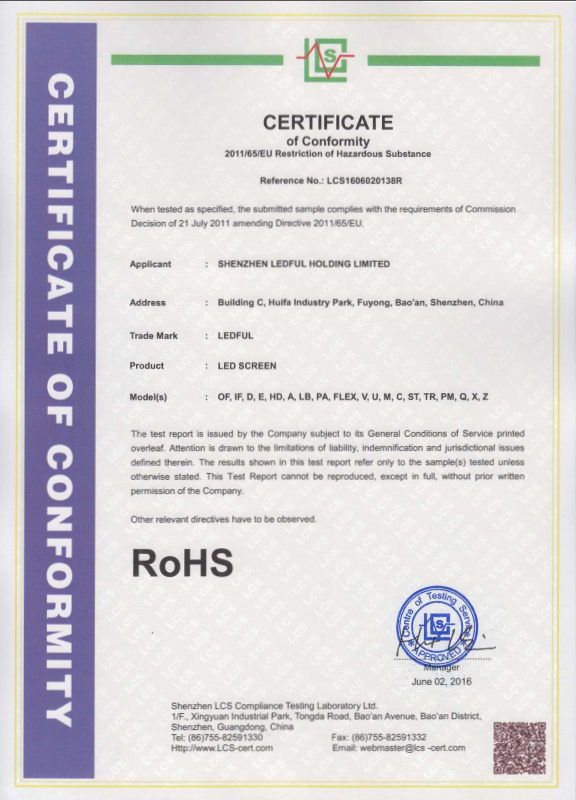

    Our Certifications


    Why Choose LEDFUL

    ▲Deep Customized & OEM
    ▲Listen to you, think more for you.
    ▲Lifelong maintenance with reasonable price
    ▲Clear cost initially to save your time and money.
    ▲Provide with innovative and satisfying products
    ▲Excellent product quality, quick and professional services
    ▲Always ready for your any change on LED display details.
    ▲Recommend the best proper solution for your LED project.
    ▲Catch things what you missed before LED display production.
    ▲Take good care of each detail for your products, packages,shipping

    Best Balance of Quality & Price



    How We Do

    ▲One-stop solution provider
    ▲More designs and more solutions
    ▲Wireless control, 4G, Wifi, Cluster control
    ▲Truss hanging, stacking, touring, LED ceiling, video floor
    ▲Irregular shaped, flex, curved, round, sphere, cubic, customized
    ▲Focus on the improvement and innovation of rental LED cabinets
    ▲High efficient and enthusiastic team to make reliable LED display
    ▲Our partners are Media Companies, Stage Designer, Project Manager,
    ▲Pro Audio, Light and Video companies, AV Rental Equipment companies,
    ▲Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

    Professional, High Efficient and Caring

    FAQ


    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2: What is the control system?
    A: We use Nova control system.

    Q3. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
