★1 Second Exchangeable Box ★Full Front Maintenance ★Curved Installation ★Work with T series ★Light and Thin
Product Name
XI 2.6
Pixel Pitch(mm)
2.604mm
Pixel Matrix Per Sq.m
147456
Pixel Configuration
SMD2121
Brightness (nits)
≥1300
Scan
1/32
Cabinet Resolution
192×192
Power Con. (Max / Avg)
800 / 250w/sq.m
Module Dimension
250x250mm / 0.82x0.82ft

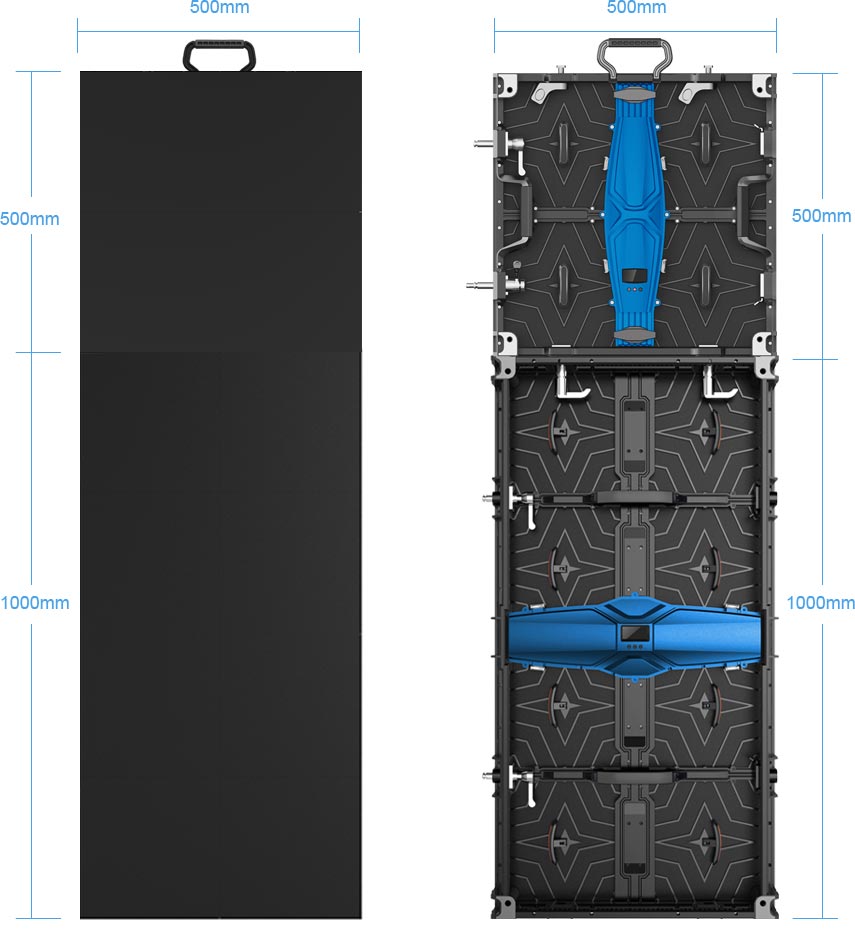

Cabinet Dimension
500x500x78mm / 1.64x1.64x0.25ft
Cabinet Weight
7kg / 15.4Ib (( Die-casting Aluminum)
Service Access
Front / Rear
Rotation Angle
-7.5° and +7.5°
Refresh Rate (HZ)
3840
Grey Scale (bit)
16
Viewing Angle (H/V)
140 / 140
IP Rate
IP43
Input Voltage (AC)
110 / 240

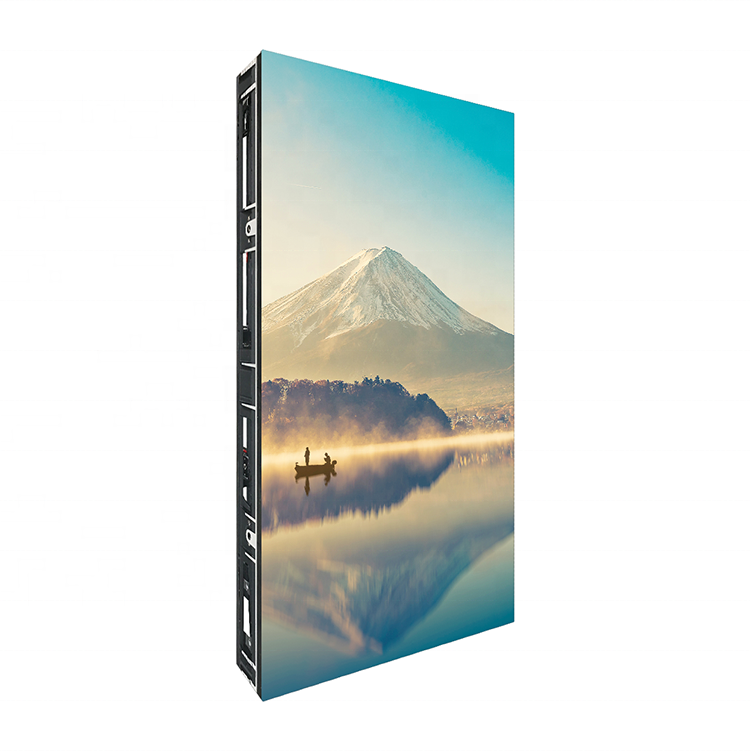

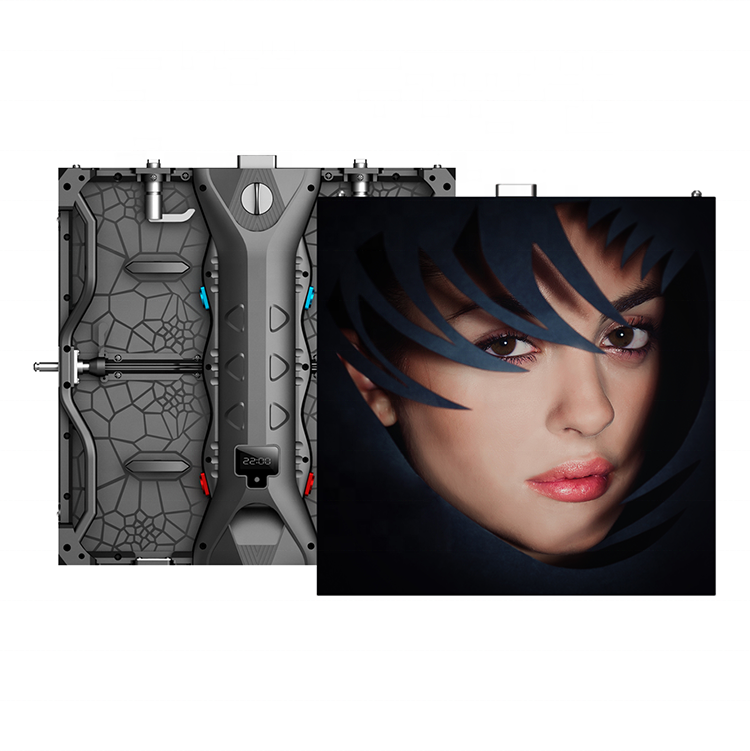

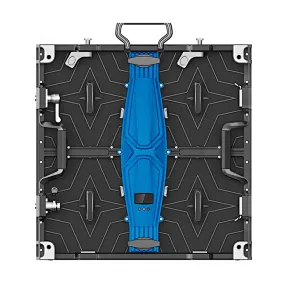

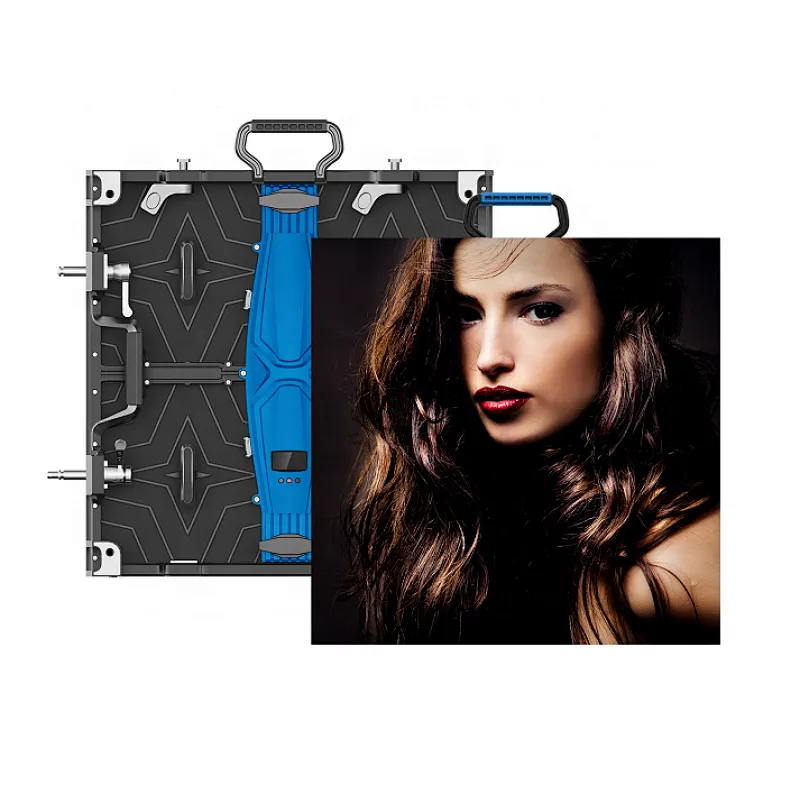

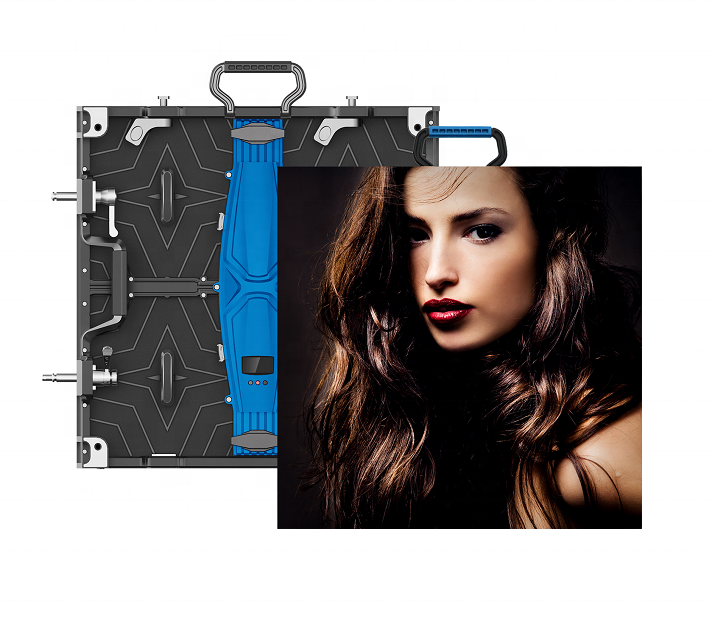

Products Show
Details

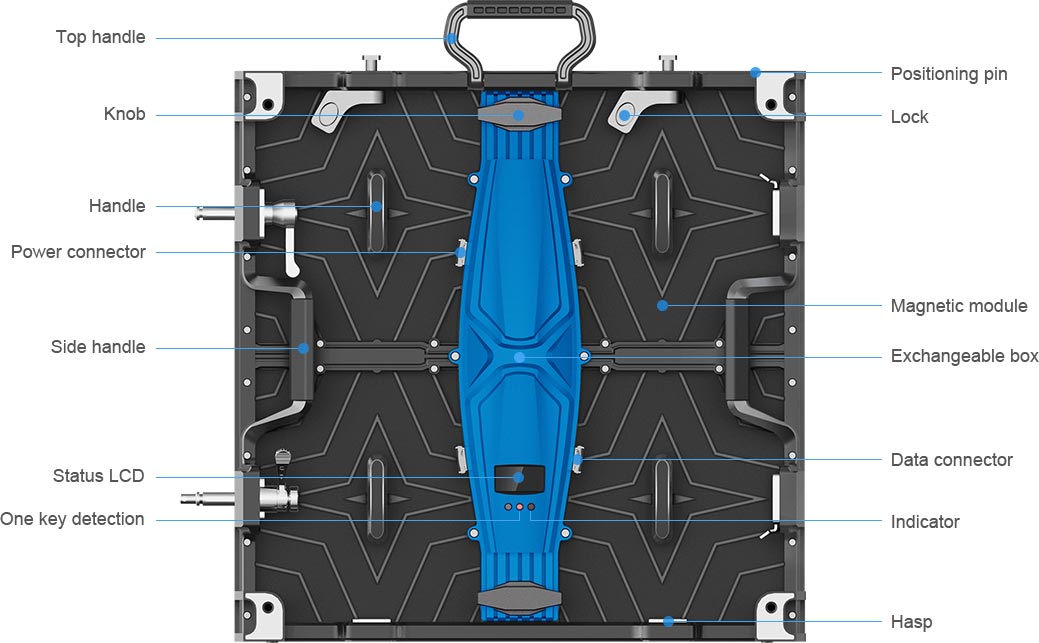

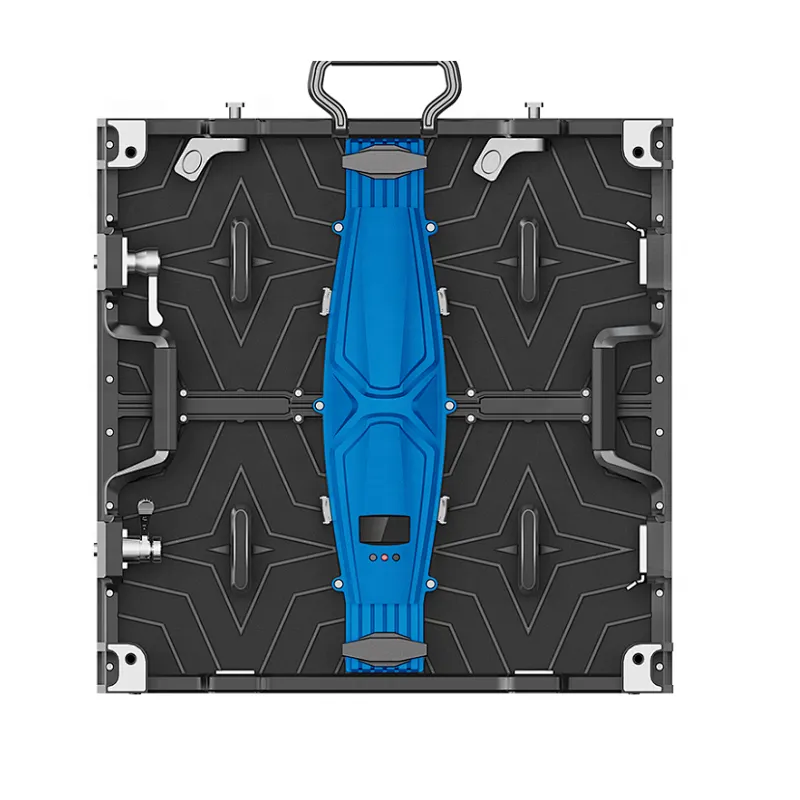

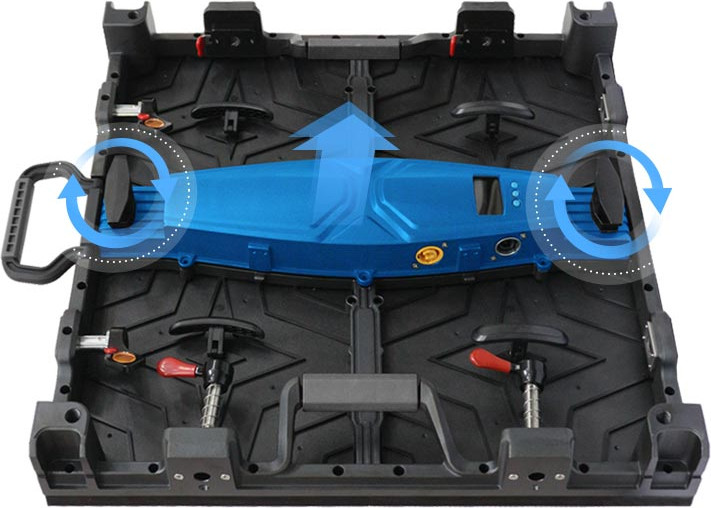

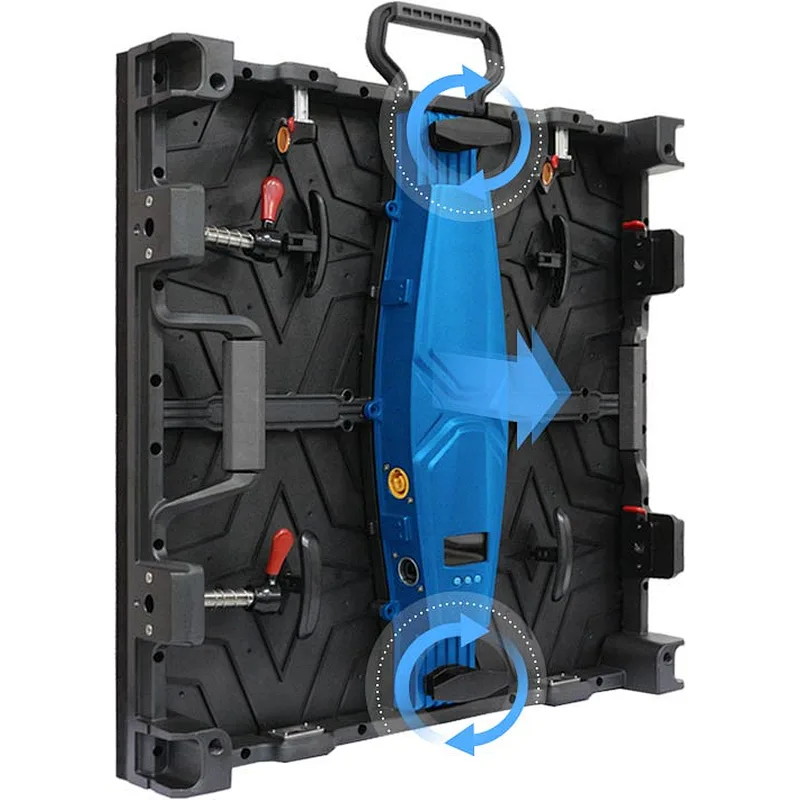

One Second Exchanged Box
Two knobs make the control box exchange in 1 second.

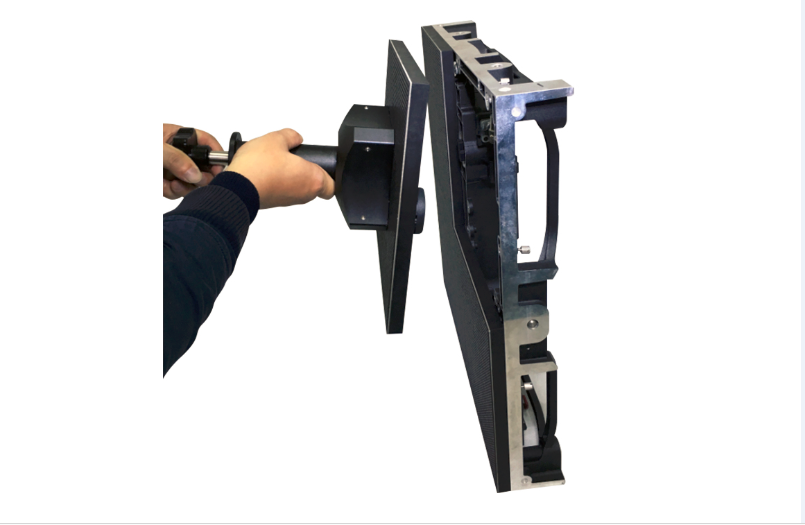

Full Front Maintenance
LED modules, power supply, receiver card, hub card, cables are all front service.
Work With T Series
X series and T series can be installed together for multiple event requirements.
Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.

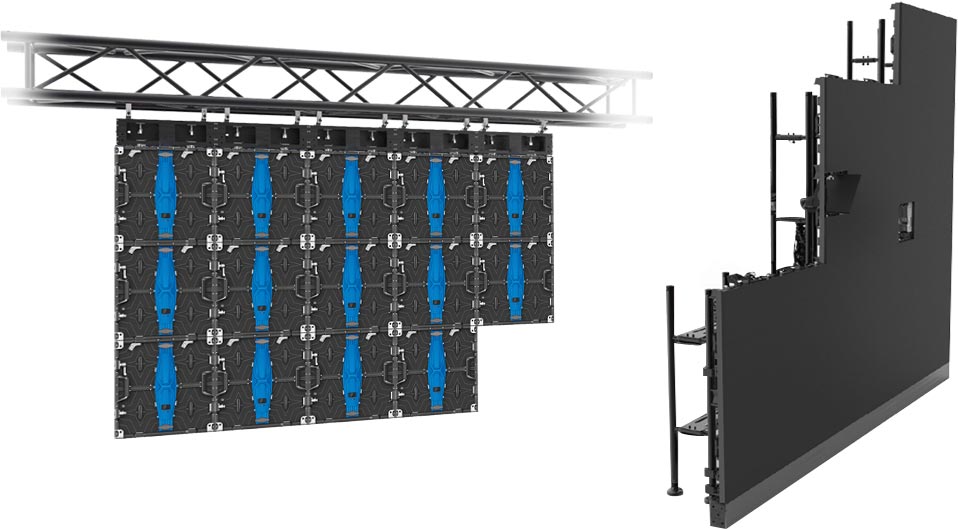

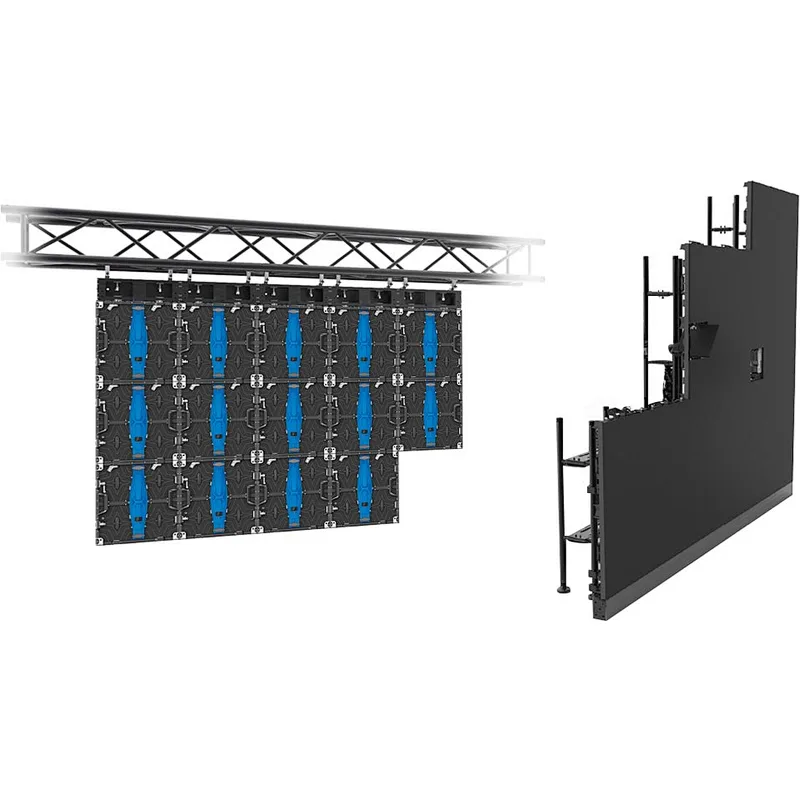

Faster & Easier Installation
Hanging or stacking, X series with light and thin features makes installation faster and easier.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

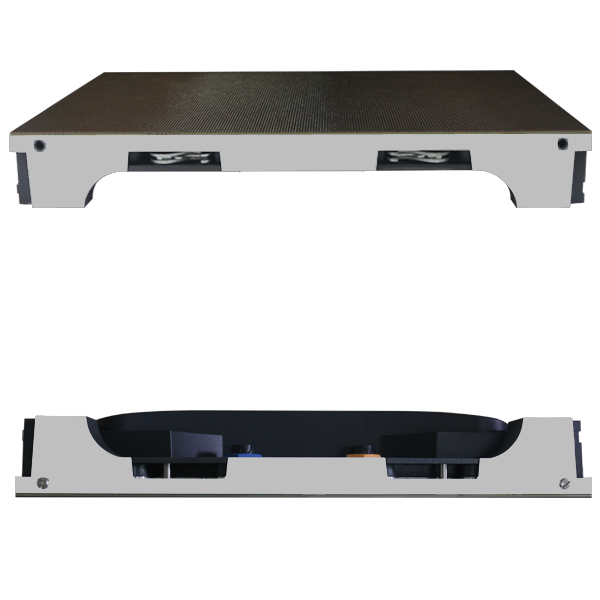

No Light Leakage Trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.
Wide View Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.

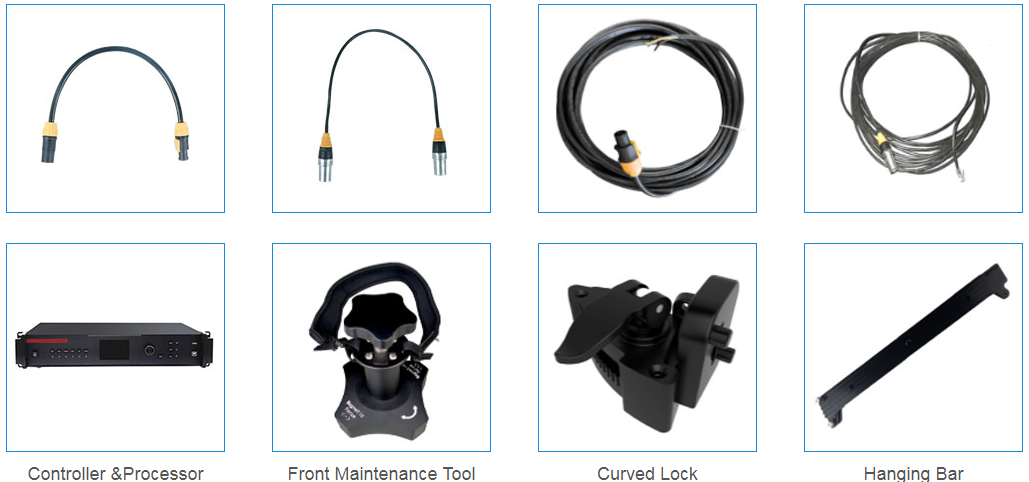

Accessories
Applications

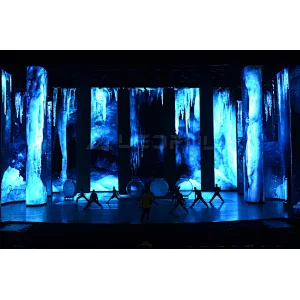

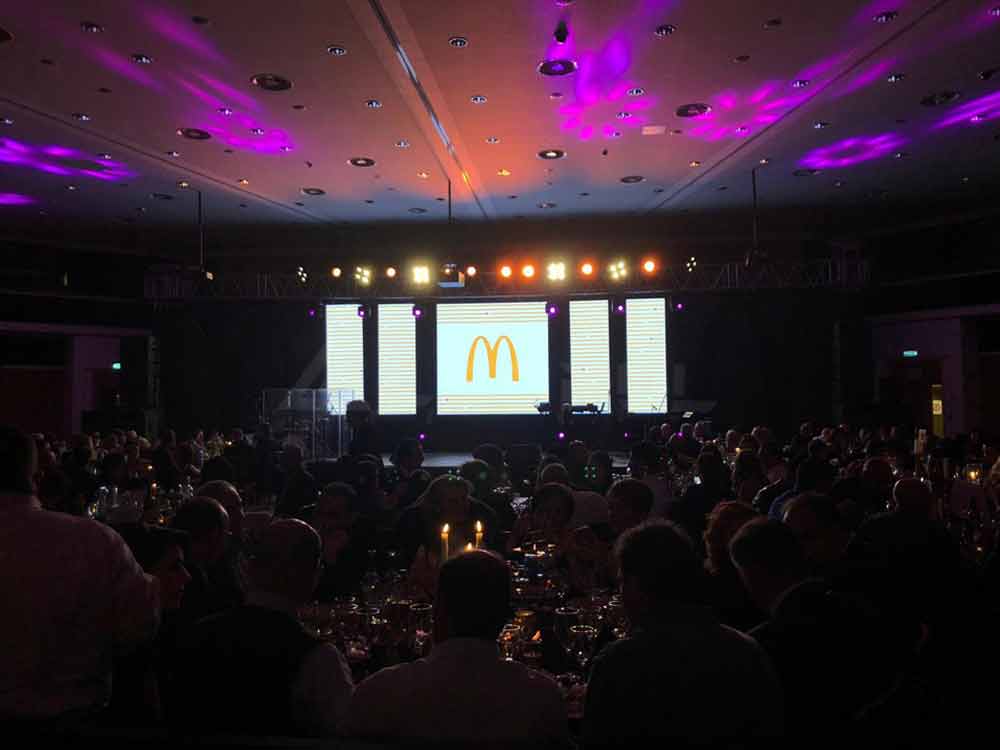

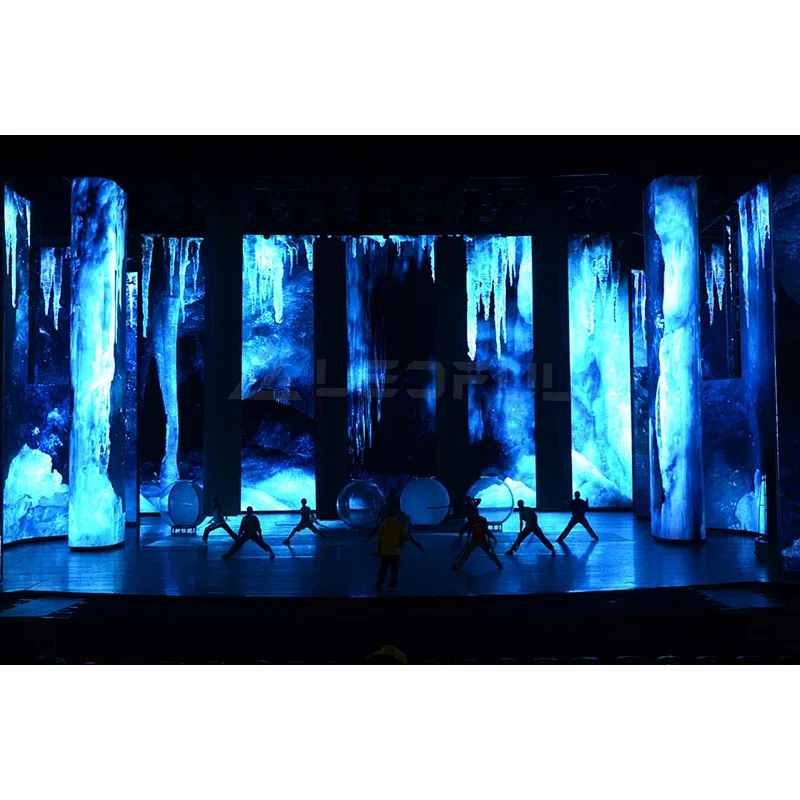

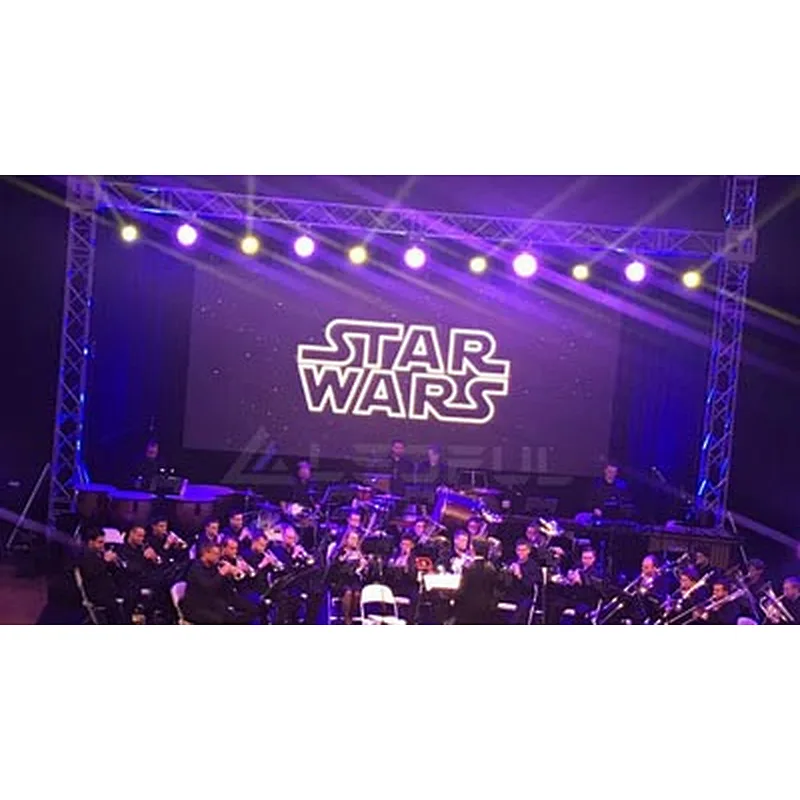

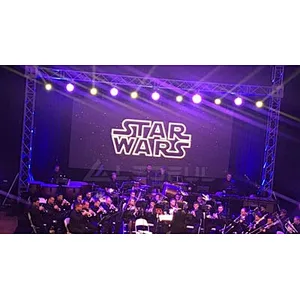

Rental applications such as live concert,shows,event, exhibitions,TV station,live broadcasting and theme parks and football matches.

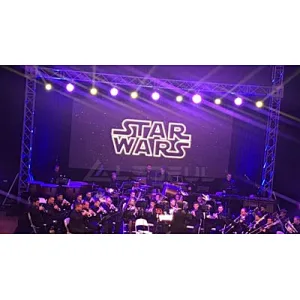

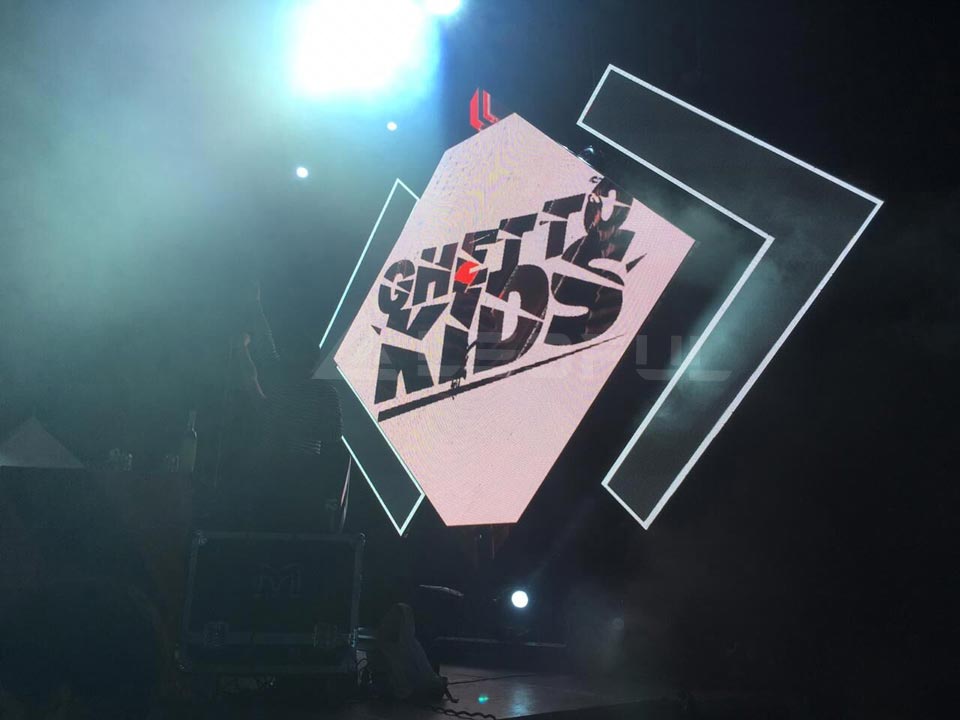

Germany Indoor Stage Show 32sqm LED Display
Mexico 36sqm 2.6mm Indoor Rental
Our Company

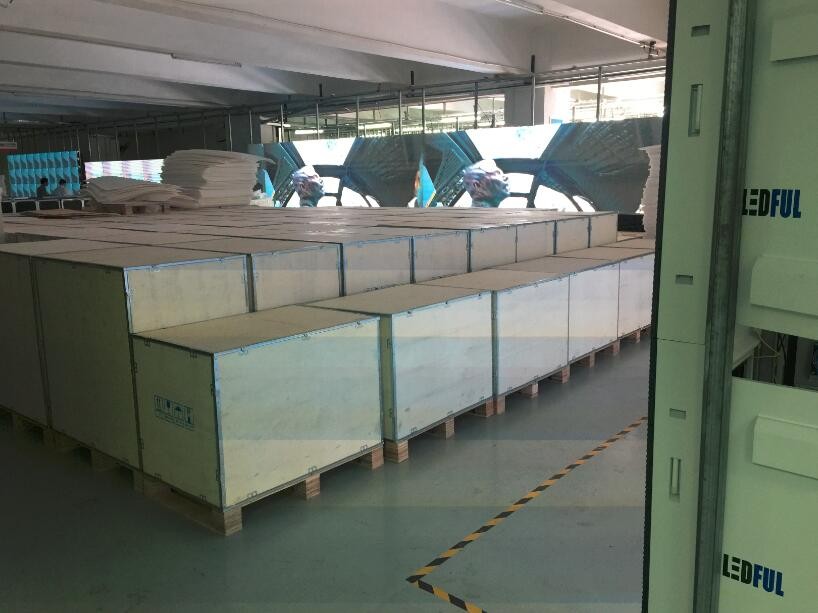

Packing & Delivery
Packaging 1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation; 2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
Shipping 1. By sea or by air; 2. Customer specified freight forwarder or negotiable mode of transport; 3. Delivery Time: 15-25 days for batch goods.
Plywood box
Flight case
EPE
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
