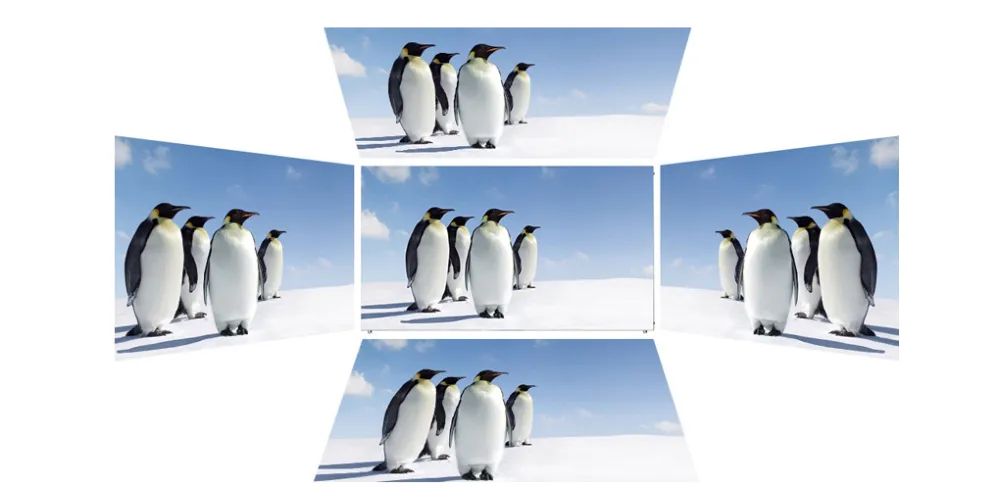

The optimum viewing distance is from 10m up to 500m. people could see the contents on the display very clear from any
angle on the street.
angle on the street.
- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:960*960mm
- Pixel Pitch:10mm
- Model Number:OF
- Brand Name:LEDFUL
- Usage:Indoor
- Display Function:Video
- Screen Dimension:960*960mm/1024*1024mm
- Brightness:≥4000nits
- Grey Scale:16bit
- Warranty:3~5 Years
- Life span:100000 Hours
- LED chip:Epistar Chips
- Control:Wireless Remote Control
- Certificate:CE ROHS FCC ISO9001 CCC
Product Description
Value | OF4 | OF5 | OF6 | OF8 | OF10S | OF16S | ||||||
Pixel Pitch(mm) | 4 | 5 | 6 | 8 | 10 | 16 | ||||||
Pixel Matrix Per Sq.m | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 | ||||||
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | ||||||
Brightness (nits) | 6500 | 6500 | 6500 | 6800 | 7500 | 8000 | ||||||
Scan | 1/8 | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | ||||||
Module Dimension | 192x192mm / 0.63x0.63ft | 160x160mm / 0.52x0.52ft | 192x192mm / 0.63x0.63ft | 320x160mm / 1.05x0.52ft | 320x160mm / 1.05x0.52ft | 256x256mm / 0.84x0.84ft | ||||||
Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 1024x1024mm /3.36x3.36ft | ||||||
Cabinet Resolution | 192x192 | 192x192 | 160x160 | 120x120 | 96x96 | 64x64 | ||||||
Cabinet Weight | 44kg / 97Ib ( Iron) | 43kg / 95Ib (Iron) | 42kg / 93Ib (Iron) | 41kg / 90Ib (Iron) | 40kg / 88Ib ( Iron) | 46kg / 101Ib (Iron) | ||||||
Power Con. (Max / Avg) | 750 / 150 w/sq.m | 730 / 130 w/sq.m | 700 / 120 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 750 / 150 w/sq.m | ||||||
Service Access | Front / Rear | |||||||||||
Refresh Rate (HZ) | ≥1920 | |||||||||||
Grey Scale (bit) | 16 | |||||||||||
Viewing Angle (H/V) | 140 / 140 | |||||||||||
IP Rate | IP65 | |||||||||||
Input Voltage (AC) | 110V / 240V | |||||||||||
* Specifications and photos are subject to change without prior notice. | ||||||||||||
Specifications

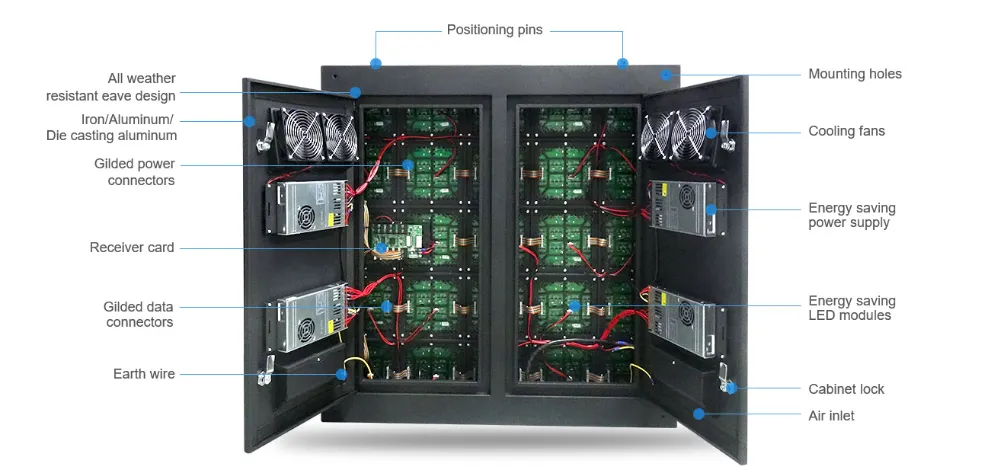

1.Full Front Maintenance

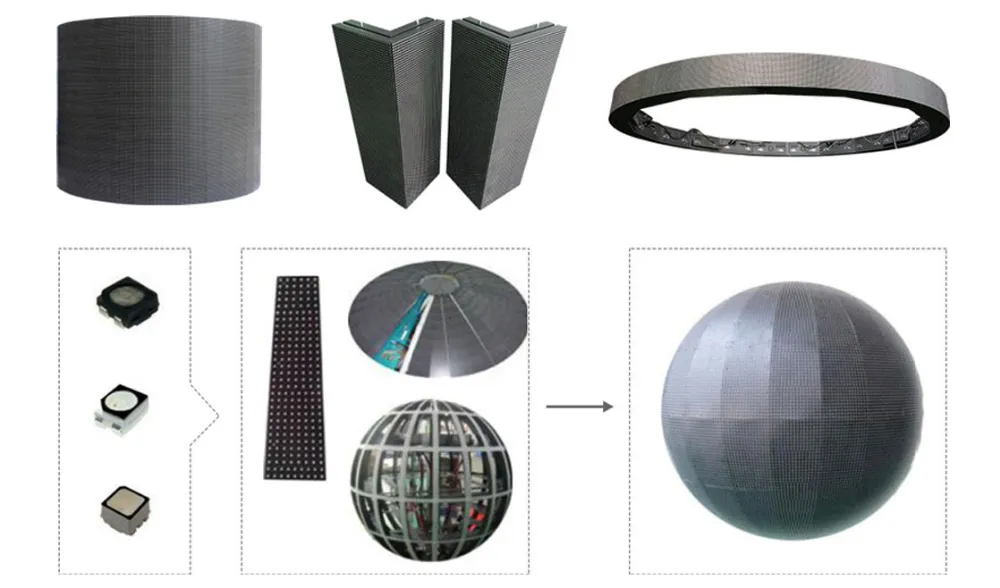

2.Curved Installation
3.No Light Leakage
4.Climbing support
5.Light and Thin

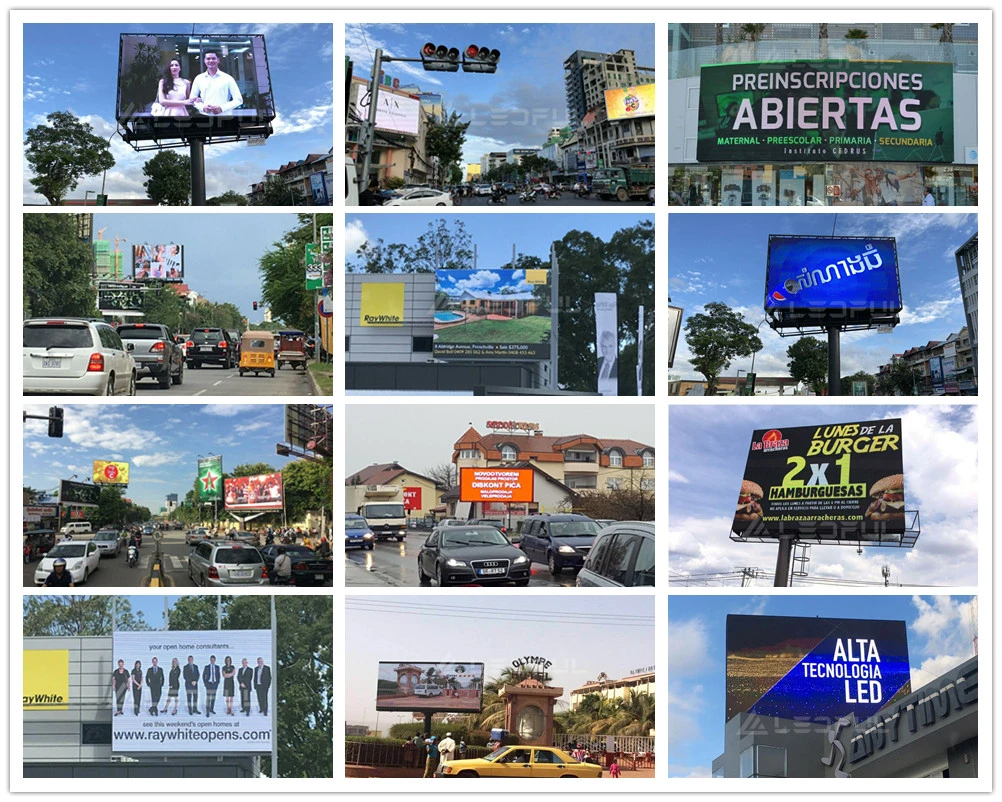

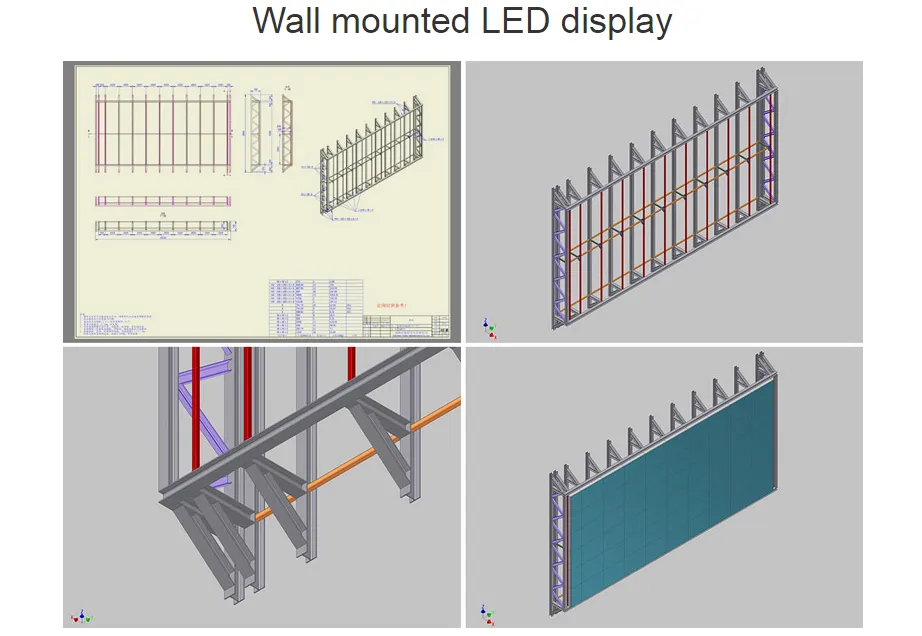

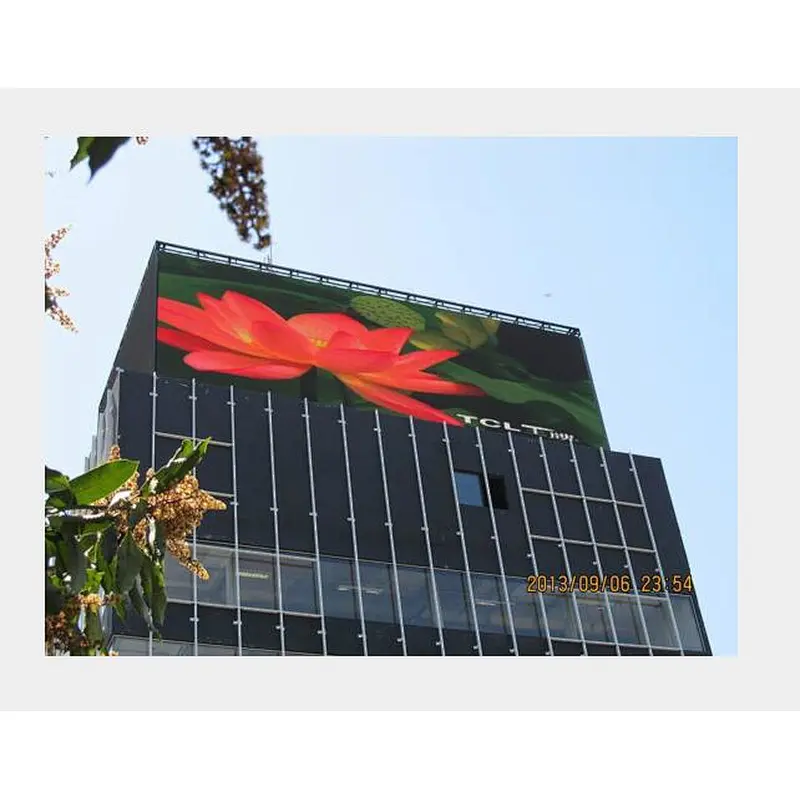

Application

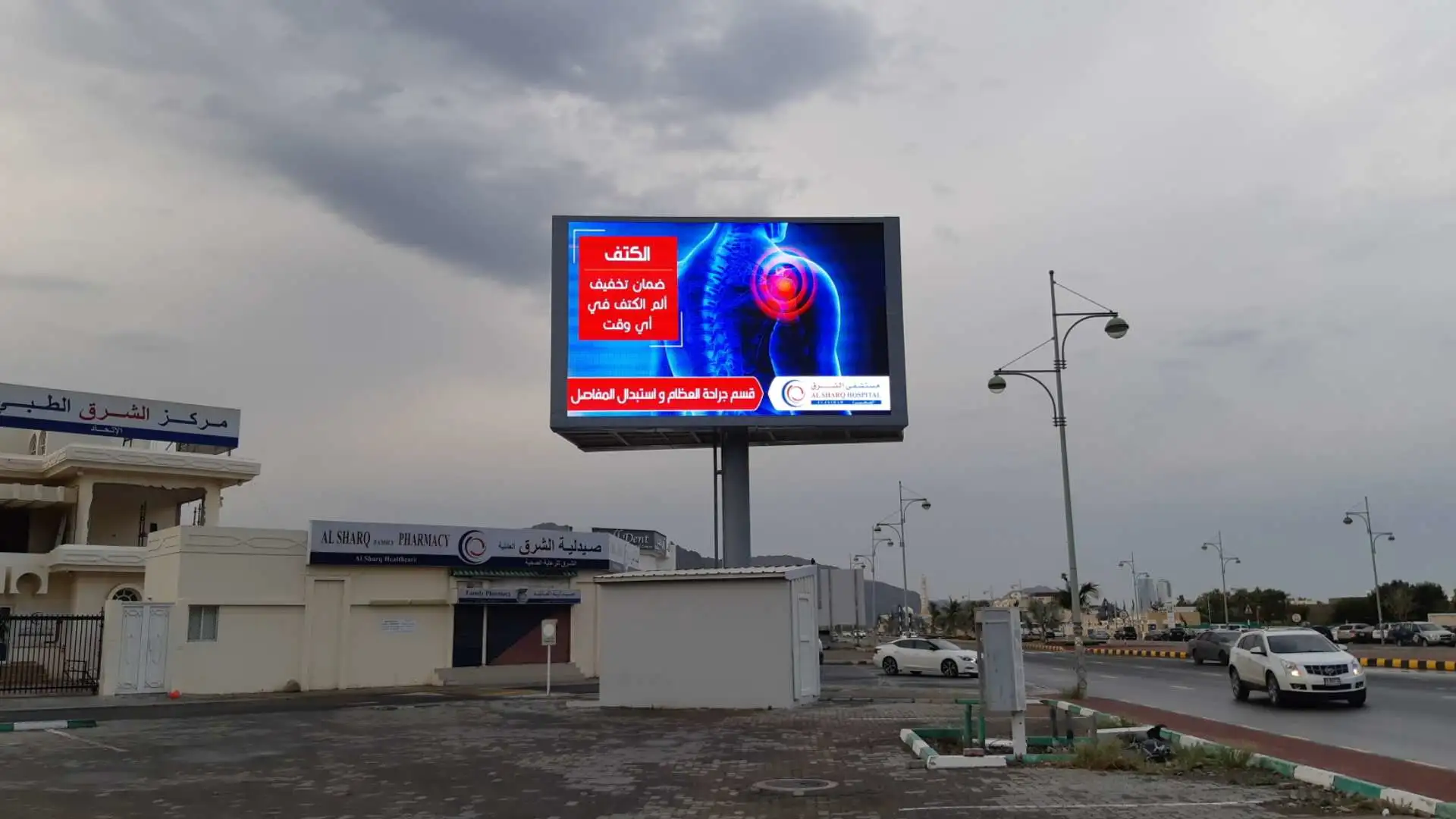

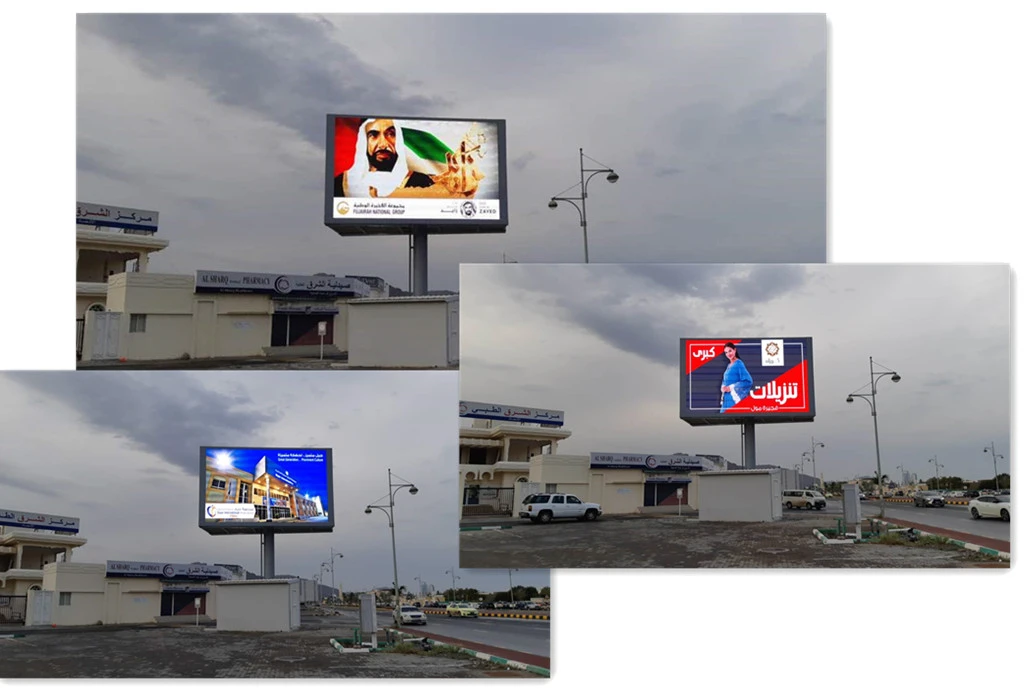

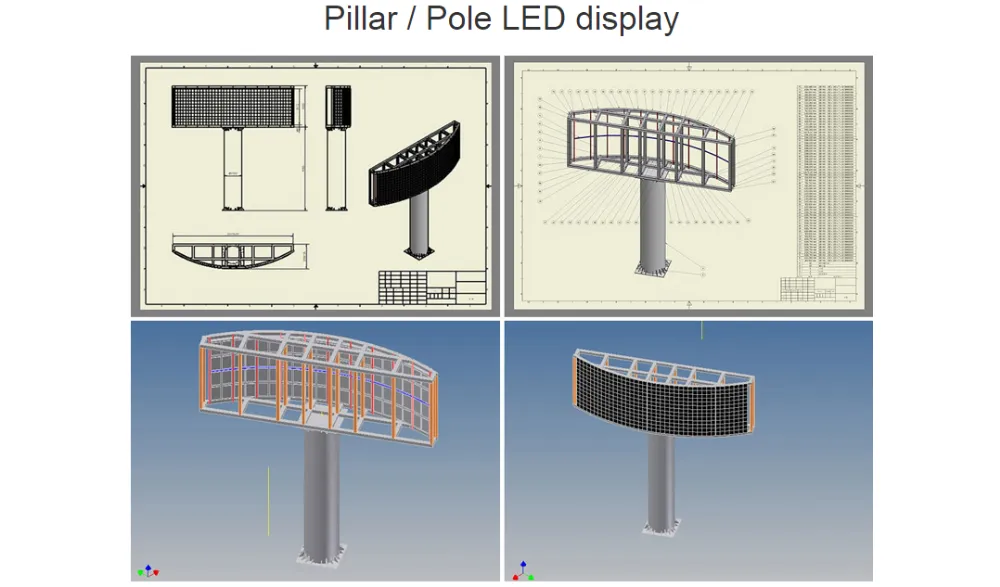

unipole screen double face
Size: 10.56mx4.8mx2pcs
Model: P10
Location: UAE
Size: 10.56mx4.8mx2pcs
Model: P10
Location: UAE
OF10S model, pixel pitch is 10mm, which is one of the most popular and competitive model for outdoor fixed installation display application.
Our Company
Our Company
Professional, High Efficient and Caring
1.Deep Customized & OEM Listen to you, think more for you. 2.Reasonable price Clear cost initially to save your time and money.3.Provide with innovative and satisfying products 4.Excellent product quality, quick and professional services 5.Always ready for your any change on LED display details.6.Recommend the best proper solution for your LED project. 7.Catch things what you missed before LED display production.8.Take good care of each detail for your products, packages,shipping
Packing & Delivery
Our Service
1.OEM Manufacturing welcome: Product, Package... 2.Customized and professional products. 3.We will reply you for your inquiry in 24 hours. 4.After sending, we will track the products for you until you get 5.If you have any questions,we will offer the solve way for you.6.3-5 years warranty will be provided by us.
