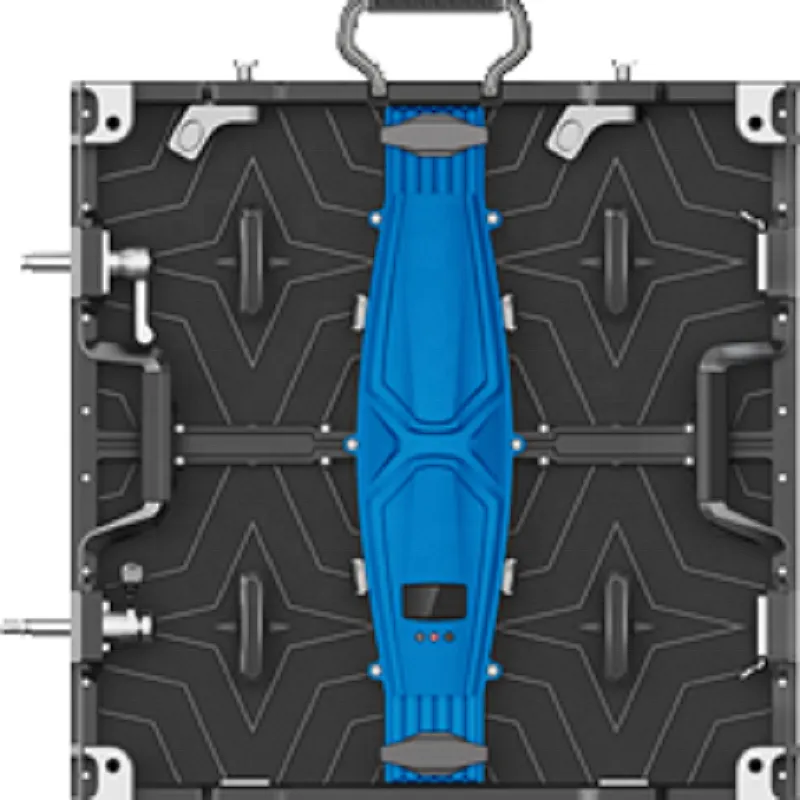

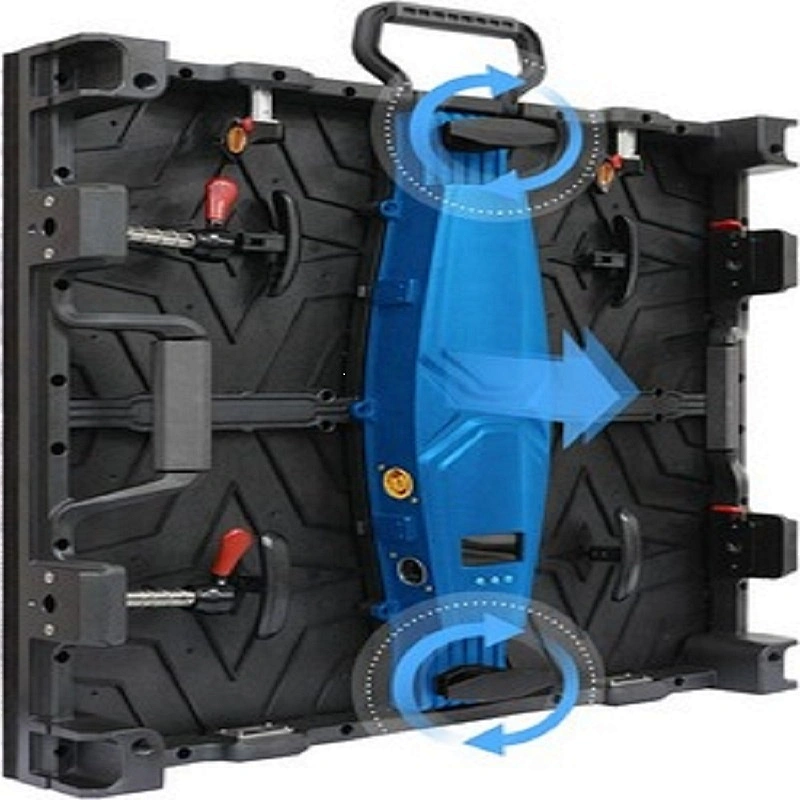

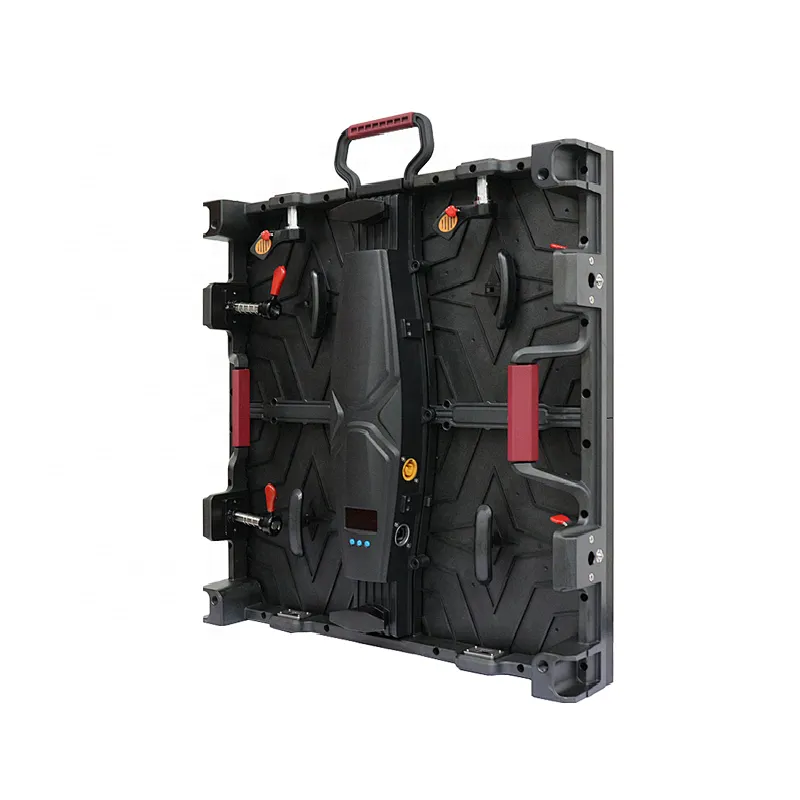

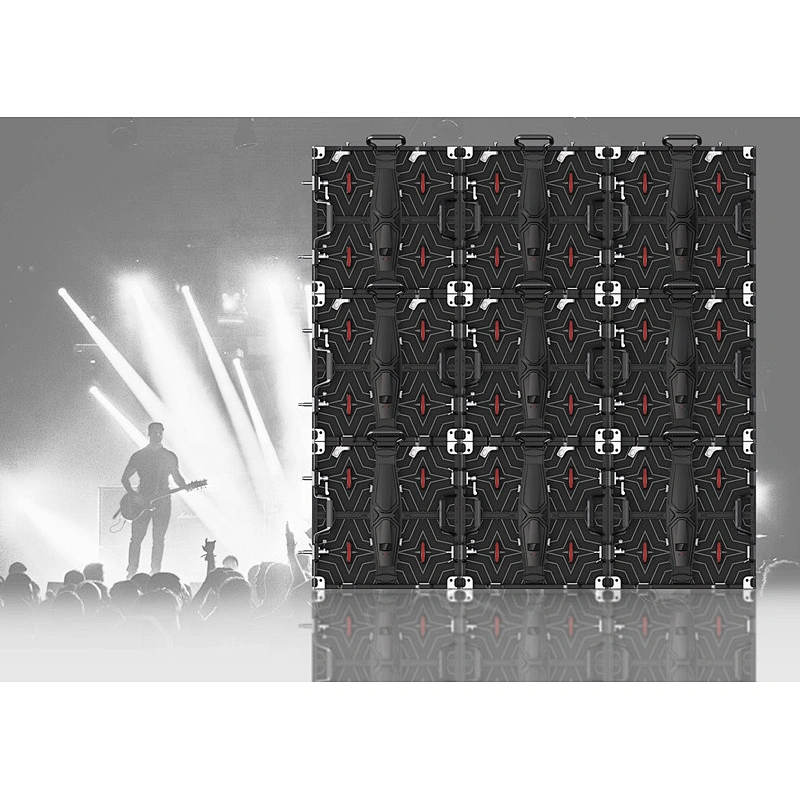

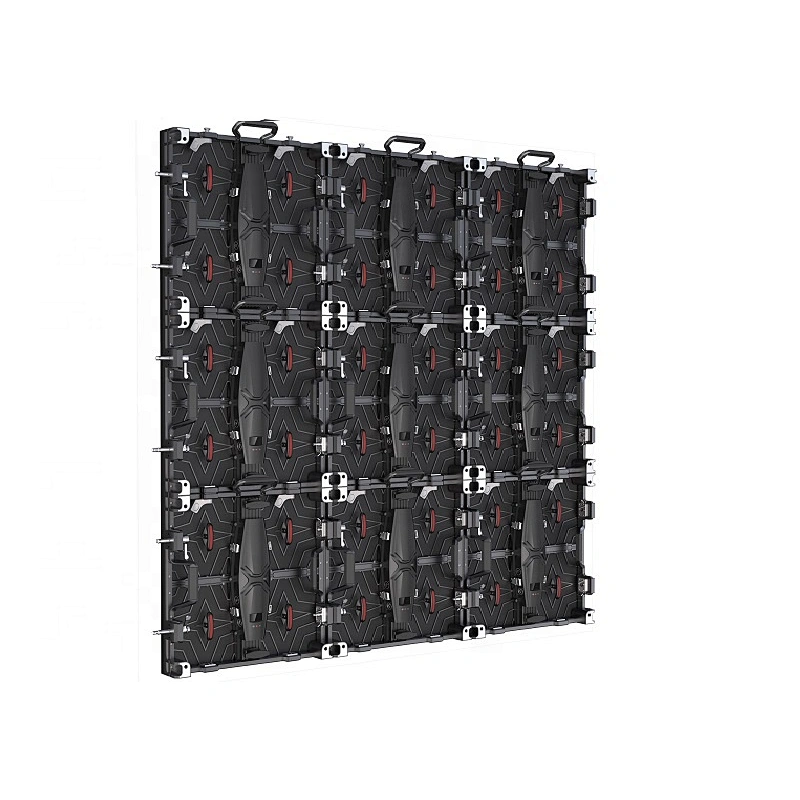

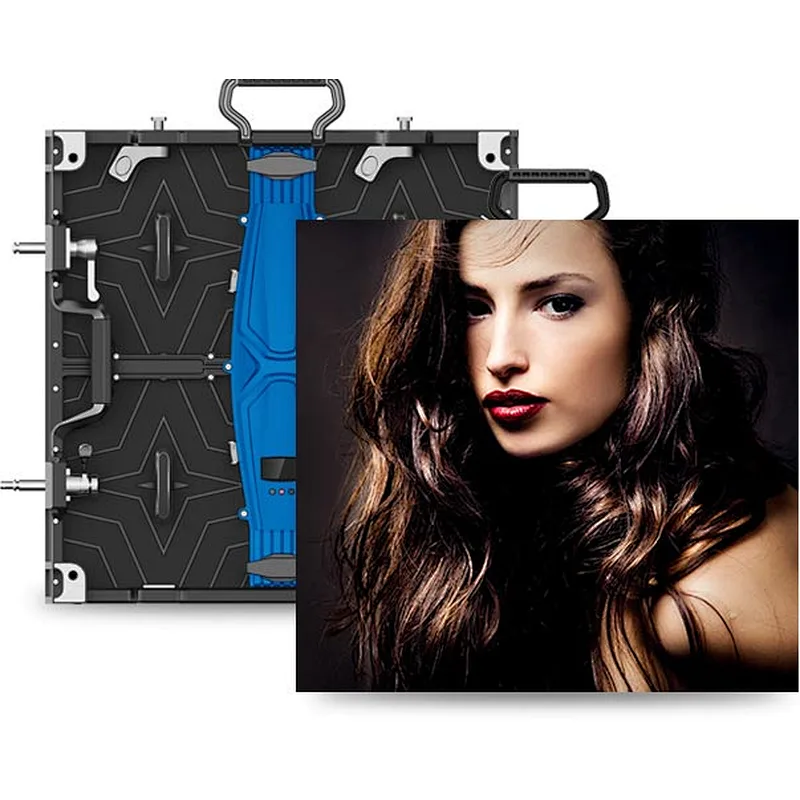

P6.2 full color wide viewing indoor LED display panel
P6.2 full color wide viewing indoor LED display panel
P6.2 full color wide viewing indoor LED display panel
P6.2 full color wide viewing indoor LED display panel
P6.2 full color wide viewing indoor LED display panel
P6.2 full color wide viewing indoor LED display panel
P6.2 full color wide viewing indoor LED display panel

P6.2 full color wide viewing indoor LED display panel

USD960.00 -USD1,200.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories:

    Product Description

    • Place of Origin:CN;GUA
    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:5.9mm
    • Brand Name:LEDFUL
    • Model Number:XI6.2
    • Screen Dimension:500*500
    • Product name:Led Video Display Panel
    • Application:Indoor Advertising
    • Certificate:CE ROHS FCC
    • Color:Full-color
    • Pixel pitch:5.95mm
    • Refresh rate:3840

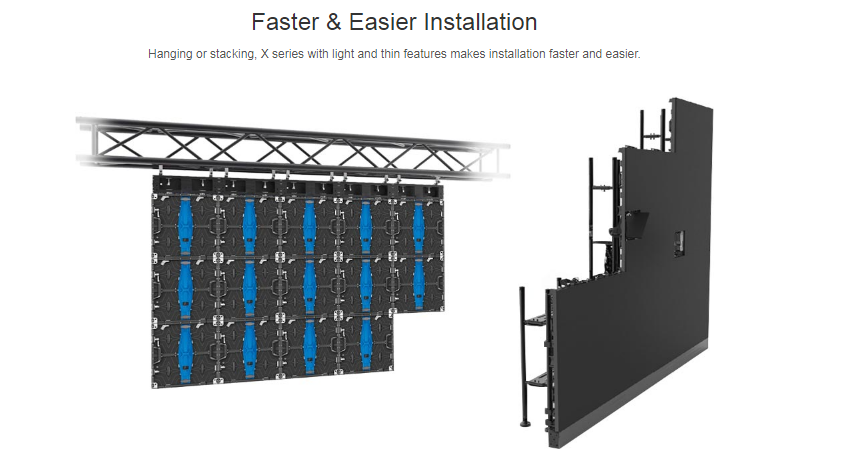

    • Feature:Easy Installation
    • Module size:250mm*250mm
    • Cabinet size:500*500mm
    • Viewing angle:140 /140
    Product Description
    Parameter

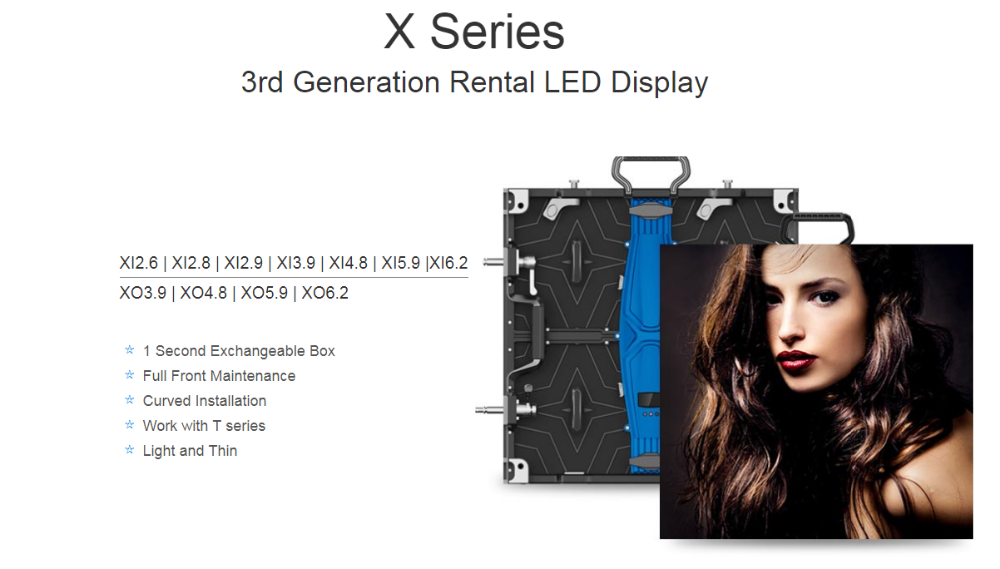

    X Series Indoor
    XI 6.2
    Pixel Pitch(mm)
    6.25mm
    Pixel Matrix Per Sq.m
    25600
    Pixel Configuration
    SMD3528
    Scan
    1/10
    Cabinet Resolution
    80×80
    Power Con. (Max / Avg)
    700 / 200w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft
    Cabinet Dimension
    500x500x78mm / 1.64x1.64x0.25ft
    Cabinet Weight
    7kg / 15.4Ib (( Die-casting Aluminum)

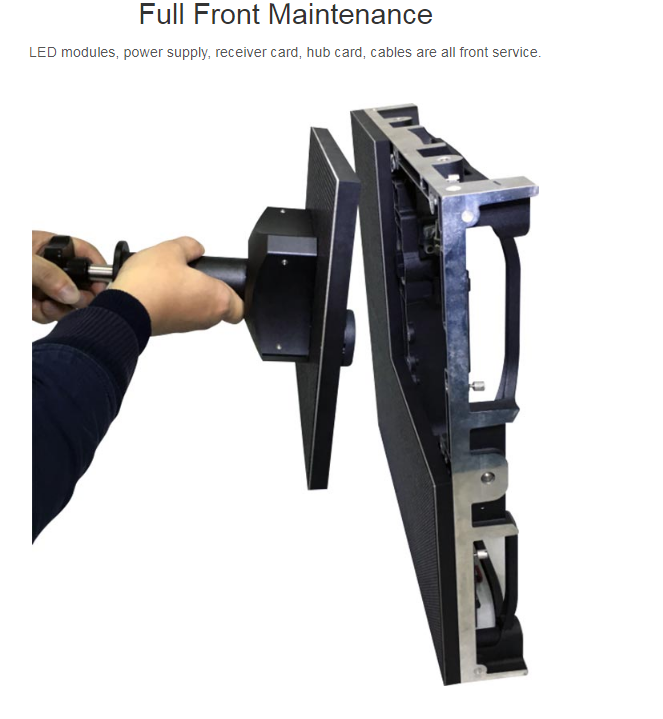

    Service Access
    Front / Rear

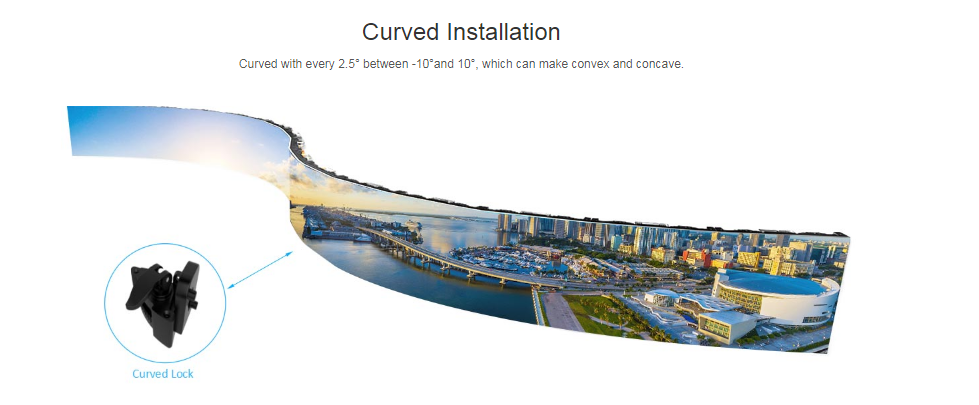

    Rotation Angle
    -7.5° and +7.5°
    Brightness (nits)
    ≥1300
    Refresh Rate (HZ)
    3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP43
    Input Voltage (AC)
    110 / 240

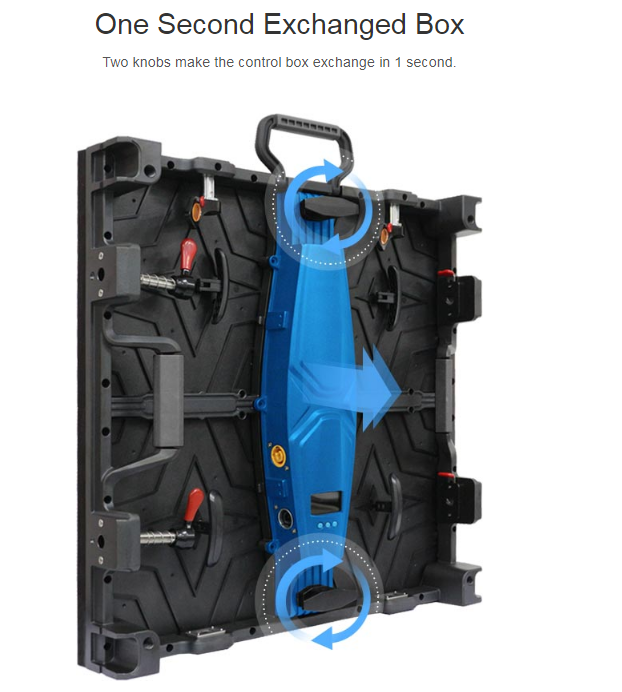

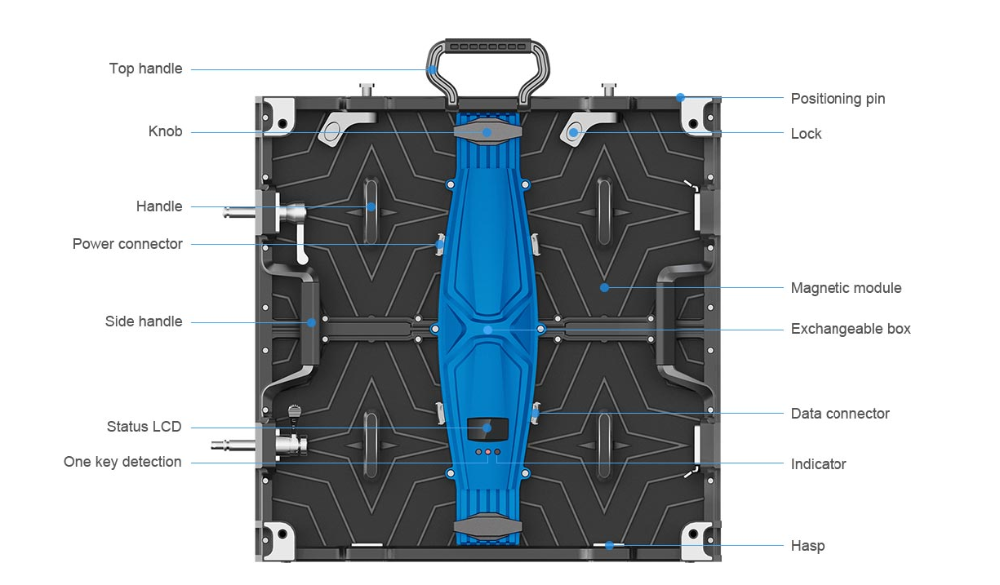

    Feature
    Our Company

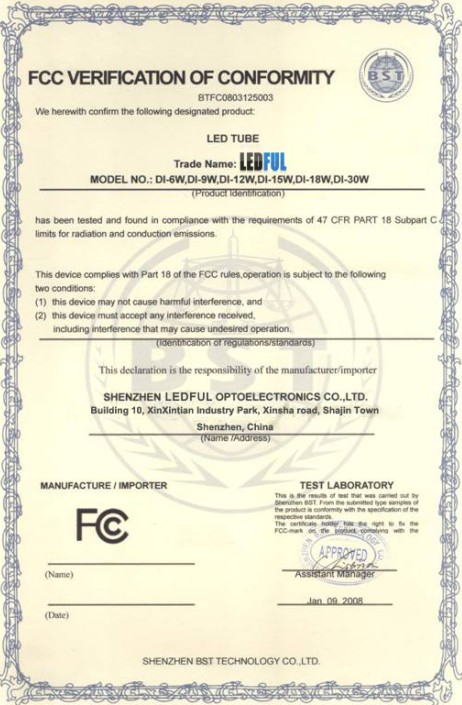

    Certifications

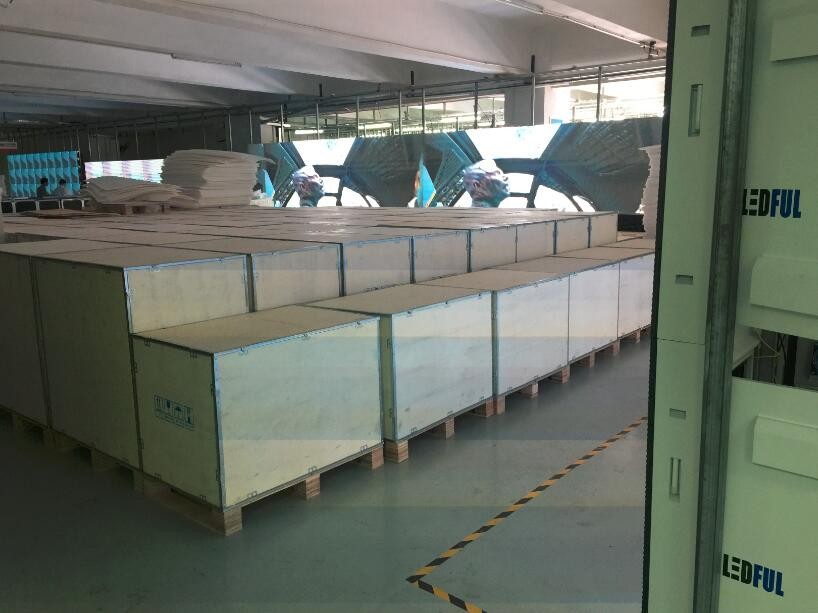

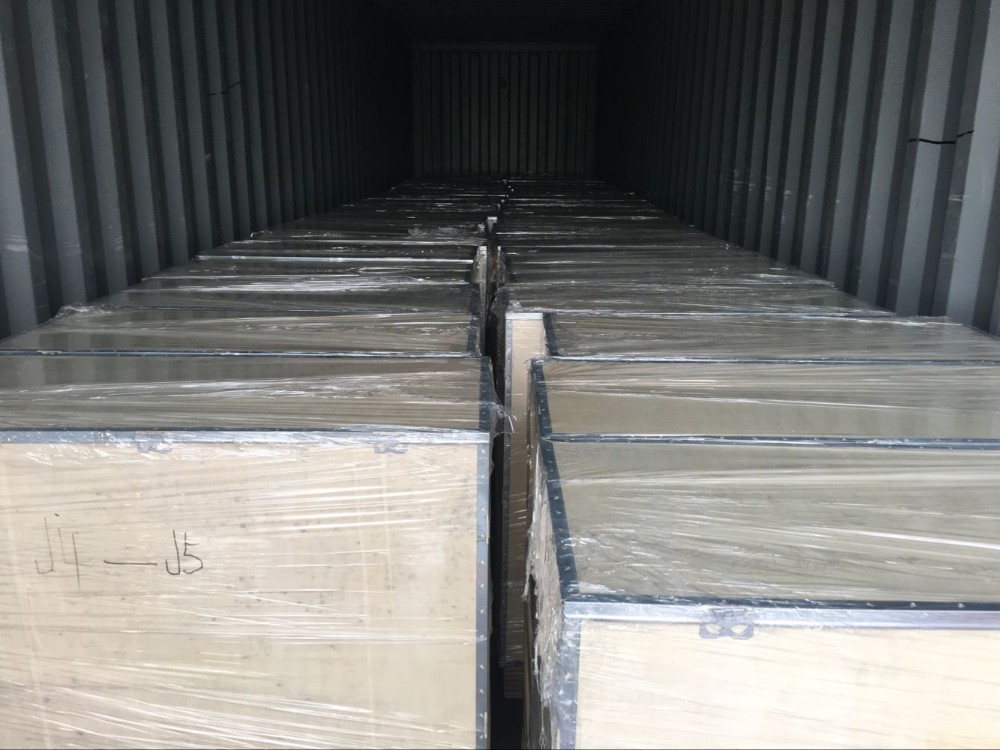

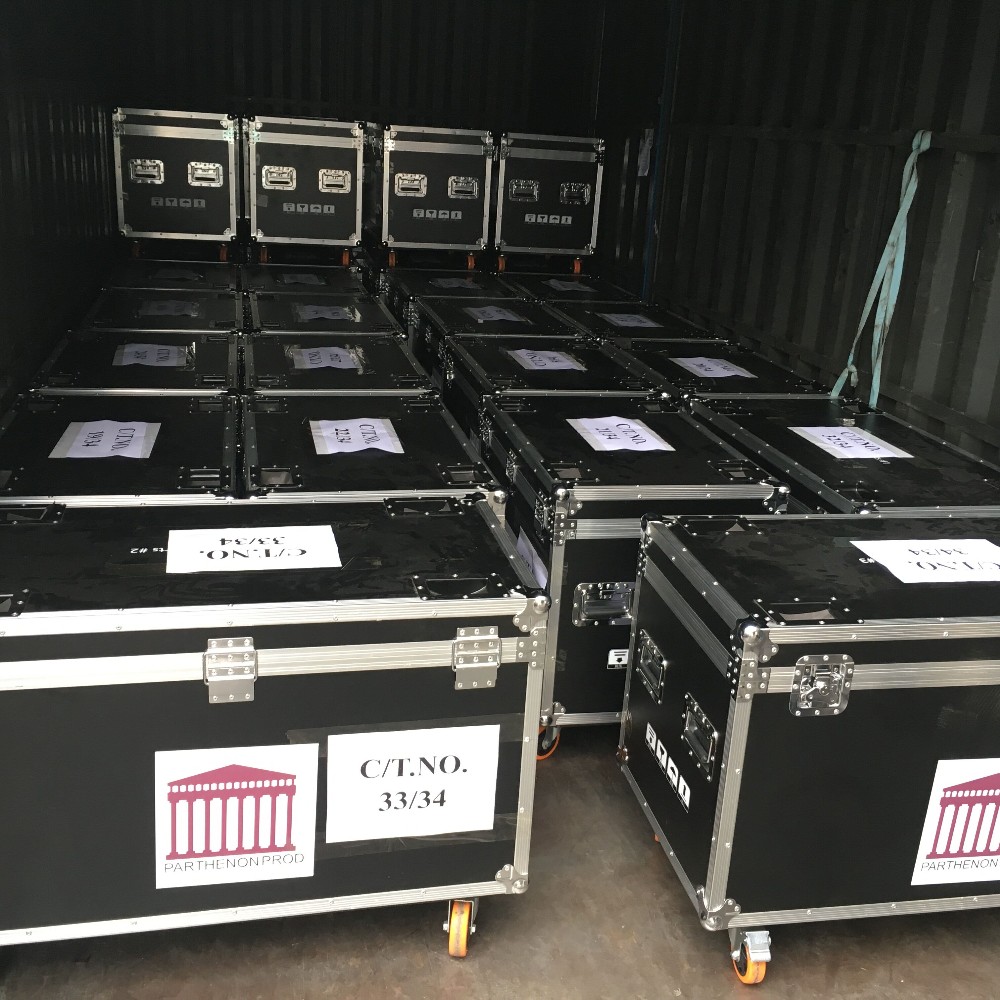

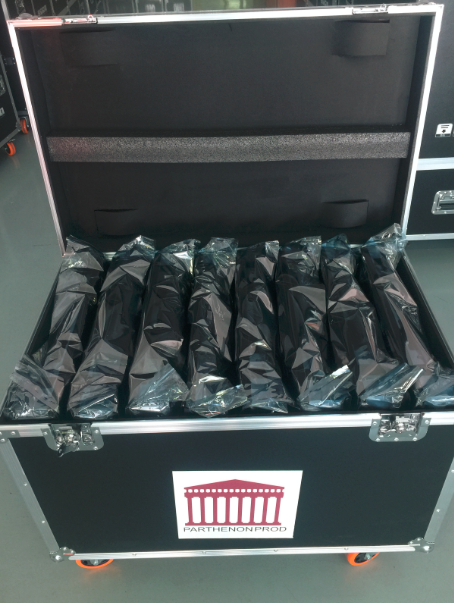

    Packing & Delivery
    FAQ

    Q1: Minimum distance of the audience? (Viewing distance)

    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more

    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.



    Q2: Advantage Of LED Panel

    Comparing with traditional static publicity in printed large advertisement, LED panel have the following advantages:

    1.The advertising on the LED panel is dynamic and constantly changing, so the audience would not feel boring when they watch the advertising program. People would like to stay longer time to watch the vivid color and beautiful image. In this way, certainly they will be greatly impressed.This is a good product promotion chance.

    2.The great convenience of program and edit. During an advertising campaign, it is possible to correct and change instantly information.

    3.Though the advertising function of LED panel is great, the price is not high nowadays. And for the advertisers, the cost of advertising on LED screens is almost the same with traditional advertising billboards, and lower than TV and radio media.

    4.The advertising on the LED panel is quiet and would not cause the boredom of the audience. Not like TV and radio advertising, the advertising on the LED display is not in street, stadium and such public place.

    5.The owners of the LED panel rent the equipment and calculated with time. And it is the stable income of them.

    6.For big companies,banks, publishing houses, casinos, hotels, entertainment complexes, the LED panel attracts the interest in the promotion of their goods and services, and attract new customers to their offices. Also, if they sell the advertising space on the LED display, it is a doubtless plus for the business.

    7.Therefore, led display panel is the trend of indoor and outdoor advertising media development.



    Q3: How To Play The TVs On LED Display Panel?

    LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and  DVI signal to led sending card.

    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
