- Place of Origin:CN;GUA
- Application:advertising
- Color:colorful
- Panel Size:200x150mm
- Pixel Pitch:1.5
- Model Number:FLEX1.5
- Brand Name:LEDFUL
- Pixel Pitch:1.56mm
- Pixel Configuration:SMD1010
- Brightness (nits):1000
- Scan:1/32
- Module Weight:0.4kg
- Service Access:Front Magnet
- IP Rate:IP30
- Input Voltage (AC):110 / 240
- Pixel Matrix Per Sq.m:409,600
- Power Con. (Max/Avg):550/110w/sq.m

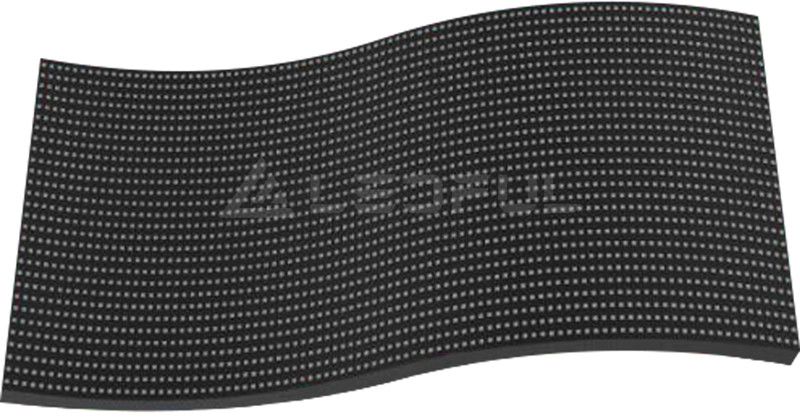

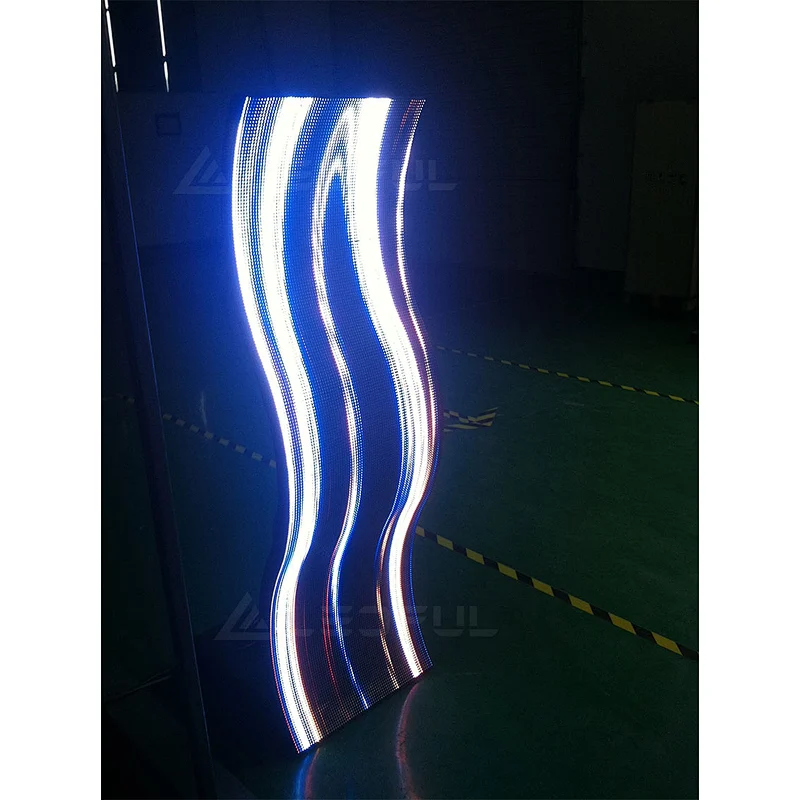

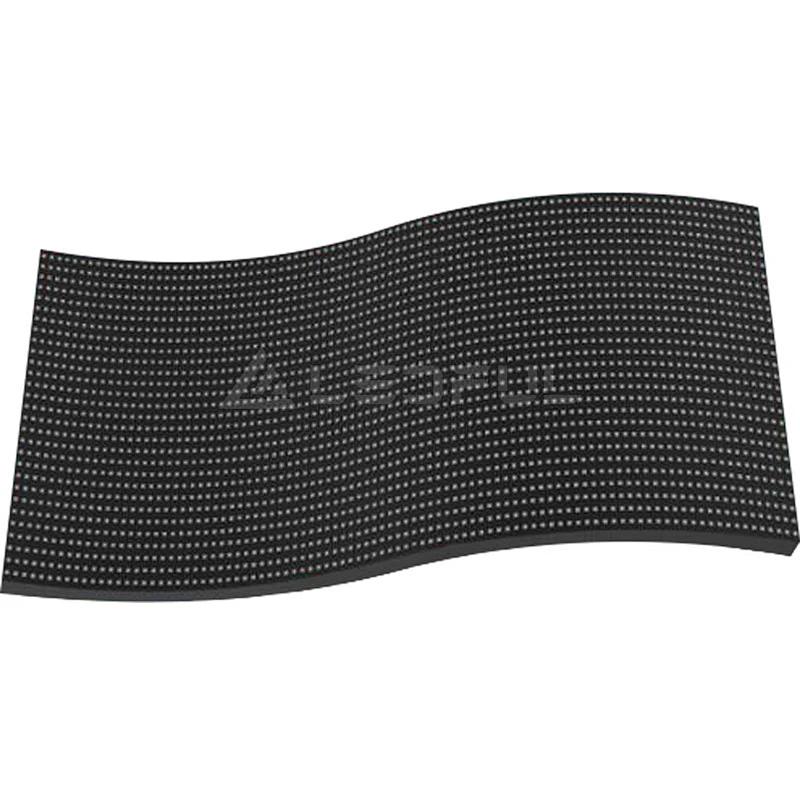

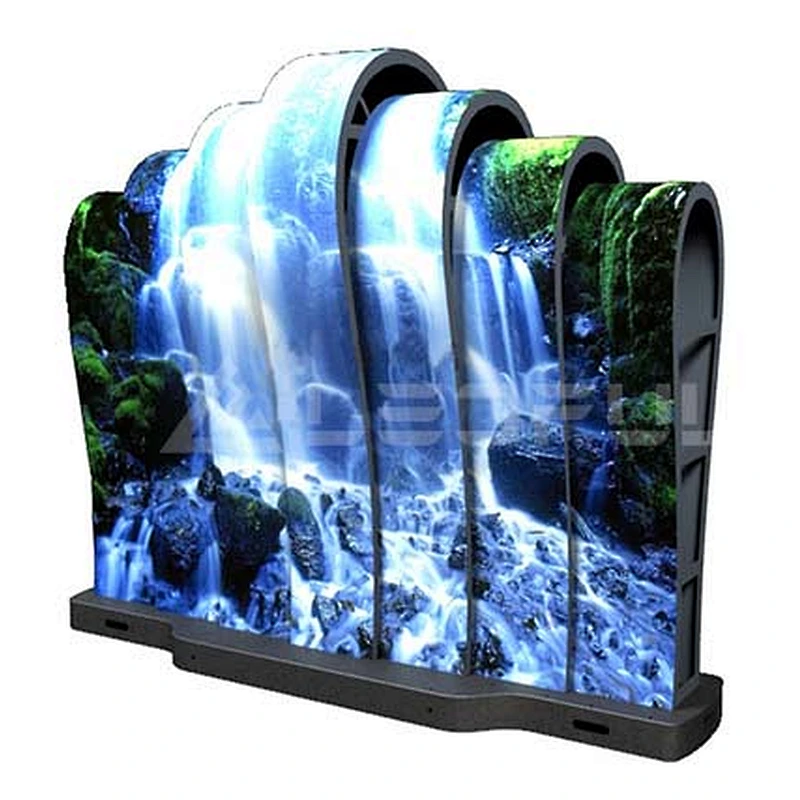

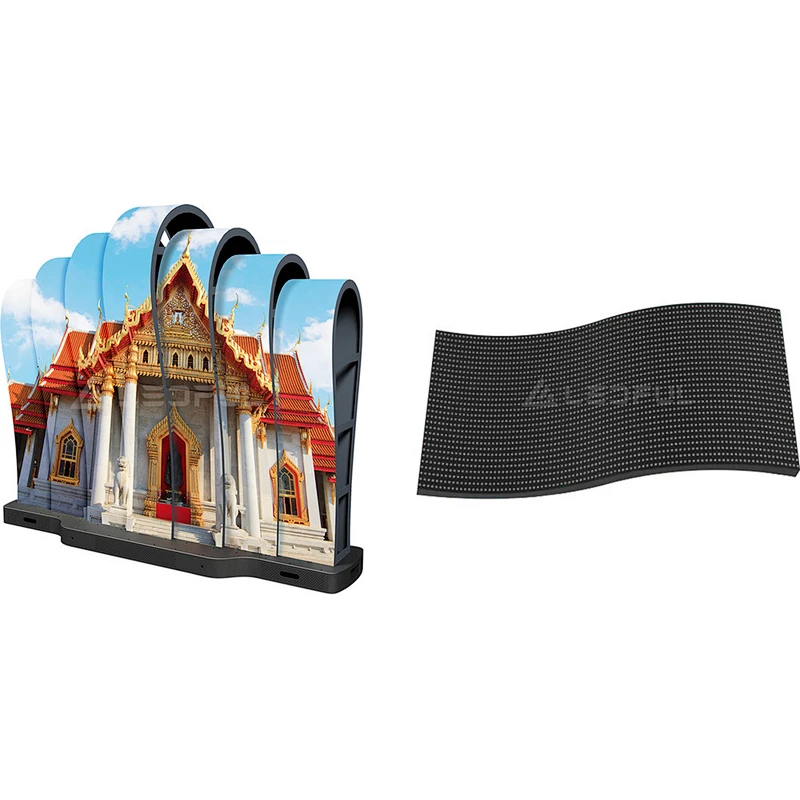

Flex LED Display-Flex Series

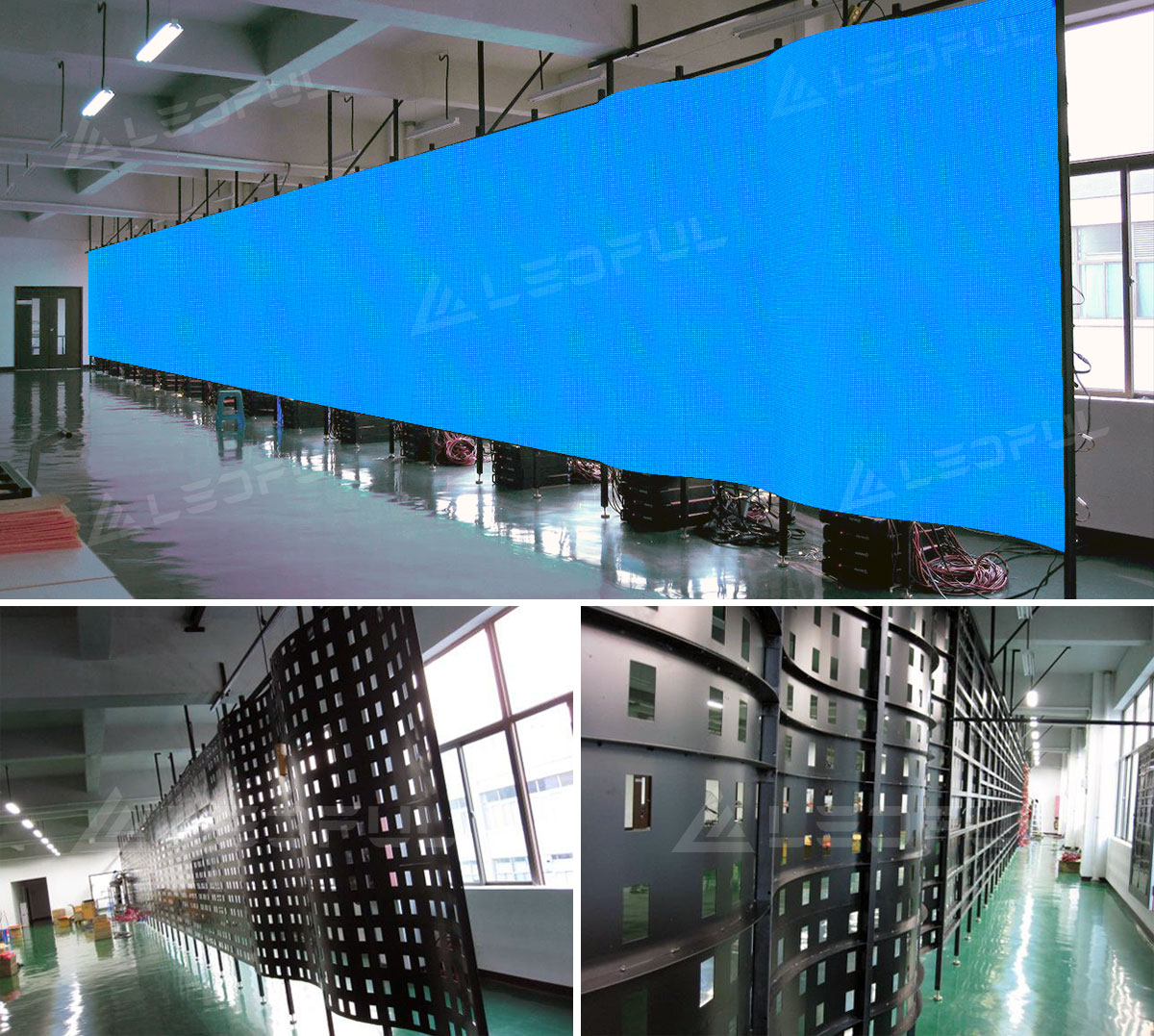

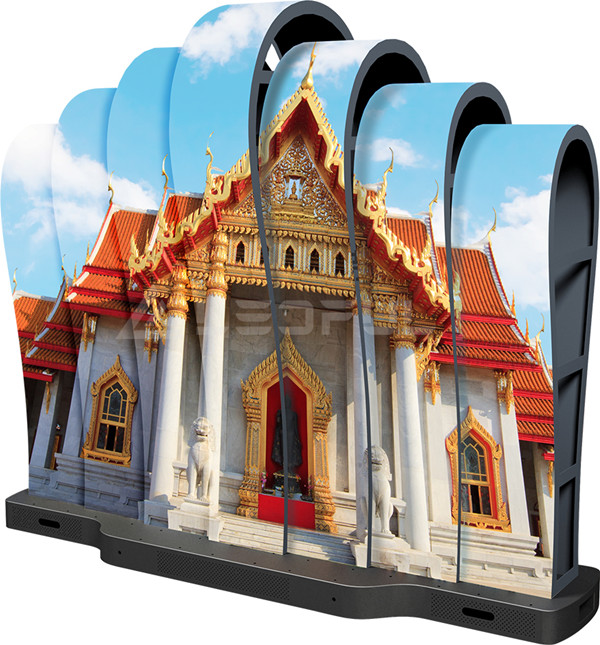

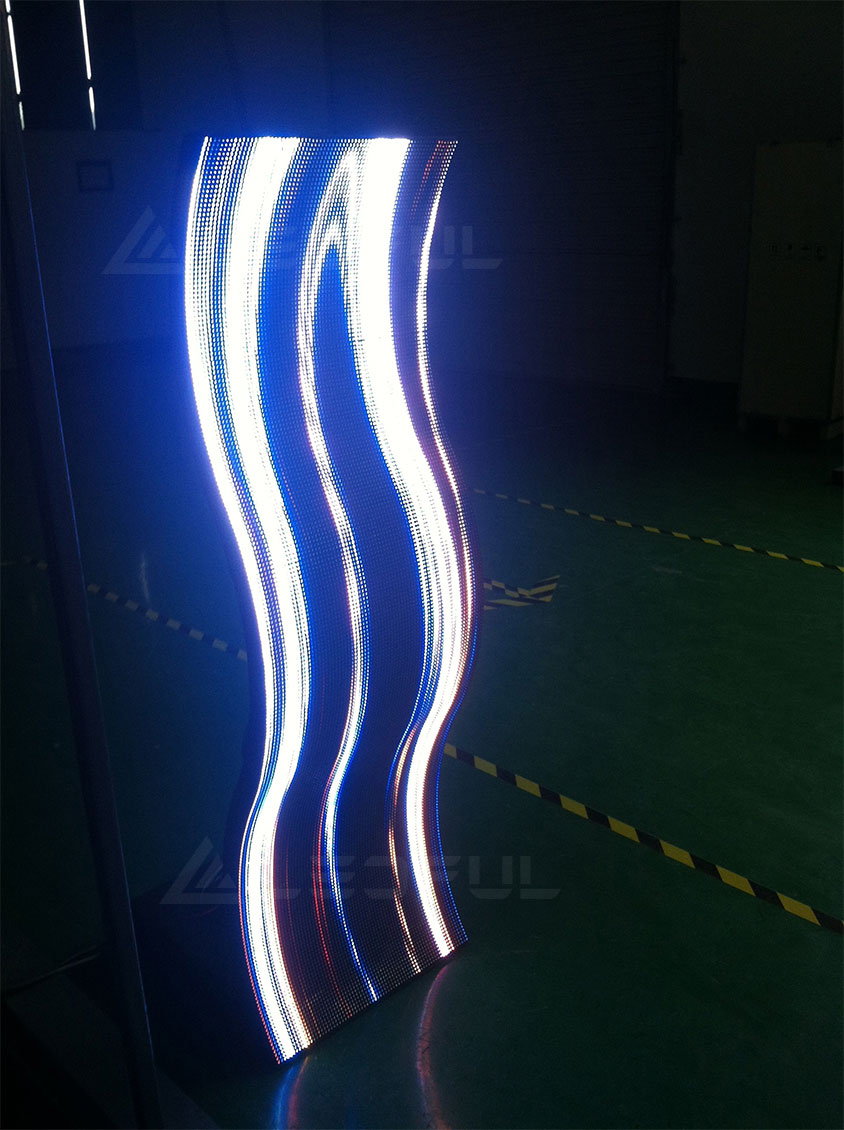

Creative LED Display Demo
Value | FLEX1.5 | FLEX1.8 | FLEX2 | FLEX2.5 | FLEX3 | FLEX4 | |||||
Pixel Pitch(mm) | 1.56mm | 1.875mm | 2mm | 2.5mm | 3mm | 4mm | |||||
Pixel Matrix Per Sq.m | 409,600 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 | |||||
Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |||||
Brightness (nits) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |||||
Scan | 1/32 | 1/32 | 1/30 | 1/24 | 1/20 | 1/15 | |||||
Module Resolution | 128×96 | 128×64 | 120×60 | 96×48 | 80×40 | 60×30 | |||||
Power Con. (Max/Avg) | 550/110w/sq.m | 550/110 w/sq.m | 550/110 w/sq.m | 550/110 w/sq.m | 550/110 w/sq.m | 550/110 w/sq.m | |||||
Module Dimension | 200x150mm/0.66x0.49ft | 240x120mm / 0.79x0.39ft | |||||||||
Module Weight | 0.4kg | 0.3kg | |||||||||

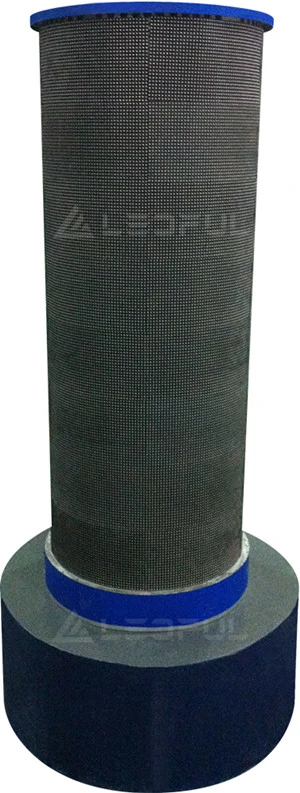

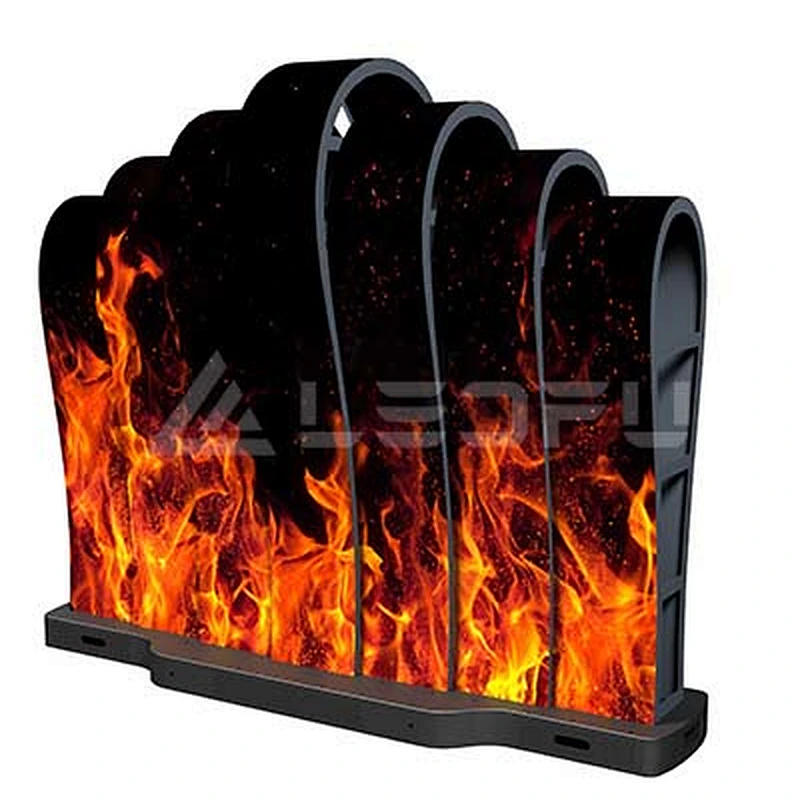

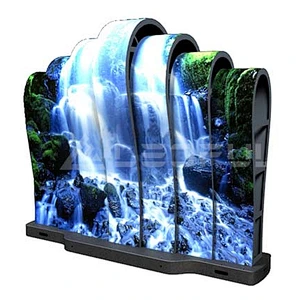

Cabinet Dimension | Customized, Concave, Convex, Round, Column, S shaped | ||||||||||
Service Access | Front Magnet | ||||||||||
Refresh Rate (HZ) | 3840 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 140 / 140 | ||||||||||
IP Rate | IP30 | ||||||||||
Input Voltage (AC) | 110 / 240 | ||||||||||
More designs and more solutions Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic,customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
Listen to you, think more for you. Lifelong maintenance with reasonable price Clear cost initially to save your time and money. Provide with innovative and satisfying products Excellent product quality, quick and professional services Always ready for your any change on LED display details. Recommend the best proper solution for your LED project. Catch things what you missed before LED display production. Take good care of each detail for your products, packages,shipping
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
P10/12/16/20/25: From 10/12/16/20/25 meter and more
This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.
Q5:How To Play The TVs On LED Display Panel?
A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.
1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
