  • Minimum order quantity:2
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: Flex Series

    Product Description

    • Pixel Pitch:1.56mm
    • Pixel Configuration:SMD1010
    • Brightness (nits):1000
    • Scan:1/32
    • Module Weight:0.4kg
    • Service Access:Front Magnet
    • IP Rate:IP30
    • Input Voltage (AC):110 / 240
    • Pixel Matrix Per Sq.m:409,600
    • Power Con. (Max/Avg):550/110w/sq.m
    • Place of Origin:CN;GUA
    • Application:advertising
    • Color:colorful
    • Panel Size:200x150mm
    • Pixel Pitch:1.5
    • Model Number:FLEX1.5
    • Brand Name:LEDFUL
    Product Description

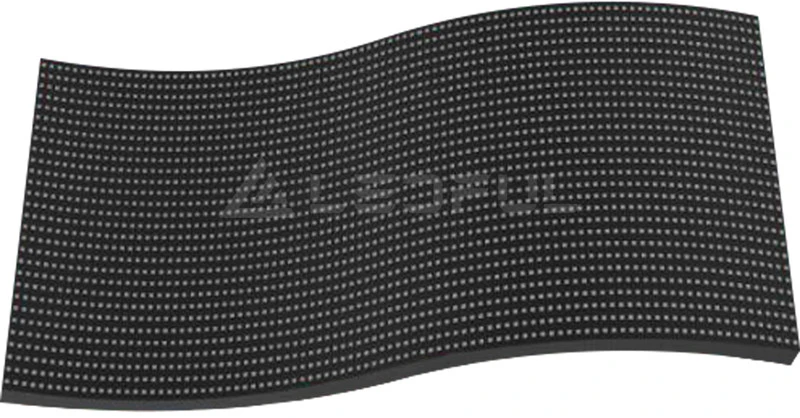

    Flex LED Display-Flex Series

    Flex for any irregular shaped screens
    Concave, convex, round, column, S shaped
    Front Service with Magnetic Module
    Light, thin, easy installation, plug and play
    Design without Limitation


    Creative LED Display Demo

    Details Images
    Value
    FLEX1.5
    FLEX1.8
    FLEX2
    FLEX2.5
    FLEX3
    FLEX4
    Pixel Pitch(mm)
    1.56mm
    1.875mm
    2mm
    2.5mm
    3mm
    4mm
    Pixel Matrix Per Sq.m
    409,600
    284,444
    250,000
    160,000
    111,111
    62,500
    Pixel Configuration
    SMD1010
    SMD1010
    SMD1515
    SMD1515
    SMD2121
    SMD2121
    Brightness (nits)
    1000
    1000
    1000
    1000
    1000
    1000
    Scan
    1/32
    1/32
    1/30
    1/24
    1/20
    1/15
    Module Resolution
    128×96
    128×64
    120×60
    96×48
    80×40
    60×30
    Power Con. (Max/Avg)
    550/110w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    Module Dimension
    200x150mm/0.66x0.49ft
    240x120mm / 0.79x0.39ft
    Module Weight
    0.4kg
    0.3kg
    Cabinet Dimension
    Customized, Concave, Convex, Round, Column, S shaped
    Service Access
    Front Magnet
    Refresh Rate (HZ)
    3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP30
    Input Voltage (AC)
    110 / 240

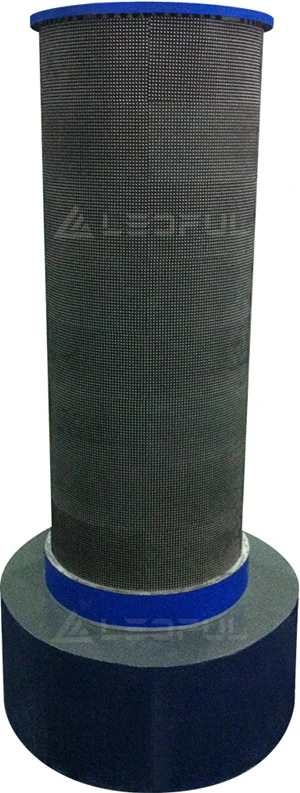

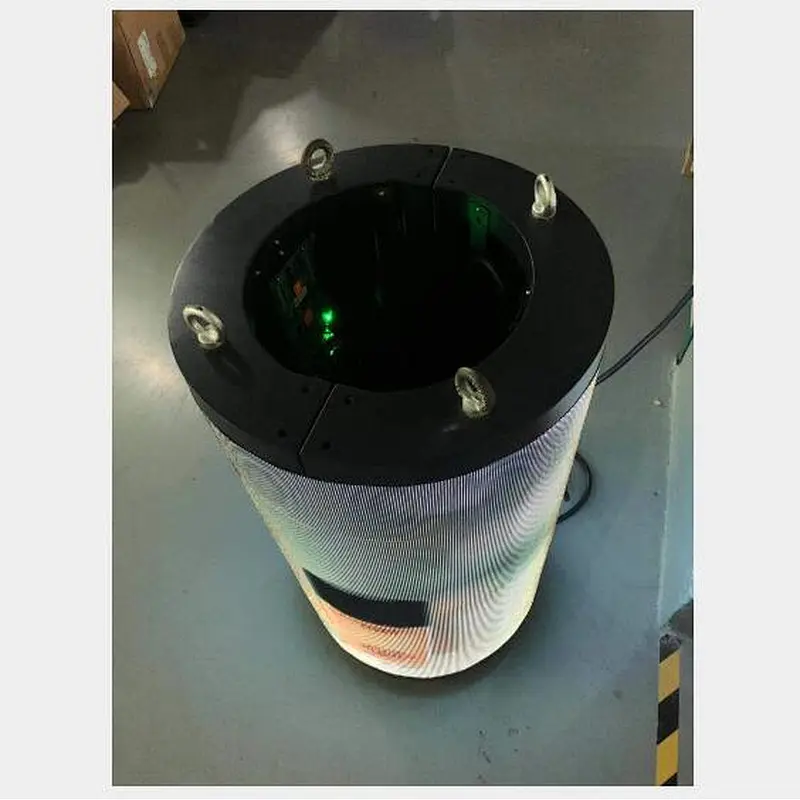

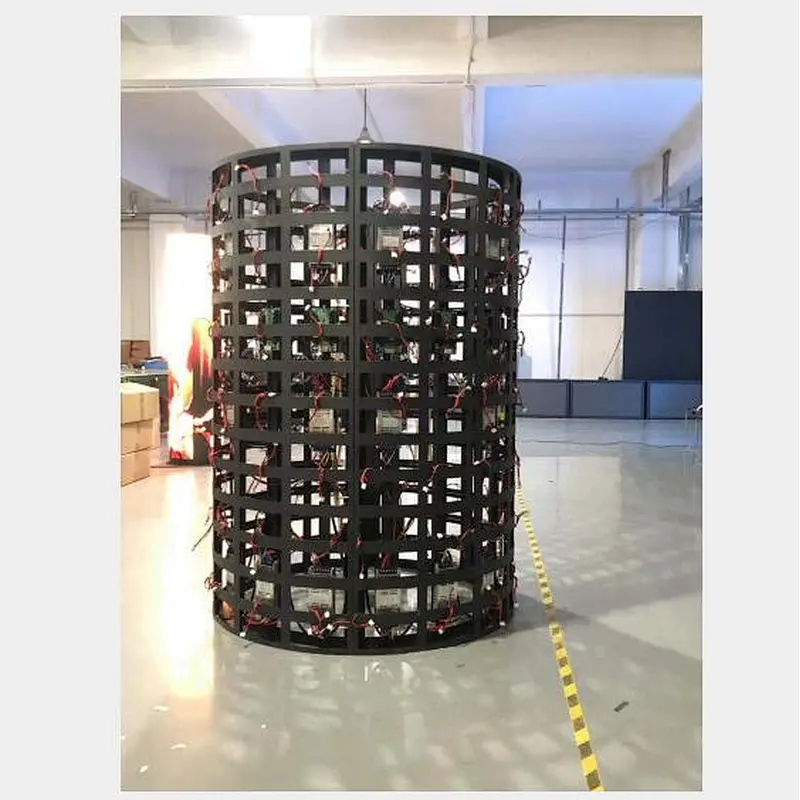

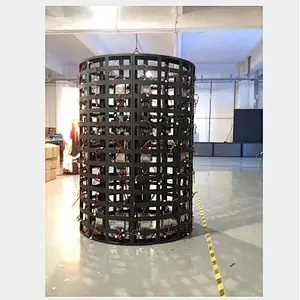

    Column Design withFLEX LED modules without cabinets

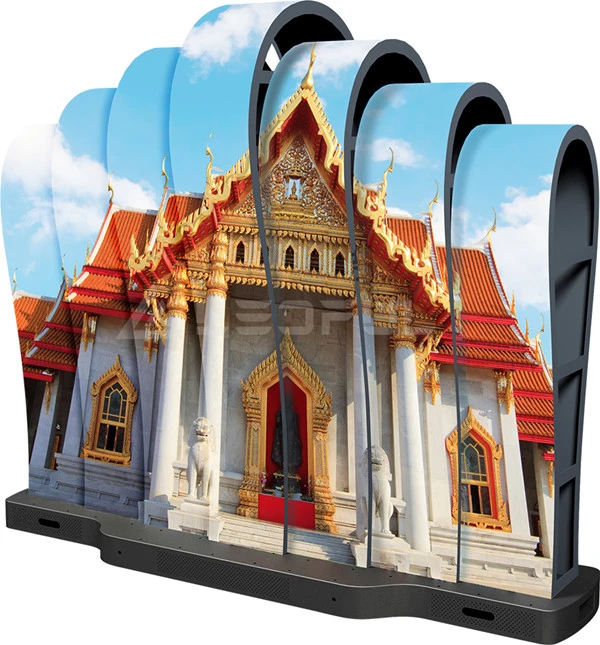

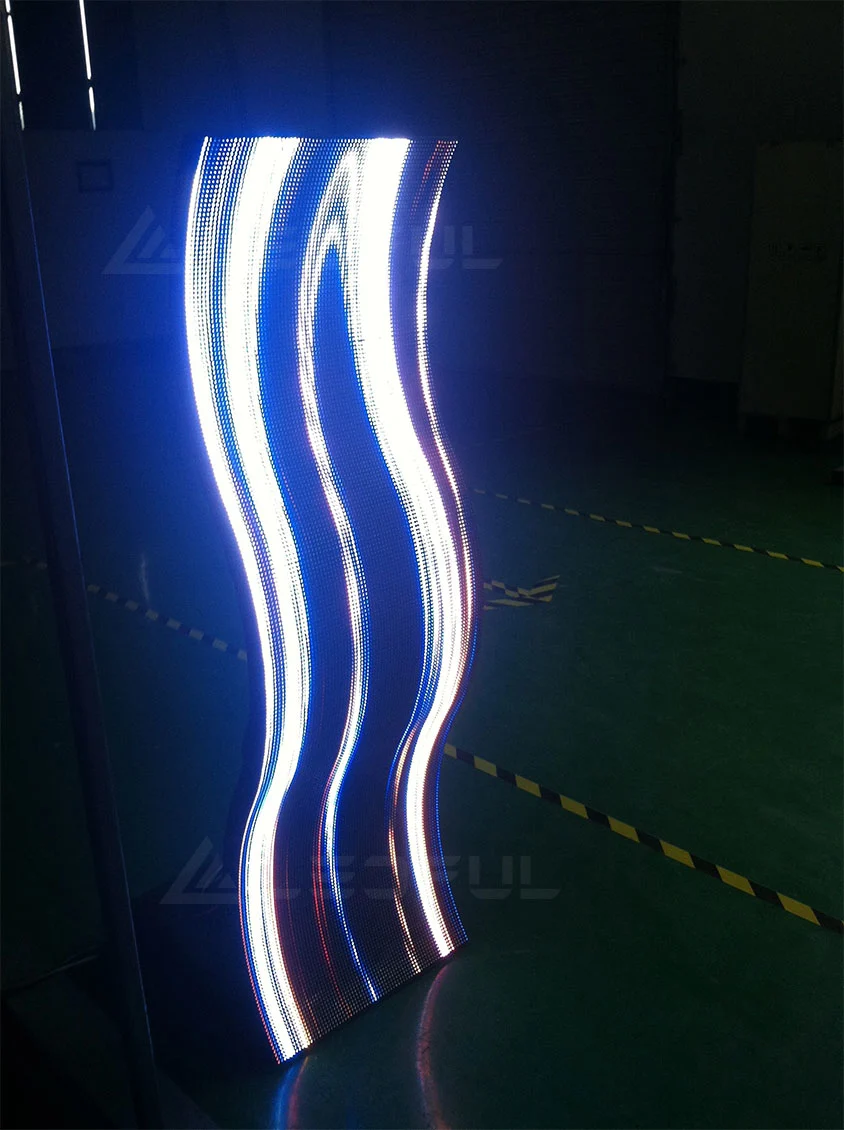

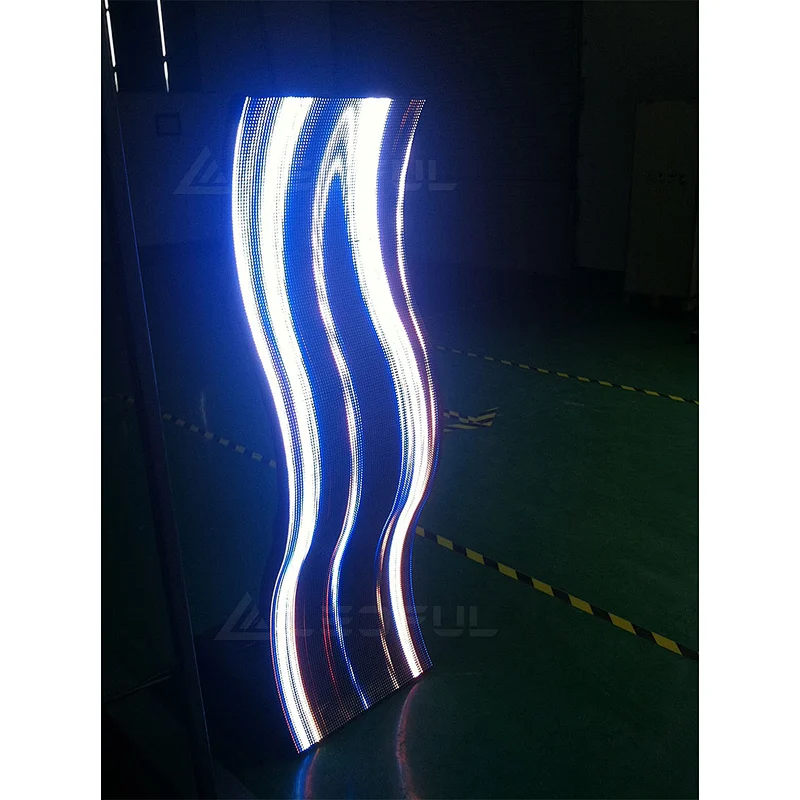

    S shaped LED display with FLEX LED modules

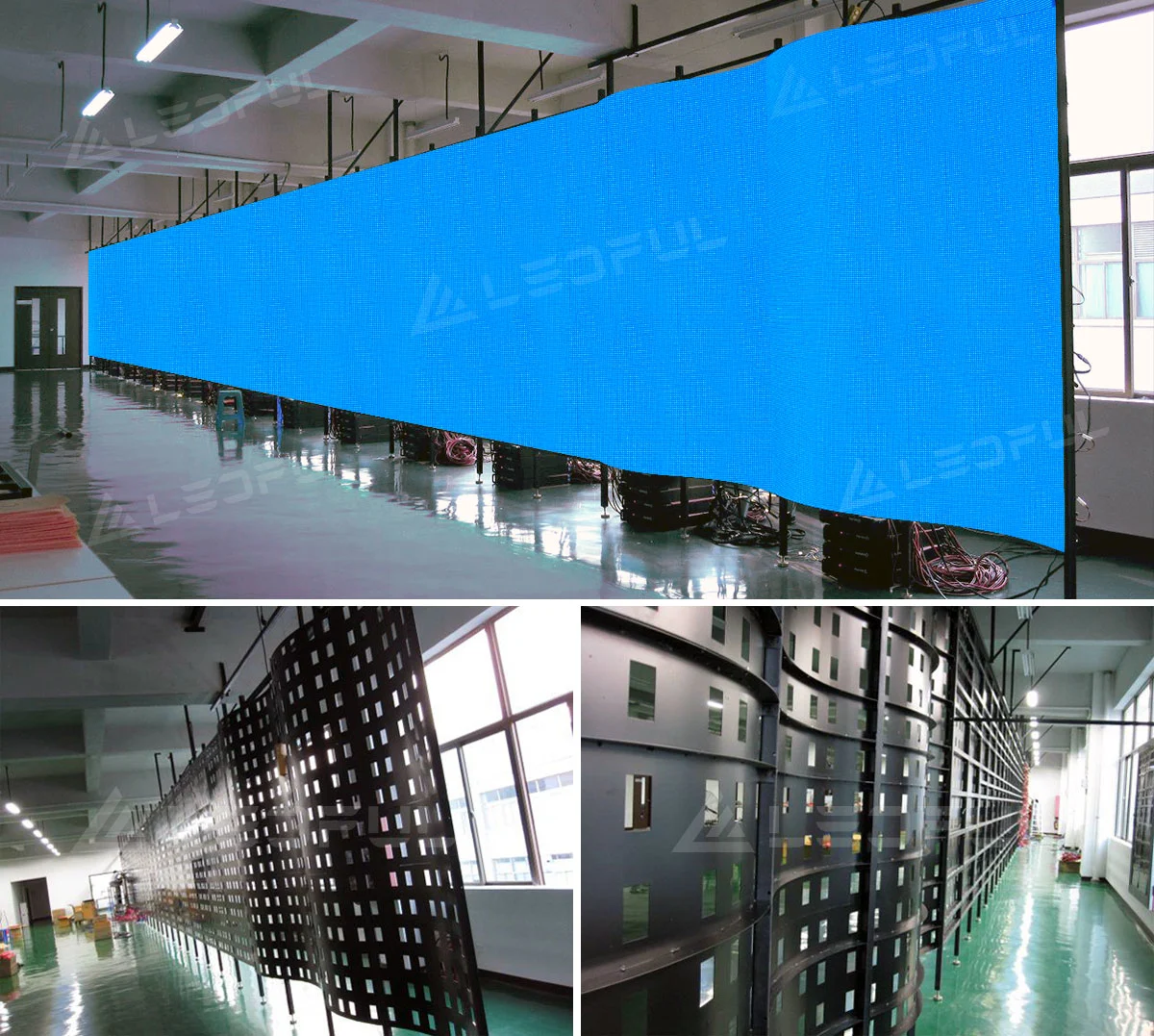

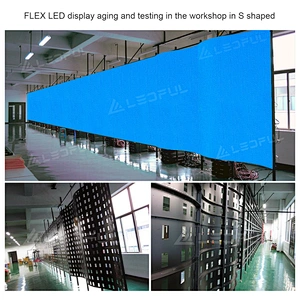

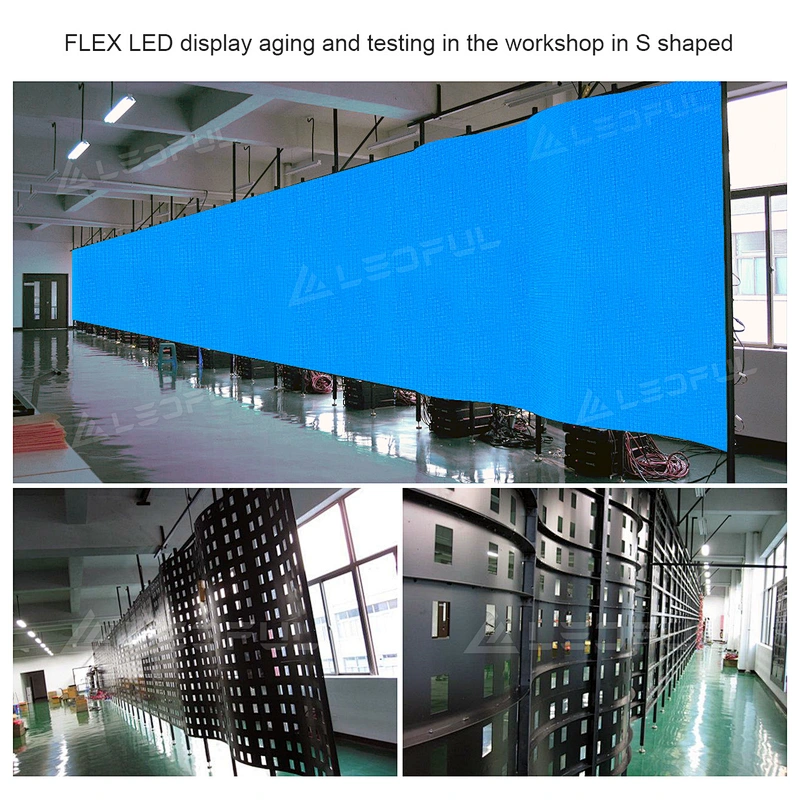

    FLEX LED display aging and testing in the workshop in S shaped

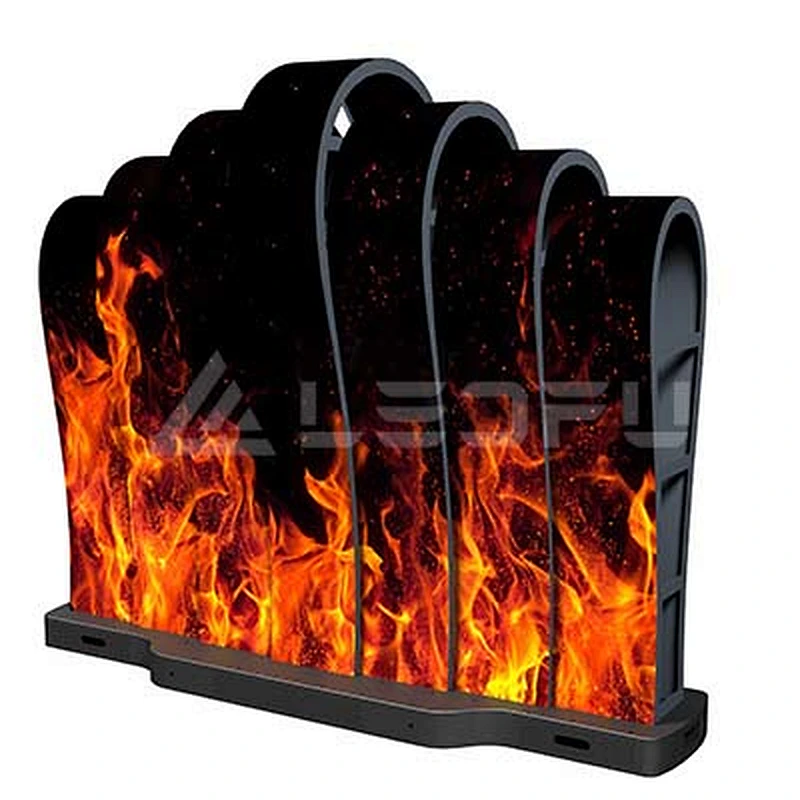

    FLEX LED display sample design

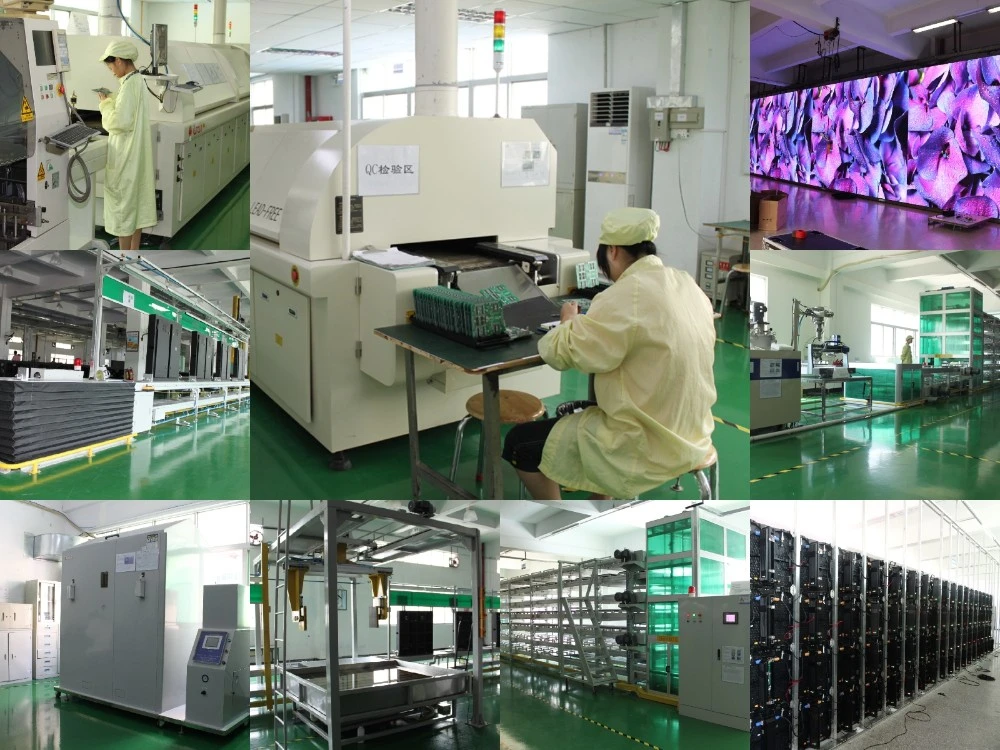

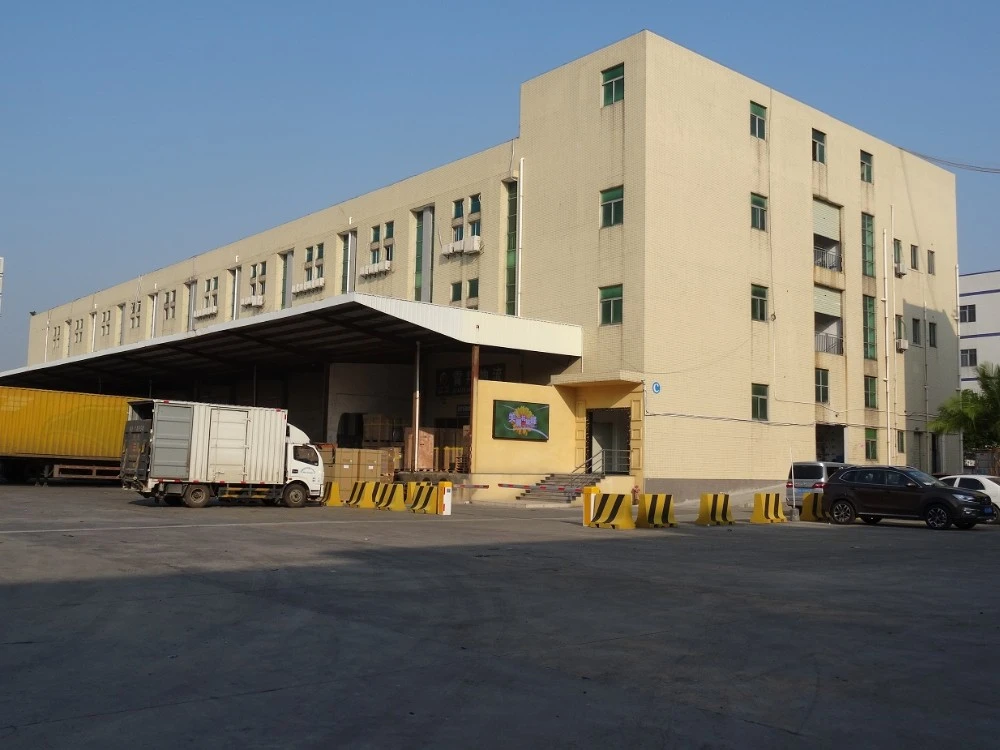

    Company Profile
     Top LED Display Manufacturer

    1.One-stop solution provider
    2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control
    3.Truss hanging,stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round,sphere, cubic, customized Focus on the improvement LED cabinets
    4.High efficient and enthusiastic team to make reliable LED display
     Professional, High Efficient and Caring

    1.Deep Customized & OEM Listen to you, think more for you.
    2.Reasonable price Clear cost initially to save your time and money.
    3.Provide with innovative and satisfying products.
    4.Excellent product quality, quick and professional services.
    5.Always ready for your any change on LED display details.
    6.Recommend the best proper solution for your LED project.
    7.Catch things what you missed before LED display production. 8.Take good care of each detail for your products,packages,shipping.

    Certifications
    Our Advantages
     Best Balance of Quality & Price
    FAQ

    Q1. Are you trading company or manufacturer?
    A: We are led display manufacturer

    Q2. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)
    A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more.This very important option
    determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the
    goods in your branded boxes after getting your authorization letters.

    Q6. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: What is the control system?
    A: We use Nova control system.

    Q9: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
