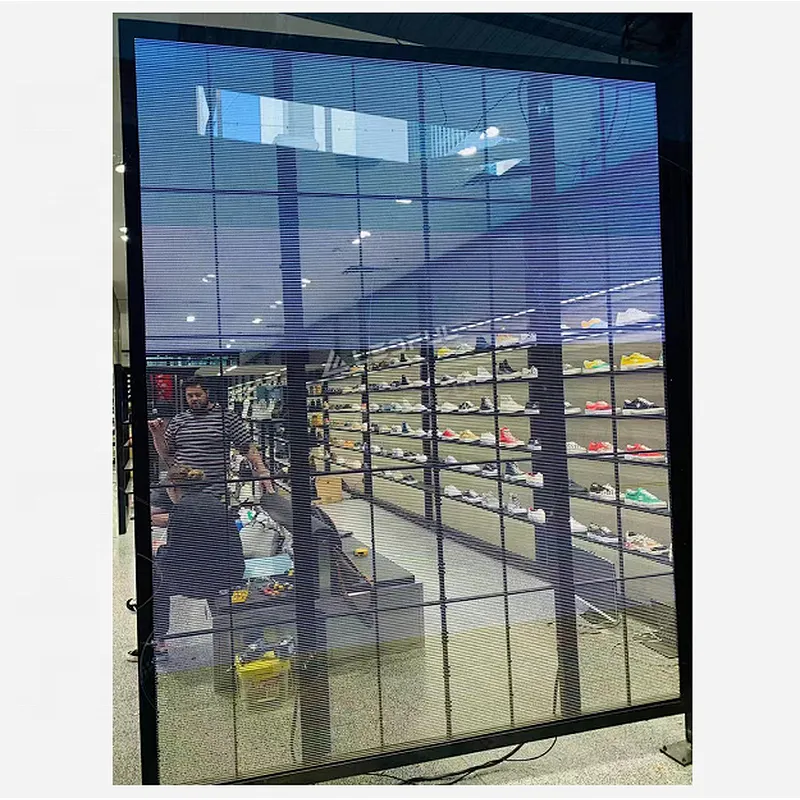

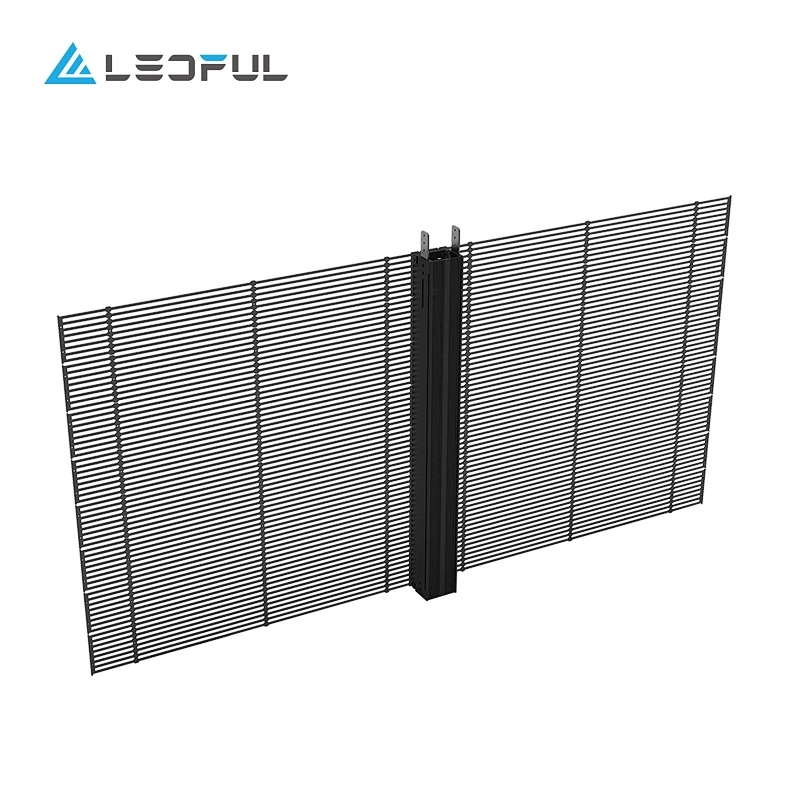

3 Year Warranty RGB Transparent Display rear architectural glass window led display
3 Year Warranty RGB Transparent Display rear architectural glass window led display
3 Year Warranty RGB Transparent Display rear architectural glass window led display
3 Year Warranty RGB Transparent Display rear architectural glass window led display
3 Year Warranty RGB Transparent Display rear architectural glass window led display
3 Year Warranty RGB Transparent Display rear architectural glass window led display
3 Year Warranty RGB Transparent Display rear architectural glass window led display

3 Year Warranty RGB Transparent Display rear architectural glass window led display

Categories: TPW Series

Product Description

  • Usage:Indoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Video
  • Pixels:2.95mm
  • Screen Dimension:755.2*2000
  • Product name:Led Video Display Panel
  • Certificate:CE ROHS FCC
  • Brightness:5500cd/sqm
  • Color:Fullcolor
  • Application:Adervertising
  • Place of Origin:CN;GUA
  • Application:video
  • Color:colorful
  • Panel Size:755.2x2000
  • Pixel Pitch:2.95
  • Model Number:TPW2000
  • Brand Name:LEDFUL
Product Description
Parameter
TPW Series
TPW1200
TPW1600
TPW2000
Pixel Pitch(mm)(H/V)
2.95/6.25
2.95/6.25
2.95/6.25
Pixel Configuration
SMD1921
SMD1921
SMD1921
Brightness (nits)
5500
5500
5500
Transparency
60%
60%
60%
Module Dimension (mm)
377.6 x 50
377.6 x 50
377.6 x 50
Module Resolution
128 x 8
128 x 8
128 x 8

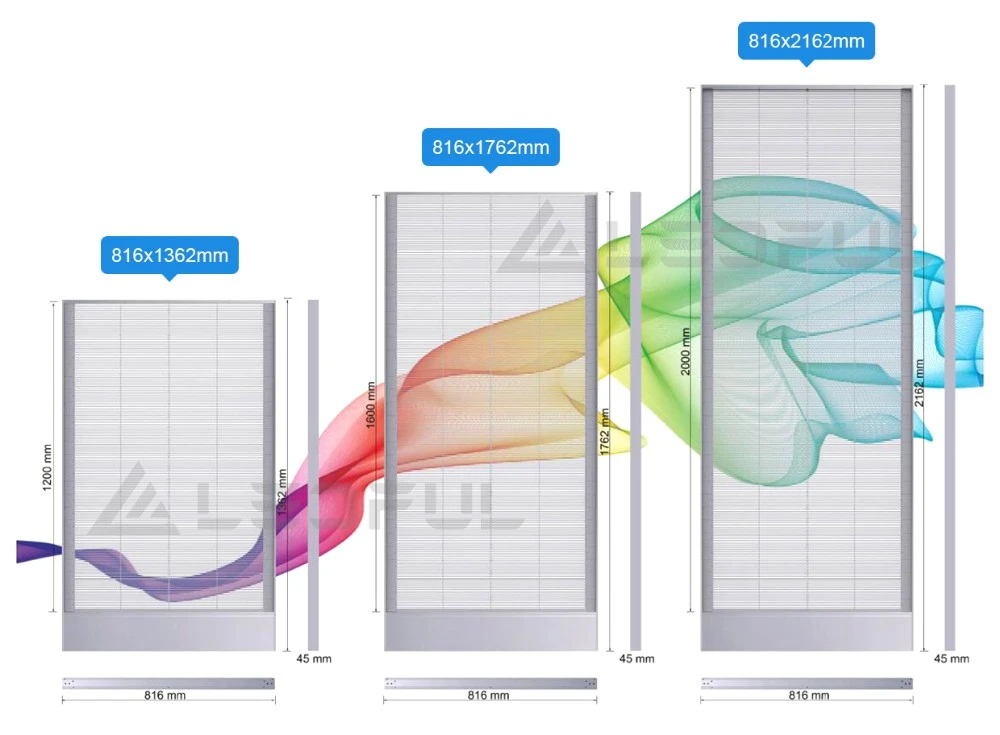

Poster Dimension (mm)
816x1362
816x1762
816x2162
Display Dimension (mm)
755.2x1200
755.2x1600
755.2x2000
Poster Resolution
256×192
256×256
256×320
Pixel Matrix Poster
49152
65536
81920
Power Con. (Max / Avg)
800 / 240 w
900 / 270 w
1200 / 360 w
Cabinet Weight (kg)
29
38
46
Refresh Rate (HZ)
1920
1920
1920
Grey Scale (bit)
16
16
16
Viewing Angle (H/V)
140 / 140
140 / 140
140 / 140
IP Rate
IP62
IP62
IP62
Input Voltage (AC)
110 / 240
110 / 240
110 / 240
Our Company

Top LED Display Manufacturer

LEDFUL founded in 2008 Total 209 employees in LEDFUL

3~5 years warranty on LED screen Exported to 83 countries and regions
Top reliable LED display manufacturer Over 5,600 successful projects in the world
R&D staff occupied 10% of all the employees.
CE, RoHS, FCC, CCC, ISO9001:2008 standard

Professional, High Efficient and Caring

One-stop solution provider More designs and more solutions
Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized
Focus on the improvement and innovation of rental LED cabinetsHigh efficient and enthusiastic team to make reliable LED display Our partners are Media Companies, Stage Designer, Project Manager, Pro Audio, Light and Video companies, AV Rental Equipment companies,
Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
Our Service
FAQ

Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer

Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4:Minimum distance of the audience? (Viewing distance)
P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
P10/12/16/20/25: From 10/12/16/20/25 meter and more
This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

Q5:How To Play The TVs On LED Display Panel?
LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
