Our ultimate pursuit is to satisfy our customers. LEDFUL has been focusing on the export of LED display for 12 years, relying on
the sincere service to customers, high requirements for products and high standards for details
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Warranty:3~5 Years
- Function:Play Video
- Pixel pitch:6.2mm
- Brightness:≥3500nits
- Application:Live Events Led Display
- LED chip:Nationstar
- Certificate:CE ROHS FCC ISO9001 CCC
- Screen Dimension:500*1000mm
- Place of Origin:CN;GUA
- Application:rental event
- Color:fullcolor
- Panel Size:500*1000
- Pixel Pitch:6.2mm
- Model Number:TO6.2
- Brand Name:LEDFUL
Product Description
T Series

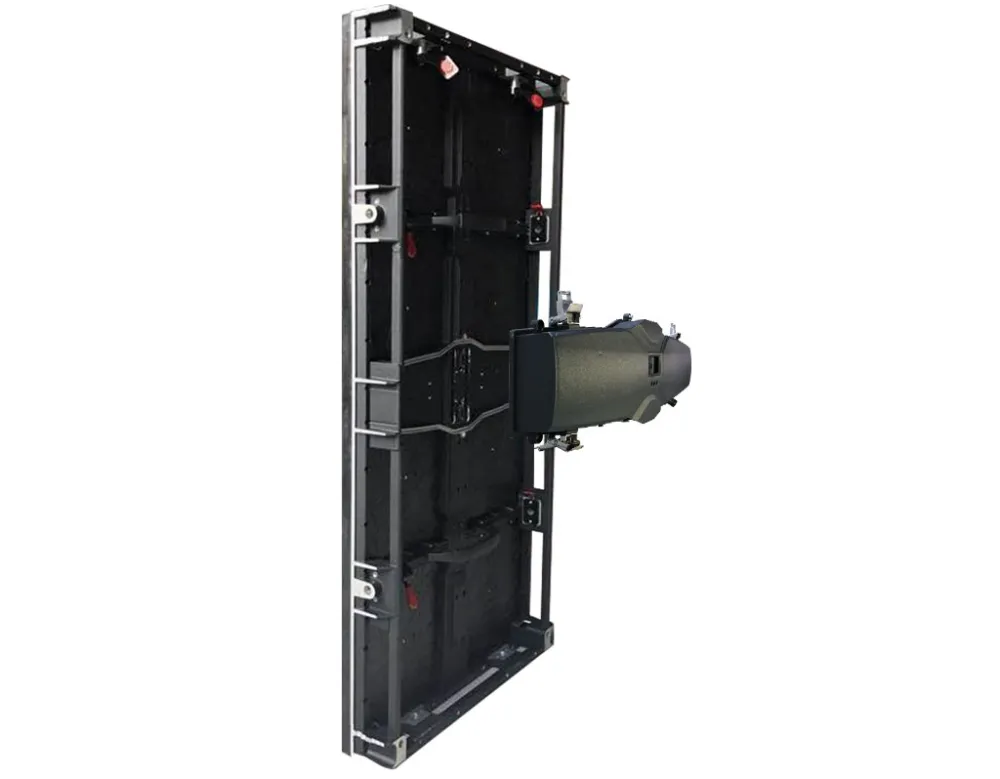

LEDFUL Rental LED display
T Series Outdoor | TO 3.9 | TO 4.8 | TO 5.9 | TO 6.2 | |||
Pixel Pitch(mm) | 3.91mm | 4.81mm | 5.95mm | 6.25mm | |||
Pixel Matrix Per Sq.m | 65536 | 43264 | 28224 | 25600 | |||
Pixel Configuration | SMD1921 | SMD2727/1921 | SMD3535 | SMD3535 | |||
Brightness (nits) | ≥4000 | ≥4500 | ≥4500 | ≥4000 | |||
Scan | 1/16 | 1/13 | 1/7 | 1/10 | |||
Cabinet Resolution | 128×256 | 104×208 | 84×168 | 80×160 | |||
Power Con. (Max / Avg) | 750/ 230 w/sq.m | 700 / 220 w/sq.m | 700 / 220 w/sq.m | 710/ 210 w/sq.m | |||
Module Dimension | 250x250mm / 0.82x0.82ft | ||||||

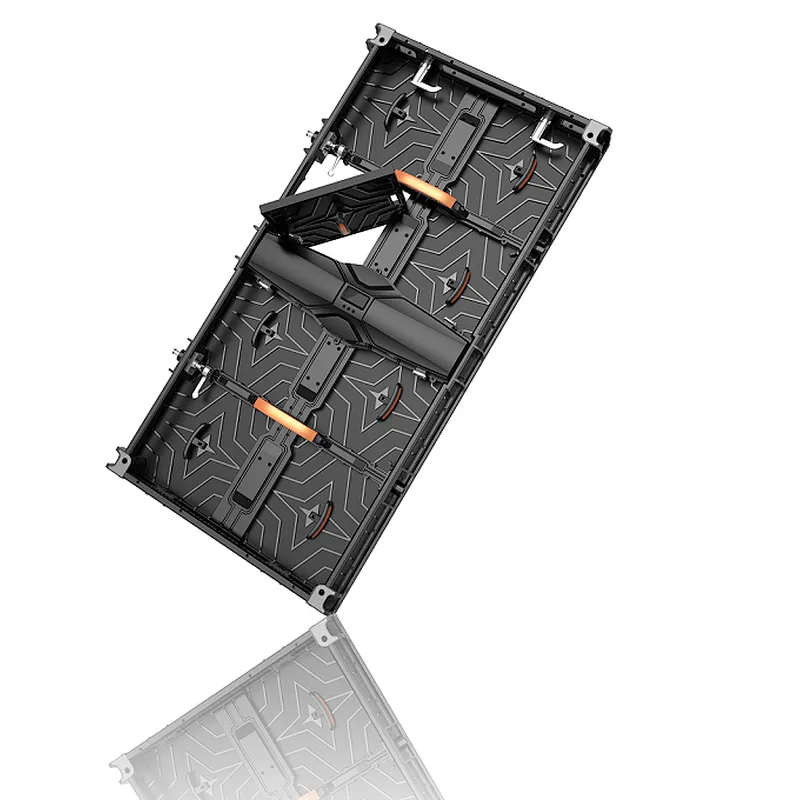

Cabinet Dimension | 500x1000x80mm / 1.64x3.28x0.26ft | ||||||
Cabinet Weight | 13kg / 28.66Ib (( Die-casting Aluminum) | ||||||

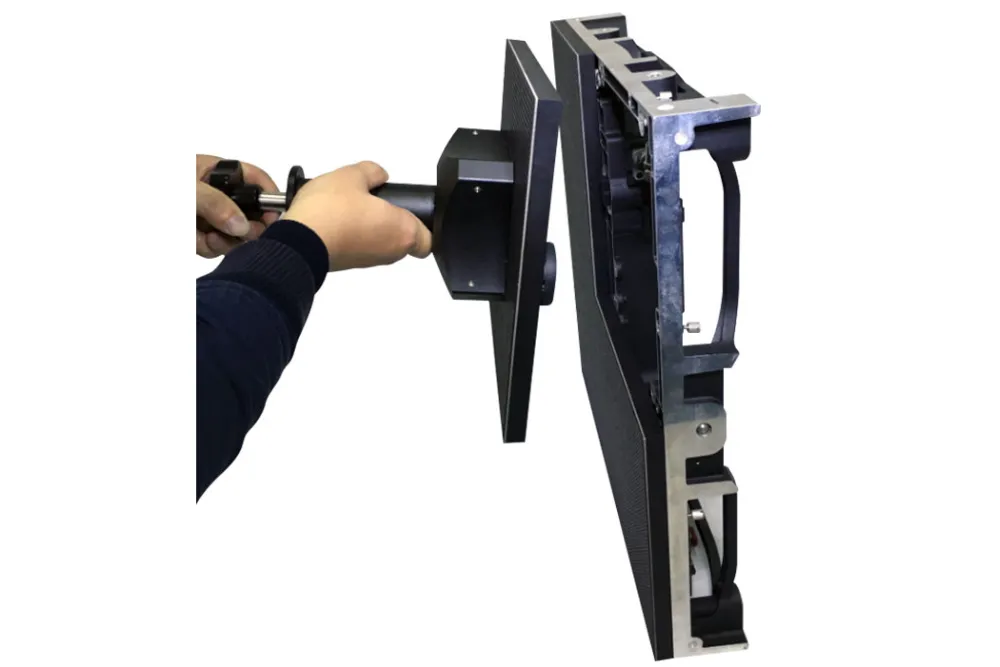

Service Access | Front / Rear | ||||||

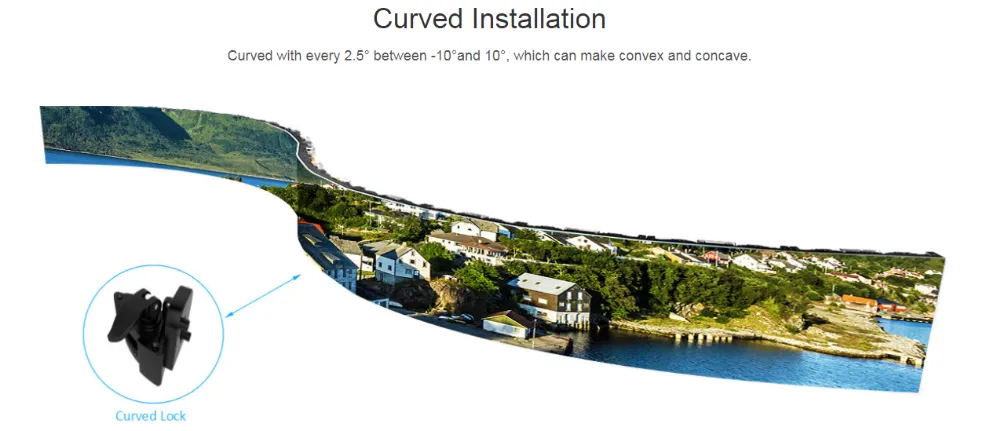

Rotation Angle | -10° and +10° | ||||||
Refresh Rate (HZ) | 1920 | ||||||
Grey Scale (bit) | 16 | ||||||
Viewing Angle (H/V) | 160 / 160 | ||||||
IP Rate | IP65 | ||||||
Input Voltage (AC) | 110 / 240 | ||||||

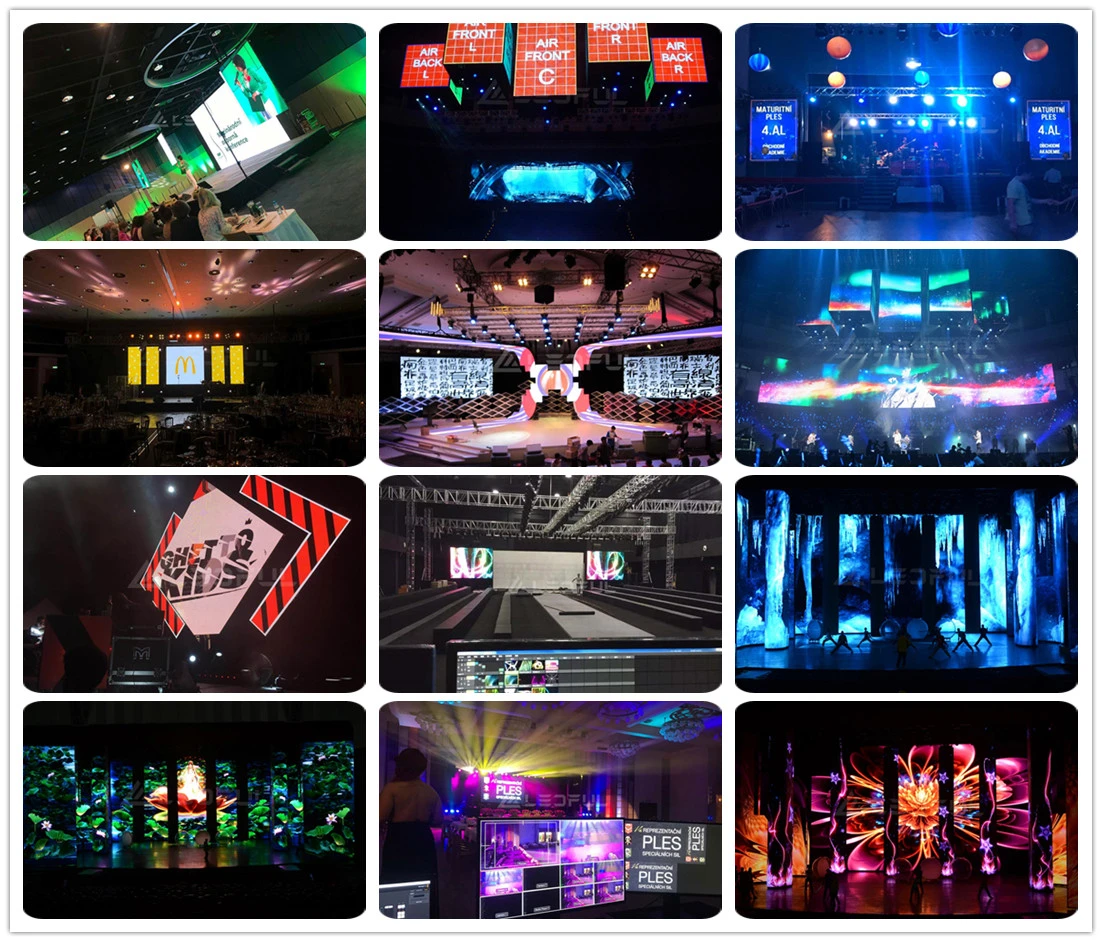

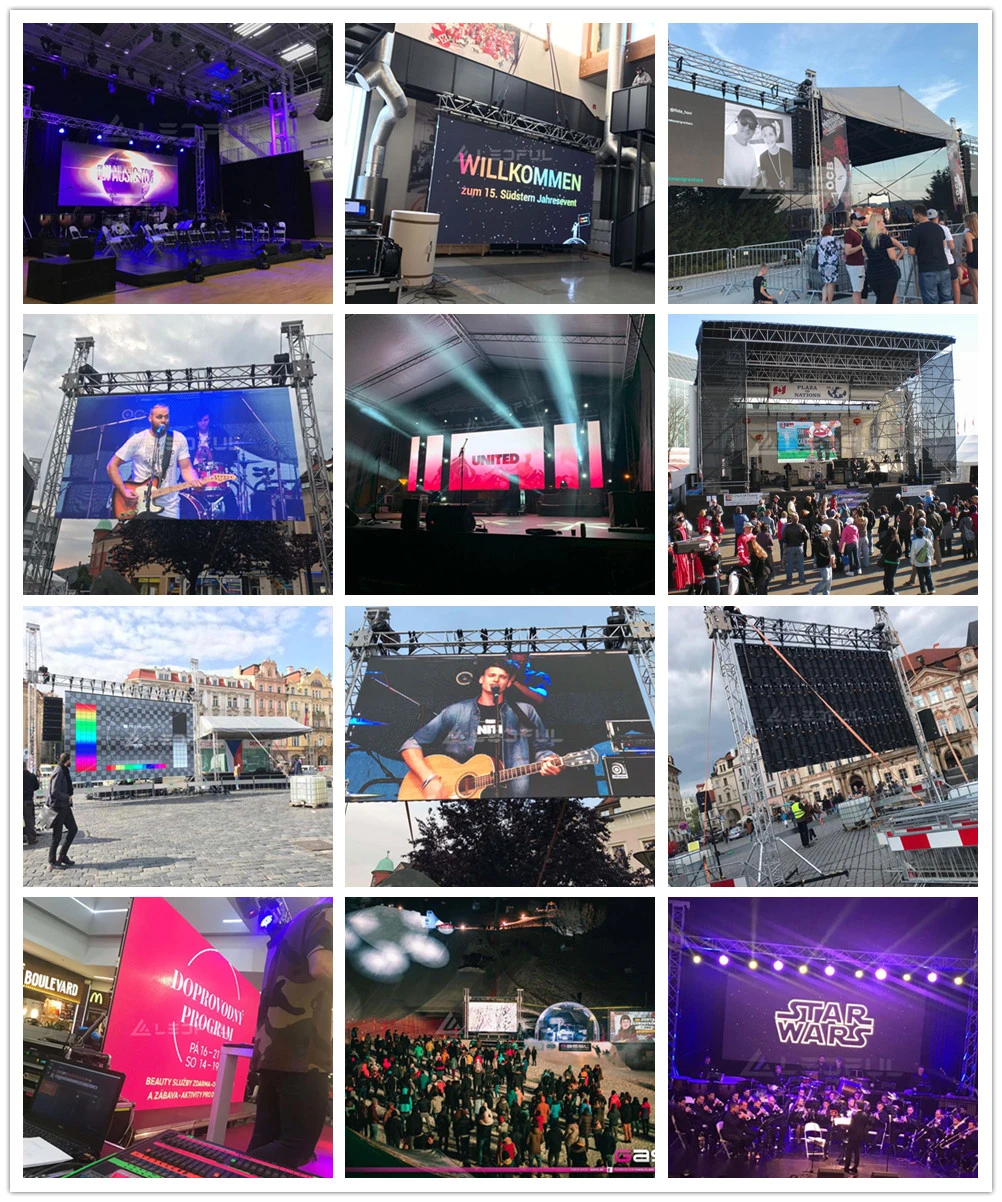

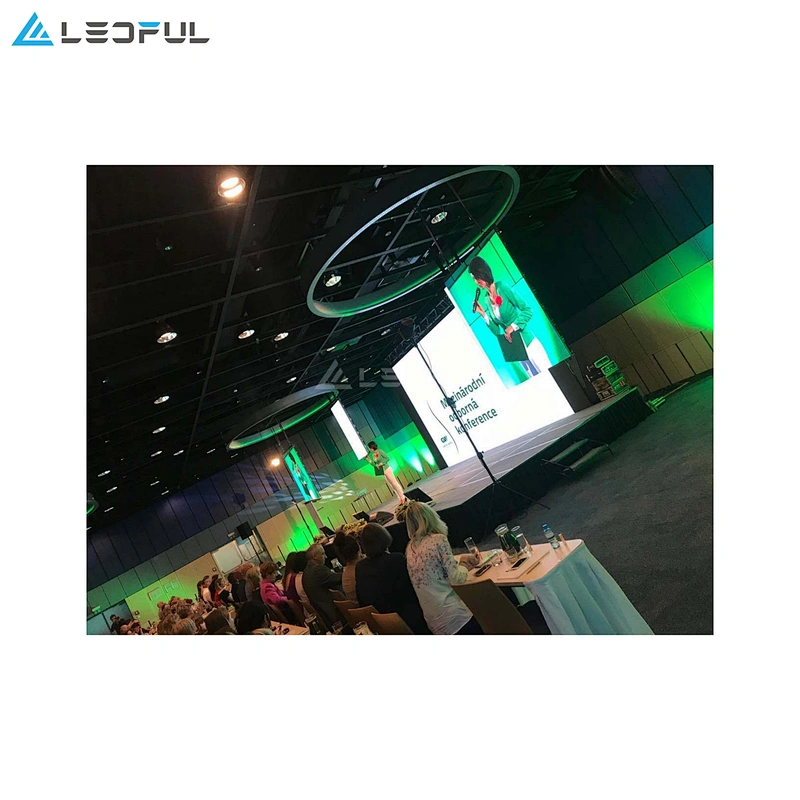

Application
Below are the customer reviews of our products, you can see their recognition of our product quality and service attitude
Our Company
Certificate

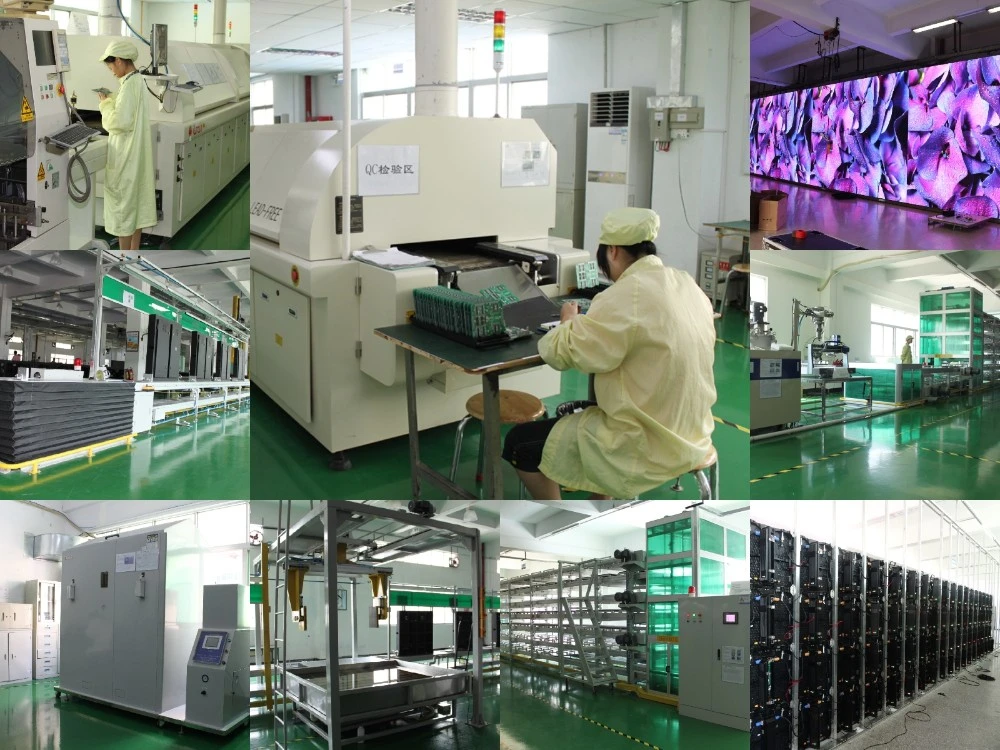

Our Company
Professional, High Efficient and Caring
More designs and more solutionsWireless control, 4G, Wifi, Cluster control.Truss hanging, stacking, touring, LED ceiling, video floorIrregular shaped, flex, curved, round, sphere, cubic, customizedFocus on the improvement.
Our Service
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply free sample, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q9: What is the control system?
A: We use Nova control system.
Q10. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
