- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Warranty: 3 Years:LED chip: Epistar
- Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
- Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
- Application: Rental:Control system: Linsn /Nova
- Input Voltage (AC): 110V / 240V:Viewing Angle (H/V): 140 / 140
- Screen Dimension:500*1000mm
- Application:Indoor Rental
- Color:Full color
- Panel Size:500x1000mm
- Pixel Pitch:2.8mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:TI2.8
- Brand Name:LEDFUL
T Series
Rental LED Display
TI2.6 | TI2.8 | TI2.9 | TI3.9 | TI4.8| TI5.9 | TI6.2
TO3.9 | TO4.8 | TO5.9 | TO6.2
◆Full Front Maintenance
◆Curved Installation
◆No Light Leakage
◆Climbing support
◆Light and Thin

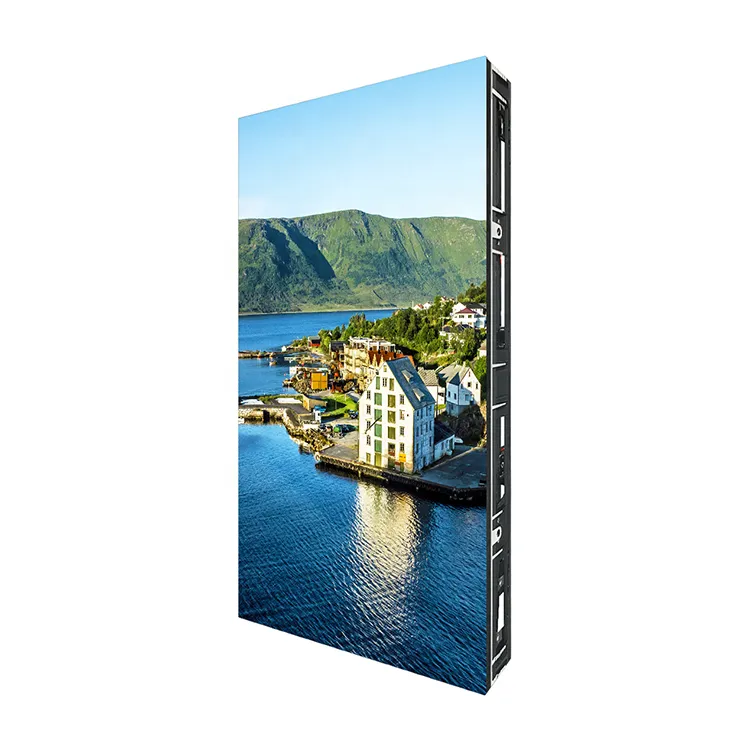

Product Name | TI 2.8 |
Pixel Pitch(mm) | 2.84mm |
Pixel Matrix Per Sq.m | 123904 |
Pixel Configuration | SMD2121 |
Scan | 1/22 |
Cabinet Resolution | 176×352 |
Power Con. (Max / Avg) | 800 / 250w/sq.m |
Module Dimension | 250x250mm / 0.82x0.82ft |
Cabinet Dimension | 500x1000x80mm / 1.64x3.28x0.26ft |
Cabinet Weight | 13kg / 28.66Ib (( Die-casting Aluminum) |
Service Access | Front / Rear |
Rotation Angle | -10° and +10° |
Brightness (nits) | ≥1000 |
Refresh Rate (HZ) | 3840 |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
IP Rate | IP31 |
Input Voltage (AC) | 110 / 240 |
Details

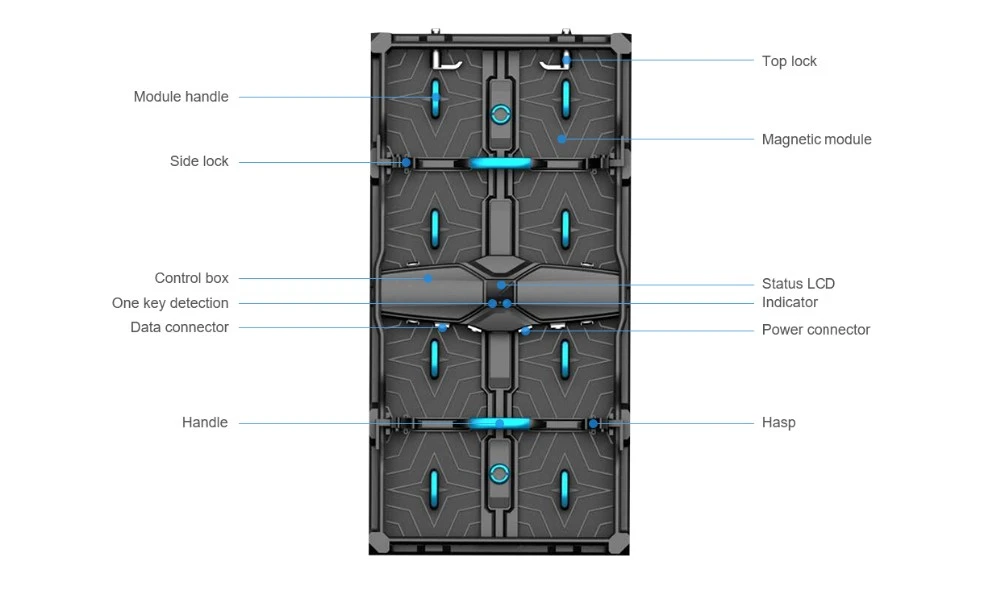

Full Front Maintenance
LED modules, receiver card, hub card, power supply, cables, etc are all front service.

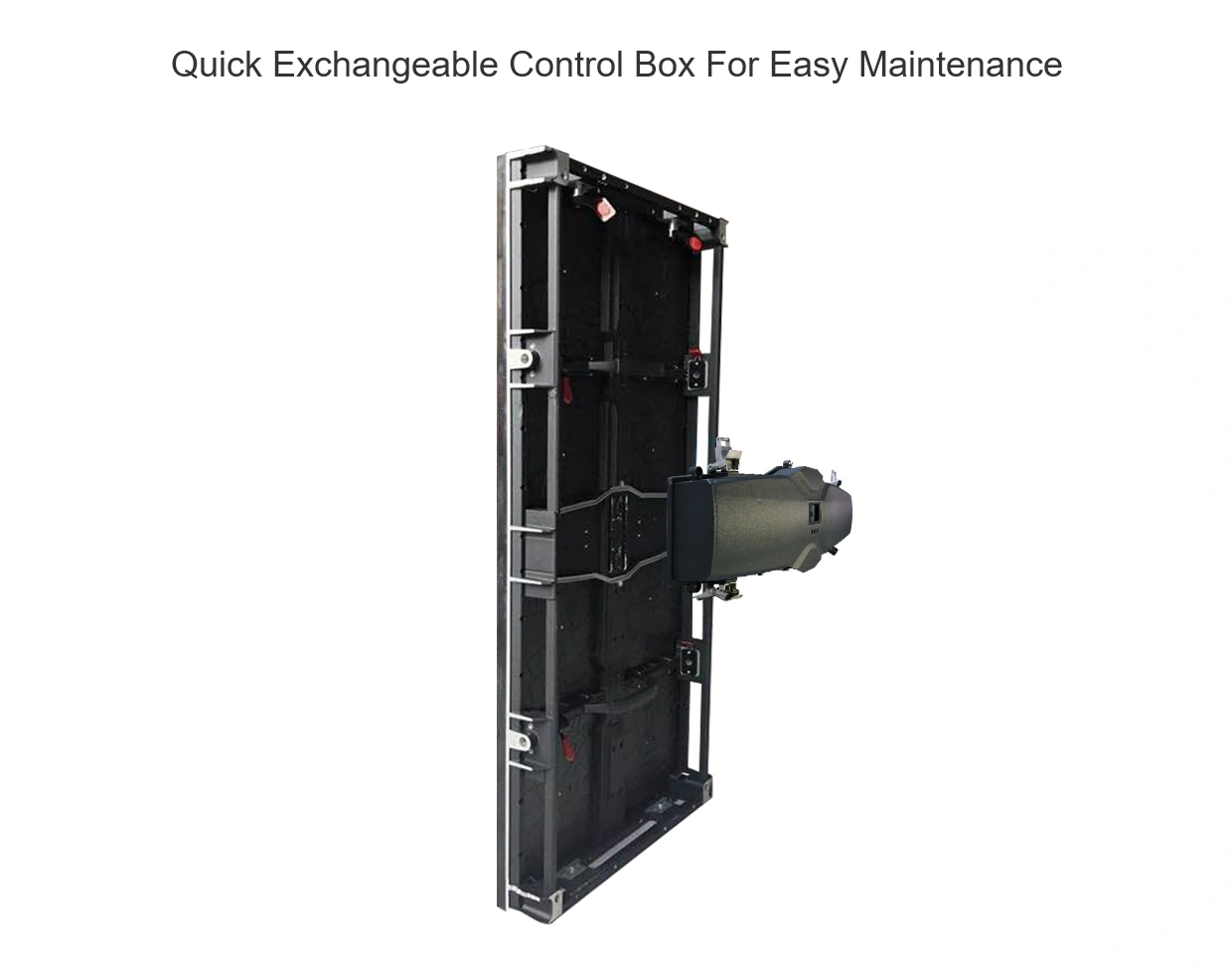

One Second ExchangedBox

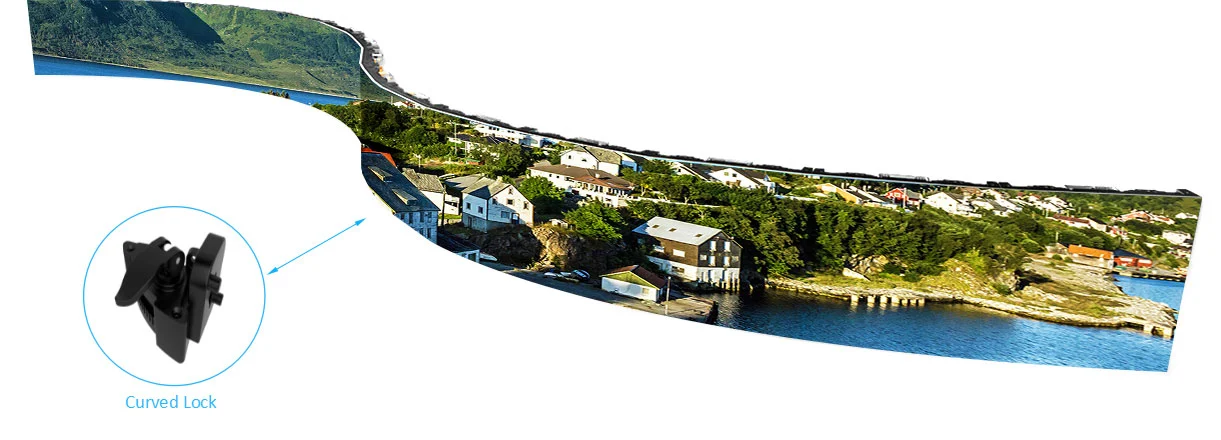

Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
No light leakage trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.

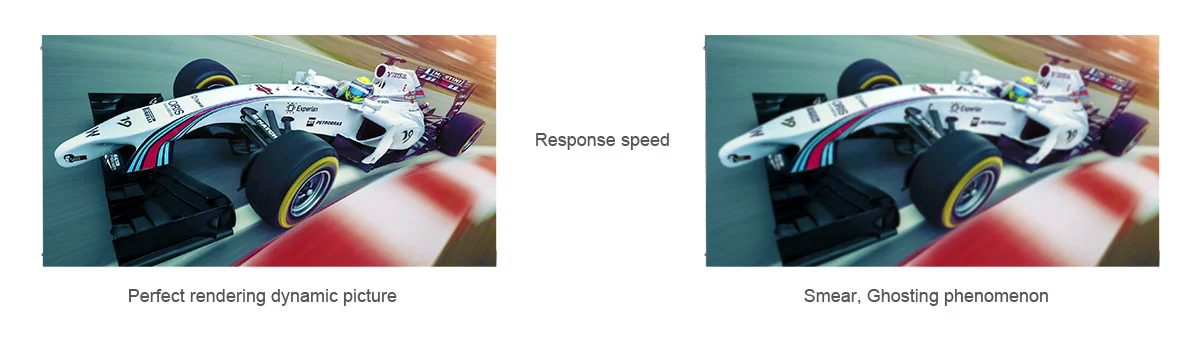

Ultra Fast Response

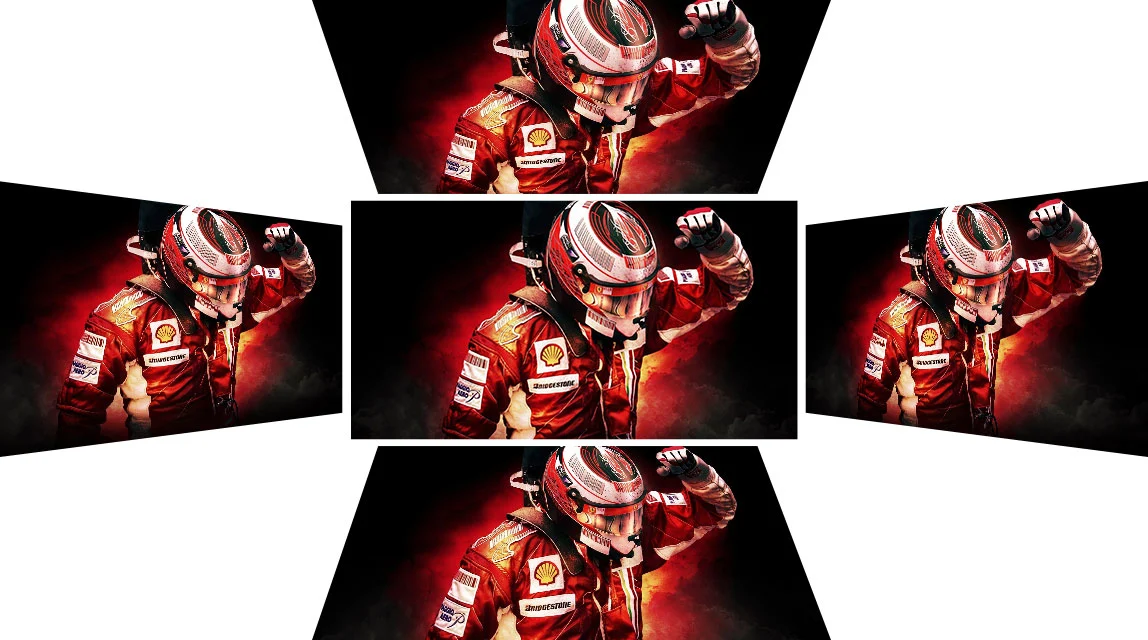

Wide Viewing Angle

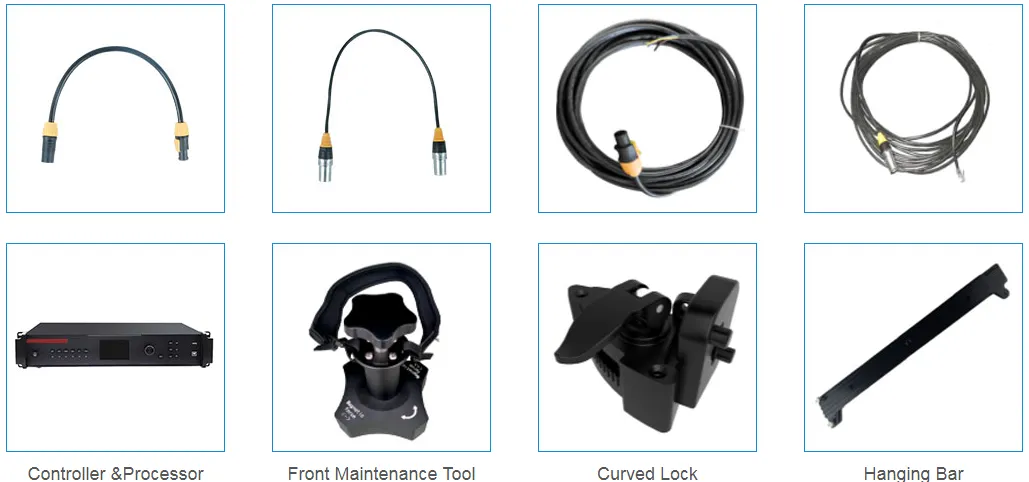

Accessories

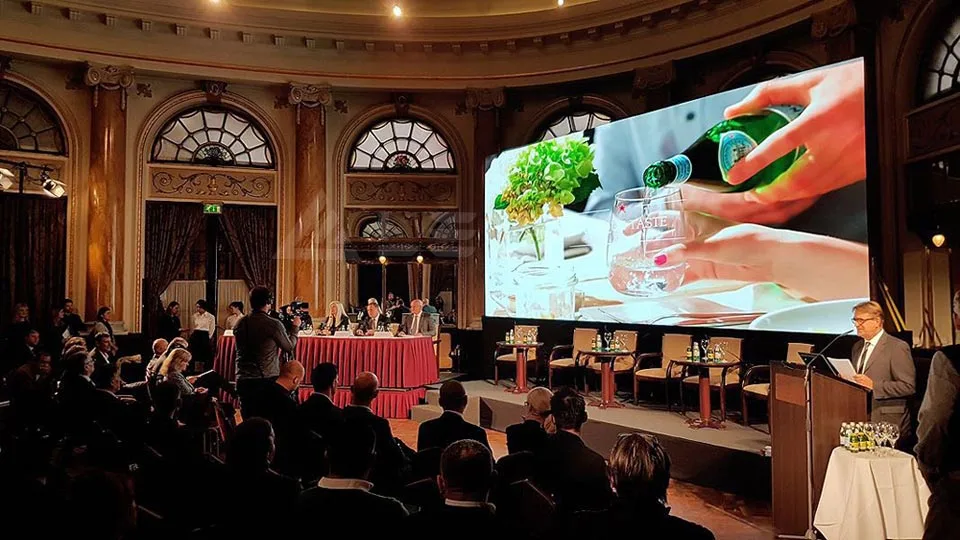

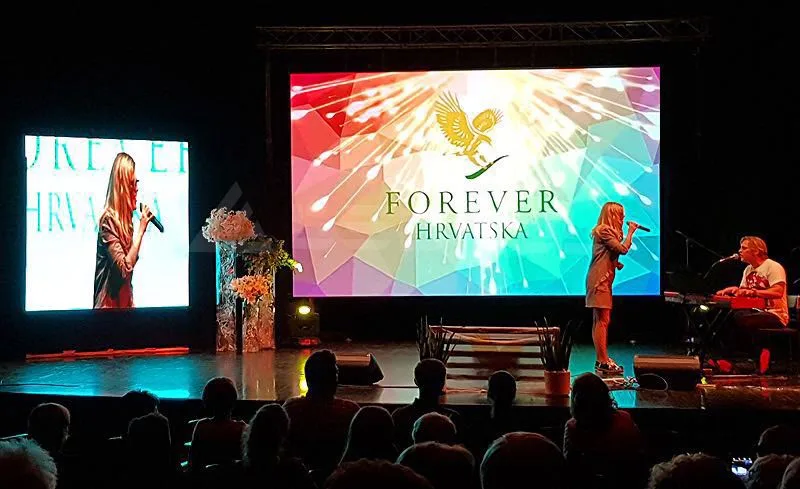

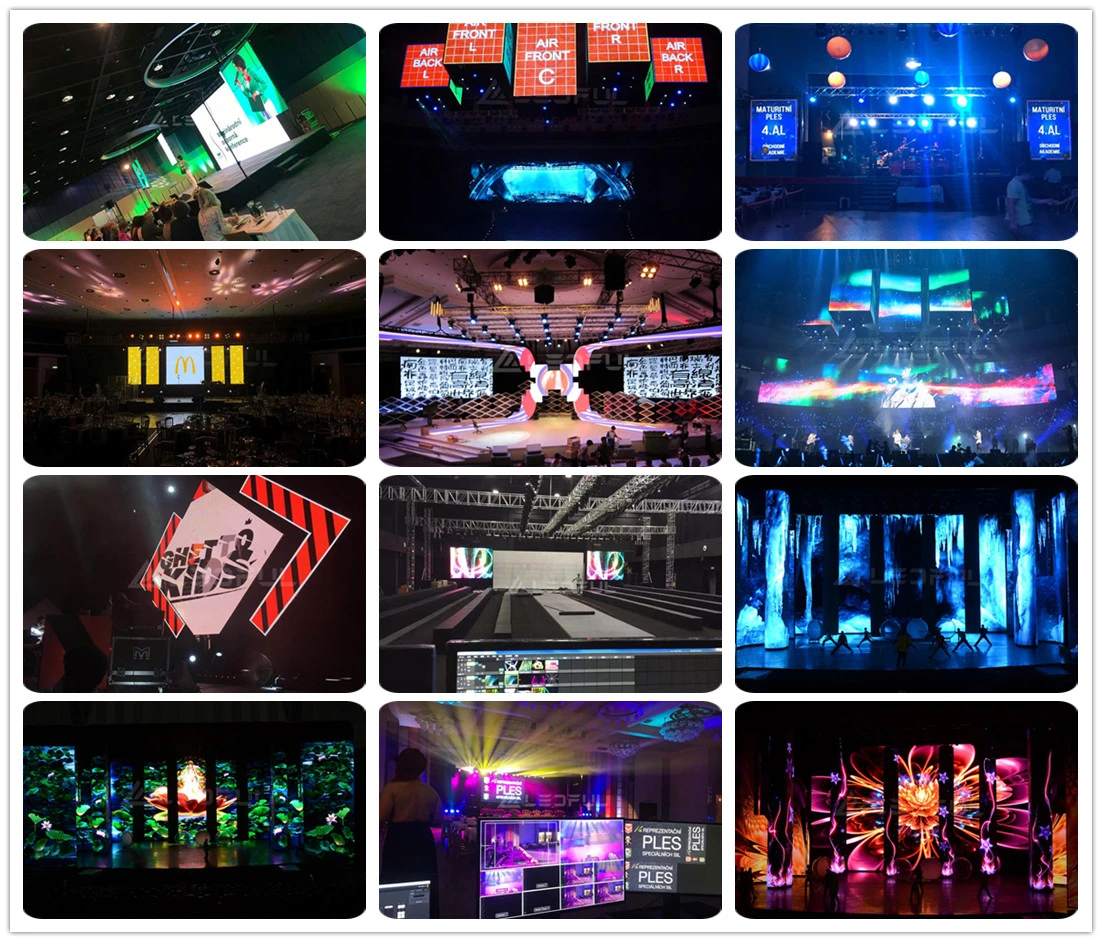

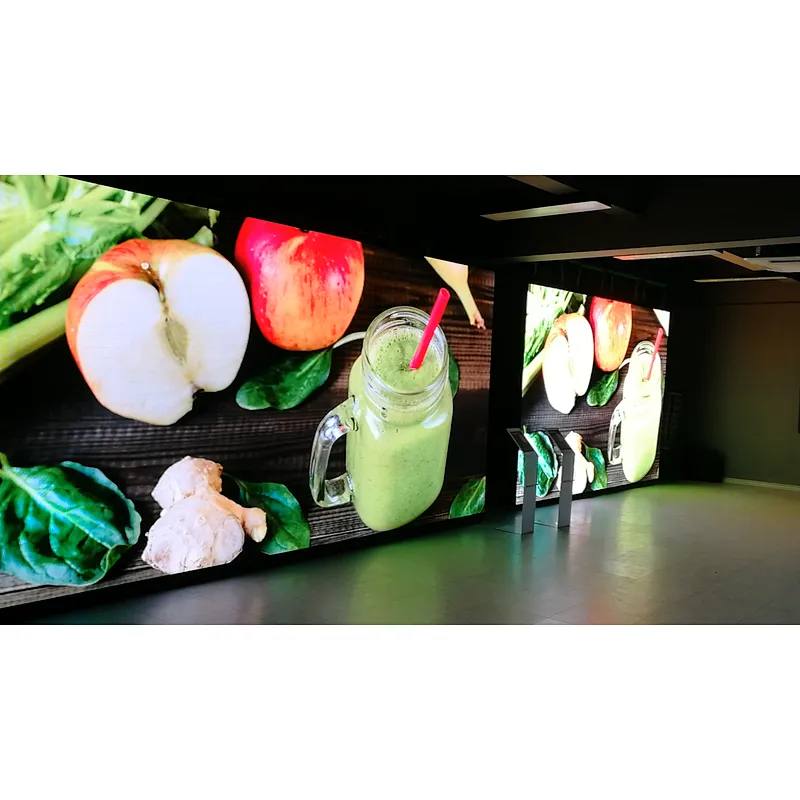

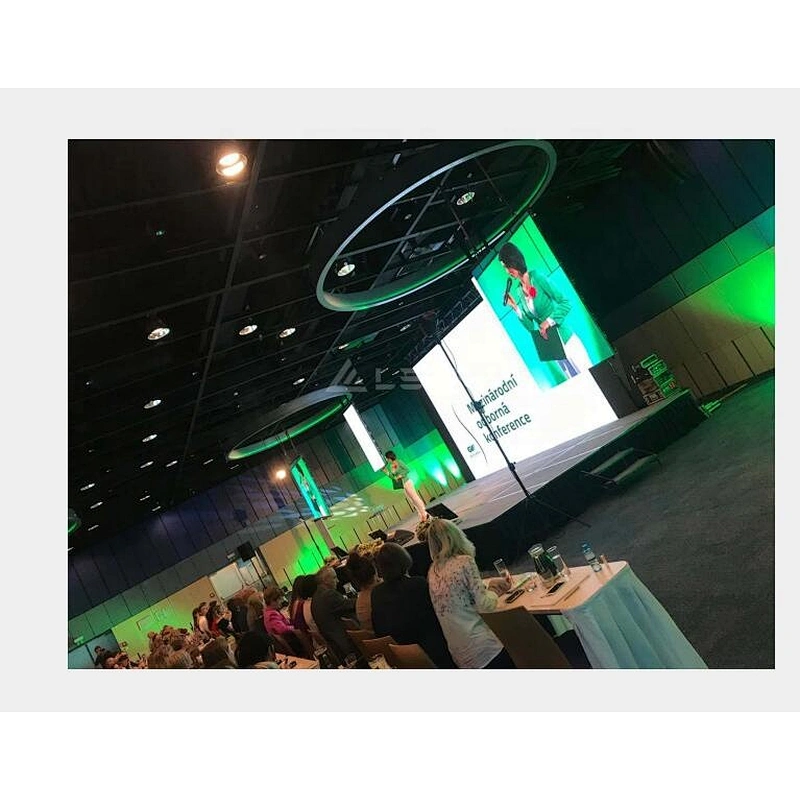

Indoor Event Rental LED Screen
Product Model:TI2.8
Pitch:2.8mm
Size: 12 sqm
Location: Croatia

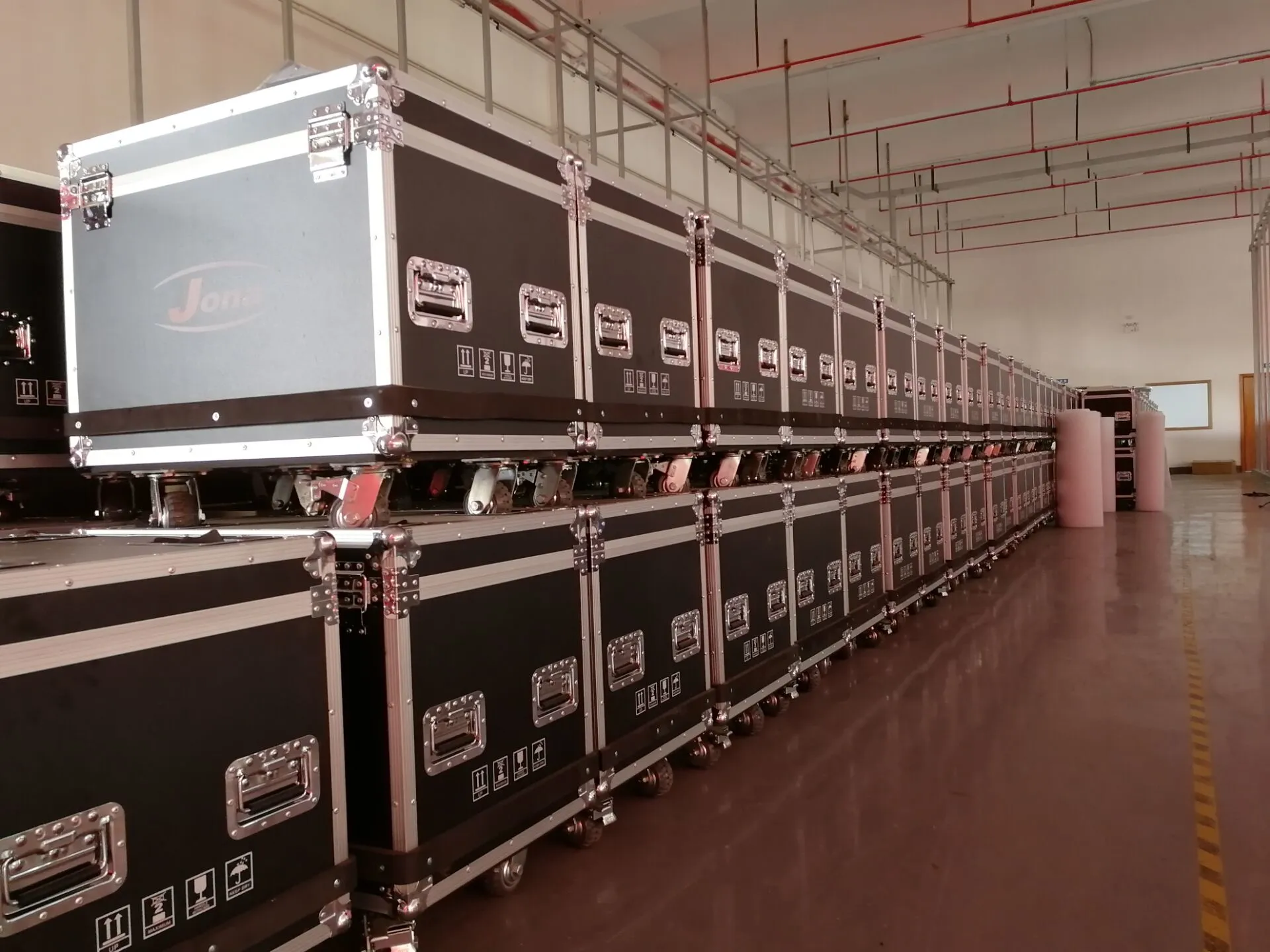

Flight case

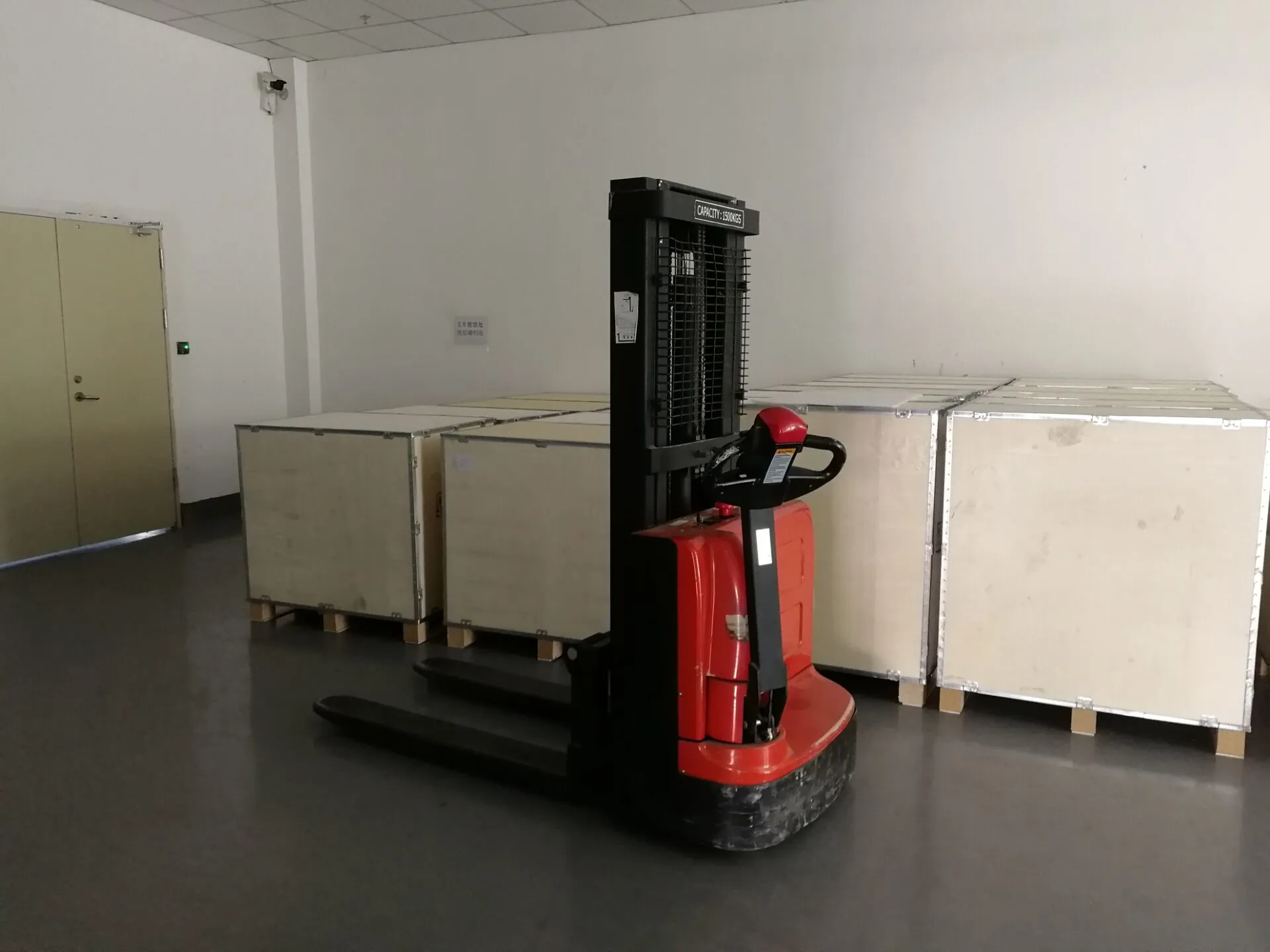

Plywood box

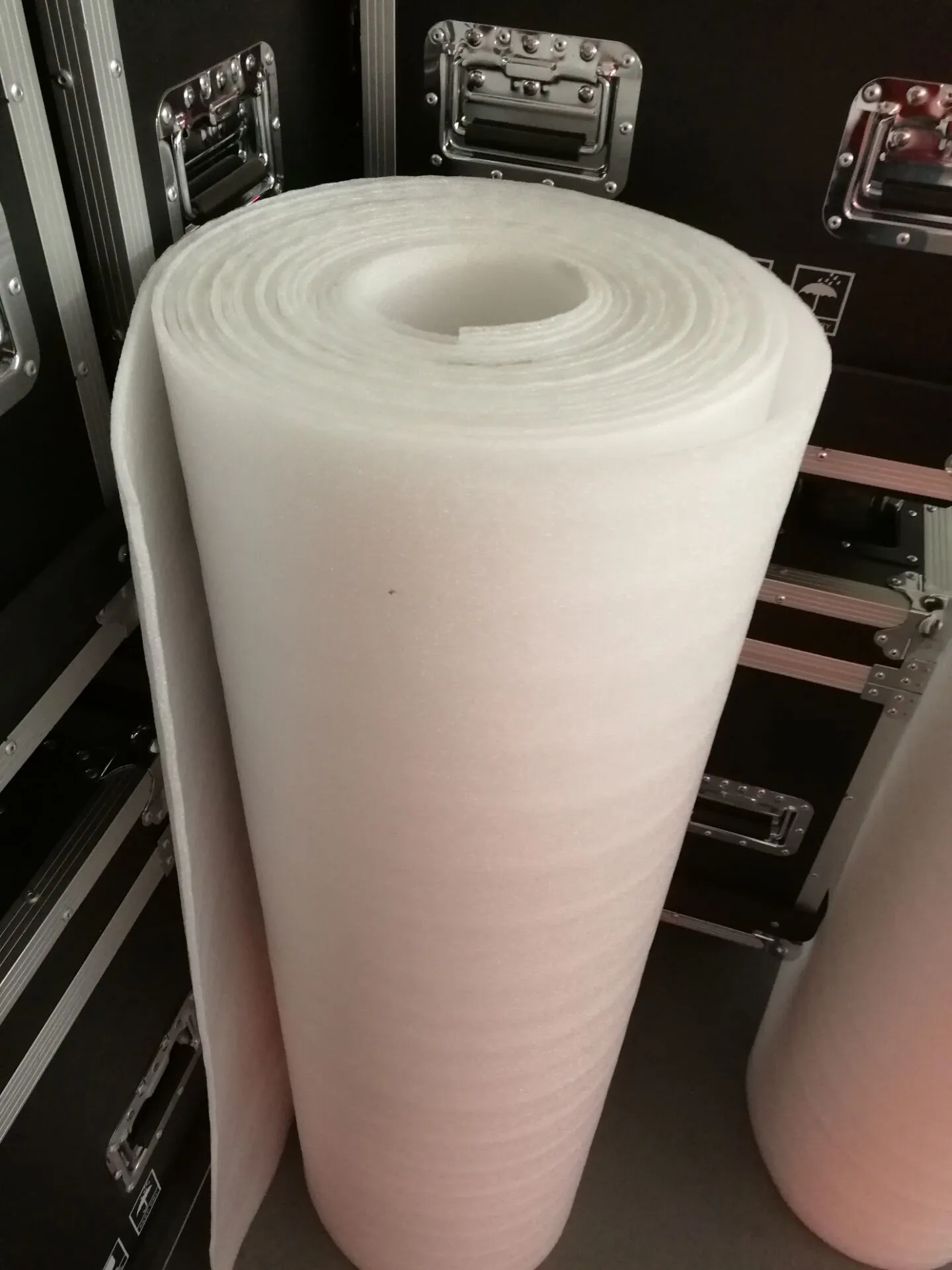

EPE
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A:Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 12 years, and professional R&D team and skilled QC team with standard process to assure quality products.
