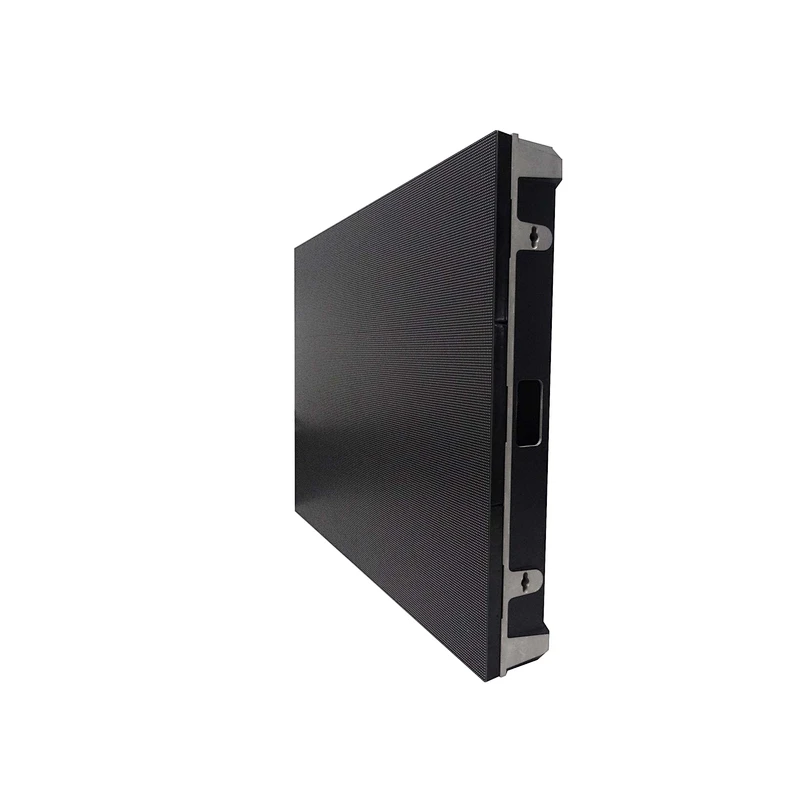

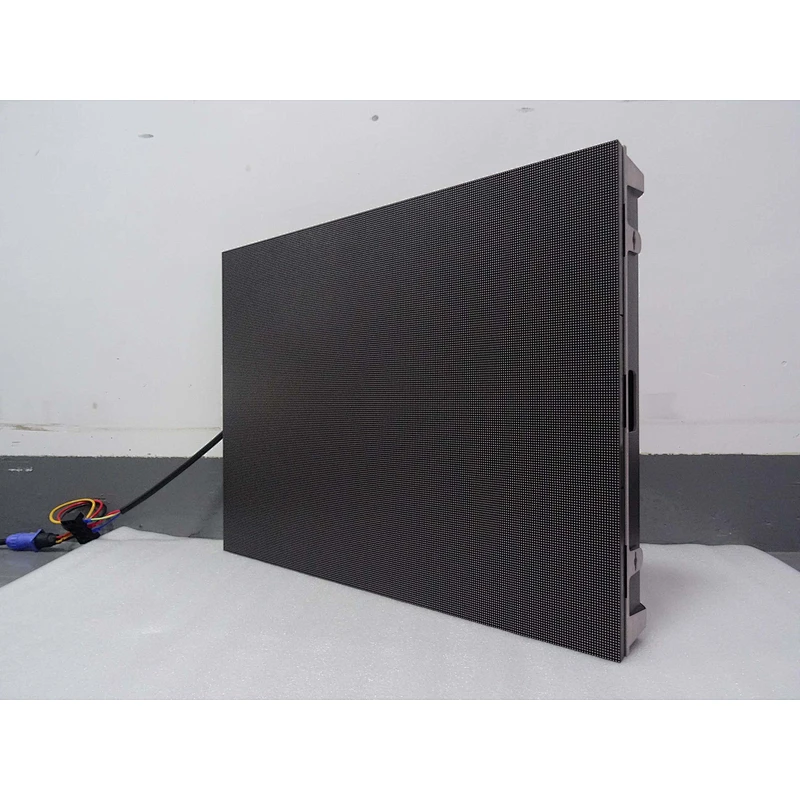

640*480mm P3 LED Display Screen indoor
640*480mm P3 LED Display Screen indoor
640*480mm P3 LED Display Screen indoor
640*480mm P3 LED Display Screen indoor
640*480mm P3 LED Display Screen indoor
640*480mm P3 LED Display Screen indoor
640*480mm P3 LED Display Screen indoor

640*480mm P3 LED Display Screen indoor

USD730.00 -USD768.00
  • Delivery:
  • Minimum order quantity:2
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: BM Series

    Product Description

    • Application:fine pitch advertising screens
    • Color:colorful
    • Panel Size:640x480mm
    • Pixel Pitch:3.33
    • Model Number:BM3
    • Brand Name:LEDFUL
    • Pixel Pitch(mm):3.33
    • Application:Concert
    • Item:Led Display Wall
    • Color:Full-color
    • Certificate:CE ROHS FCC
    • Brightness:1000nits
    • Warranty:3years
    • Product name:Led Video Display Panel
    • Module size:192*144 mm
    • Service Access:Full Front
    Product Description


                   BM Series

    ·Fine Pitch·Wall Mounted·Front Installation·Full Front Service LED display

                BM1.6 | BM1.8 | BM2 | BM2.5 | BM3 | BM4
    • Front Installation

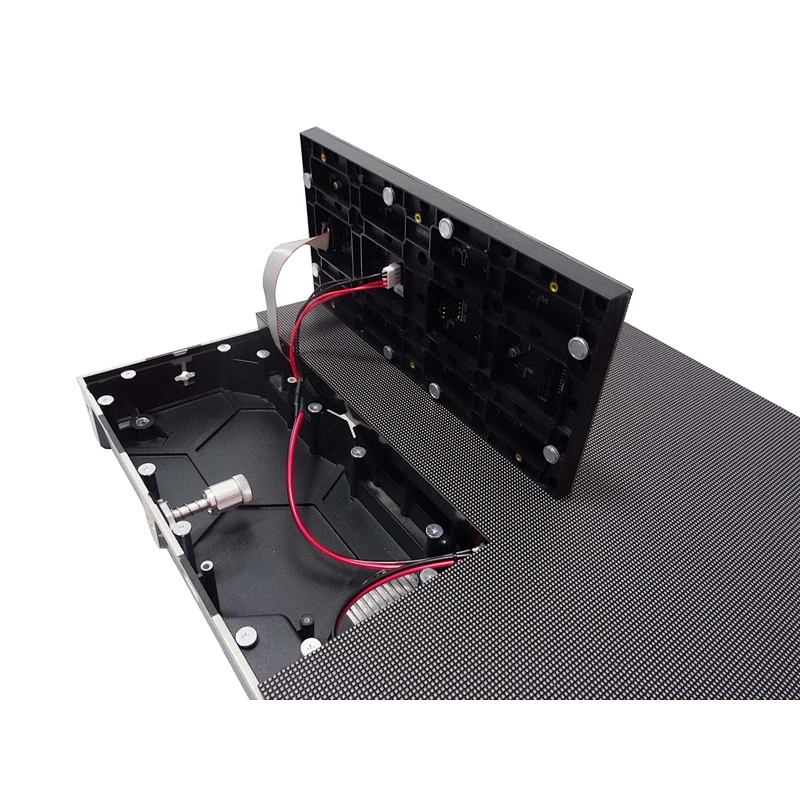

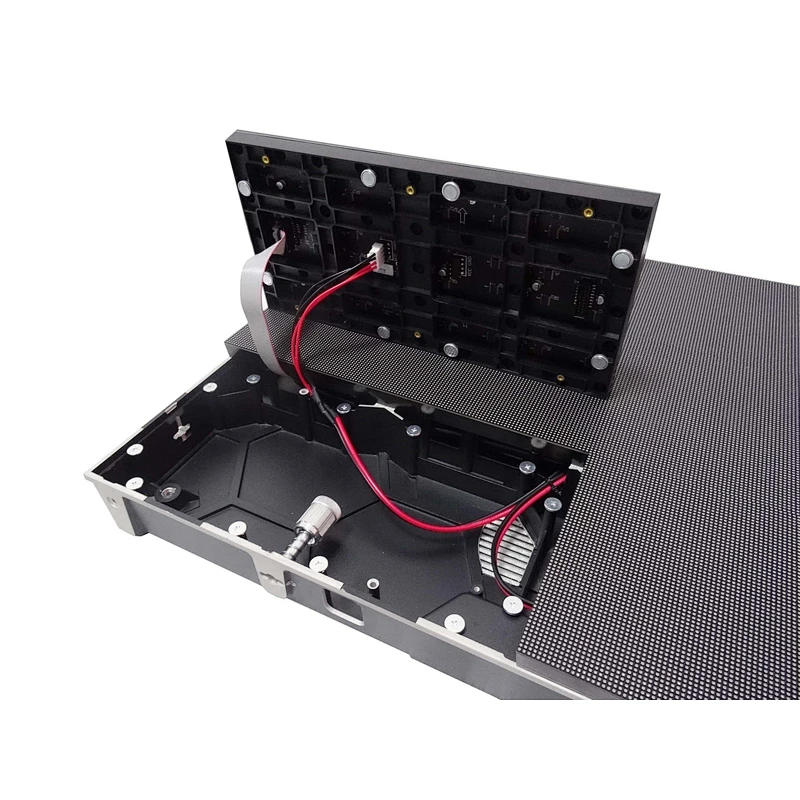

    • Full Front Service
    • Black SMD LED
    • Die Casting Aluminum

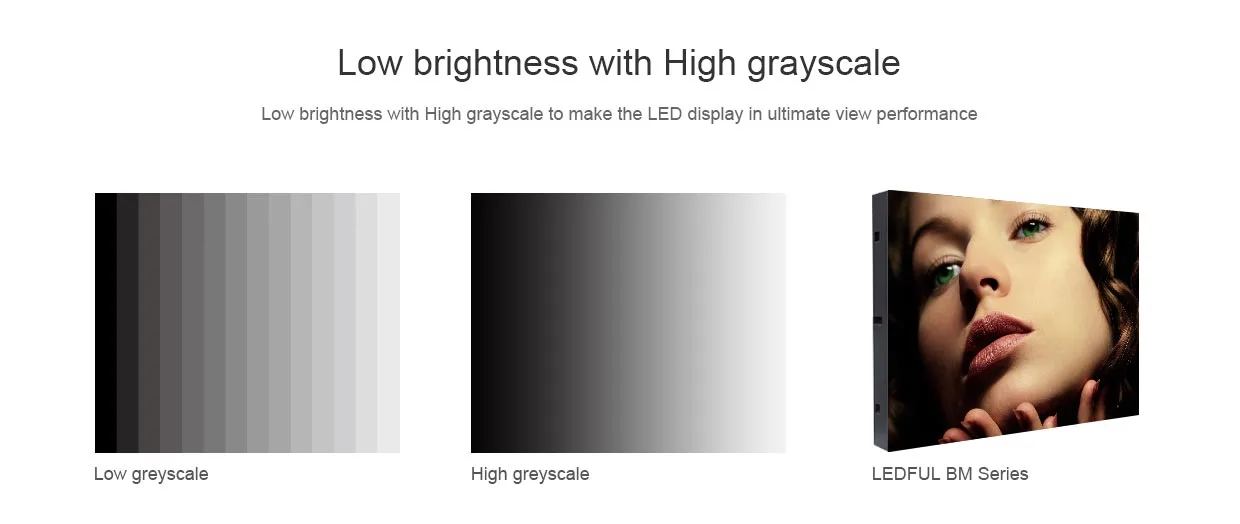

    • High Grayscale
    • High Refresh
    • Light and Thin

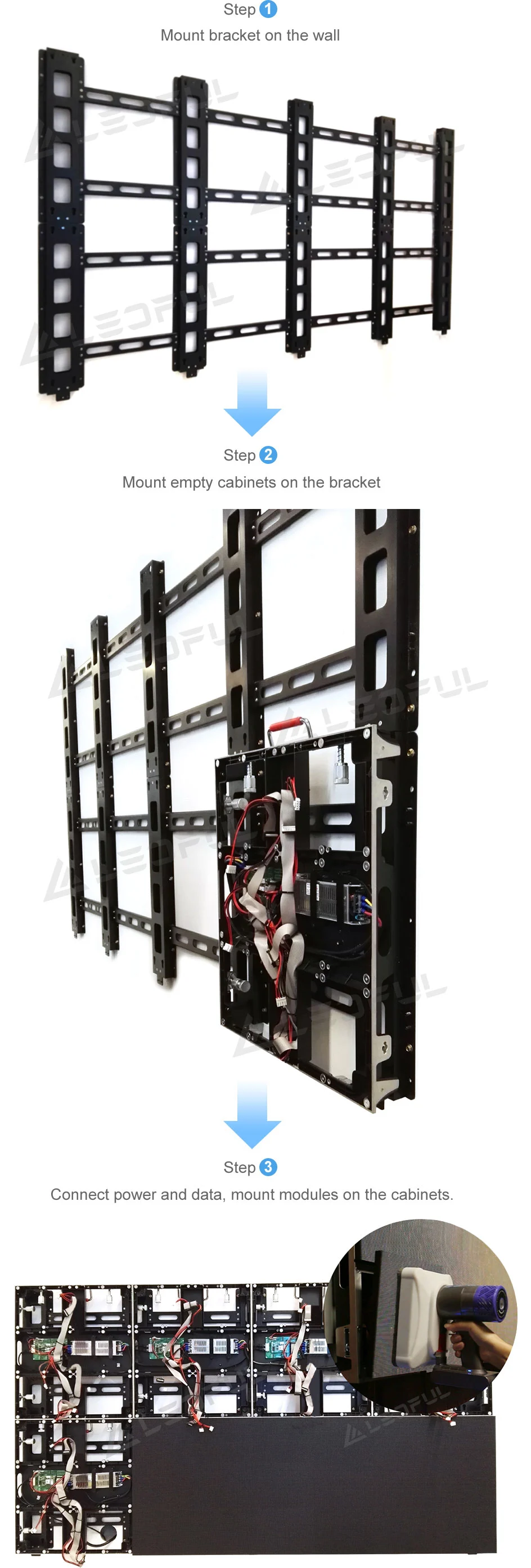

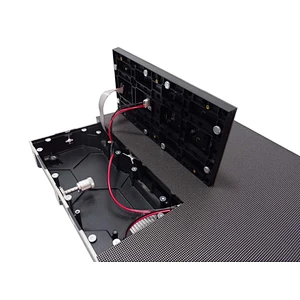

       How to install LED cabinets in front side?

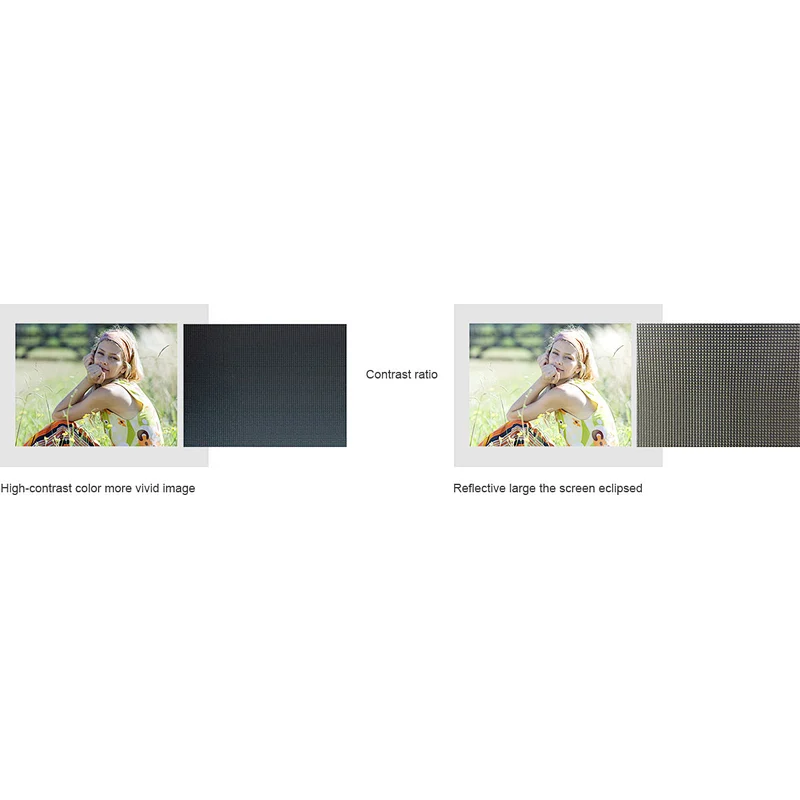

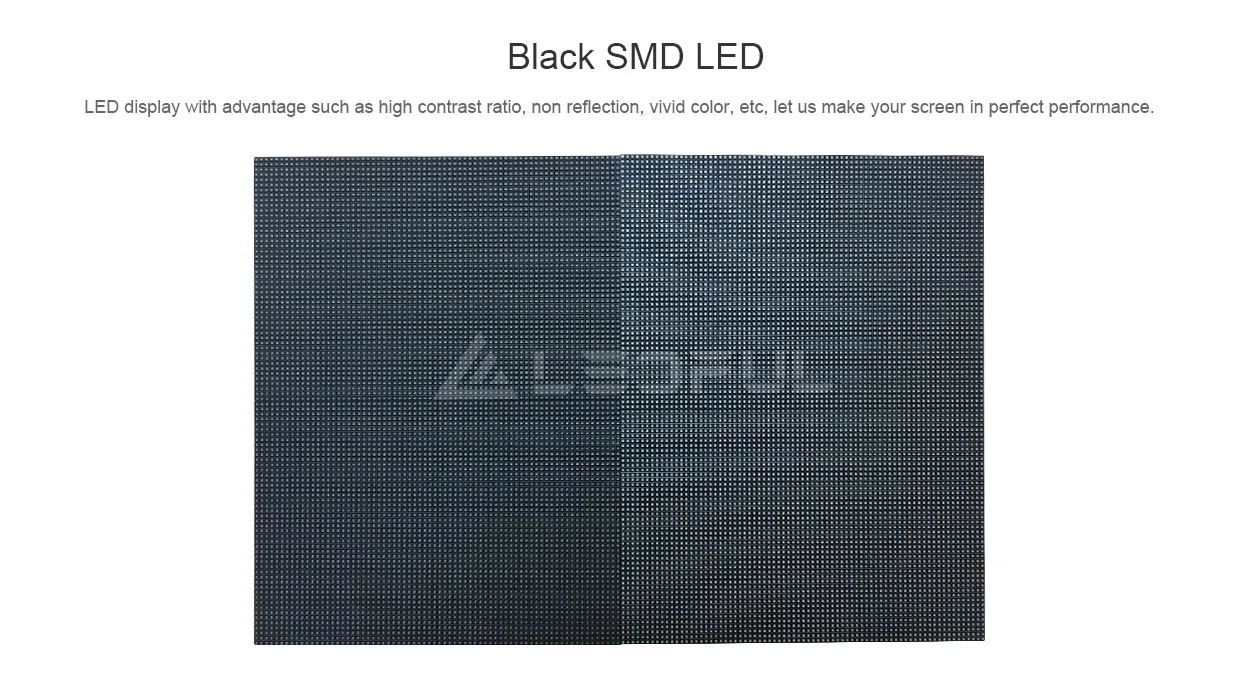

    Black SMD LED
    LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

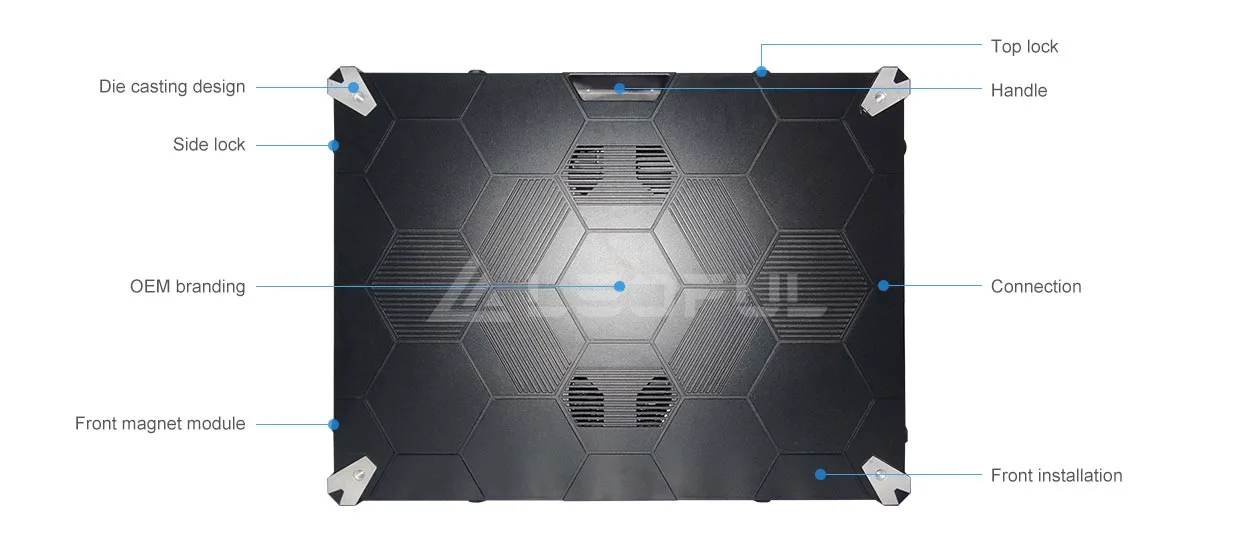

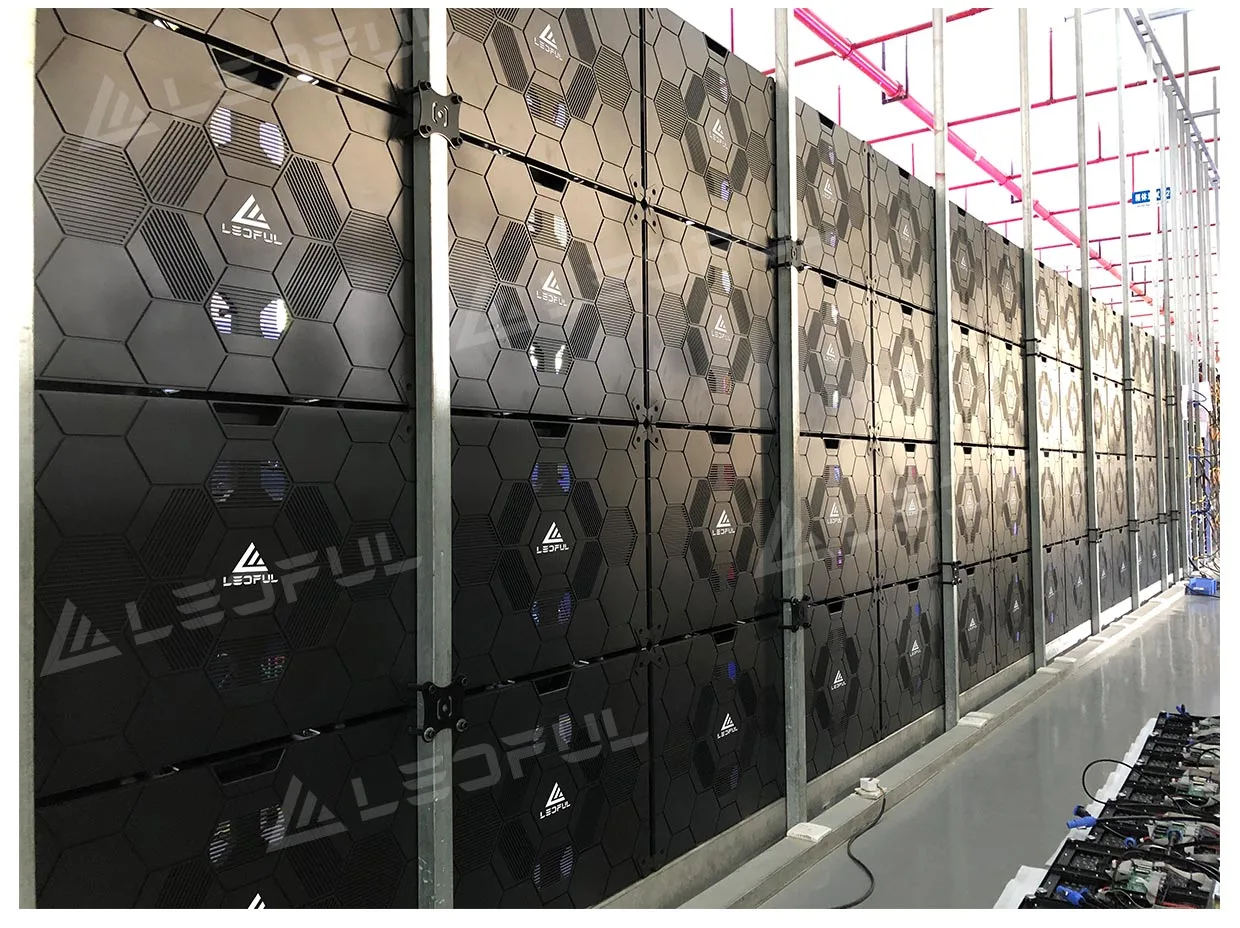

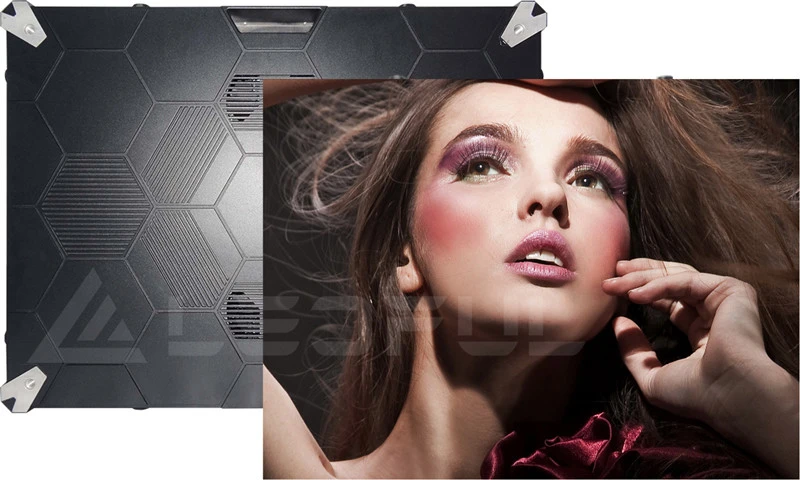

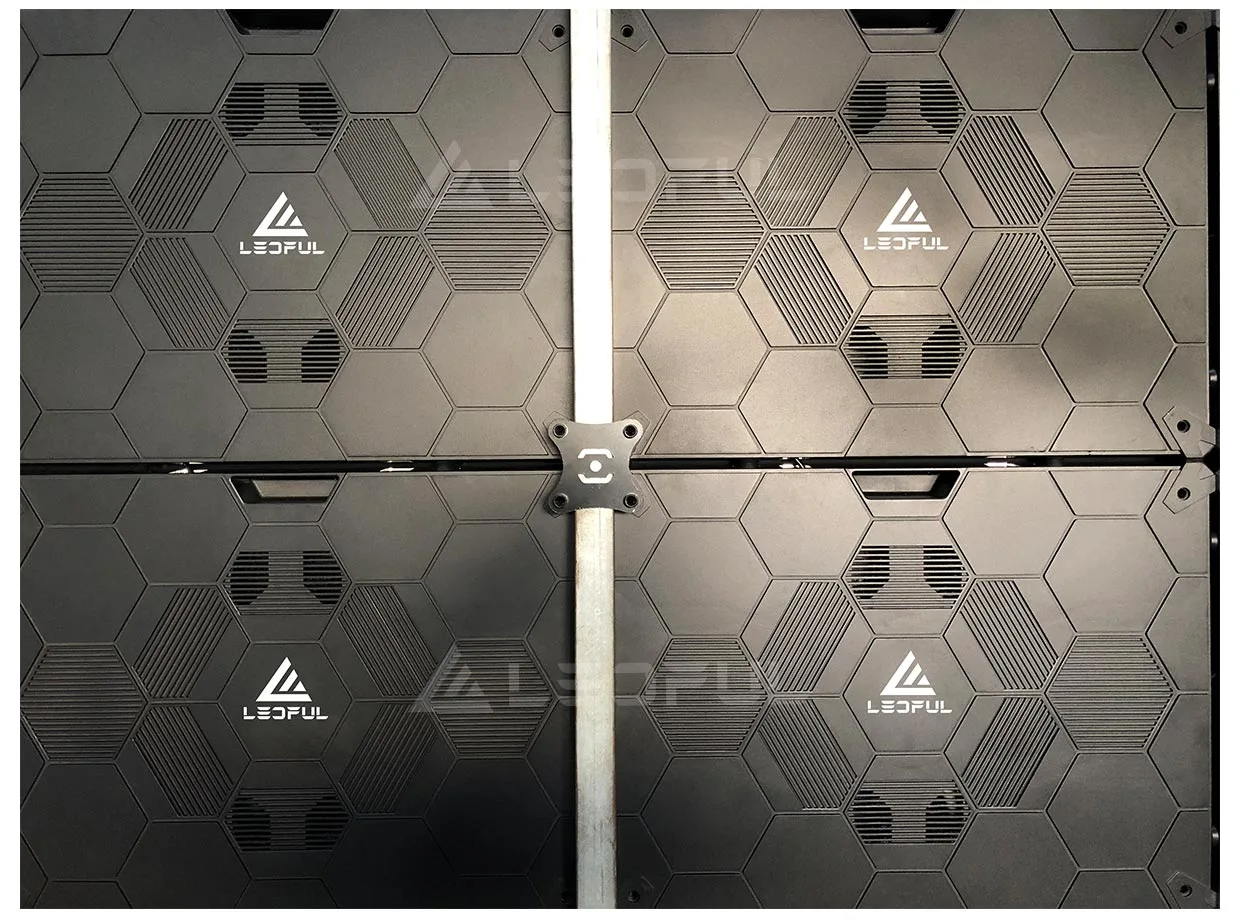

                Back view and aging photos
    Details Images
    Value
    BM1.6
    BM1.8
    BM2
    BM2.5
    BM3
    BM4
    Pixel Pitch(mm)
    1.667
    1.86
    2
    2.5
    3.33
    4
    Pixel Matrix Per Sq.m
    360,000
    288,888
    250,000
    160,000
    90,000
    62,500
    Pixel Configuration
    SMD1212
    SMD1515
    SMD1515
    SMD1515
    SMD2121
    SMD2121
    Brightness (nits)
    1000
    1000
    1000
    1000
    1000
    1000
    Scan
    1/48
    1/43
    1/40
    1/32
    1月24日
    1月20日
    Cabinet Resolution
    384x288
    344x258
    320x240
    256X192
    192X144
    160X120
    Power Con. (Max / Avg)
    500/150 w/sq.m
    Module Dimension
    320x160mm / 1.06x0.53ft
    Cabinet Weight
    9kg / 19.84Ib ( Die-casting Aluminum)
    Cabinet Dimension
    640x480mm / 2.1x1.57ft
    Service Access
    Full Front
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP41
    Input Voltage (AC)
    110V / 240V

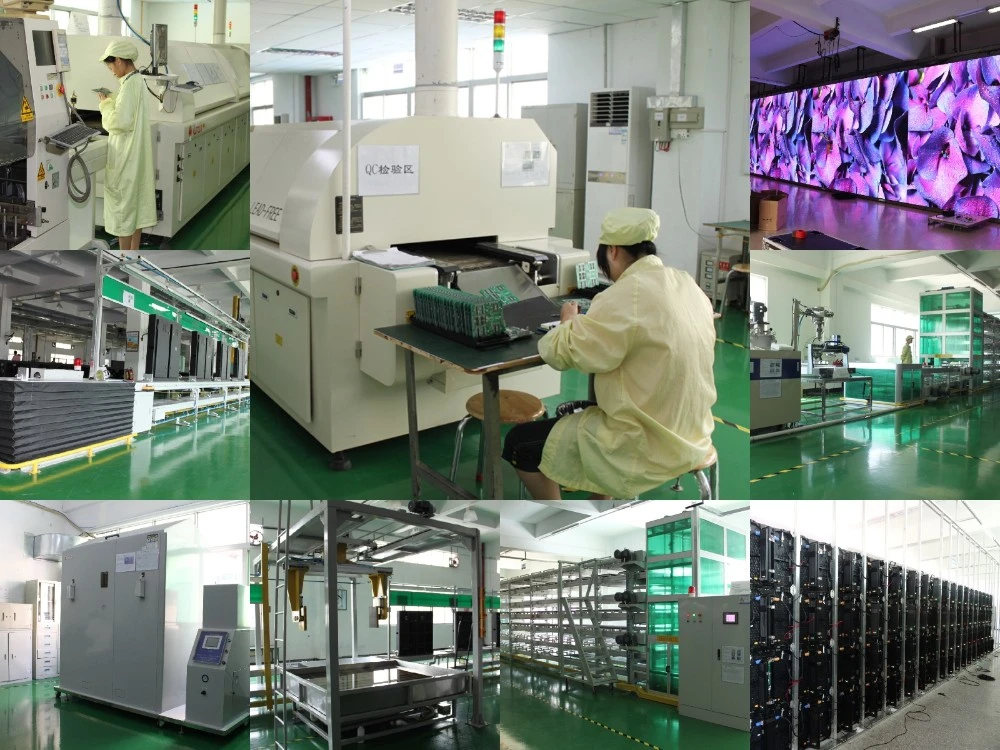

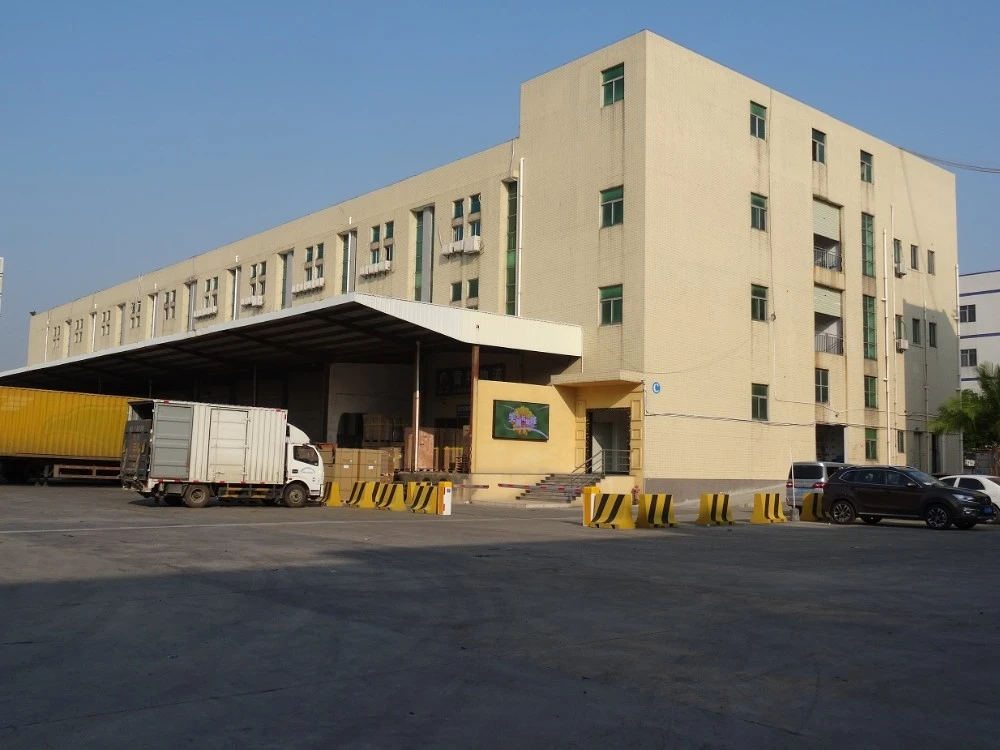

    Company Profile
      Top LED Display Manufacturer
                        LEDFUL founded in 2008 Total 209 employees in LEDFUL 3~5 years warranty on LED                                                            screen Exported to 83 countries and regions
    Top reliable LEDdisplay manufacturer Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.
    CE, RoHS, FCC, CCC, ISO9001:2008 standard
    Professional, High Efficient and                         Caring
                                                                       One-stop solution provider
                       More designs and more solutions Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic,customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising                                 Companies, Entertainment, Show, Event, Rental Cooperation, etc.
    Certifications
    Our Advantages
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more
    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?
    A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
