- Place of Origin:CN;GUA
- Usage:Outdoor
- Tube Chip Color:FULL COLOR
- Display Function:Graphics
- Pixels:5mm
- Model Number:OF5
- Product name:Outdoor Commercial Advertising Display"
- Grey Scale (bit):16
- Brightness (nits):6500
- Pixel Configuration:SMD2727
- Cabinet Resolution:192x192
- Module Dimension:160x160mm / 0.52x0.52ft
- Cabinet Dimension:960x960x130mm / 3.15x3.15x0.43ft
- Cabinet Weight:43kg / 95Ib (Iron)
- Input Voltage (AC):110 / 240
Product Description

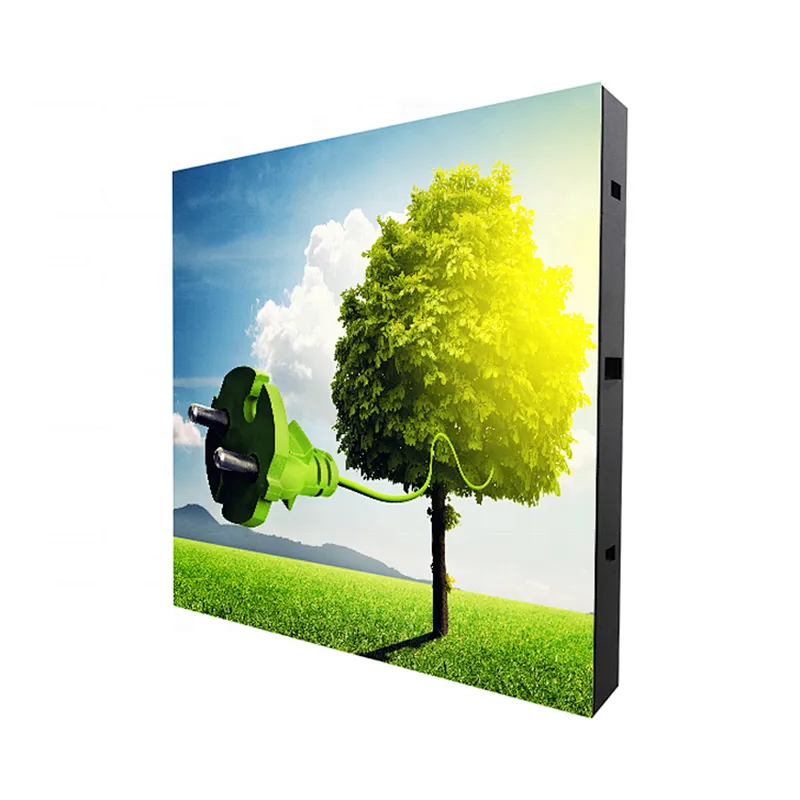

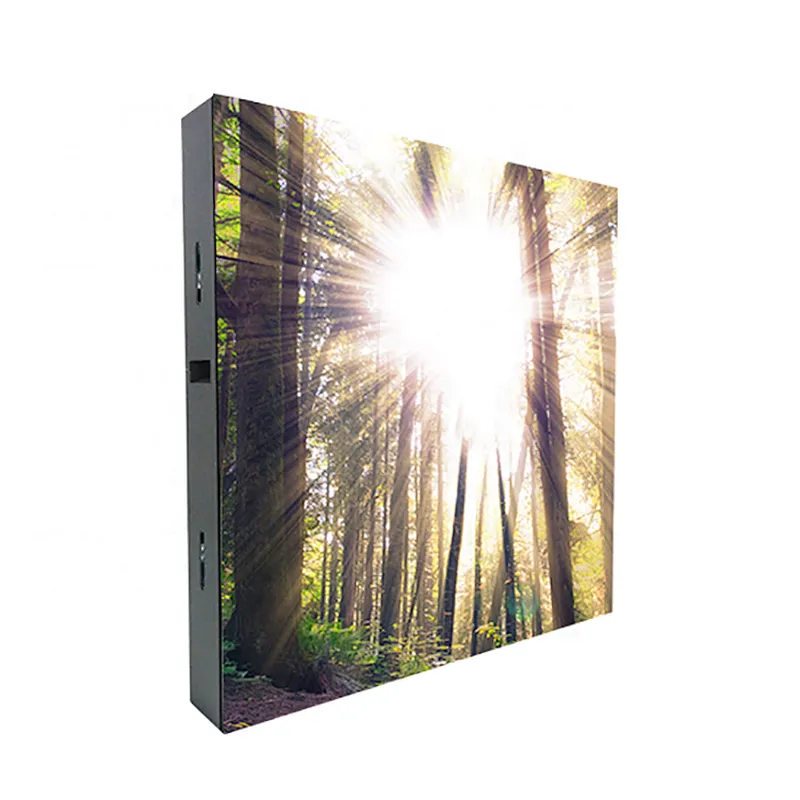

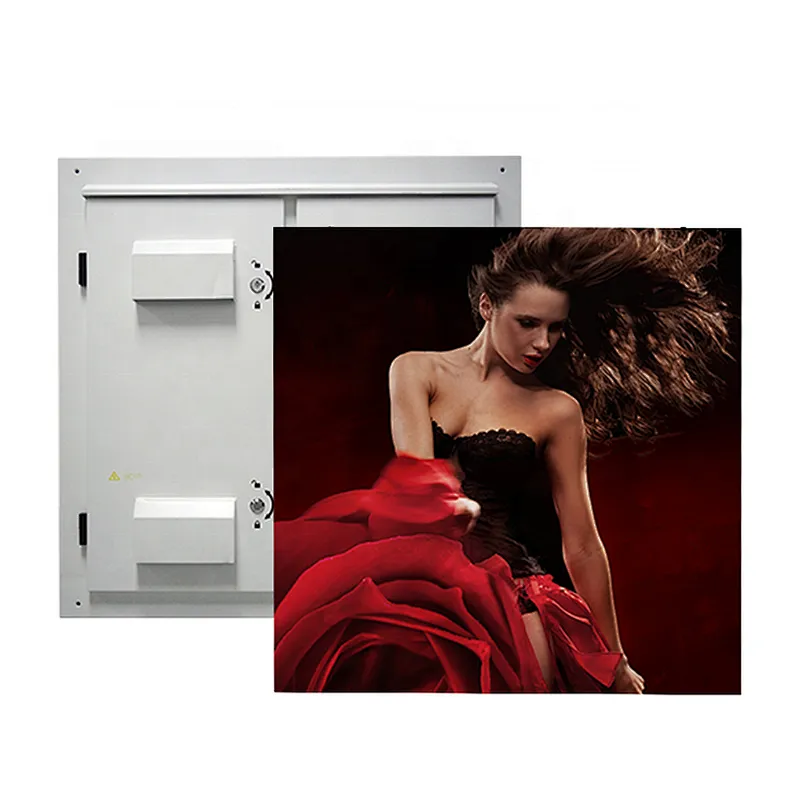

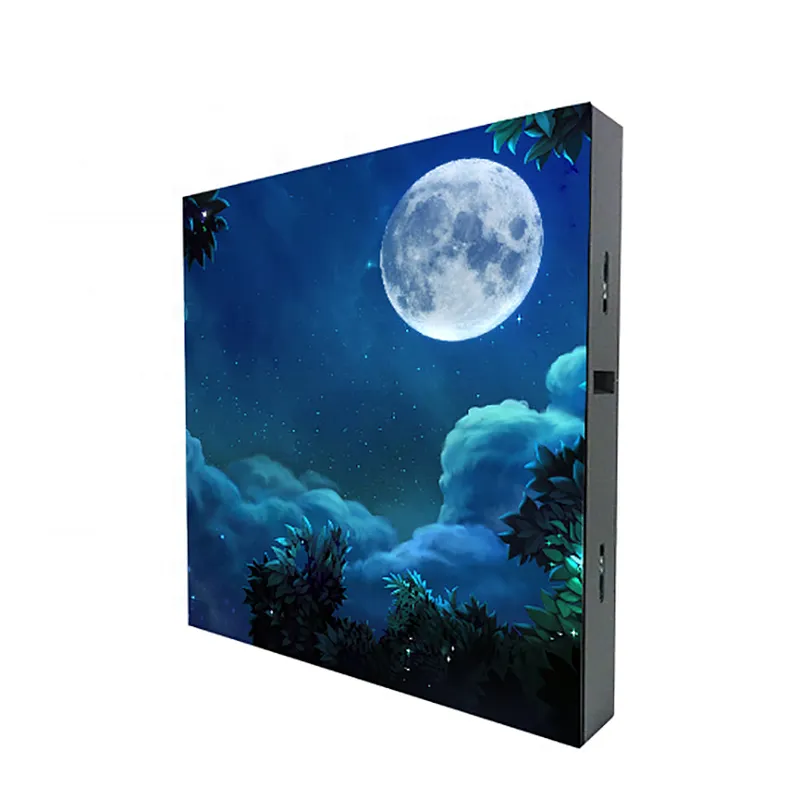

All Weather Resistant For Stable Operation Outdoor Commercial Advertising Display
| Value | OF5 |
| Pixel Pitch(mm) | 5mm |
| Pixel Matrix Per Sq.m | 40000 |
| Pixel Configuration | SMD2727 |
| Brightness (nits) | 6500 |
| Scan | 1/8 |
| Cabinet Resolution | 192x192 |
| Module Dimension | 160x160mm / 0.52x0.52ft |
| Cabinet Weight | 43kg / 95Ib (Iron) |
| Cabinet Dimension | 960x960x130mm / 3.15x3.15x0.43ft |
| Service Access | Front/Rear |
| Refresh Rate (HZ) | ≥1920 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| Power Con. (Max / Avg) | 700 / 150 w/sq.m |
| IP Rate | IP65 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
