- Usage:OUTDOOR
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Pixels:4mm
- Screen Dimension:960*960mm
- Brightness:≥4000nits
- Grey Scale:16bit
- Warranty:3~5 Years
- Life span:100,000 Hours
- Function:Play Video
- Place of Origin:CN;GUA
- Application:Outdoor Advertising
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:4mm
- Model Number:OF
- Brand Name:LEDFUL
Product Description

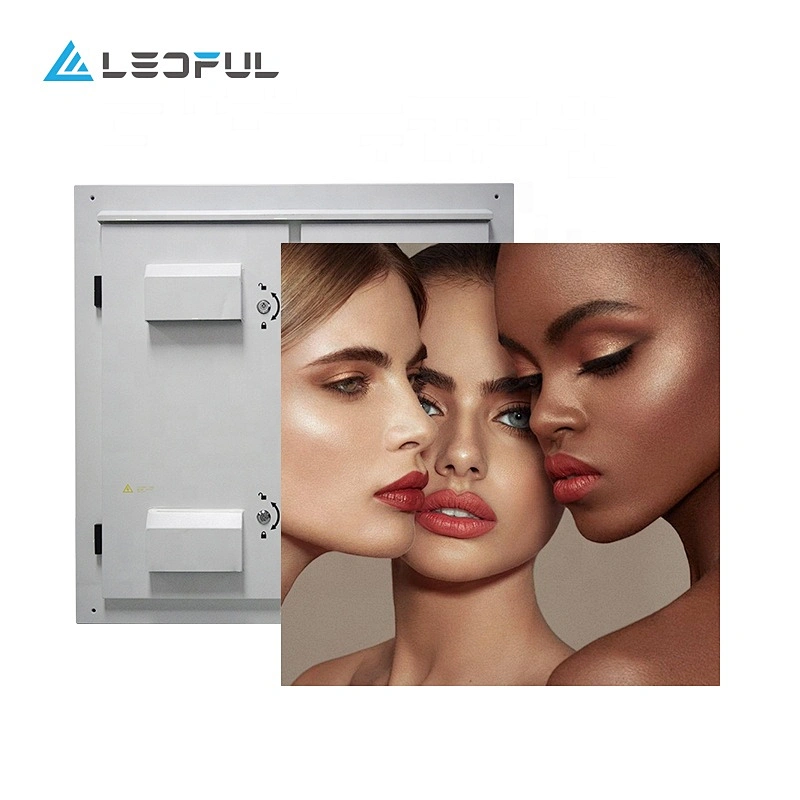

OF Series
Outdoor Commercial Advertising LED Display
Value | OF4 | |||||
Pixel Pitch(mm) | 4 | |||||
Pixel Matrix Per Sq.m | 62500 | |||||
Pixel Configuration | SMD1921 | |||||
Brightness (nits) | 6500 | |||||
Scan | 1/8 | |||||
Module Dimension | 192x192mm / 0.63x0.63ft | |||||

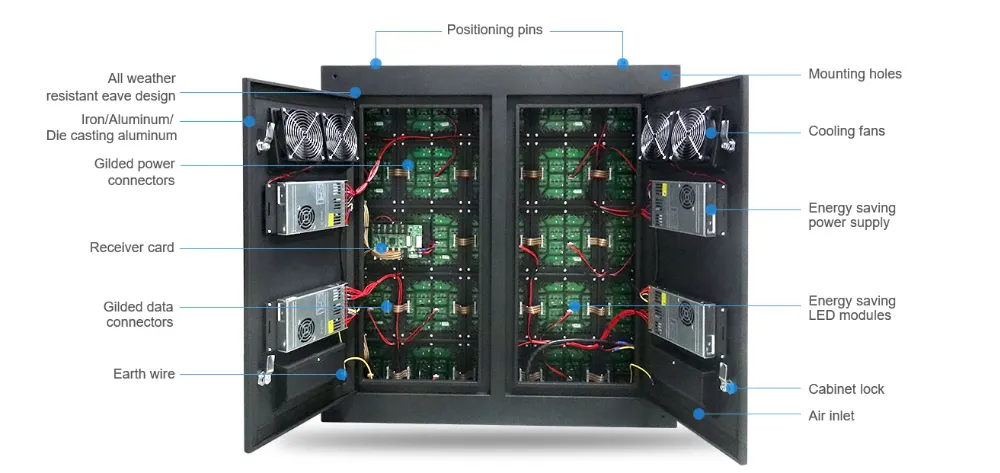

Cabinet Dimension | 960x960mm / 3.15x3.15ft | |||||
Cabinet Resolution | 192x192 | |||||
Cabinet Weight | 44kg / 97Ib ( Iron) | |||||
Power Con. (Max / Avg) | 750 / 150 w/sq.m | |||||
Service Access | Front / Rear | |||||
Refresh Rate (HZ) | ≥1920 | |||||
Grey Scale (bit) | 16 | |||||

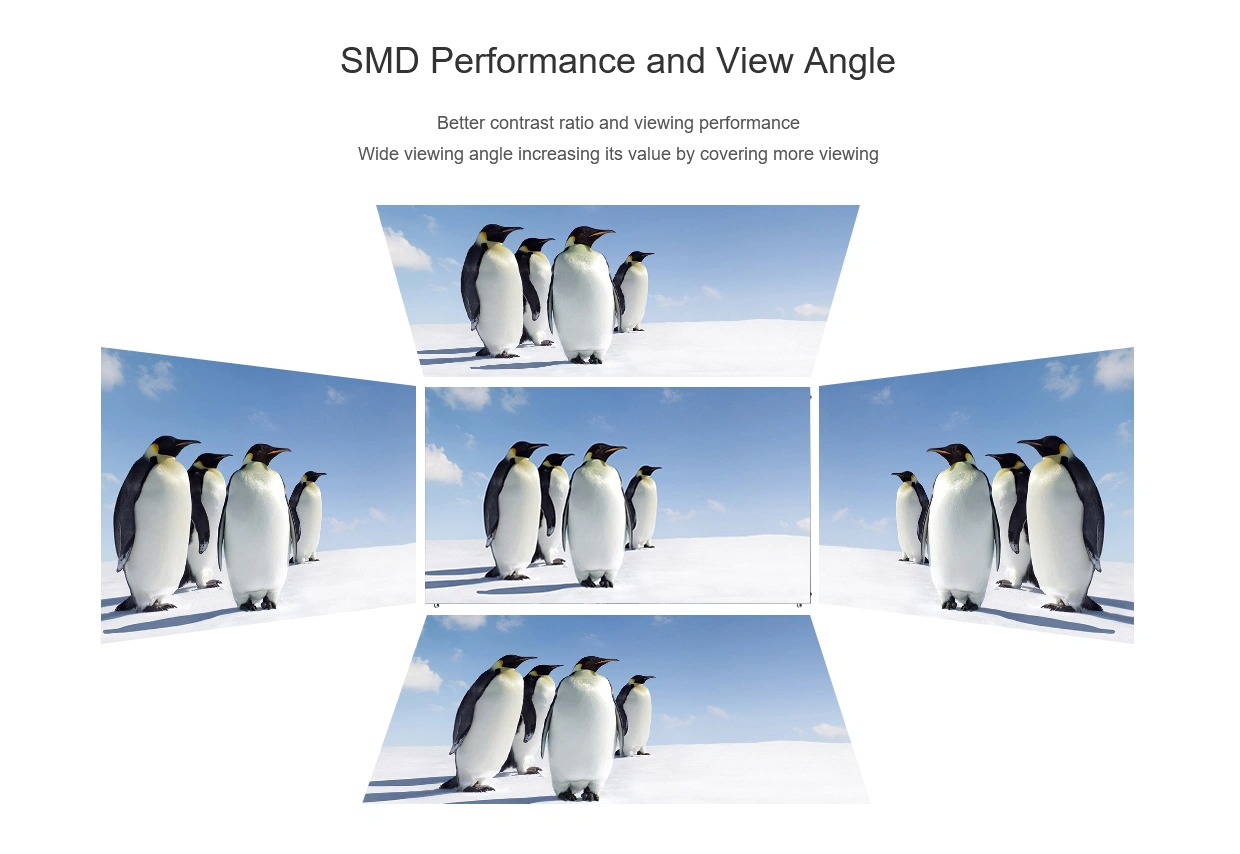

Viewing Angle (H/V) | 140 / 140 | |||||
IP Rate | IP65 | |||||
Input Voltage (AC) | 110V / 240V | |||||
* Specifications and photos are subject to change without prior notice. | ||||||

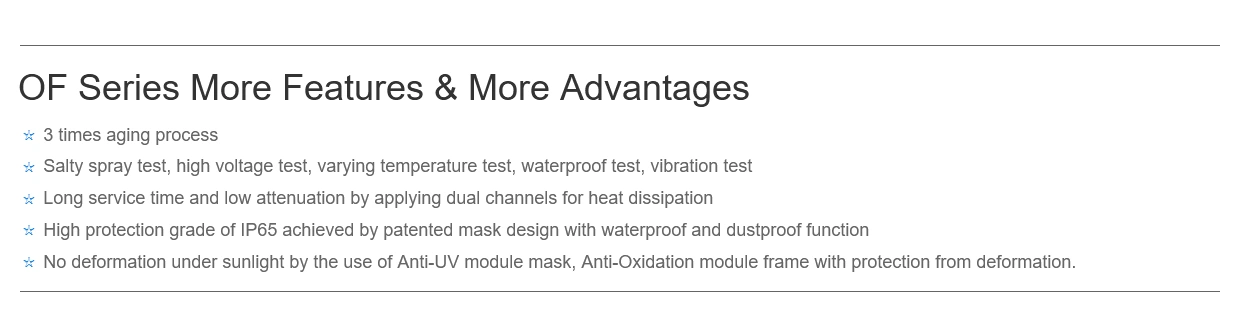

Specifications
1.Full Front Maintenance

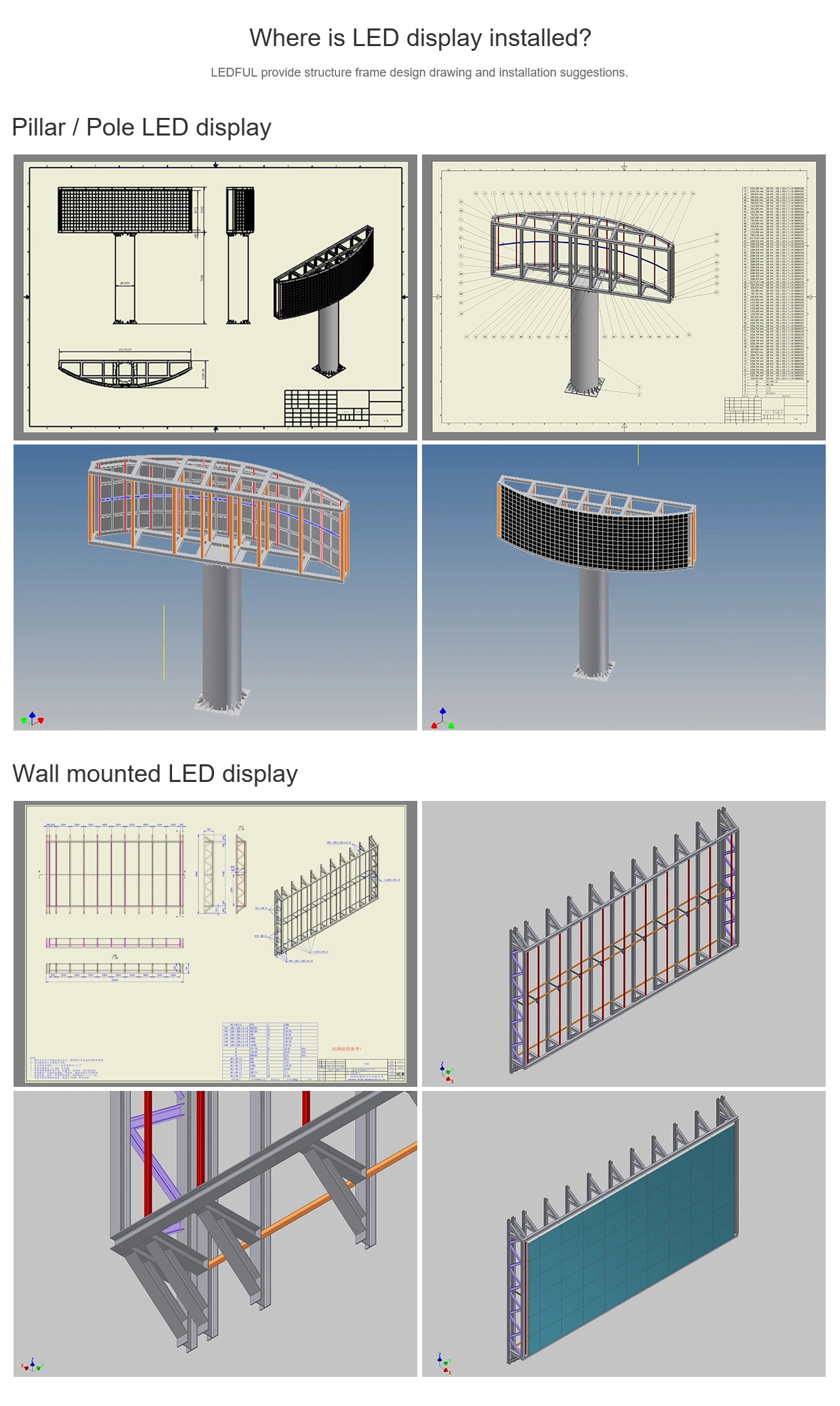

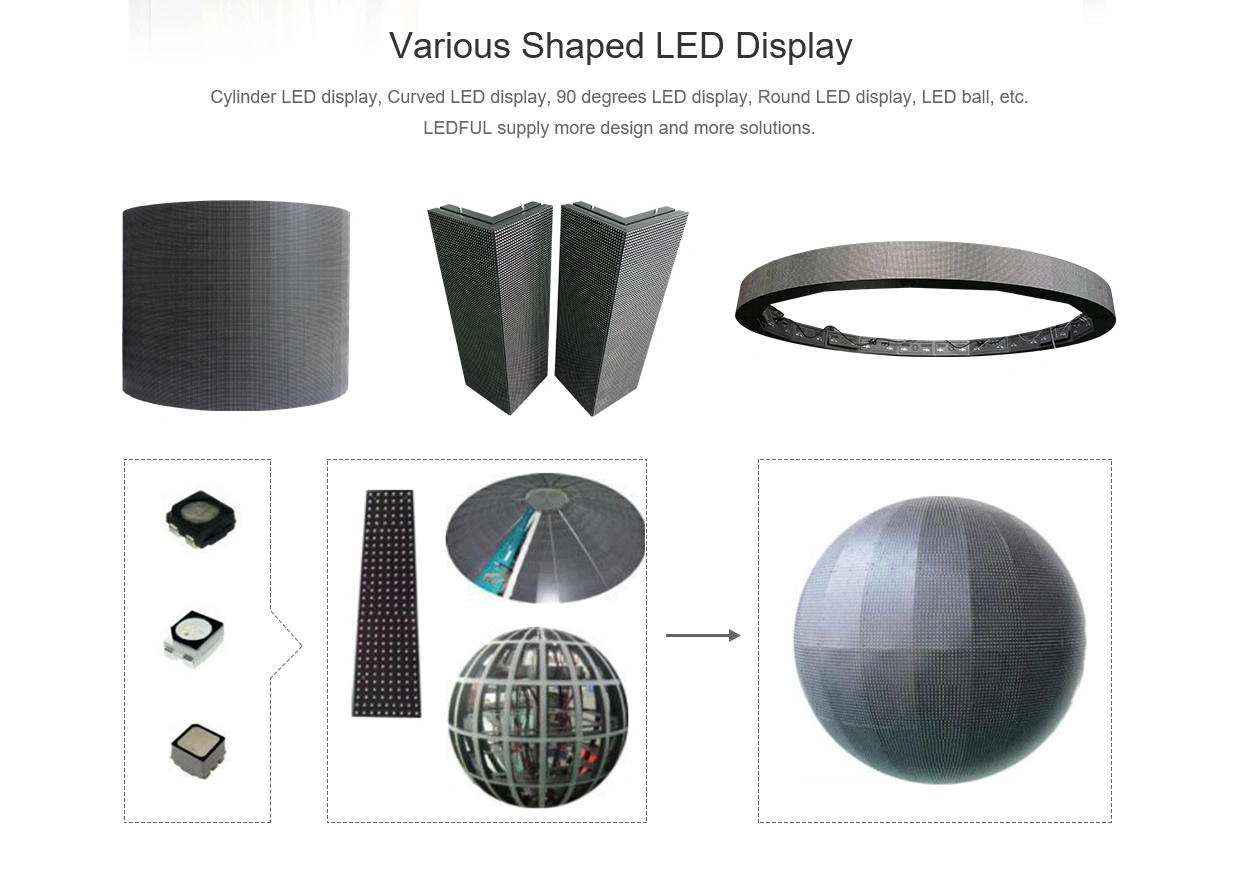

2.Curved Installation
3.No Light Leakage
4.Climbing support
5.Light and Thin
Our Company
Certificate

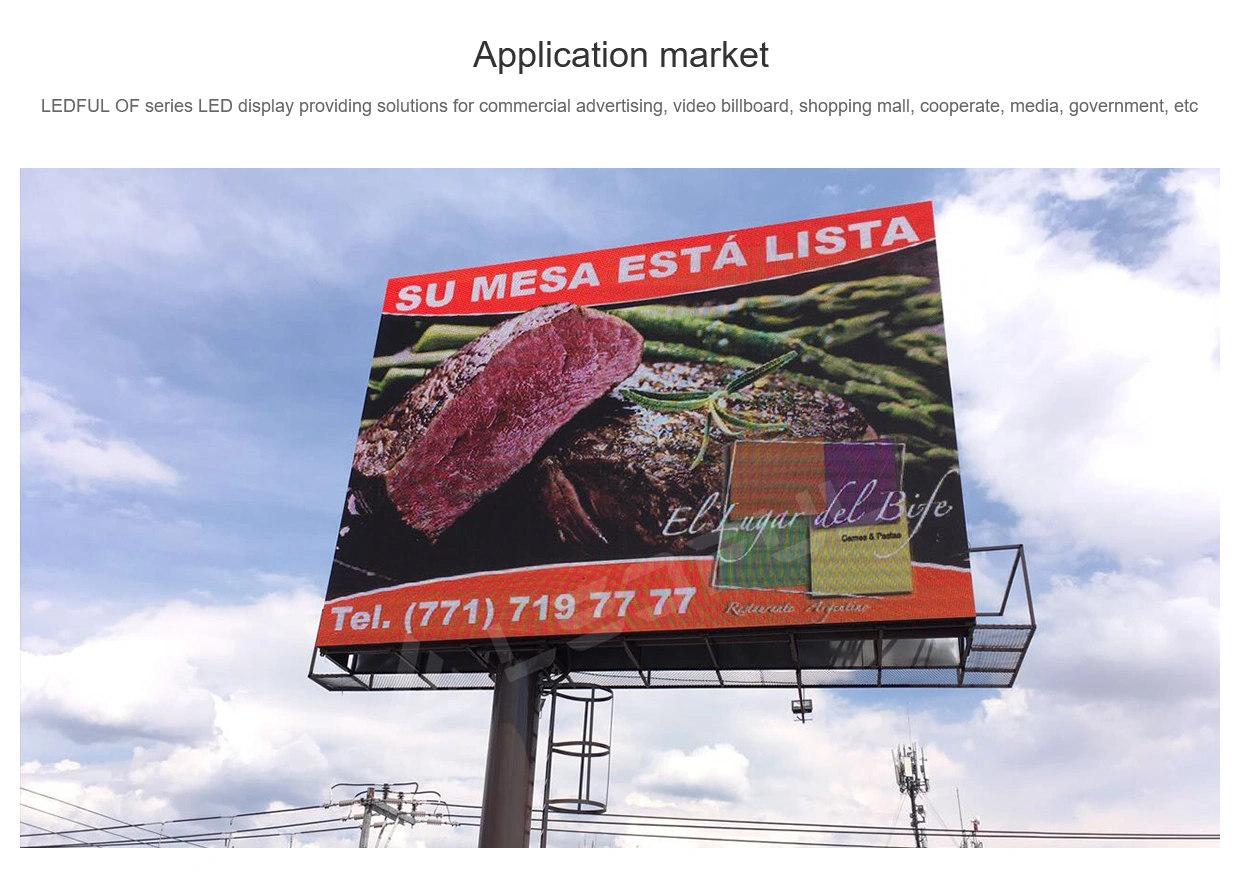

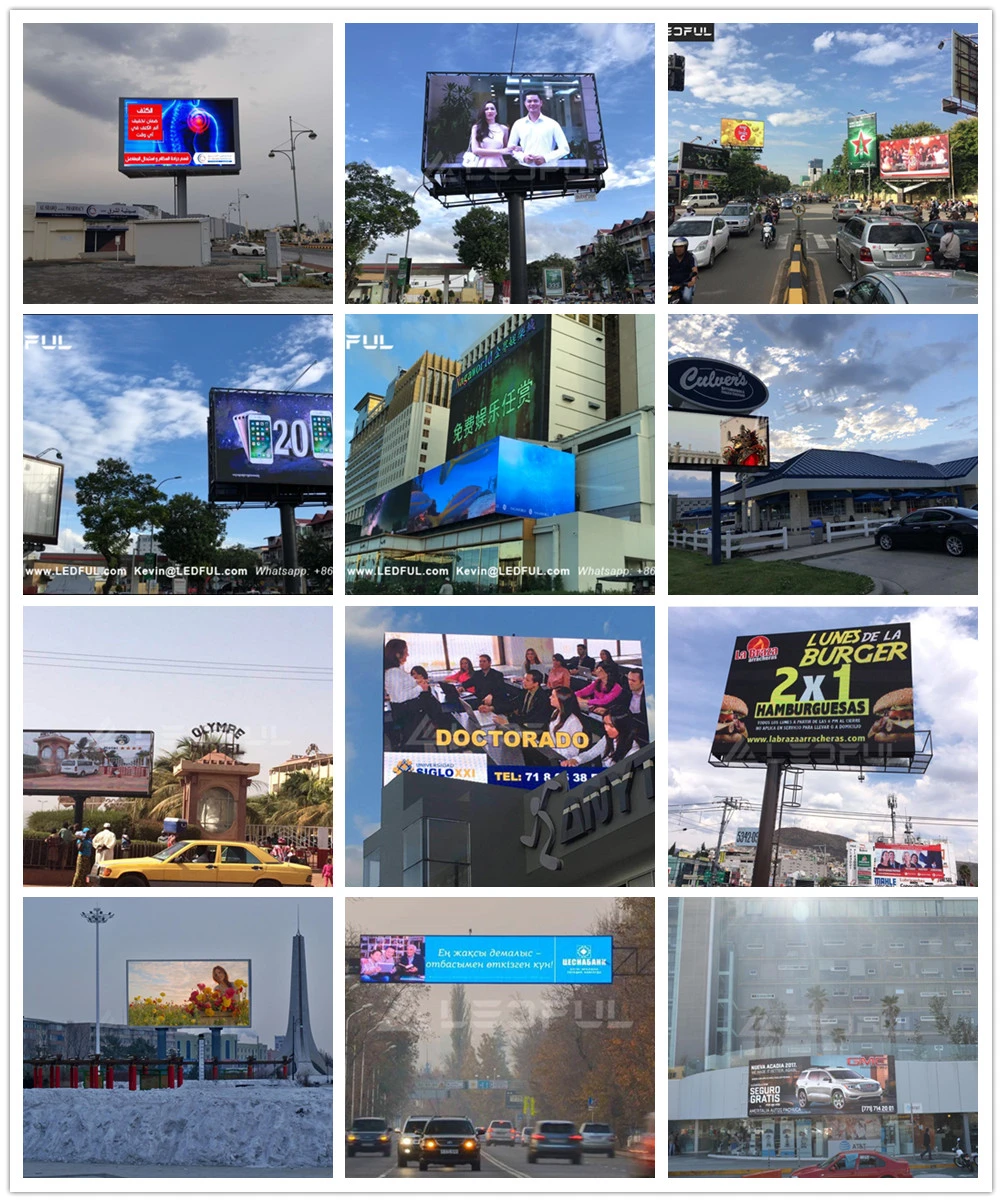

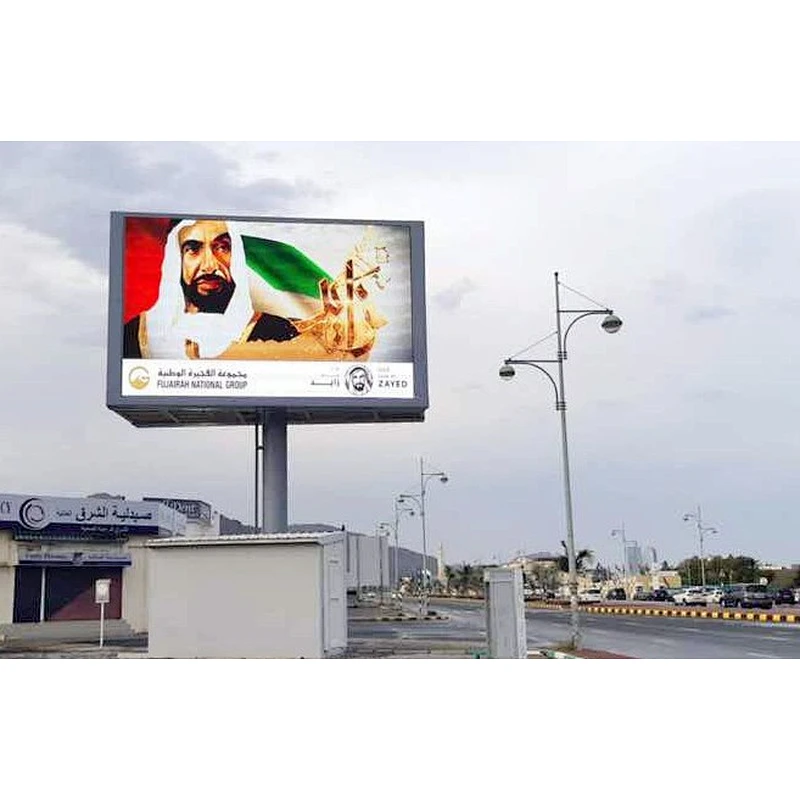

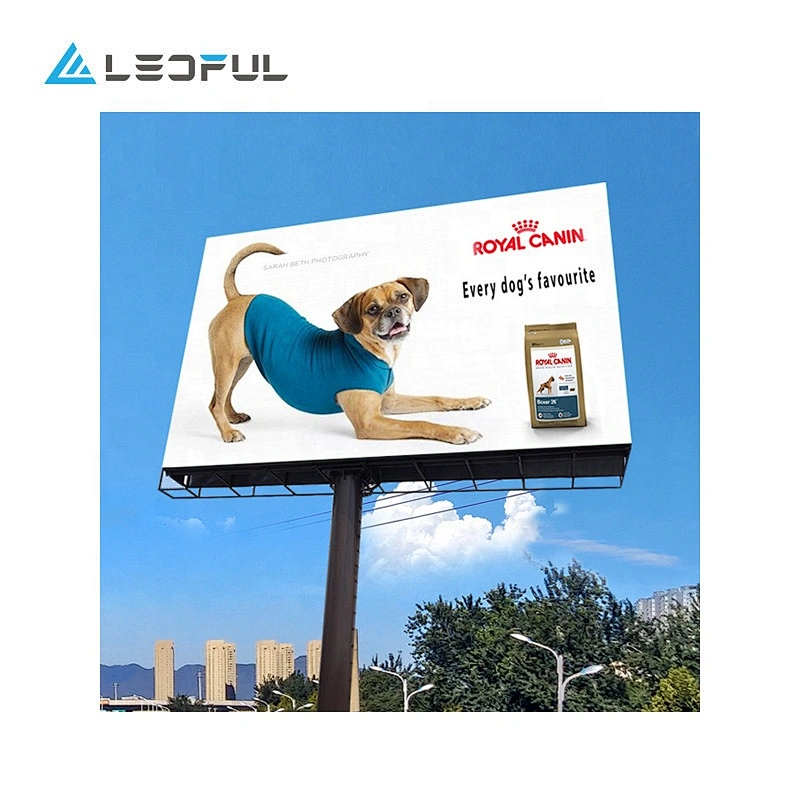

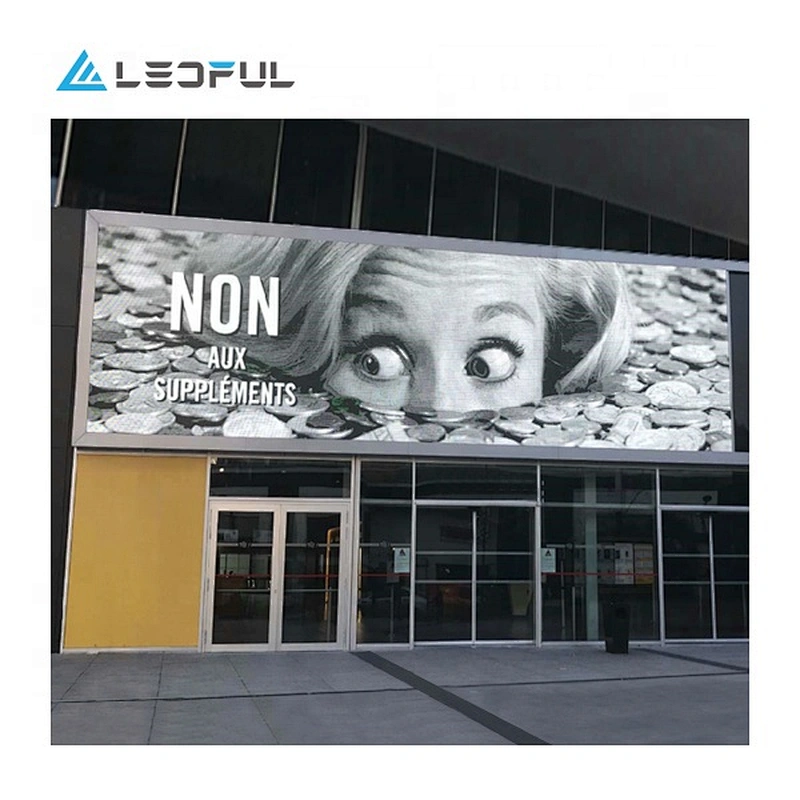

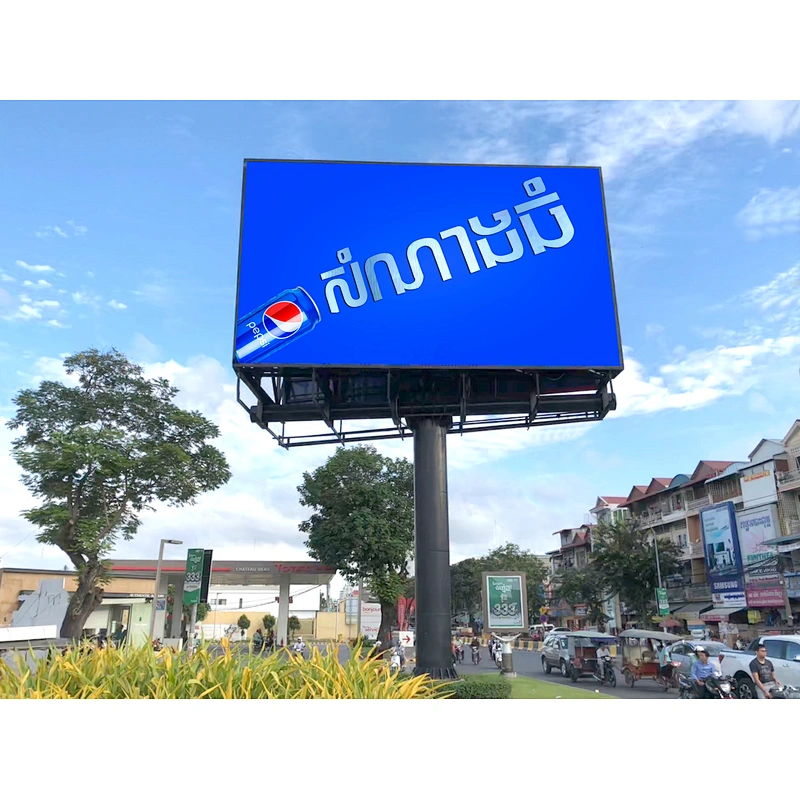

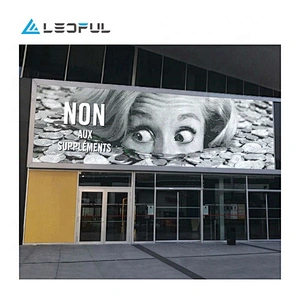

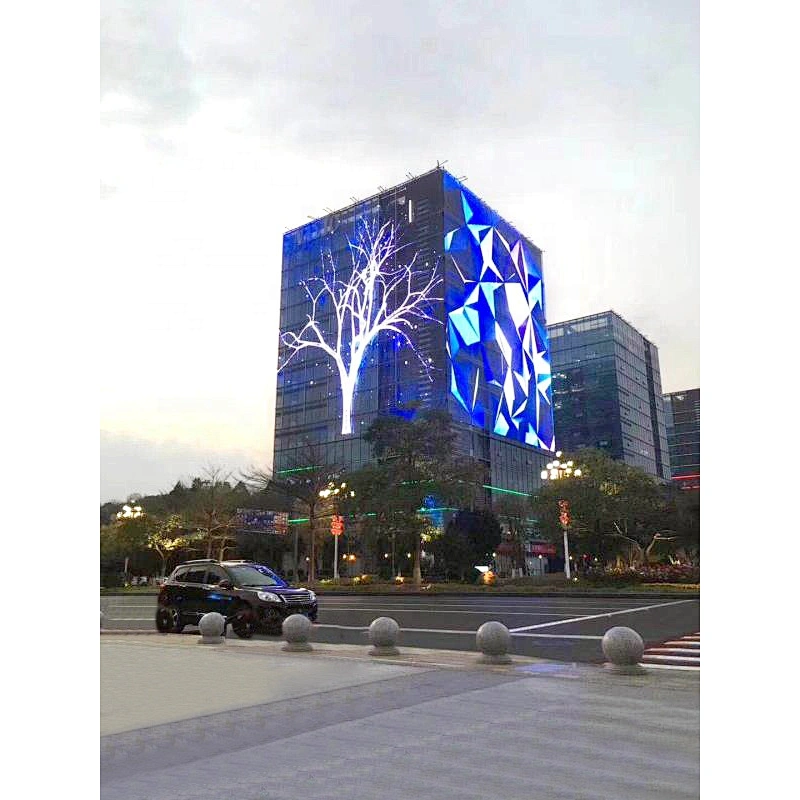

Our Cases
Customer feesback

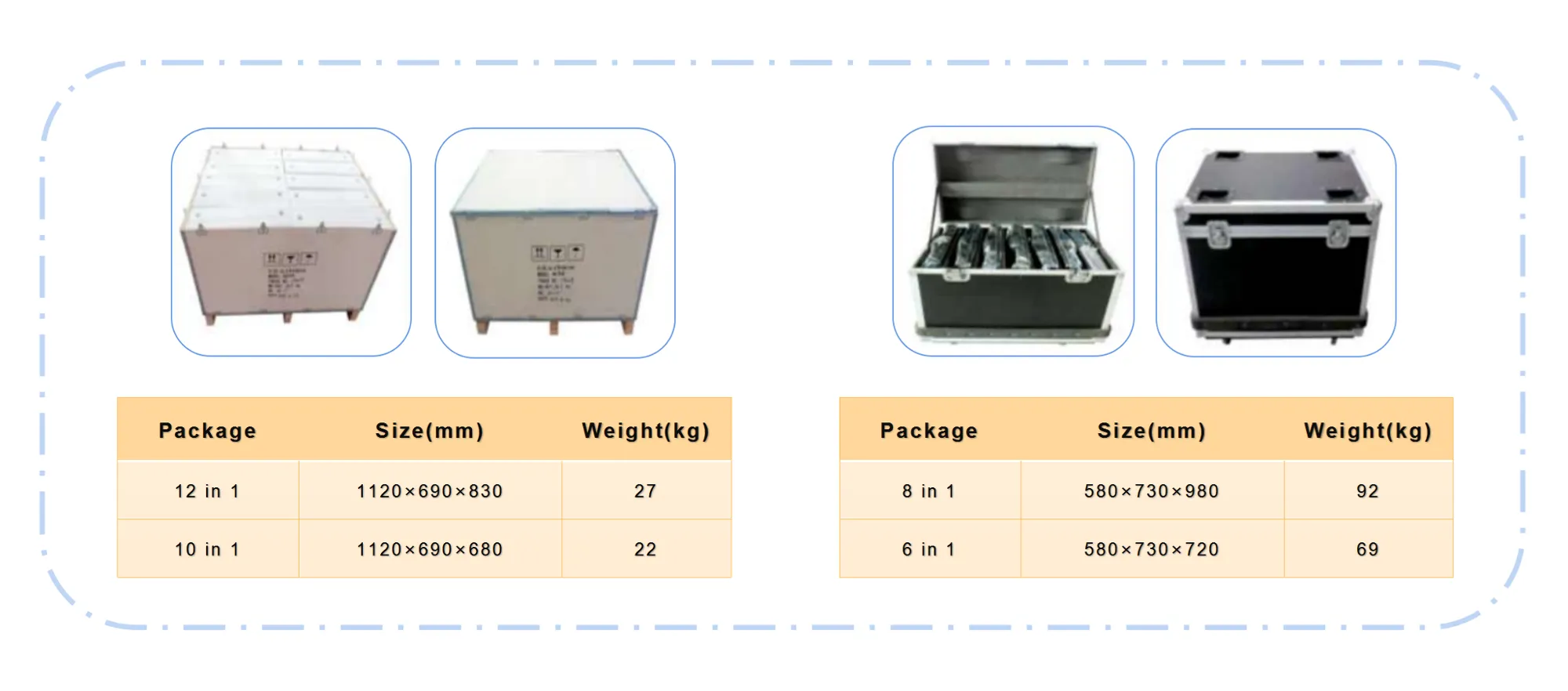

Packing & Delivery
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer

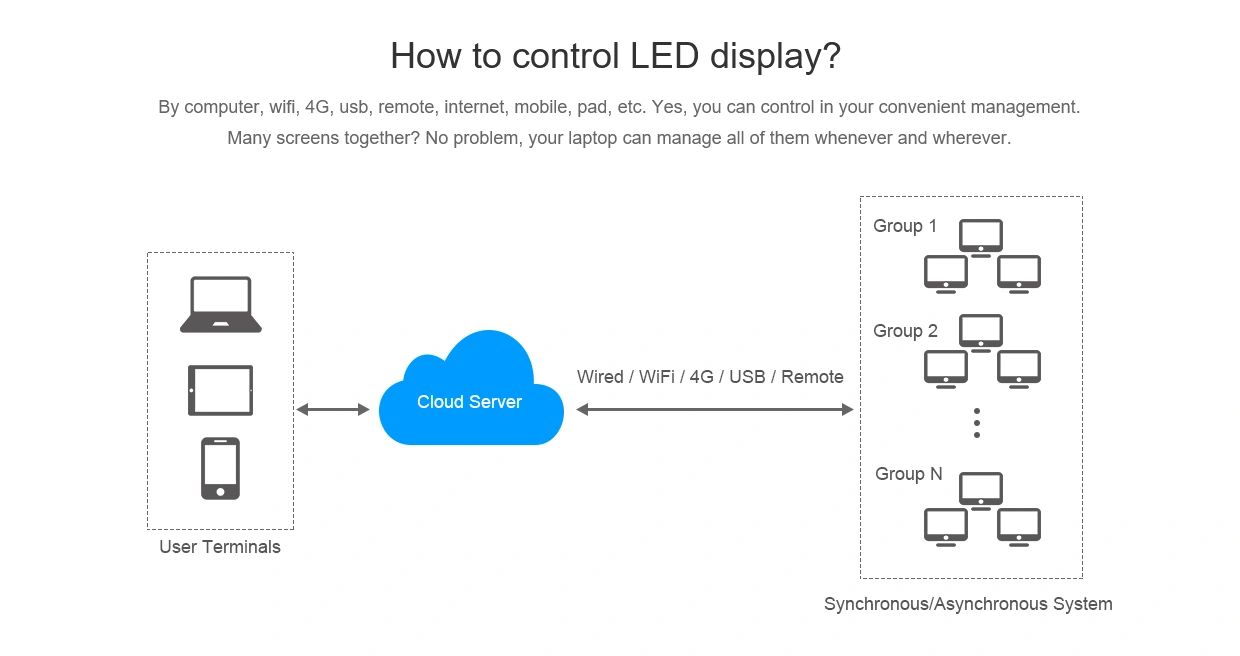

Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled
QC team with standard process to assure quality products.
