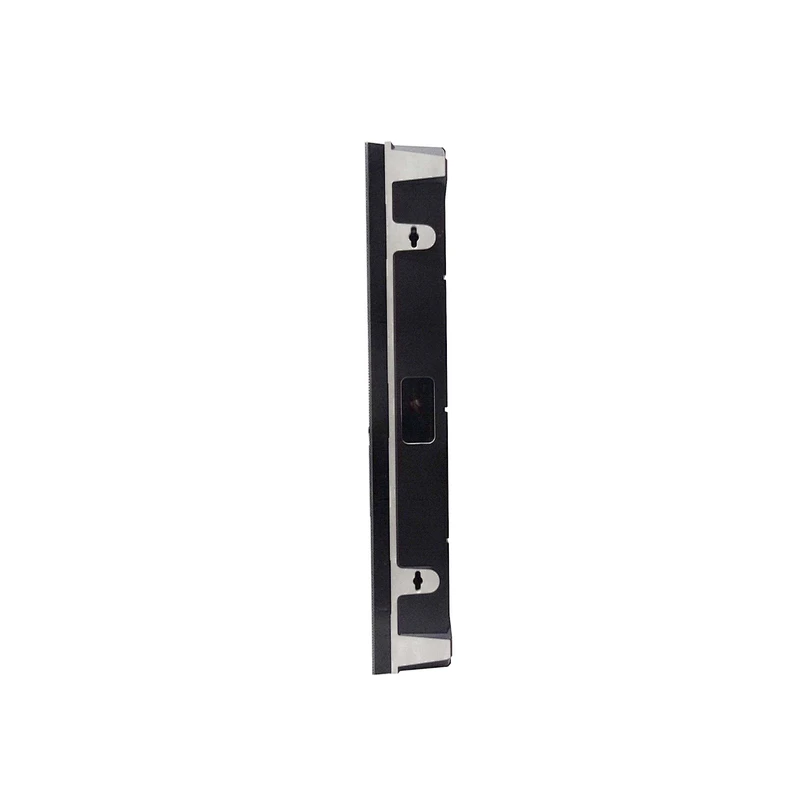

Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2
Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2
Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2
Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2
Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2
Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2
Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2

Die Casting Aluminum Indoor Bracket Installation LED Display Screen P2

Categories: IF Series

Product Description

  • Application:Indoor
  • Color:Full Color
  • Panel Size:640x480mm / 2.1x1.57ft
  • Pixel Pitch:2
  • Place of Origin:Guangdong, China (Mainland)
  • Model Number:BM2
  • Brand Name:LEDFUL
  • LED chip: Epistar:Warranty: 3 Years
  • Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
  • Control system: Nova:Input Voltage (AC): 110V / 240V
  • Grey Scale: 16bit:Screen Dimension: Customized
  • Cabinet material: Die-casting Aluminum:Refresh Rate(HZ):>=3840
Product Description

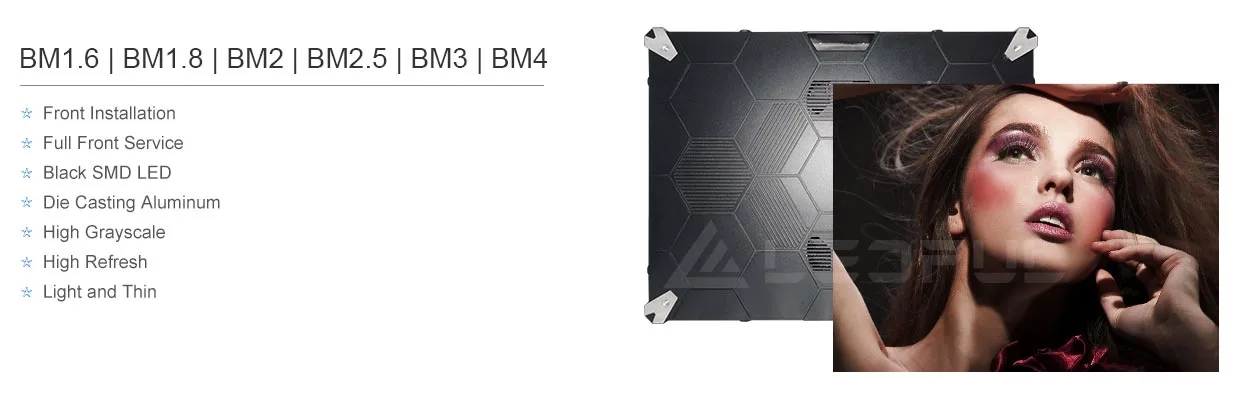

                                  BM Series

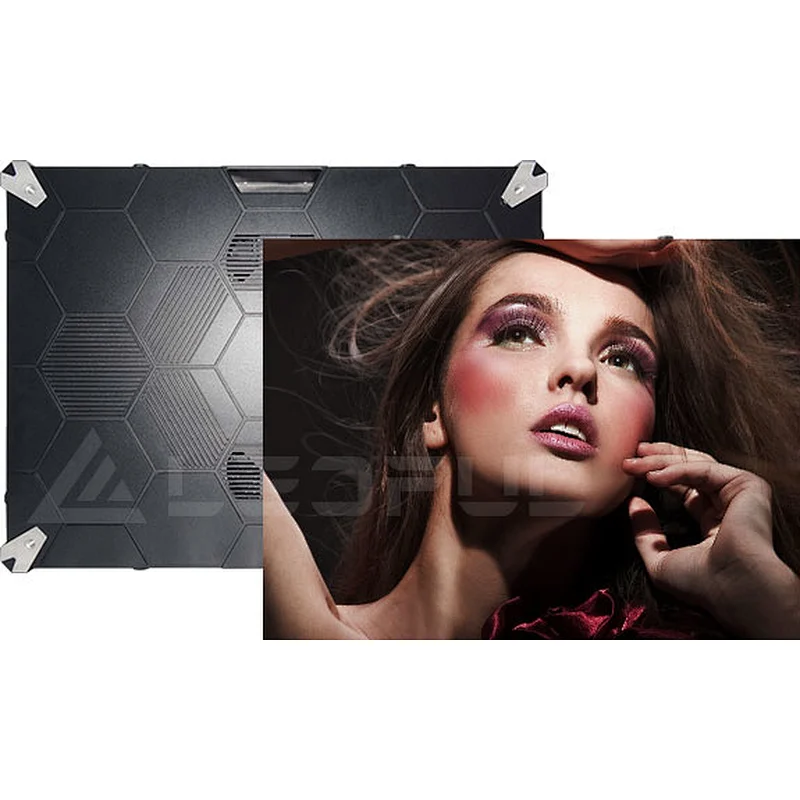

Fine Pitch·Wall Mounted·Front Installation·Full Front Service LED Display

Product
BM2
Pixel Pitch(mm)
2
Pixel Matrix Per Sq.m
250000
Pixel Configuration
SMD1515
Brightness (nits)
1000
Scan
1/40
Cabinet Resolution
320x240
Power Con. (Max / Avg)
500/150 w/sq.m
Module Dimension
320x160mm / 1.06x0.53ft
Cabinet Weight
9kg / 19.84Ib ( Die-casting Aluminum)
Cabinet Dimension
640x480mm / 2.1x1.57ft
Service Access
Full Front
Refresh Rate (HZ)
≥3840
Grey Scale (bit)
16
Viewing Angle (H/V)
160 / 160
IP Rate
IP41
Input Voltage (AC)
110V / 240V

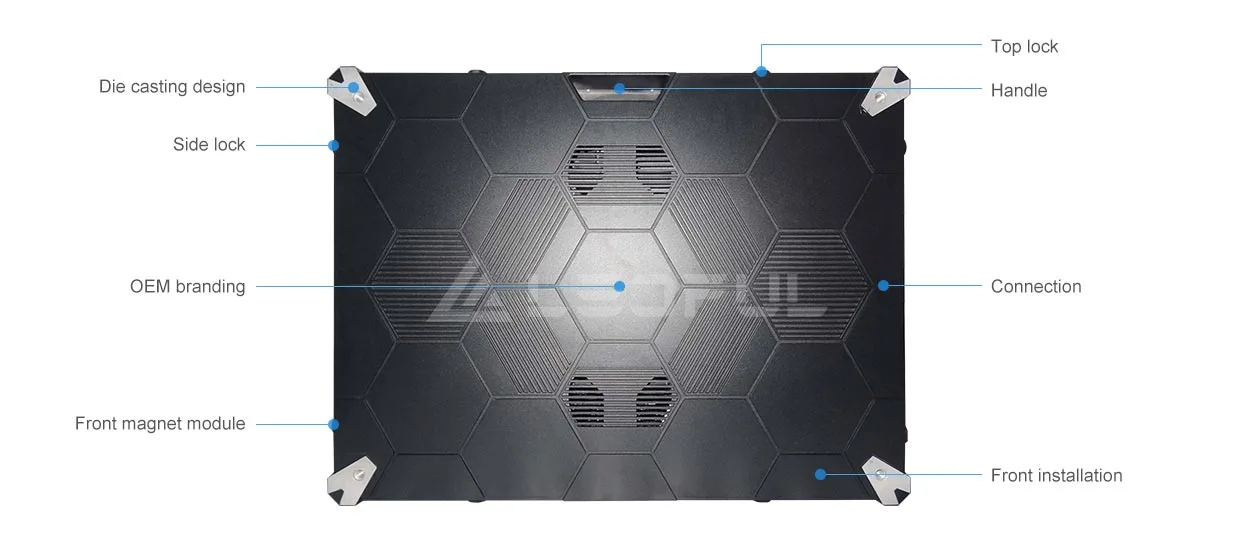

Functions and Features

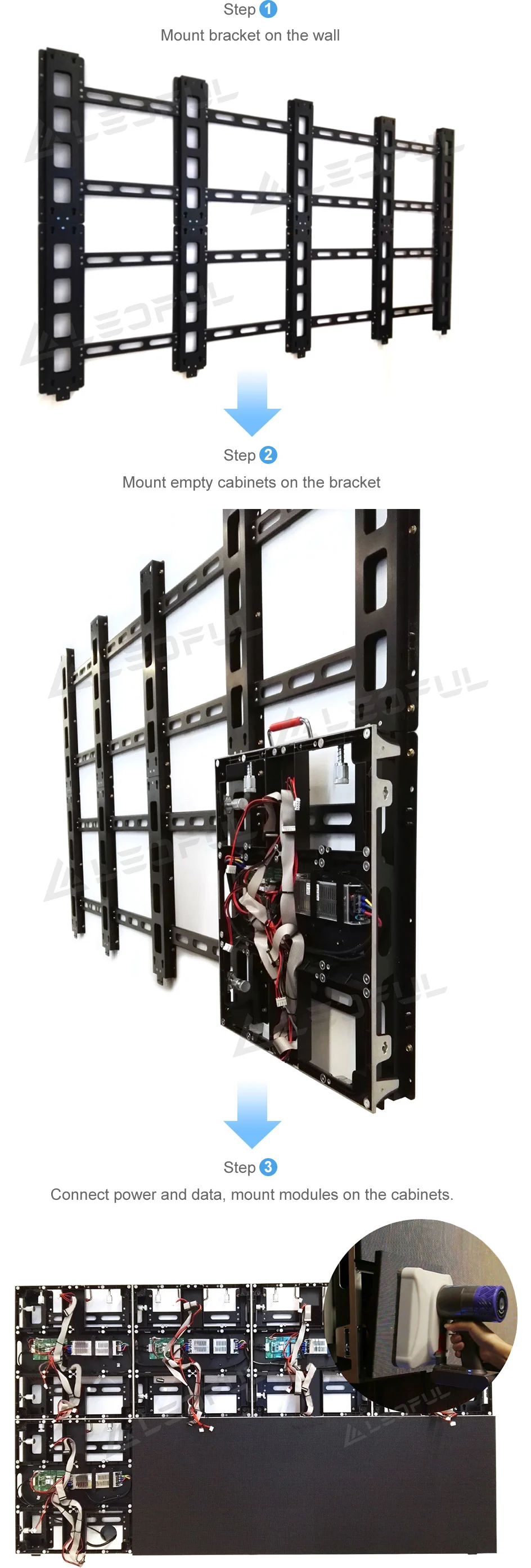

How to install LED cabinets in front side?

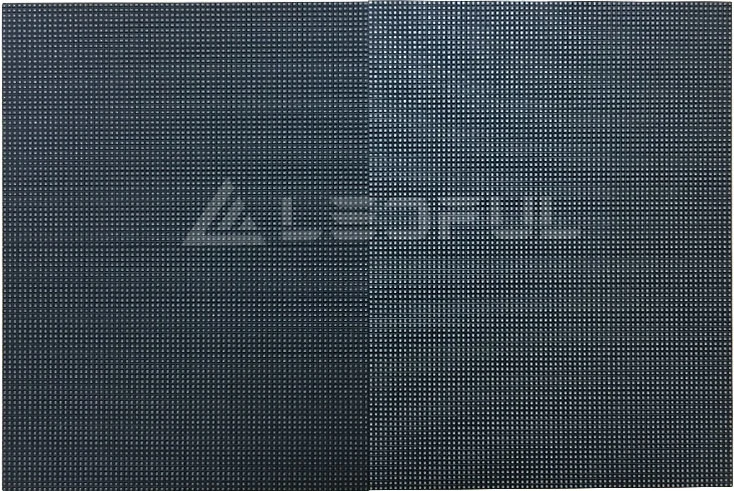

Black SMD LED
     LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

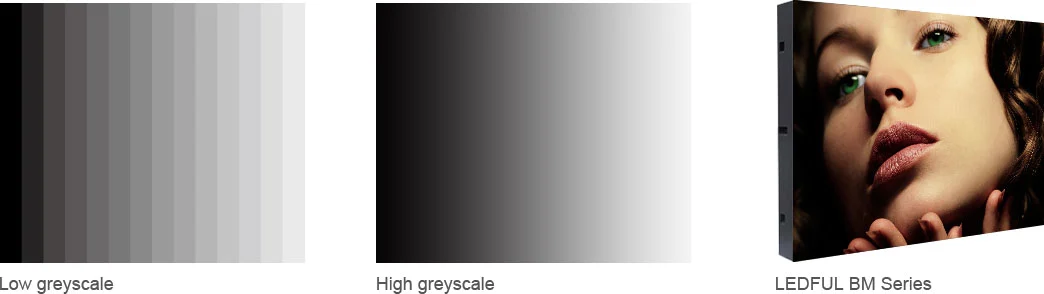

                     Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance

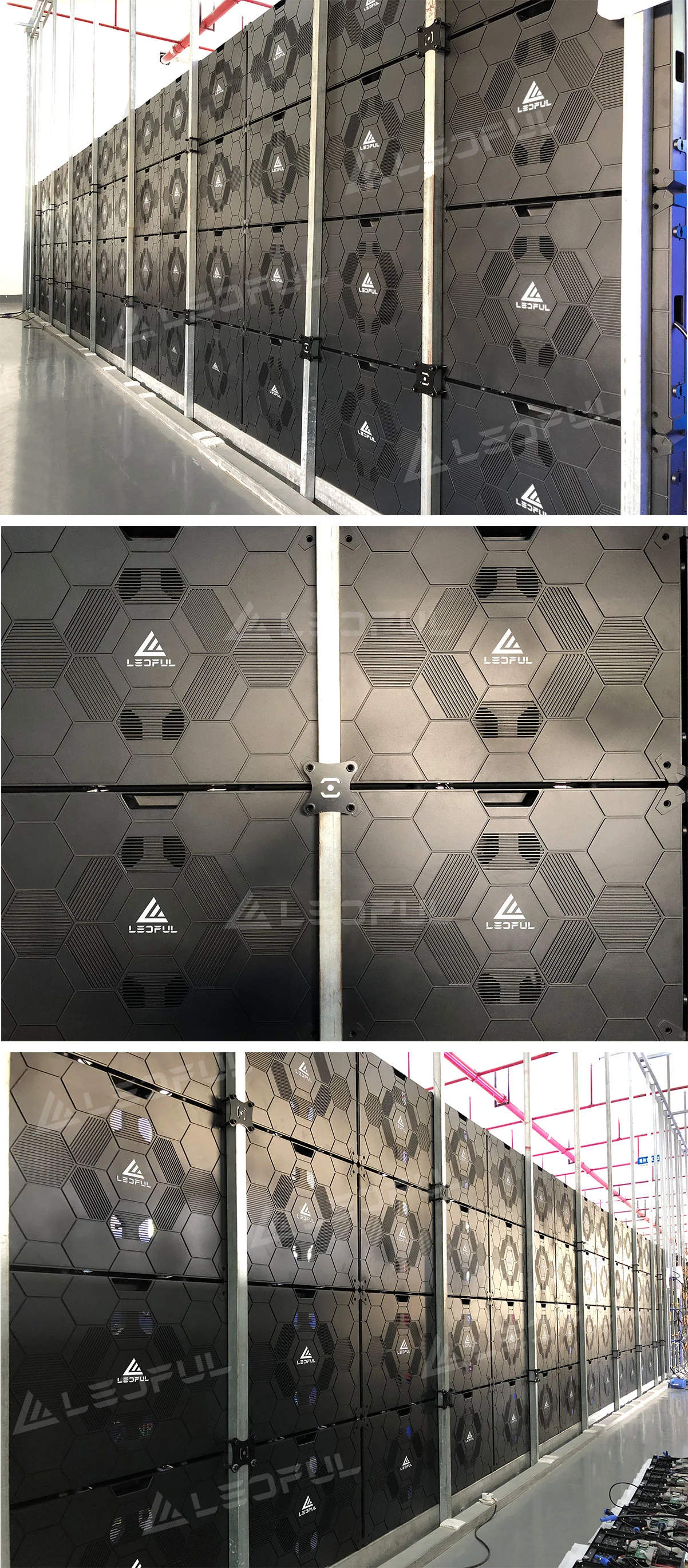

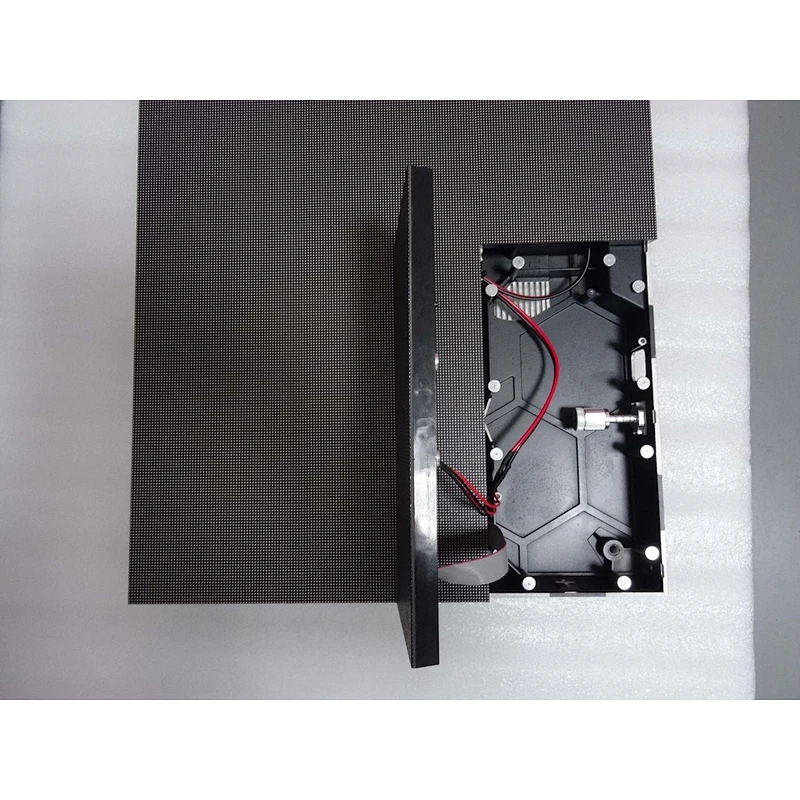

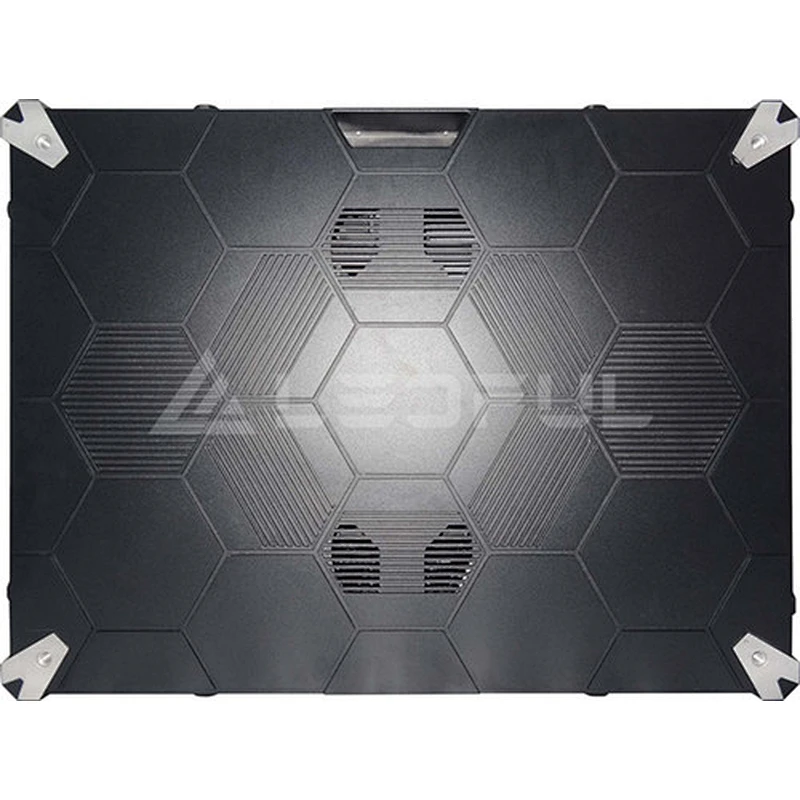

                     Back view and aging photos

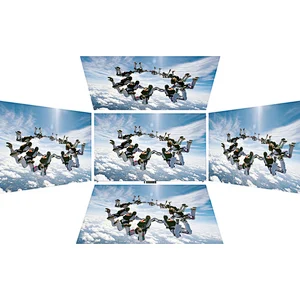

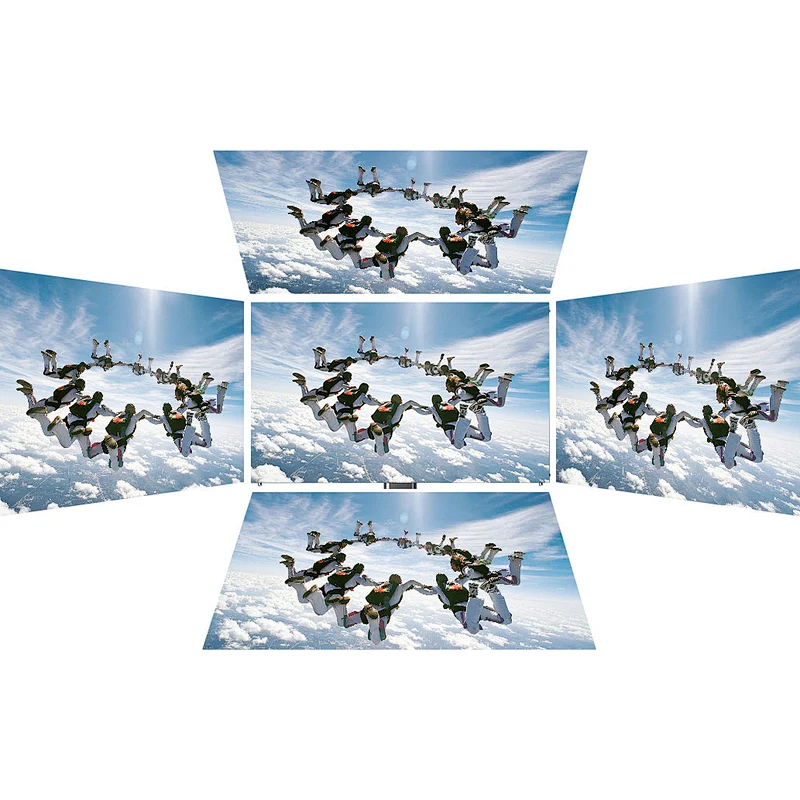

                                Ultra Wide Viewing Angle
               Both 160° from horizontal & vertical for the viewing angle.Seeing from five directions, it would be still the natural and clear image in an LED display.

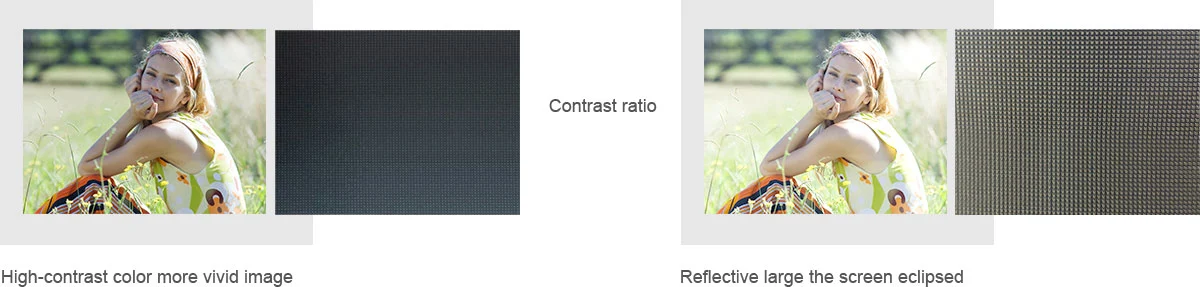

                                   High Contrast Ratio
                High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

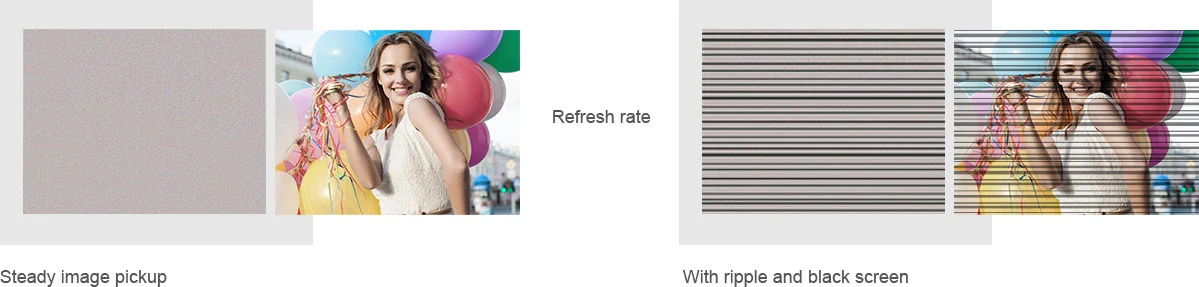

                                     High Refresh Rate
                                                  It could be reach 3840HZ.
Projects

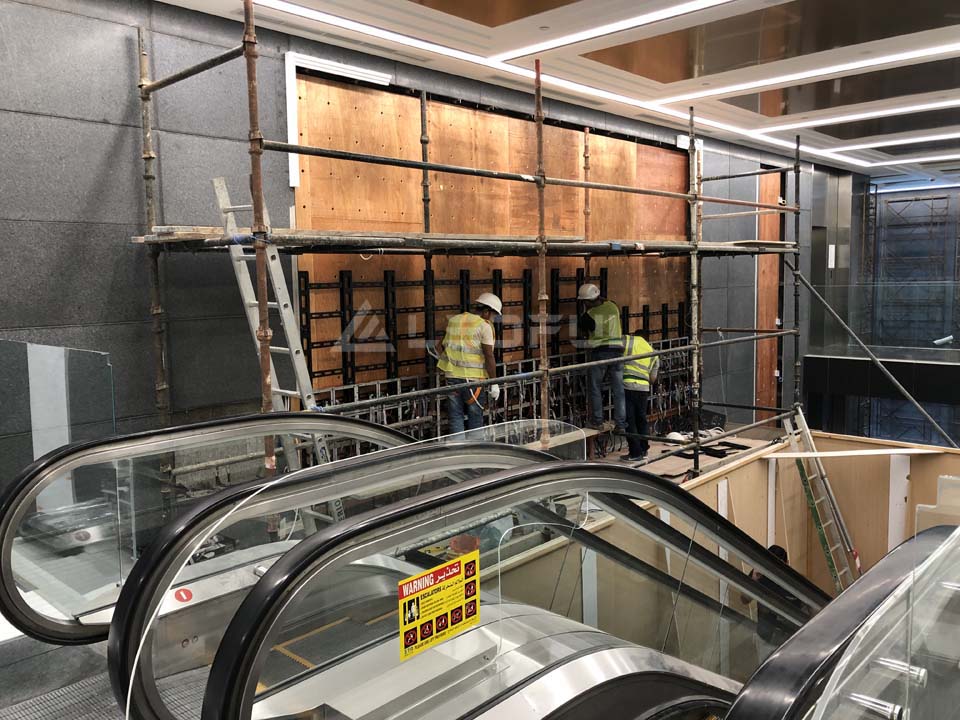

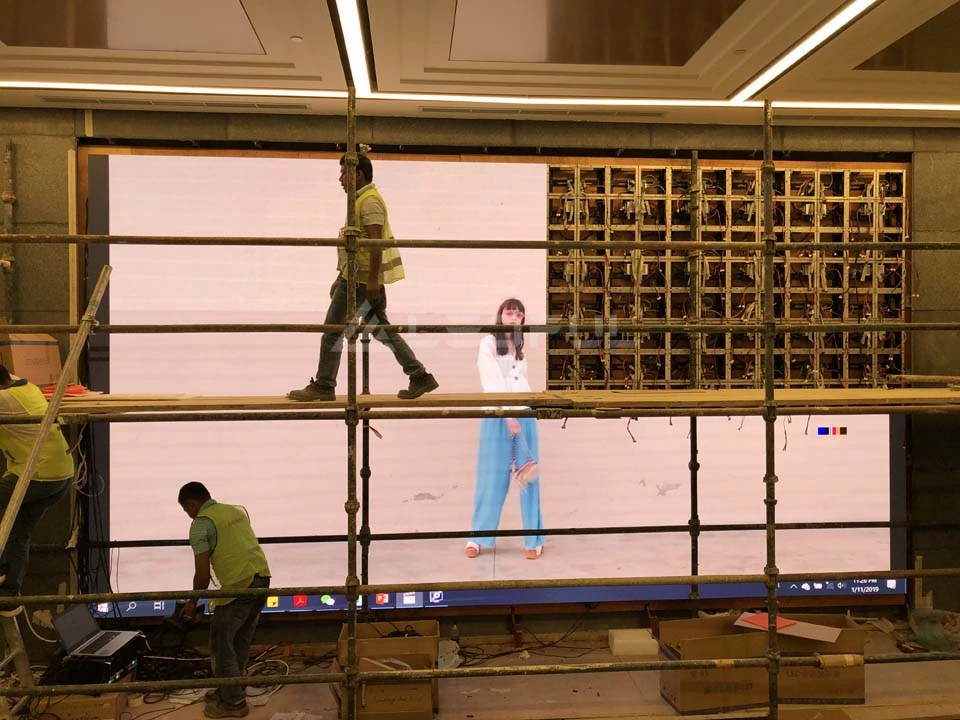

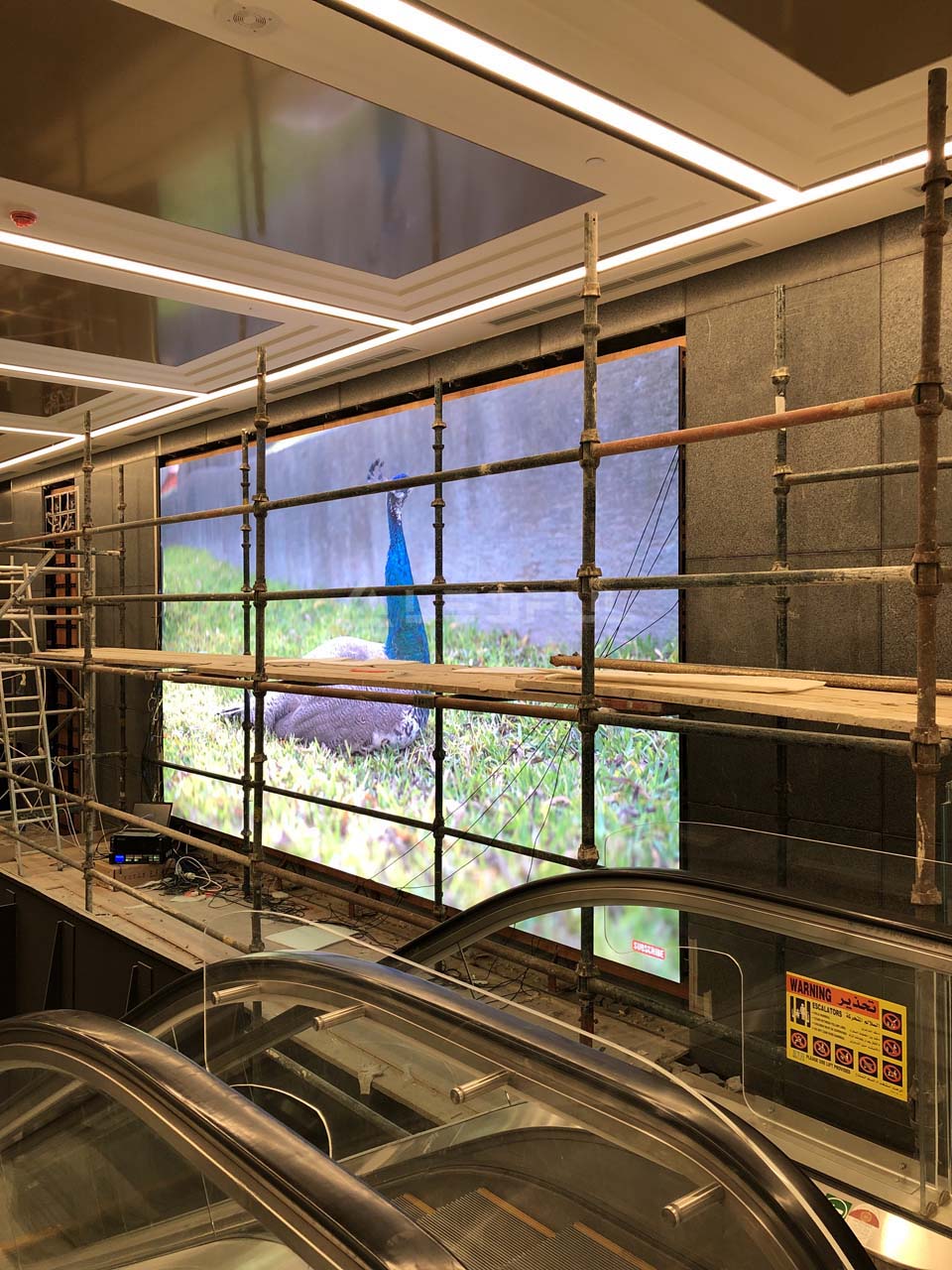

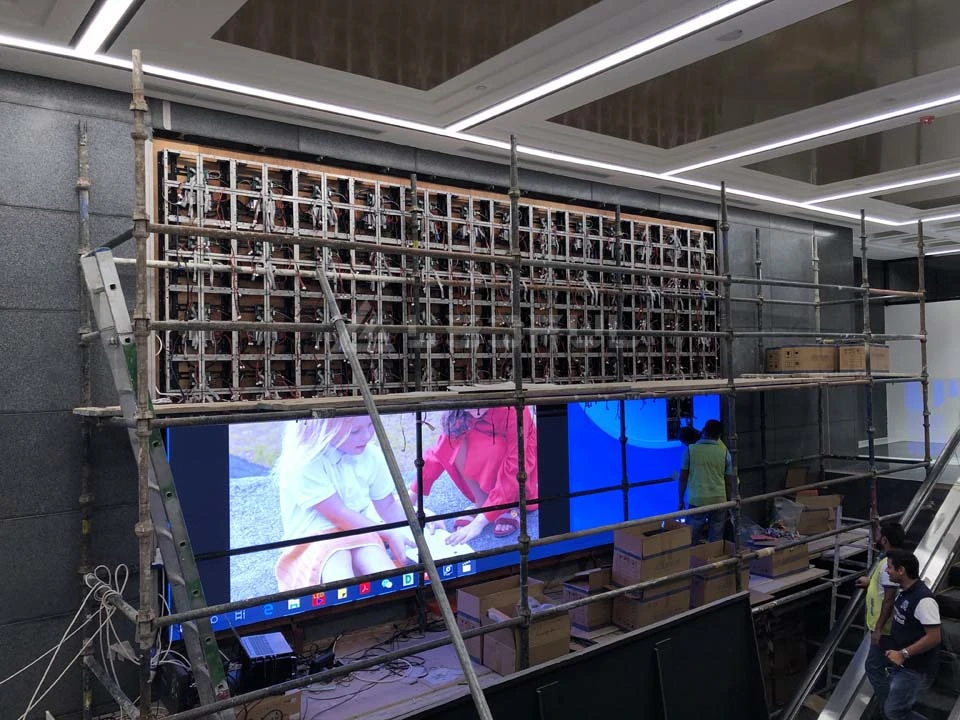

     Dubai Famous Shopping Mall HD Advertising LED Display

   BM1.8 model, the pixel pitch is 1.875mm, is for indoor fxed installation application.
    The cabinet material is not normal Iron but die-casting aluminum with less weight and less heat, also with front access and front installation features, defintely is more suitable for some fine pitch projects, like installed on the wall, no space for rear maintenance or some other special requirements on the apperance.

Recommend Products

LPoster Series

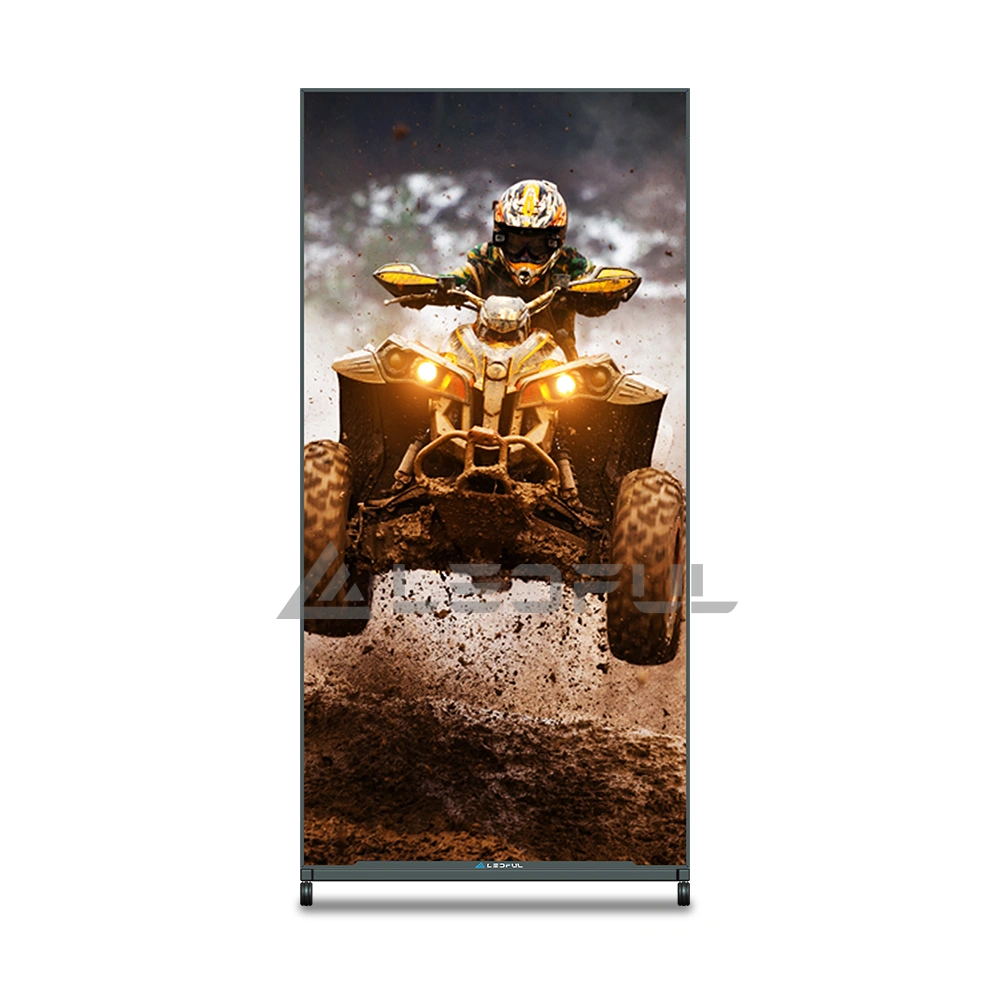

Avant-garde Frame Snap P2.5 Plus Poster LED Stand Indoor

IF Series

Manufacturer Full Color P3 Indoor LED Display Signage

Q Series

Small Pitch High Refresh LED Indoor Display Module
Company Profile

Top LED Display Manufacturer

 LEDFUL founded in 2008, Total 209 employees in LEDFUL, 3~5 years warranty on LED screen, Exported to 83 countries and regionsTop reliable LED display manufacturer, Over 5,600 successful projects in the worldR&D staff occupied 10% of all the employees., CE, RoHS, FCC, CCC, ISO9001:2008 standard.
Certifications
Product packaging

Packaging

1) Plywood box:  Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;

2) Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.


Shipping1) By sea or by air;2) Customer specified freight forwarder or negotiable mode of transport;3) Delivery Time: 15-25 days for batch goods.

Plywood box

Flight case

EPE(Expandable Polyethylene)

FAQ

Q1. Are you trading company or manufacturer ?A: We are led display manufacturer


Q2: What is the control system? A: We use Nova control system.


Q3. How about your delivery time?A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q4. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q5: How can you ensure your led display product quality?A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
