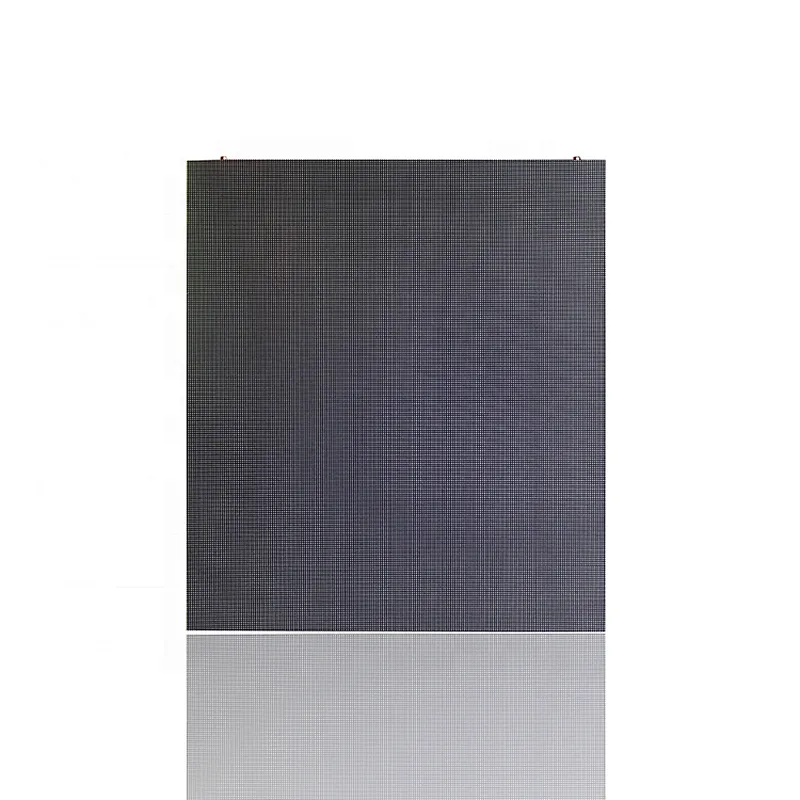

P4 fast installation electronic indoor LED screen video display panels
P4 fast installation electronic indoor LED screen video display panels
P4 fast installation electronic indoor LED screen video display panels
P4 fast installation electronic indoor LED screen video display panels
P4 fast installation electronic indoor LED screen video display panels
P4 fast installation electronic indoor LED screen video display panels
P4 fast installation electronic indoor LED screen video display panels

P4 fast installation electronic indoor LED screen video display panels

USD500.00 -USD700.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: IF Series

    Product Description

    • Place of Origin:CN;GUA
    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:4mm
    • Brand Name:LEDFUL
    • Model Number:IF4
    • Screen Dimension:1024*1024
    • Product name:P4 Indoor Led Display
    • Application:Advetising
    • Certificate:CE ROHS FCC
    • Brightness:1200nits
    • Color:Full-color
    • Module size:256mm*128mm
    • Pixel pitch:4mm
    • Pixel density:62500dots/m2
    • Cabinet size:1024x1024mm
    • Refresh rate:1920Hz-3840Hz
    Product Description

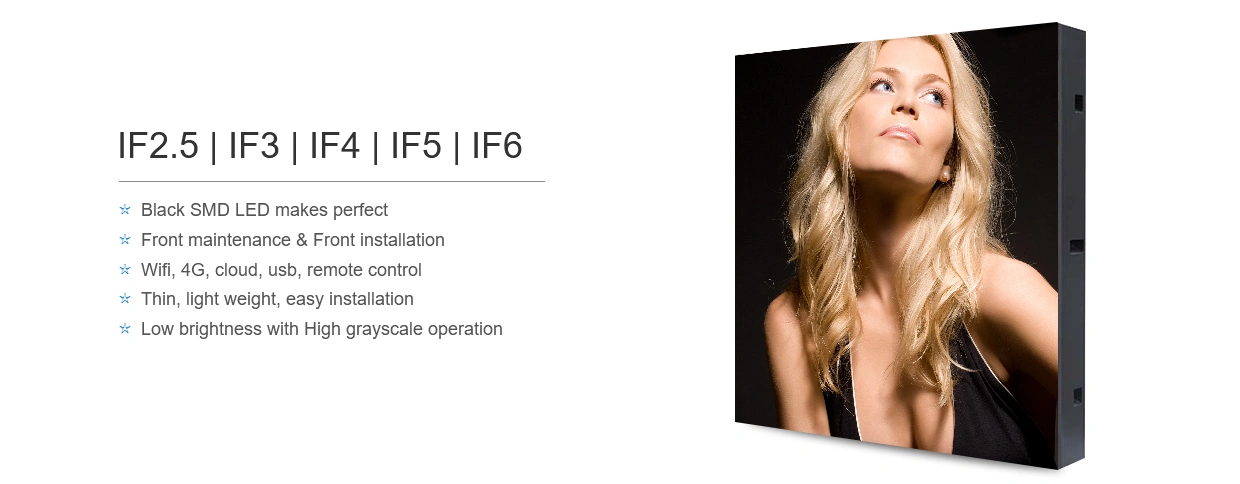

    IF Series

    Indoor Fixed Advertising LED Display

    Parameter
    IF Series
    IF4
    Pixel Pitch(mm)
    4mm
    Pixel Matrix Per Sq.m
    62500
    Pixel Configuration
    SMD2121
    Brightness (nits)
    1000
    Scan
    1/16
    Cabinet Resolution
    192x192
    Module Dimension
    256x128mm/0.84x0.42feet
    Cabinet Weight
    19.5kg /43 Ib ( Iron)
    Cabinet Dimension
    768x768x100mm /2.52x2.52x0.33feet
    Service Access
    Front/Rear
    Refresh Rate (HZ)
    ≥1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    700/ 175 w/sq.m
    IP Rate
    IP34
    Input Voltage (AC)
    110 / 240
    Feature

    1.Indoor with short viewing distance to get amazing

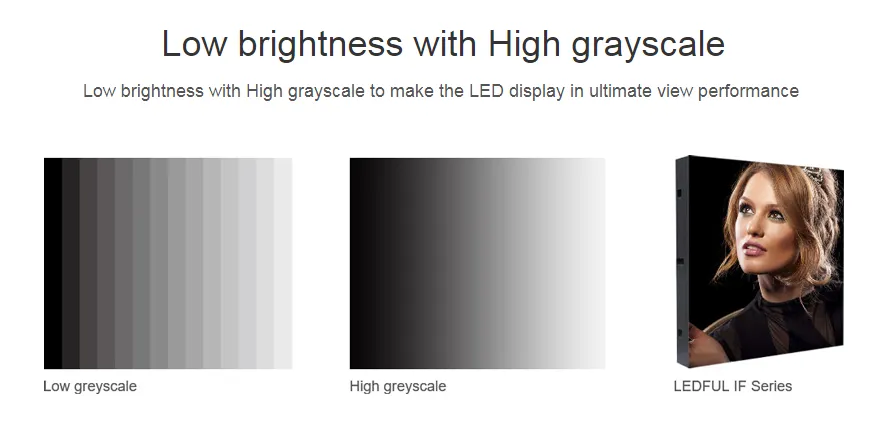

    vision effect same like watching TV. High refresh rate,high gray scale and high definition creates vivid colors.

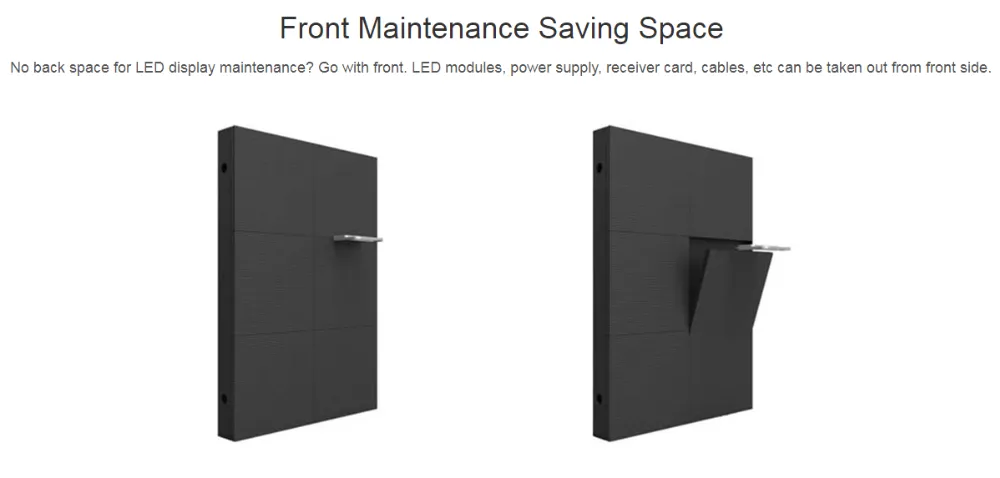

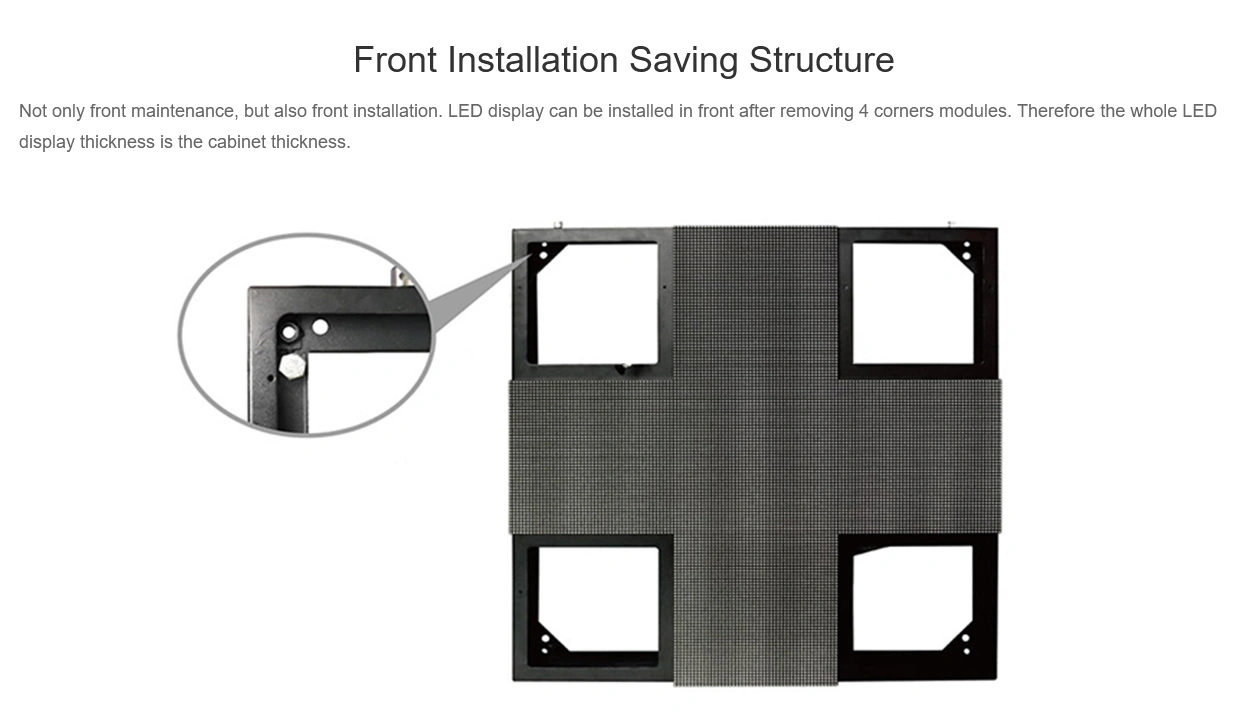

    2.Front magnet with easy and convenient maintenance
    to save space and cost.

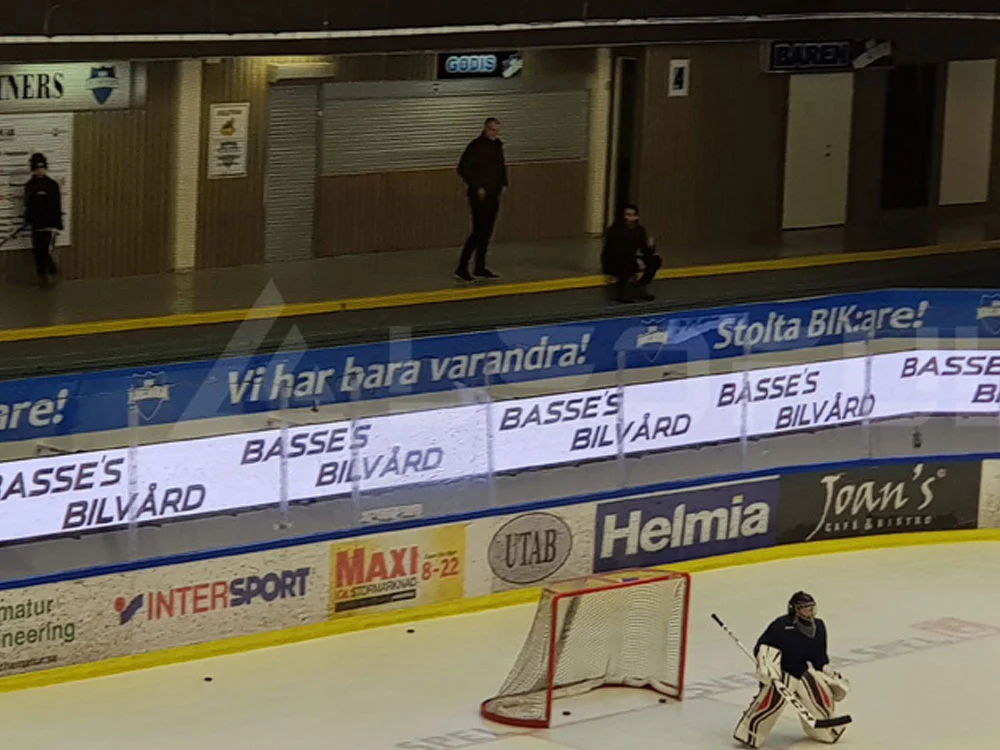

    Hockey Rink Advertising Display

    Product Model: IF4
    Pitch:4mm
    Size:78m(W)x0.768m(H)
    Location: Sweden


    This reference project is IF4 perimeter display.the total display size is about 53sqm, located in Sweden Hockey Rink.
    The pixel pitch is P4mm, optimum viewing distance is about from 3m to 300m.

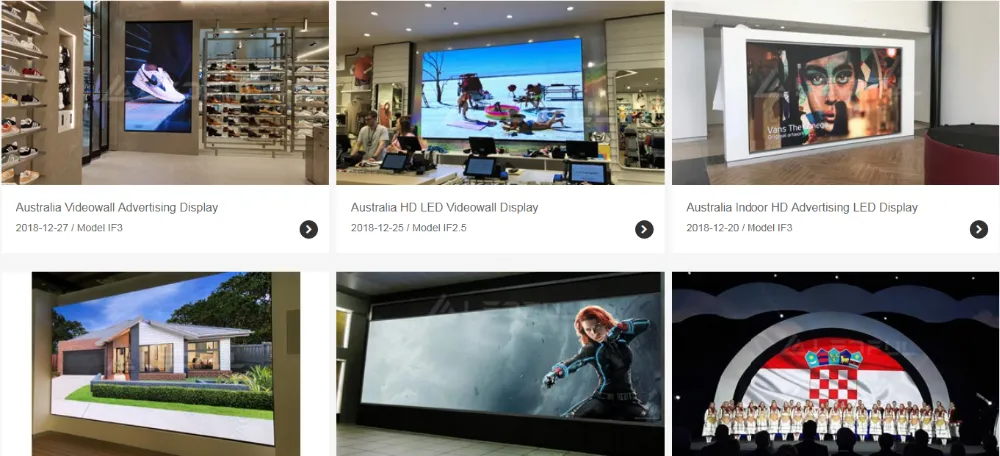

    IF4 model belong to IF indoor series, which is widely used in indoor advertising application.like shopping mall, stores,bank,etc.

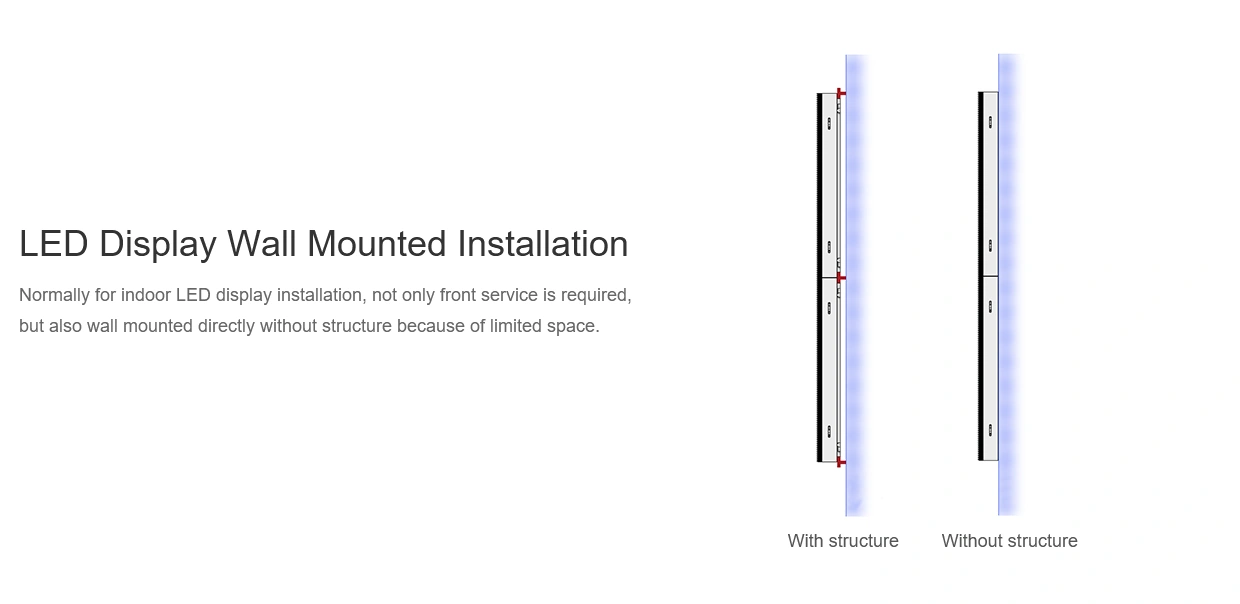

    Most clients prefer front maintenance to save the installation space but it depends. We would like to propose the best entire solution according to all your local requirements.
    Currently,more and more stores adopt LED display to promote their business and show the goods advantages and features. specially in some famous brand store.it indeed attract lots of potential clients to make the transaction.

    IF Series More Features & More Advantages,Excellent heat dissipation and noiselessness,High-performance metal plate cabinet design,Macro molecular flexible mask with glare-less surface on LED modules

    High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
    Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.

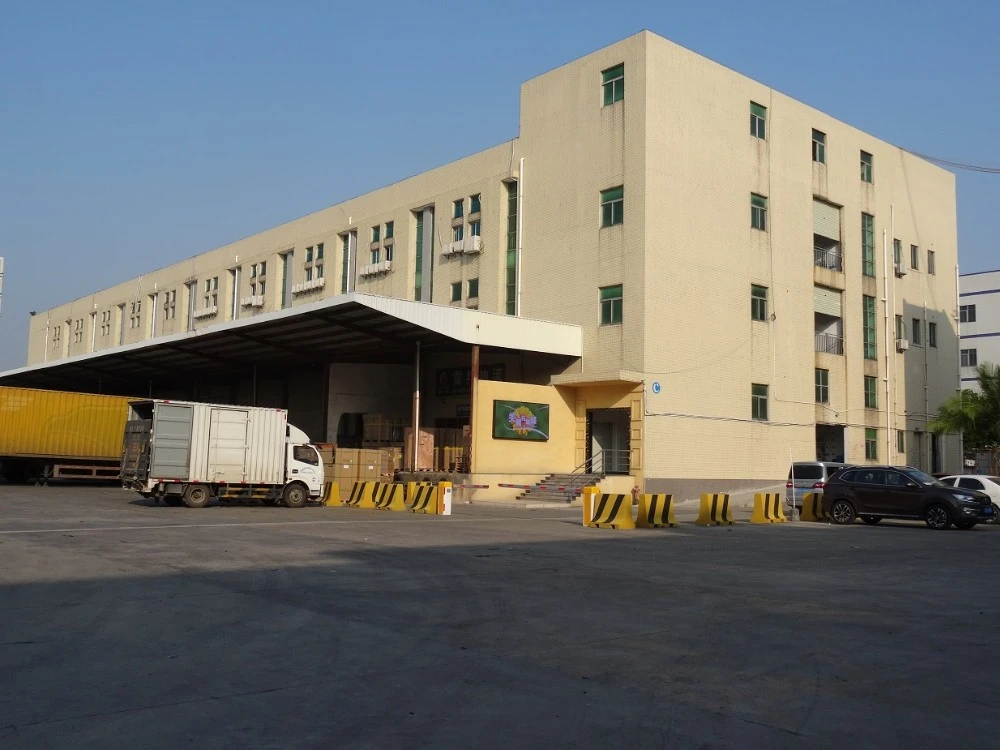

    Our Company

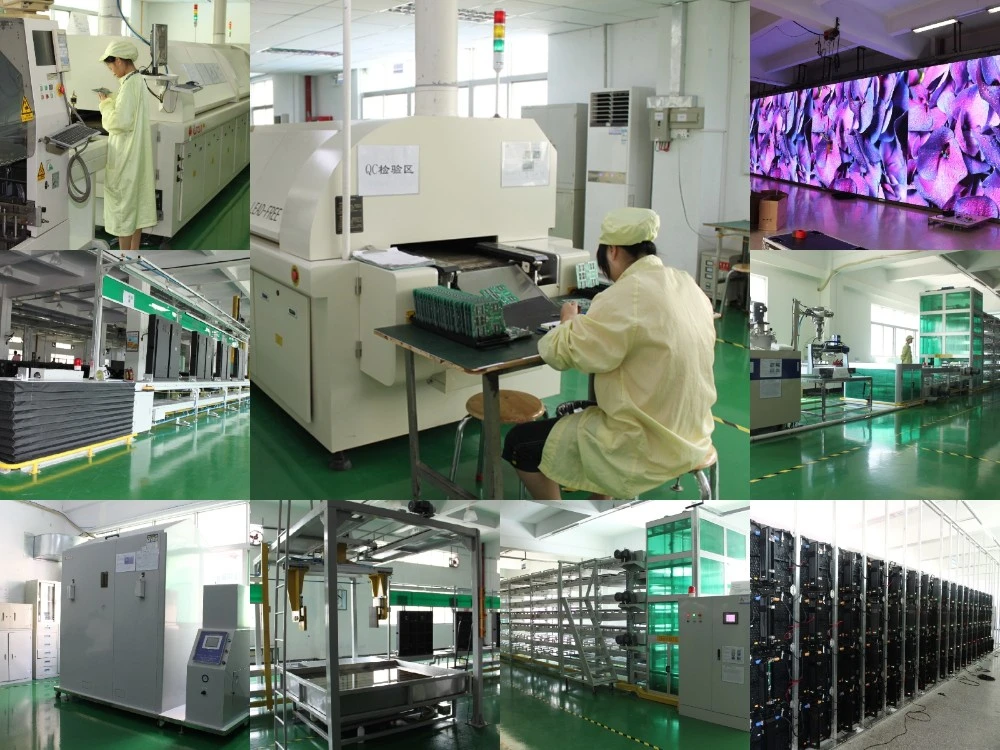

    Top LED Display Manufacturer

    LEDFUL founded in 2008 Total 209 employees in LEDFUL
    3~5 years warranty on LED screen Exported to 83 countries and regions

    Top reliable LED display manufacturer Over 5,600 successful projects in the world

    R&D staff occupied 10% of all the employees.
    CE, RoHS, FCC, CCC, ISO9001:2008 standard

    Professional, High Efficient and Caring

    One-stop solution provider More designs and more solutions
         Wireless control, 4G, Wifi, Cluster control

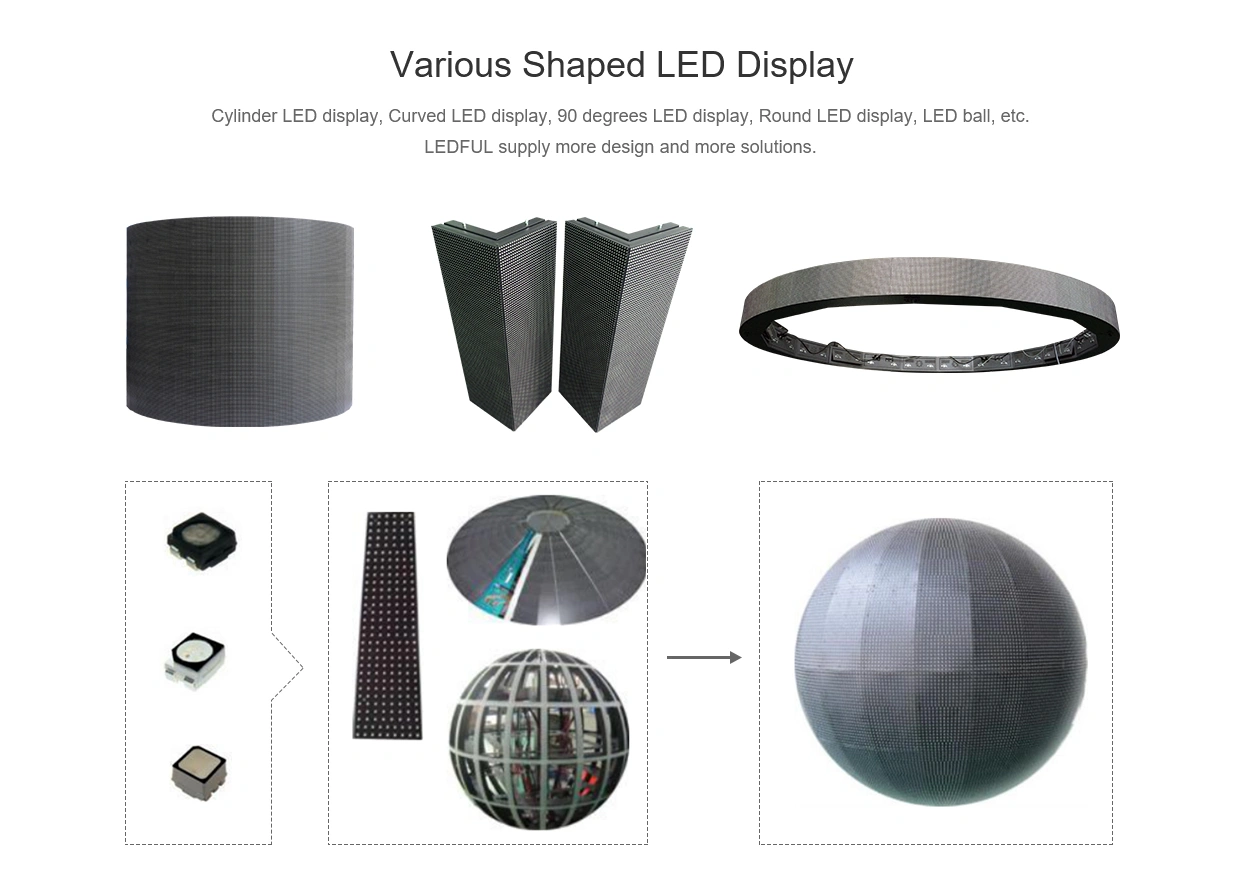

    Truss hanging, stacking, touring, LED ceiling,         video  floorIrregular shaped, flex, curved, round, sphere, cubic, customized Focus on the        improvement and innovation of rental LED cabinets
    High efficient and enthusiastic team to         make reliable LED display  Our partners are Media Companies, Stage Designer, Project                 Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies,
    Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

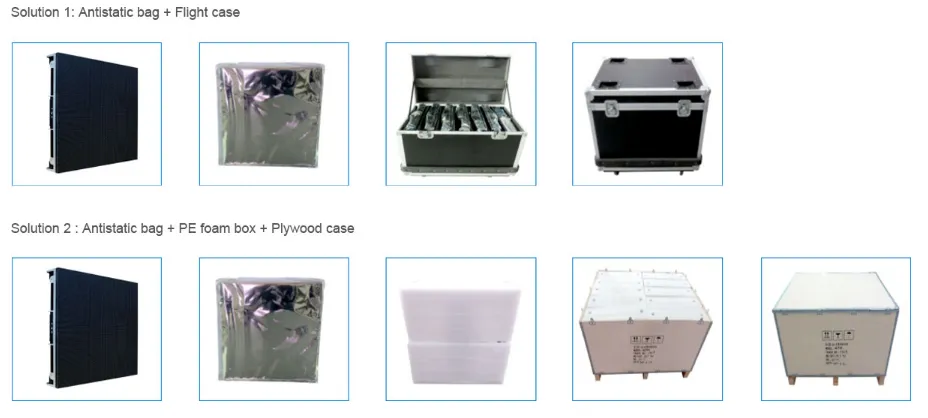

    Packing & Delivery
    FAQ

    Q1. Are you trading company or manufacturer ?

    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more

    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?
    LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
