- Application:outdoor floor display
- Color:fullcolor
- Panel Size:500*1000mm
- Pixel Pitch:3.9
- Place of Origin:china
- Model Number:FO3.9
- Brand Name:LEDFUL
- Product name:Floor display
- Brightness:4000
- Pixel Pitch:3.91
- Pixel Configuration:SMD1921
- Scan:1/16
- Cabinet Resolution:128*128
- Cabinet weight:10kg
- Load bearing:2T
- Refresh Rate:1920
- IP:65
Product Description
Floor Series
Interactive Floor Display | LED Video Floor | Dance Floor LED Display
Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2
Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2
Features
Parameter
F Series Outdoor | FO 3.9 | FO 4.6 | FO 4.8 | FO 5.2 | FO 6.2 | ||||
Pixel Pitch(mm) | 3.91mm | 4.625mm | 4.81mm | 5.2mm | 6.25mm | ||||
Pixel Matrix Per Sq.m | 65536 | 46656 | 43264 | 36864 | 25600 | ||||
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | ||||
Brightness (nits) | 4000 | 4500 | 4500 | 4500 | 5000 | ||||
Scan | 1/16 | 1/13 | 1/13 | 1/10 | 1/10 | ||||
Cabinet Resolution | 128×128 | 108×108 | 104×104 | 96×96 | 80×80 | ||||
Power Con. (Max/Avg) | 750/230 w/sq.m | 730/220 w/sq.m | 700/220 w/sq.m | 710/210 w/sq.m | 710/210 w/sq.m | ||||
Module Dimension | 250x250mm / 0.82x0.82ft | ||||||||
Cabinet Dimension | 500x1000x80mm / 1.64x1.64x0.26ft | ||||||||
Cabinet Weight | 14kg / ( Die-casting Aluminum) | ||||||||
Service Access | Front / Rear | ||||||||
Load Bearing | 2T | ||||||||
Refresh Rate (HZ) | 1920 | ||||||||
Grey Scale (bit) | 16 | ||||||||
Viewing Angle (H/V) | 140 / 140 | ||||||||
IP Rate | IP65 | ||||||||
Input Voltage (AC) | 110 / 240 | ||||||||
Detailed Images

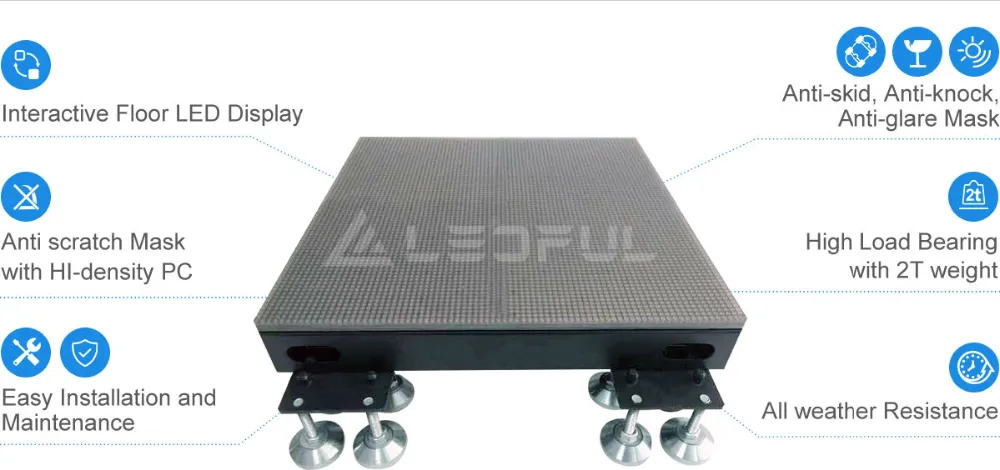

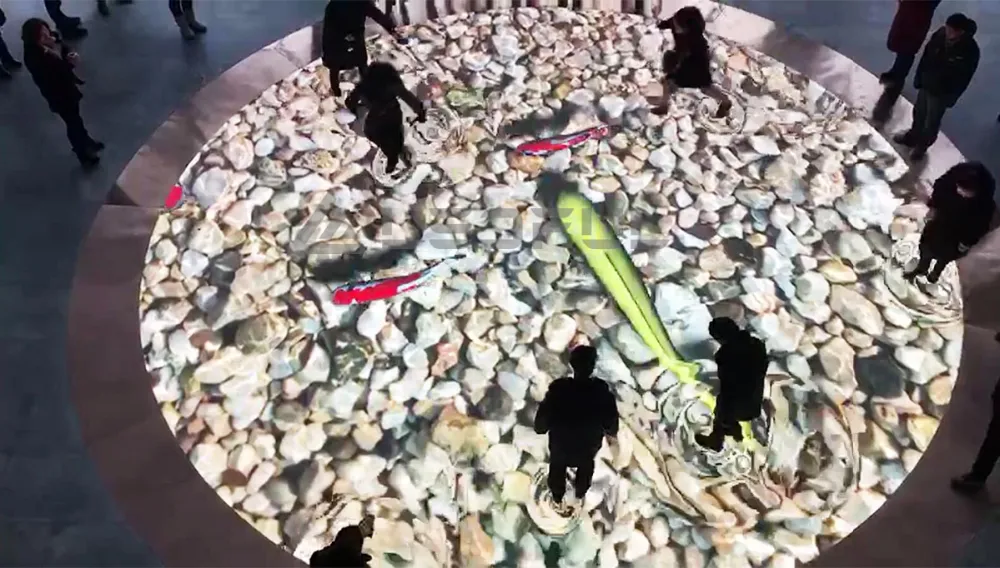

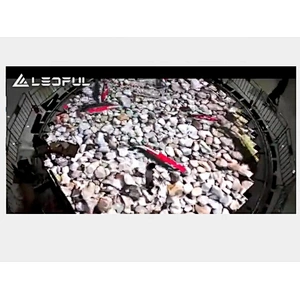

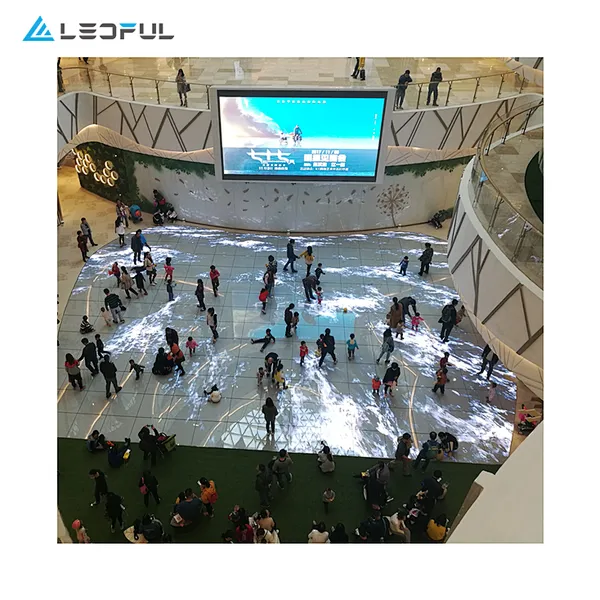

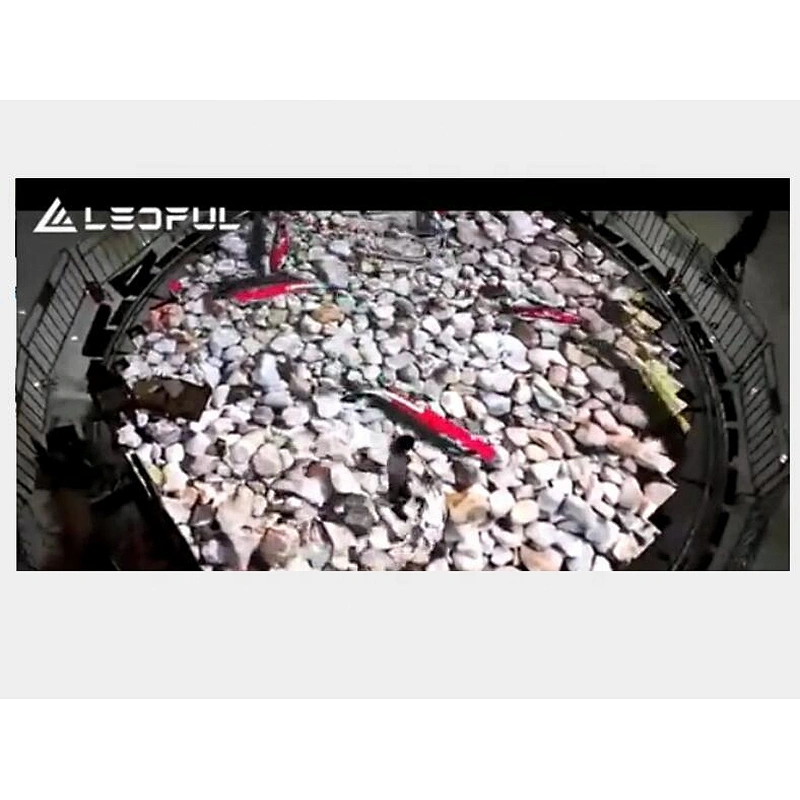

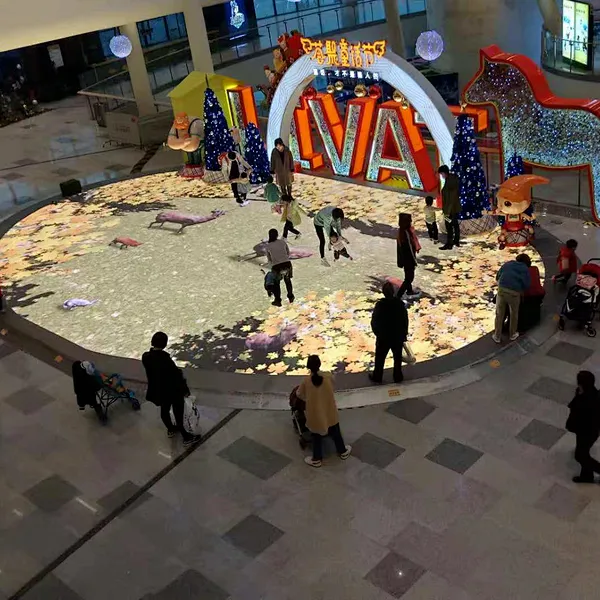

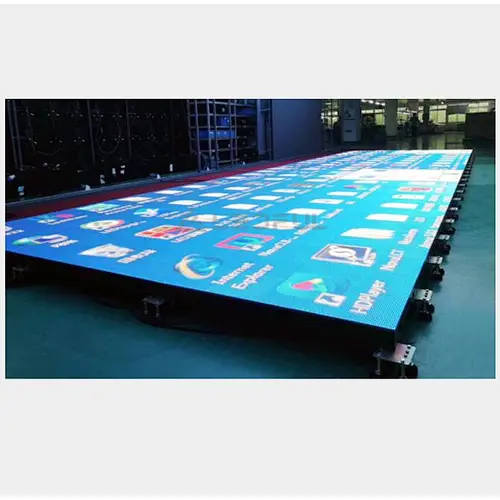

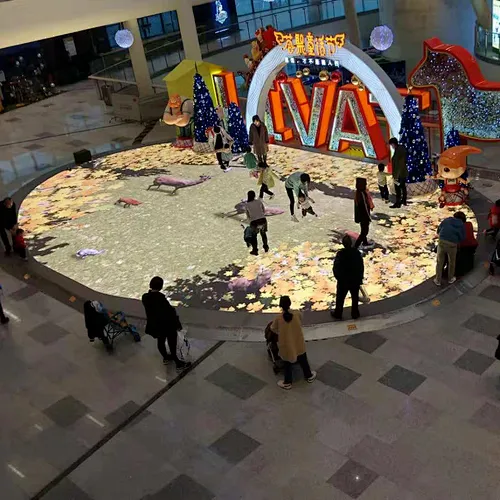

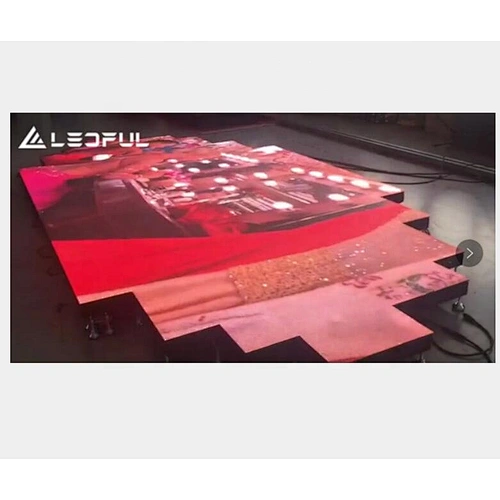

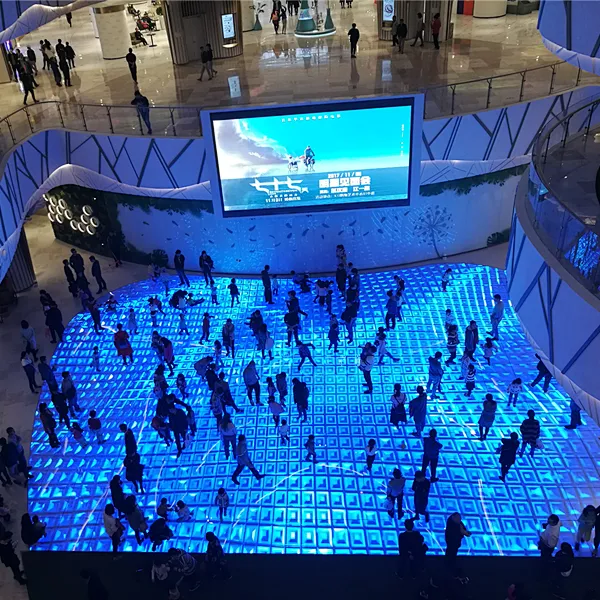

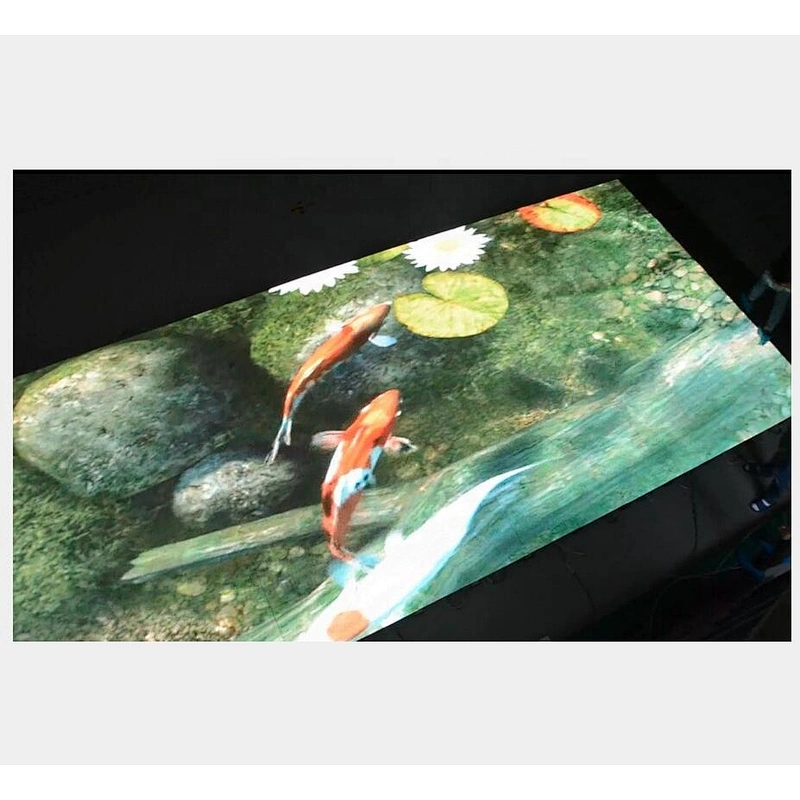

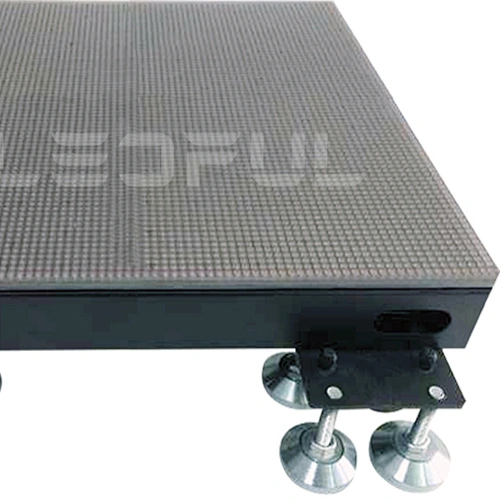

Interactive Floor LED Display
Special driving IC built inside the LED display PCB will work together with interactive control system.
It will easily and quickly make you interesting and attractive between the players and display.

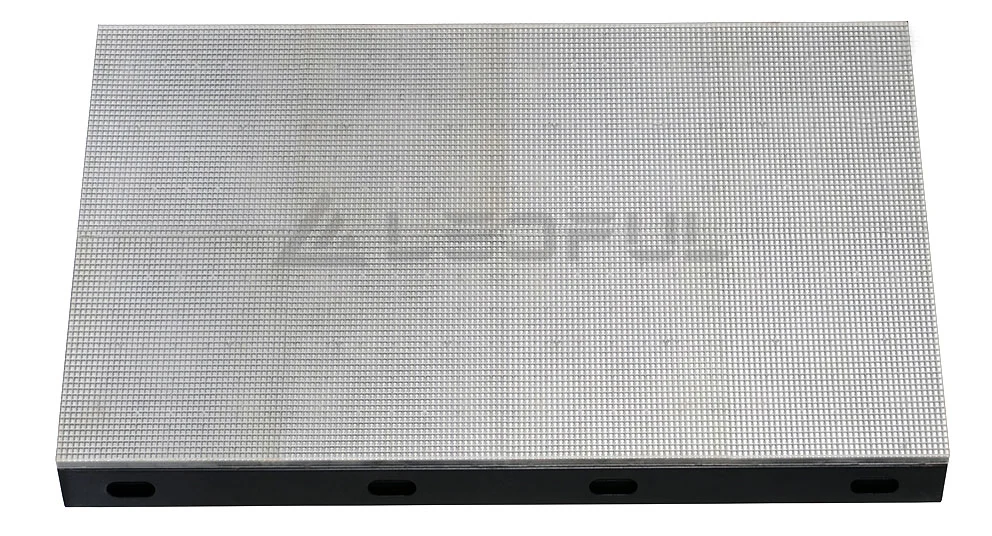

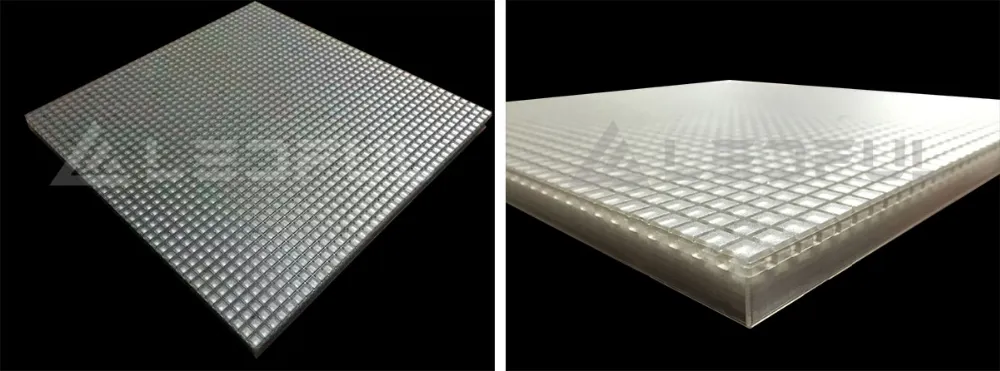

Anti-skid, Anti-knock, Anti-glare Mask
Anti scratch Mask with HI-density PC

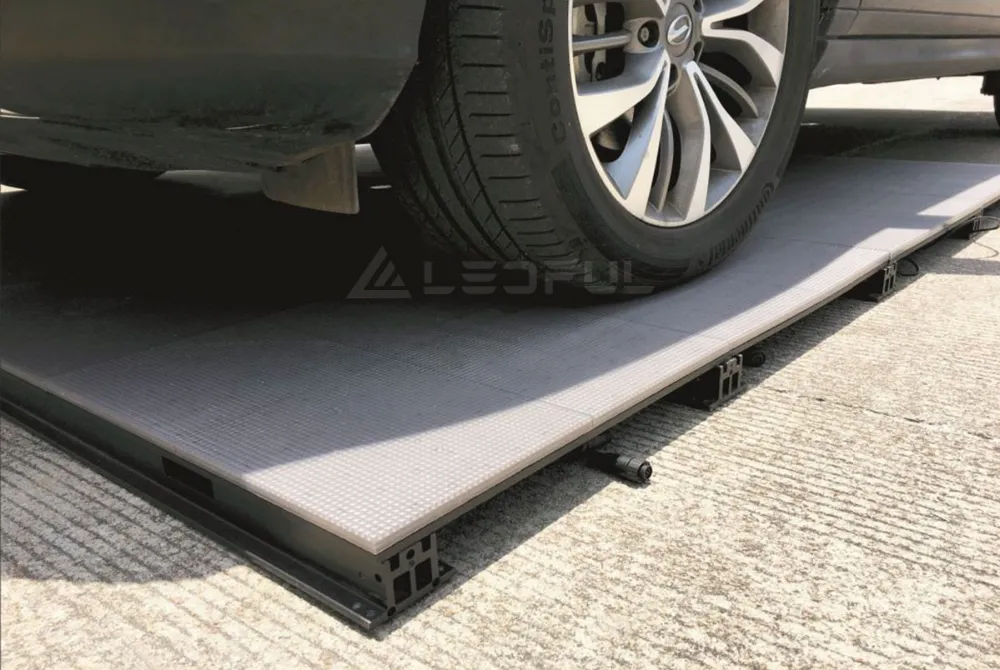

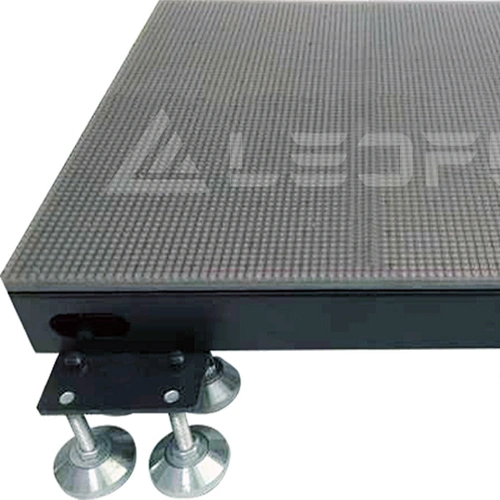

High Load Bearing with 2T weight
.

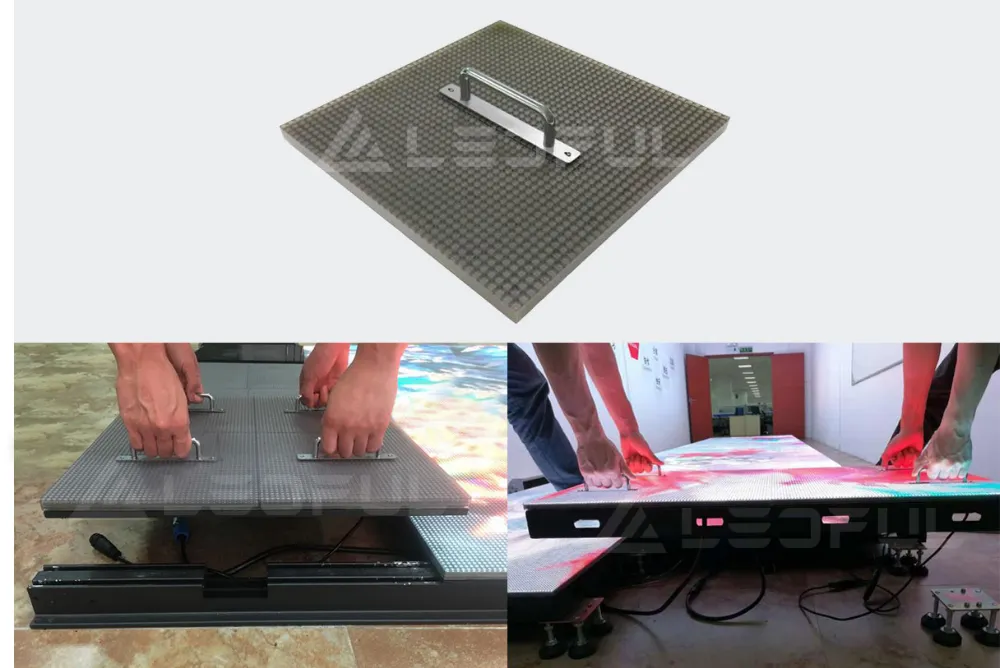

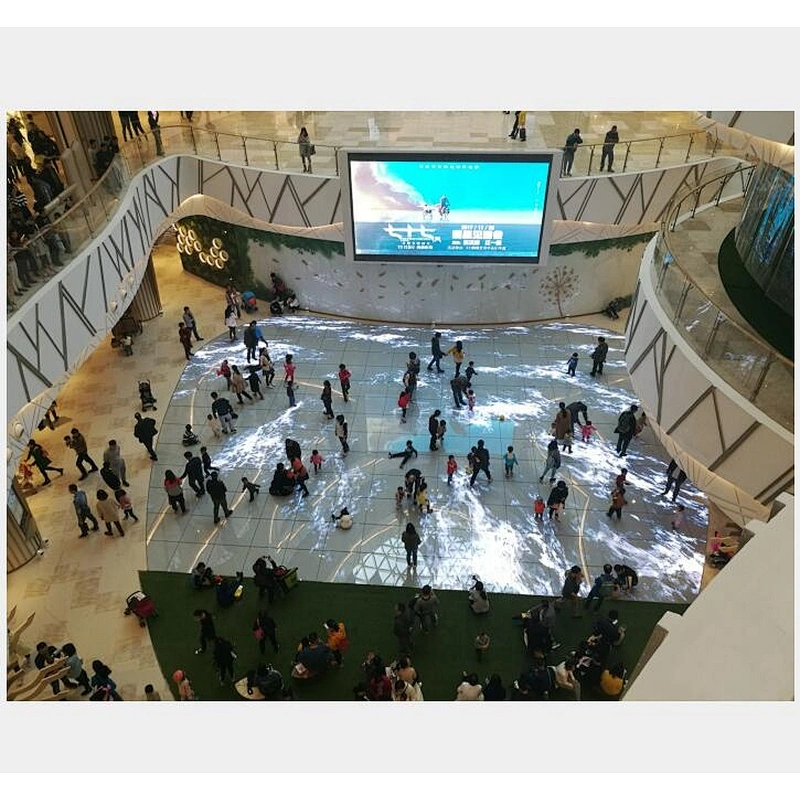

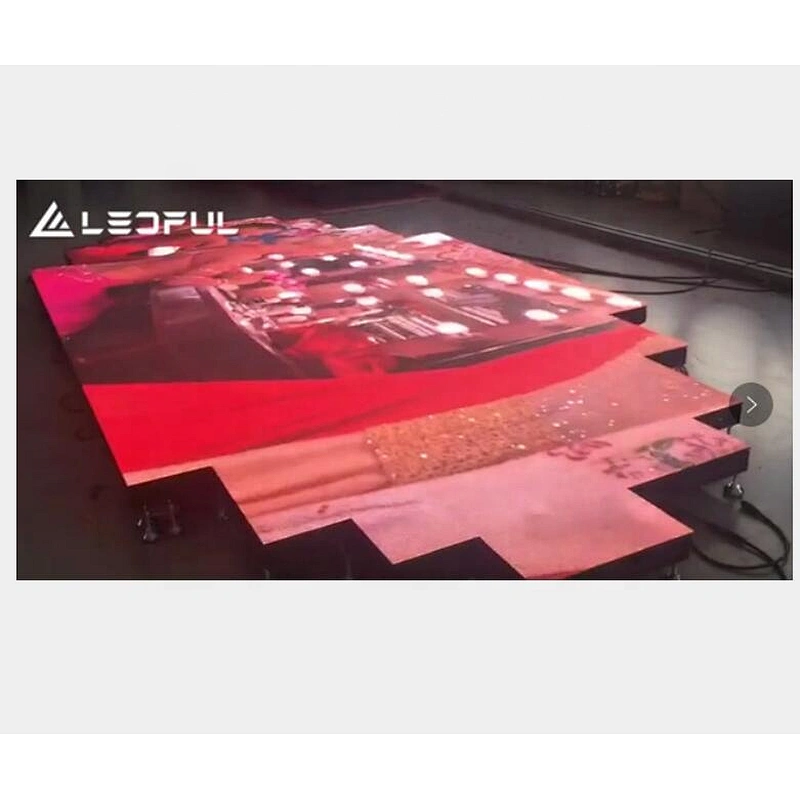

Easy Installation and Maintenance

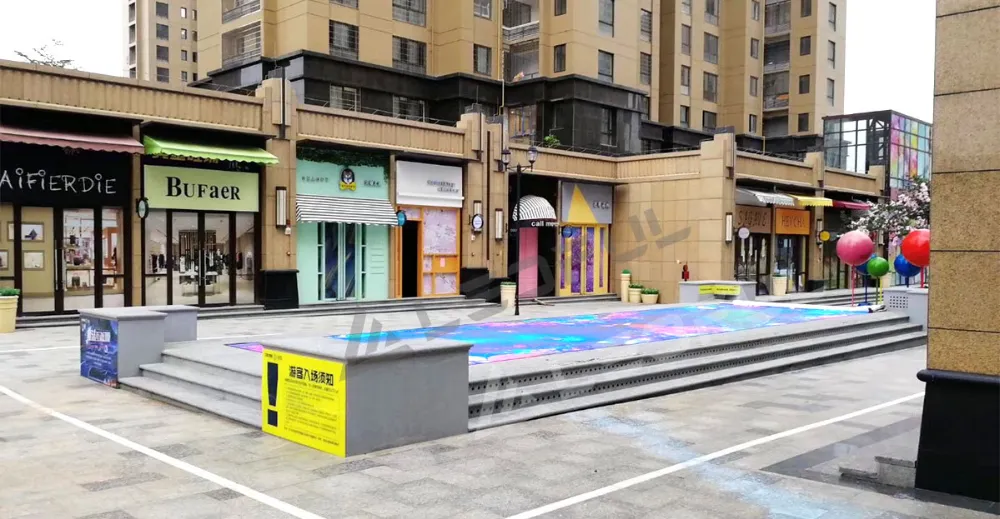

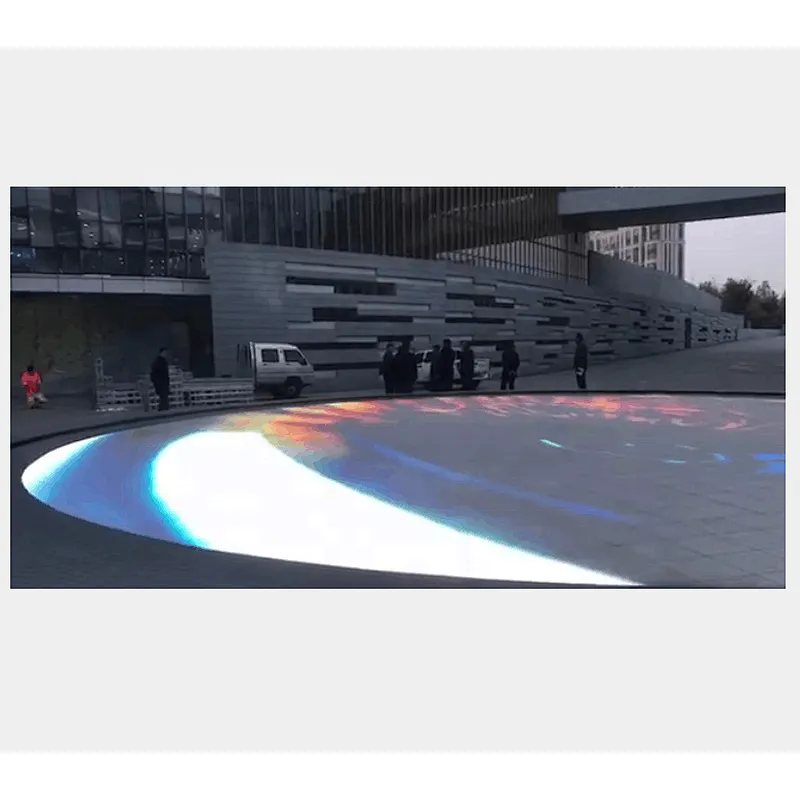

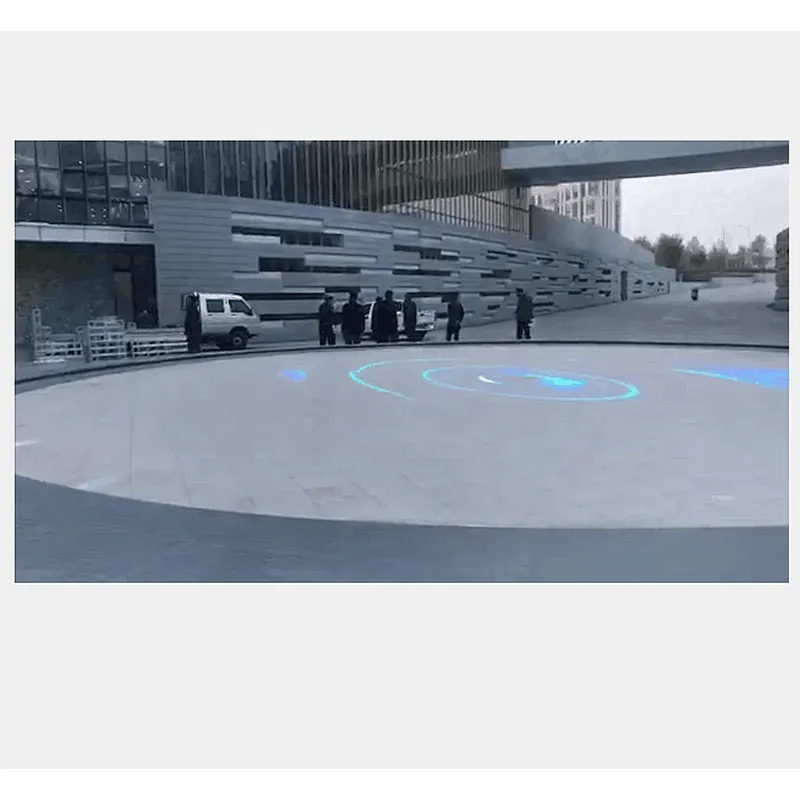

All weather Resistance
LEDFUL floor LED display outdoor series is all weather resistance. For indoor series, the front side is waterproof.
Our Company
Top LED Display Manufacturer
LEDFUL founded in 2008 total 209 employees in LEDFUL
Top reliable LED display manufacturer Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.CE, RoHS, FCC, CCC, ISO9001:2008 standard
Professional, High Efficient and Caring
One-stop solution provider More designs and more solutions

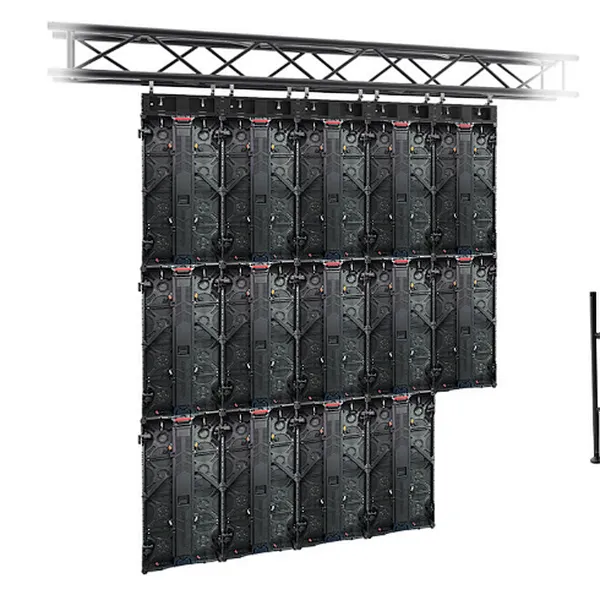

Wireless control, 4G, Wifi, Cluster control Truss Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display
