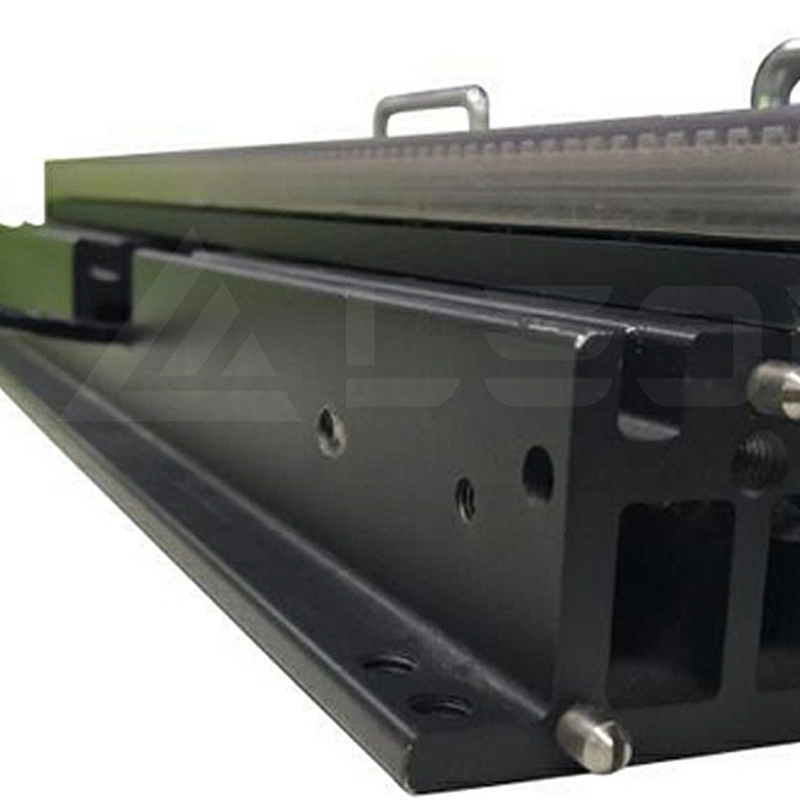

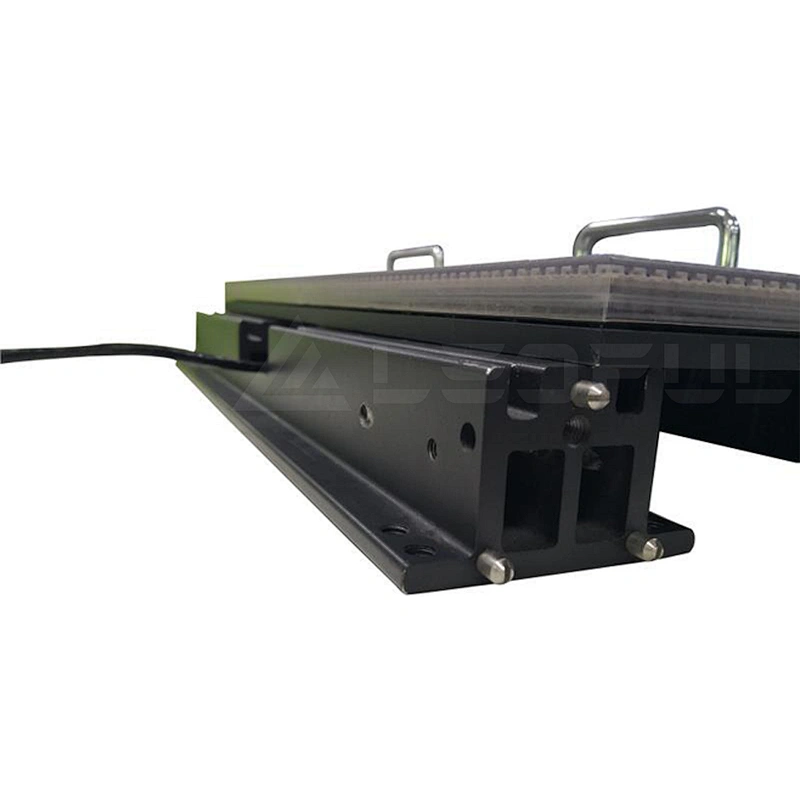

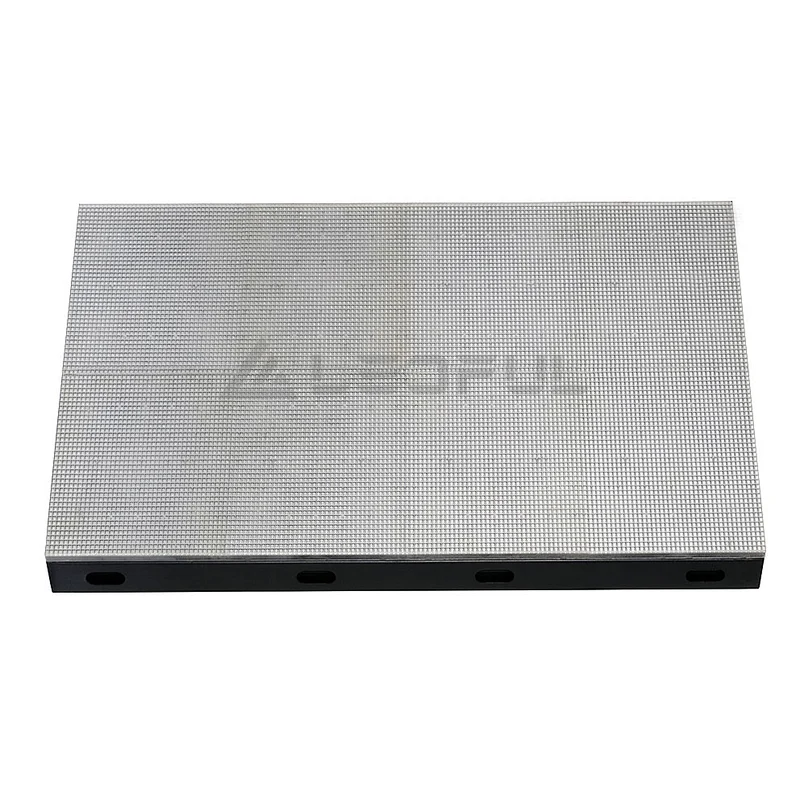

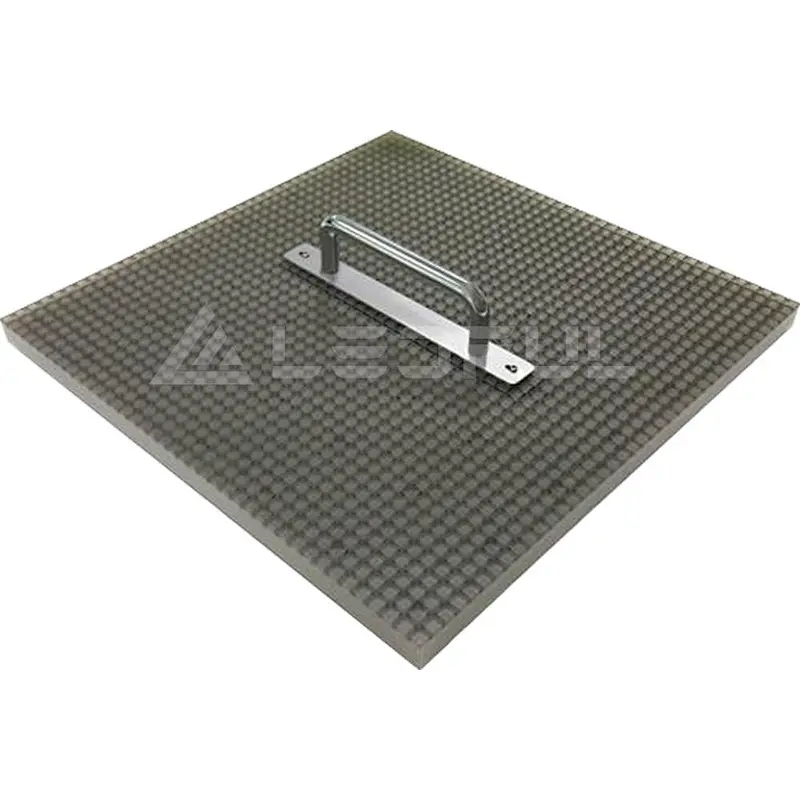

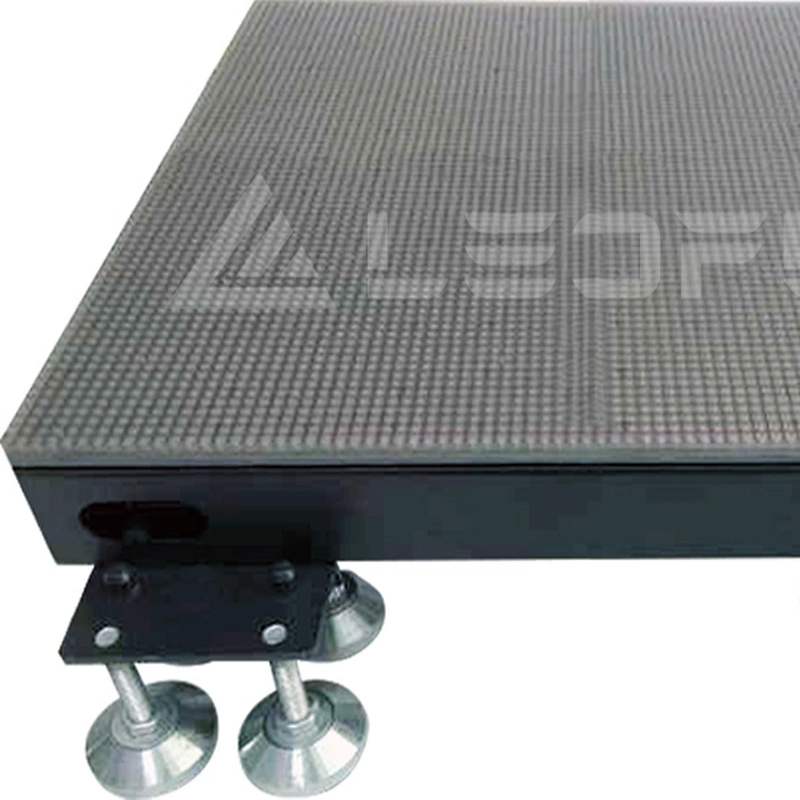

P4.8 LED dance floor screen outdoor for advertising
P4.8 LED dance floor screen outdoor for advertising
P4.8 LED dance floor screen outdoor for advertising
P4.8 LED dance floor screen outdoor for advertising
P4.8 LED dance floor screen outdoor for advertising
P4.8 LED dance floor screen outdoor for advertising
P4.8 LED dance floor screen outdoor for advertising

P4.8 LED dance floor screen outdoor for advertising

USD1,650.00 -USD2,000.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: Floor Series

    Product Description

    • Place of Origin:CN
    • Application:outdoor floor display
    • Color:fullcolor
    • Panel Size:500*500mm
    • Pixel Pitch:4.625
    • Model Number:FO4.8
    • Brand Name:LEDFUL
    • Product name:Floor display
    • Brightness:4500
    • Pixel Pitch:4.625
    • Pixel Configuration:SMD2727
    • Scan:1/16
    • Cabinet Resolution:108*108
    • Cabinet weight:10kg
    • Load bearing:2T
    • Refresh Rate:1920
    • IP:65
    Product Description

    Floor Series

    Interactive Floor Display | LED Video Floor | Dance Floor LED Display
    Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2
    Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2

    Features


    Parameter
    F Series Outdoor
    FO 3.9
    FO 4.6
    FO 4.8
    FO 5.2
    FO 6.2
    Pixel Pitch(mm)
    3.91mm
    4.625mm
    4.81mm
    5.2mm
    6.25mm
    Pixel Matrix Per Sq.m
    65536
    46656
    43264
    36864
    25600
    Pixel Configuration
    SMD1921
    SMD2727
    SMD2727
    SMD2727
    SMD2727
    Brightness (nits)
    4000
    4500
    4500
    4500
    5000
    Scan
    1/16
    1/13
    1/13
    1/10
    1/10
    Cabinet Resolution
    128×128
    108×108
    104×104
    96×96
    80×80
    Power Con. (Max/Avg)
    750/230 w/sq.m
    730/220 w/sq.m
    700/220 w/sq.m
    710/210 w/sq.m
    710/210 w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft
    Cabinet Dimension
    500x500x80mm / 1.64x1.64x0.26ft
    Cabinet Weight
    10kg / ( Die-casting Aluminum)
    Service Access
    Front / Rear
    Load Bearing
    2T
    Refresh Rate (HZ)
    1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP65
    Input Voltage (AC)
    110 / 240

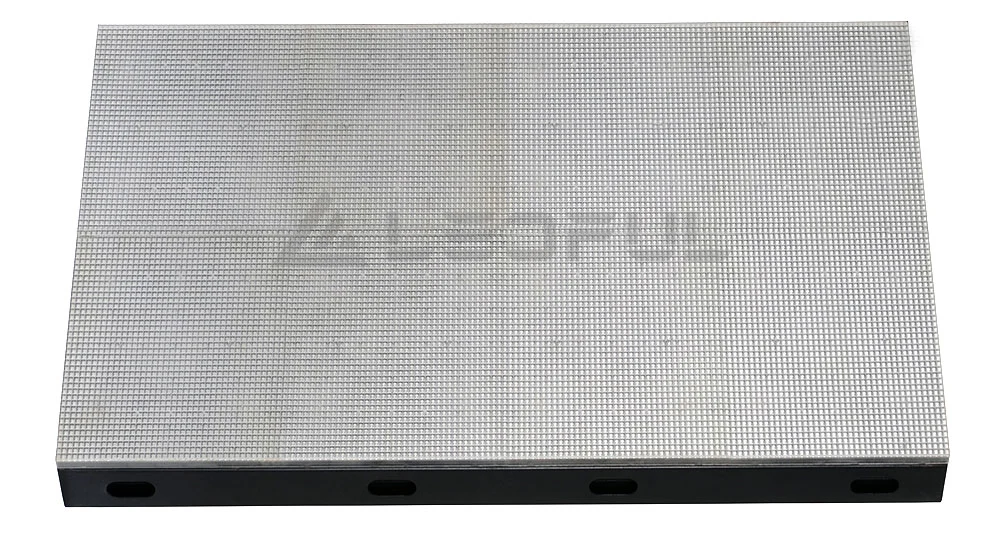

    Detailed Images

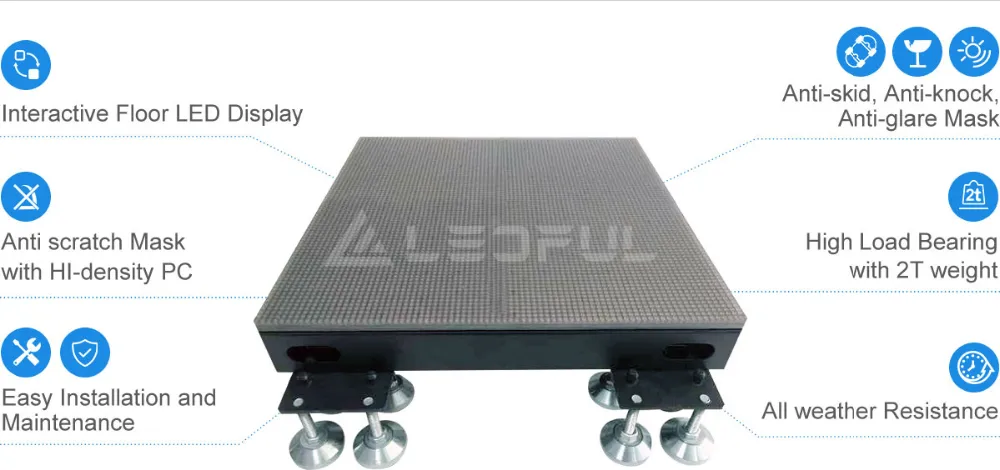

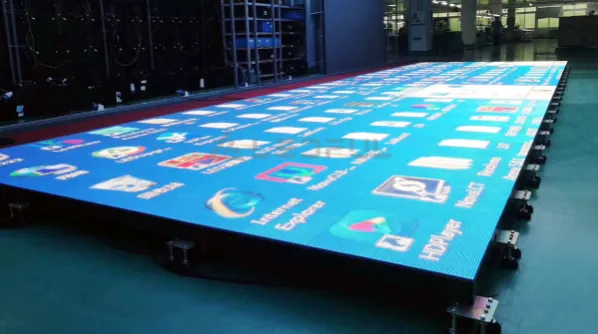

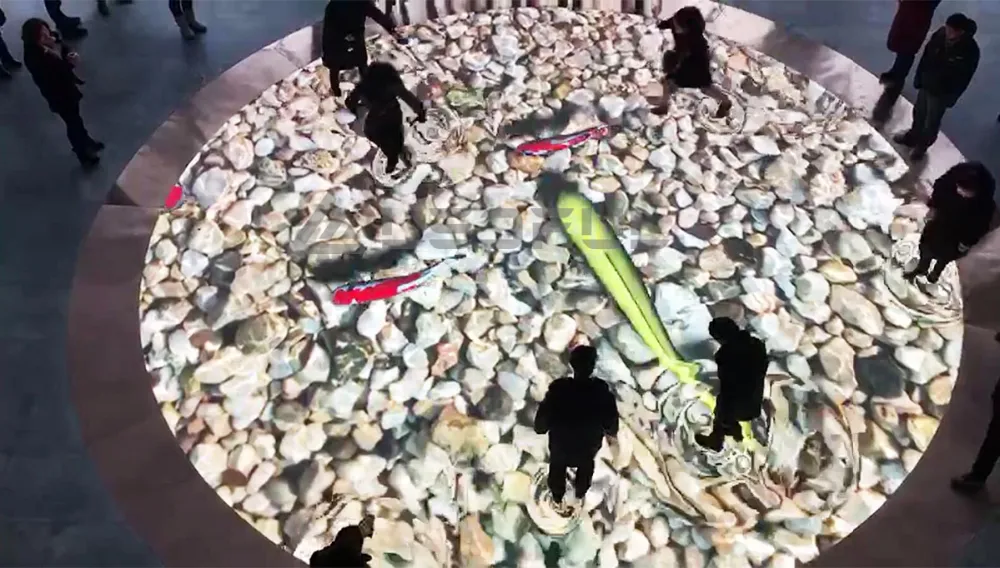

    Interactive Floor LED Display

    Special driving IC built inside the LED display PCB will work together with interactive control system.
    It will easily and quickly make you interesting and attractive between the players and display.

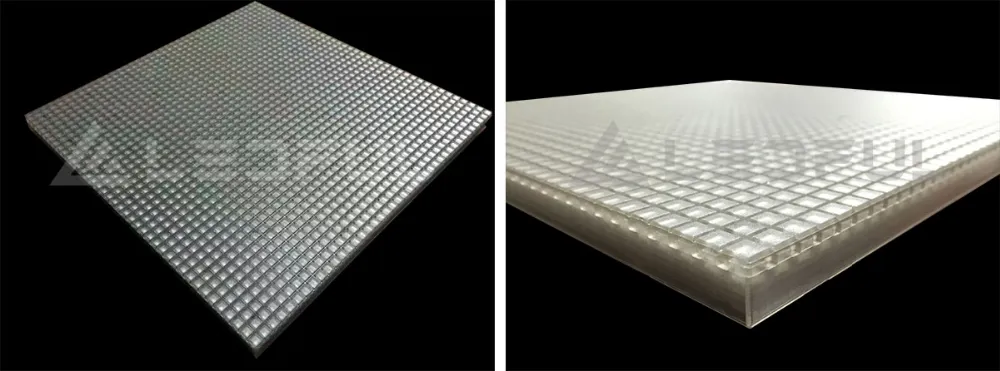

    Anti-skid, Anti-knock, Anti-glare Mask


    Anti scratch Mask with HI-density PC

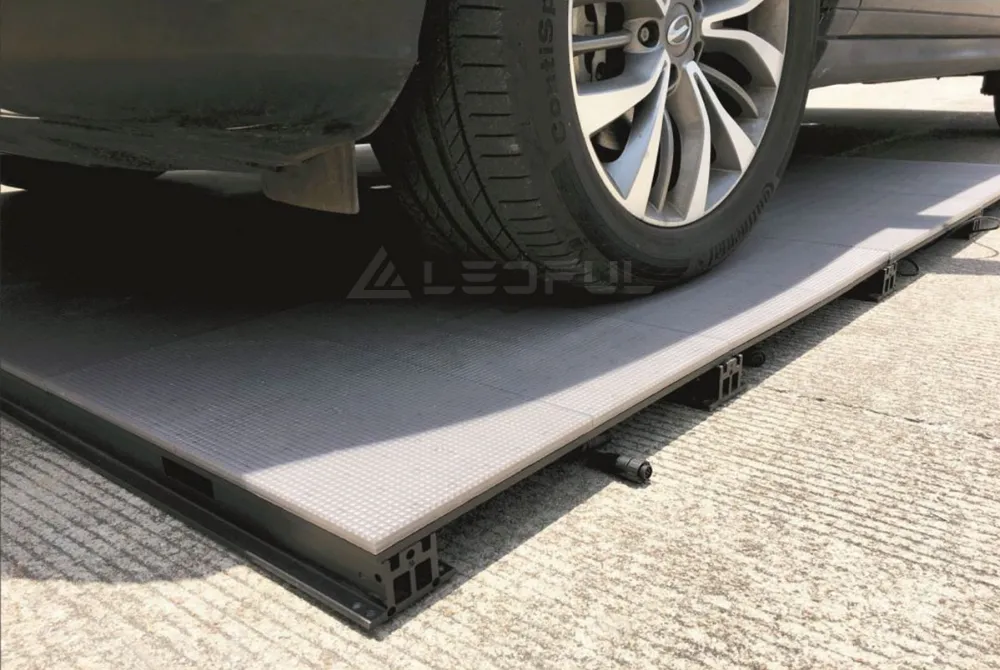

    High Load Bearing with 2T weight

    .

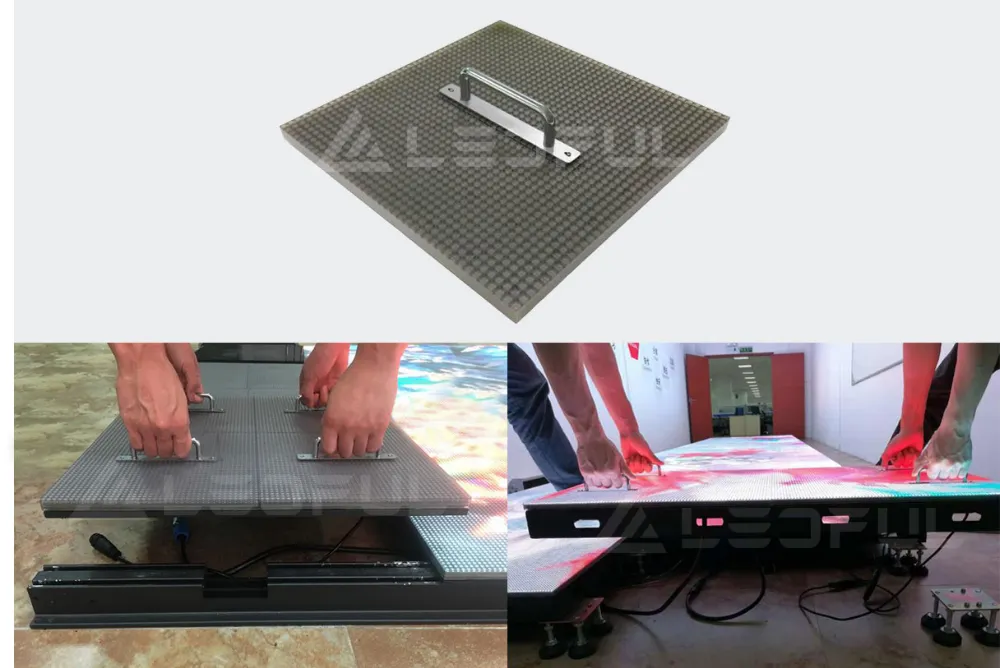

    Easy Installation and Maintenance

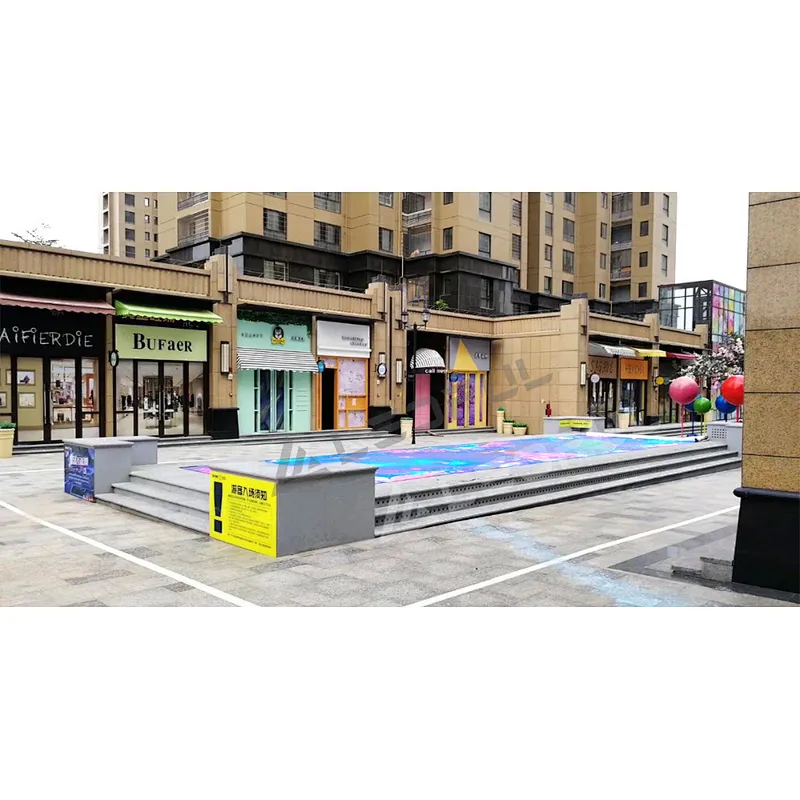

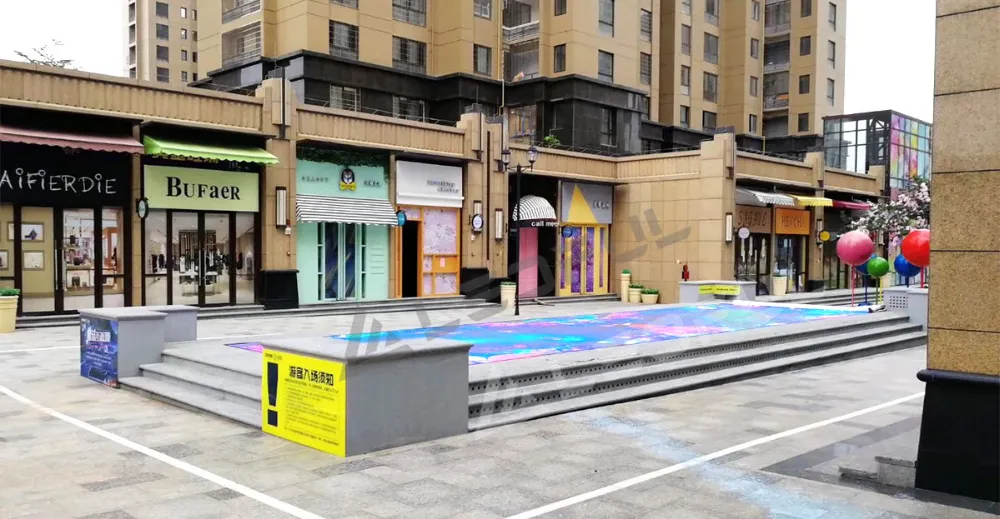

    All weather Resistance

    LEDFUL floor LED display outdoor series is all weather resistance. For indoor series, the front side is waterproof.

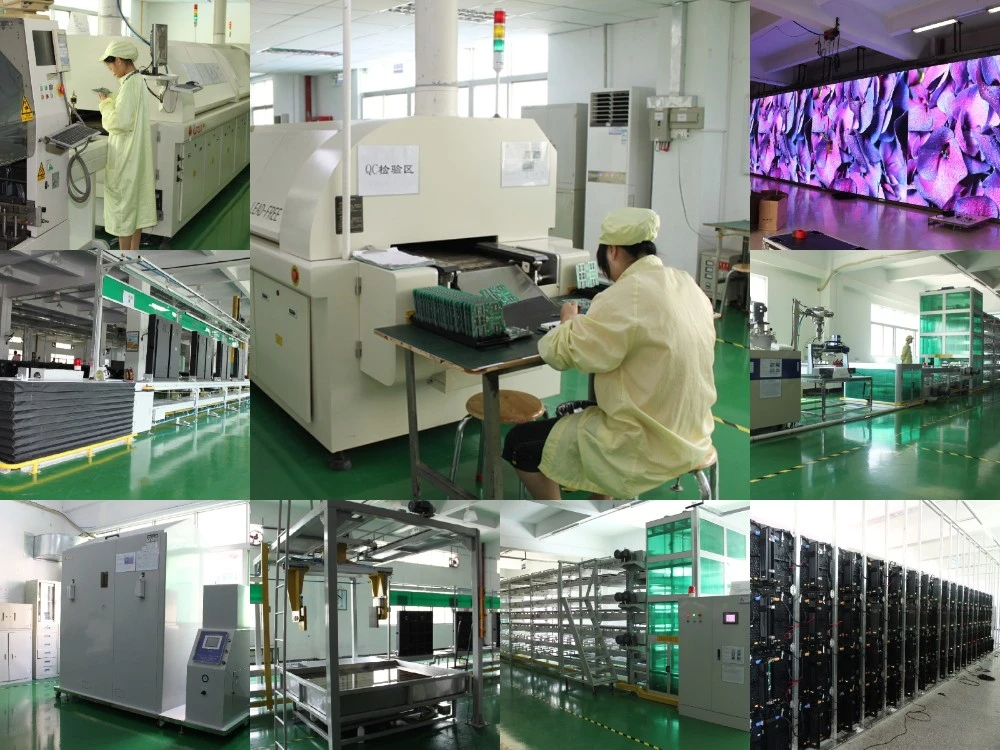

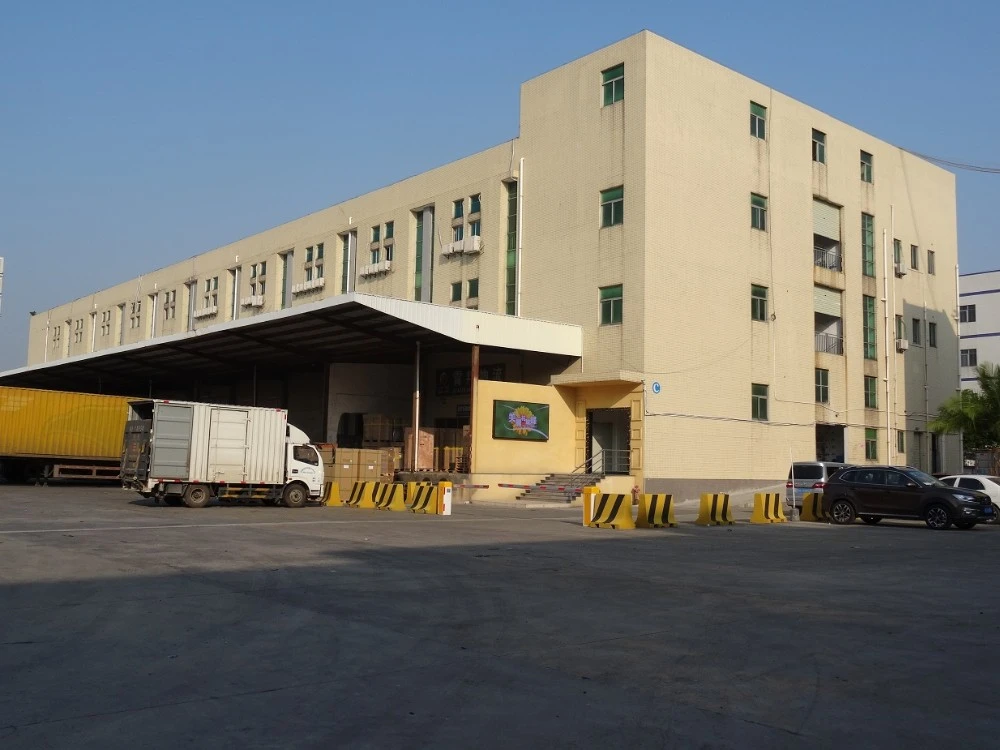

    Our Company

    Top LED Display Manufacturer

    LEDFUL founded in 2008 total 209 employees in LEDFUL
    3~5 years warranty on LED screen Exported to 83 countries and regions
    Top reliable LED display manufacturer Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.CE, RoHS, FCC, CCC, ISO9001:2008 standard

    Professional, High Efficient and Caring

    One-stop solution provider More designs and more solutions
    Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor
    Irregular shaped, flex, curved, round, sphere, cubic, customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display
    Our partners are Media Companies, Stage Designer, Project Manager, Pro Audio, Light and Video companies, AV Rental Equipment companies,
    Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

    Certifactions


    Our Service
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more
    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?
    A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
