  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: OF Series

    Product Description

    • Usage:OUTDOOR

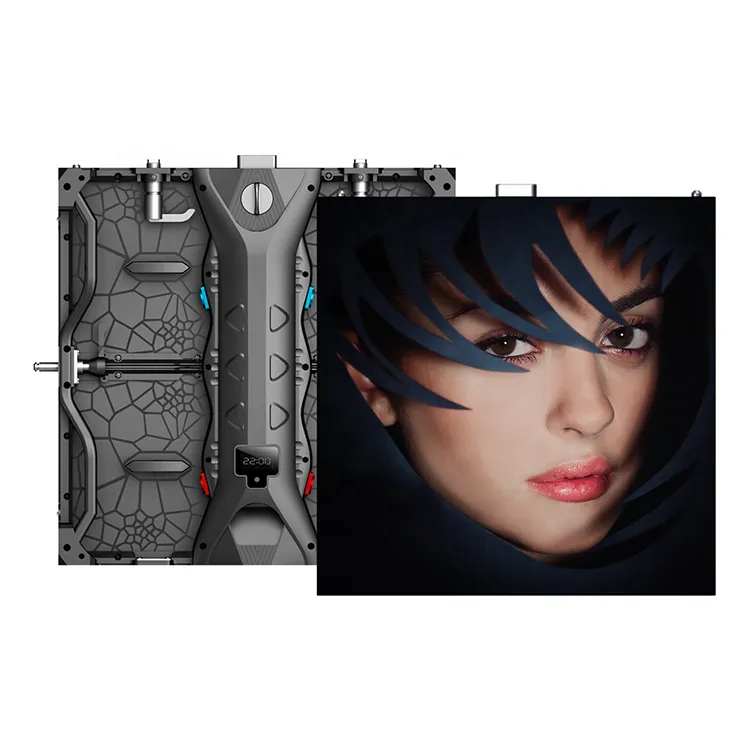

    • Product name:Led Video Display Panel
    • Certificate:CE ROHS FCC
    • Brightness:6500
    • Color:Fullcolor
    • Cabinet size:960x960mm
    • Viewing angle:140 /140
    • Input Voltage:110 / 240
    • Module size:192*192
    • Screen Dimension:960*960mm
    • Place of Origin:CN;GUA
    • Application:Video Commercial Advertising Retail Store
    • Color:FULL COLOR
    • Panel Size:192*192mm
    • Pixel Pitch:P2.5-P10mm
    • Model Number:OF4
    • Brand Name:LEDFUL
    Product Description


    OF Series

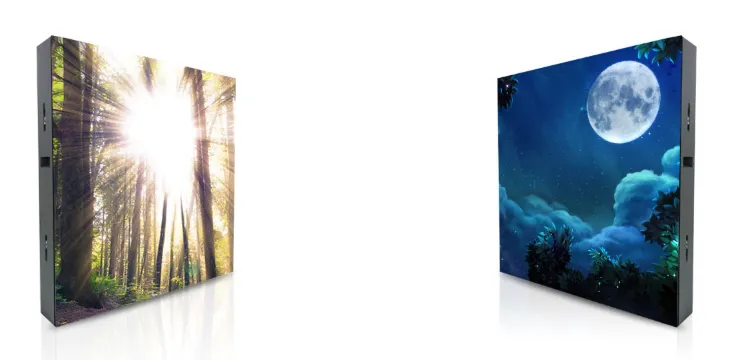

    Outdoor Commercial Advertising LED Display


    Where is LED display installed?

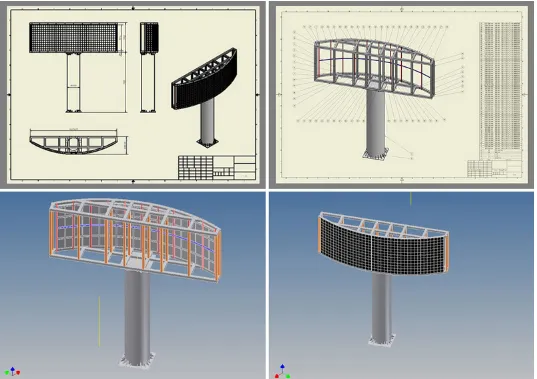

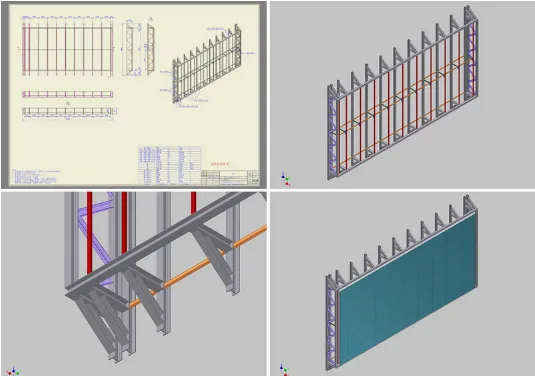

    LEDFUL provide structure frame design drawing and installation suggestions.

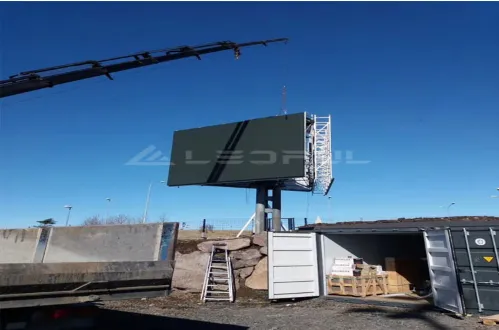

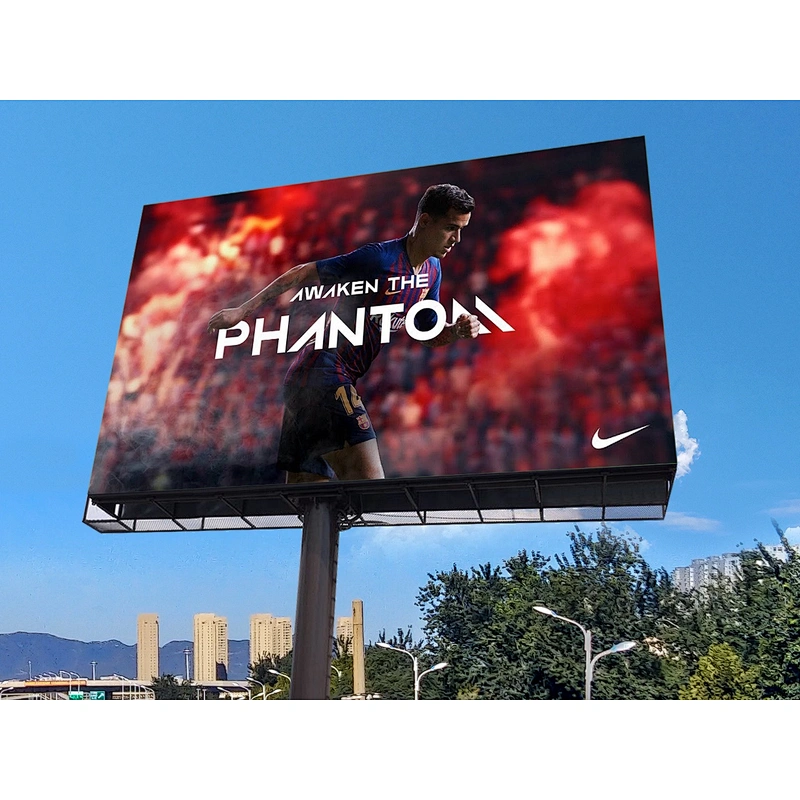

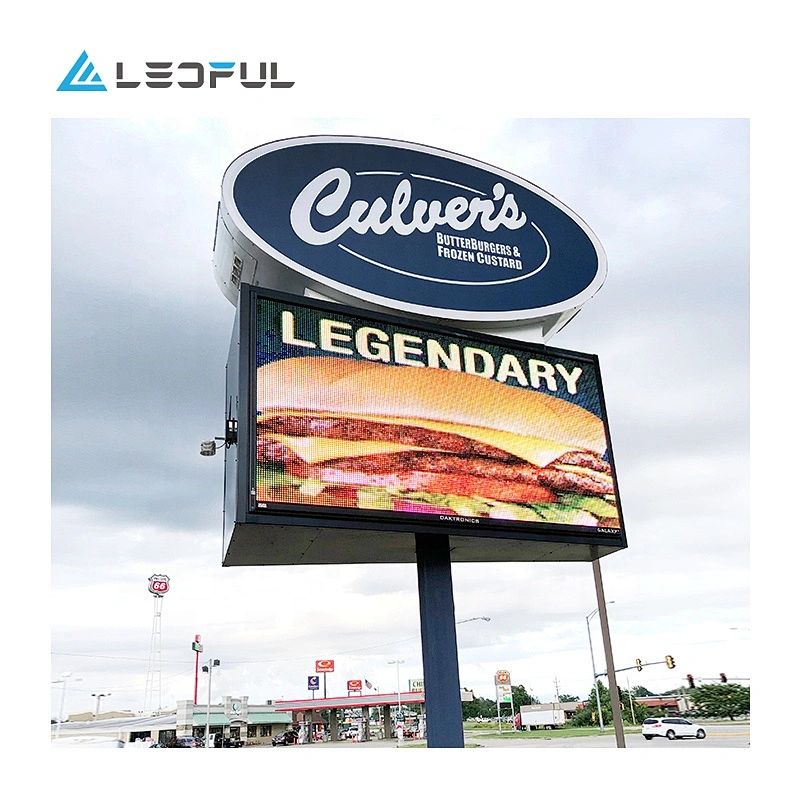

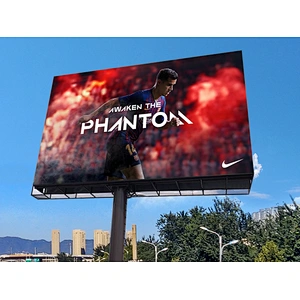

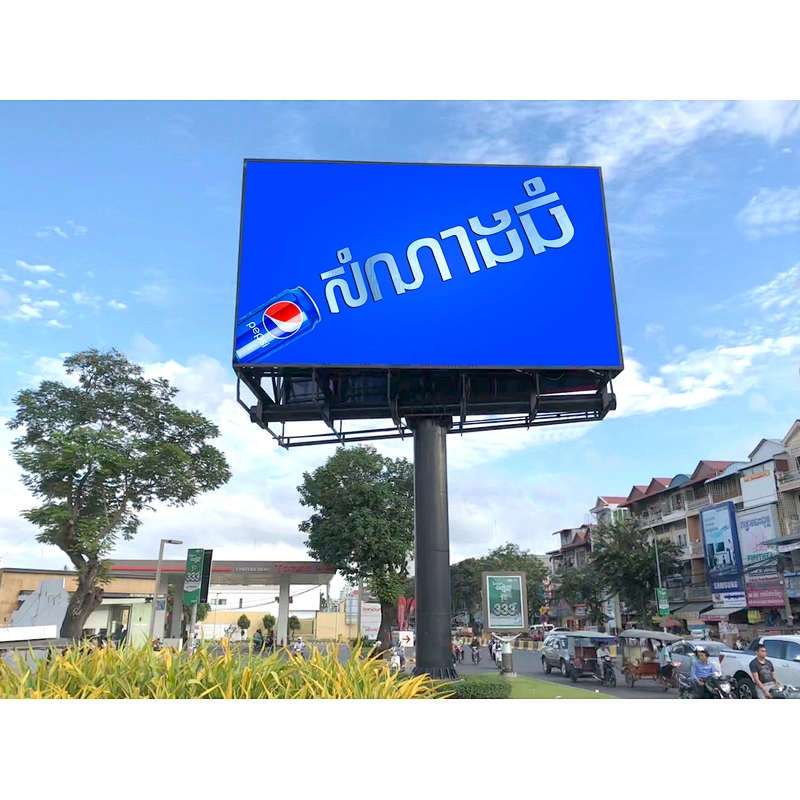

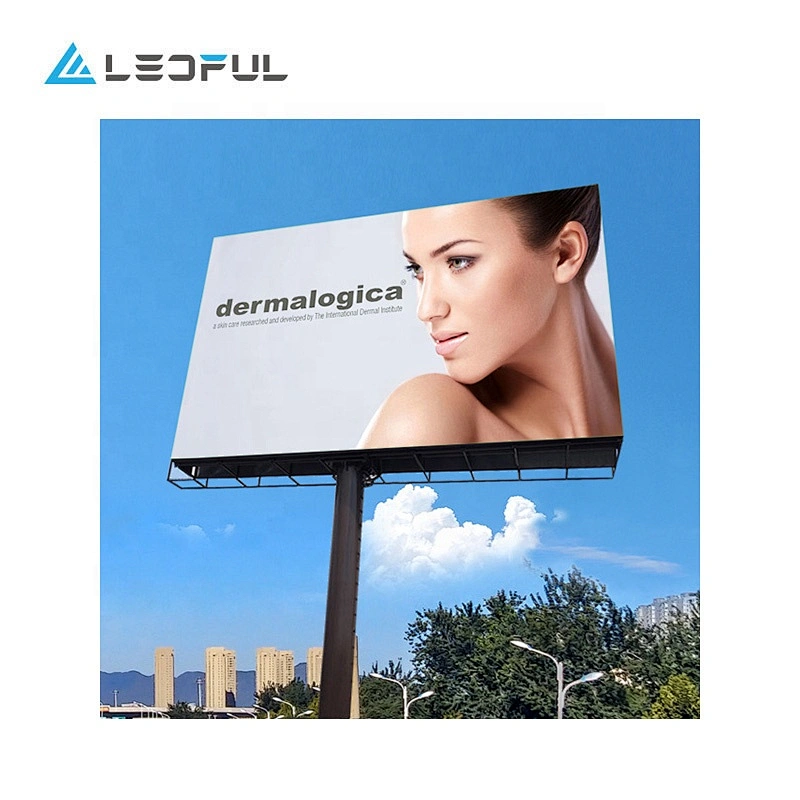

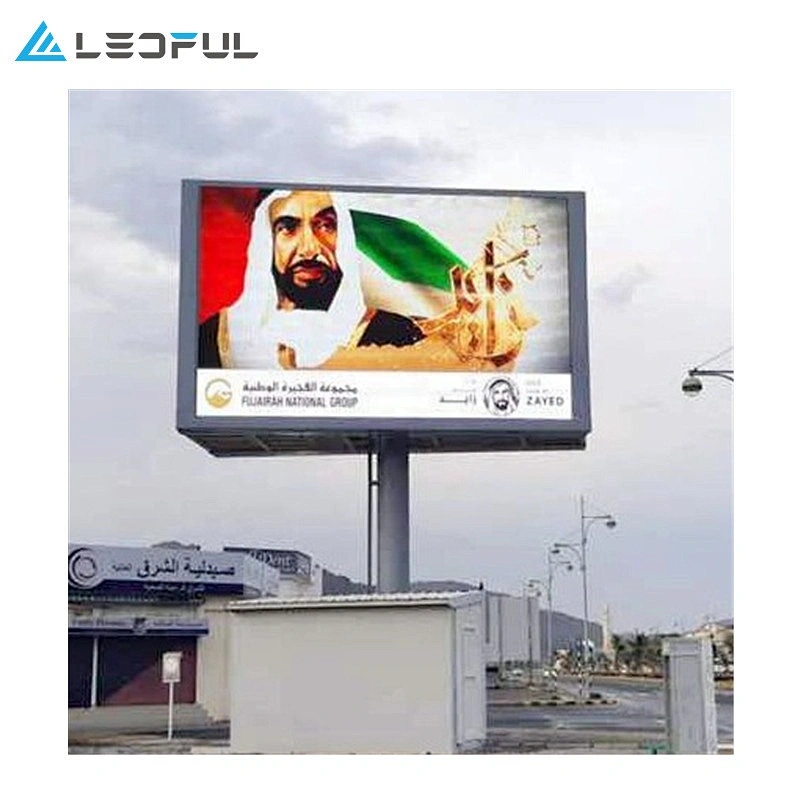

    Pillar / Pole LED display

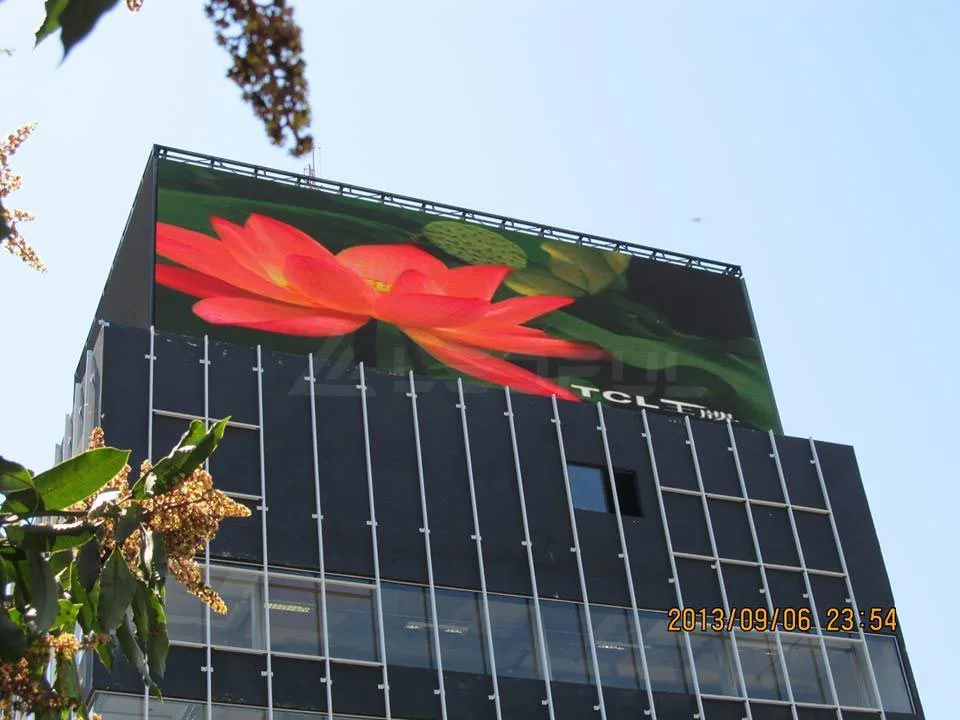

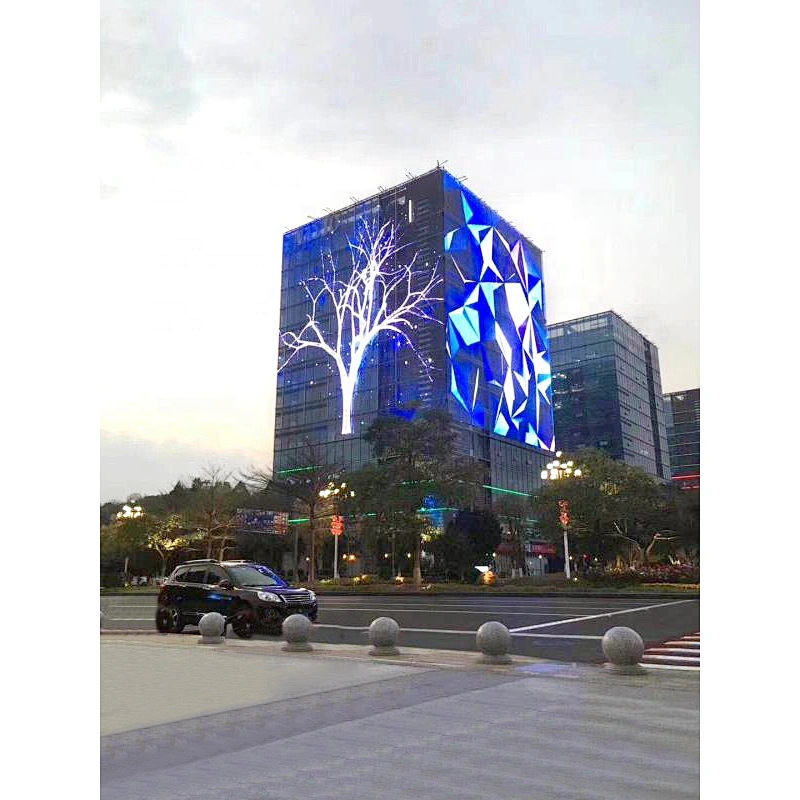

    Wall mounted LED display


    How to control LED display?

    By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.


    Ultra High / Low Temperature

    OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.


    SMD Performance and View Angle

    Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing


    High Brightness & Auto Brightness

    High bright and contrast ratio to make vivid color facing to the Sunlight.
    Auto brightness saving energy besides protecting people eyes in night time.

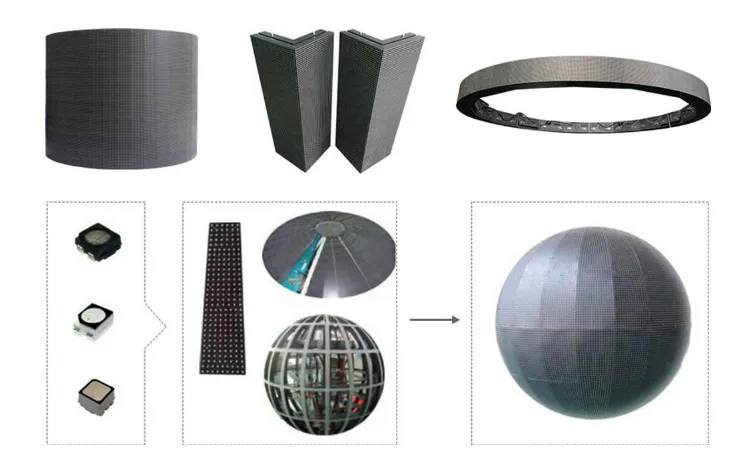

    Various Shaped LED Display

    Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
    LEDFUL supply more design and more solutions.


    How can we make Energy Saving LED display 30%?

    1) Using high efficiency IC driver

    2) improved PCB design

    3) Power conversion efficiency

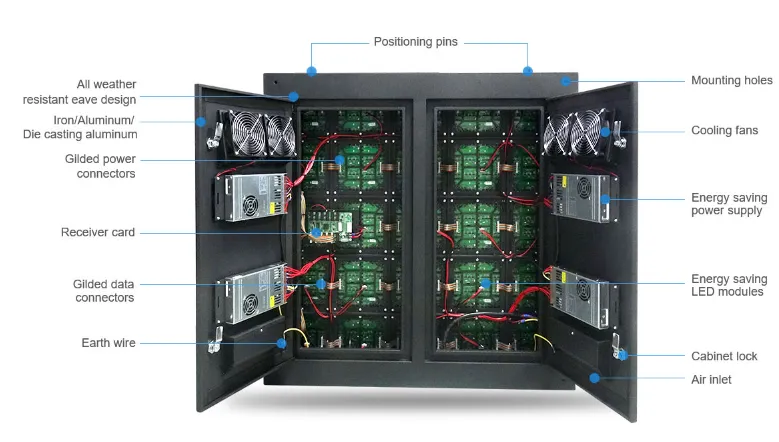

    OF Series More Features & More Advantages

    3 times aging process
    Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test
    Long service time and low attenuation by applying dual channels for heat dissipation
    High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction
    No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deform

    Parameter
    Value
    OF4
    Pixel Pitch(mm)
    4mm
    Pixel Matrix Per Sq.m
    62500
    Pixel Configuration
    SMD1921
    Brightness (nits)
    6500
    Scan
    1/8
    Cabinet Resolution
    192x192
    Module Dimension
    192x192mm / 1.05x0.52ft
    Cabinet Weight
    40kg / 88Ib ( Iron)

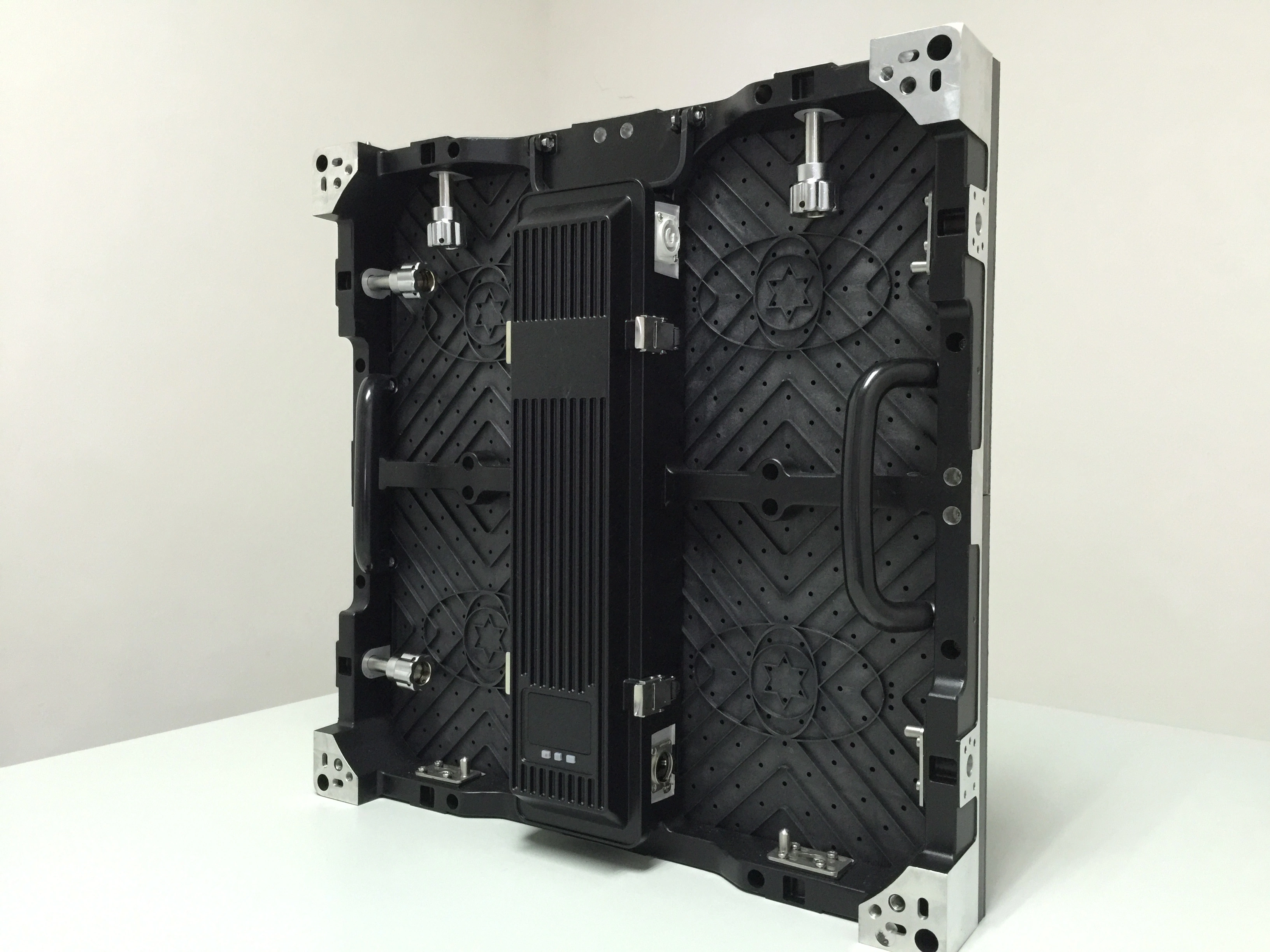

    Cabinet Dimension
    960x960x130mm /3.15x3.15x0.43feet
    Service Access
    Front/Rear
    Refresh Rate (HZ)
    ≥1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    750 / 150 w/sq.m
    IP Rate
    IP65
    Input Voltage (AC)
    110 / 240
    Application

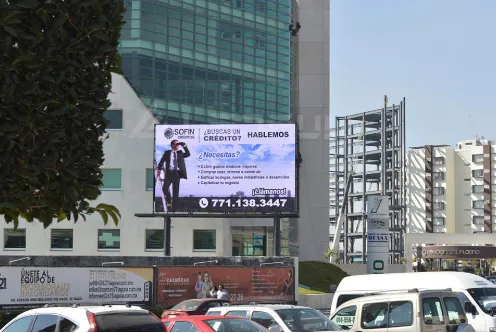

    Outdoor Single Pole Advertising Display

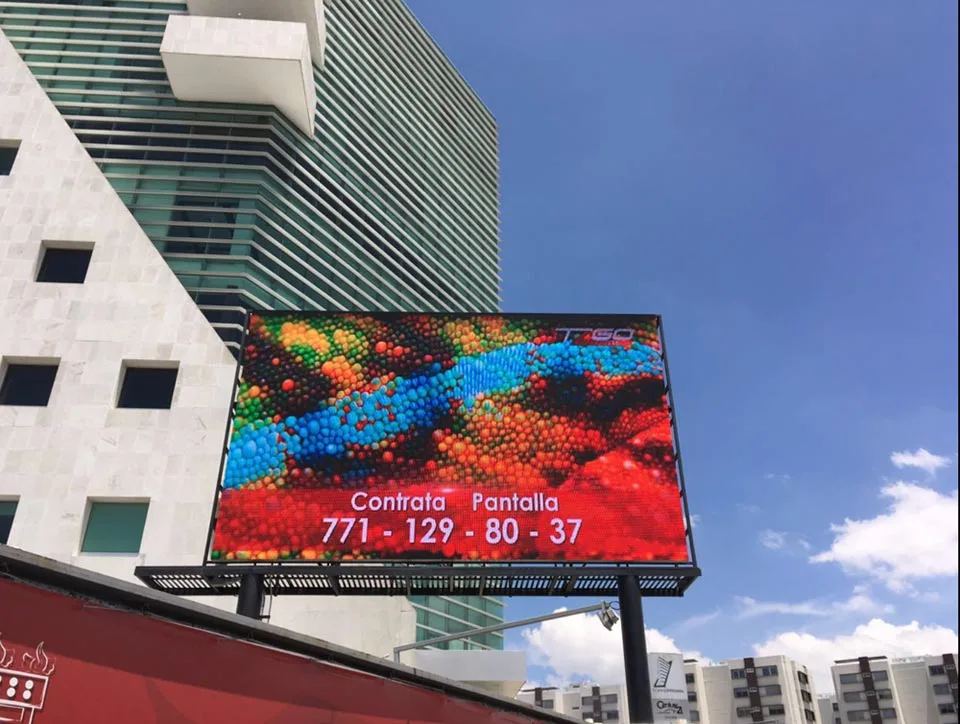

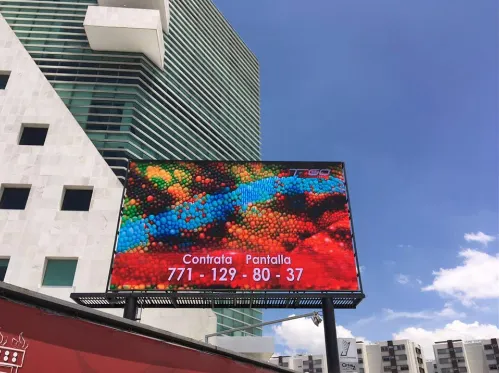

    Product Model: OF10S
    Pitch: 10mm
    Size: 44.24 sqm
    Location: Mexico

    Myanmar Outdoor Three Sided Advertising Display

    Product Model:OF8
    Pitch: 8mm
    Size: 3.84x3.84mx3pcs
    Location: :Myanmar


    Energy Saving Outdoor Fixed LED Display---OF Series--OF8
    OF8model, pixel pitch is 8mm, which is one of the most popular model for outdoor fixed installation display application.the optimum viewing distance is from 8m up to 500m.

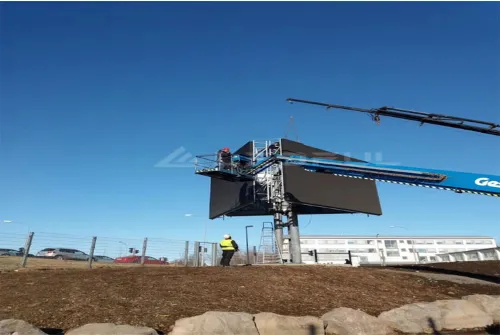

    This project is 3-sided outdoor pole advertising display, each display size is 3.84mx3.84m, total 3pcs.

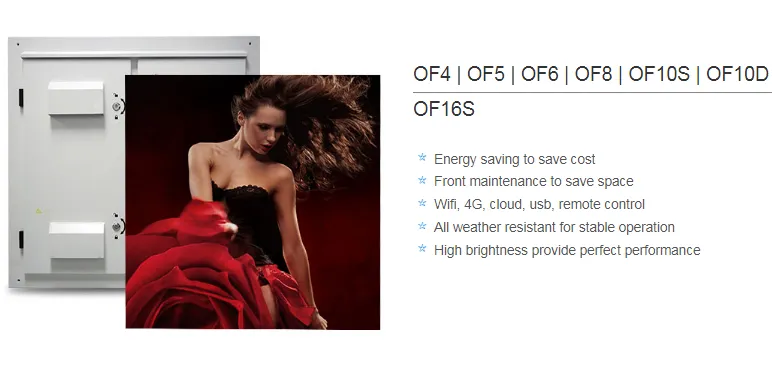

    OF series cover wider pixel pitch, start from P4,P5,P6... to P16 and all OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
    Outdoor LEDFUL OF series is the perfect energy-saving outdoor fixed LED display solution,which use higher efficiency IC driver, perfect PCB design together with better power conversion efficiency.

    Besides, LEDFUL team provide structure frame design drawing and installation suggestions for each project according to the local site requirements.

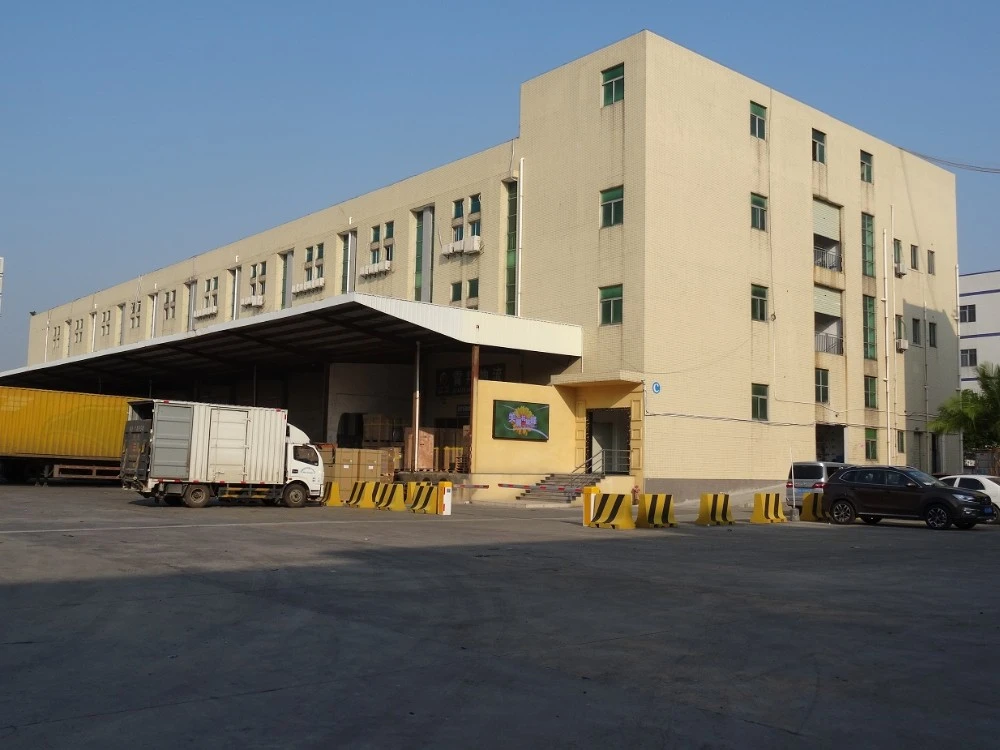

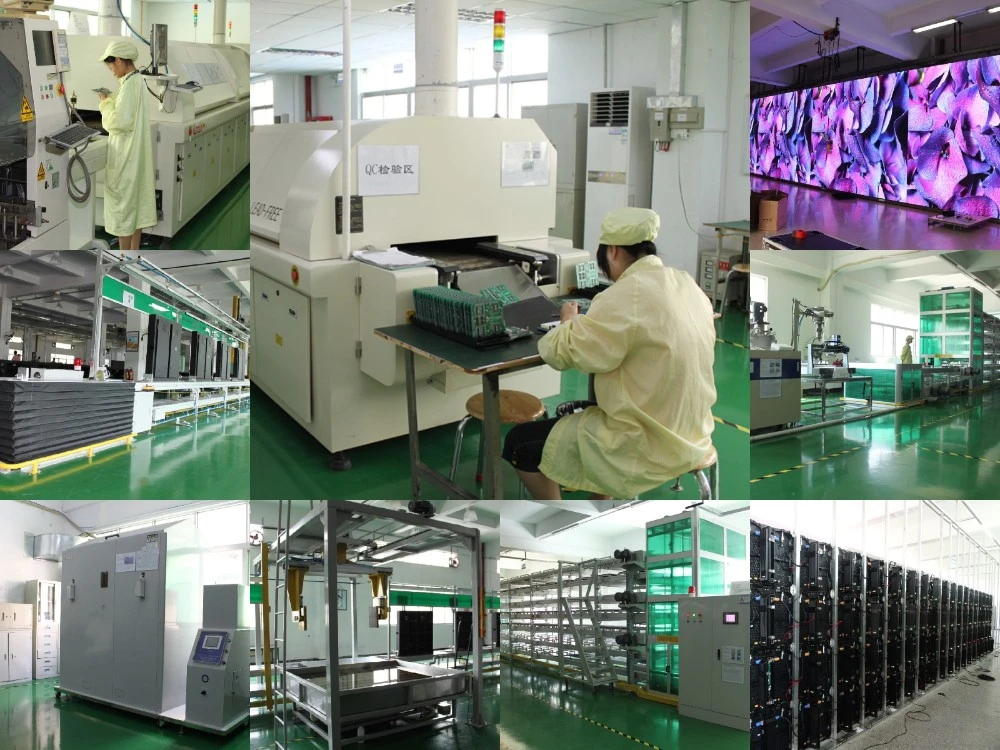

    Our Company


    Top LED Display Manufacturer

    LEDFUL founded in 2008 Total 209 employees in LEDFUL
    3~5 years warranty on LED screen Exported to 83 countries and regions

    Top reliable LED display manufacturer
    Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.

    CE, RoHS, FCC, CCC, ISO9001:2008 standard


    Professional, High Efficient and Caring

    One-stop solution provider
    More designs and more solutions Wireless control, 4G, Wifi, Cluster control

    Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable
     LED display partners are Media Companies, Stage Designer, Project Manager, Pro Audio, Light and Video companies, AV Rental Equipment companies,

    Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
    Our Service

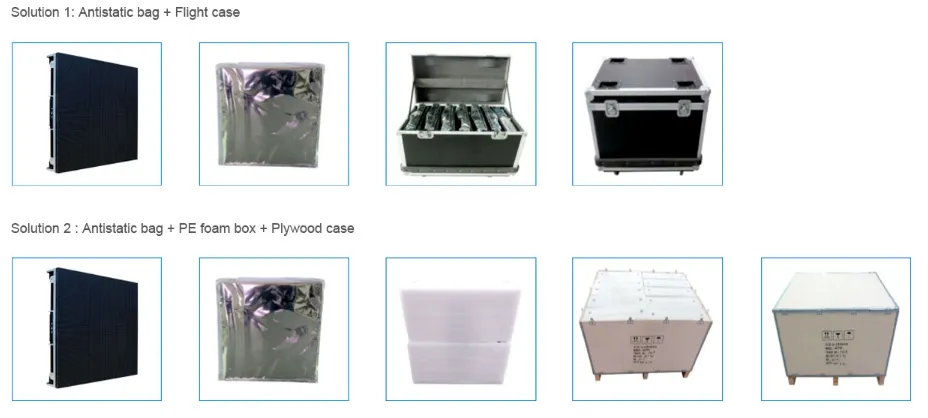

    Packing & Delivery
    FAQ

    Q1. Are you trading company or manufacturer ?

    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more

    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?

    LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.
    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
