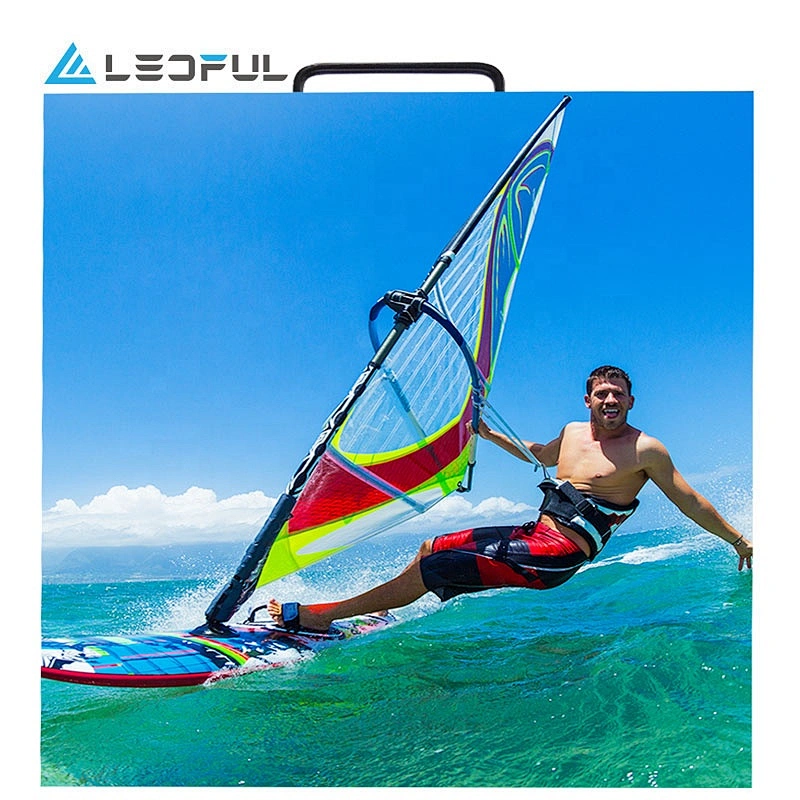

Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels
Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels
Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels
Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels
Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels
Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels
Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels

Fullcolor RGB 480*540mm Easy Installation Indoor P2.5 LED Display Panels

  • Minimum order quantity:20
  • Supply Ability:2000.0 / Month
  • Country of Origin:TANTIAN,SHEKOU
  • Categories: QS Series

    Product Description

    • Certificate:CCC CE ROHS ISO
    • Warranty:3 Years
    • Display Function:video
    • LED chip:Epistar
    • Life span:100000 Hours
    • Cabinet material:Die-casting Aluminum
    • Control system:Nova
    • Viewing Angle (H/V):140 / 140
    • Input Voltage (AC):110V / 240V
    • Screen Dimension:Customized
    • Application:Indoor
    • Color:Full color
    • Panel Size:480*540mm
    • Pixel Pitch:2.5
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:QS2.5
    • Brand Name:LEDFUL
    Product Description



    Q Series

    Fine Pitch LED Display For Fixed and Rental





    Q1.8 | Q1.9 | Q2.0 | Q2.4 | Q2.5

    ★Fine Pitch for Fixed & Rental
    ★Front Maintenance
    ★Black SMD LED
    ★Front Installation
    ★High Grayscale
    ★High Refresh
    ★Light and Thin


    Product Name
    Q2.4
    Pixel Pitch(mm)
    2.4
    Pixel Matrix Per Sq.m
    173611
    Pixel Configuration
    SMD1515
    Brightness (nits)
    1000
    Scan
    1/25
    Cabinet Resolution
    200X225
    Power Con. (Max / Avg)
    700/200 w/sq.m
    Module Dimension
    240x180mm / 0.79x0.59ft
    Cabinet Weight
    8.5kg / 18.7Ib ( Die-casting Aluminum)
    Cabinet Dimension
    480x540x90mm / 1.57x1.77x0.3ft
    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP41
    Input Voltage (AC)
    110V / 240V

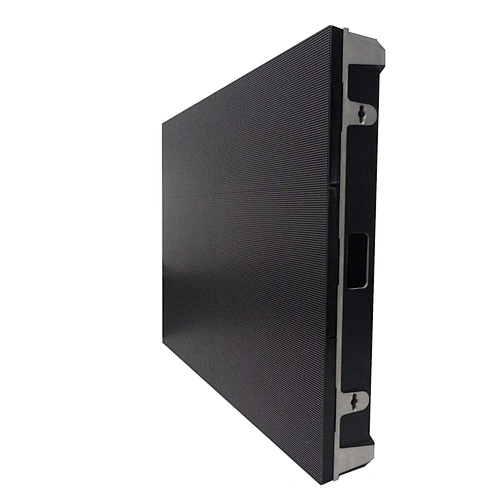

    Products Show



    Black SMD LED

    LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

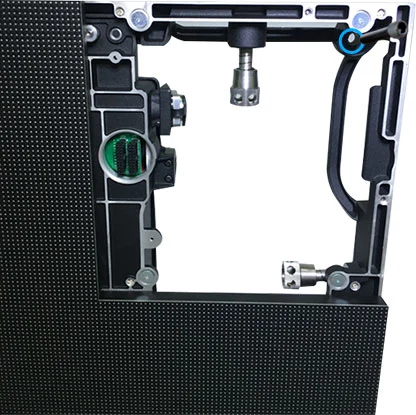

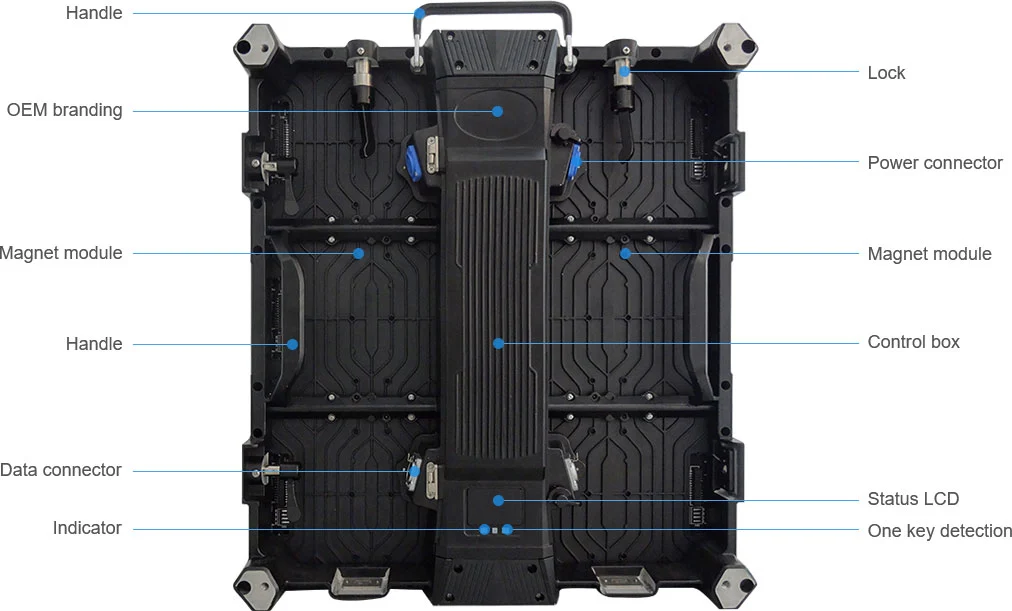

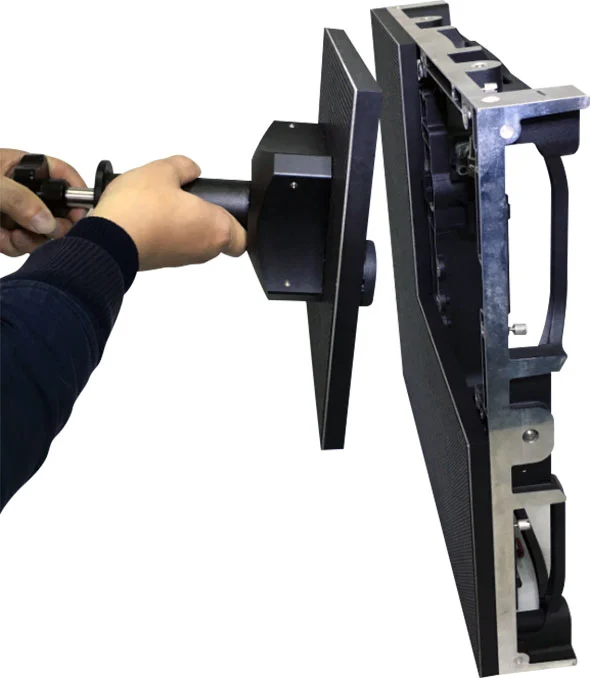

    Full Front / Rear Maintenance

    Not only module front service, but also power supply, receiver card, hub, etc.

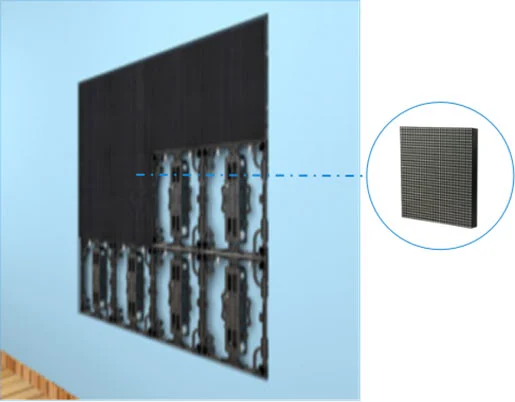

    Front Installation

    Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall. Assembly modules onto the cabinet.

    Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.

    Assemble modules onto the cabinet in order.

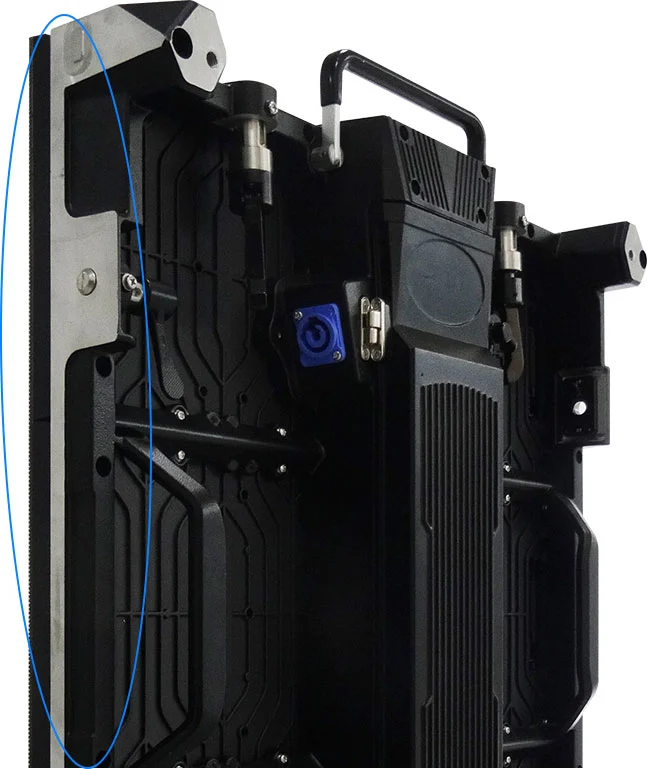

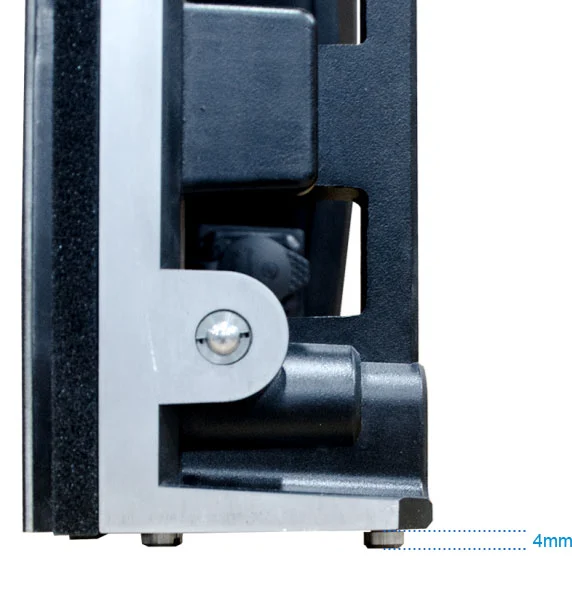

    Edge-care Design

    4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

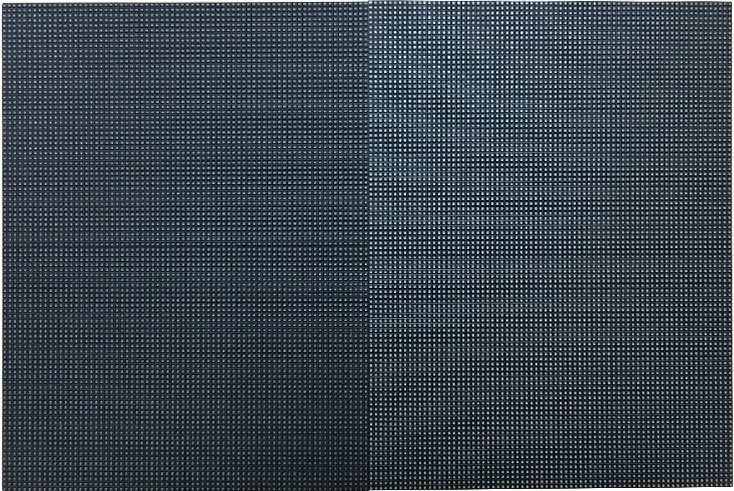

    No Light Leakage Trouble

    No light leakage design with specific strips on side of cabinet and behind neighbour module.




    Low brightness with High grayscale

    Low brightness with High grayscale to make the LED display in ultimate view performance

    Low greyscale

    High greyscale

    LEDFUL Q Series




    Ultra Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle. Seeing from five directions, it would be still the natural and clear image in an LED display.




    Ultra High Definition

    It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

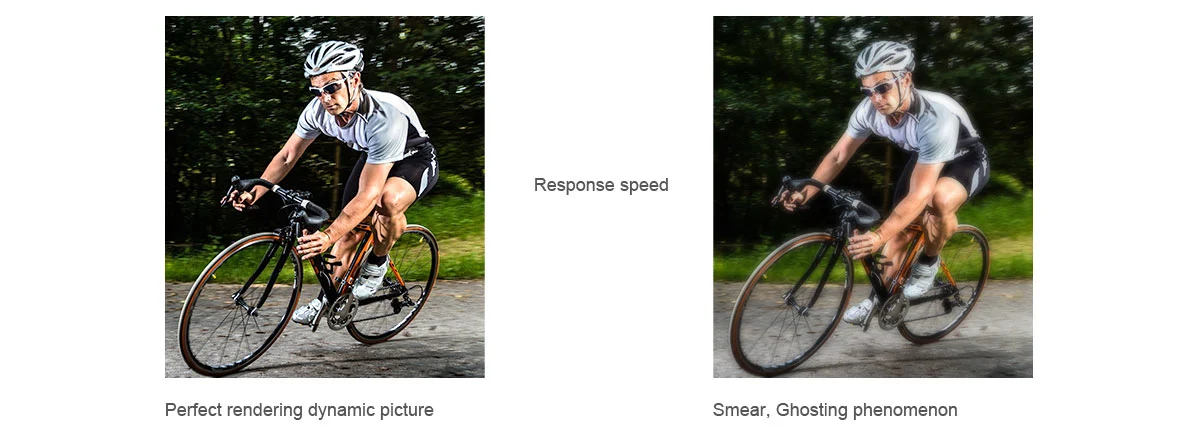

    Ultra Fast Response

    The response speed exceeds the response limit of the naked eyes,

    while playing the high speed dynamic images in an LED Screen,

    it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

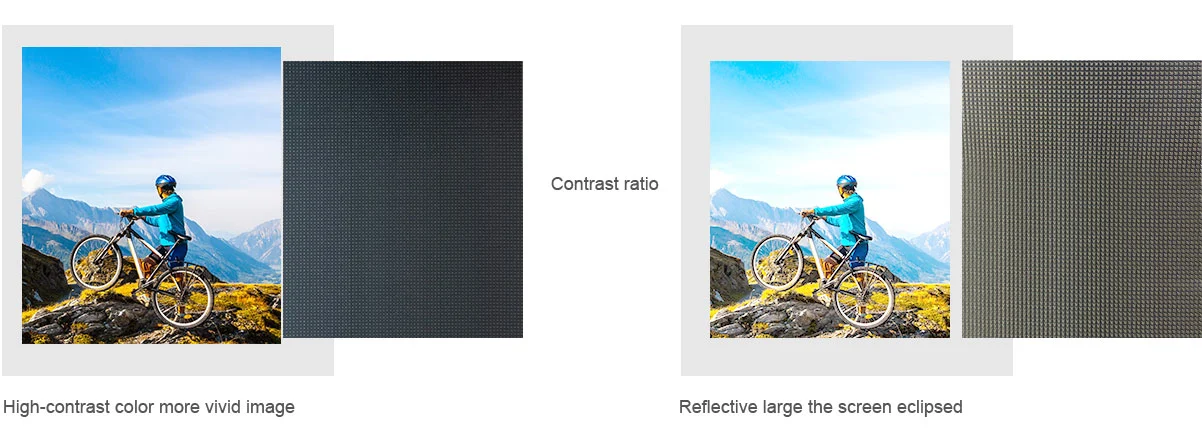

    High Contrast Ratio

    High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

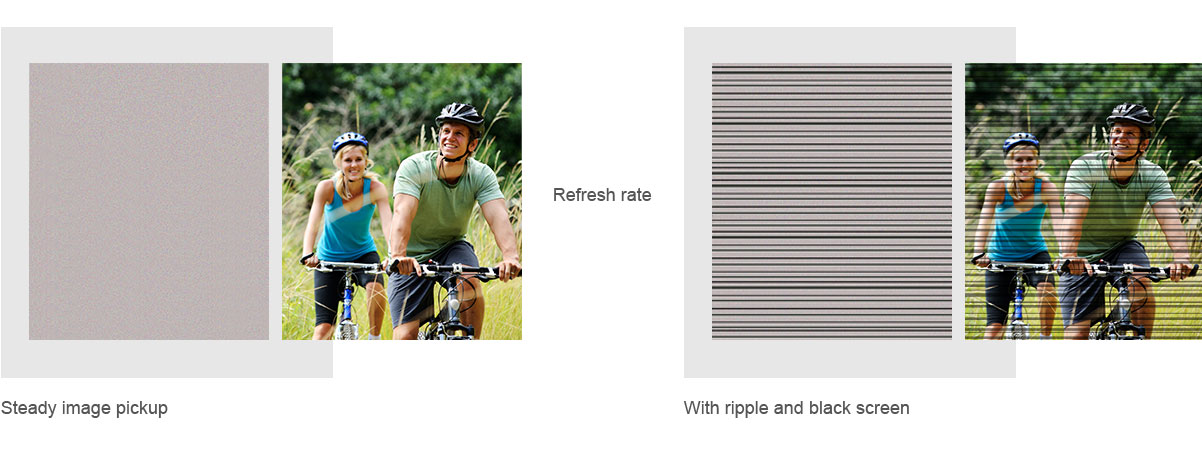

    High Refresh Rate

    It could be reach 3840HZ.




    16 bit Grey Scale

    It has almost the perfect gray scale and gives true color of the images,
    there will have no data loss and you could see every details clearly.

    LEDFUL

    OTHER'S

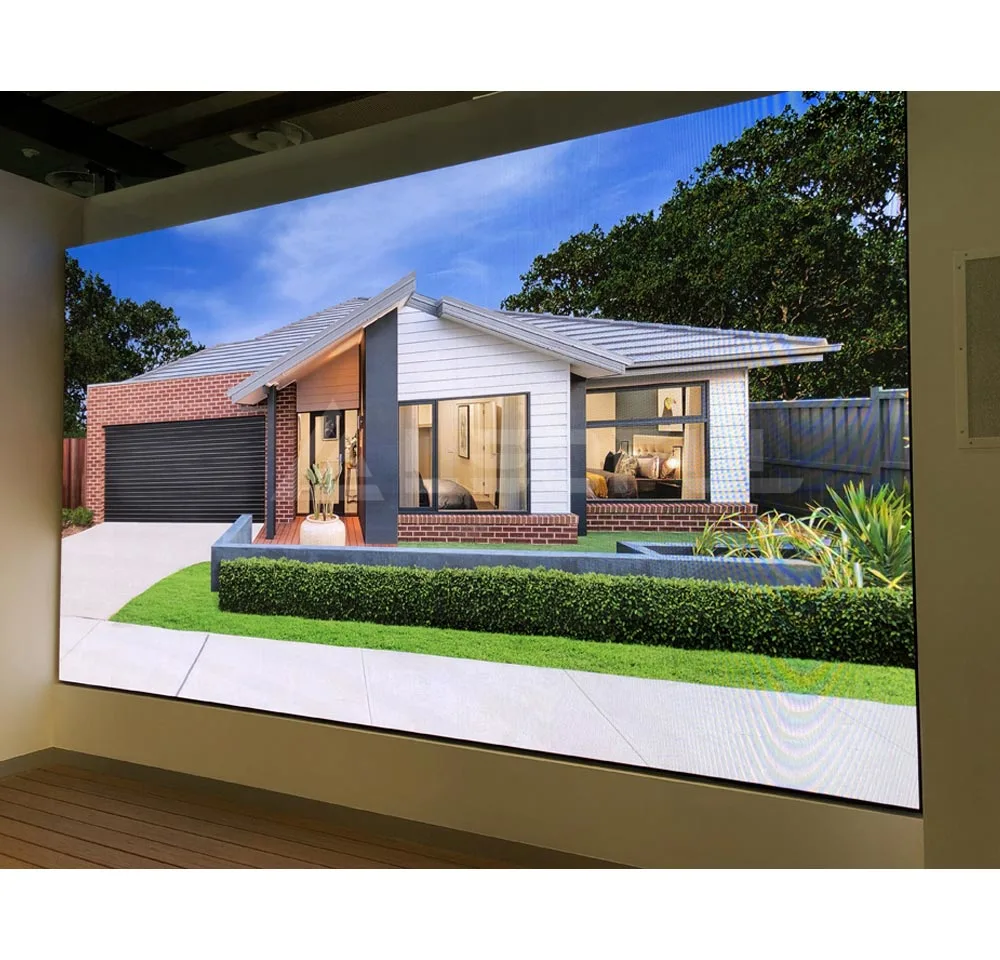

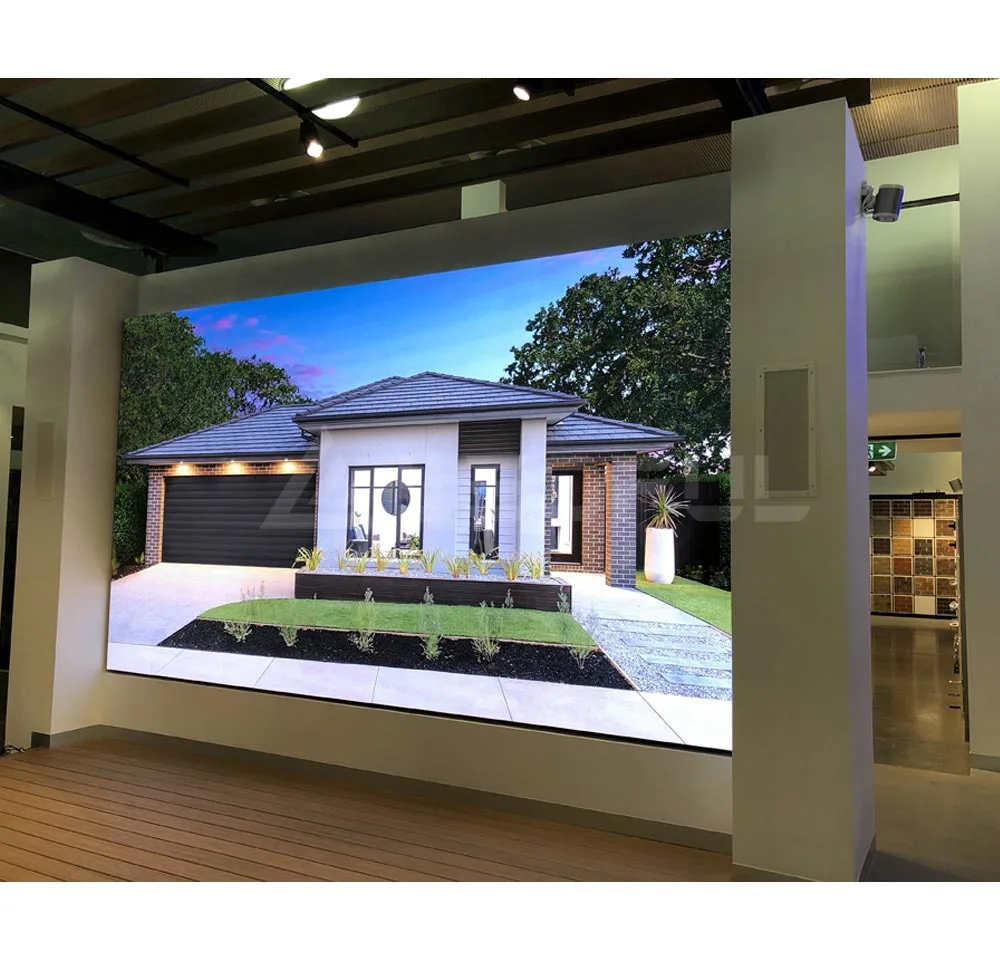

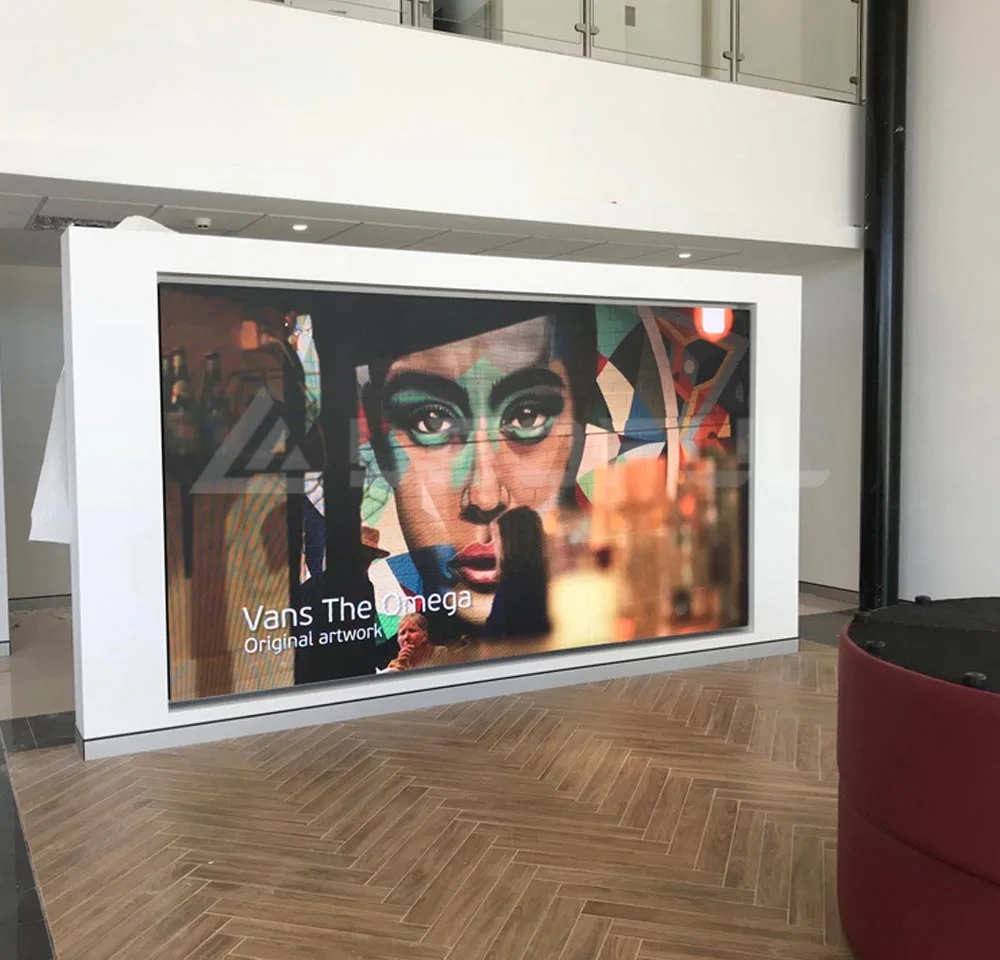

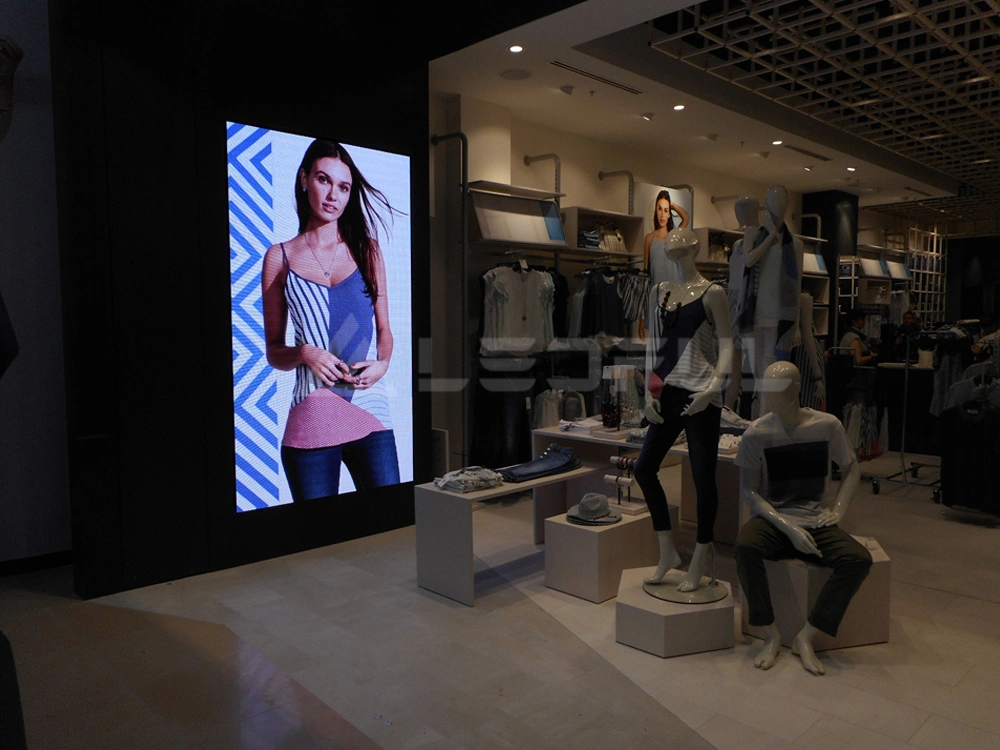

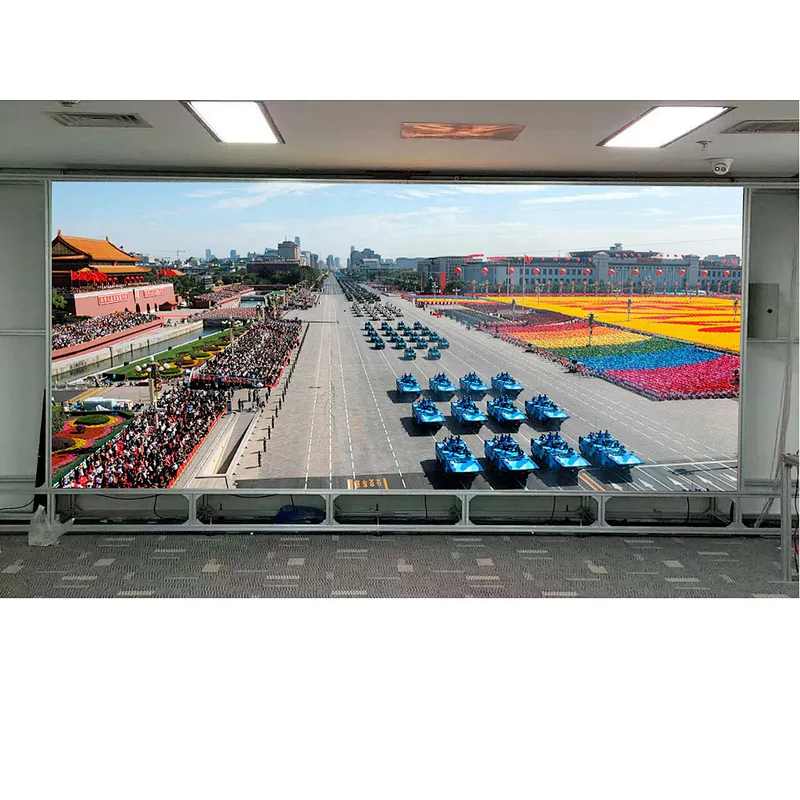

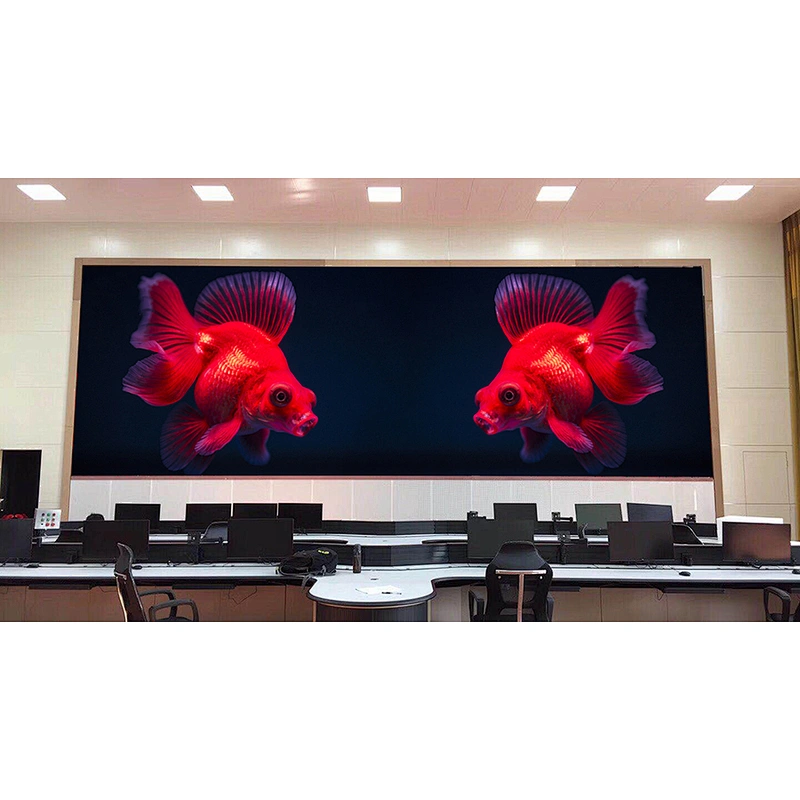

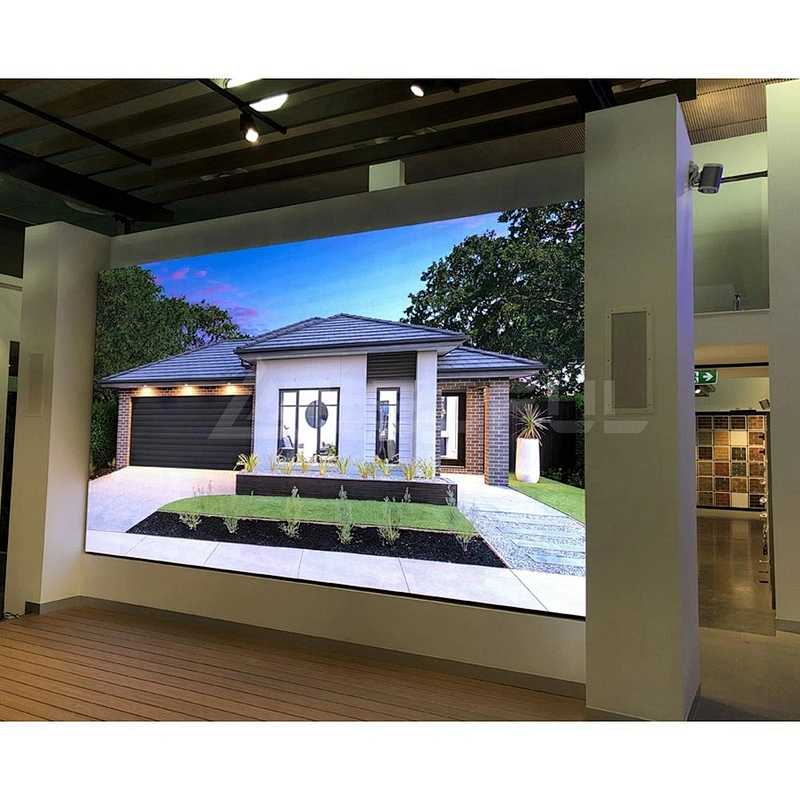

    Applications

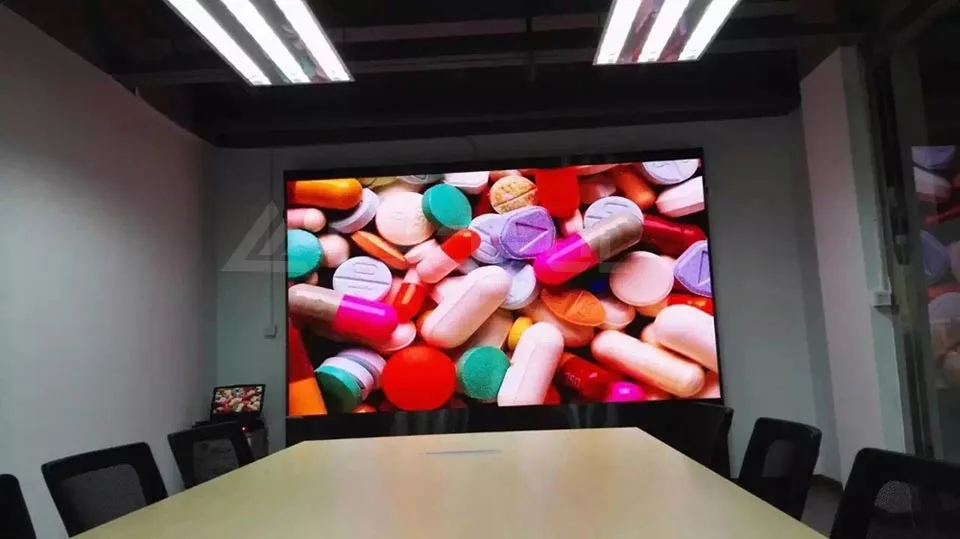

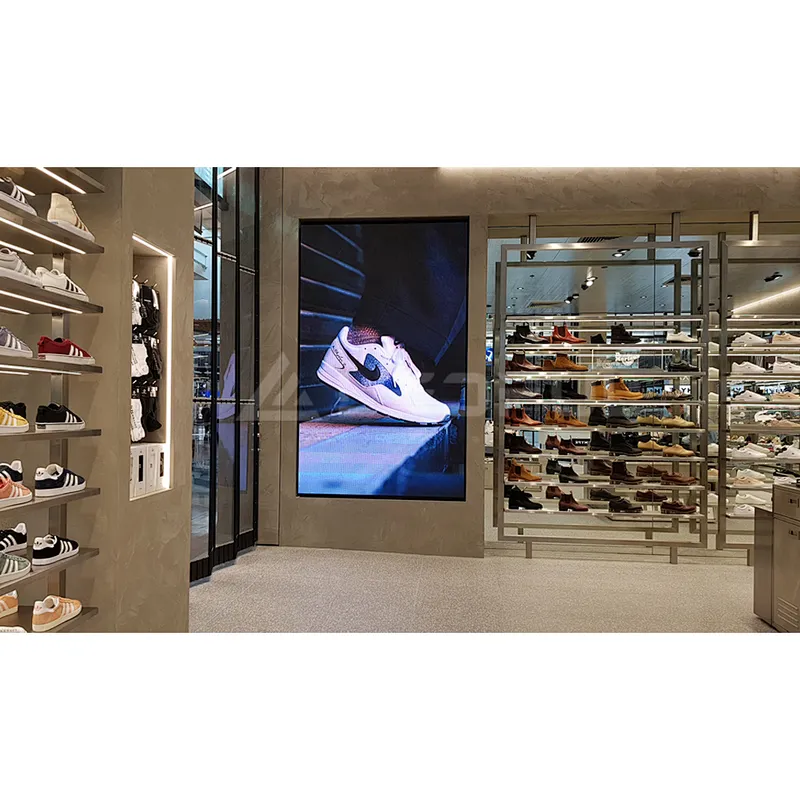

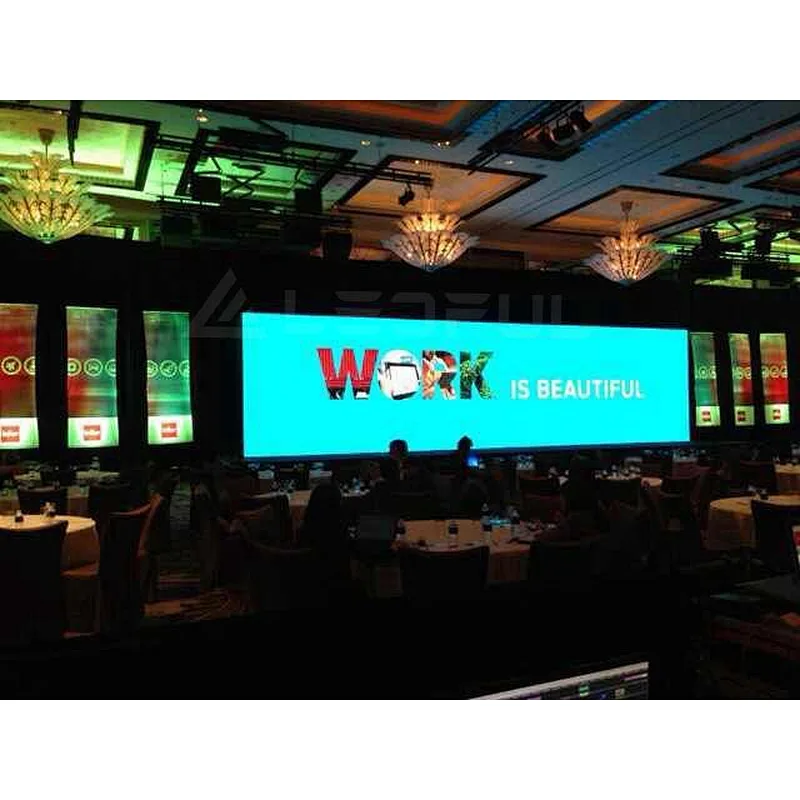

    Indoor fixed or rental applications such as Temporary stage, TV studio, nightclub & bar, theater, school, conference room, hotel, shopping mall and events etc.


    Our Company

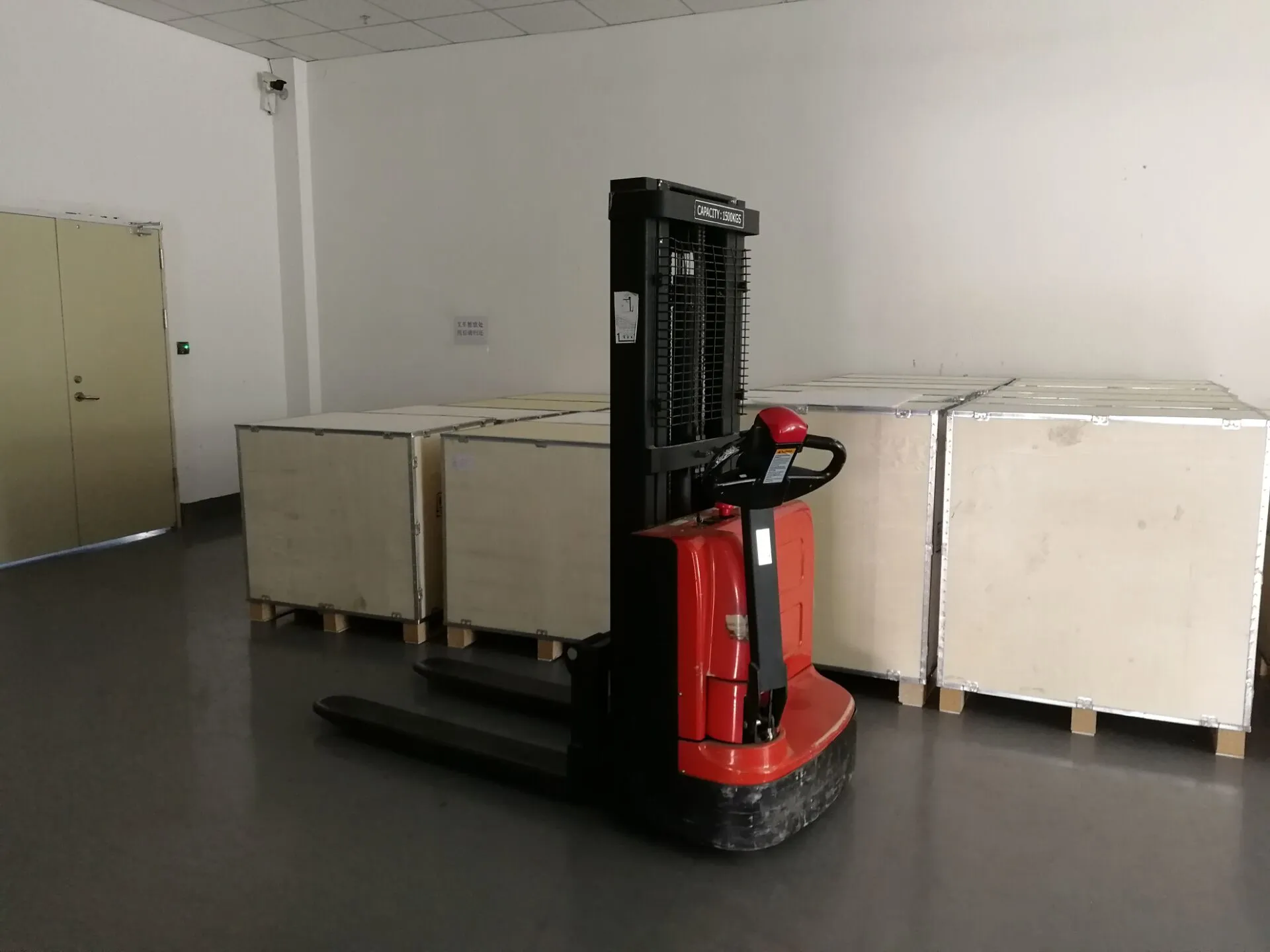

    Packing & Delivery

    Packaging
    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.


    Shipping
    1. By sea or by air;
    2. Customer specified freight forwarder or negotiable mode of transport;
    3. Delivery Time: 15-25 days for batch goods.
    Flight case
    Plywood box
    EPE(Expandable  Polyethylene)
    FAQ


    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2: What is the control system?
    A: We use Nova control system.

    Q3. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.


    Our Service


    1)Reply your inquiry in 24 working hours.
    2)Customized design is available ,OEM & ODM are welcomed.
    3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
    4)Guidance service: We can guide on line if customers have questions about the installation and usage.
    For large project, we provide your engineer free training, or our engineer can go to customer's country for on-site guidance.
    5) Warranty period: 3 years after shipment.
