  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: OF Series

    Product Description

    • Usage:OUTDOOR
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:4mm
    • Product name:Led Video Display Panel
    • Application:Video Commercial Advertising Retail Store
    • Certificate:CE ROHS FCC
    • Brightness:6500cd/sqm
    • Color:Fullcolor
    • Cabinet size:960x960mm
    • Place of Origin:CN;GUA
    • Application:advertising
    • Color:fullcolor
    • Panel Size:960*960mm
    • Pixel Pitch:4
    • Model Number:OF4
    • Brand Name:LEDFUL
    Product Description

    OF Series

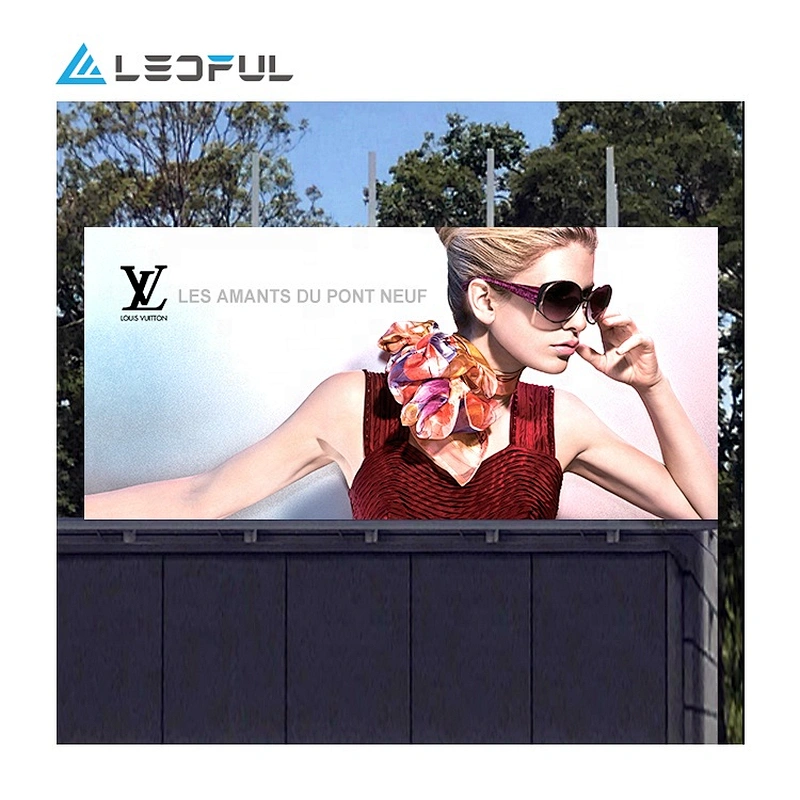

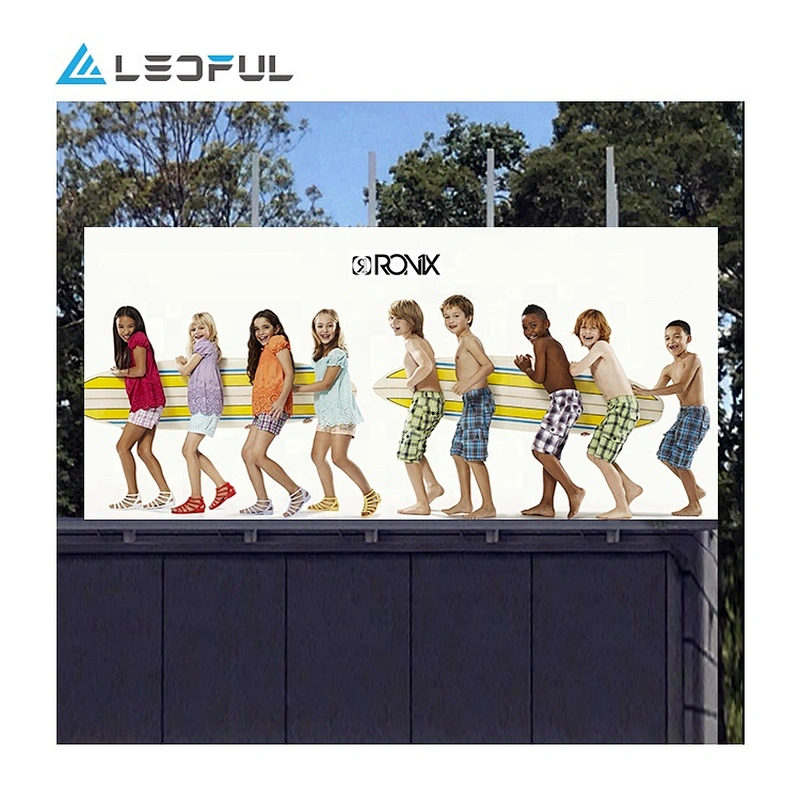

    Outdoor Commercial Advertising LED Display

    Where is LED display installed?

    LEDFUL provide structure frame design drawing and installation suggestions.

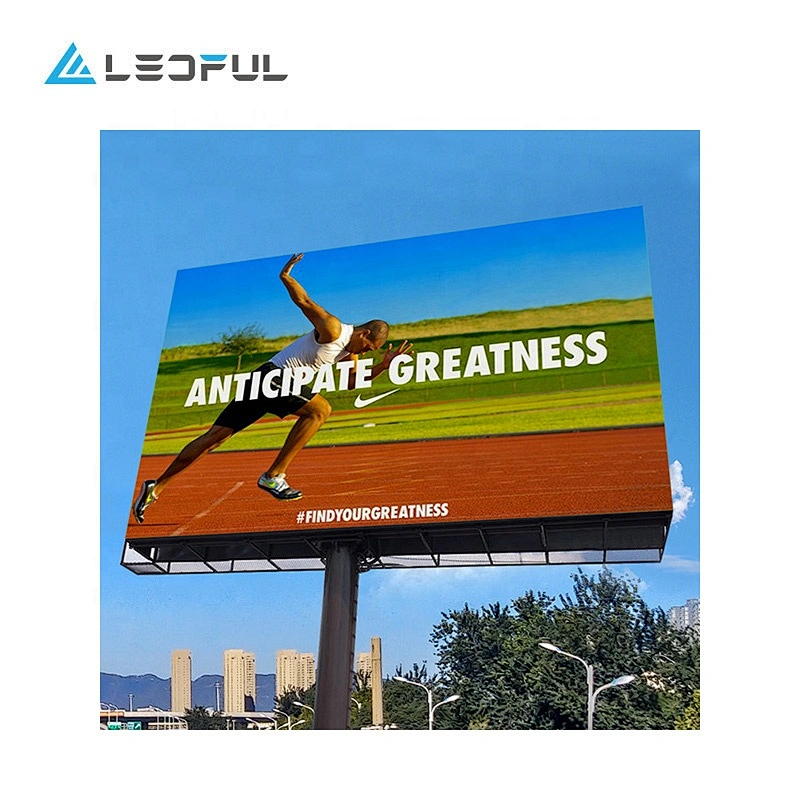

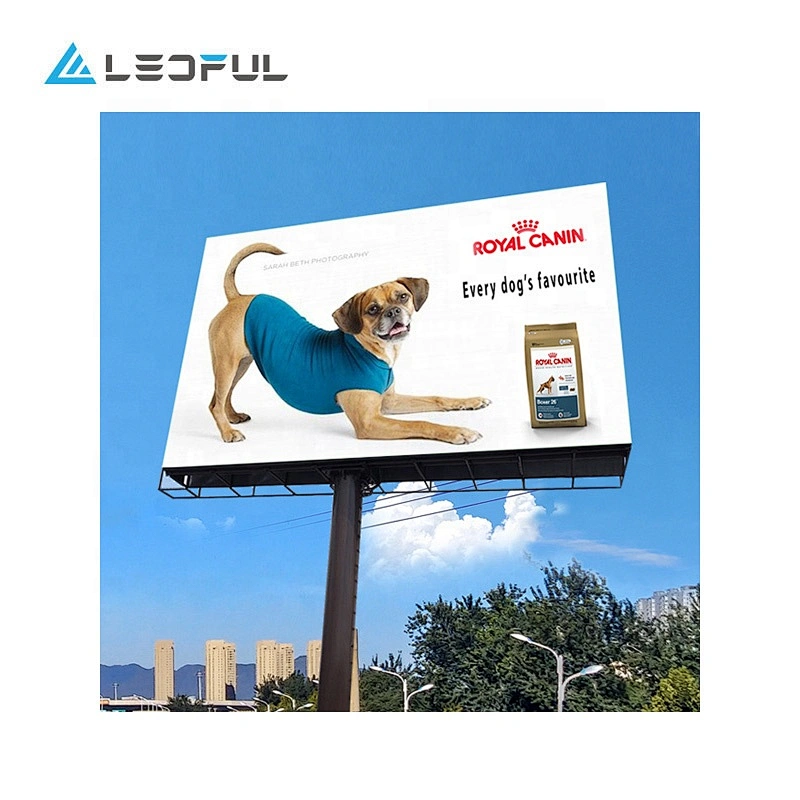

    Pillar / Pole LED display

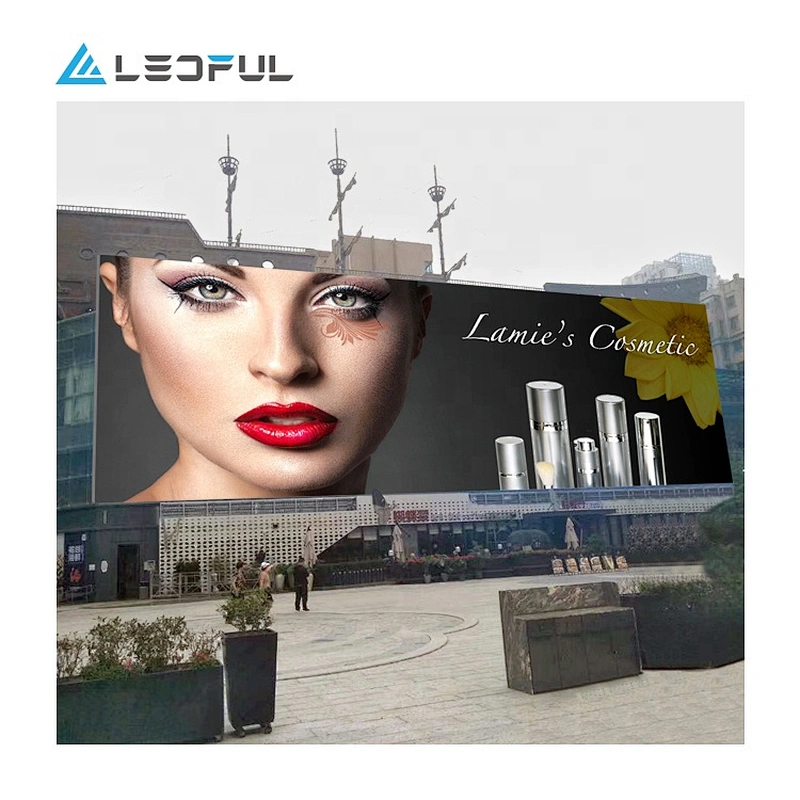

    Wall mounted LED display

    How to control LED display?

    By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.

    Ultra High / Low Temperature

    OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

    SMD Performance and View Angle

    Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing

    High Brightness & Auto Brightness

    High bright and contrast ratio to make vivid color facing to the Sunlight.
    Auto brightness saving energy besides protecting people eyes in night time.

    Various Shaped LED Display

    Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
    LEDFUL supply more design and more solutions.



    How can we make Energy Saving LED display 30%?

    1) Using high efficiency IC driver

    2) improved PCB design

    3) Power conversion efficiency


    OF Series More Features & More Advantages

    3 times aging process
    Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test


    Long service time and low attenuation by applying dual channels for heat dissipation

    Parameter
    Value
    OF4
    Pixel Pitch(mm)
    4mm
    Pixel Matrix Per Sq.m
    62500
    Pixel Configuration
    SMD1921
    Brightness (nits)
    6500
    Scan
    1/8
    Cabinet Resolution
    240x240
    Module Dimension
    192x192mm / 0.63x0.63ft
    Cabinet Weight
    44kg / 97Ib ( Iron)
    Cabinet Dimension
    960x960x130mm / 3.15x3.15x0.43ft
    Service Access
    Front/Rear
    Refresh Rate (HZ)
    ≥1920
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    700 / 150 w/sq.m
    IP Rate
    IP65
    Input Voltage (AC)
    110 / 240
    Application
    Our Company


    Top LED Display Manufacturer

    1.One-stop solution provider
    2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control
    3.Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized Focus on the improvement LED cabinets
    4.High efficient and enthusiastic team to make reliable LED display

    Professional, High Efficient and Caring

    1.Deep Customized & OEM Listen to you, think more for you.
    2.Reasonable price Clear cost initially to save your time and money.
    3.Provide with innovative and satisfying products.
    4.Excellent product quality, quick and professional services.
    5.Always ready for your any change on LED display details.
    6.Recommend the best proper solution for your LED project.
    7.Catch things what you missed before LED display production.

    Our Service
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)
    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery.

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
