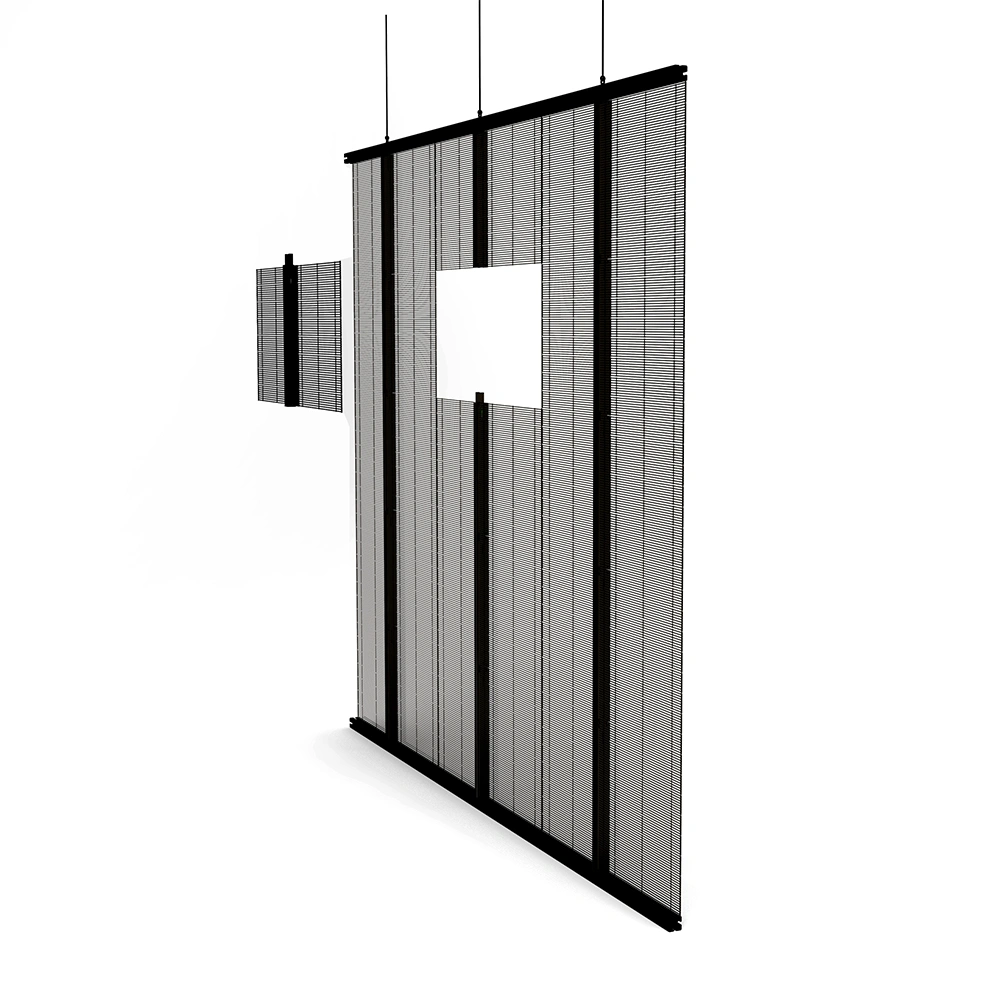

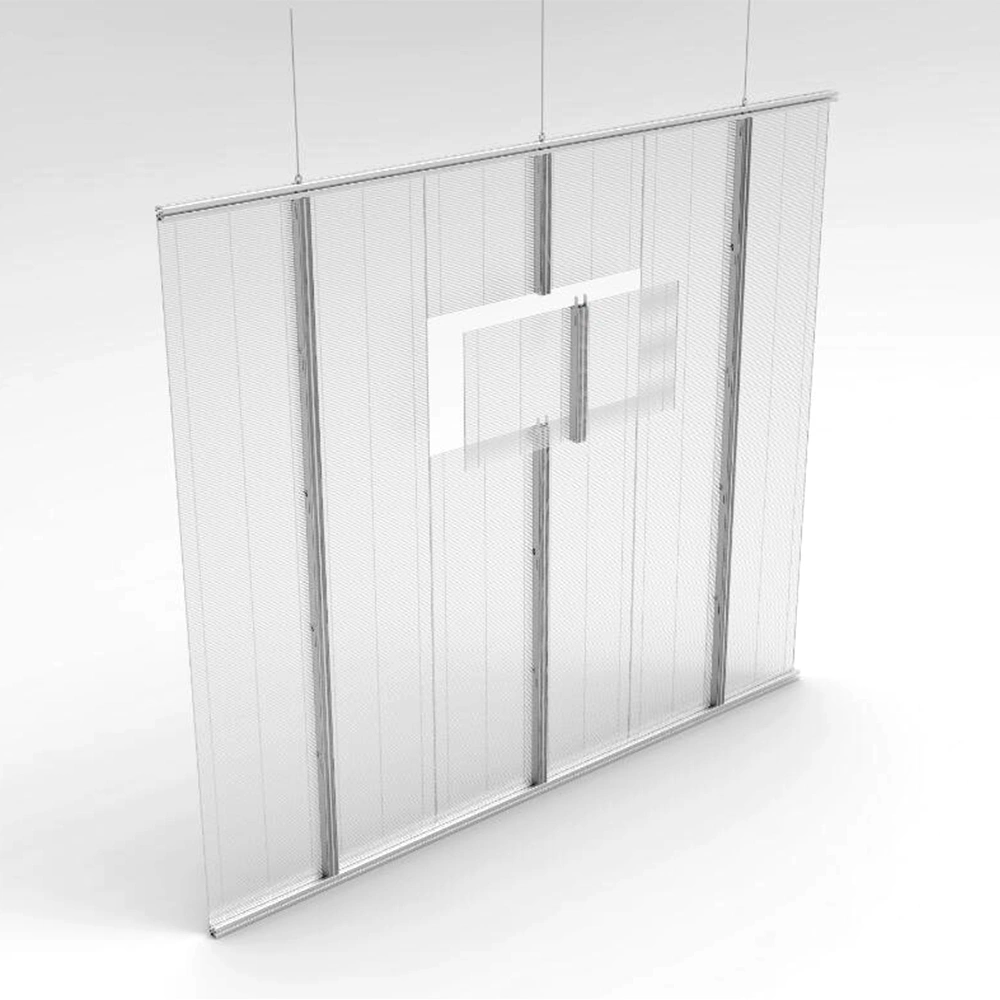

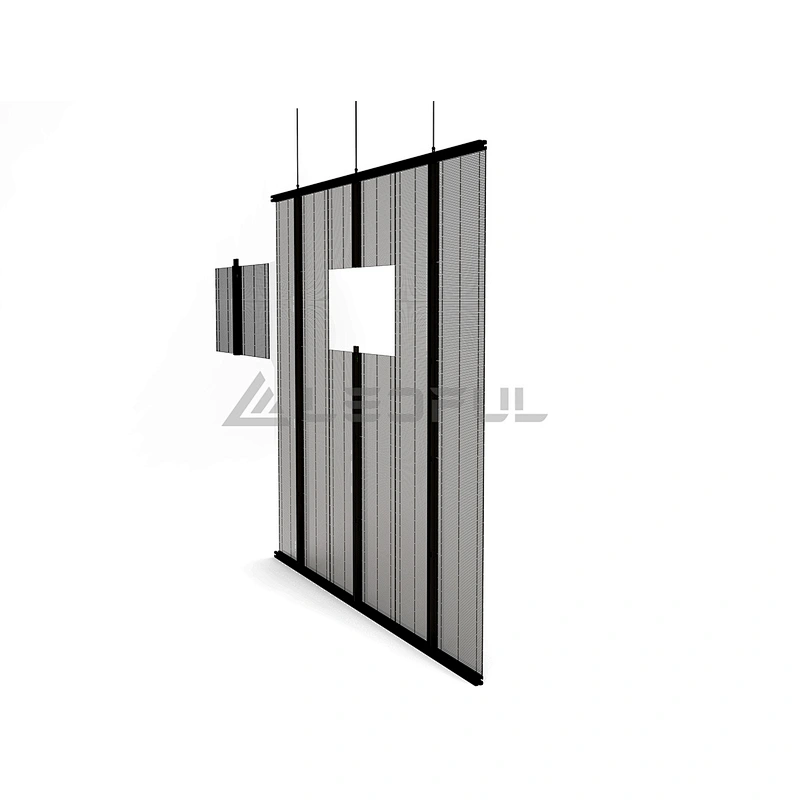

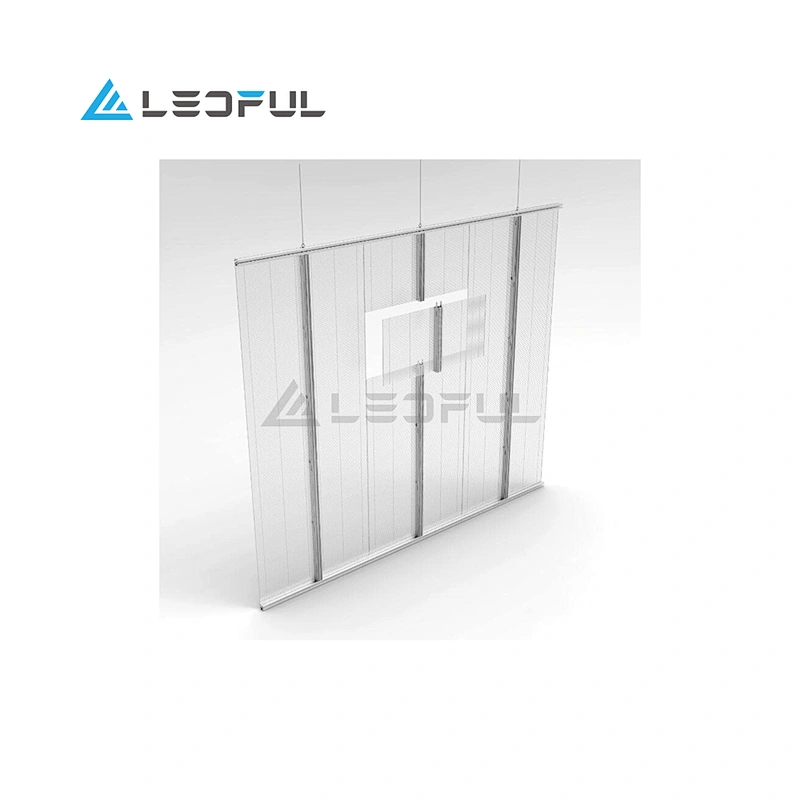

Transparent Digital LED Display Glass Screen
- Usage:indoor
- Tube Chip Color:FULL COLOR
- Application:Adervertising
- Pixel pitch:7.82mm
- Color:Full-color
- Pixel density:16384
- Transparency:80%
- Screen Dimension:1000*500mm
- Pixels:7.82mm
- Place of Origin:CN;GUA
- Application:Indoor
- Color:Full color
- Panel Size:500*125mm
- Pixel Pitch:7.8mm
- Model Number:TGC7.9
- Brand Name:LEDFUL
2020 New

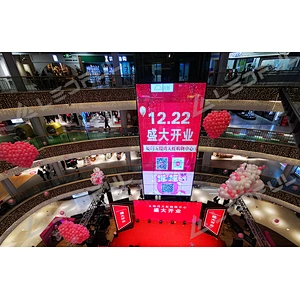

Transparent LED display p3.9/p7.8/p10.4 glass wall screen
for glass window
TGC series
TGC Series | TGC3.9 | TGC7.8 | TGC10.4 |
LED | SMD1921 | SMD1921 | SMD1921 |
Resolution(dot/㎡) | 32768 | 16384 | 9216 |
Pixel Pitch(WxH)(mm) | 3.91X7.82 | 7.82x7.82 | 10.42x10.42 |
Module size(WxH)(mm) | 1000x500 | 1000x500 | 1000x500 |
Module Resolution | 256x64 | 128x64 | 96x48 |
Brightness(nits) | 5500 | 5300 | 5000 |
Max.Power(W/㎡) | 800 | 780 | 750 |
Avg.Power(W/㎡) | 240 | 230 | 220 |
Transparency | 70% | 80% | 87% |

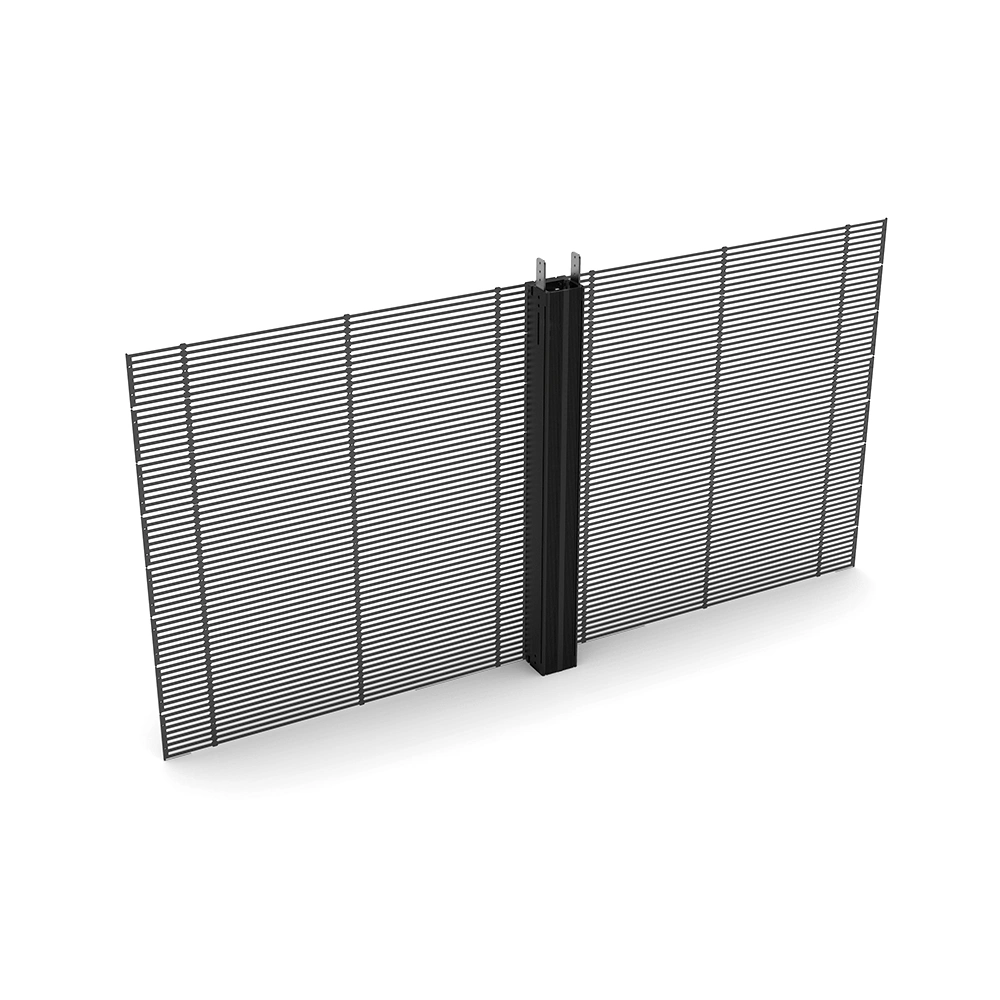

One Integrated Power Box
This integrated box make cabinet more concise and a nicer outlook.
Full Front Maintenance
LED modules, power supply, receiver card, hub card, cables are all front service.
Super Slim Thickness

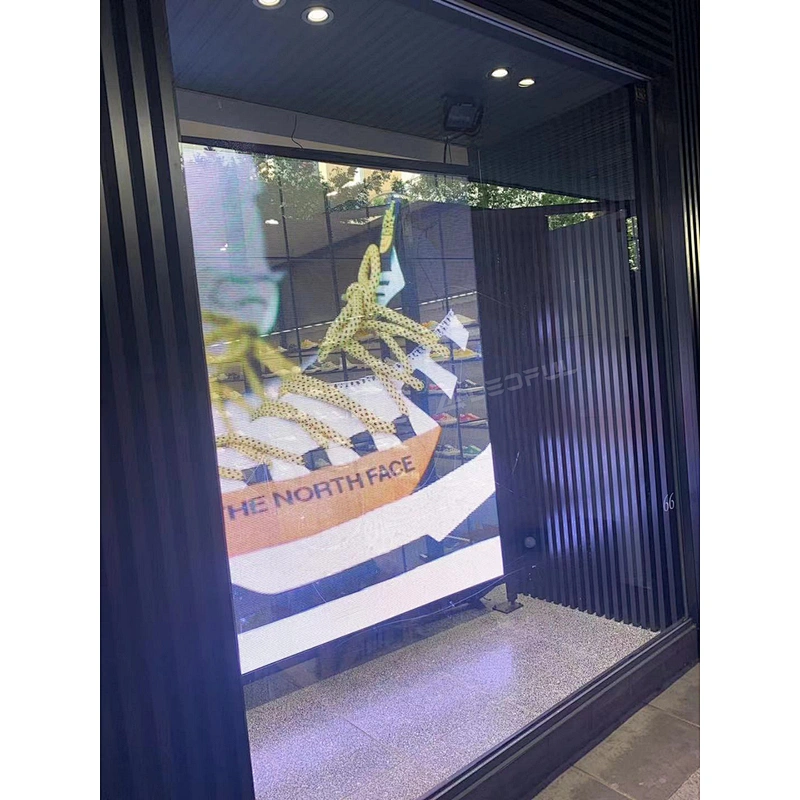

Slim thickness make TGC series can be perfectly installed in Window Glass.
Silver Cabinet
More colors for options: black, silver, green, yellow etc. Those would fully satisfy your artistic design need.
Company Information

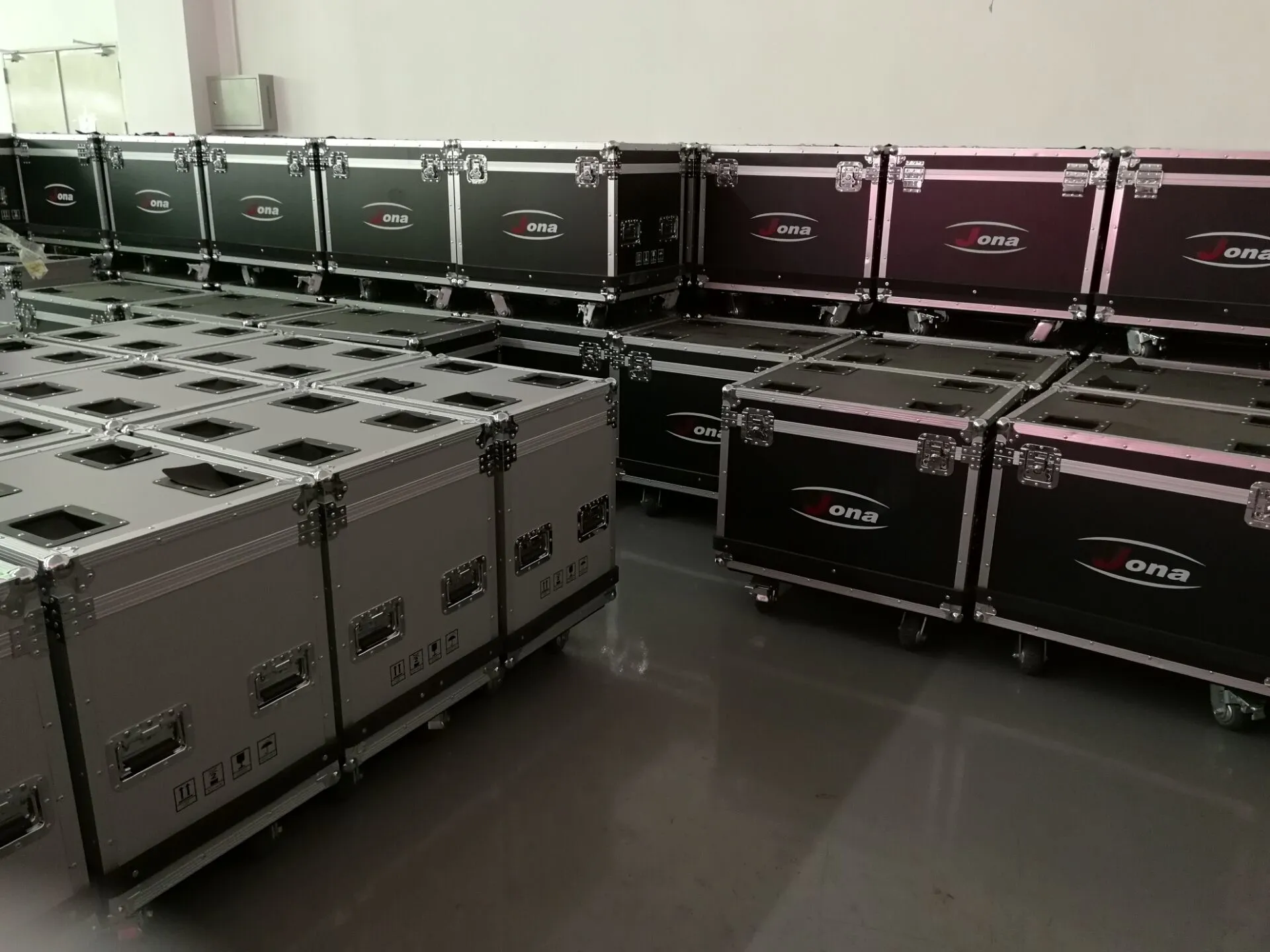

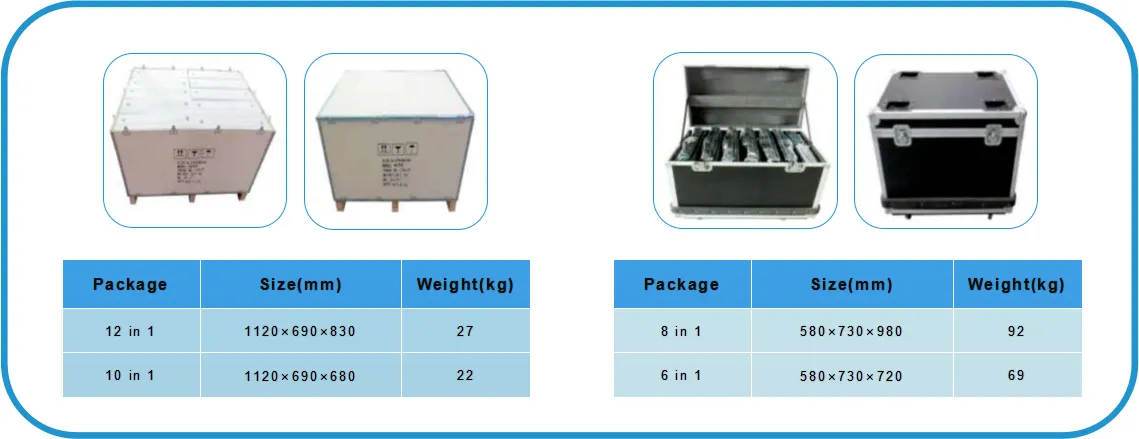

Flight case
Wooden box
EPE(Expandable Polyethylene)
Q1 Are you trading company or manufacturer ?
A1 LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry
withprofessionalR&D team and skilled QC teamfor 12 years.
Q2 What is the control system? How is it?
A2 We use Nova control system.
SupportAPP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control.
SupportAPP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control.
Q3 What is your best service?
A3One to one sales engineer to customer responsibility system.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
.......
Q4 What’s the delivery time?
A4 Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
Q5 How about your Warranty Term?
A53-years warranty.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order.
and your exclusive sales engineer will also help you get over any problems.
