  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: 500*500 K Series

    Product Description

    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Warranty: 3 Years:LED chip: Epistar
    • Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
    • Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
    • Application:Advertising Rental:Control system: Linsn /Nova
    • Input Voltage (AC): 110V / 240V:Viewing Angle (H/V): 160 / 160
    • Screen Dimension:500*500mm
    • Pixels:6.25mm
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:KI6.2
    • Brand Name:LEDFUL
    Product Description



    K Series

    Stage Rental LED Display




    KI2.6 | KI2.8 | KI2.9 | KI3.9 | KI4.8 | KI5.9 | KI6.2 KO3.9 | KO4.8 | KO5.9 | KO6.2

    ◆Full Front Maintenance
    ◆Curved Installation
    ◆Cable Free Connection
    ◆No Light Leakage
    ◆Light and Thin


    Product Name
    KI 6.2
    Pixel Pitch(mm)
    6.25mm
    Pixel Matrix Per Sq.m
    25600
    Pixel Configuration
    SMD3528
    Scan
    1/10
    Cabinet Resolution
    80×80
    Power Con. (Max / Avg)
    700/200w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft
    Cabinet Dimension
    500x500x87mm / 1.64x1.64x0.29ft
    Cabinet Weight
    8kg / 17.6Ib (( Die-casting Aluminum)
    Service Access
    Front / Rear
    Rotation Angle
    -10° and +10°
    Brightness (nits)
    ≥1000
    Refresh Rate (HZ)
    3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP31
    Input Voltage (AC)
    110 / 240

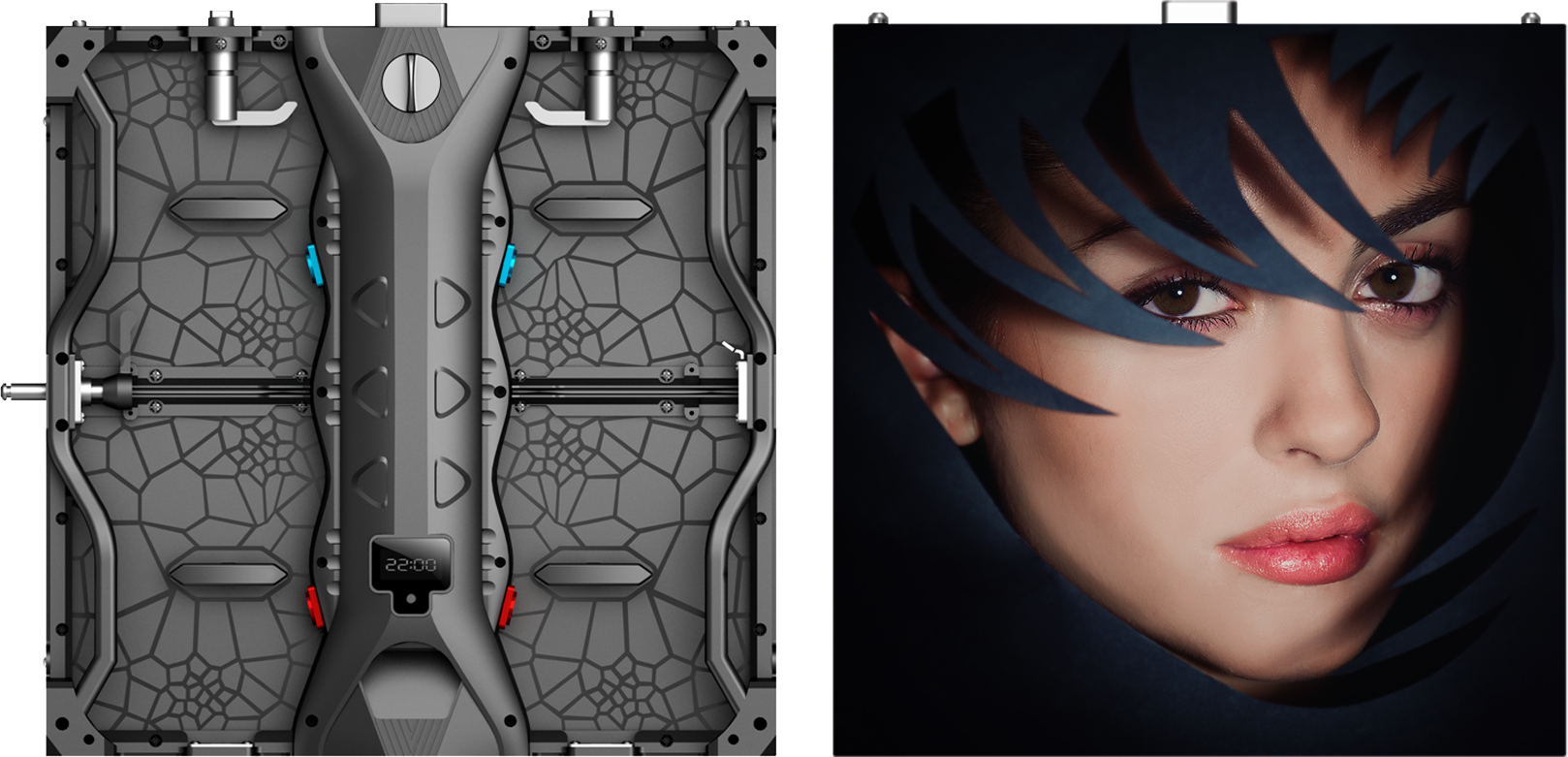

    Products Show



    Details

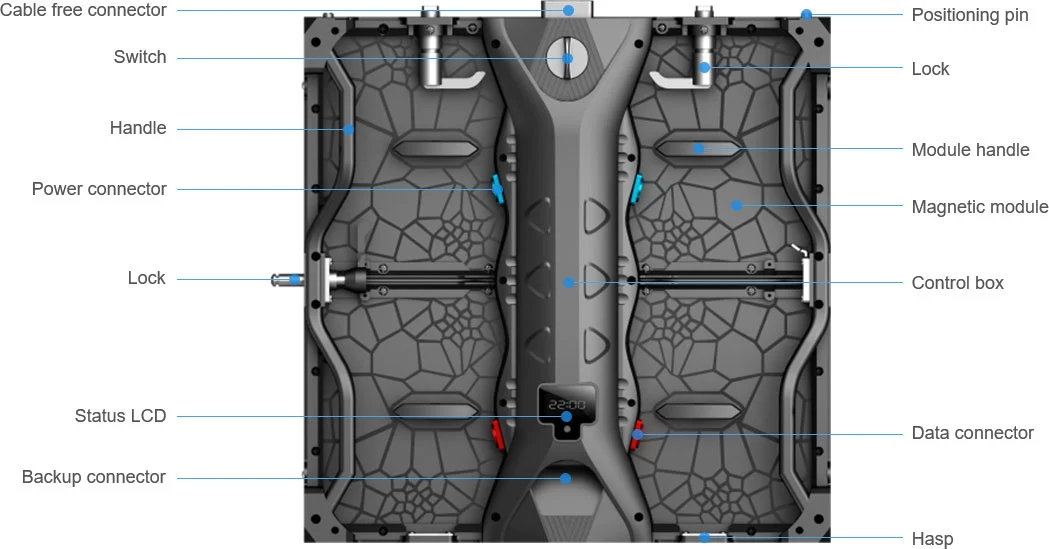

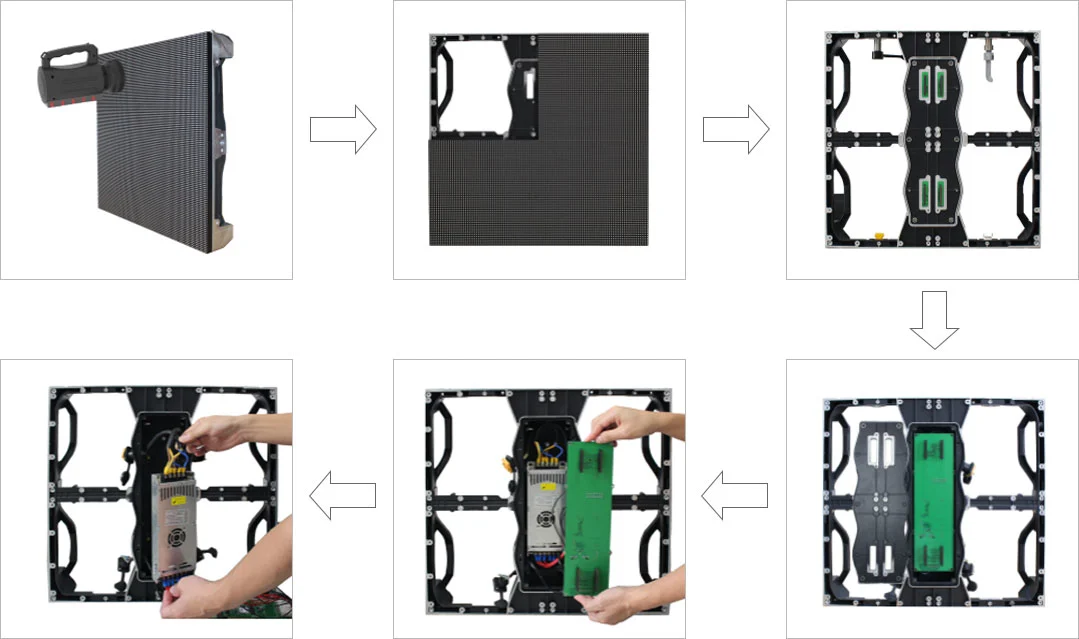

    Full Front Maintenance

    LED modules, power supply, receiver card, hub card, cables are all front service.

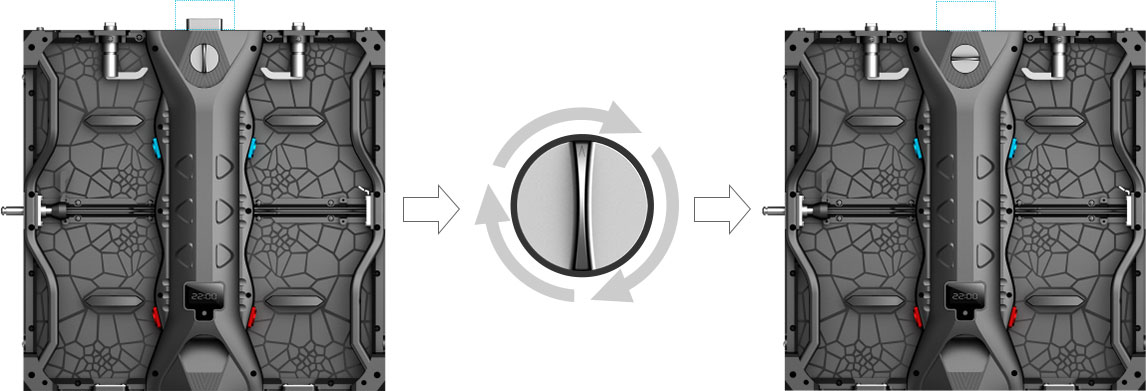

    Quick Exchangeable Control Box For Easy Maintenance

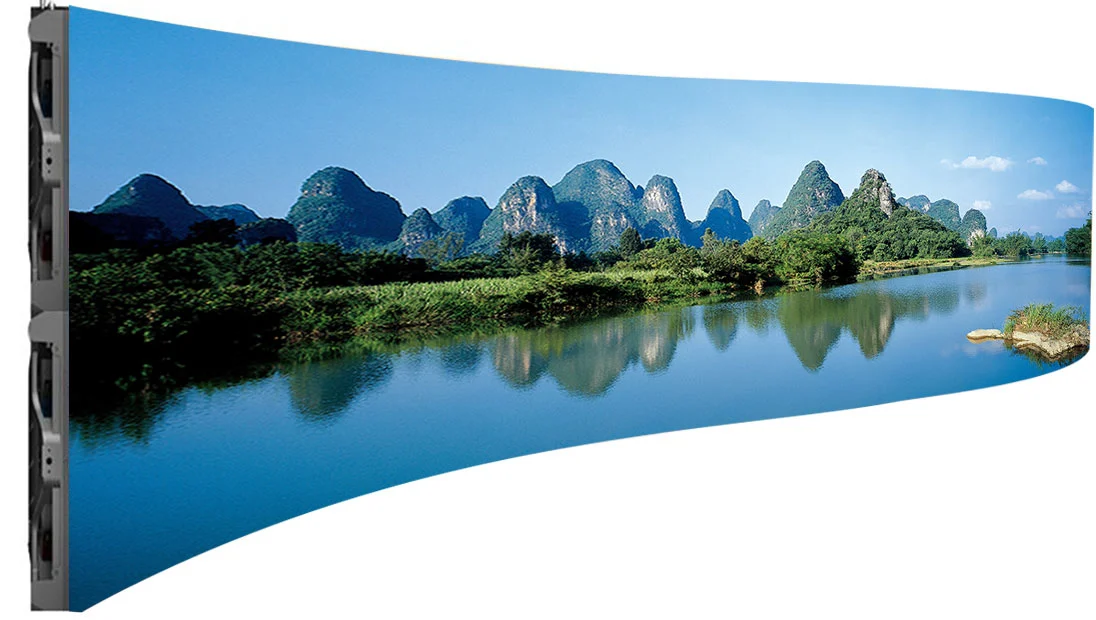

    Curved Installation

    2.5° between -10°and 10°, which can make convex and concave.

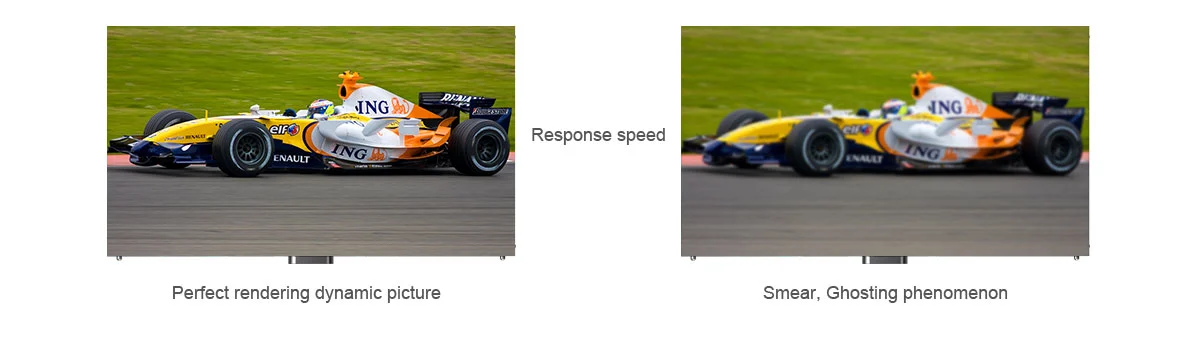

    Ultra Fast Response

    The response speed exceeds the response limit of the naked eyes,
    while playing the high speed dynamic images in an LED Screen,
    it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

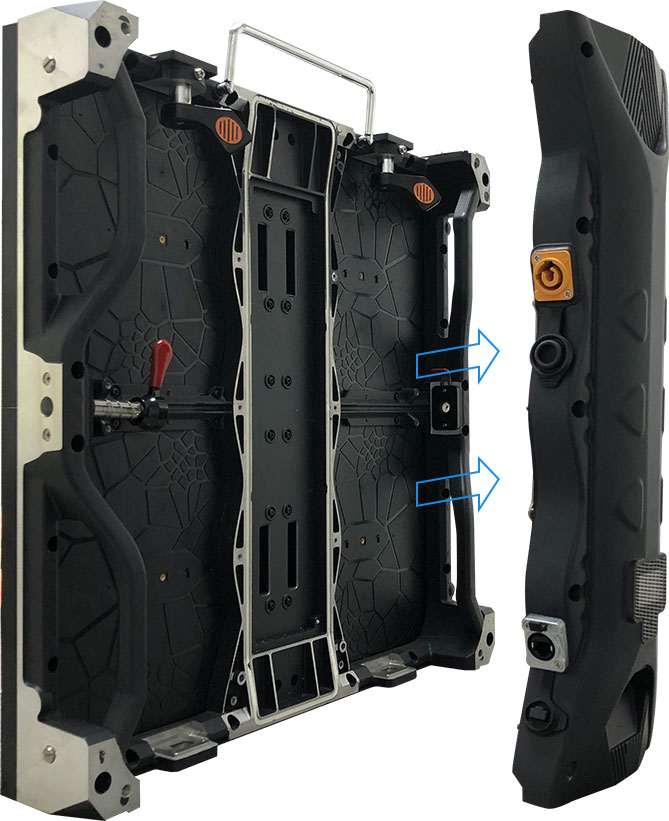

    Cable Free Connection

    Installation without cable connection will save much more time




    No light leakage trouble

    No light leakage design with specific strips on side of cabinet and behind neighbour module.

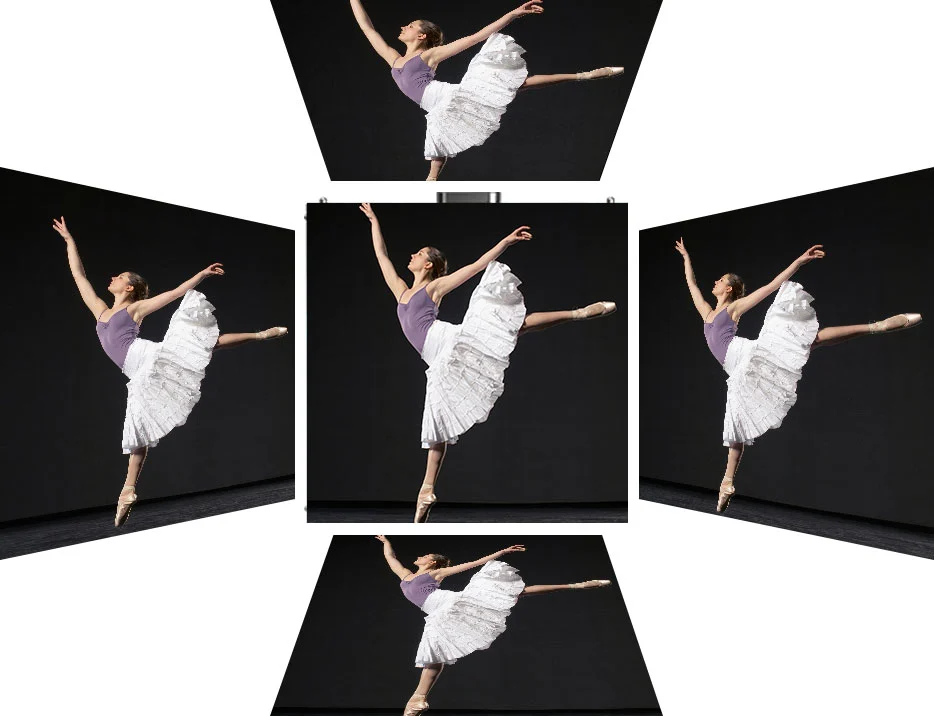

    Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle.
    Seeing from five directions, it would be still the natural and clear image in an LED display.

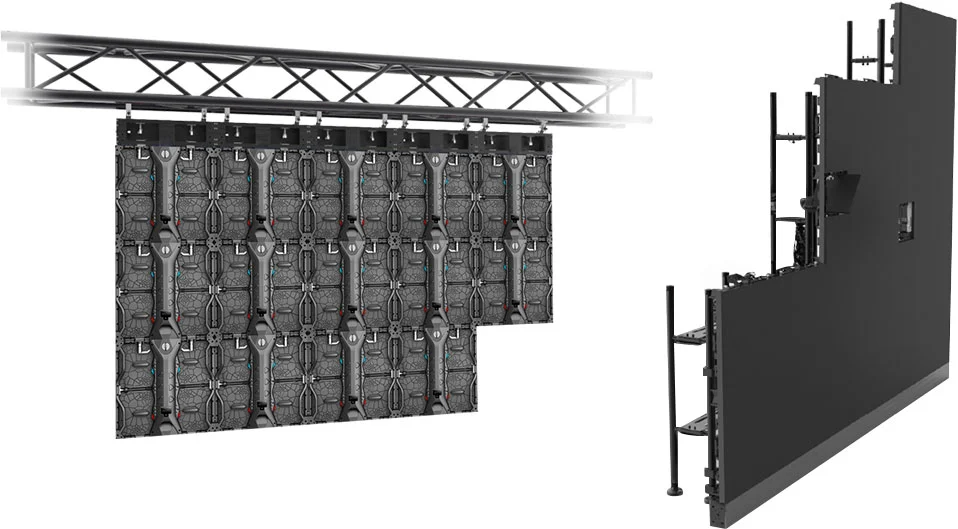

    Faster & Easier Installation

    Hanging or stacking, K series with light and thin features makes installation faster and easier.

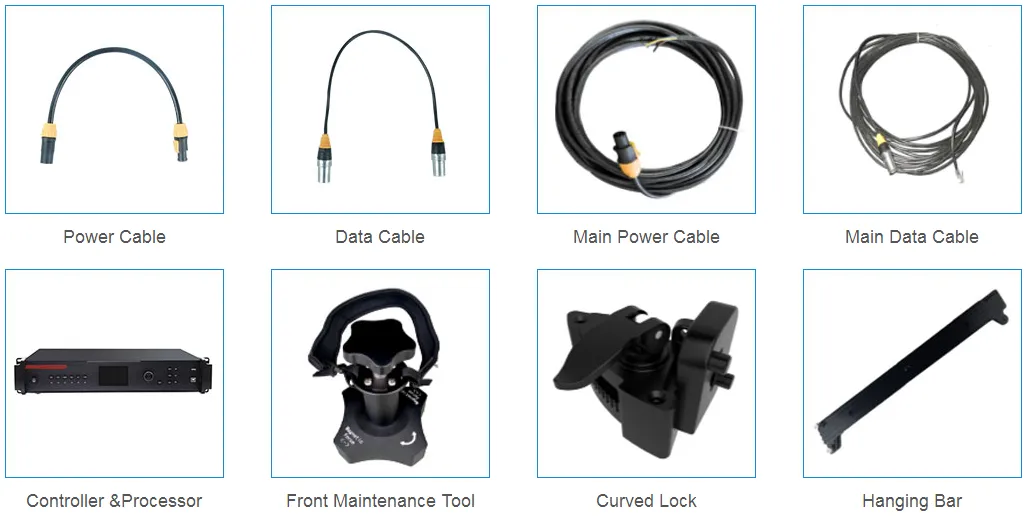

    Accessories

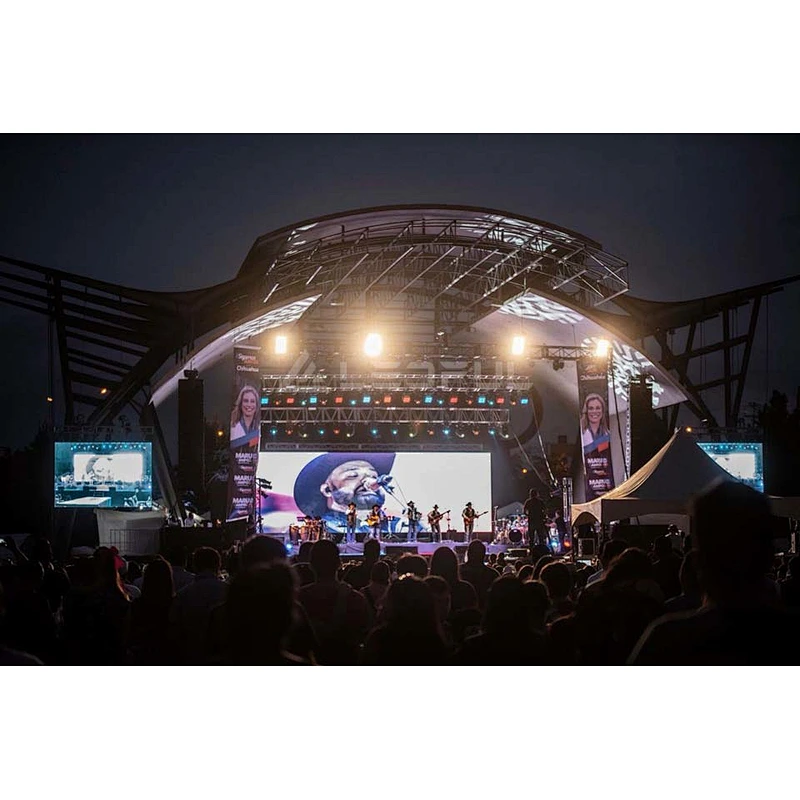

    Applications

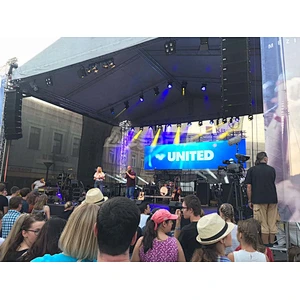

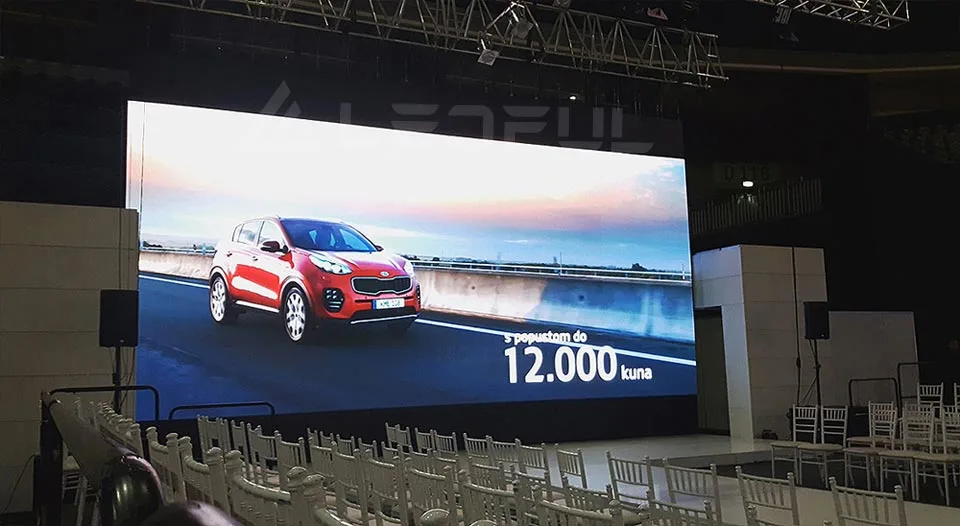

    Germany Indoor Stage Show LED Display


    Product Model: KI3.9
    Pitch:3.9mm
    Size: 24 sqm
    Location: Croatia


    Kseries is the 3rd generation rental LED display, designed and lauched by LEDFUL in the end of 2018 Year.


    Undoubtly, KI 3.9 is the hot model , the panel size is 500x500mm. K series and T series can be installed together for multiple event requirements.also curved installation design, which can make convex and concave.

    As K stage rental series, two knobs design make the control box exchange in 1 second and faster and easier installation makes the K series LED display with perfect performance in each event shows.

    K series cover pixel pitch indoor display start from 2.6mm(KI2.6) to 6.2mm(KO6.2) and outdoor from KO3.9 to KO6.2. all K series with some unique features as the below.


    ★Full Front Maintenance
    ★Curved Installation
    ★Cable Free Connection
    ★No Light Leakage
    ★Light and Thin

    Our Company

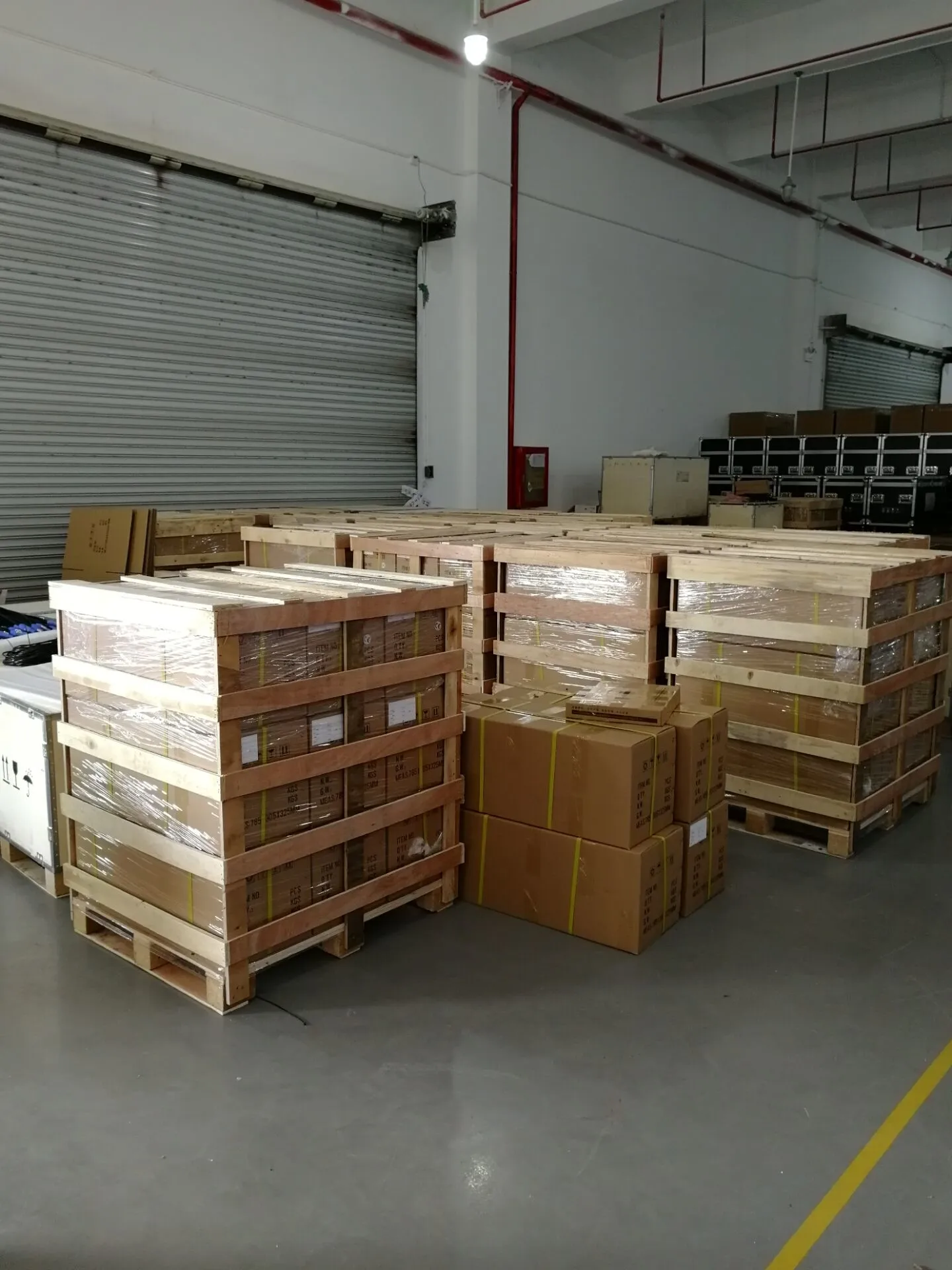

    Packing & Delivery

    Packaging

    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

    Shipping
    1. By sea or by air;
    2. Customer specified freight forwarder or negotiable mode of transport;
    3. Delivery Time: 15-25 days for batch goods.

    Plywood box
    Flight case
    EPE(Expandable Polyethylene)
    FAQ


    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2: What is the control system?
    A: We use Nova control system.

    Q3. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.

    Our Service

    1)Reply your inquiry in 24 working hours.

    2)Customized design is available ,OEM & ODM are welcomed.
    3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
    4)Guidance service: We can guide on line if customers have questions about the installation and usage.
    For large project, we provide your engineer free training, or our engineer can go to customer's country for on-site guidance.
    5) Warranty period: 3 years after shipment.
