- Display Function:Video
- Application:Video Commercial Advertising Retail Store
- Certificate:CE ROHS FCC
- Brightness:7500
- Cabinet size:960x960mm
- Viewing angle:140 /140
- Input Voltage:110 / 240
- Module size:192*192
- Pixel pitch:10mm
- Warranty:3 Years
- Place of Origin:CN;GUA
- Application:Outdoor led display
- Color:fullcolor
- Panel Size:960x960mm
- Pixel Pitch:10mm
- Model Number:OF10S
- Brand Name:LEDFUL

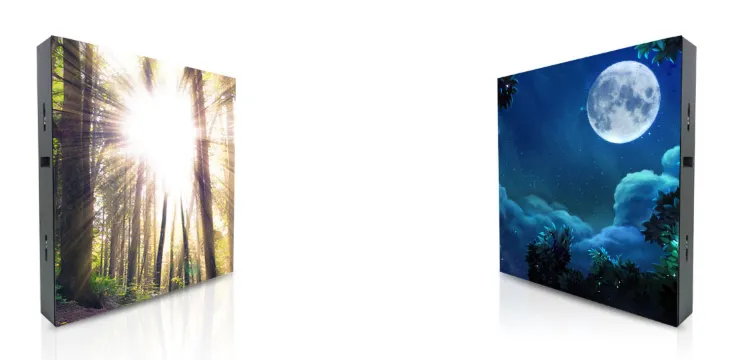

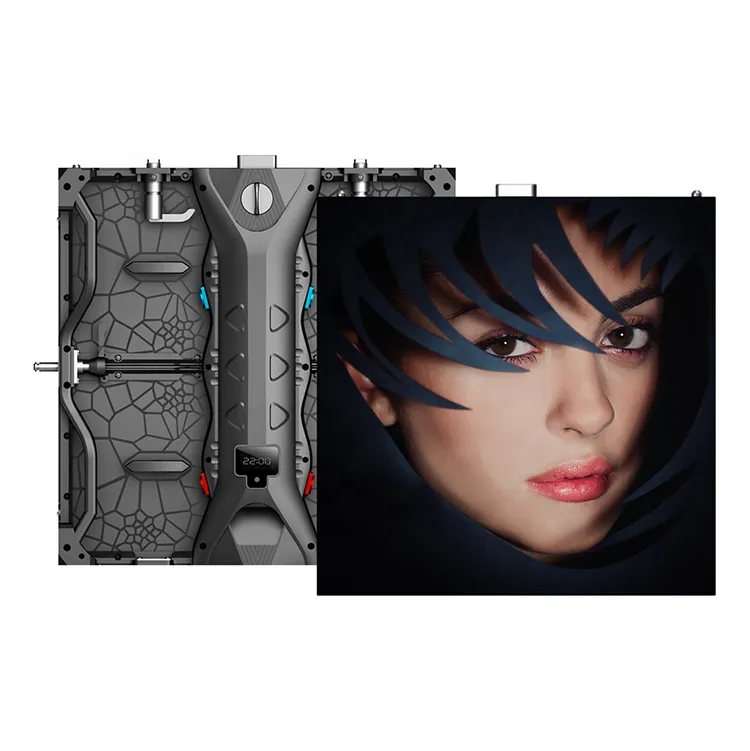

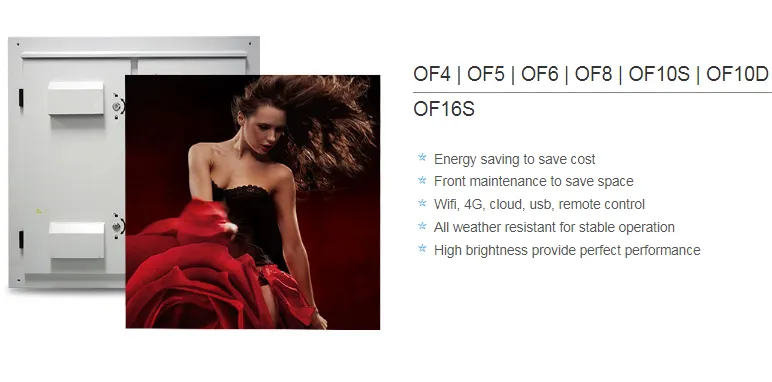

OF Series
Outdoor Commercial Advertising LED Display
How can we make Energy Saving LED display 30%?
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
OF Series More Features & More Advantages
3 times aging process
Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test

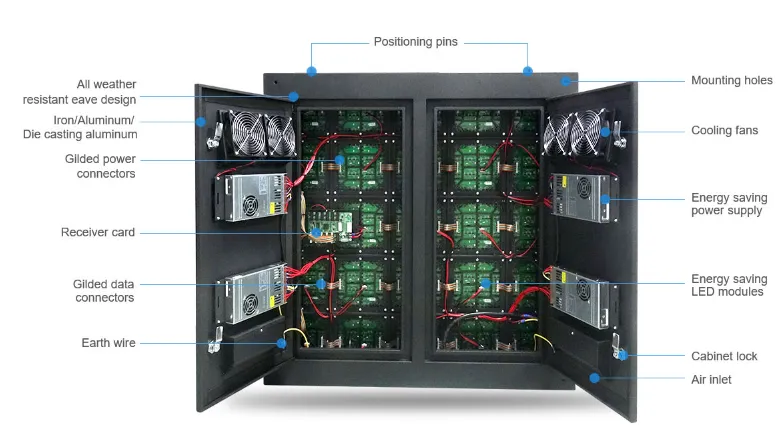

Long service time and low attenuation by applying dual channels for heat dissipation
High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction
No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deform
Value | OF4 | OF5 | OF6 | OF8 | OF10S | OF16S | |||||
Pixel Pitch(mm) | 4 | 5 | 6 | 8 | 10 | 16 | |||||
Pixel Matrix Per Sq.m | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 | |||||
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | |||||
Brightness (nits) | 6500 | 6500 | 6500 | 6800 | 7500 | 8000 | |||||
Scan | 1/8 | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | |||||
Module Dimension | 192x192mm / 0.63x0.63ft | 160x160mm / 0.52x0.52ft | 192x192mm / 0.63x0.63ft | 320x160mm / 1.05x0.52ft | 320x160mm / 1.05x0.52ft | 256x256mm / 0.84x0.84ft | |||||
Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 1024x1024mm /3.36x3.36ft | |||||
Cabinet Resolution | 192x192 | 192x192 | 160x160 | 120x120 | 96x96 | 64x64 | |||||
Cabinet Weight | 44kg / 97Ib ( Iron) | 43kg / 95Ib (Iron) | 42kg / 93Ib (Iron) | 41kg / 90Ib (Iron) | 40kg / 88Ib ( Iron) | 46kg / 101Ib (Iron) | |||||
Power Con. (Max / Avg) | 750 / 150 w/sq.m | 730 / 130 w/sq.m | 700 / 120 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 750 / 150 w/sq.m | |||||
Service Access | Front / Rear | ||||||||||
Refresh Rate (HZ) | ≥1920 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 140 / 140 | ||||||||||
IP Rate | IP65 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||
Where is LED display installed?

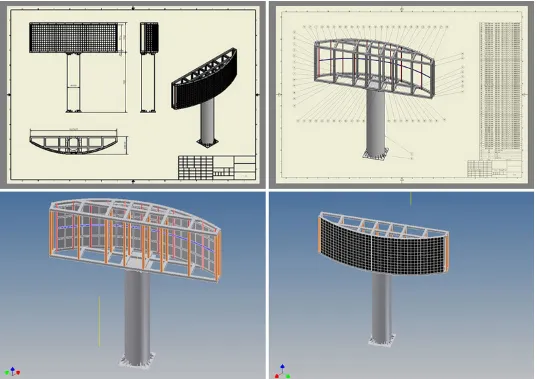

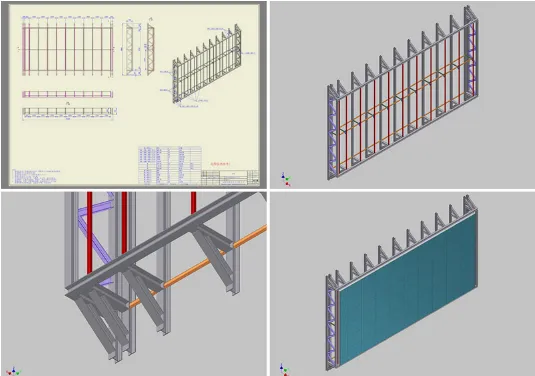

LEDFUL provide structure frame design drawing and installation suggestions.

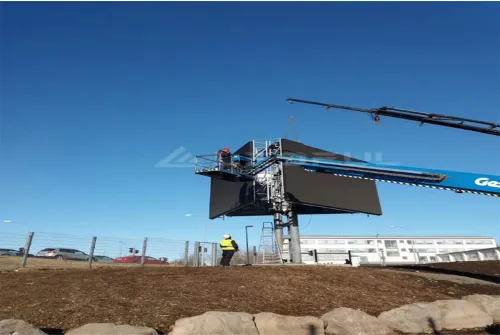

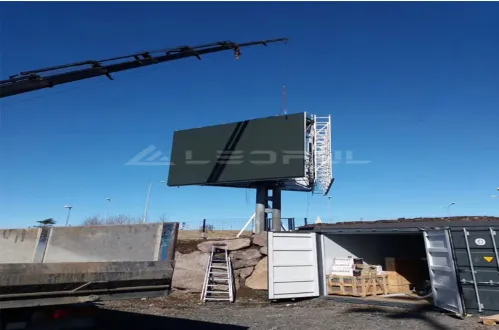

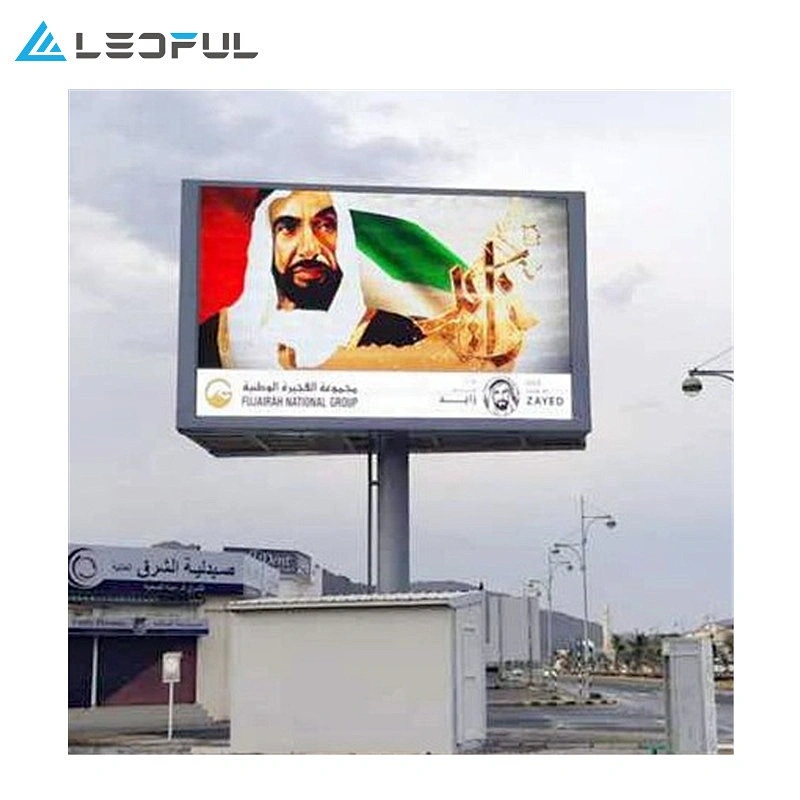

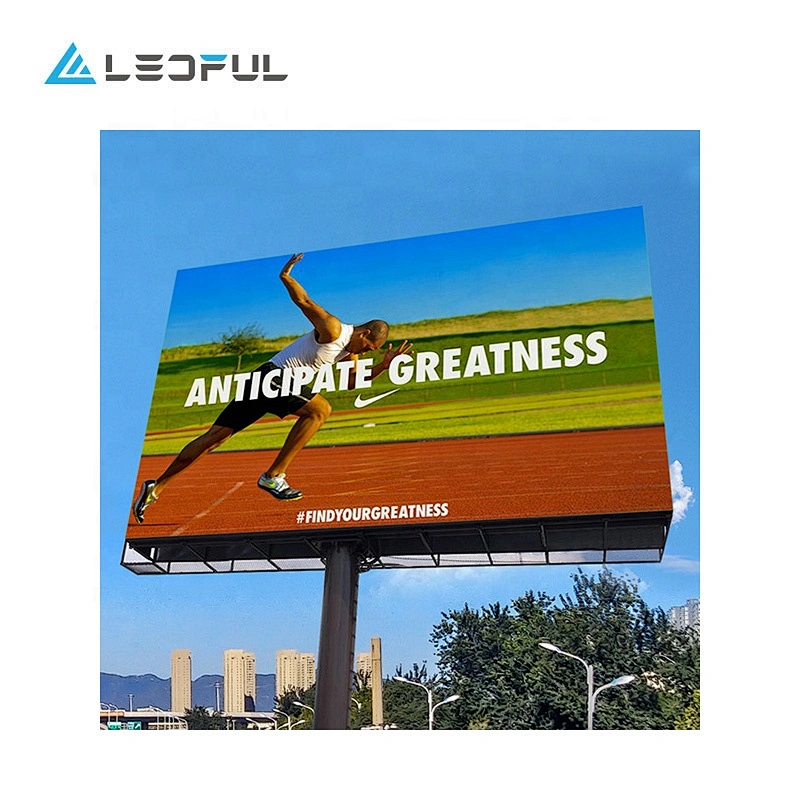

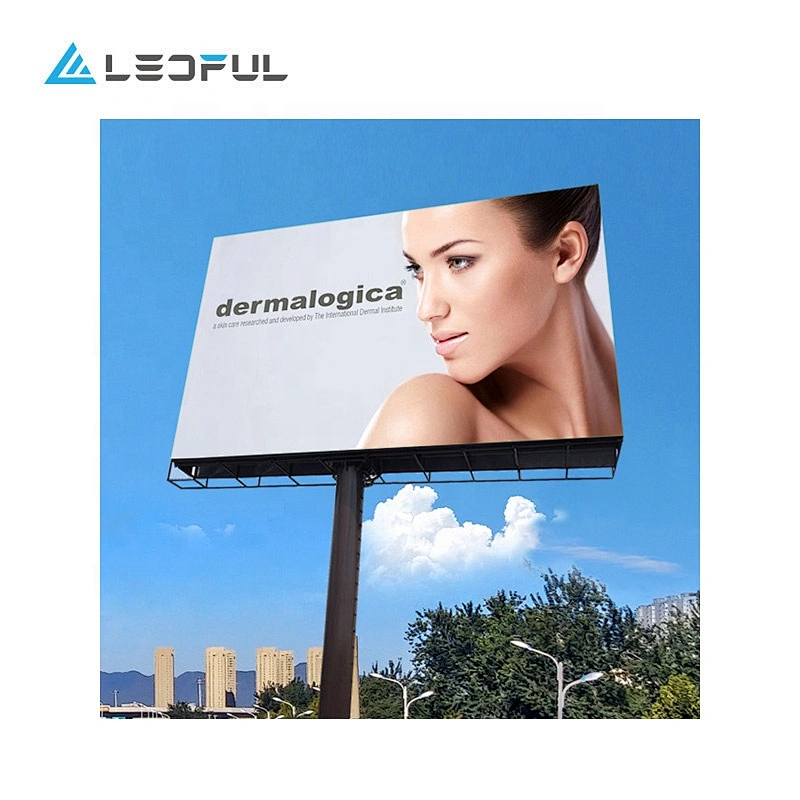

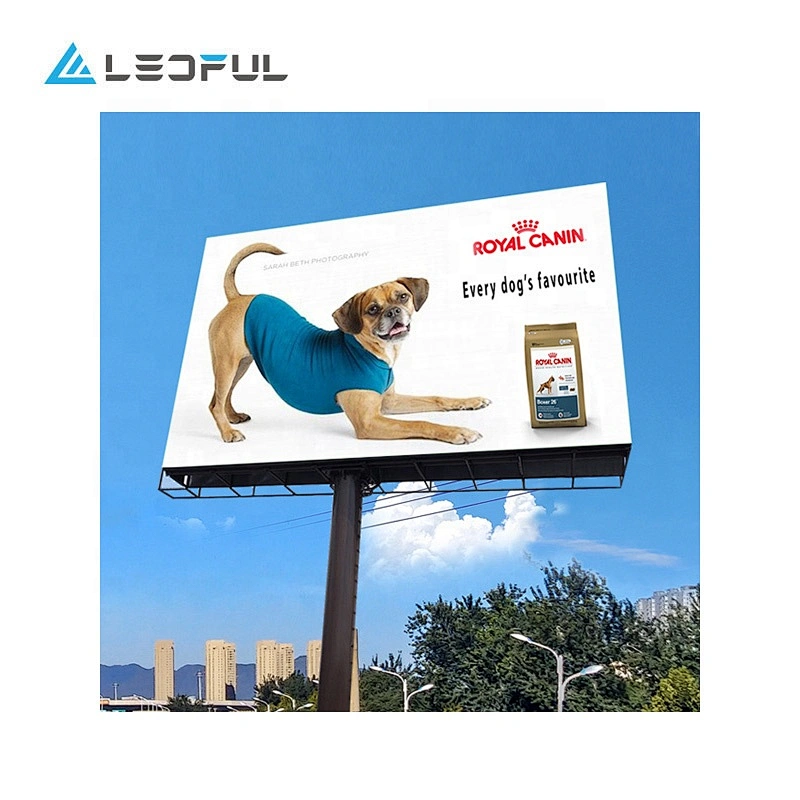

Pillar / Pole LED display

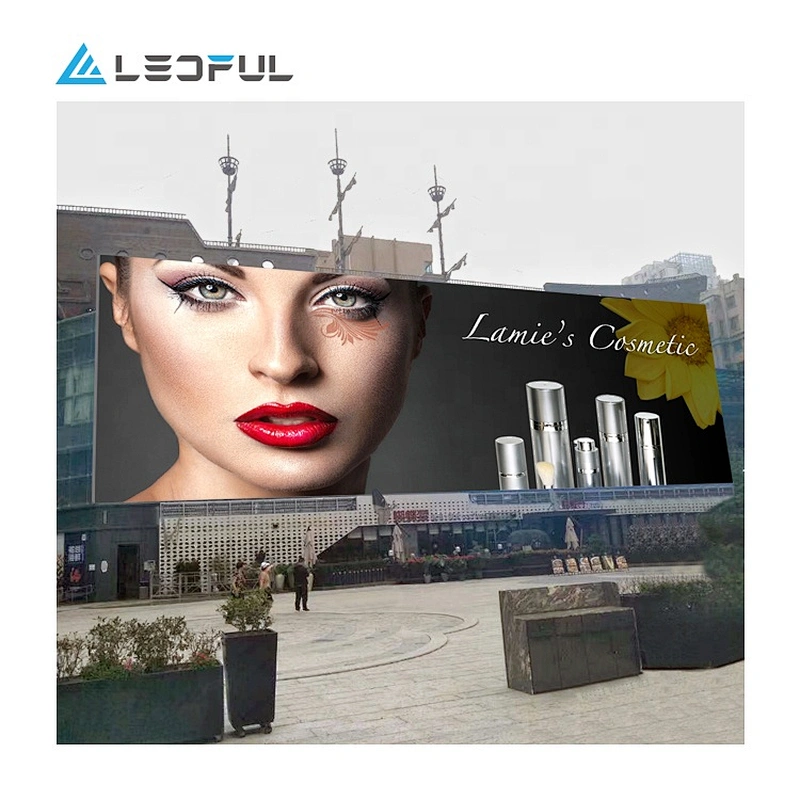

Wall mounted LED display
How to control LED display?
By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
Ultra High / Low Temperature
OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

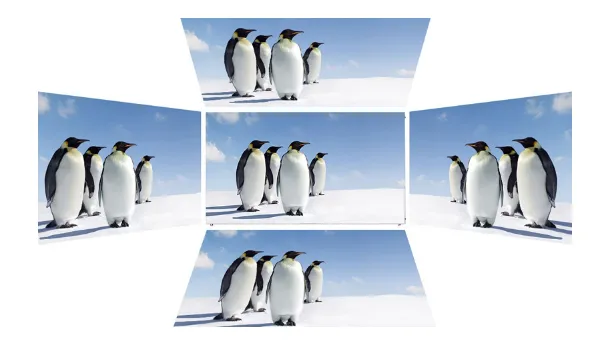

SMD Performance and View Angle
High Brightness & Auto Brightness

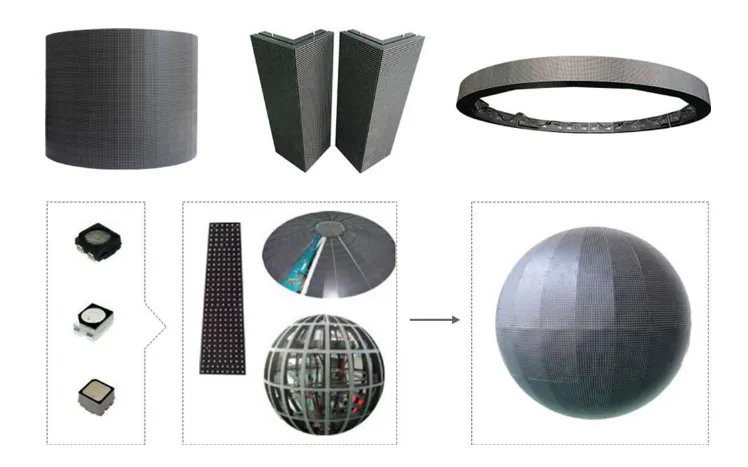

Various Shaped LED Display
Myanmar Outdoor Three Sided Advertising Display
Product Model:OF8
Pitch: 8mm
Size: 3.84x3.84mx3pcs
Location: :Myanmar
Energy Saving Outdoor Fixed LED Display---OF Series--OF8
OF8model, pixel pitch is 8mm, which is one of the most popular model for outdoor fixed installation display application.the optimum viewing distance is from 8m up to 500m.
This project is 3-sided outdoor pole advertising display, each display size is 3.84mx3.84m, total 3pcs.
Professional, High Efficient and Caring
2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control
3.Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized
Focus on the improvement LED cabinets 4.High efficient and enthusiastic team to make reliable LED display
3.Provide with innovative and satisfying products
4.Excellent product quality, quick and professional services
5.Always ready for your any change on LED display details.
6.Recommend the best proper solution for your LED project.
7.Catch things what you missed before LED display production.
8.Take good care of each detail for your products, packages,shipping
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more.This very important option
determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.
Q4. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q7: What is the control system?
A: We use Nova control system.
Q8: How can you ensure your led display product quality?

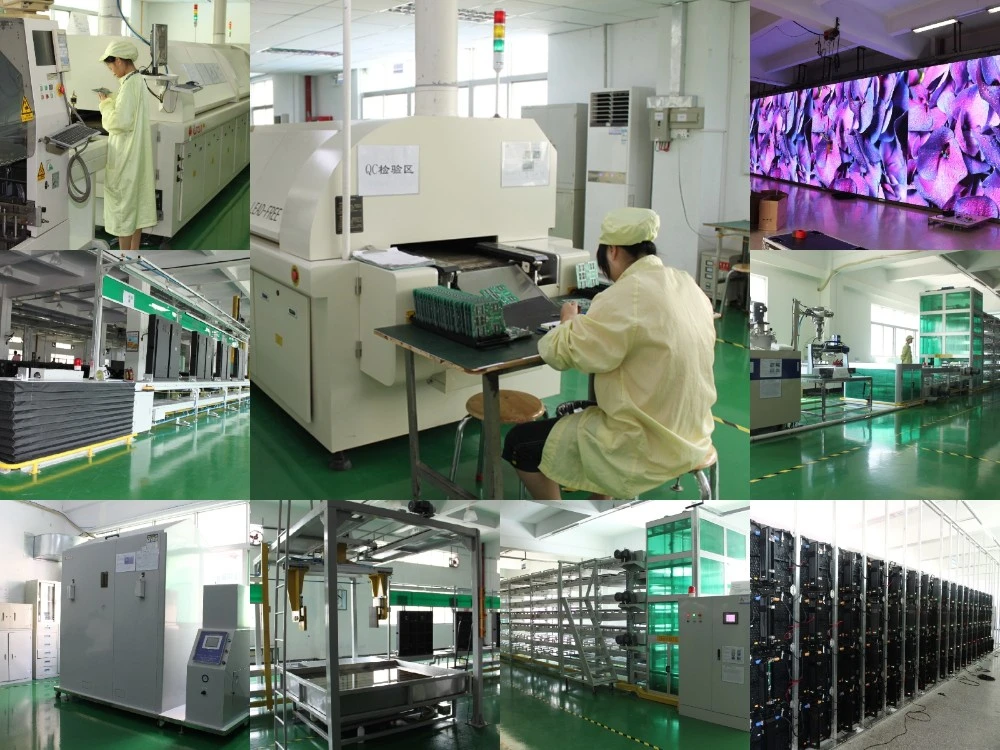

A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
