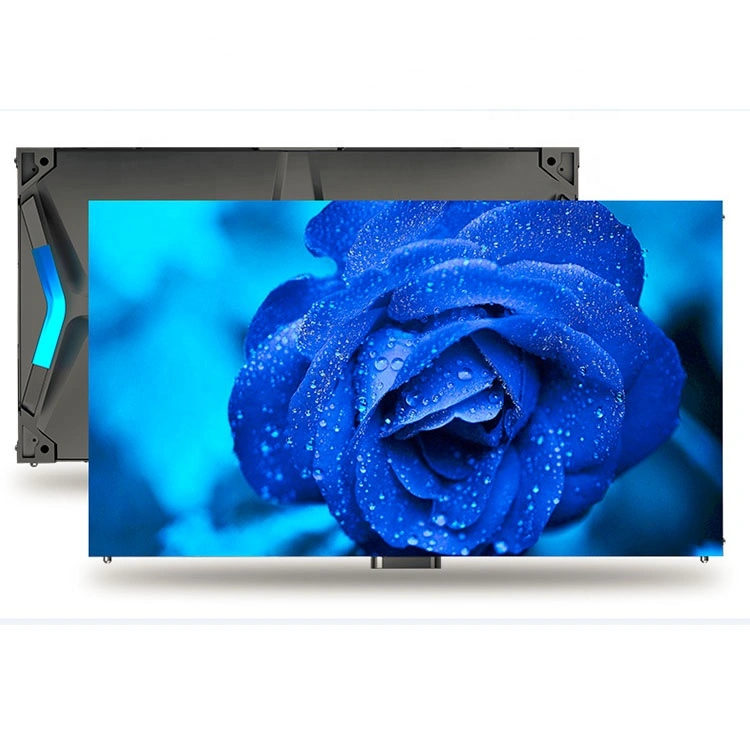

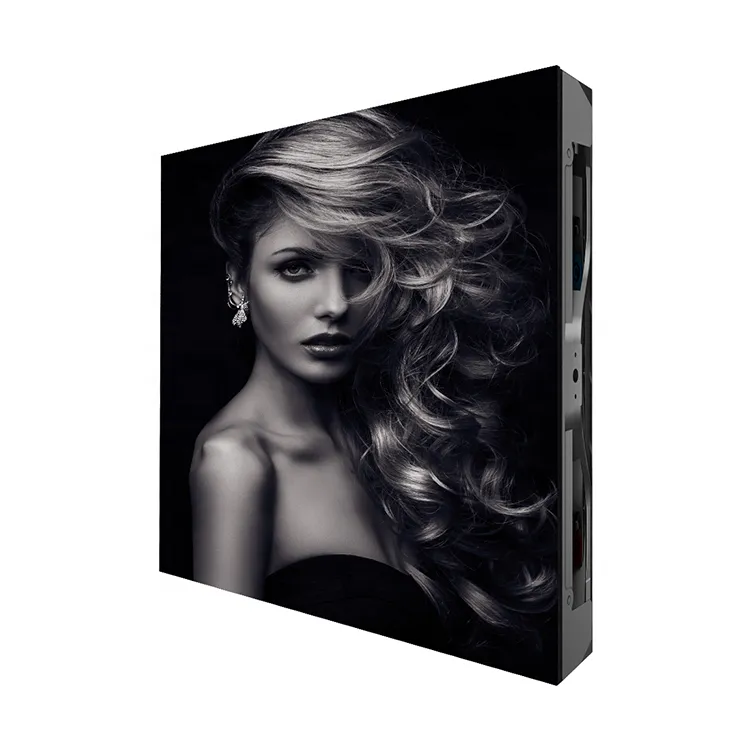

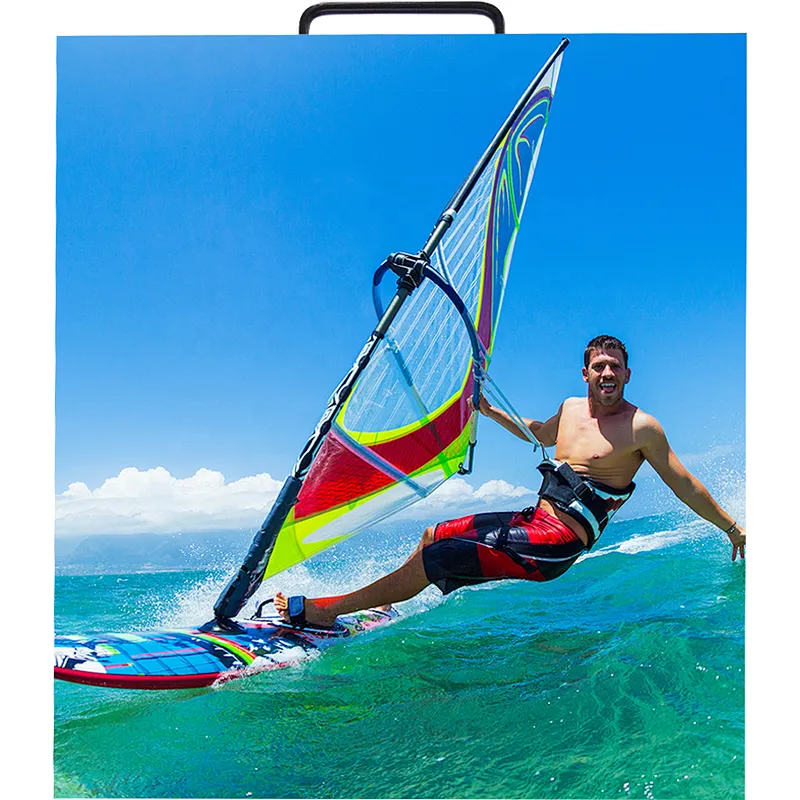

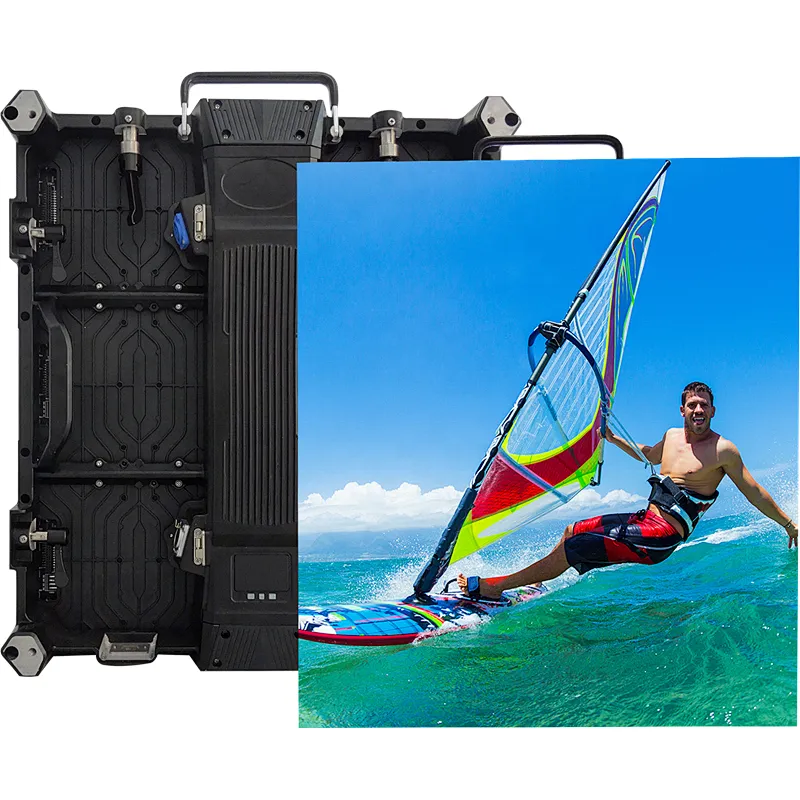

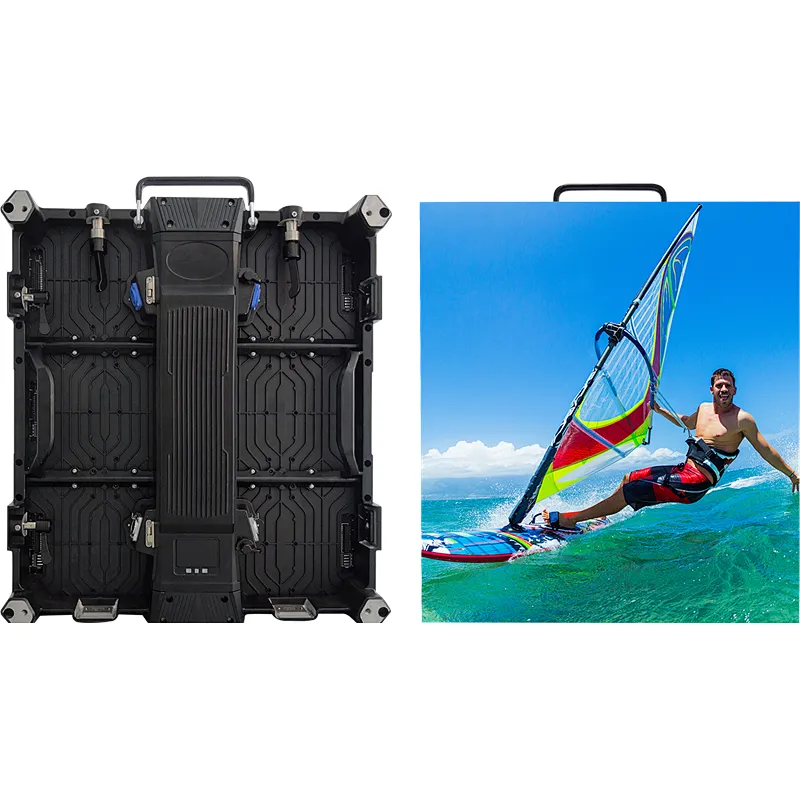

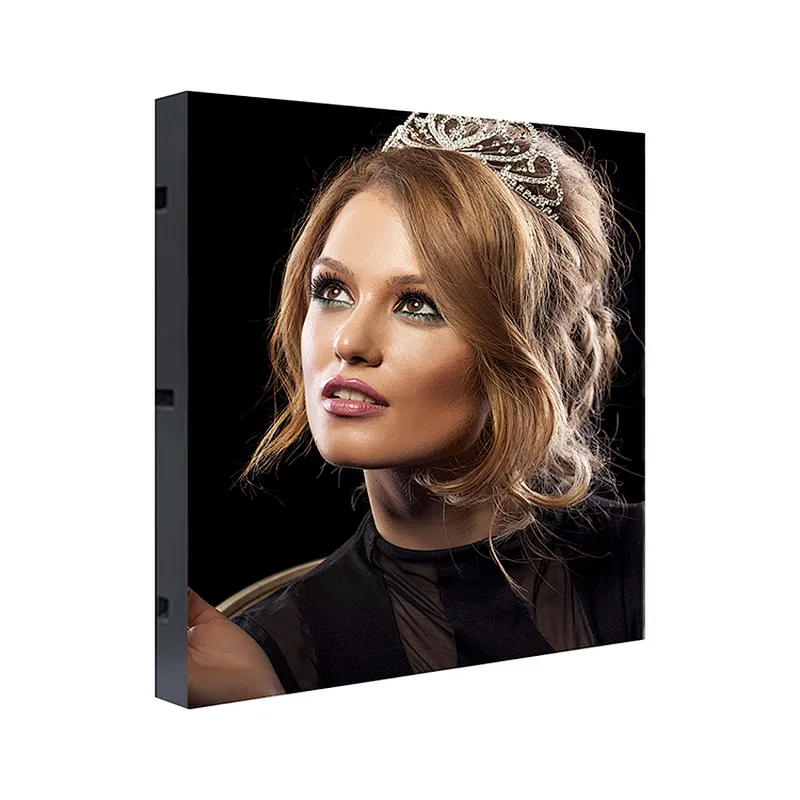

remote control P2.4 fullcolor flexible LED video wall display

USD2,500.00 -USD3,500.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU

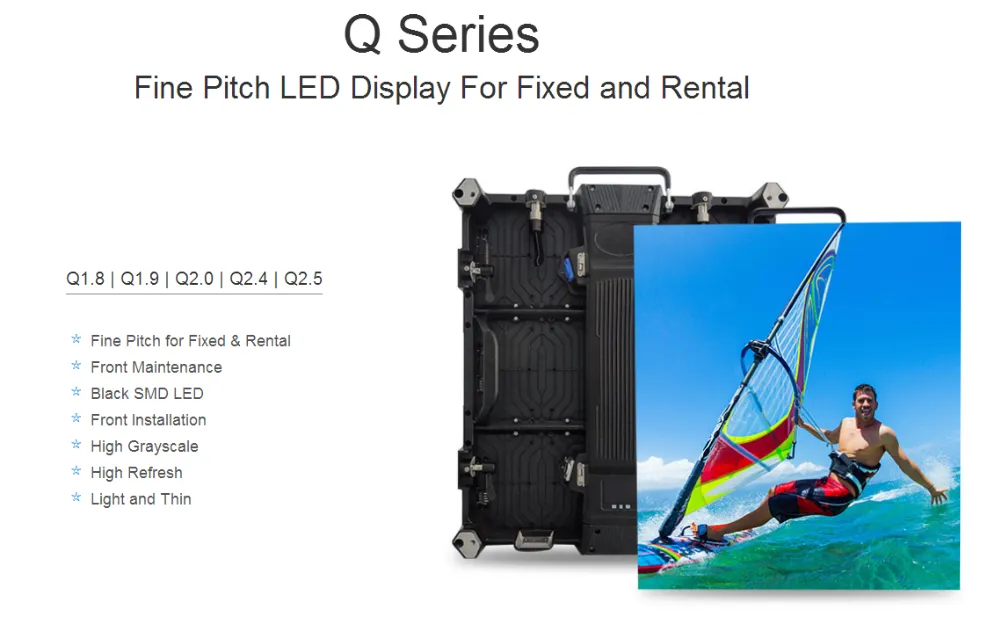

  • Categories: 500*500 Q Series

    Product Description

    • Place of Origin:CN;GUA
    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:2.4mm
    • Brand Name:LEDFUL
    • Model Number:Q2.4
    • Screen Dimension:480*540
    • Product name:Led Video Wall
    • Module size:240*180mm
    • Refresh rate:3840
    • Viewing angle:160H/160V
    • Certificate:CE ROHS FCC
    • Brightness:1000cd/sqm
    • Color:Full-color
    • Name:Indoor Led Screen

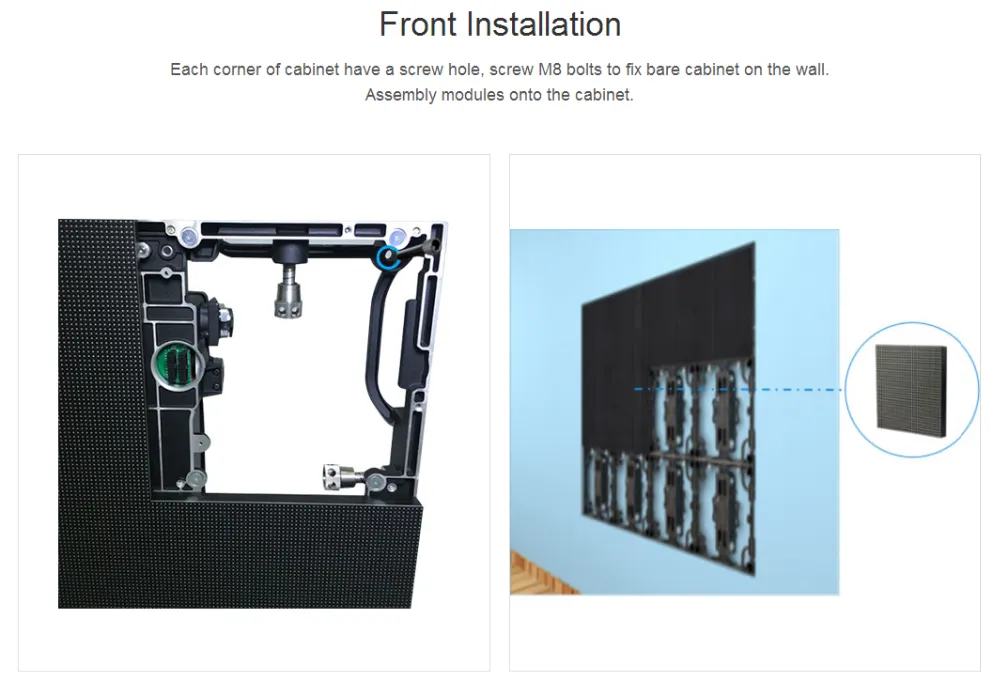

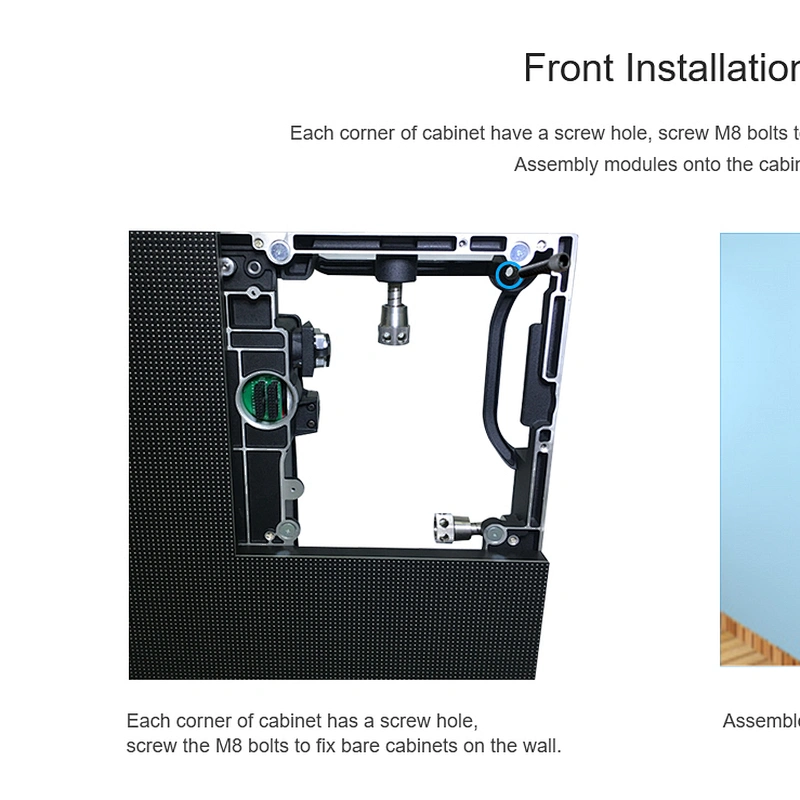

    • Installation:Front

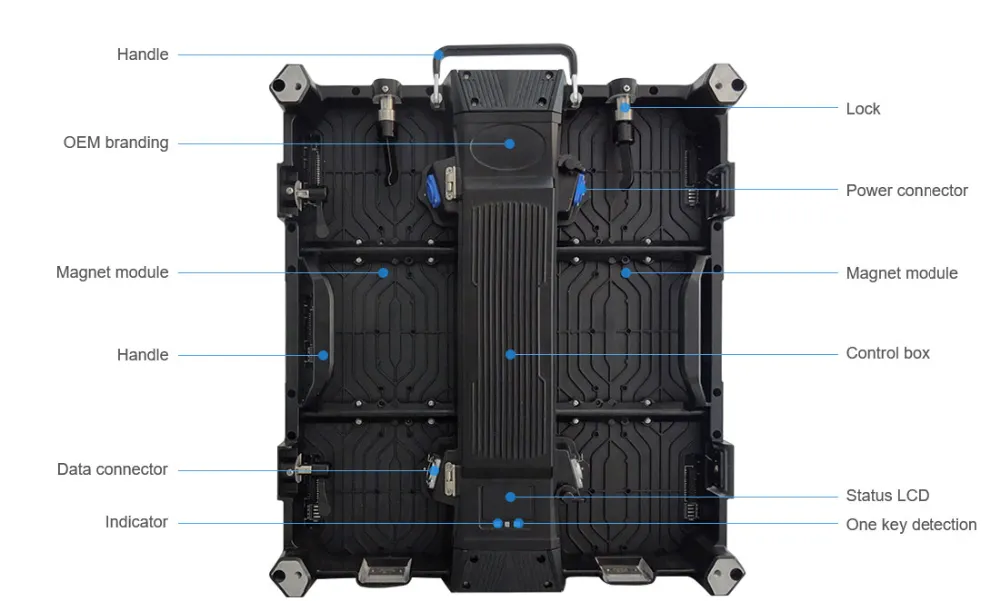

    • Cabinet size:480*540mm
    Product Description
    Parameter
    Value
    Q2.4
    Pixel Pitch(mm)
    2.4
    Pixel Matrix Per Sq.m
    173611

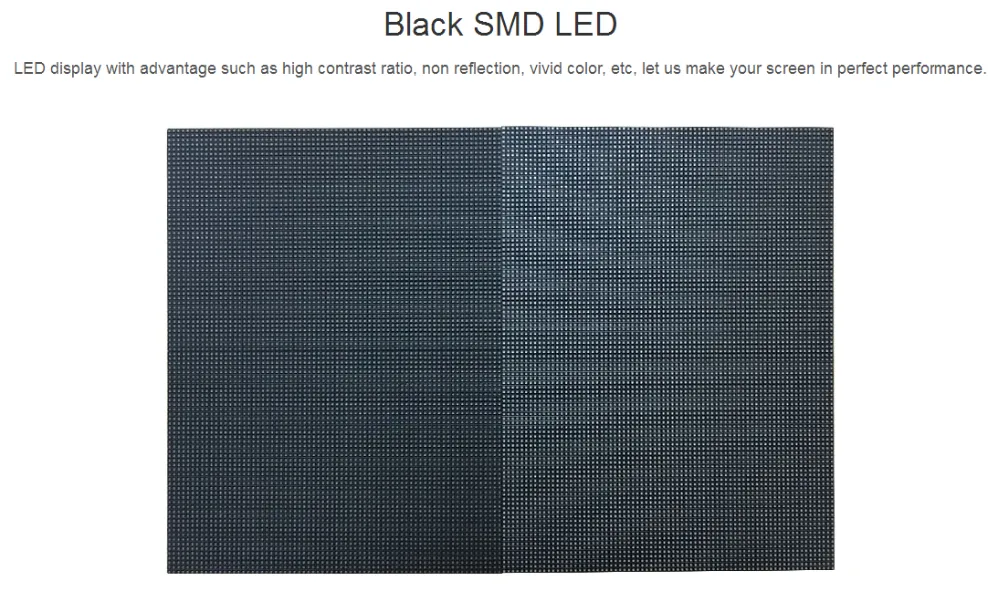

    Pixel Configuration
    SMD1515
    Brightness (nits)
    1000
    Scan
    1/30
    Cabinet Resolution
    240x270
    Power Con. (Max / Avg)
    700/200 w/sq.m
    Module Dimension
    240x180mm / 0.79x0.59ft
    Cabinet Weight
    8.5kg / 18.7Ib ( Die-casting Aluminum)

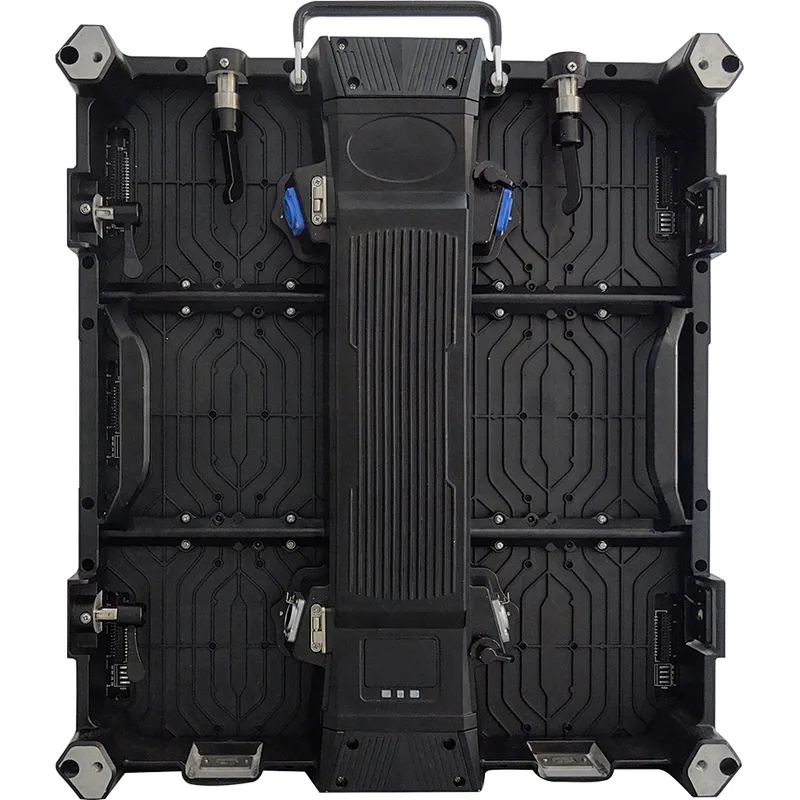

    Cabinet Dimension
    480x540x90mm / 1.57x1.77x0.3ft

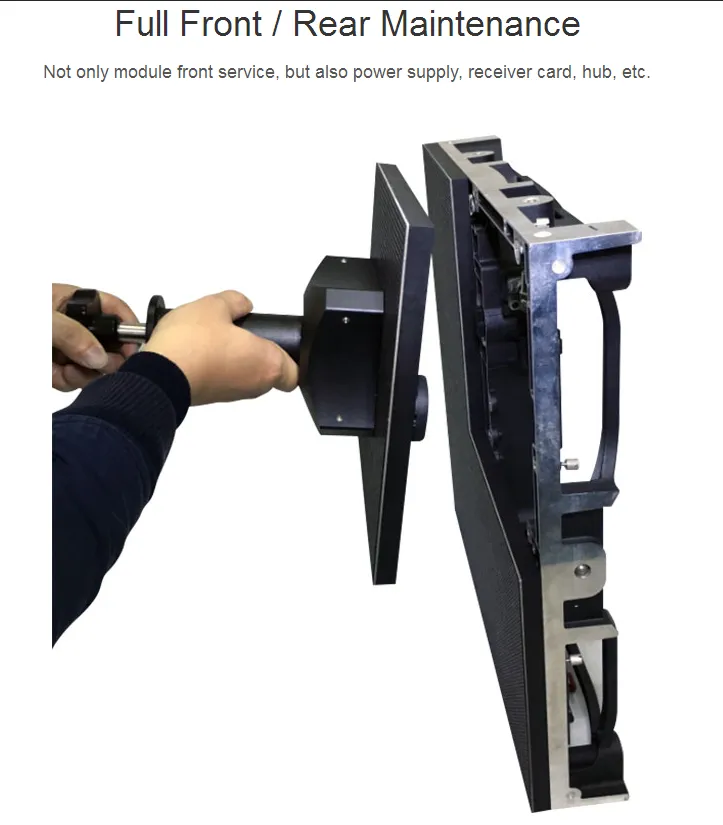

    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥3840

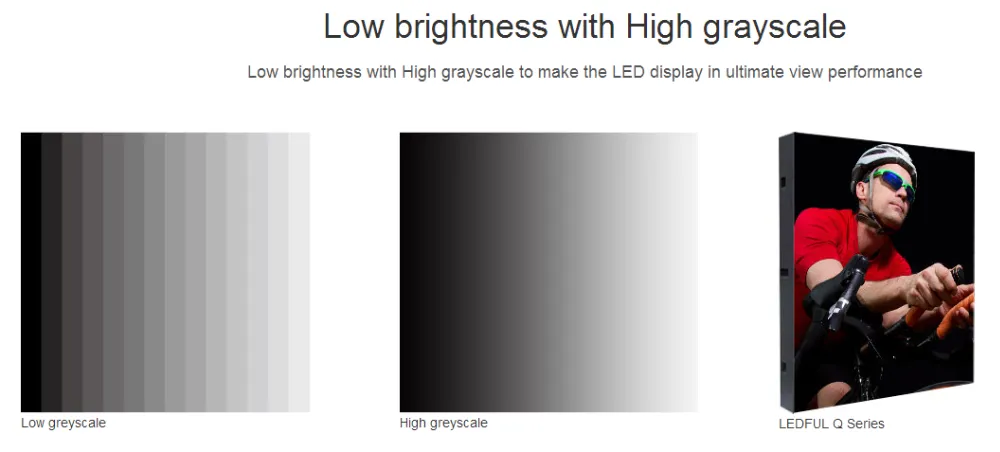

    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP41
    Input Voltage (AC)
    110V / 240V
    * Specifications and photos are subject to change without prior notice.

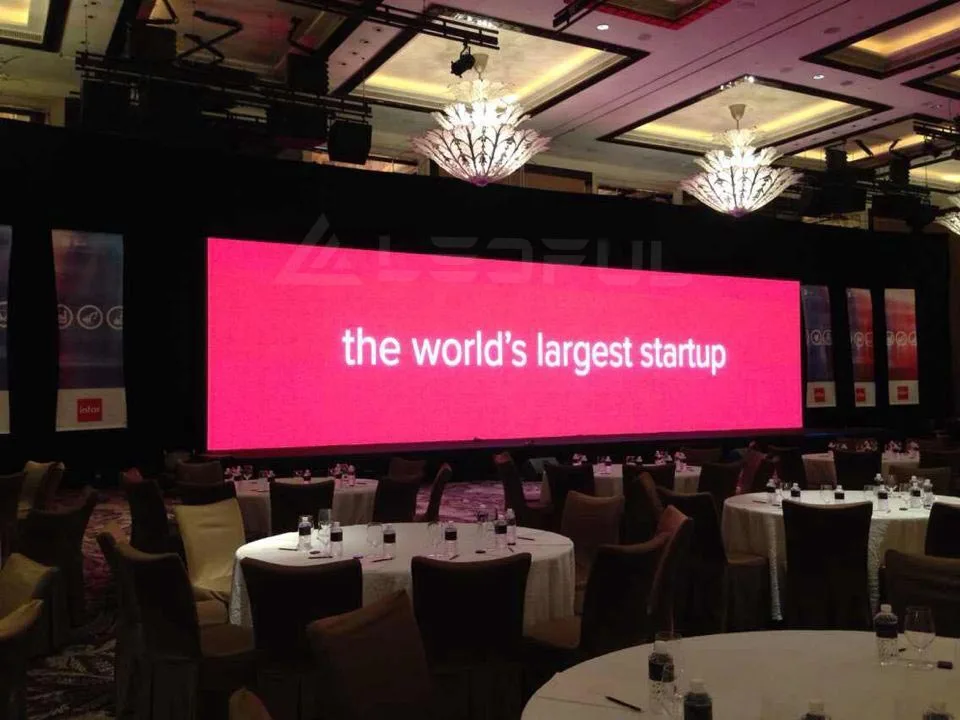

    Applications

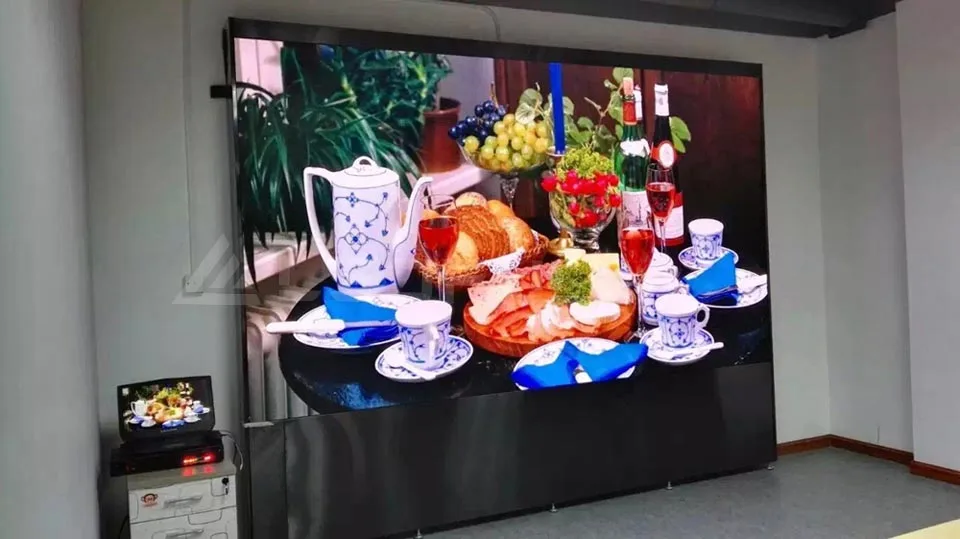

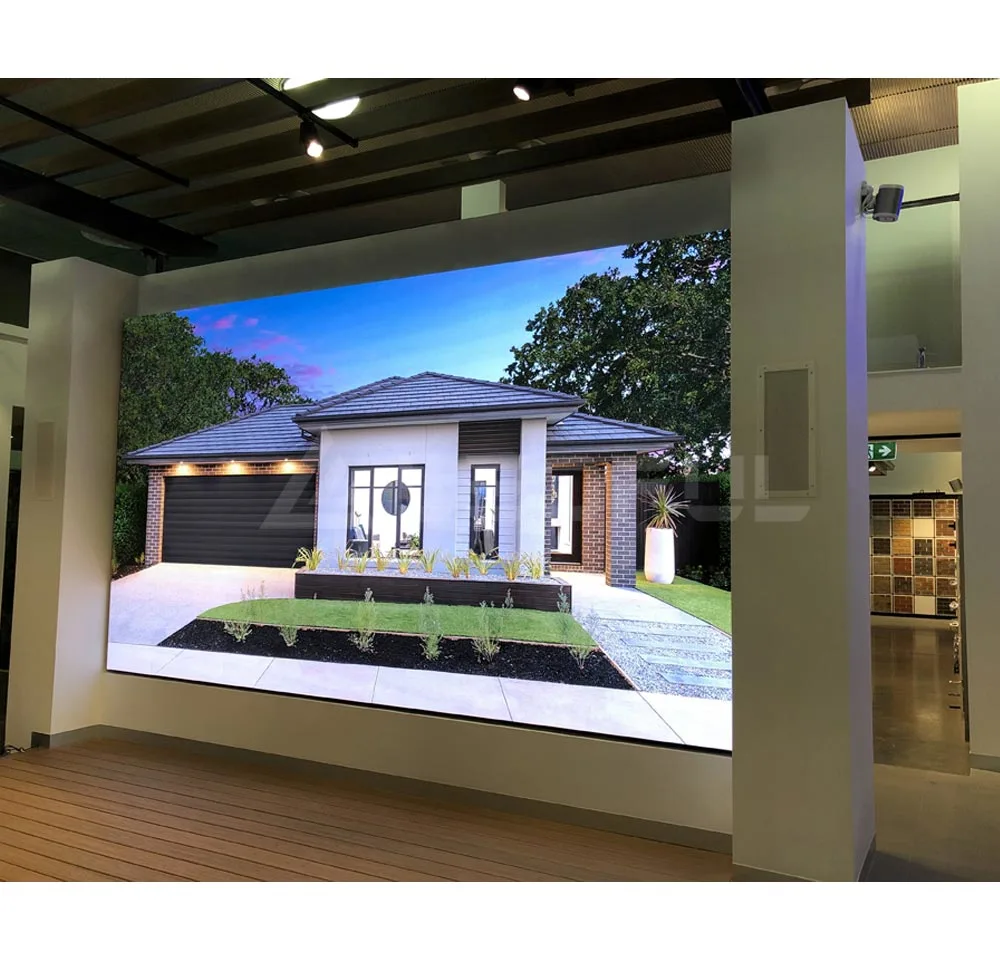

    Australia High Definition Indoor Advertising LED

    Display

    Product Model: Q1.8
    Pitch:1.875mm
    Size: 18sqm
    Location: Australia

    Q1.8 model is widely used for indoor HD LED advertising application, with all unique features of die-casting aluminum cabinet design and small pixel pitch display's advantages.
    This Q1.8 reference project is shared from the Australia client, a very famous interior design and decoration company in local,.they have almost perfect requirements and harsh aesthetics for all designs and products. before making the final decision on our first transaction, they asked a demo for checking the product quality and performance and indeed they are very satisfied with our product-Q1.875 model.they said it's the right and best choice to cooperate with us in LED business and designated LEDFUL as the only supplier for their all projects.

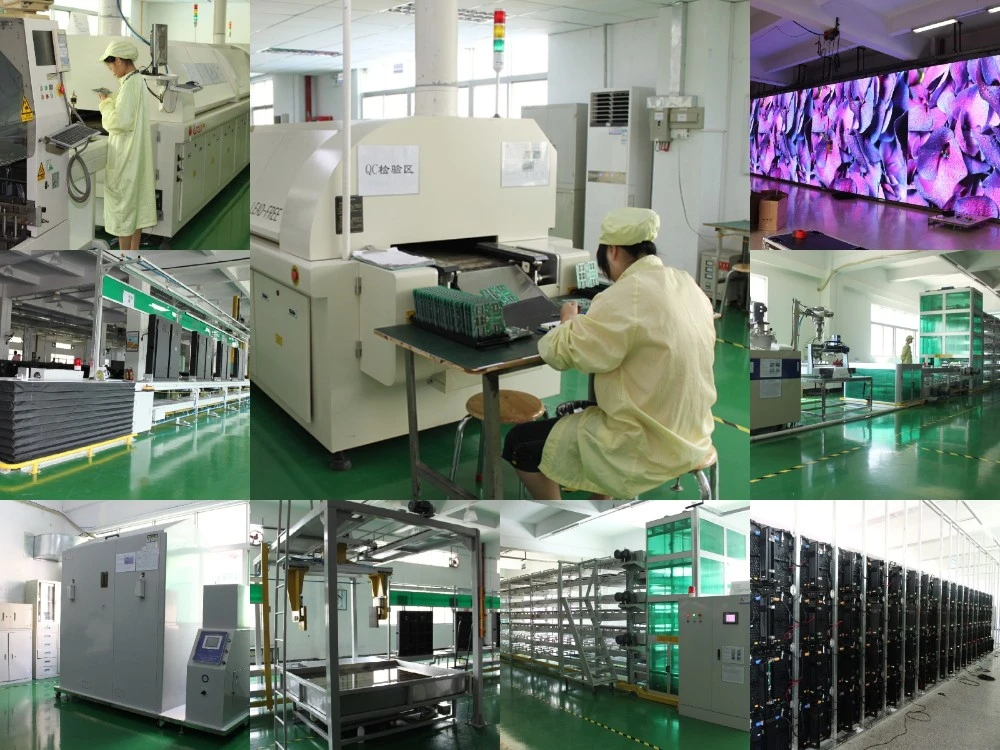

    Our Company

    One-stop solution provider,More designs and more solutions
    Wireless control, 4G, Wifi, Cluster control,Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized,Focus on the improvement and innovation of rental LED cabinets
    High efficient and enthusiastic team to make reliable LED display ,Our partners are Media Companies, Stage Designer, Project Manager,,Pro Audio, Light and Video companies, AV Rental Equipment companies,
    Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

    certification

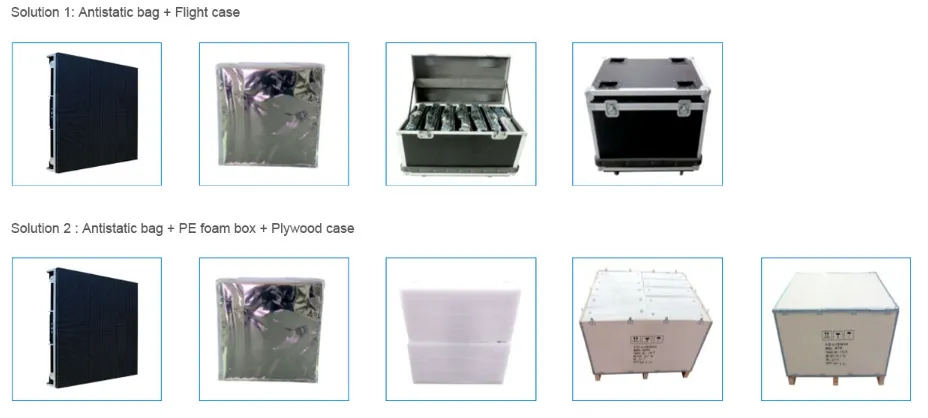

    Packing & Delivery
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)
    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?

    LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.
    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
