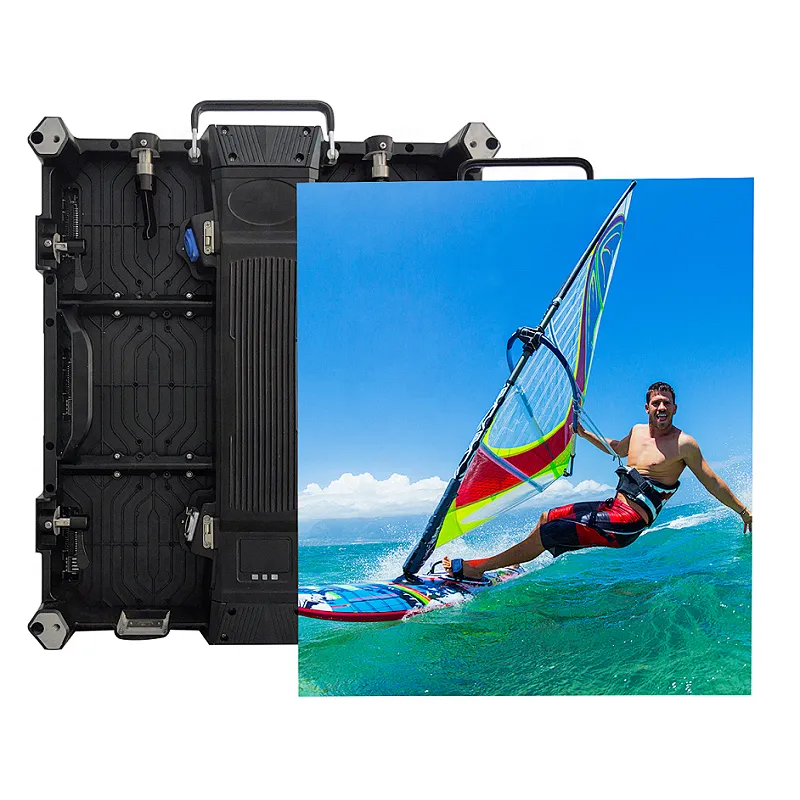

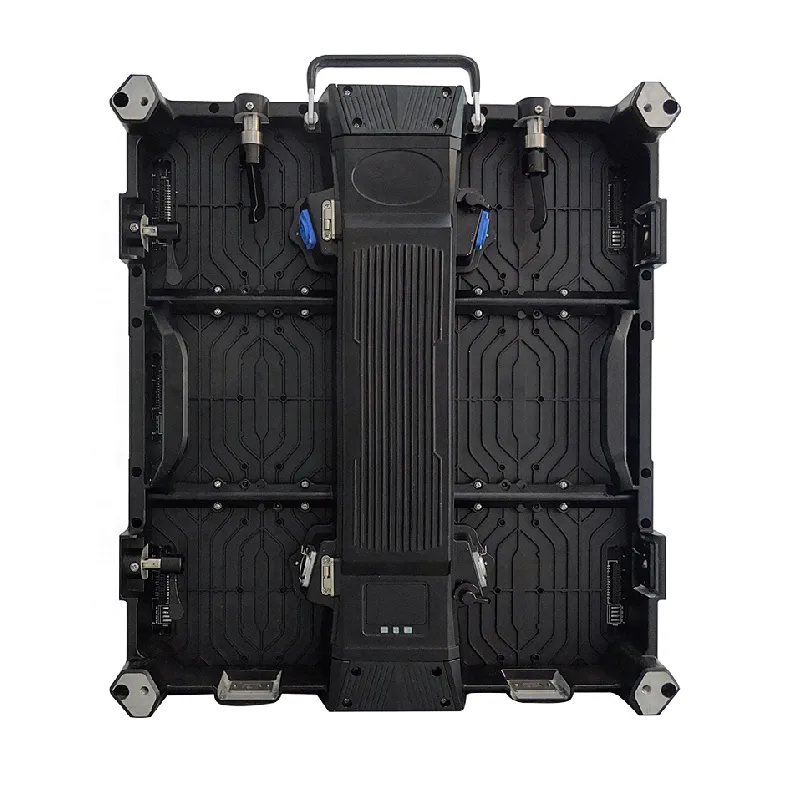

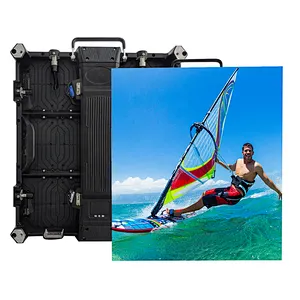

HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel
HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel
HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel
HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel
HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel
HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel
HD  P2.0 front maintenance Fine Pitch high fresh rate  LED TV panel

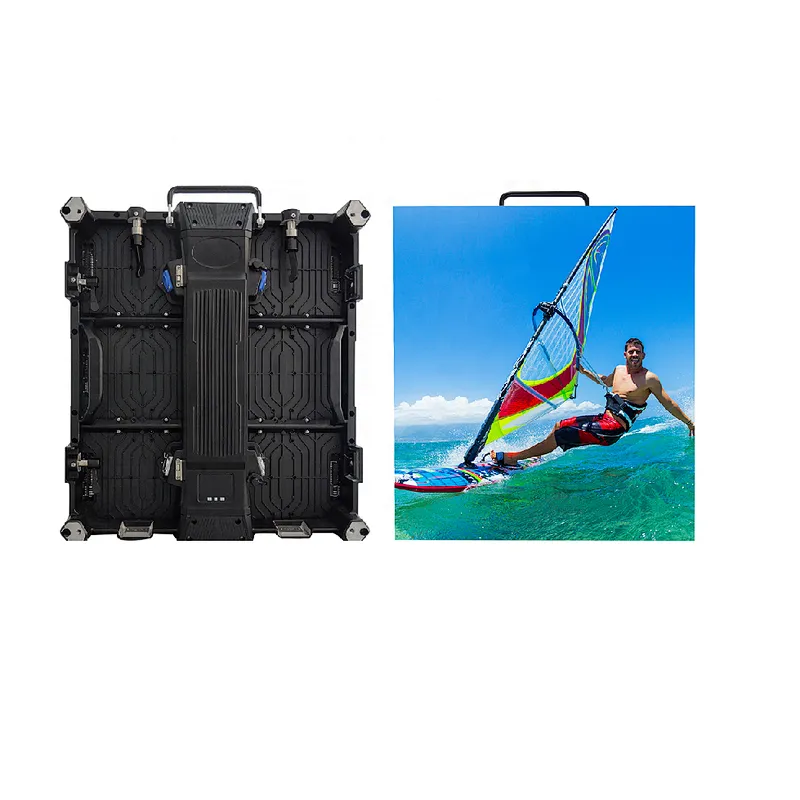

HD P2.0 front maintenance Fine Pitch high fresh rate LED TV panel

USD1632.00 -USD1632.00
  • Delivery
  • Minimum order quantity1
  • Supply Ability2000 / Month
  • Country of OriginYANTIAN, SHEKOU
  • Categories: 500*500 Q Series
    Model NO.: Q SERIES
    • Place of Origin:CN;GUA
    • Application:Rental & Fixed
    • Color:Full Color
    • Panel Size:500x500mm
    • Pixel Pitch:2mm
    • Model Number:Q SERIES
    • Brand Name:LEDFUL
    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:2.0mm
    • Screen Dimension:480*540mm
    • Color:Full-color
    • LED chip:Epistar
    • Control system:Novastar
    • Power Supply:Meanwell
    • Brightness:1000nits
    Product Description

    Specifications

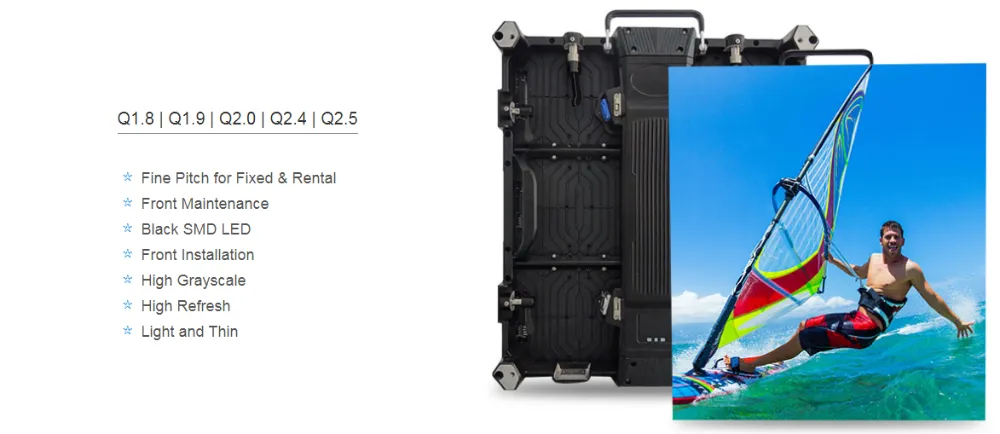

    1. fine pitch for fixed & rental                                             2. front  maintenance

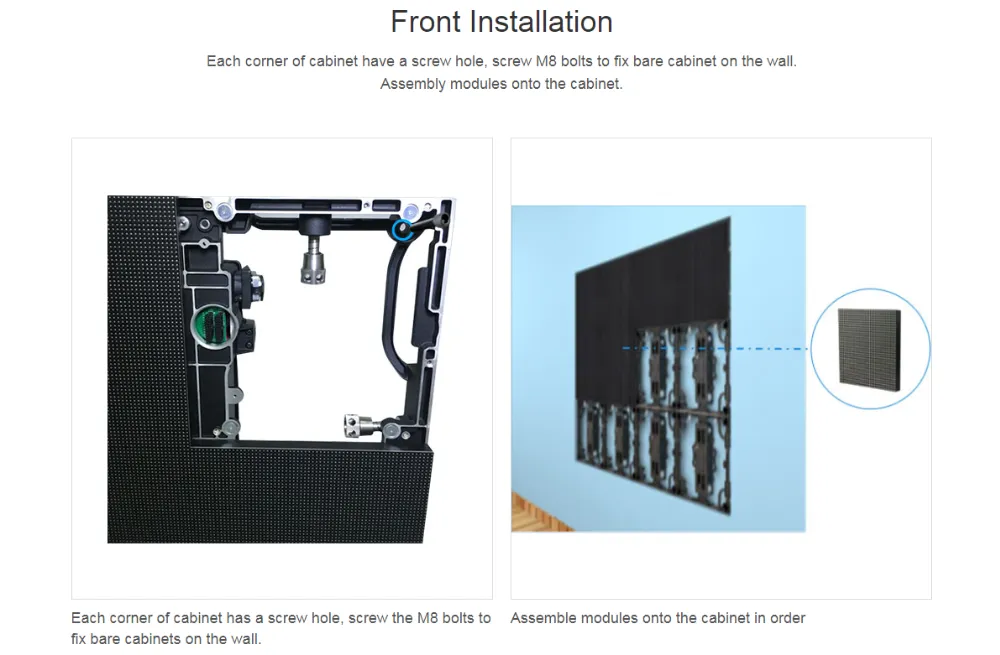

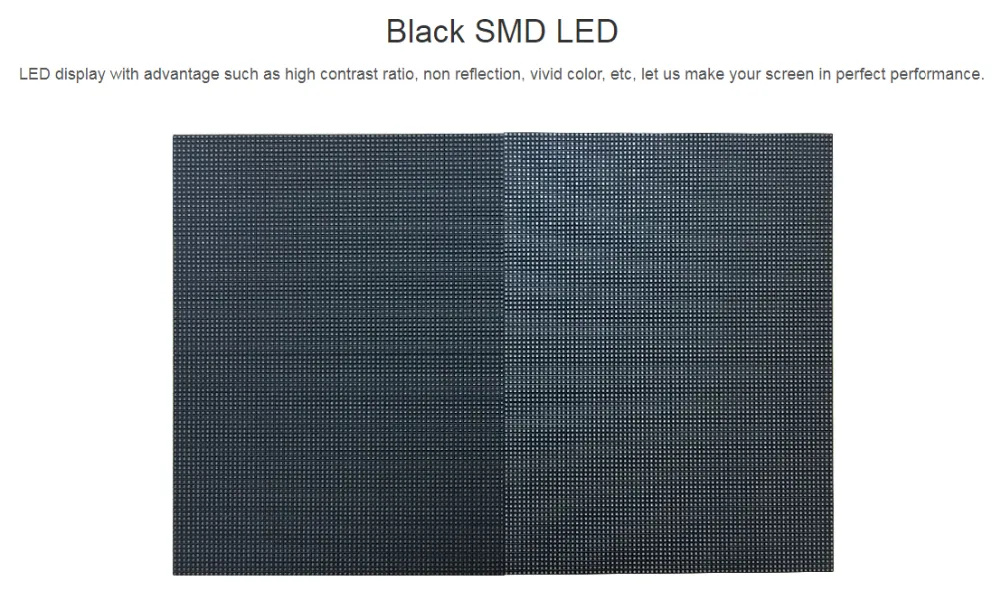

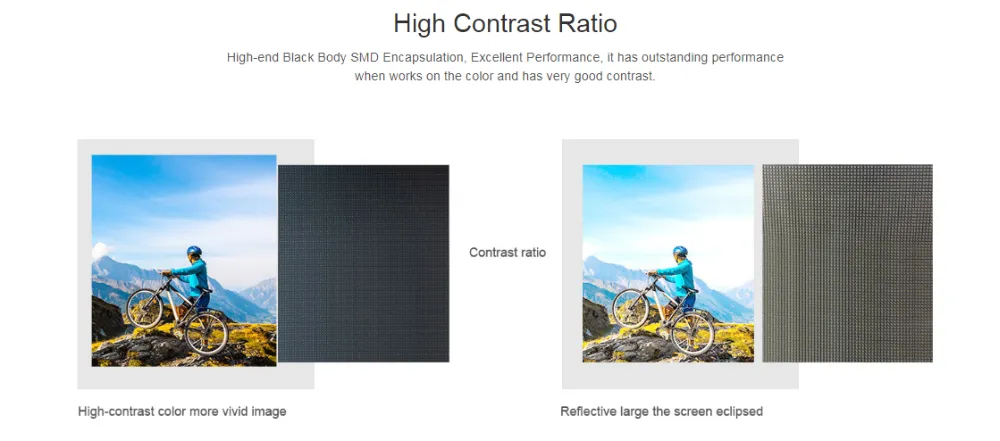

    3. black SMD LED                                                                 4. front installation

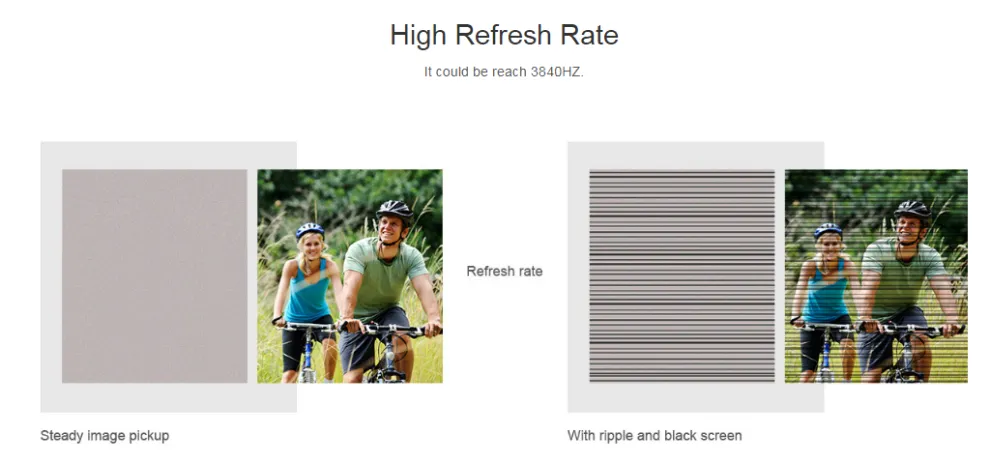

    5. high grayscale                                                                  6. high refresh

    7. light and thin

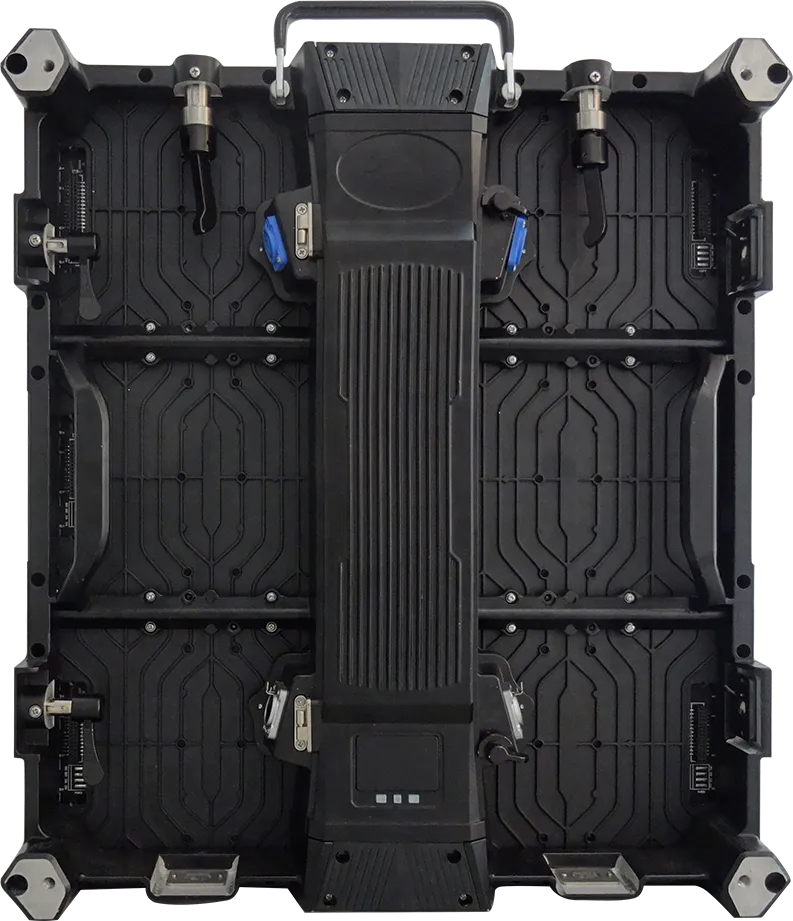

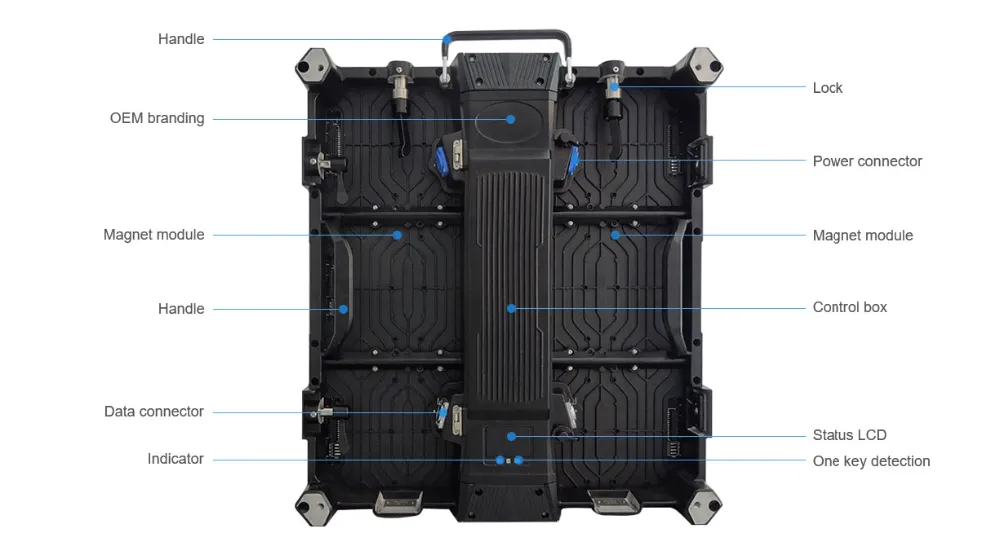

    Detailed Images
    Value
    Q2.0
    Pixel Pitch(mm)
    2
    Pixel Matrix Per Sq.m
    250000
    Pixel Configuration
    SMD1515
    Brightness (nits)
    1000
    Scan
    1/30
    Cabinet Resolution
    240x270
    Power Con. (Max / Avg)
    700/200 w/sq.m
    Module Dimension
    240x180mm / 0.79x0.59ft
    Cabinet Weight
    8.5kg / 18.7Ib ( Die-casting Aluminum)
    Cabinet Dimension
    480x540x90mm / 1.57x1.77x0.3ft
    Service Access
    Front / Rear
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16

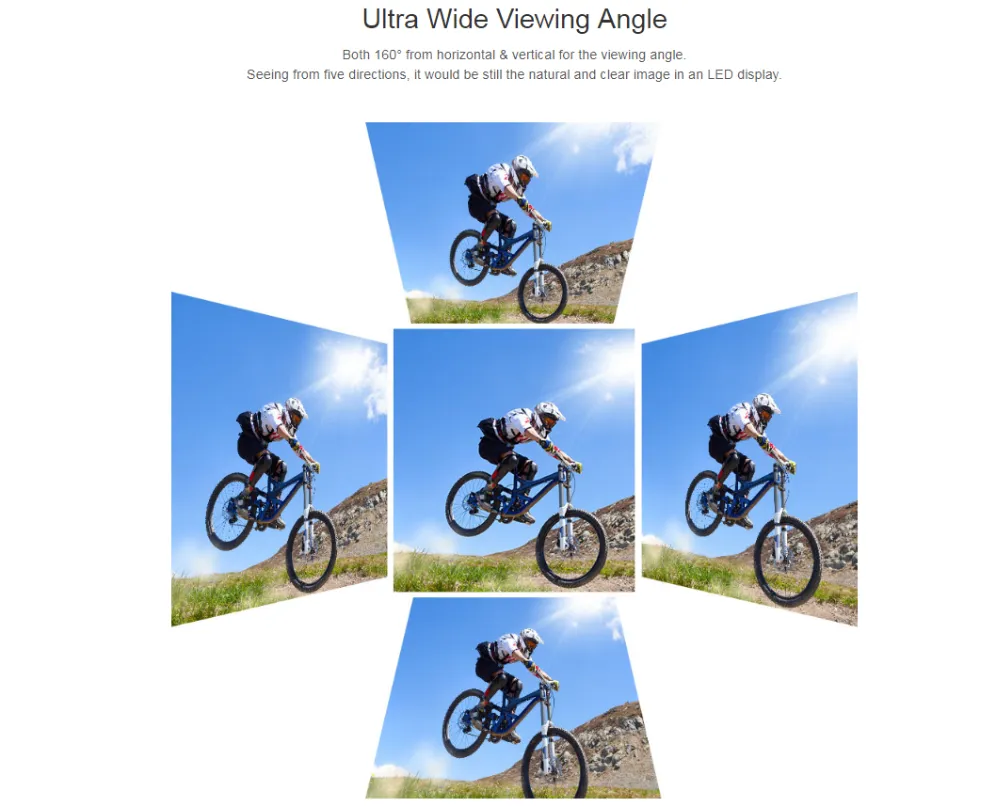

    Viewing Angle (H/V)
    160 / 160
    IP Rate
    IP41
    Input Voltage (AC)
    110V / 240V
    * Specifications and photos are subject to change without prior notice.
    Other Products
    Our Company

    LEDFUL is located in  the Baoan District, Shenzhen, Guangdong. We are a professional manufacturer of LED display,
    set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories,
    a wide range of diversity, reasonable price and on-time delivery.  P2.6-6.2mm HD video stage background rental LED display for indoor event

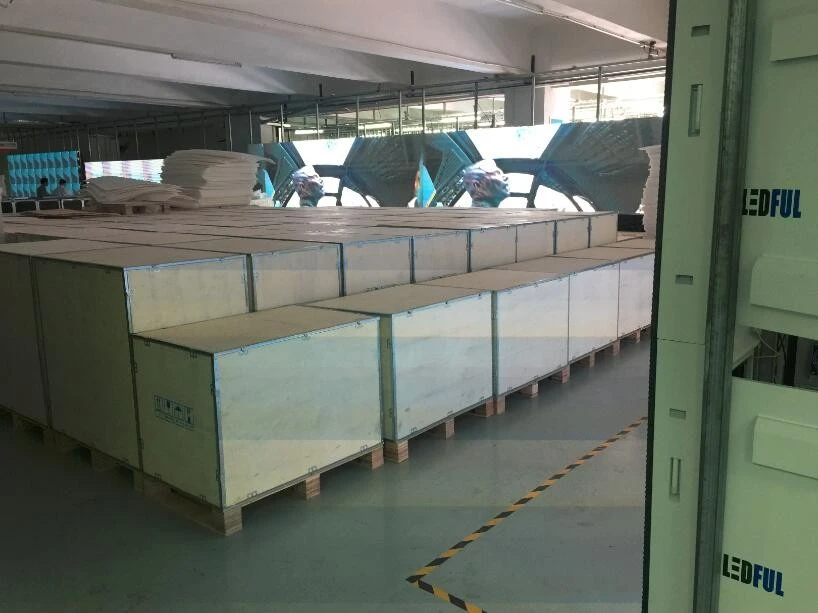

    Packing & Delivery

    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.

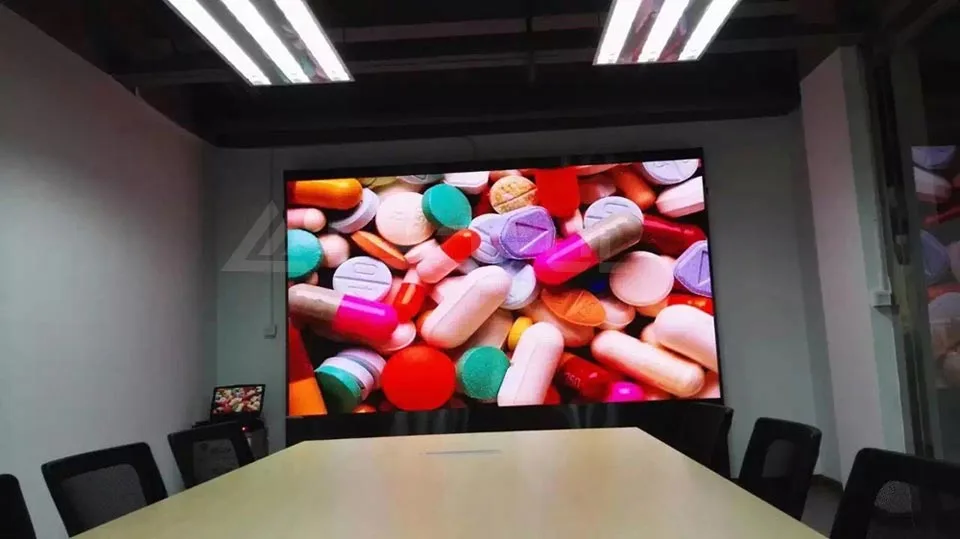

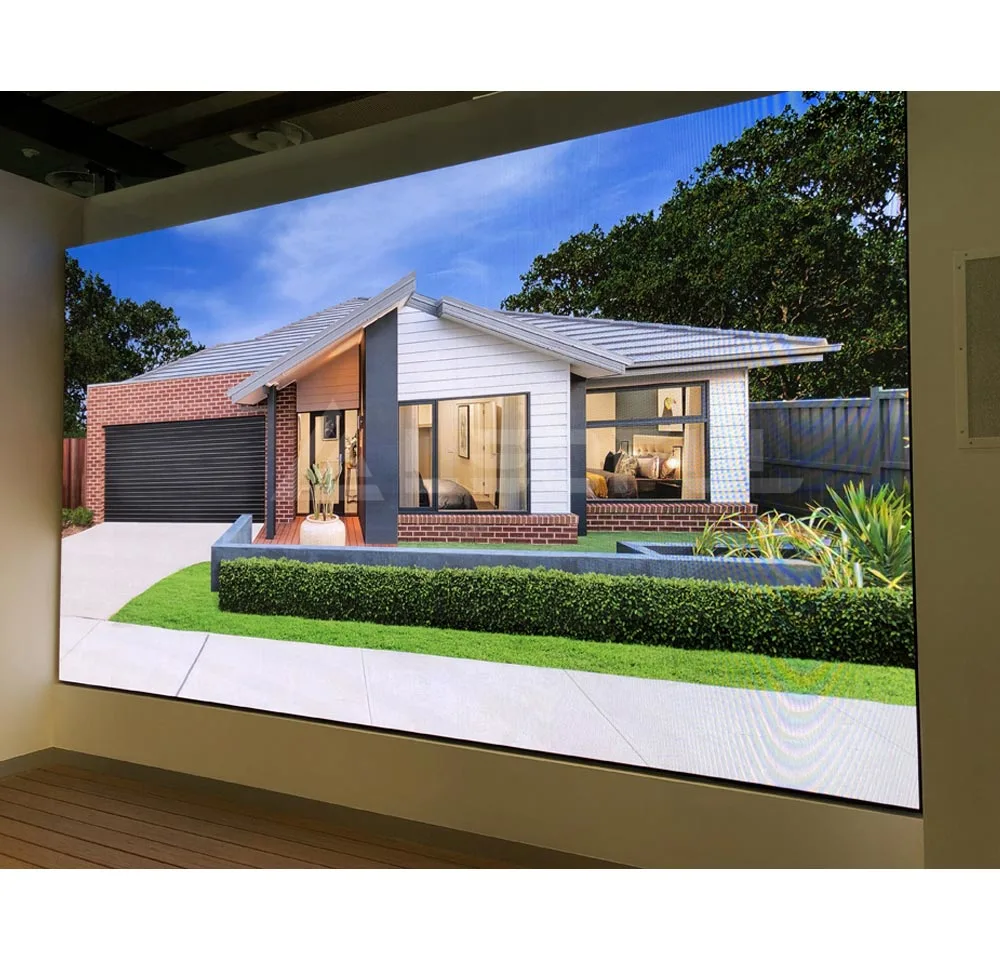

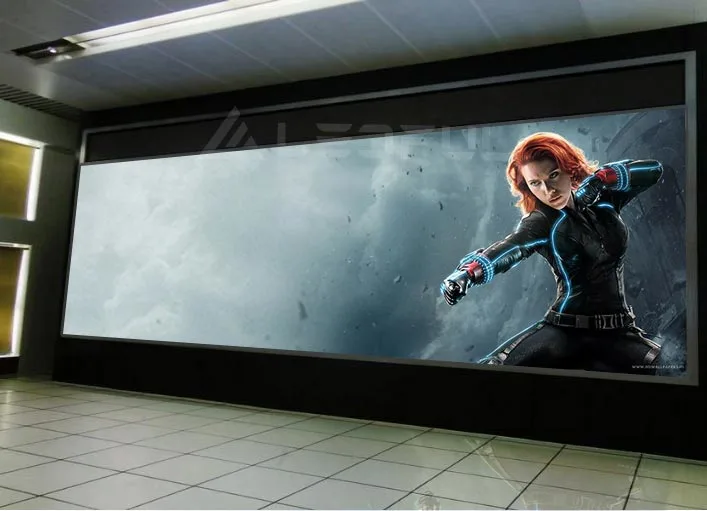

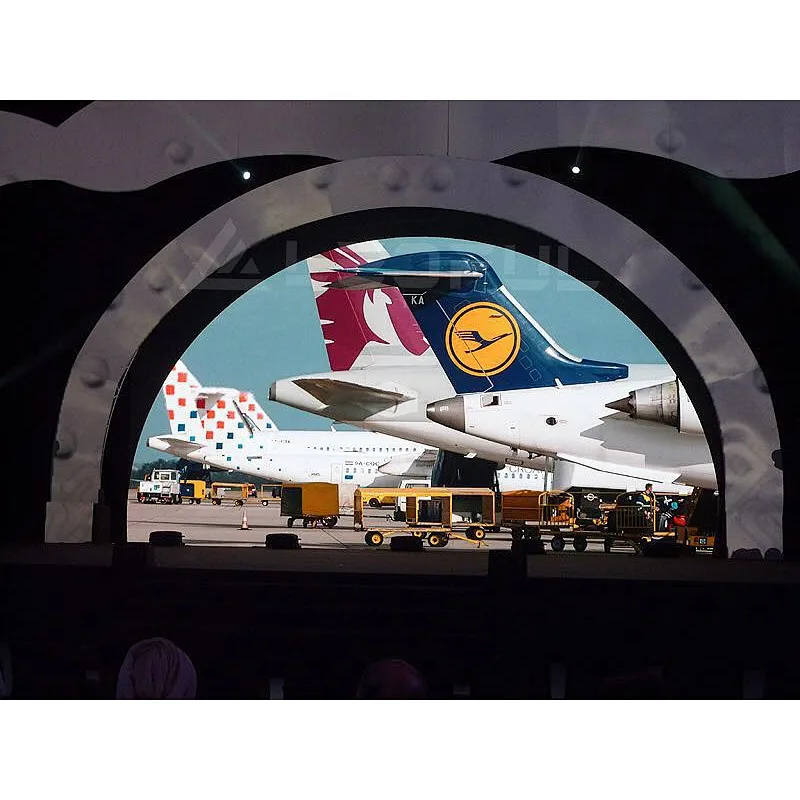

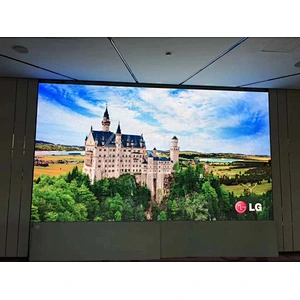

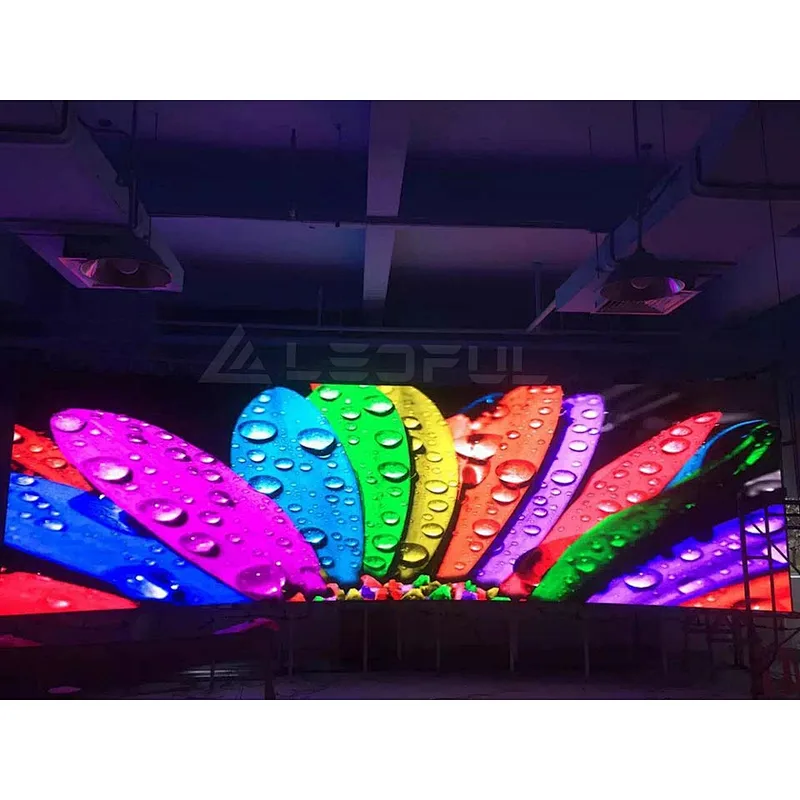

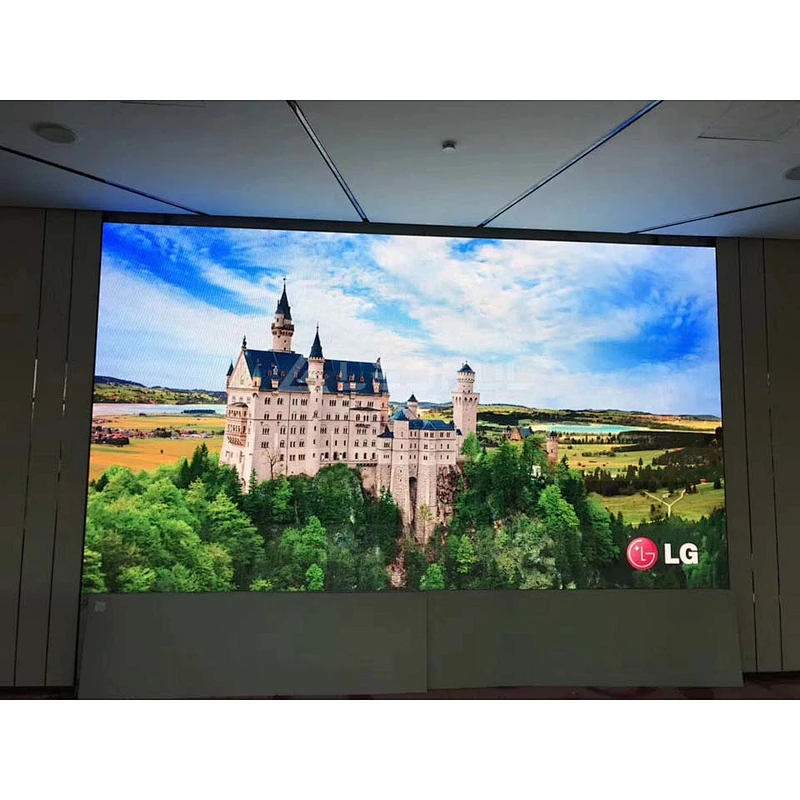

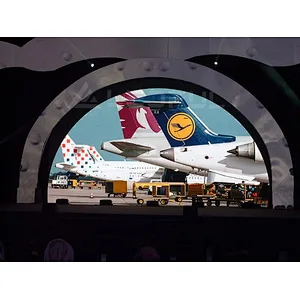

    Application
    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
    we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: FOB


    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply free sample, but the customers have to pay the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test for 72hrs before delivery


    Q8. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q9: What is the control system?
    A: We use Nova control system.

    Q10. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q11. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q12: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
