- Usage:OUTDOOR
- Display Function:Video
- Pixels:10mm

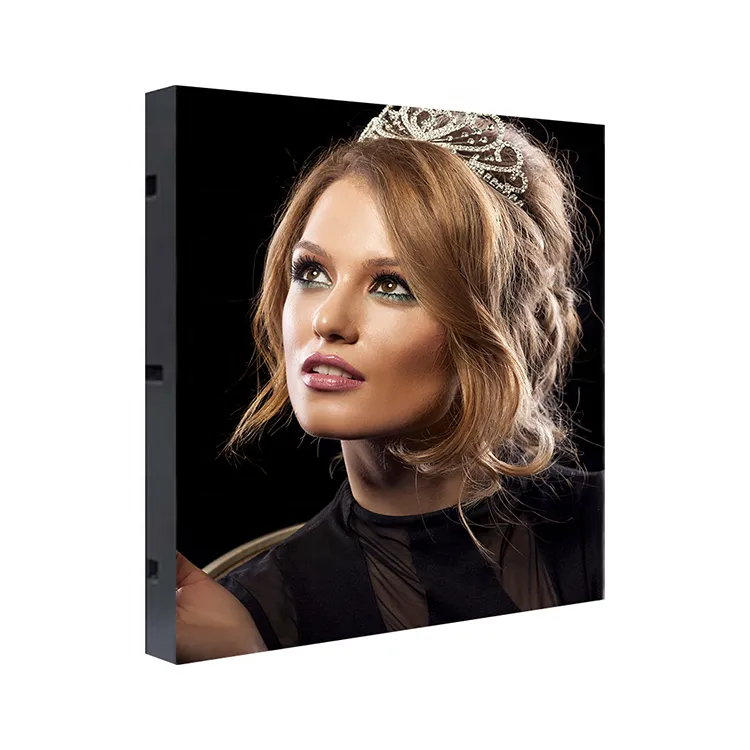

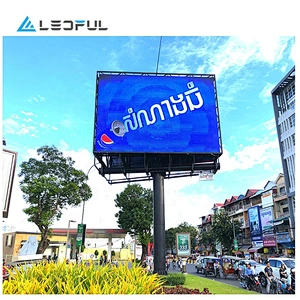

- Product name:P10 Outdoor full color Led Display
- Viewing angle:160H/160V
- Cabinet size:960x960mm
- Waterproof:IP 65
- Weight:40kgs
- Brightness:7500cd/sqm
- LED chip:Nationalstar
- Place of Origin:CN;GUA

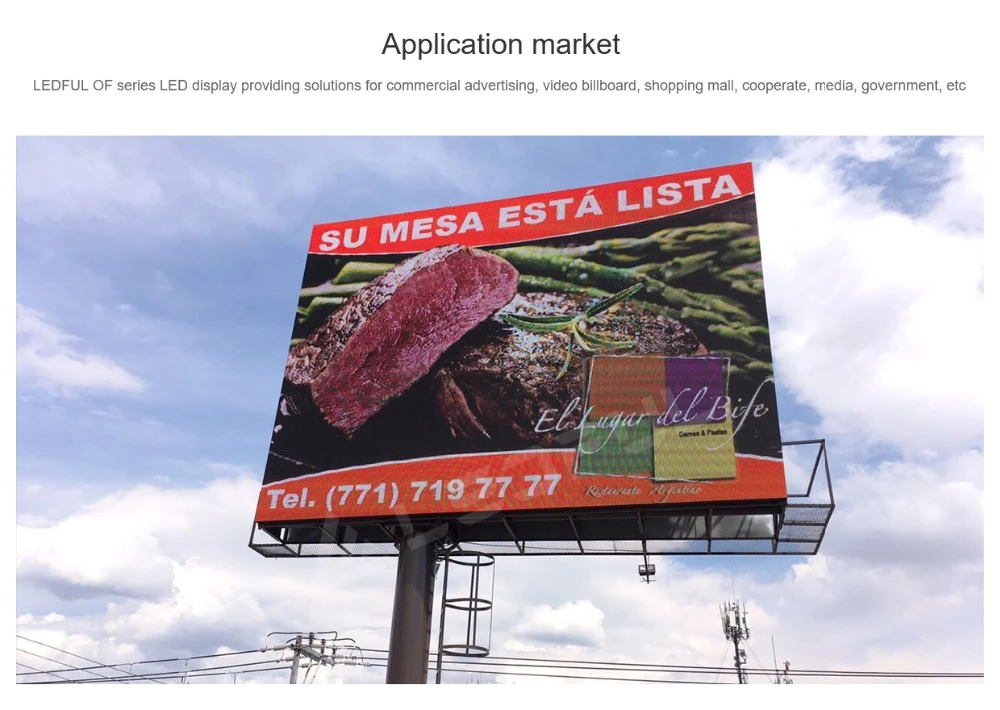

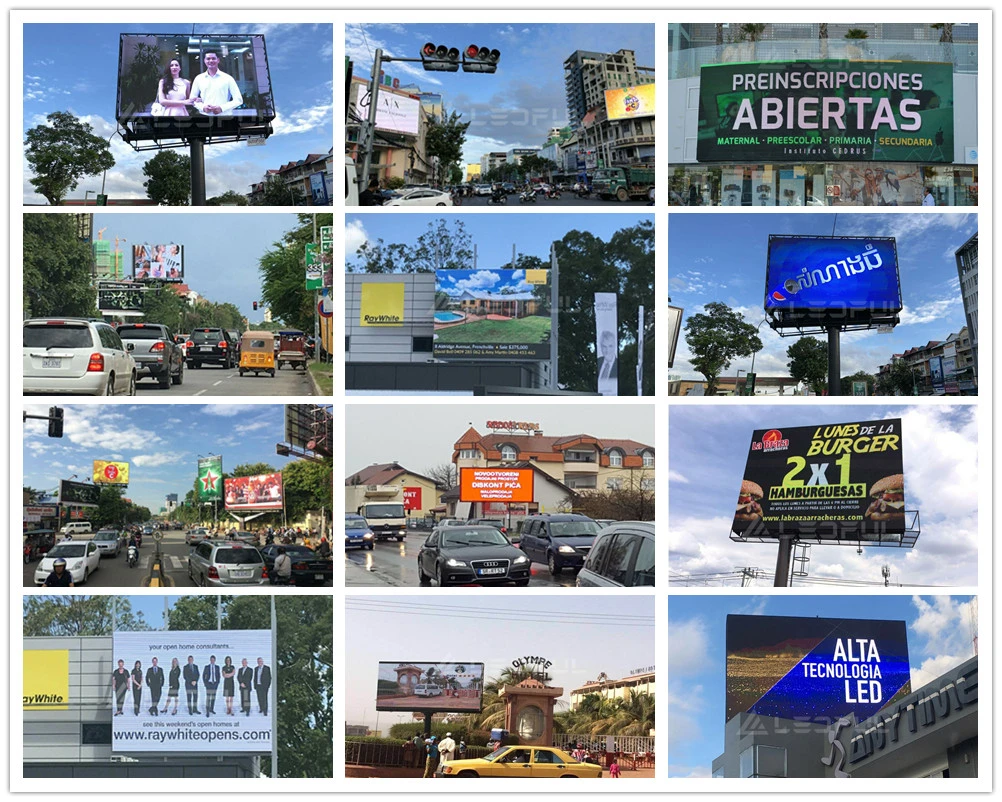

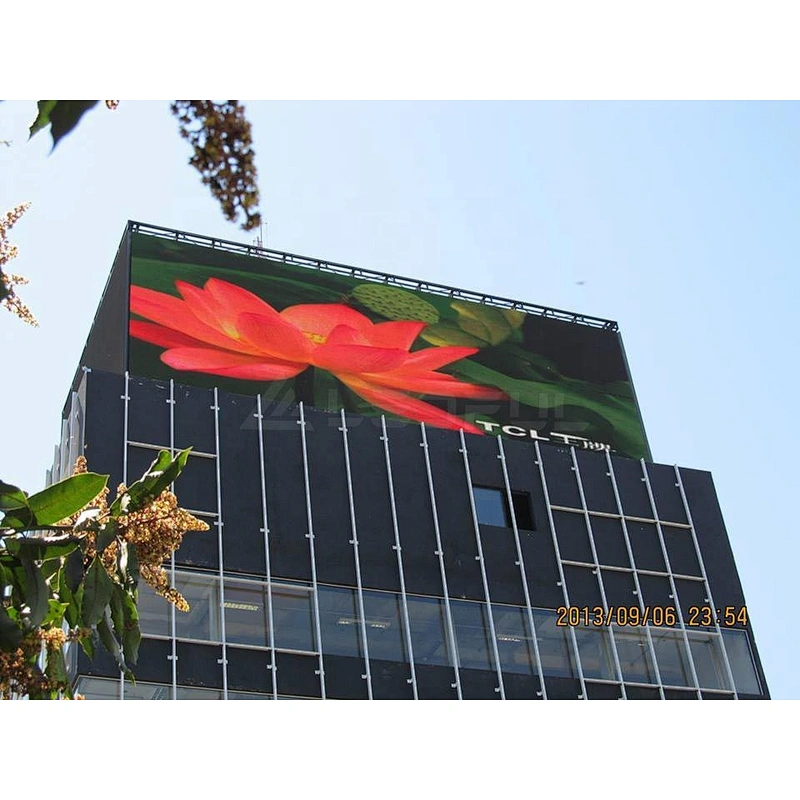

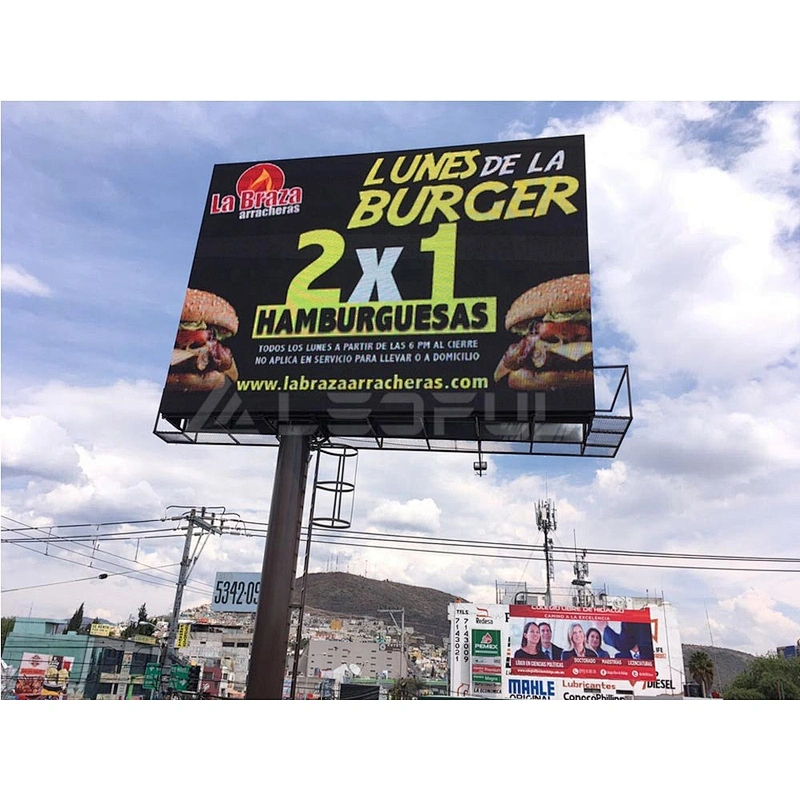

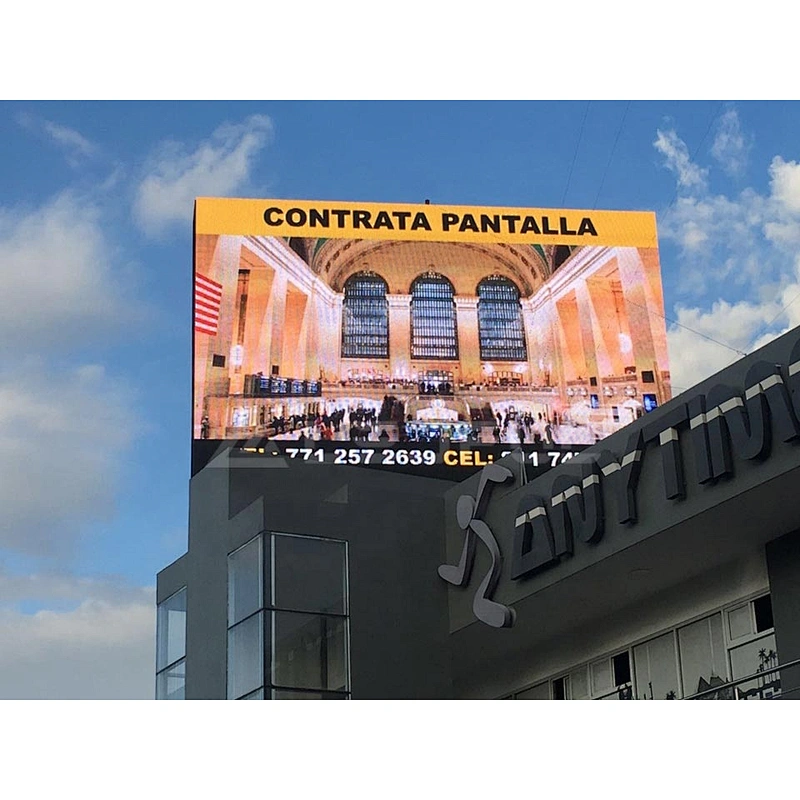

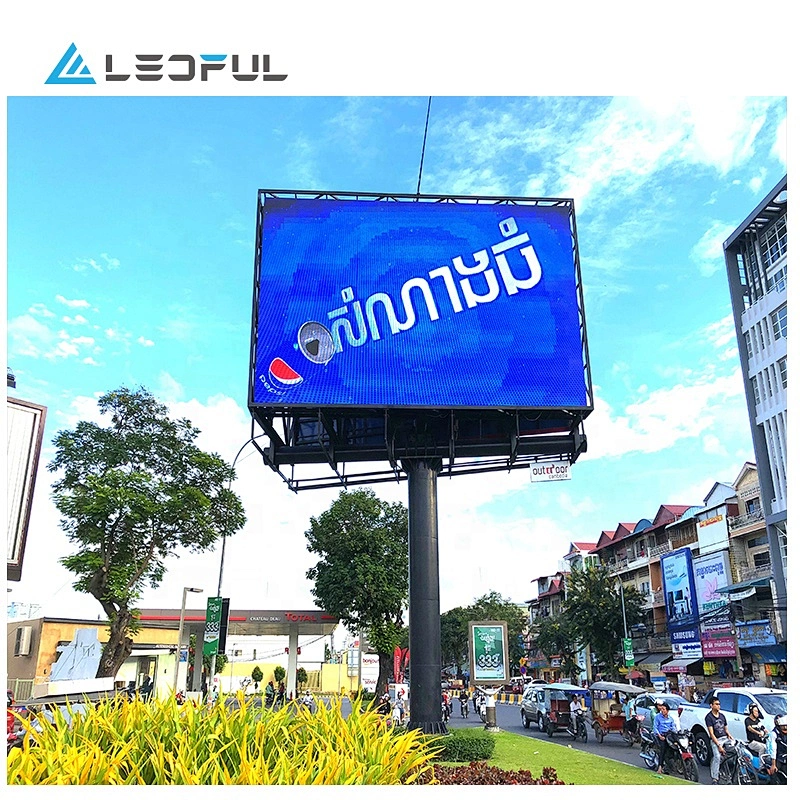

- Application:advertising
- Color:fullcolor
- Panel Size:960*960
- Pixel Pitch:10
- Model Number:OF10S
- Brand Name:LEDFUL
OF Series
Main Features
1) Energy saving to save cost.

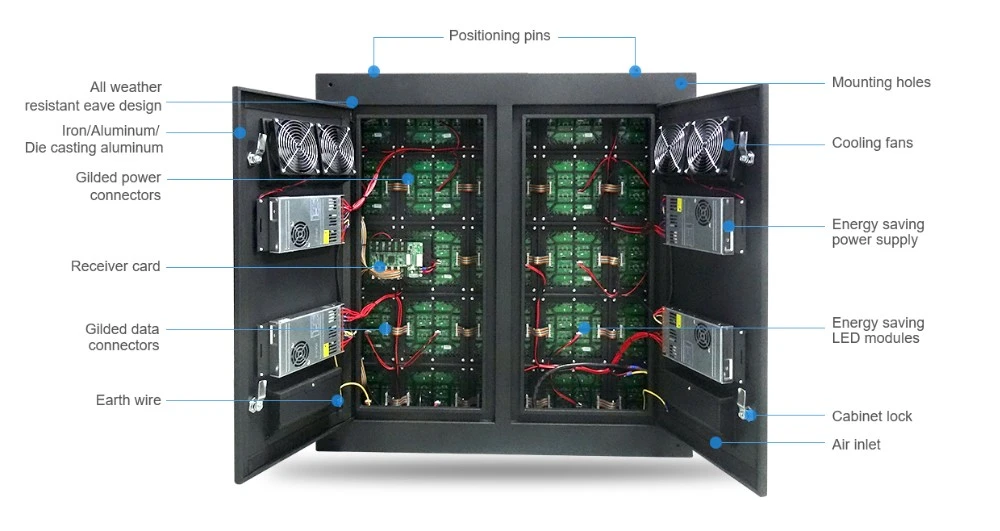

2) Front maintenance to save space. p10 3-5 years warranty outdoor commercial advertising LED display

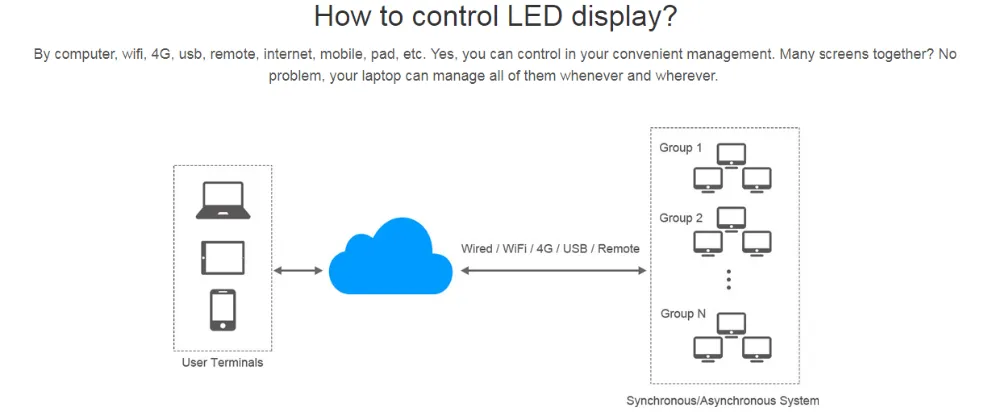

3) Wifi, 4G, cloud, usb, remote control. P10 3-5 years warranty outdoor commercial advertising LED display
4) All weather resistant for stable operation. P10 3-5 years warranty outdoor commercial advertising LED disp

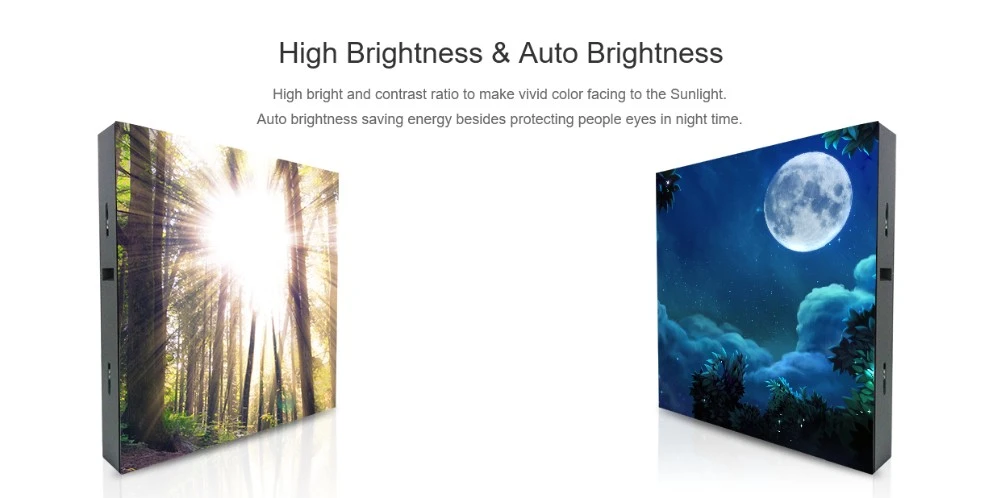

5) High brightness provide perfect performance. P10 3-5 years warranty outdoor commercial advertising LED display
Value | OF4 | OF5 | OF6 | OF8 | OF10S | OF16S | |||||
Pixel Pitch(mm) | 4 | 5 | 6 | 8 | 10 | 16 | |||||
Pixel Matrix Per Sq.m | 62500 | 40000 | 27777 | 15625 | 10000 | 3906 | |||||
Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | |||||
Brightness (nits) | 6500 | 6500 | 6500 | 6800 | 7500 | 8000 | |||||
Scan | 1/8 | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 | |||||
Module Dimension | 192x192mm / 0.63x0.63ft | 160x160mm / 0.52x0.52ft | 192x192mm / 0.63x0.63ft | 320x160mm / 1.05x0.52ft | 320x160mm / 1.05x0.52ft | 256x256mm / 0.84x0.84ft | |||||
Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 1024x1024mm /3.36x3.36ft | |||||
Cabinet Resolution | 192x192 | 192x192 | 160x160 | 120x120 | 96x96 | 64x64 | |||||
Cabinet Weight | 44kg / 97Ib ( Iron) | 43kg / 95Ib (Iron) | 42kg / 93Ib (Iron) | 41kg / 90Ib (Iron) | 40kg / 88Ib ( Iron) | 46kg / 101Ib (Iron) | |||||
Power Con. (Max / Avg) | 750 / 150 w/sq.m | 730 / 130 w/sq.m | 700 / 120 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 750 / 150 w/sq.m | |||||
Service Access | Front / Rear | ||||||||||
Refresh Rate (HZ) | ≥1920 | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 140 / 140 | ||||||||||
IP Rate | IP65 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||
Indoor Fixed Advertising LED Display with Wifi, 4G, cloud, usb, remote control
91.8% Response Rate

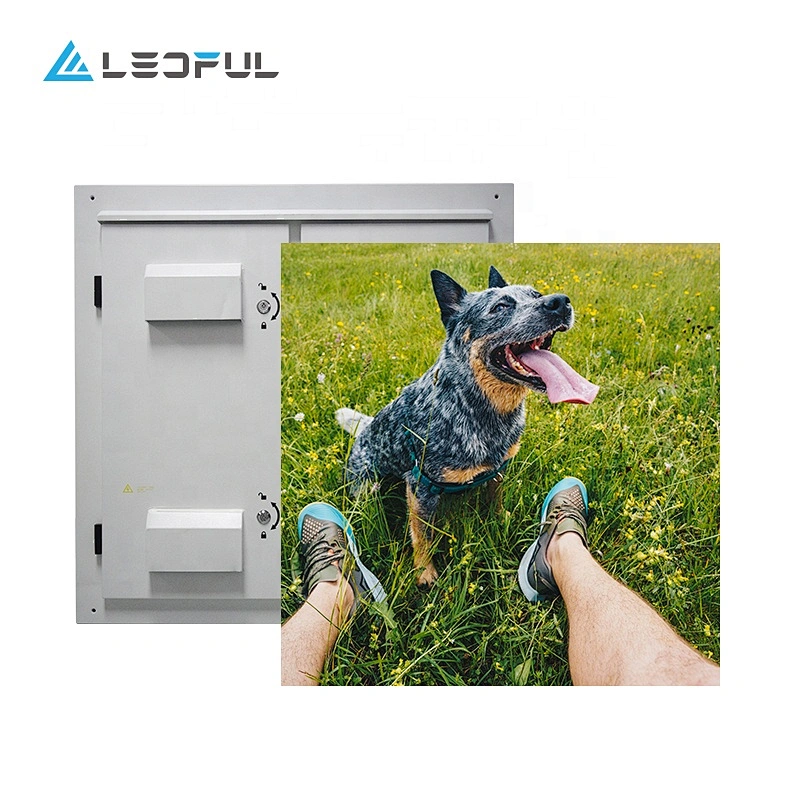

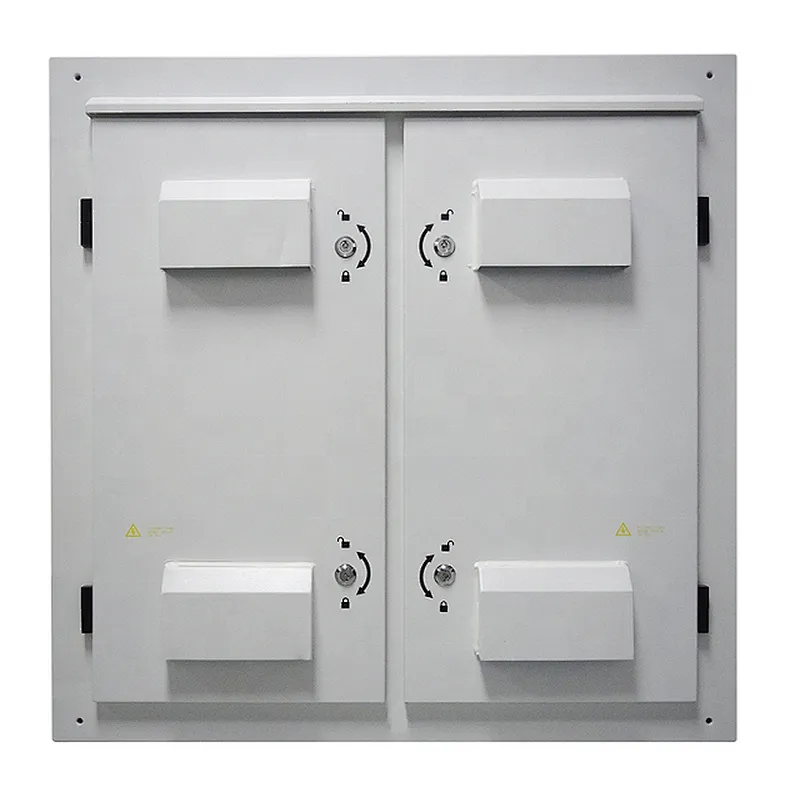

Clean and clear on backside outdoor front access LED display
91.8% Response Rate
Full Front Maintenance Stage Rental LED Display from China famous supplier
91.8%Response Rate
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q3. What is your terms of delivery?
A: EXW
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
