- Display Function:Video
- Product name:Led Video Display Panel
- Application:Advetising
- Cabinet size:500*500mm
- Certificate:CE ROHS FCC
- Brightness:1200
- Color:Fullcolor
- Refresh rate:3840
- Viewing angle:140 /140
- Screen Dimension:500*500
- Place of Origin:CN;GUA
- Application:indoor advertising
- Color:full color
- Panel Size:500*500mm
- Pixel Pitch:2.9mm
- Model Number:VI2.9
- Brand Name:LEDFUL
Product Description

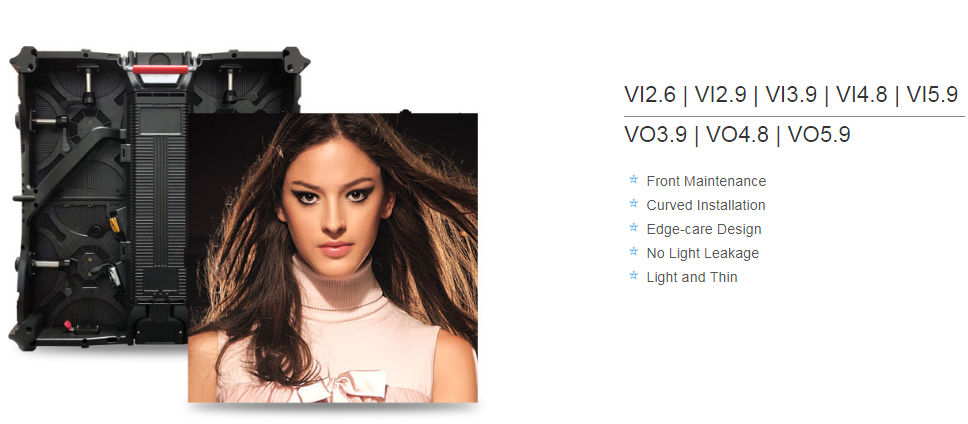

V Series
LED Rental LED Display

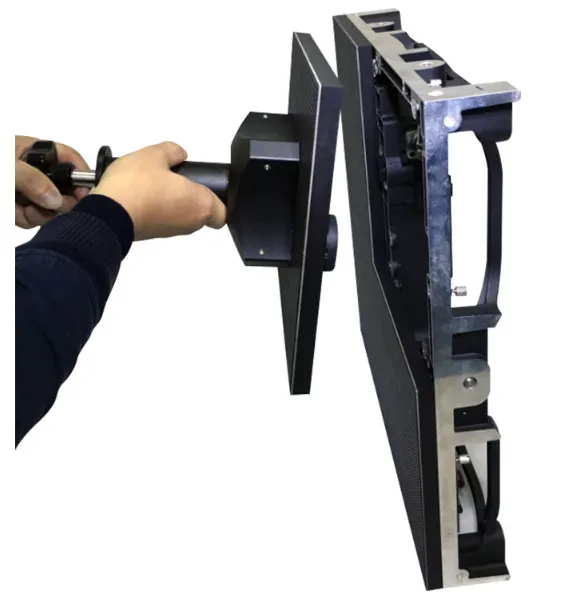

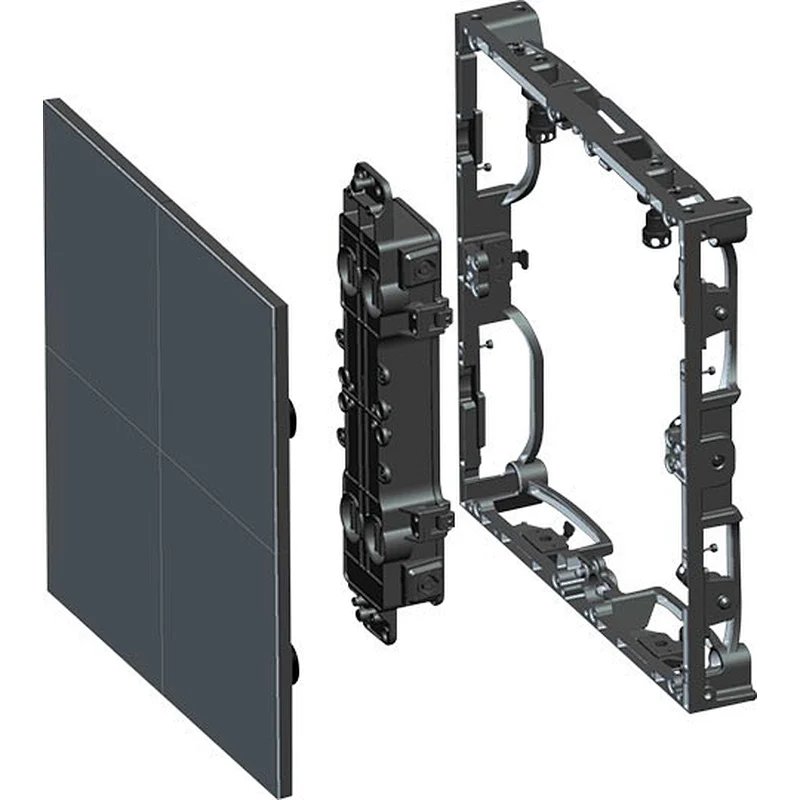

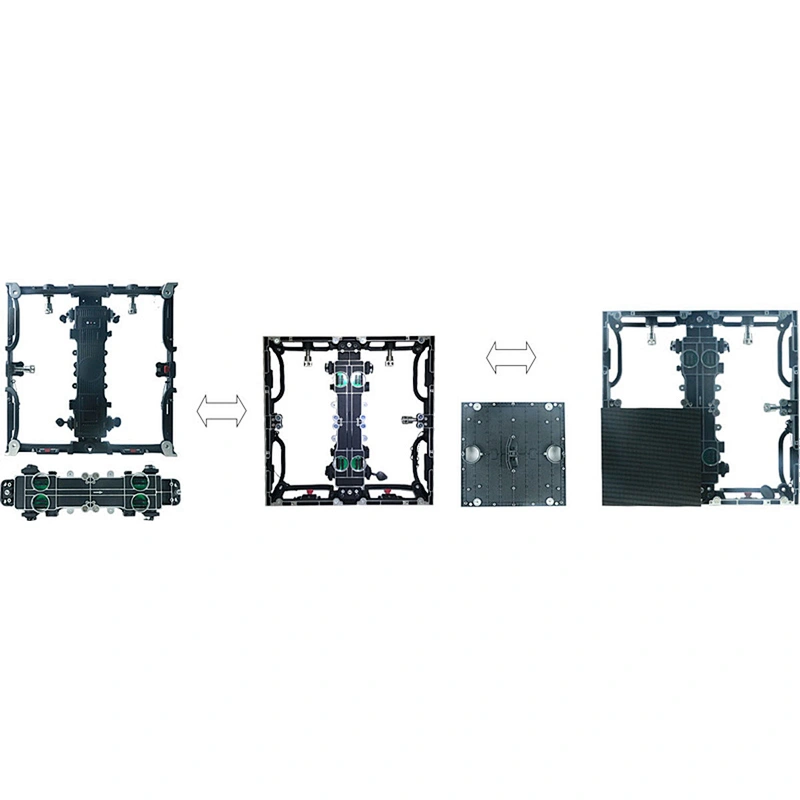

Front Maintenance
The magnet LED modules can be dismantled by tools on front side.

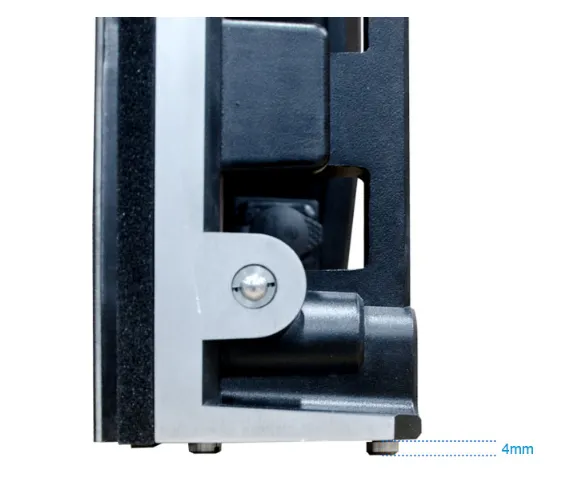

Edge-care Design
4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

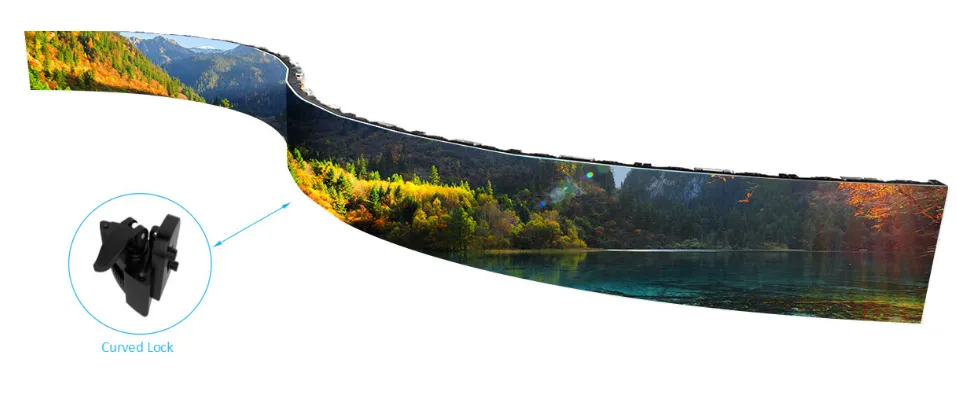

Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

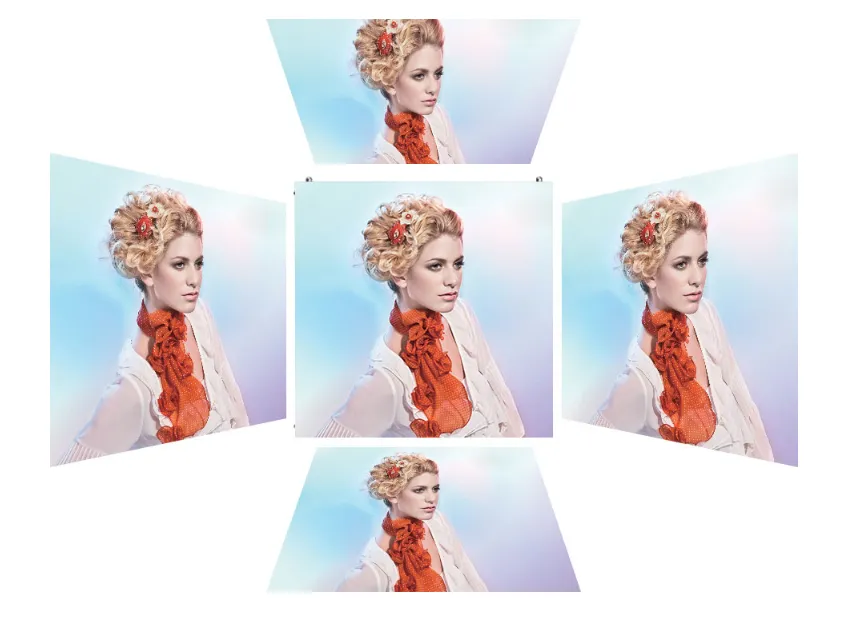

Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.

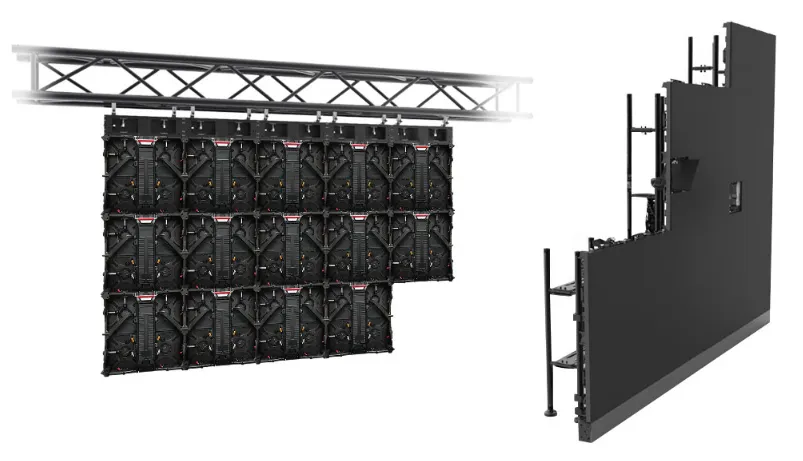

Faster & Easier Installation
Hanging or stacking, V series with light and thin features makes installation faster and easier.

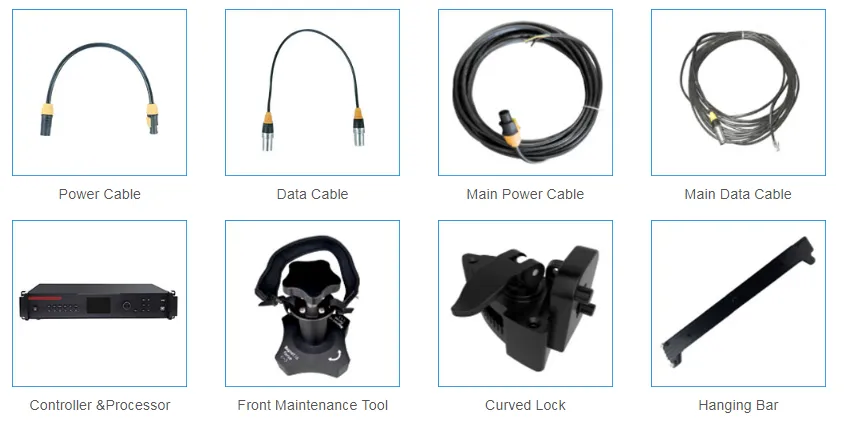

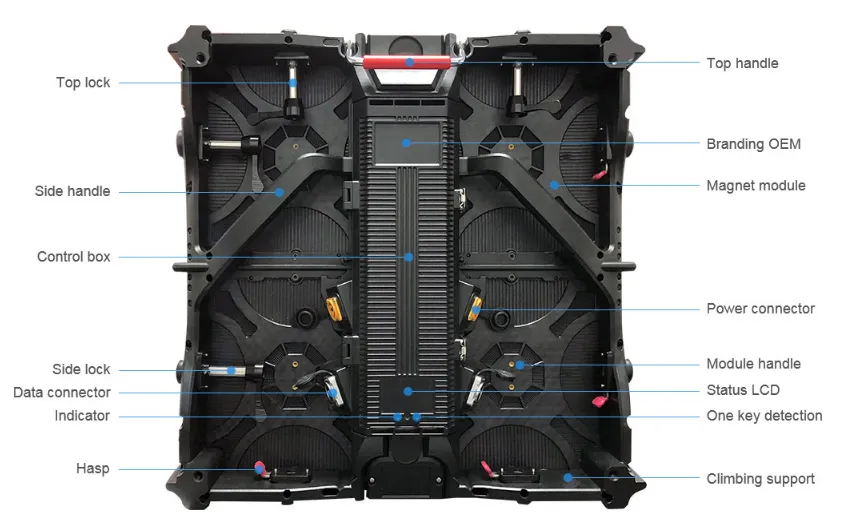

Accessories
Parameter
V Series Outdoor | VI3.9 | VI 4.8 | VI5.9 | VI6.2 | |||
Pixel Pitch(mm) | 3.91mm | 4.81mm | 5.95mm | 6.25mm | |||
Pixel Matrix Per Sq.m | 65536 | 43264 | 28224 | 25600 | |||
Pixel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | |||
Brightness (nits) | 1300 | 1300 | 1300 | 1300 | |||
Scan | 1/16 | 1/13 | 1/7 | 1/10 | |||
Cabinet Resolution | 128×128 | 104×104 | 84×84 | 80×80 | |||
Power Con. (Max / Avg) | 750 / 200 w/sq.m | 700 / 220 w/sq.m | 700 / 200 w/sq.m | 680 / 190 w/sq.m | |||
Module Dimension | 250x250mm / 0.82x0.82ft | ||||||
Cabinet Dimension | 500x500x78mm / 1.64x1.64x0.25ft | ||||||
Cabinet Weight | 7kg / 15.4Ib (( Die-casting Aluminum) | ||||||
Service Access | Front / Rear | ||||||
Rotation Angle | -7.5° and +7.5° | ||||||
Refresh Rate (HZ) | 2880 | ||||||
Grey Scale (bit) | 16 | ||||||
Viewing Angle (H/V) | 140 / 140 | ||||||
IP Rate | IP65 | ||||||
Input Voltage (AC) | 110 / 240 | ||||||

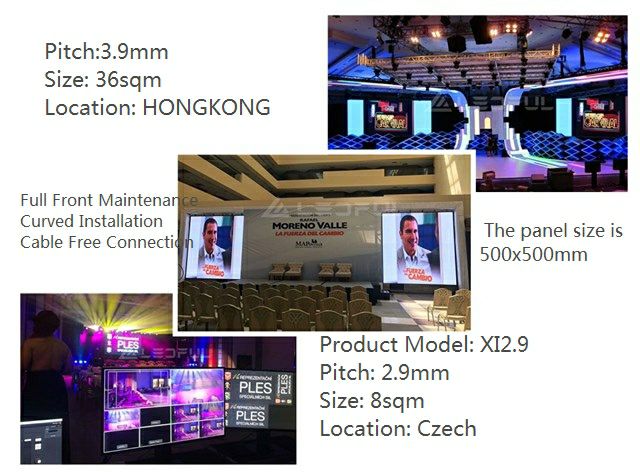

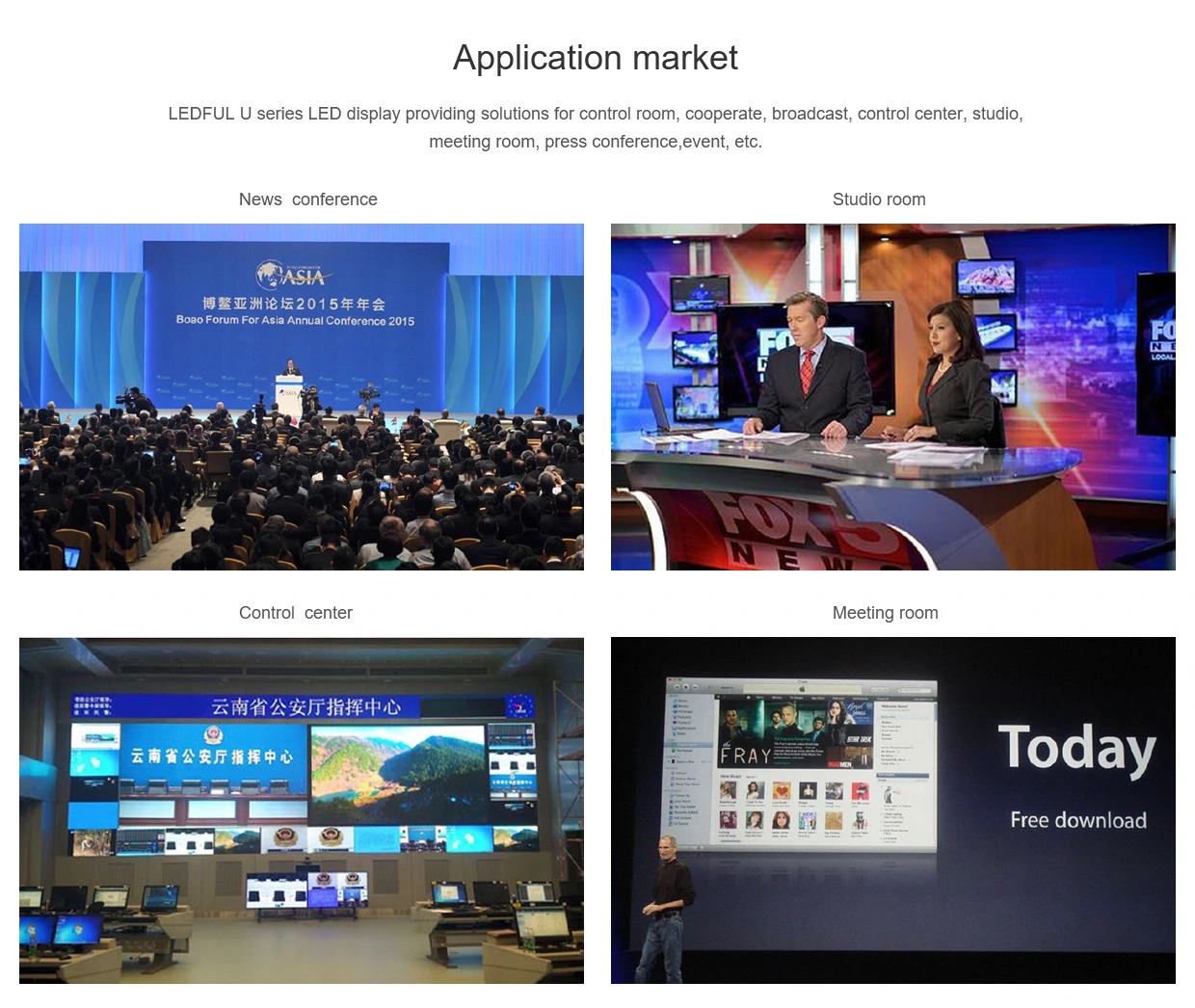

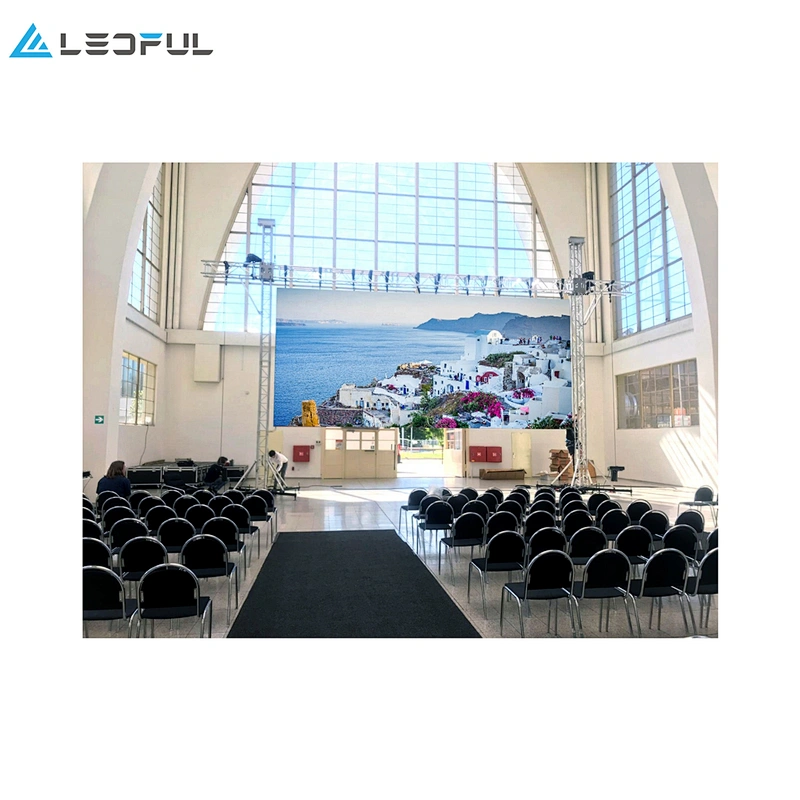

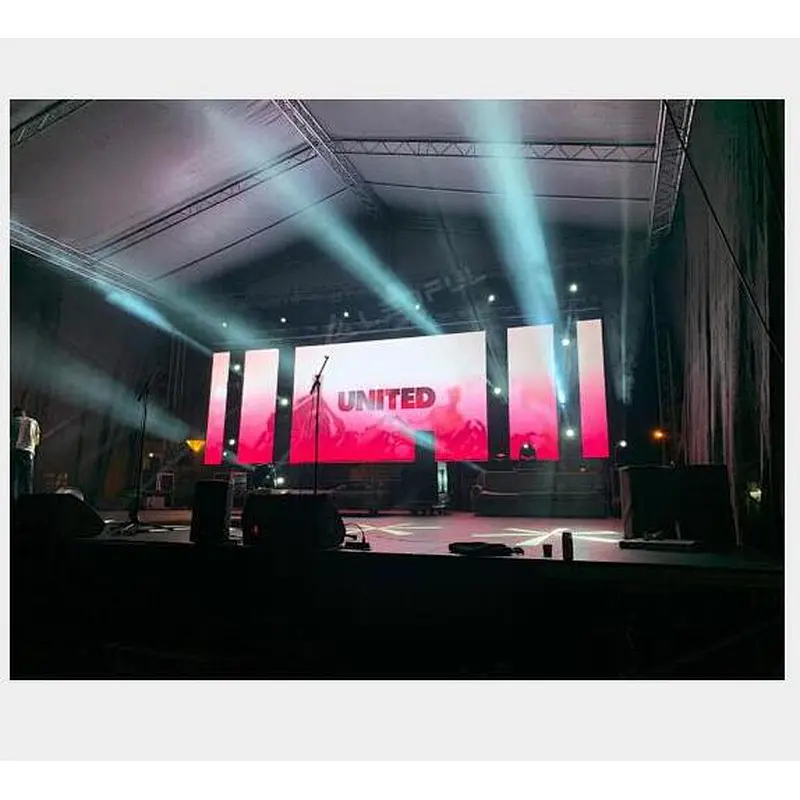

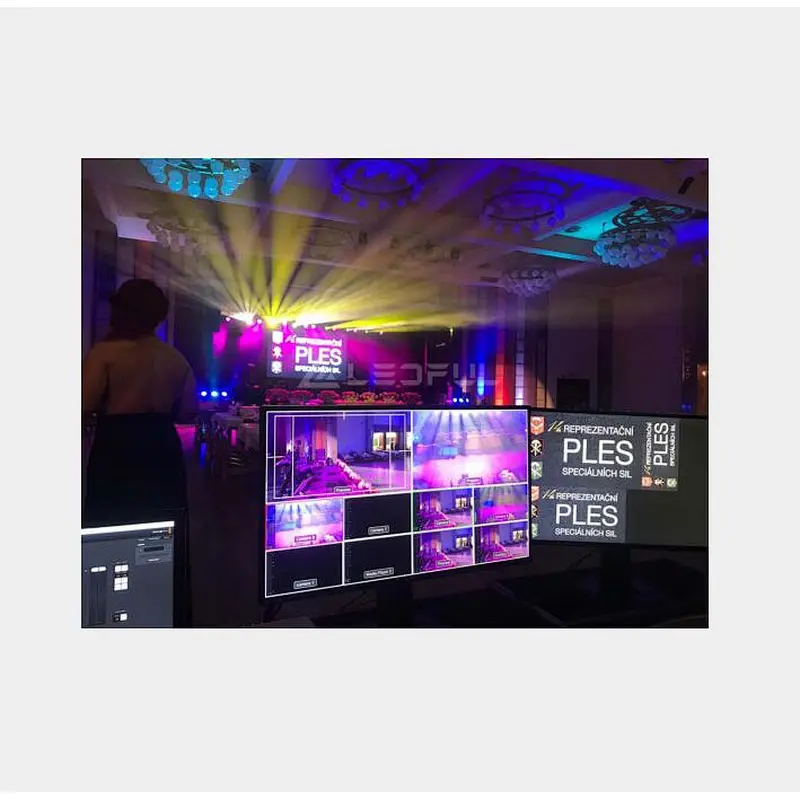

Application
Our Company
Top LED Display Manufacturer
LEDFUL founded in 2008
Total 209 employees in LEDFUL 3~5 years warranty on LED screen
Exported to 83 countries and regions
Top reliable LED display manufacturer
Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.
CE, RoHS, FCC, CCC, ISO9001:2008 standard
Our partners are Media Companies, Stage Designer, Project Manager,
Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
Professional, High Efficient and Caring
One-stop solution provider More designs and more solutions Wireless control,
4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized
Product Certificates

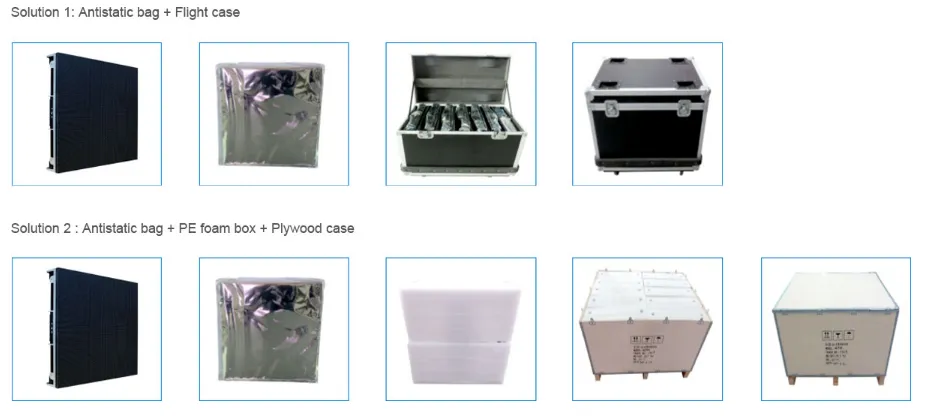

Packing & Delivery
Our Service
Best Balance of Quality & Price
Deep Customized & OEM
Listen to you, think more for you.Lifelong maintenance with reasonable price
Clear cost initially to save your time and money.
Provide with innovative and satisfying products Excellent product quality, quick and professional services Always ready for your any change on LED display details.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply free sample, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q9: What is the control system?
A: We use Nova control system.
Q10. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
