- Usage:Indoor
- Display Function:Video
- style:Light and Thin
- Application:Events
- Certificate:CE ROHS FCC
- Color:Fullcolor
- Pixel pitch:2.9mm
- Cabinet size:500x1000mm
- Brightness:1000cd/sqm
- Refresh rate:3840
- Place of Origin:CN;GUA
- Application:Advertising
- Color:Full Color
- Panel Size:500*1000mm
- Pixel Pitch:2.9mm
- Model Number:TI2.9
- Brand Name:LEDFUL

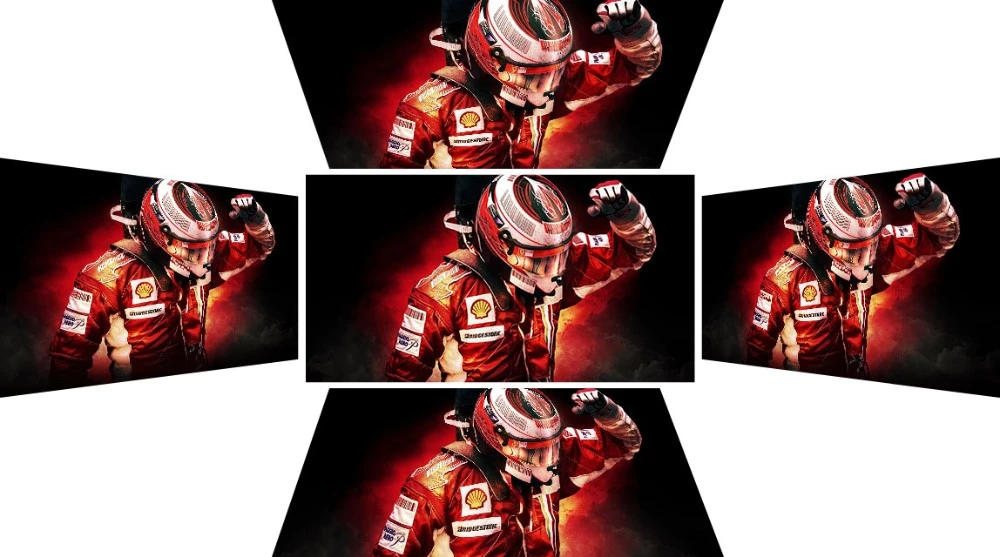

Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.

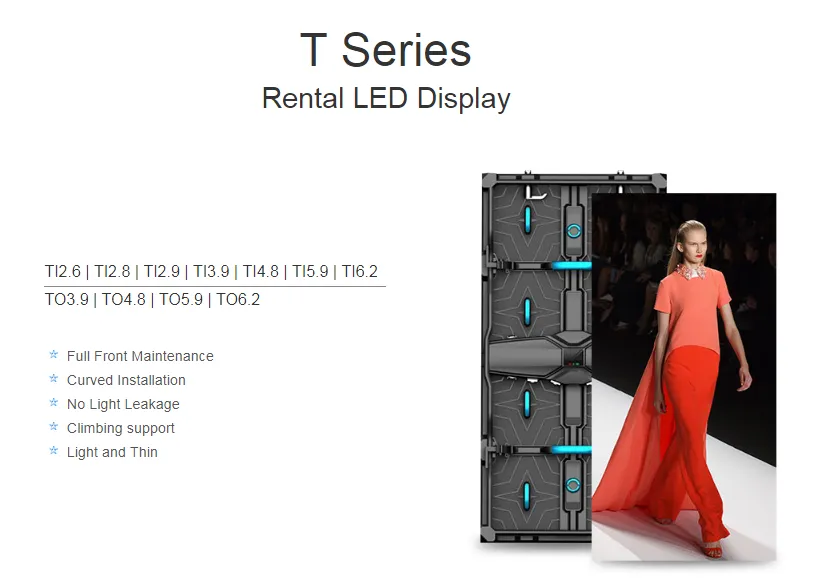

T Series Indoor | TI 2.84 |
Pixel Pitch(mm) | 2.84mm |
Pixel Matrix Per Sq.m | 123904 |
Pixel Configuration | SMD2121 |
Scan | 1/22 |
Cabinet Resolution | 176×352 |
Power Con. (Max / Avg) | 800 / 250w/sq.m |
Module Dimension | 250x250mm / 0.82x0.82feet |
Cabinet Dimension | 500x1000x83mm / 1.64x3.28x0.27feet |
Cabinet Weight | 13kg / 28.66Ib (( Die-casting Aluminum) |

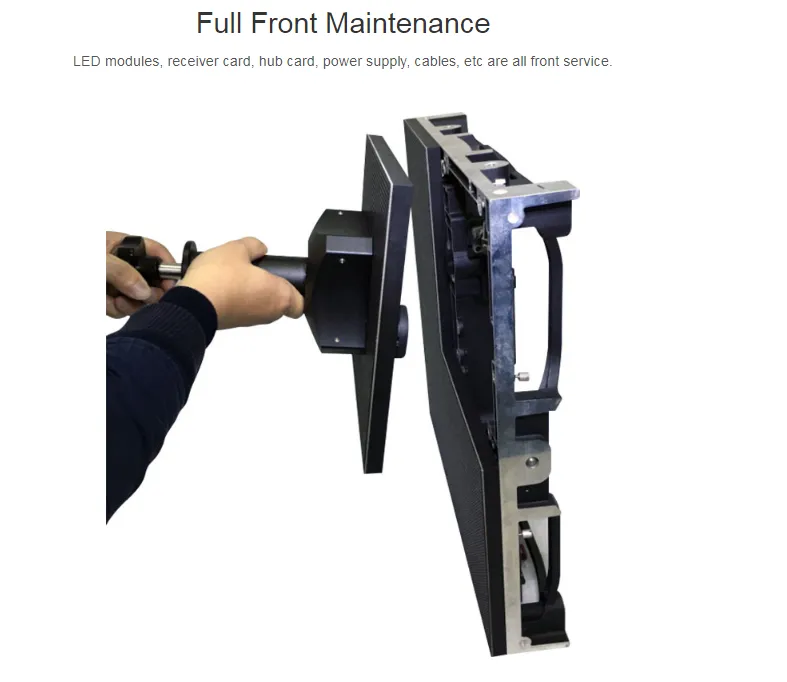

Service Access | Front / Rear |

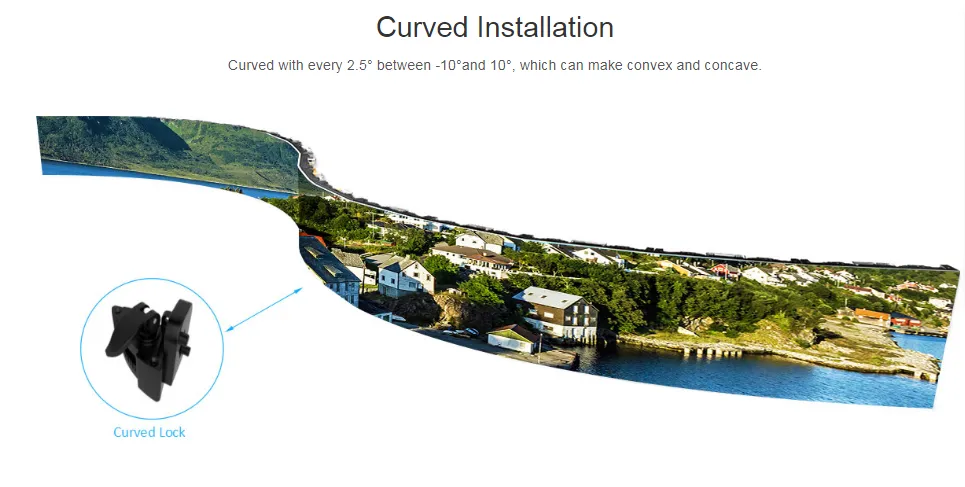

Rotation Angle | -10° and +10° |
Brightness (nits) | ≥1000 |

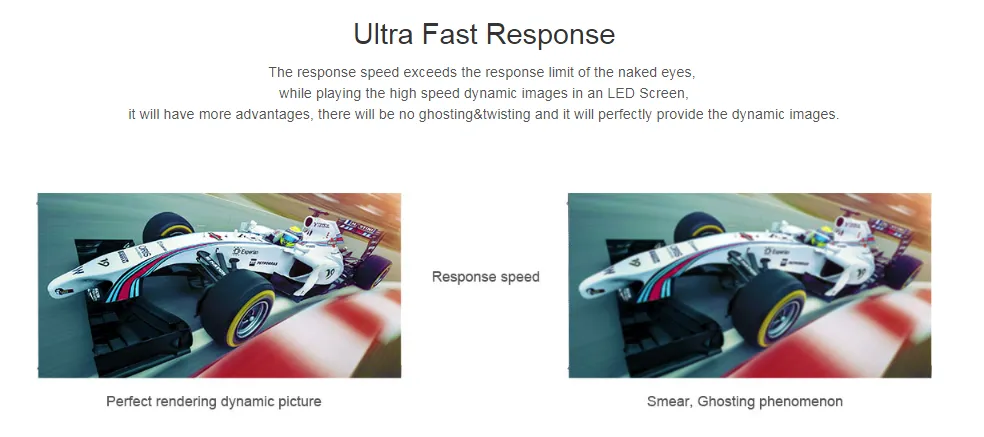

Refresh Rate (HZ) | 3840 |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
IP Rate | IP31 |
Input Voltage (AC) | 110 / 240 |




Q1: Are you trading company or manufacturer ?
A: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.
Q2: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q3: What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
5…6…etc.
Q4. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
Q5:How about your Warranty Term?
A:3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
