- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Video
- LED chip:Epistar
- Life Span:100000 Hours
- Certificate:CCC CE ROHS ISO
- Control system:Nova
- Service Access:Front/Rear
- Screen Dimension:Customized
- Pixels:3mm

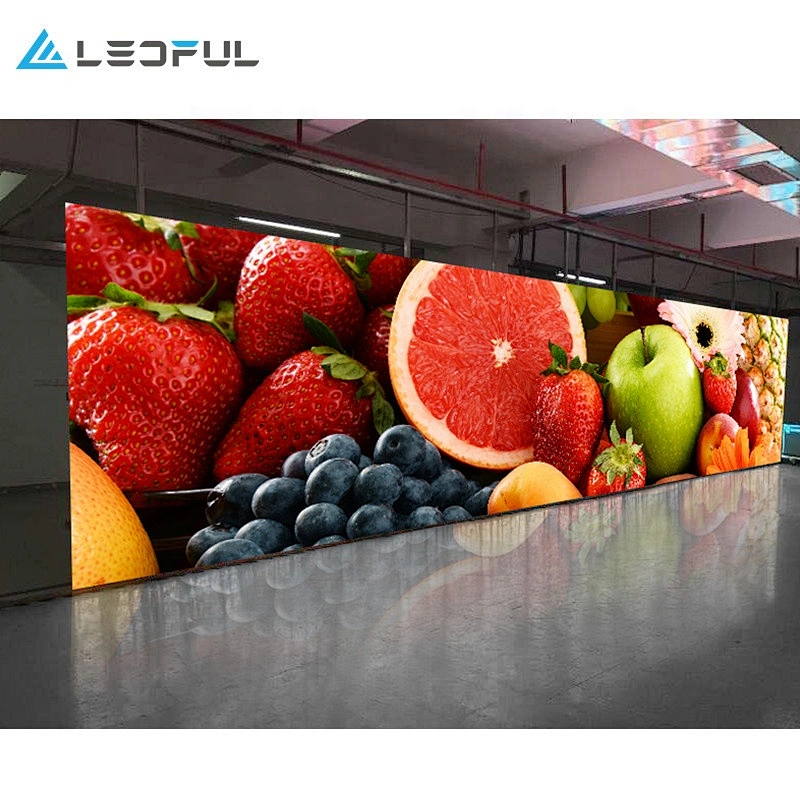

- Application:Indoor Fixed LED Screen
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:3mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:IF3
- Brand Name:LEDFUL
IF Series
IF2.5 | IF3 | IF4 | IF5 | IF6
★Black SMD LED makes perfect
★Front maintenance & Front installation
★Wifi, 4G, cloud, usb, remote control
★Thin, light weight, easy installation
★Low brightness with High grayscale operation
Product | IF3 |
Pixel Pitch(mm) | 3 |
Pixel Matrix Per Sq.m | 111111 |
Pixel Configuration | SMD2121 |
Brightness (nits) | 1200 |
Scan | 1/32 |
Module Dimension | 192x192mm / 0.63x0.63ft |
Cabinet Dimension | 576x576mm / 1.89x1.89ft |
Cabinet Resolution | 192x192 |
Cabinet Weight | 11kg /24Ib (Iron) |
Power Con. (Max / Avg) | 550 / 138 w/sq.m |
Refresh Rate (HZ) | 3840 |
Service Access | Front / Rear |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
IP Rate | IP31 |
Input Voltage (AC) | 110V / 240V |

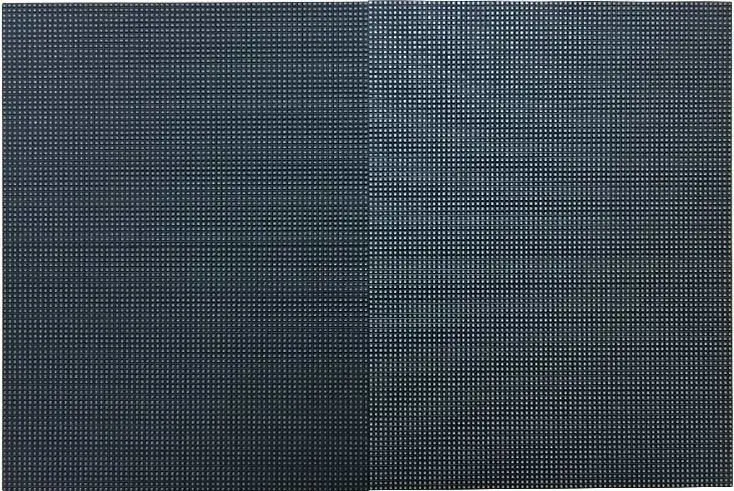

Black SMD LED
Front Maintenance Saving Space
No back space for LED display maintenance? Go with front. LED modules, power supply, receiver card, cables, etc can be taken out from front side.

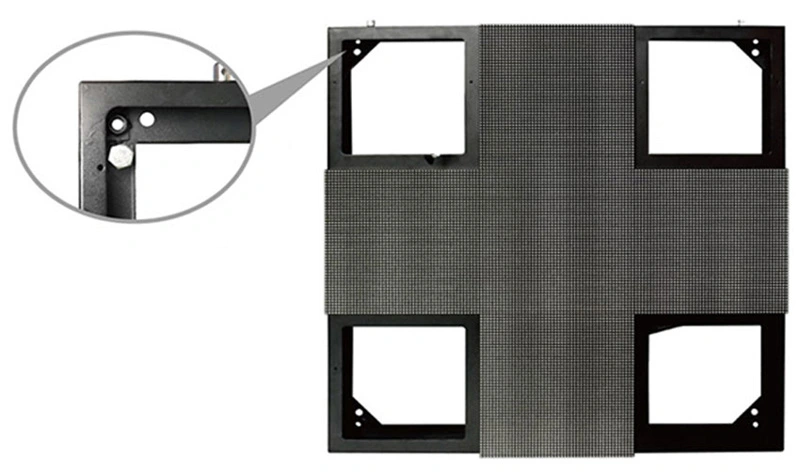

Front Installation Saving Structure
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.

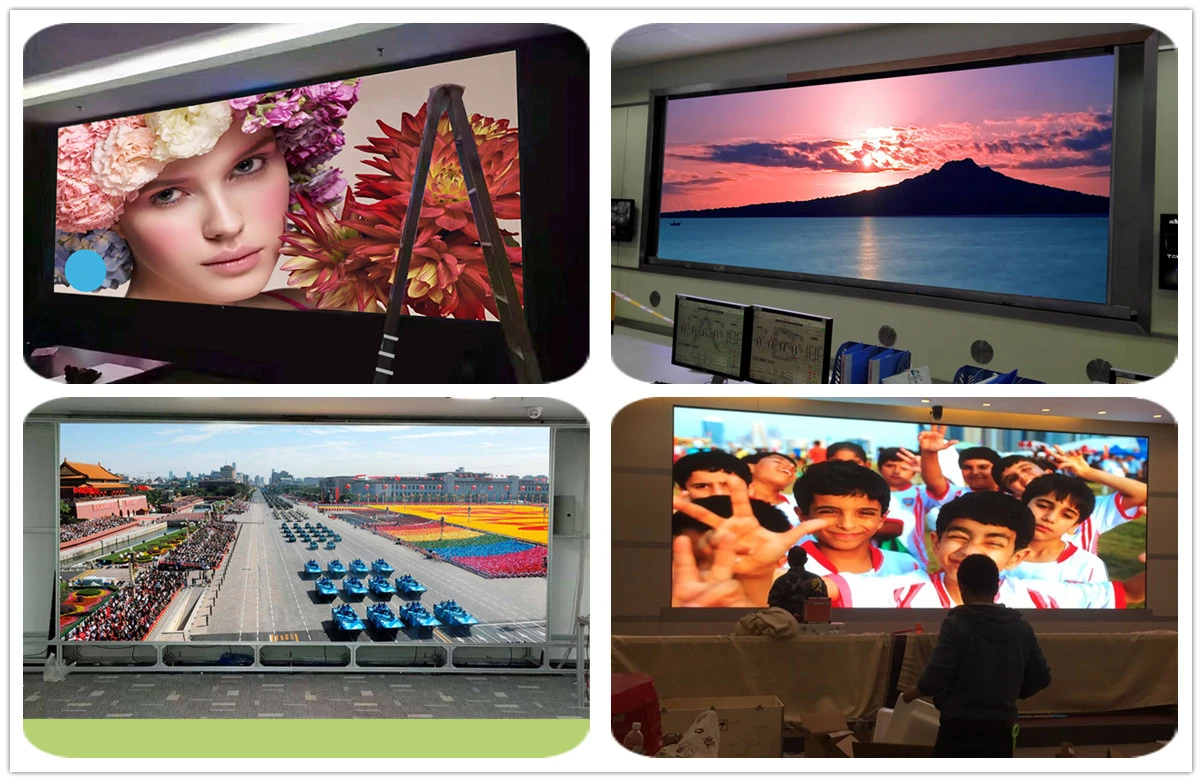

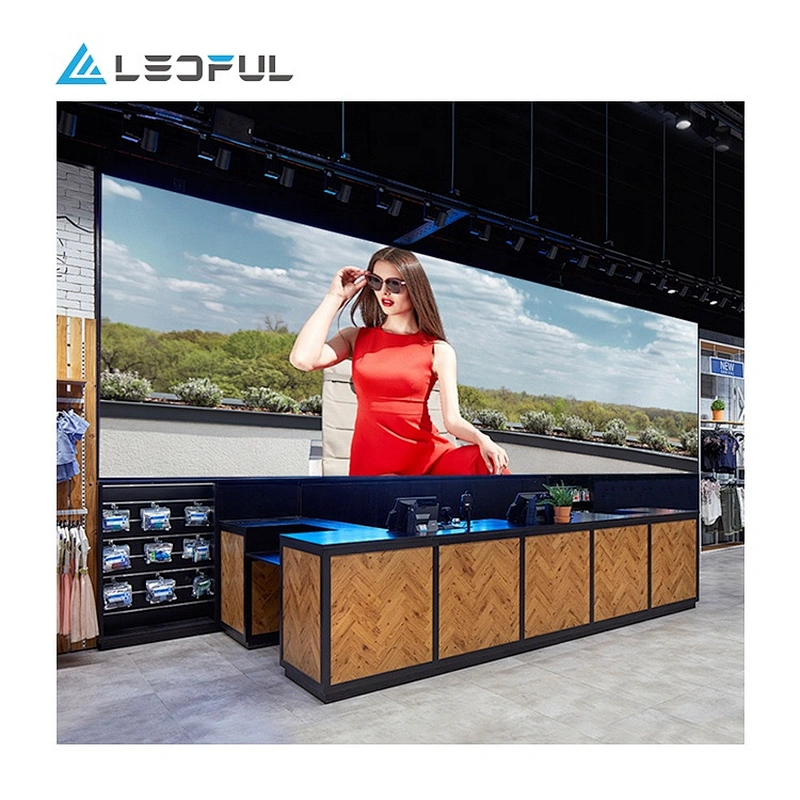

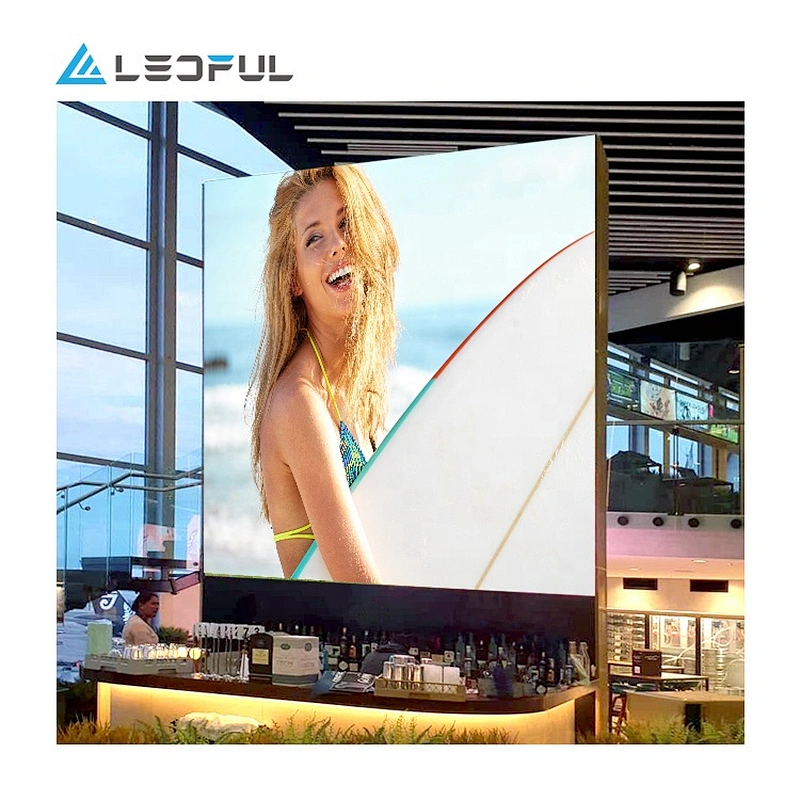

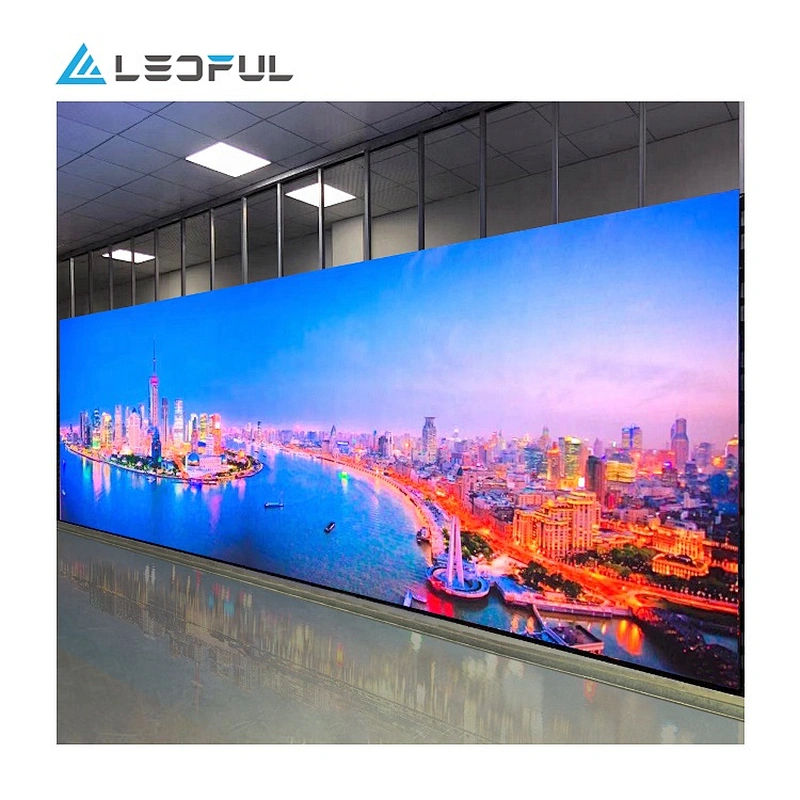

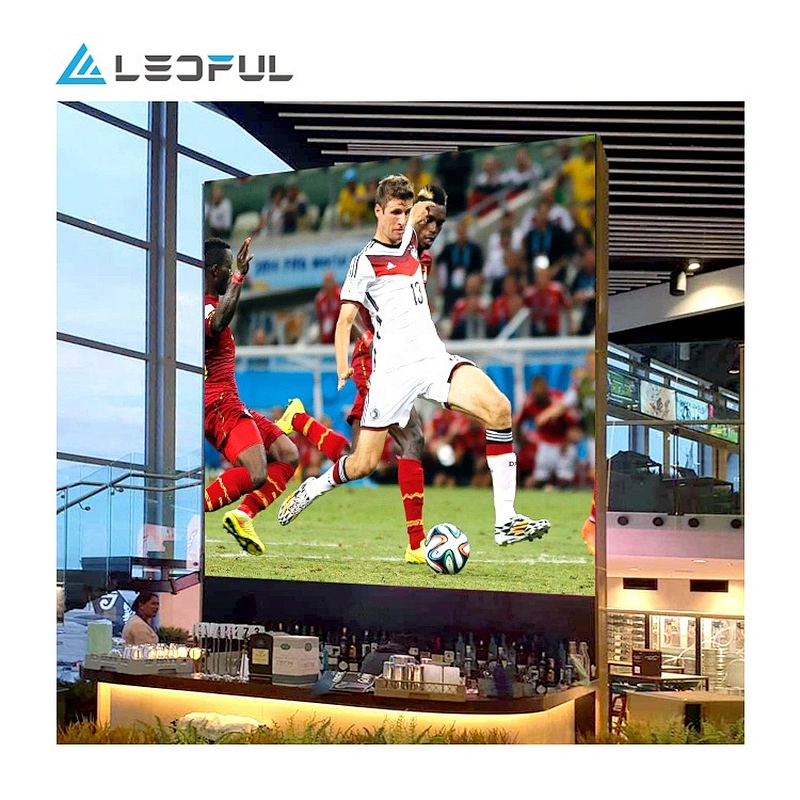

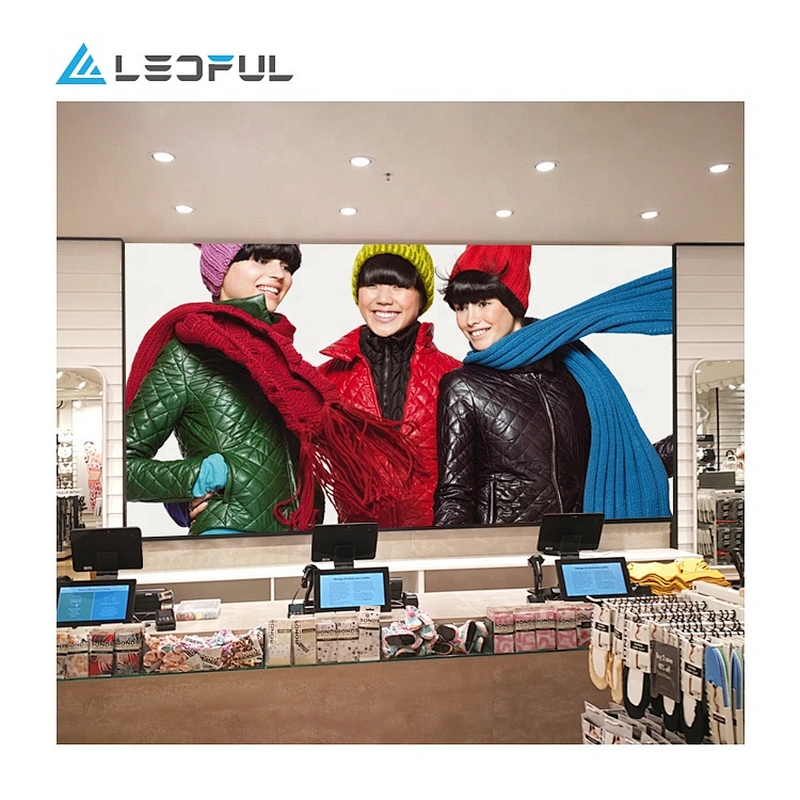

LED Display Wall Mounted Installation
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
Wide Viewing Angle

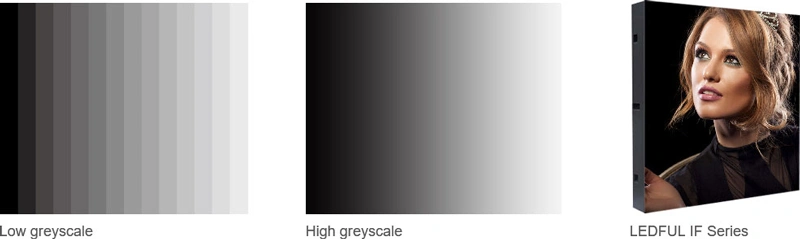

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance

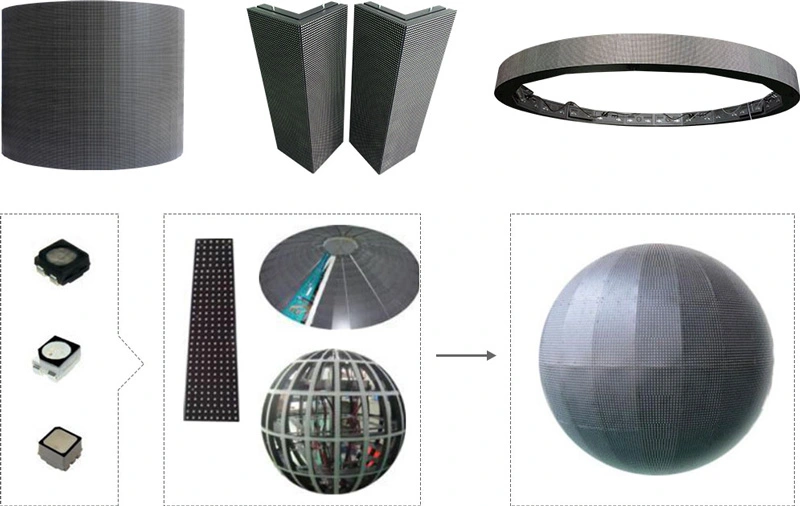

Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc. LEDFUL supply more design and more solutions.
IF Series More Features & More Advantages
★Excellent heat dissipation and noiselessness
★High-performance metal plate cabinet design
★Macro molecular flexible mask with glare-less surface on LED modules
★High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
★Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.
▲Lifelong maintenance with reasonable price.
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products.
▲Excellent product quality, quick and professional services.
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

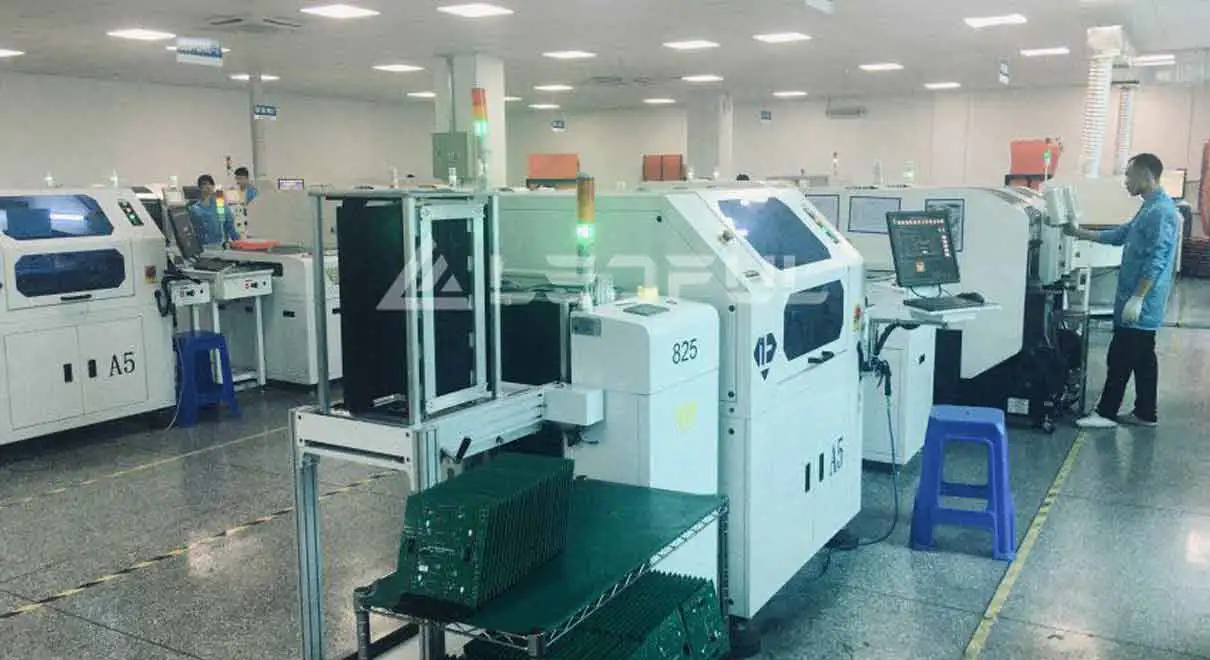

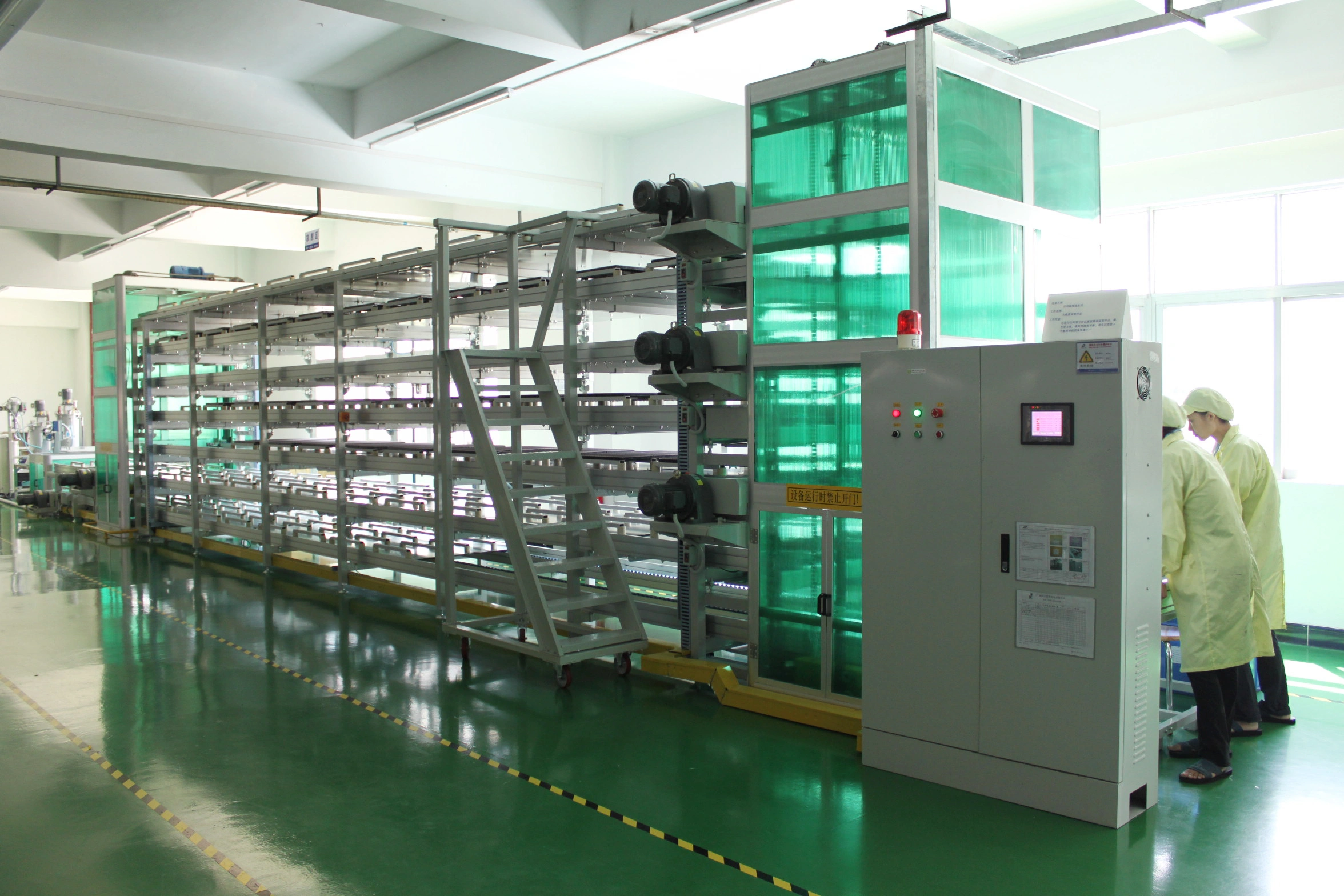

Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 12 years, and professional R&D team and skilled QC team with standard process to assure quality products.
