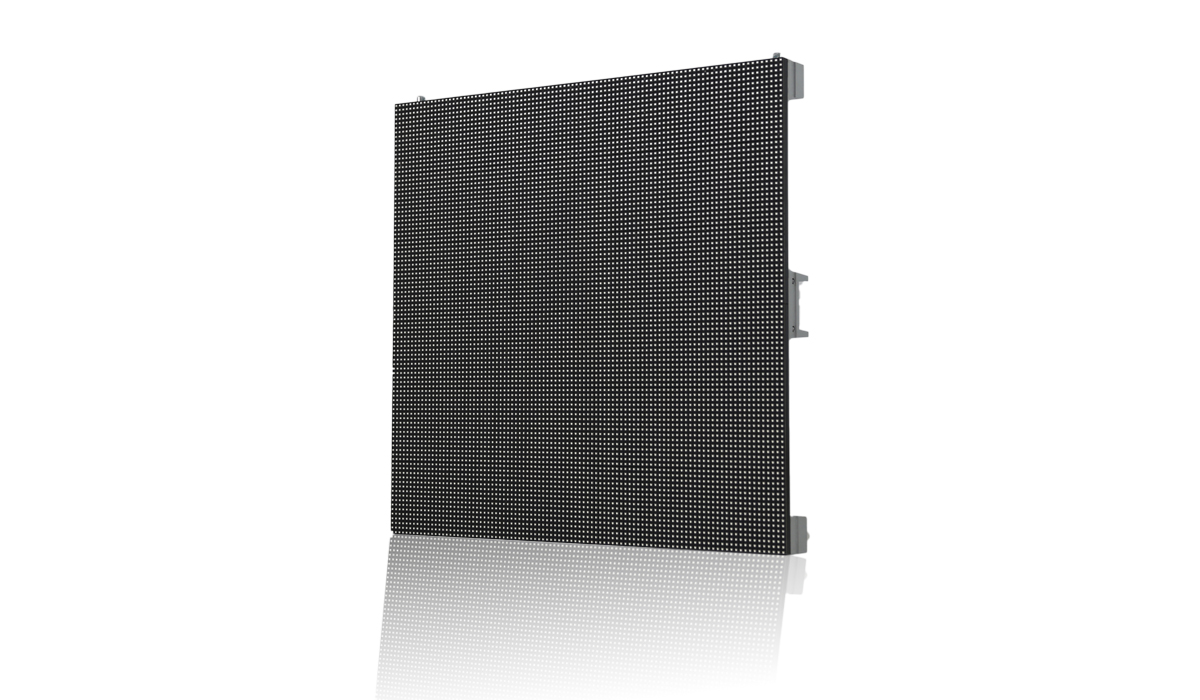

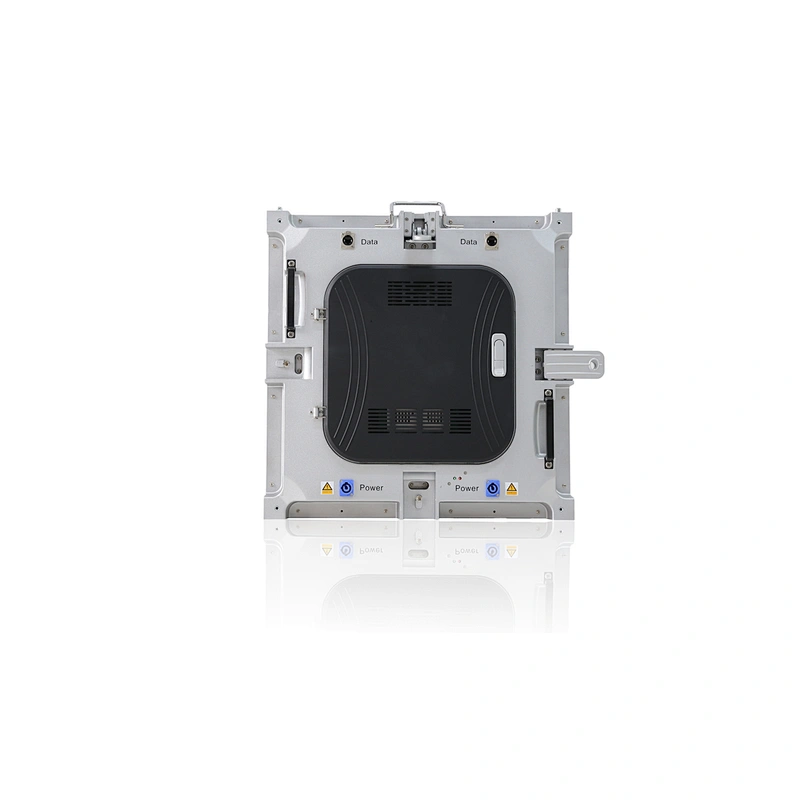

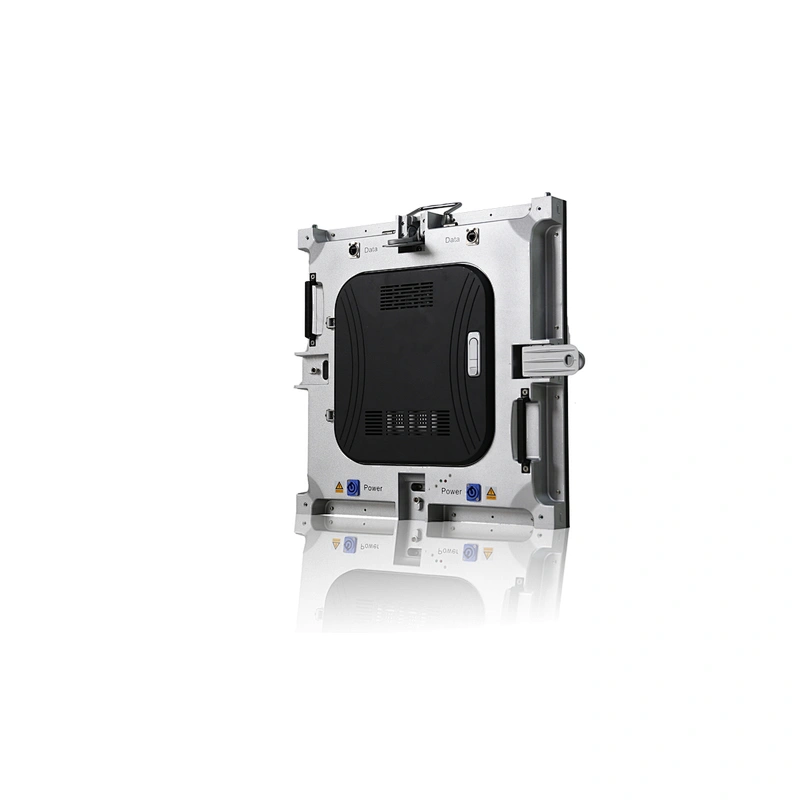

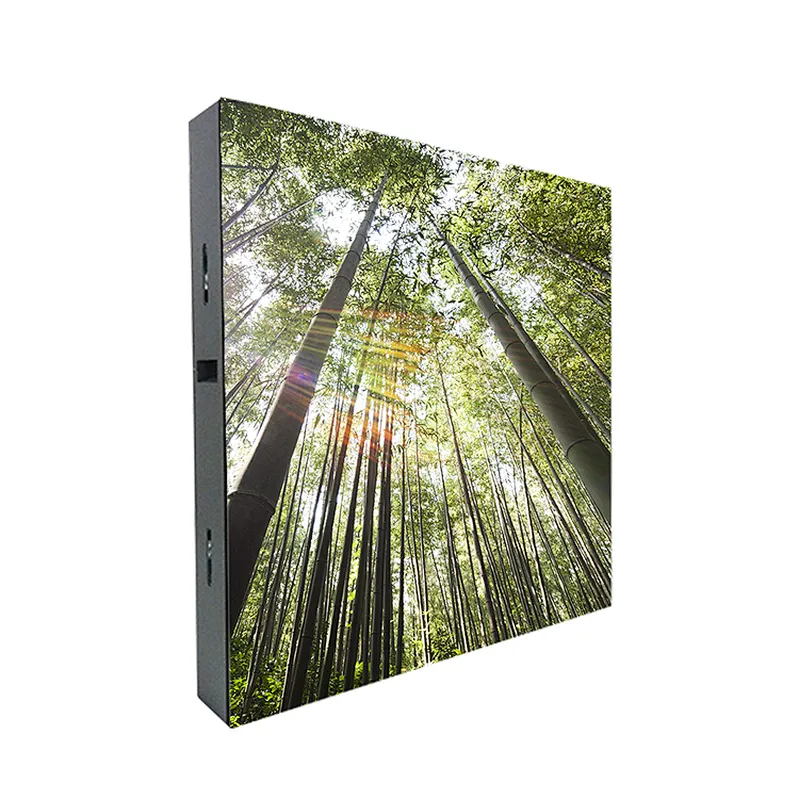

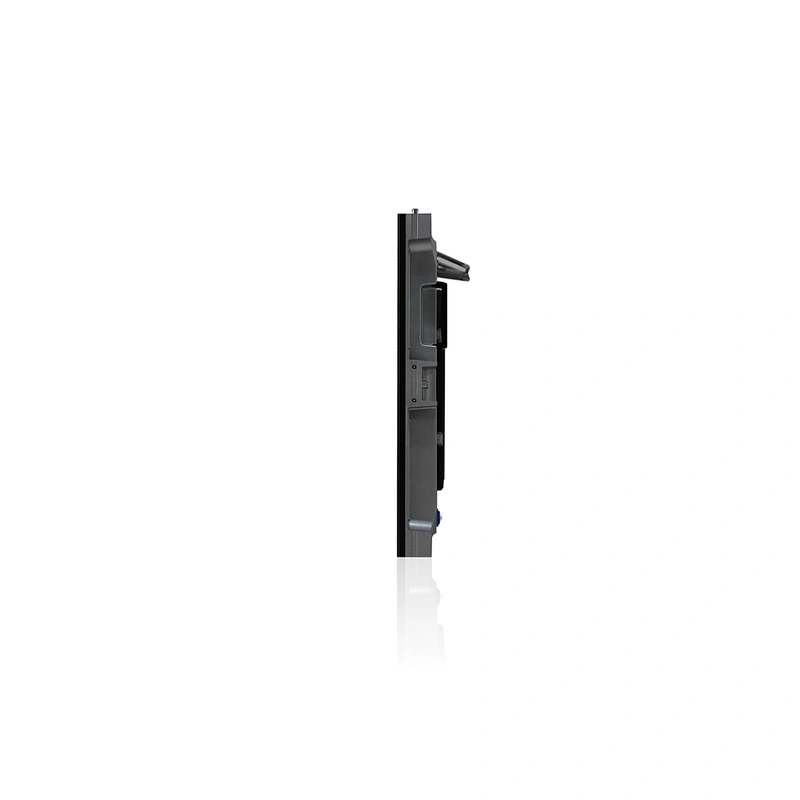

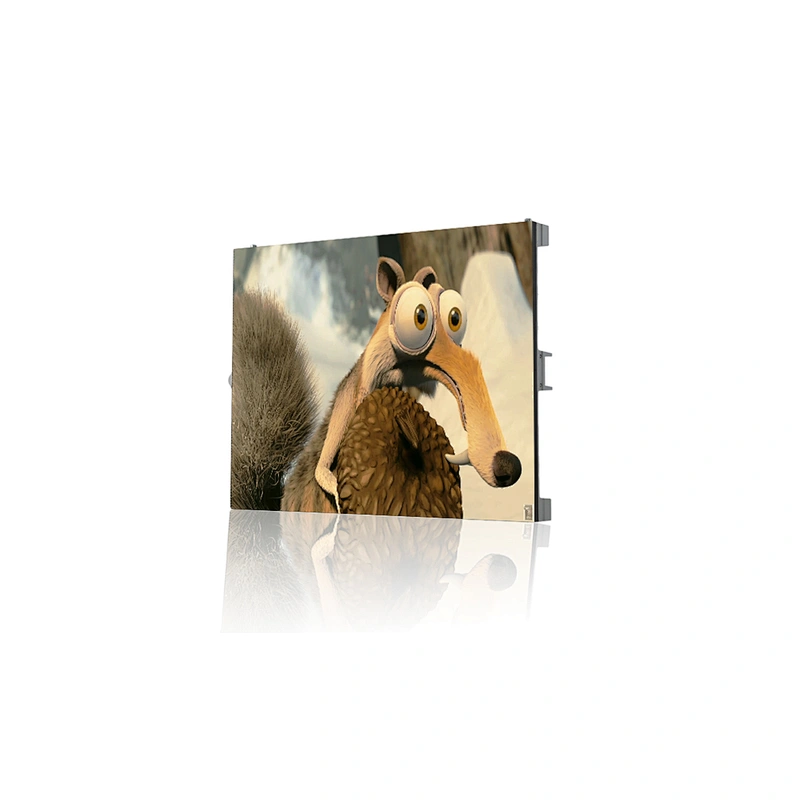

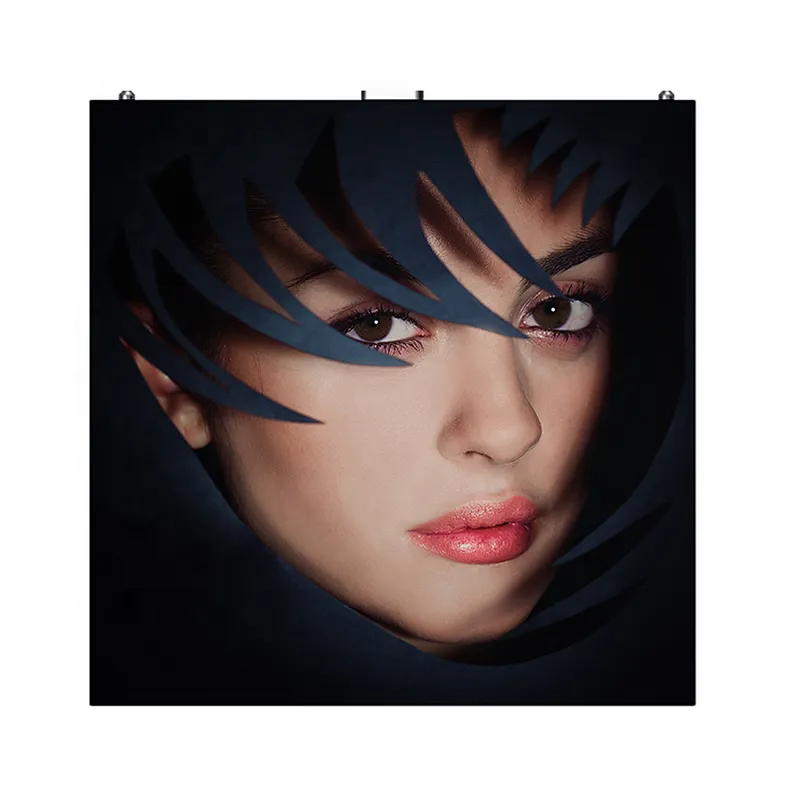

3 year warranty High definition indoor LED display screen
3 year warranty High definition indoor LED display screen
3 year warranty High definition indoor LED display screen
3 year warranty High definition indoor LED display screen
3 year warranty High definition indoor LED display screen
3 year warranty High definition indoor LED display screen
3 year warranty High definition indoor LED display screen

3 year warranty High definition indoor LED display screen

USD700.00 -USD900.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: IF Series

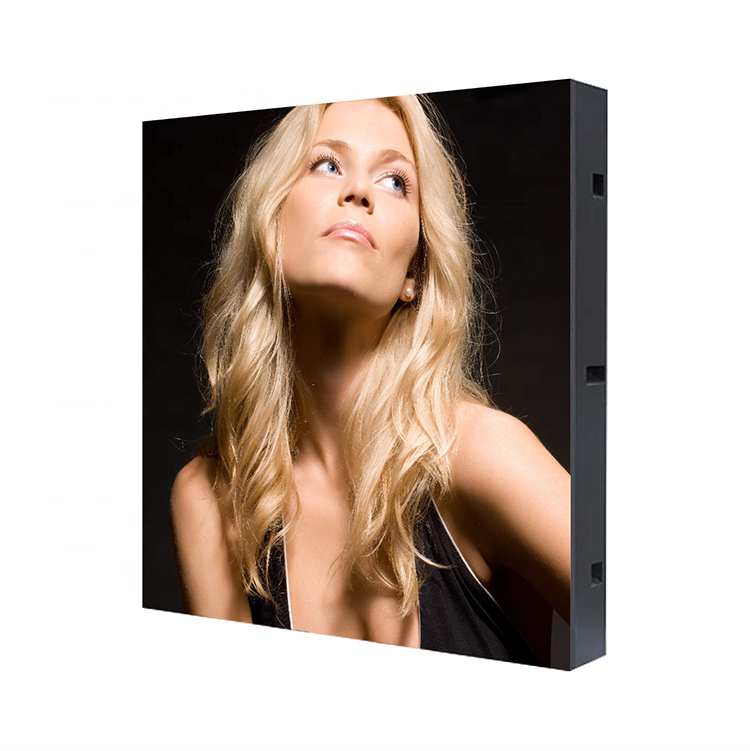

    Product Description

    • Application:indoor
    • Color:fullcolor
    • Panel Size:576x576
    • Pixel Pitch:3
    • Model Number:IF3R
    • Brand Name:LEDFUL
    • Usage:Indoor
    • Screen Dimension:576*576
    • Product name:Led Video Wall
    • Certificate:CE ROHS FCC
    • Brightness:1200nits
    • Color:Full-color
    • Module size:192mm*192mm
    • Pixel pitch:3mm
    • Cabinet size:576mm*576mm
    • Refresh rate:1920-3840 Hz
    Product Description
                   IFR Series
         IF3R | IF4R
    • Black SMD LED makes perfect

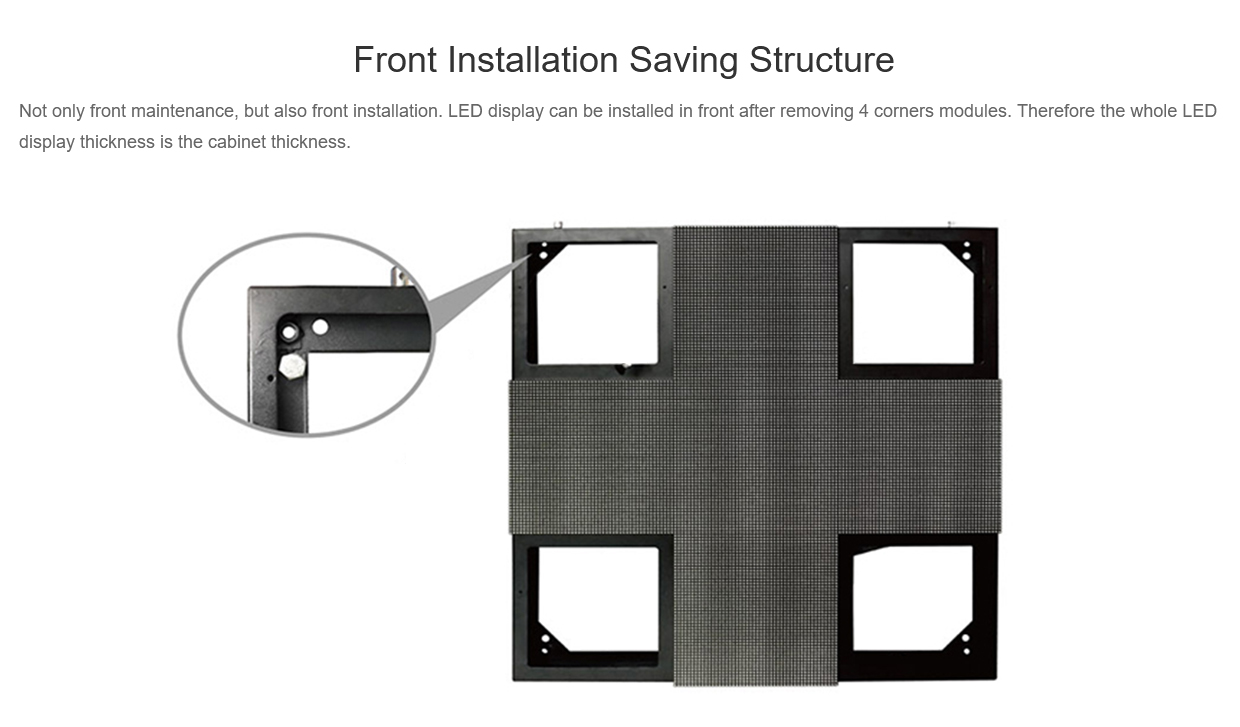

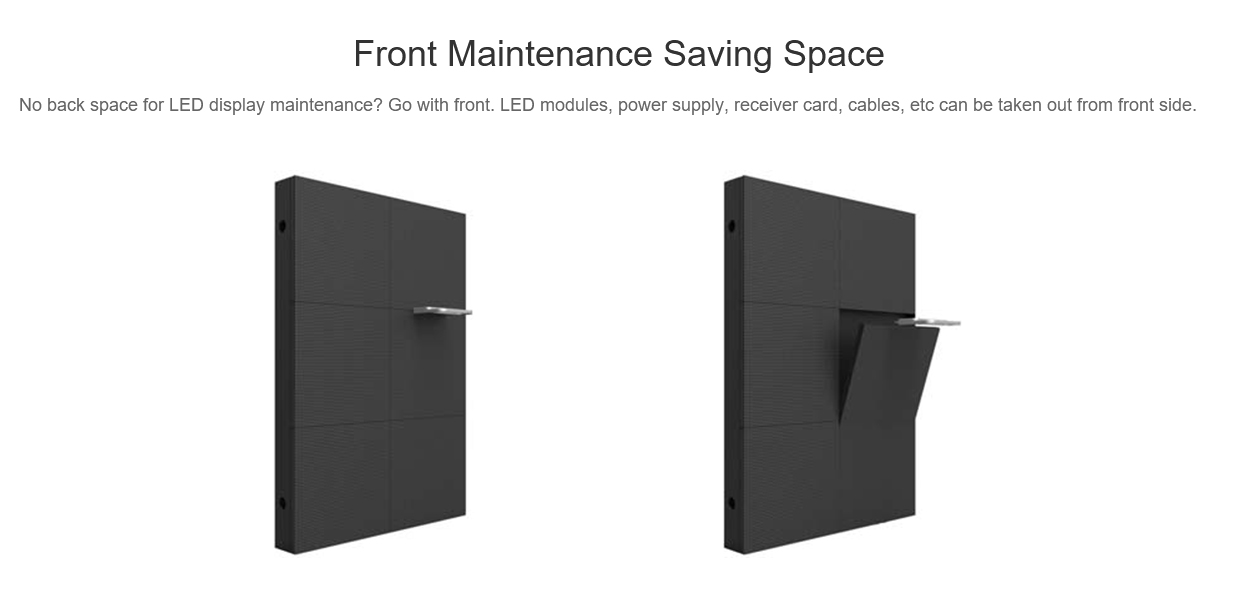

    • Front maintenance & Front installation
    • Wifi, 4G, cloud, usb, remote control
    • Thin, light weight, easy installation

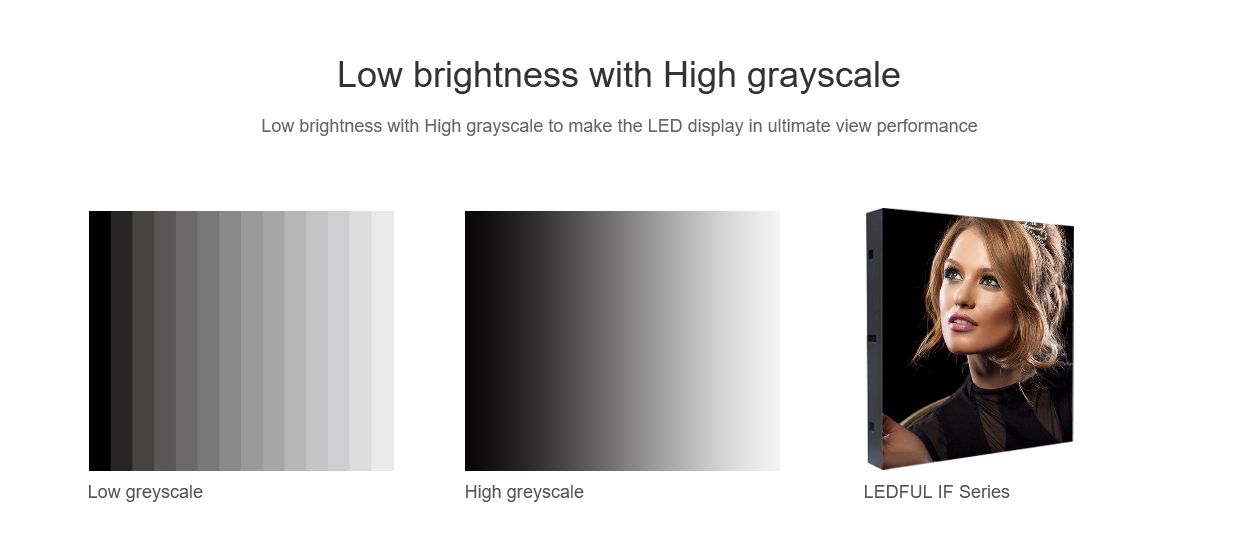

    • Low brightness with High grayscale operation


    Parameter
    IF Series
    IF3R
    Pixel Pitch(mm)
    3mm
    Pixel Matrix Per Sq.m
    111111
    Pixel Configuration
    SMD2121
    Brightness (nits)
    1000
    Scan
    1/32
    Cabinet Resolution
    192x192
    Module Dimension
    192x192mm / 0.63x0.63feet
    Cabinet Weight
    11kg /24Ib (Iron)

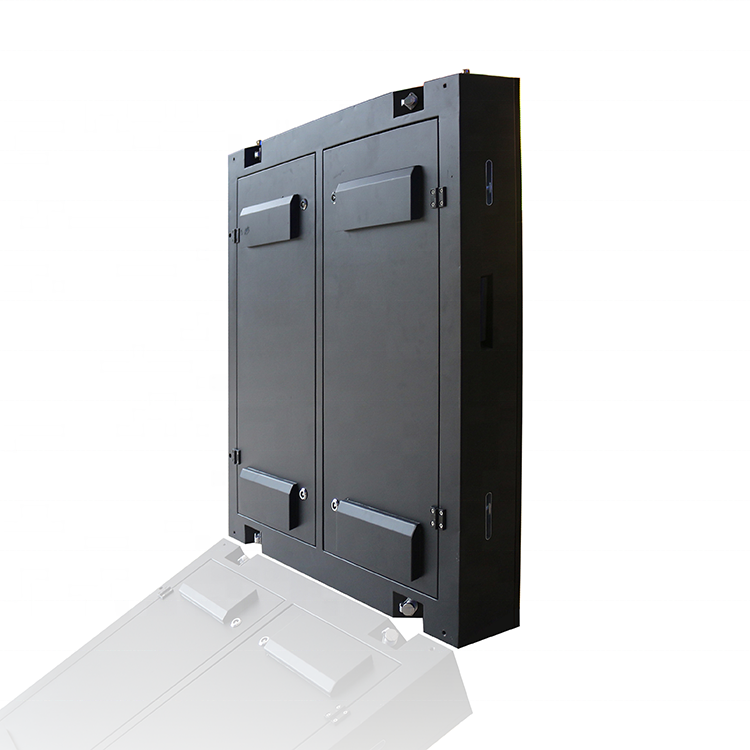

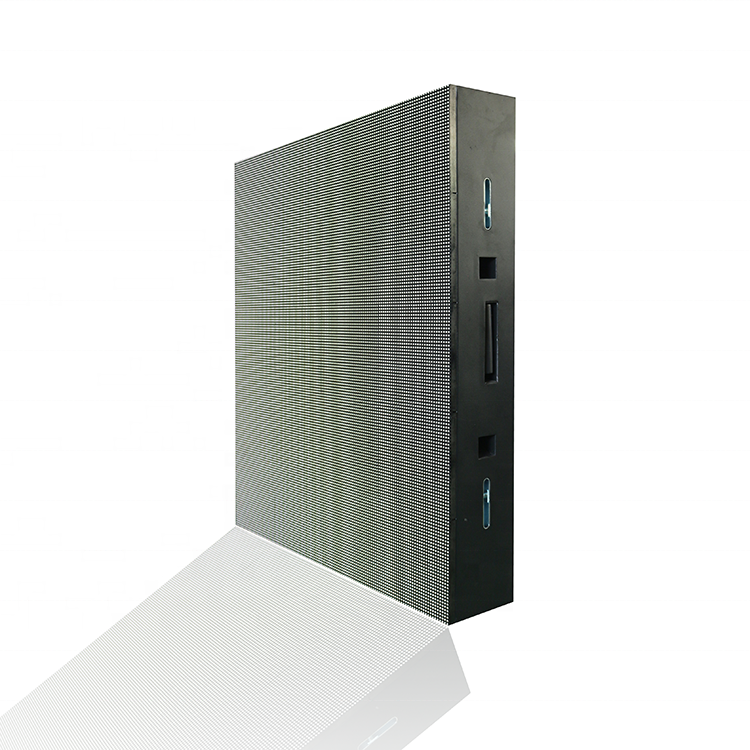

    Cabinet Dimension
    576x576x100mm / 1.89x1.89x0.33feet
    Service Access
    Front/Rear
    Refresh Rate (HZ)
    ≥1920
    Grey Scale (bit)
    16

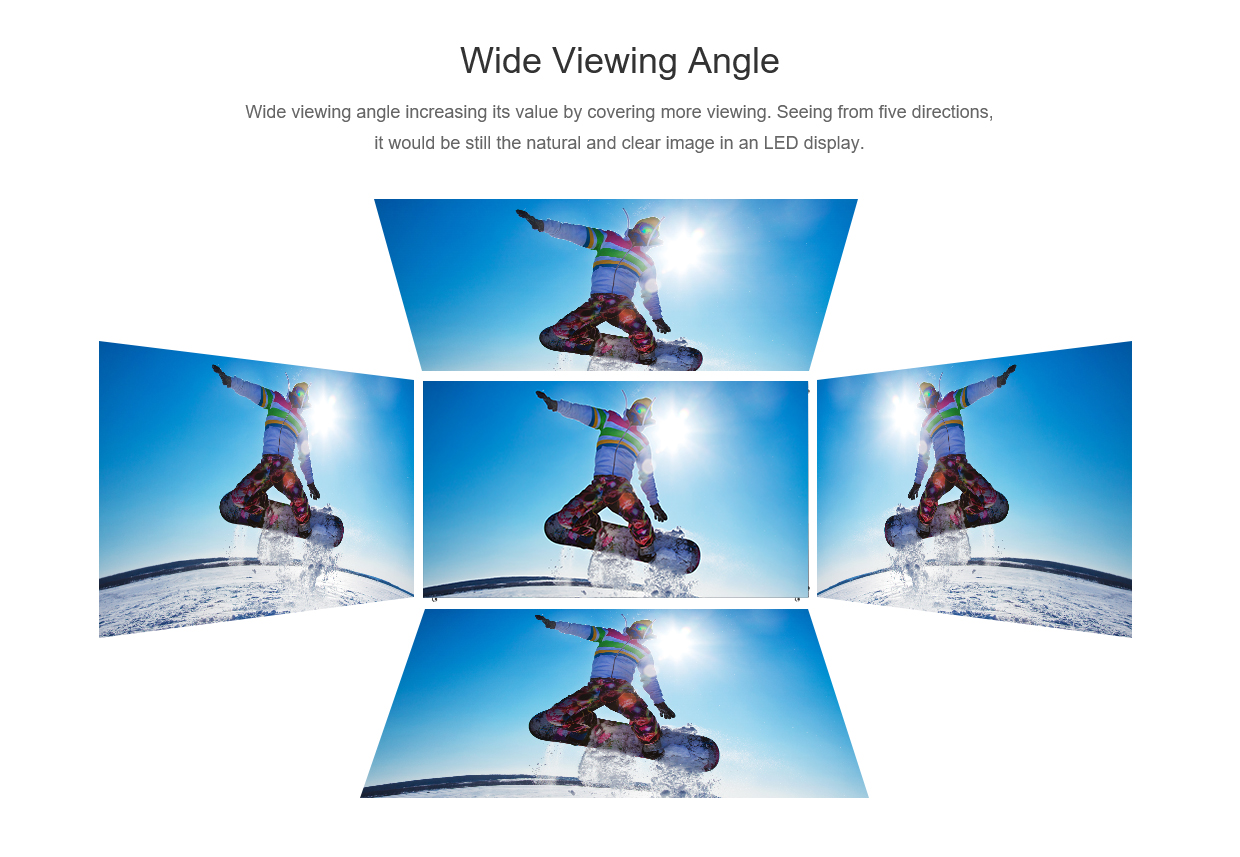

    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    550 / 138 w/sq.m
    IP Rate
    IP34
    Input Voltage (AC)
    110 / 240
    Feature

    1.Indoor with short viewing distance to get amazing
    vision effect same like watching TV. High refreshrate,high gray scale and high definition createsvivid colors.

    2.Front magnet with easy and convenient maintenance
    to save space and cost.


    Our Company
    Certifications

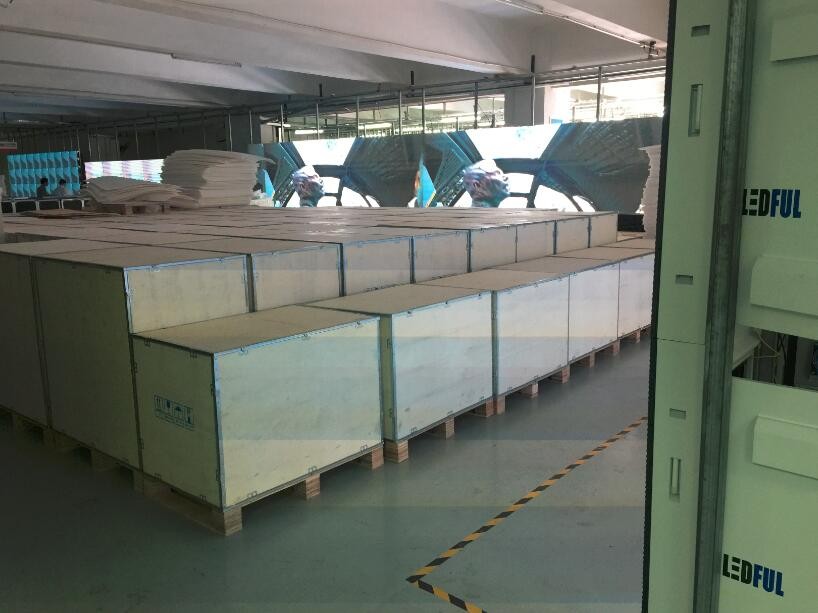

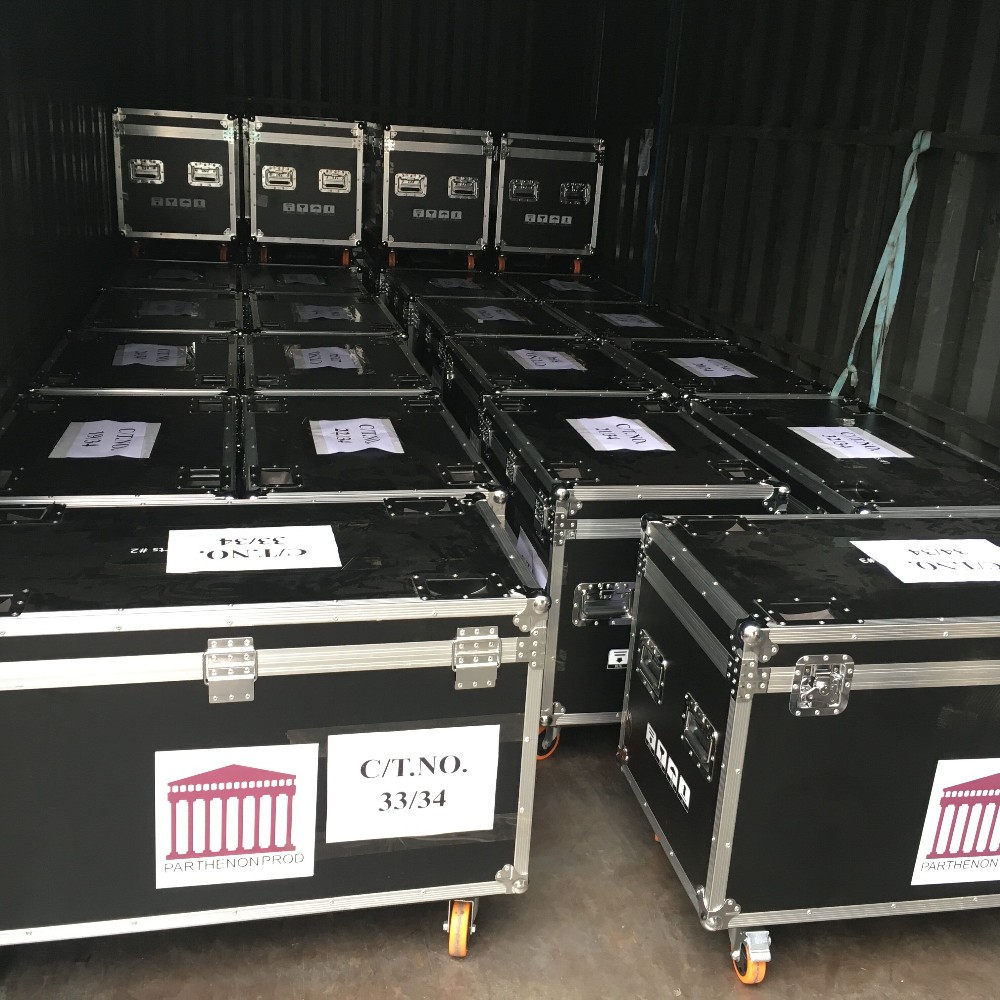

    Packing & Delivery
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more
    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?
    A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
