- Display Function:graphics
- Product name:Indoor Fixed Advertising LED Display
- Grey Scale (bit):16
- Brightness (nits):1000
- Pixel Configuration:SMD2121
- Cabinet Resolution:192x192
- Module Dimension:256x128mm/0.84x0.42feet
- Cabinet Dimension:960x960mm
- Cabinet Weight:19.5kg /43 Ib ( Iron)
- Input Voltage (AC):110 / 240
- Place of Origin:CN;GUA
- Application:Indoor advertising
- Color:Full Color
- Panel Size:960*960mm
- Pixel Pitch:4mm
- Model Number:IF4
- Brand Name:LEDFUL
Product Description

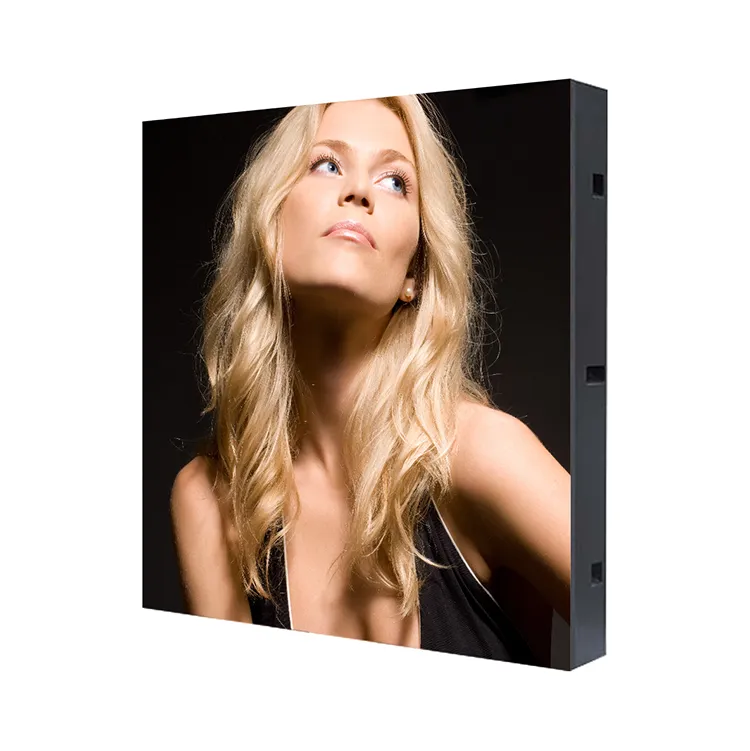

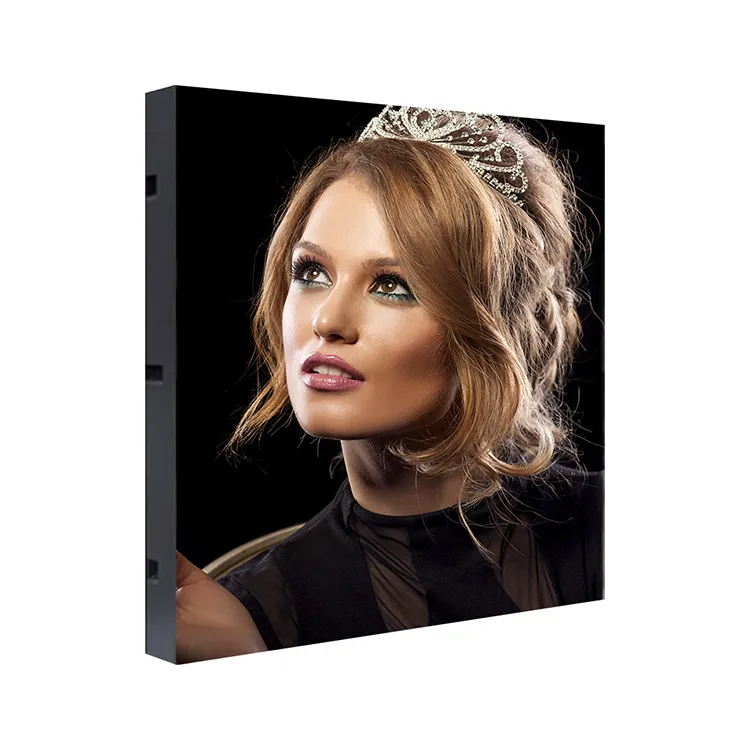

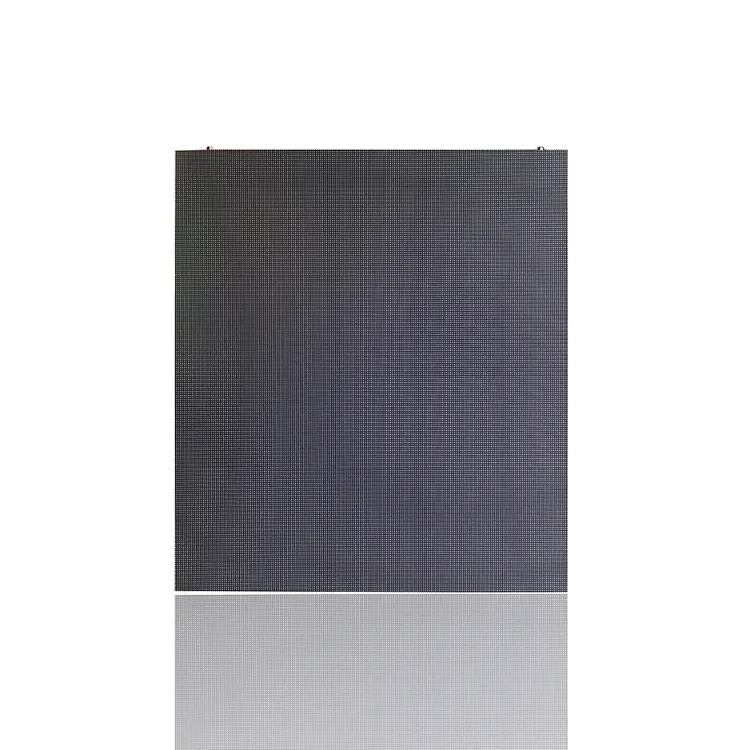

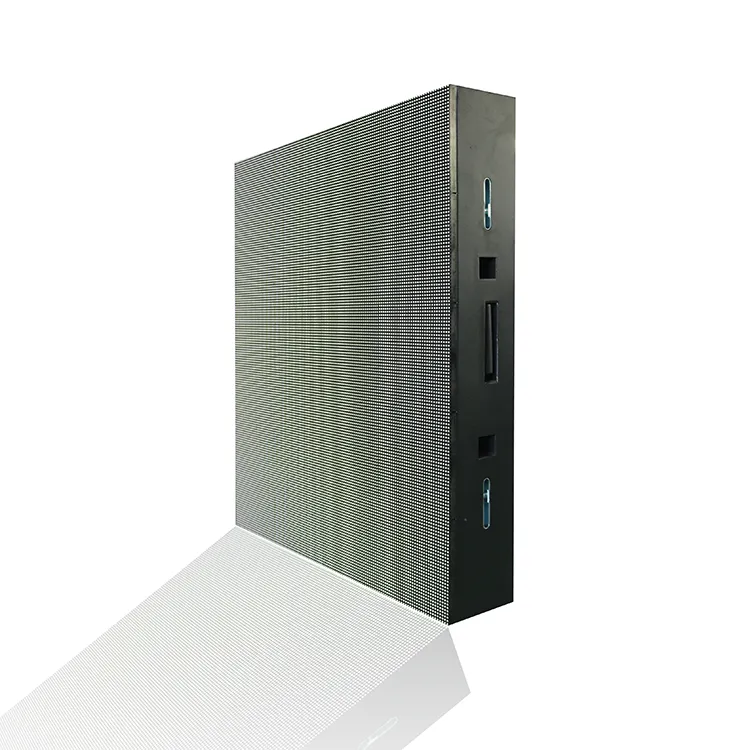

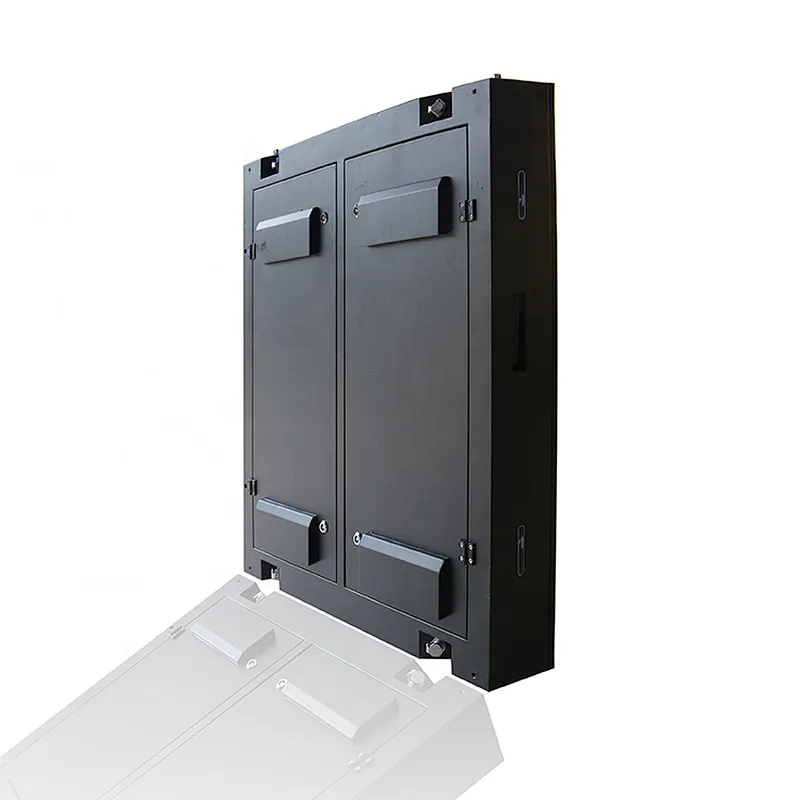

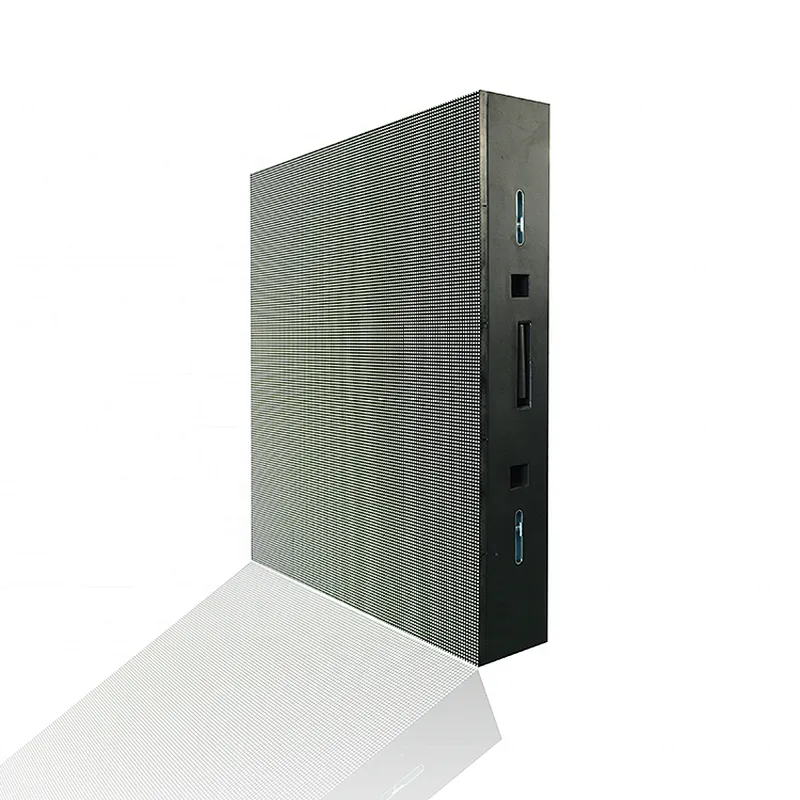

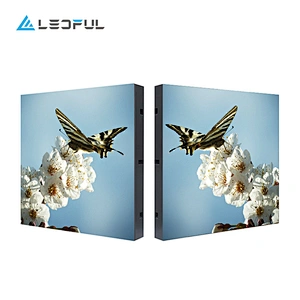

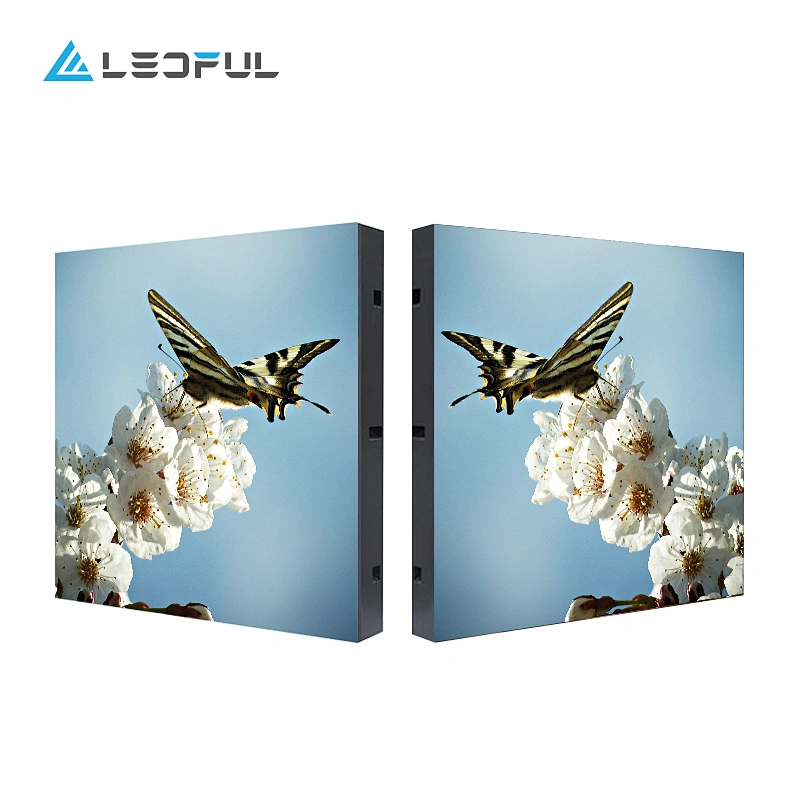

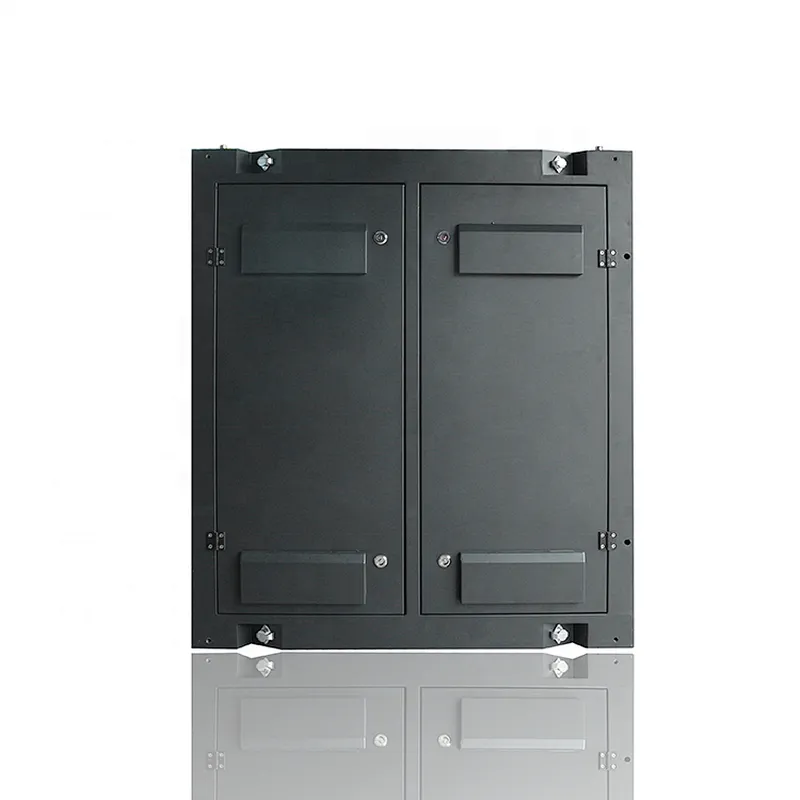

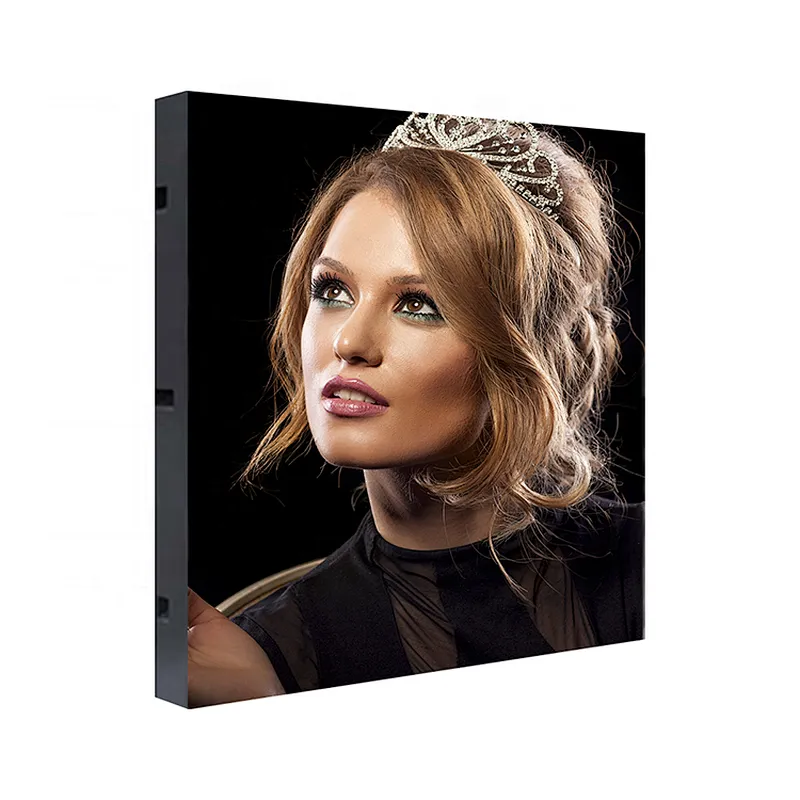

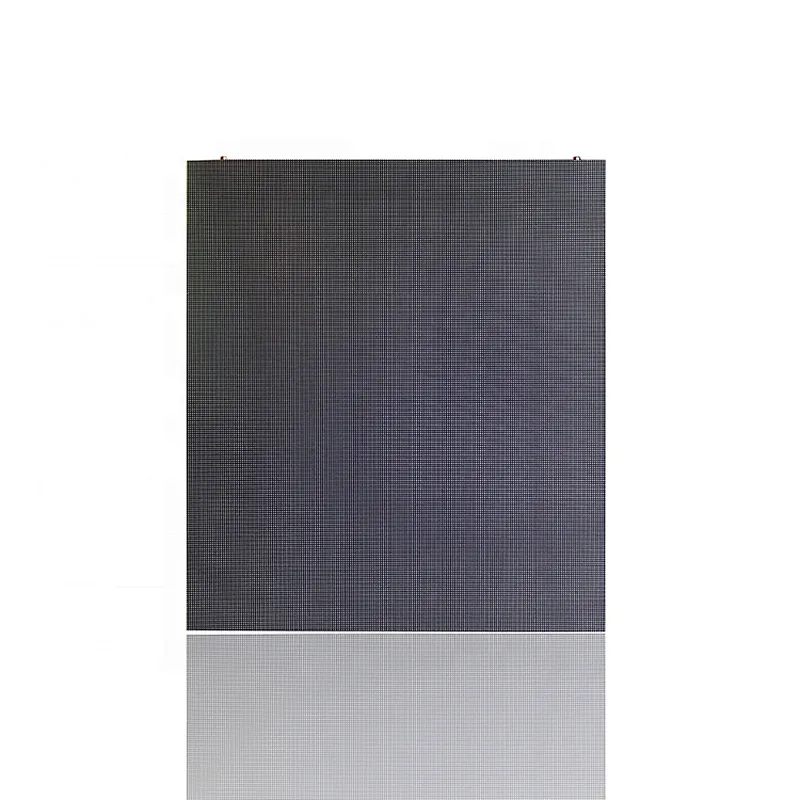

Black SMD LED makes perfect Indoor Fixed Advertising LED Display
| IF Series | IF4 |
| Pixel Pitch(mm) | 4mm |
| Pixel Matrix Per Sq.m | 62500 |

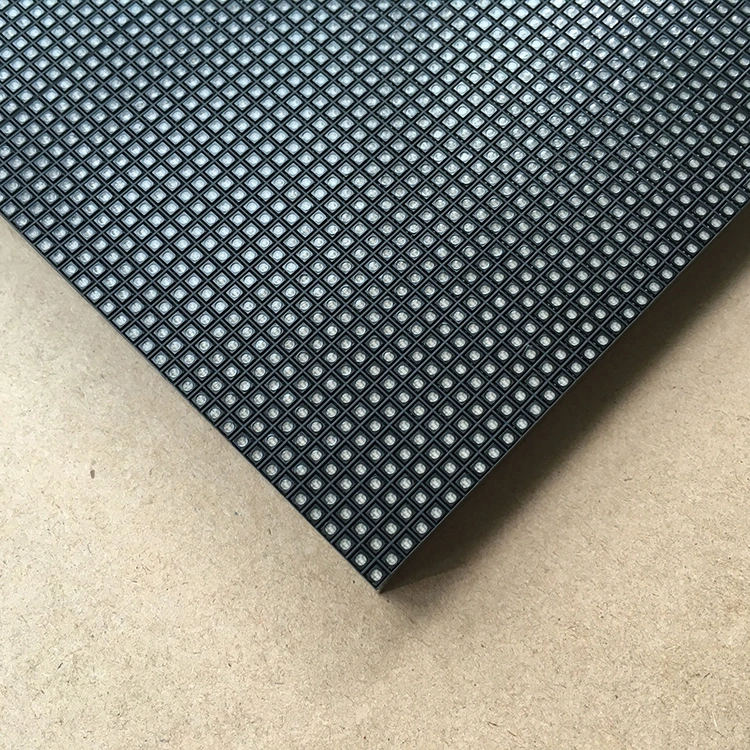

| Pixel Configuration | SMD2121 |
| Brightness (nits) | 1000 |
| Scan | 1/16 |
| Cabinet Resolution | 192x192 |

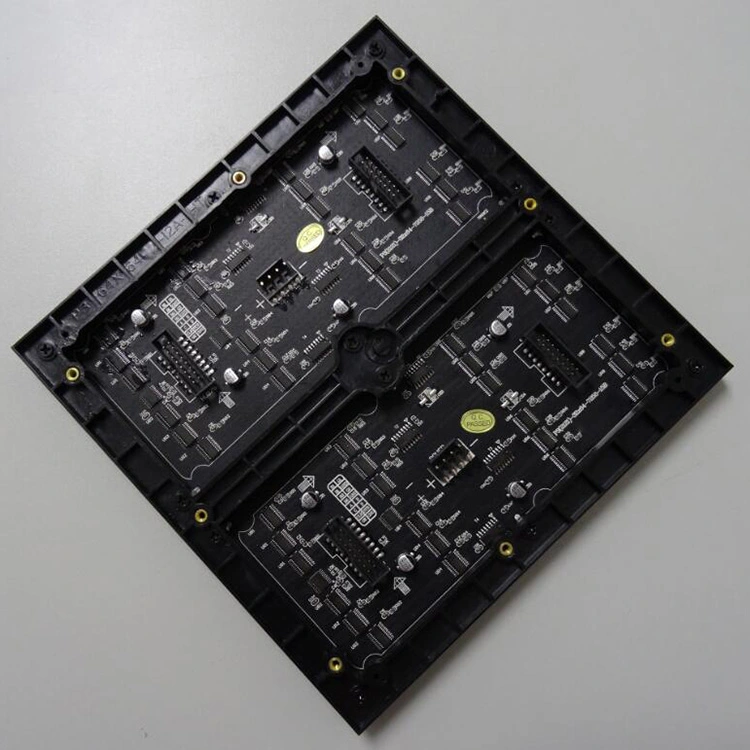

| Module Dimension | 256x128mm/0.84x0.42feet |

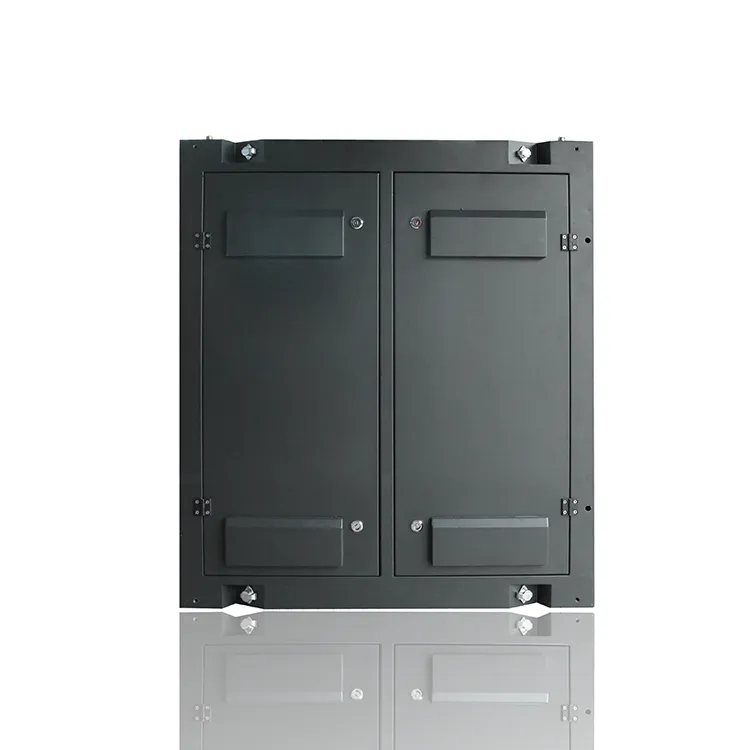

| Cabinet Weight | 19.5kg /43 Ib ( Iron) |
| Cabinet Dimension | 768x768x100mm /2.52x2.52x0.33feet |

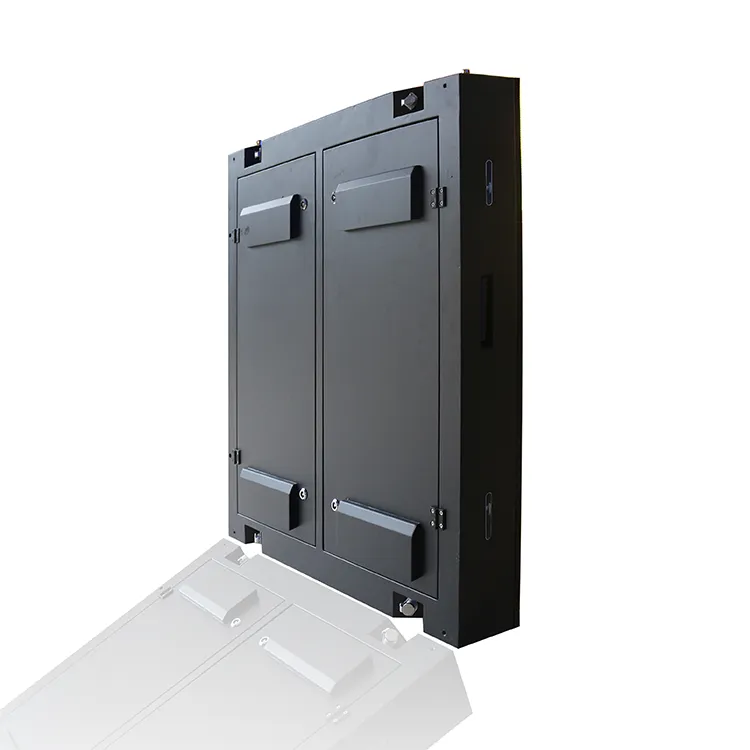

| Service Access | Front/Rear |
| Refresh Rate (HZ) | ≥1920 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| Power Con. (Max / Avg) | 700/ 175 w/sq.m |
| IP Rate | IP34 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
