- Place of Origin:CN;GUA
- Application:Indoor Advertising
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:5mm
- Model Number:IF5
- Brand Name:LEDFUL
- Grey Scale (bit):16
- Brightness (nits):1000
- Pixel Configuration:SMD2121
- Cabinet Resolution:192x192
- Module Dimension:320x160mm / 1.05x0.53feet
- Cabinet Dimension:960x960x100mm /3.15x3.15x0.33feet
- Cabinet Weight:29kg /64 Ib ( Iron)
- Input Voltage (AC):110 / 240
- LED chip:Epistar
- Function:Play Video
Product Description
>>>>>IF Series

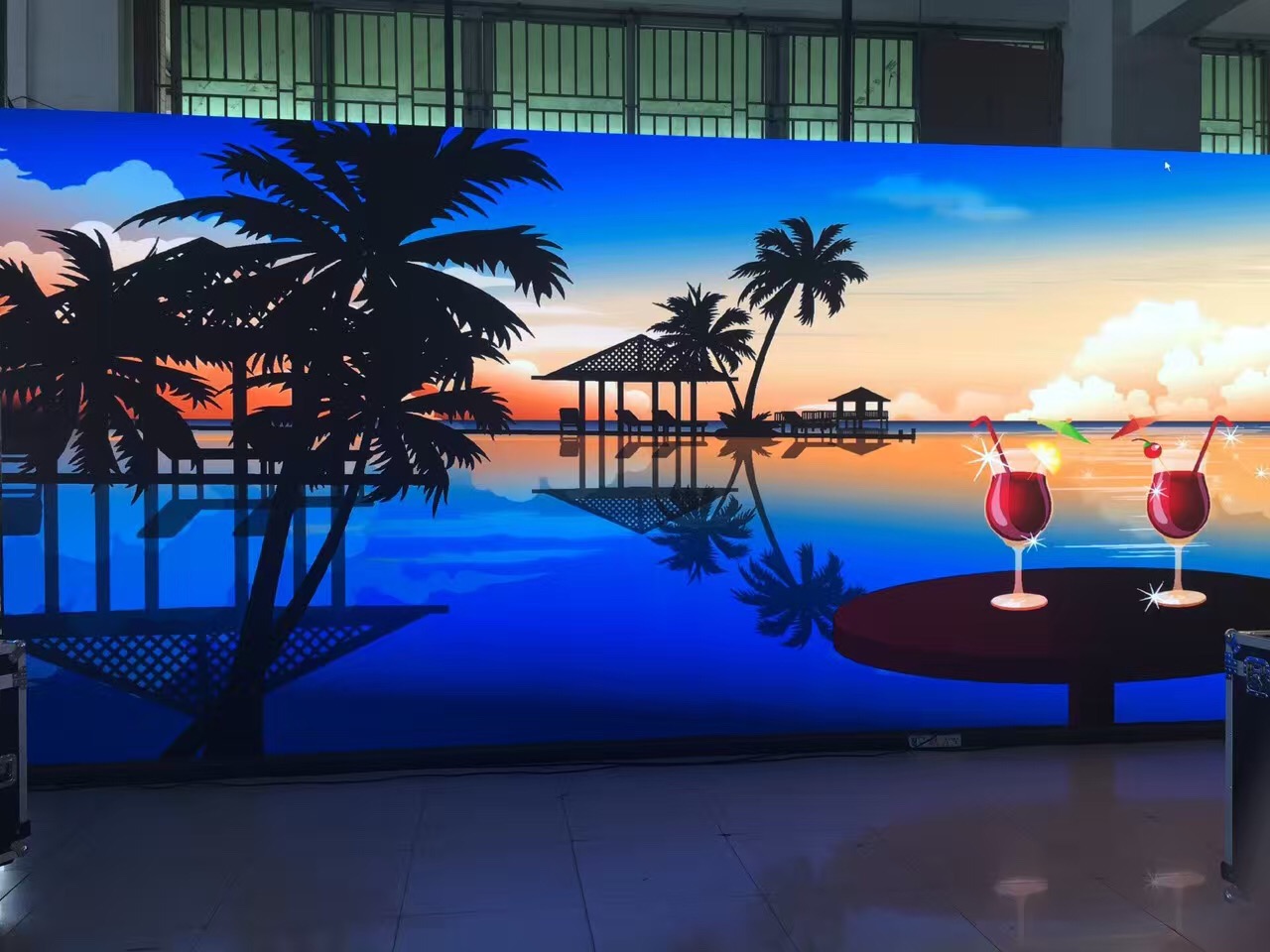

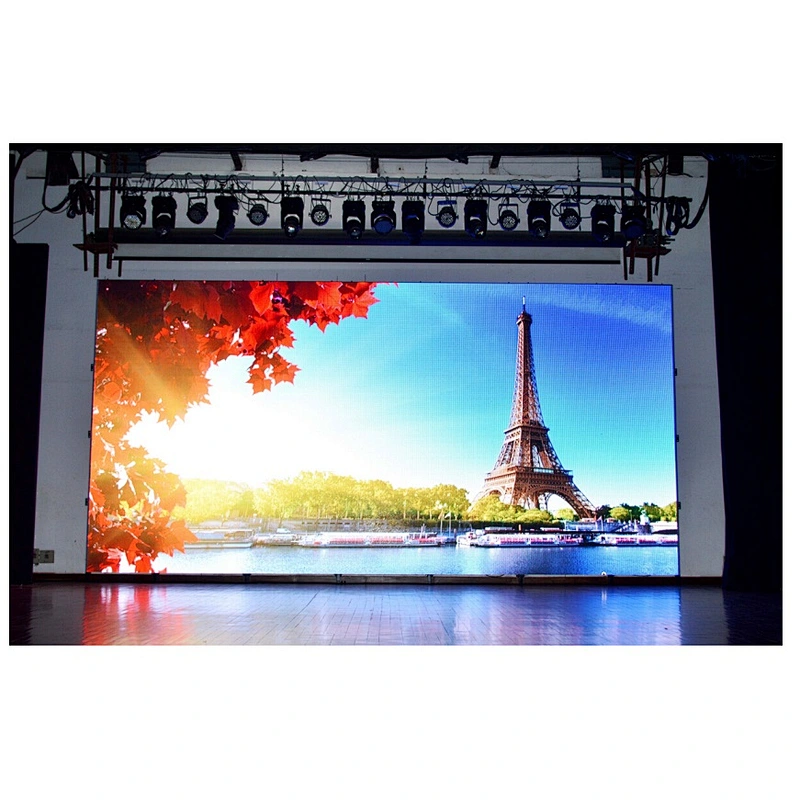

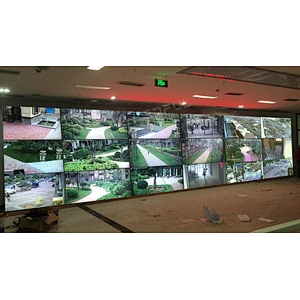

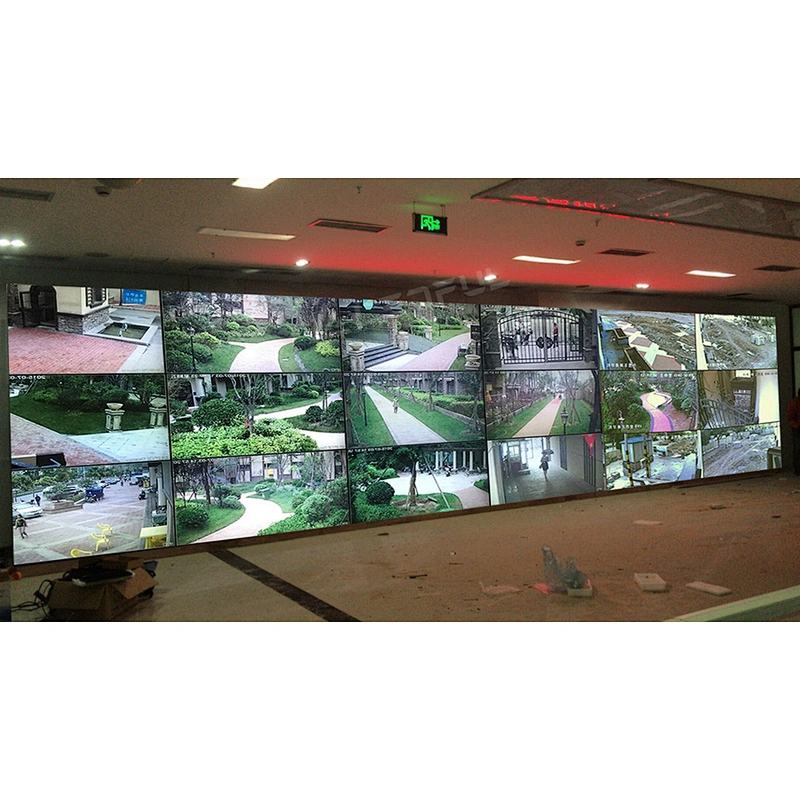

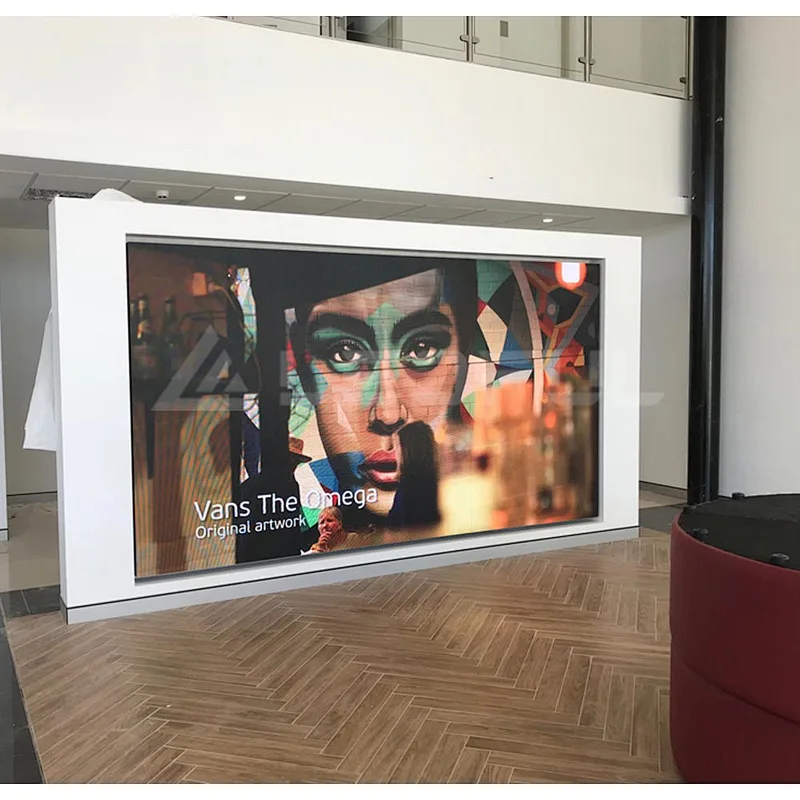

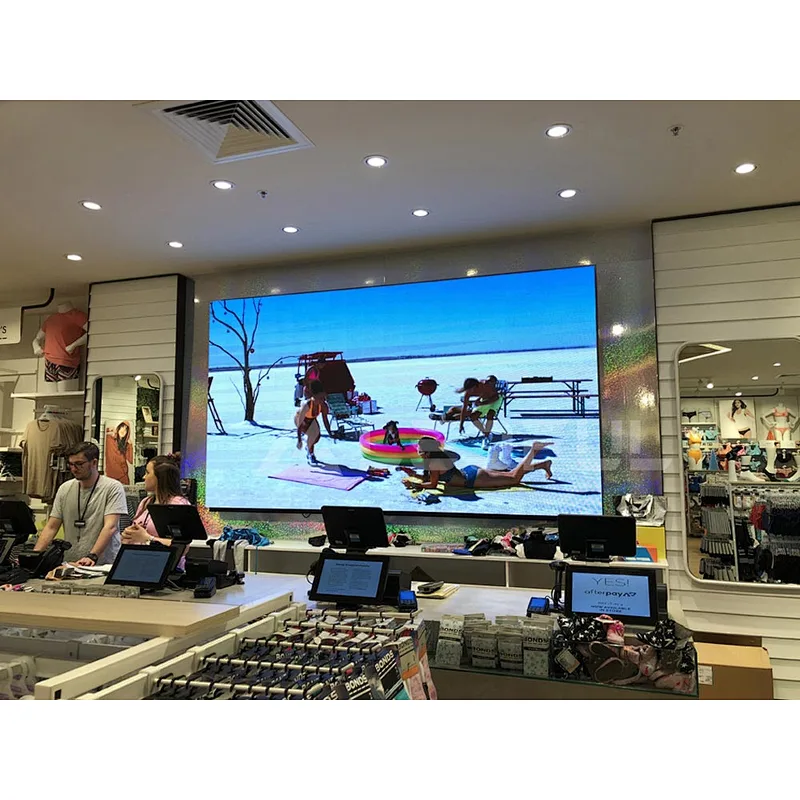

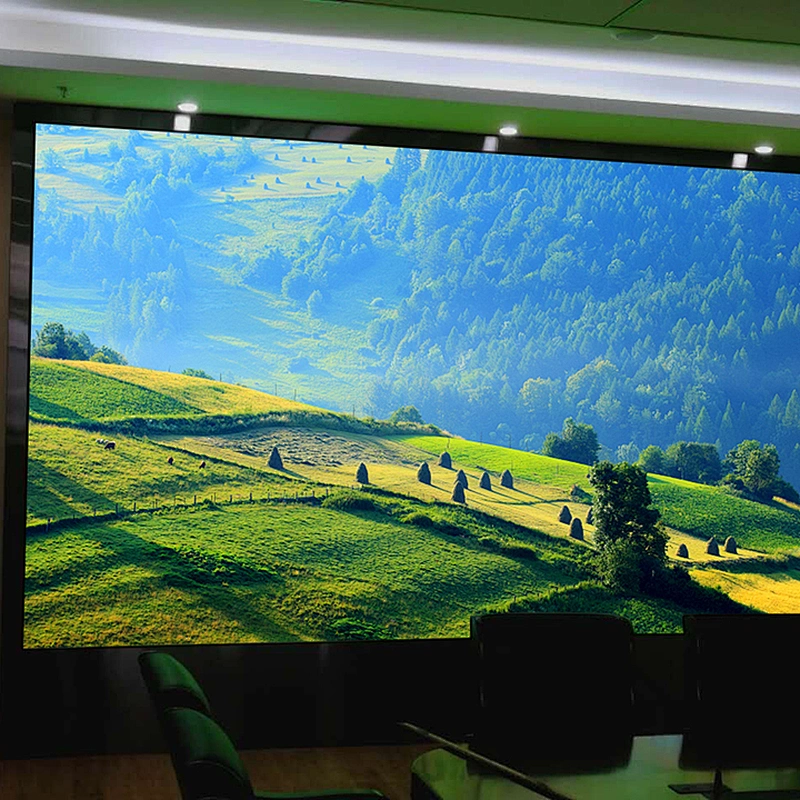

Indoor Fixed Advertising LED Displayapplications such as Temporary stage, TV studio, nightclub & bar, theater, school, conference room, hotel, shopping malletc.
★ Black SMD LED makes perfect

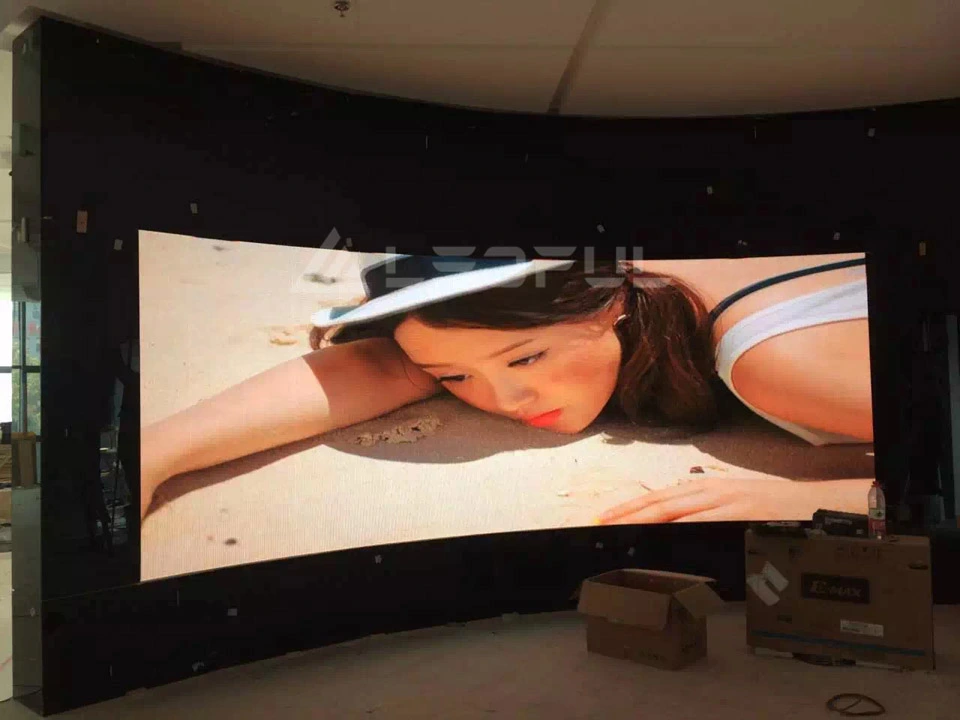

★ Various Shaped LED Display
★Excellentheat dissipationandnoiselessness

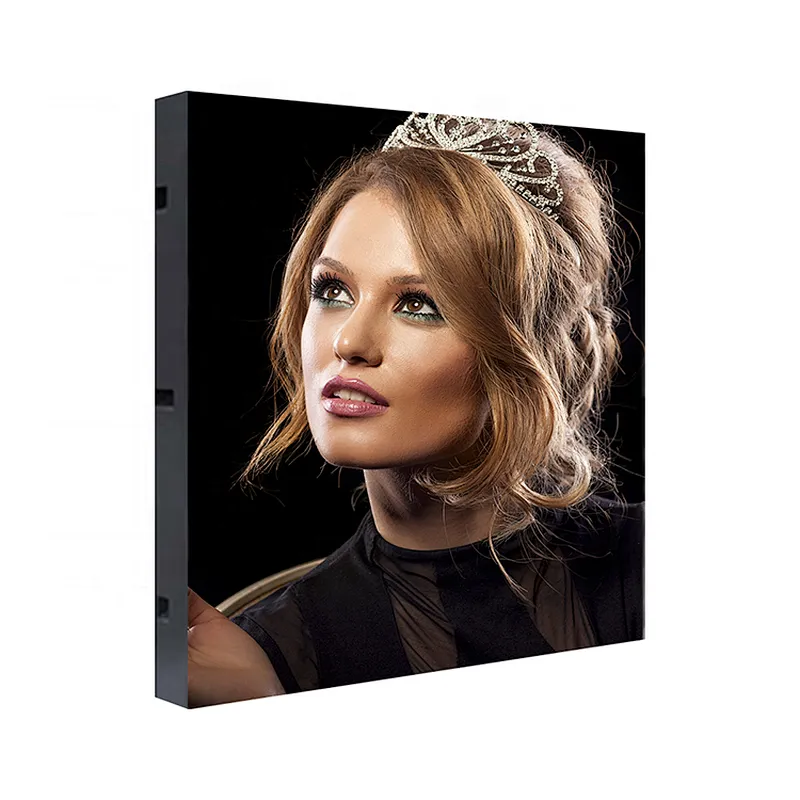

★High-performancemetal plate cabinet design
★Macro molecular flexible mask with glare-less surface on LED modules
★High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
★Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.
Parameter | |||||||||||
Value | IF2.5S | IF3 | IF4 | IF5 | IF6 | ||||||
Pixel Pitch(mm) | 2.5 | 3 | 4 | 5 | 6 | ||||||
Pixel Matrix Per Sq.m | 160000 | 111111 | 62500 | 40000 | 27777 | ||||||
Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | ||||||
Brightness (nits) | 1000 | 1200 | 1200 | 1200 | 1200 | ||||||
Scan | 1/32 | 1/32 | 1/16 | 1/16 | 1/16 | ||||||
Module Dimension | 320x160mm | 192x192mm | 256x128mm | 320x160mm | 192x192mm | ||||||
Cabinet Dimension | 640x640mm | 576x576mm | 768x768mm | 960x960mm | 960x960mm | ||||||
Cabinet Resolution | 256x256 | 192x192 | 192x192 | 192x192 | 160x160 | ||||||
Cabinet Weight | 13kg / 30Ib | 11kg /24Ib | 19.5kg /43 Ib | 29kg /64 Ib | 28.8kg/63.5 Ib | ||||||
Power Con. (Max / Avg) | 600 / 150 | 550 / 138 | 600/ 150 | 450/ 120 | 350/ 100 | ||||||
Refresh Rate (HZ) | 3840 | 3840 | 1920 | 1920 | 1920 | ||||||
Service Access | Front / Rear | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle (H/V) | 160 / 160 | ||||||||||
IP Rate | IP31 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||

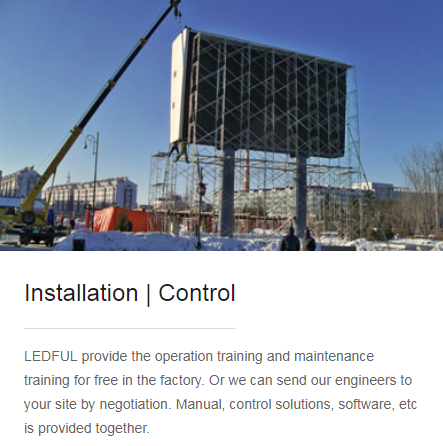

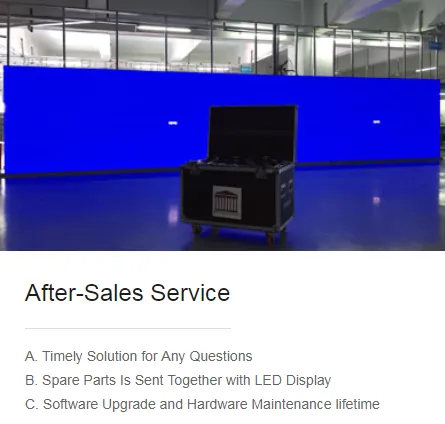

Our Service
Certifications
Product packaging
Packaging
1) Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;

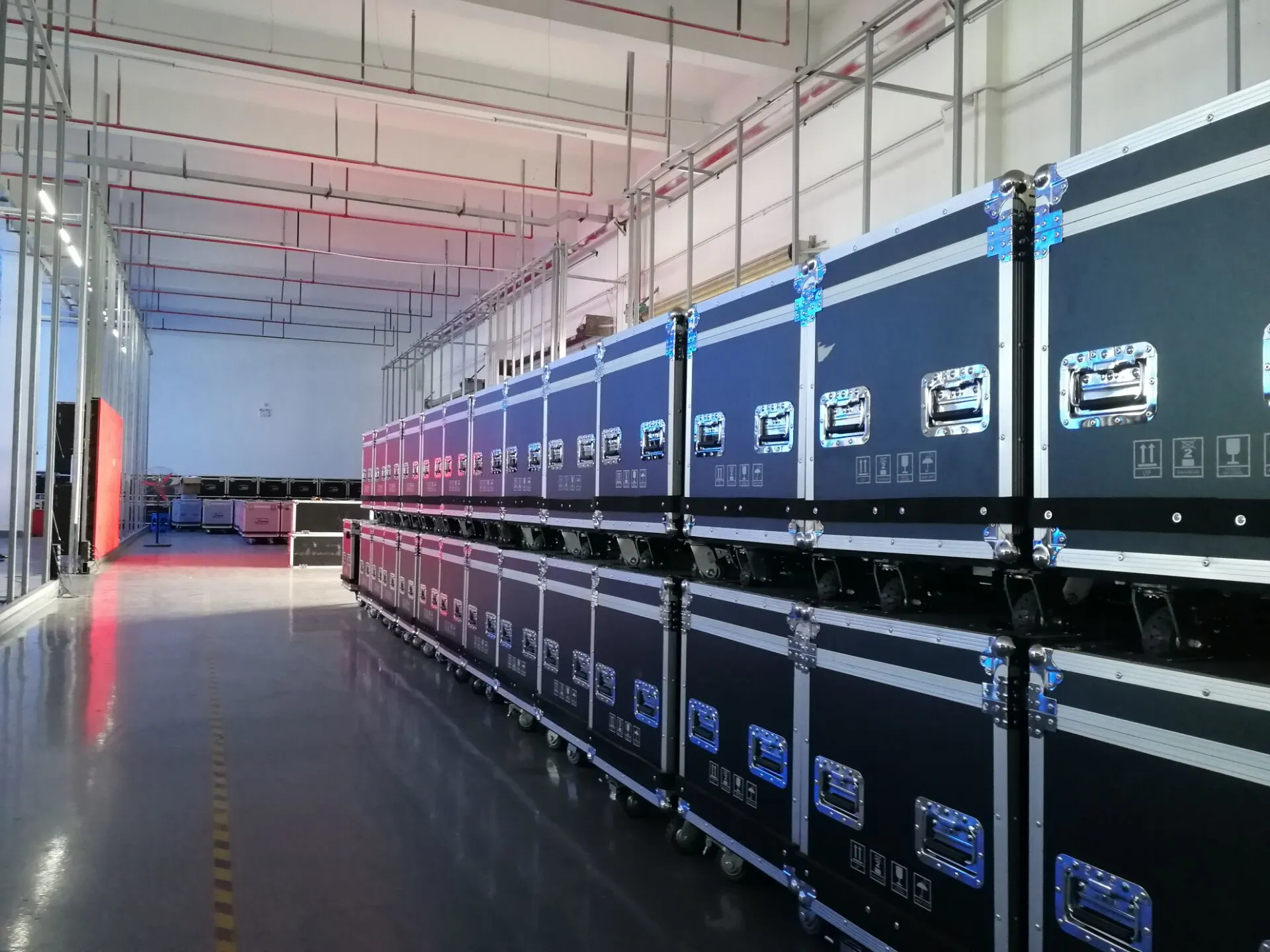

2) Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
Shipping
1) By sea or by air;
2) Customer specified freight forwarder or negotiable mode of transport;
3) Delivery Time: 15-25 days for batch goods.
1) Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
2) Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
Shipping
1) By sea or by air;
2) Customer specified freight forwarder or negotiable mode of transport;
3) Delivery Time: 15-25 days for batch goods.
Related productions

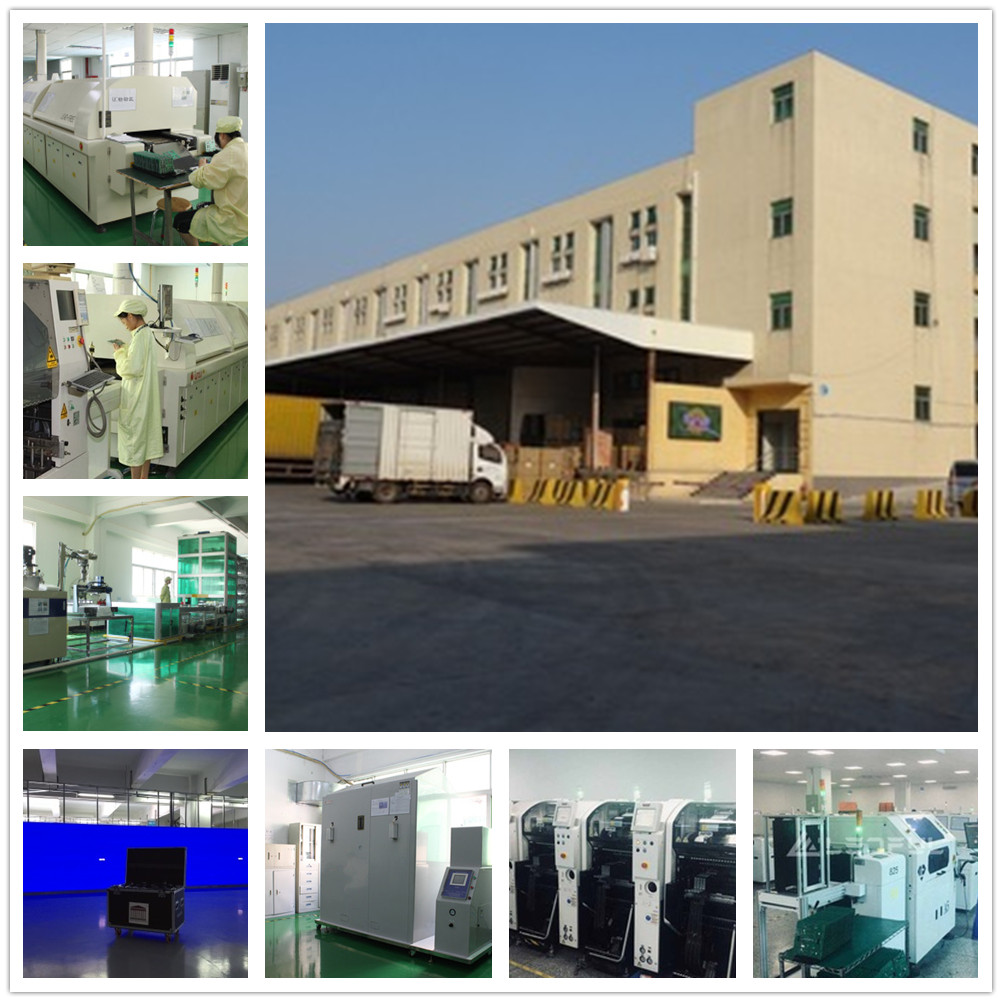

Company Profile
▲LEDFUL founded in 2008

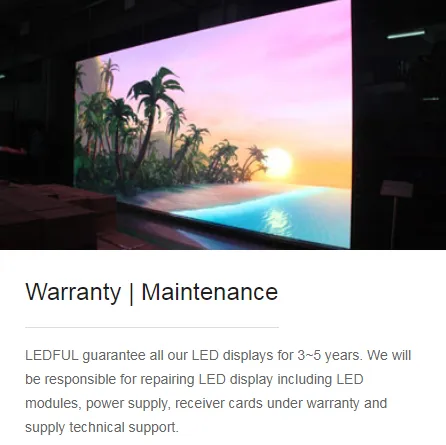

▲Total209 employees in LEDFUL▲3~5 years warranty on LED screen▲Exported to 83 countries and regions▲Top reliable LED display manufacturer▲Over 5,600successful projects in the world
▲R&D staff occupied 10% of all the employees.
▲CE, RoHS, FCC, CCC, ISO9001:2008 standard
>>>>>Top LED Display Manufacturer
>>>>>Why Choose LEDFUL
▲Deep Customized & OEM
▲Listen to you, think more for you.▲Lifelong maintenance with reasonable price▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products▲Excellent product quality, quick and professional services▲Always ready for your any change on LED display details.▲Recommend the best proper solution for your LED project.▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
>>>>>Best Balance of Quality & Price
Exhibition
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer.
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
