★Flex for any irregular shaped screens

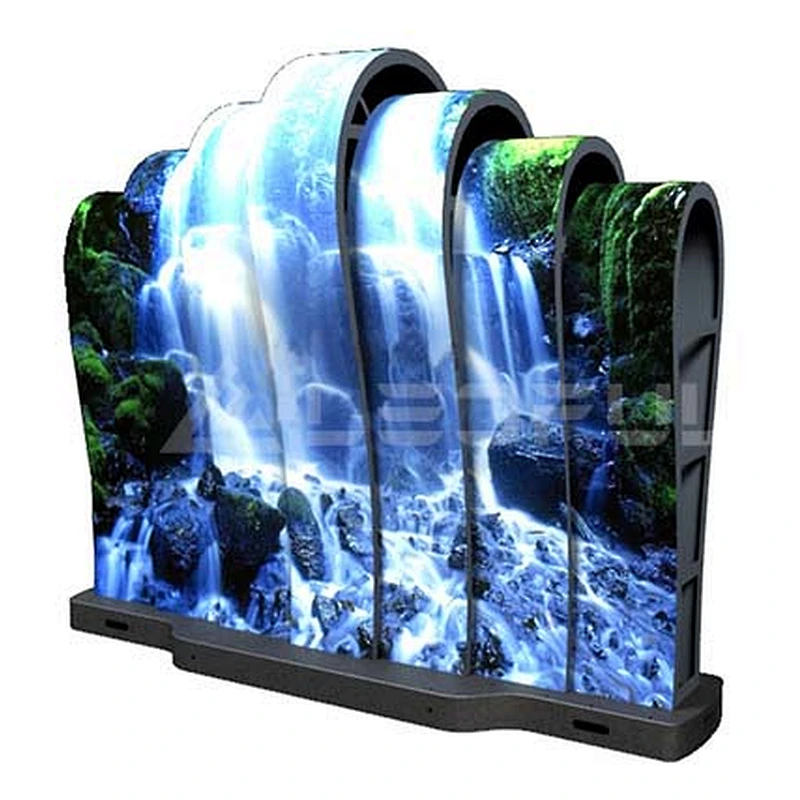

★Concave, convex, round, column, S shaped
★Front service with magnetic module
★Light, thin, easy installation, plug and play
★Design without limitation
- Application:Flexible Customized Indoor
- Color:Full Color
- Panel Size:240x120mm
- Pixel Pitch:2.5
- Place of Origin:Guangdong, China(Mainland)
- Model Number:FLEX2.5
- Brand Name:LEDFUL
- LED chip: Epistar:Warranty: 3 Years
- Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
- Control system: Nova:Input Voltage (AC): 110V / 240V
- Grey Scale: 16bit:Screen Dimension: Customized
- Service Access:Front/Rear:Refresh Rate(HZ):>=3840
Product Description

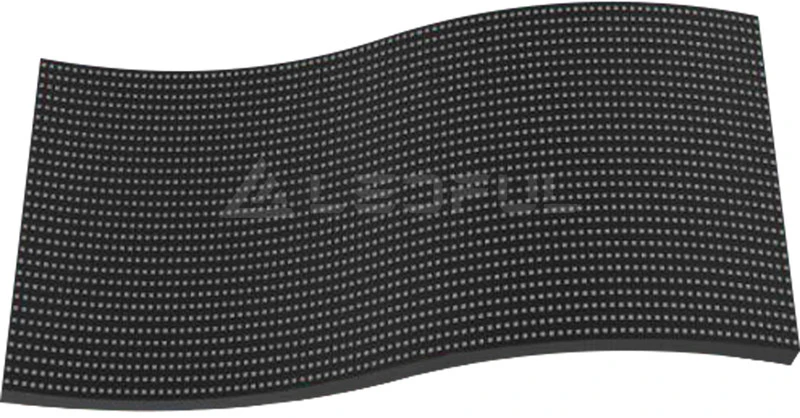

Flex LED Display - Flex Series
FLEX1.5 | FLEX1.8 | FLEX2 | FLEX2.5 | FLEX3 | FLEX4
Creative LED Display Demo
Parameter
Product | FLEX2.5 |
Pixel Pitch(mm) | 2.5mm |
Pixel Matrix Per Sq.m | 16,0000 |
Pixel Configuration | SMD1515 |
Brightness (nits) | 1000 |
Scan | 1/24 |
Module Resolution | 96×48 |
Power Con. (Max/Avg) | 550/110w/sq.m |
Module Dimension | 240x120mm / 0.79x0.39ft |
Module Weight | 0.3kg |
Cabinet Dimension | Customized, Concave, Convex, Round, Column, S shaped |
Service Access | Front Magnet |
Refresh Rate (HZ) | 3840 |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 140 / 140 |
IP Rate | IP30 |
Input Voltage (AC) | 110 / 240 |
Functions and Features

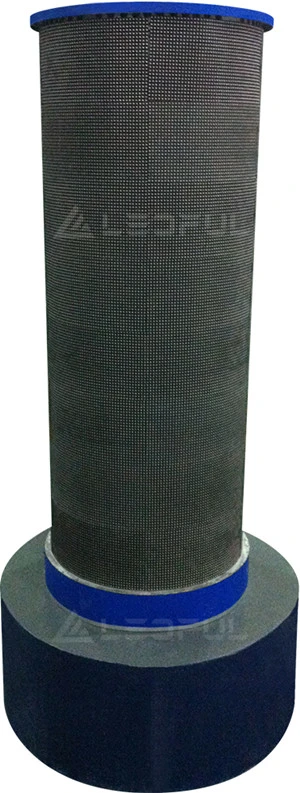

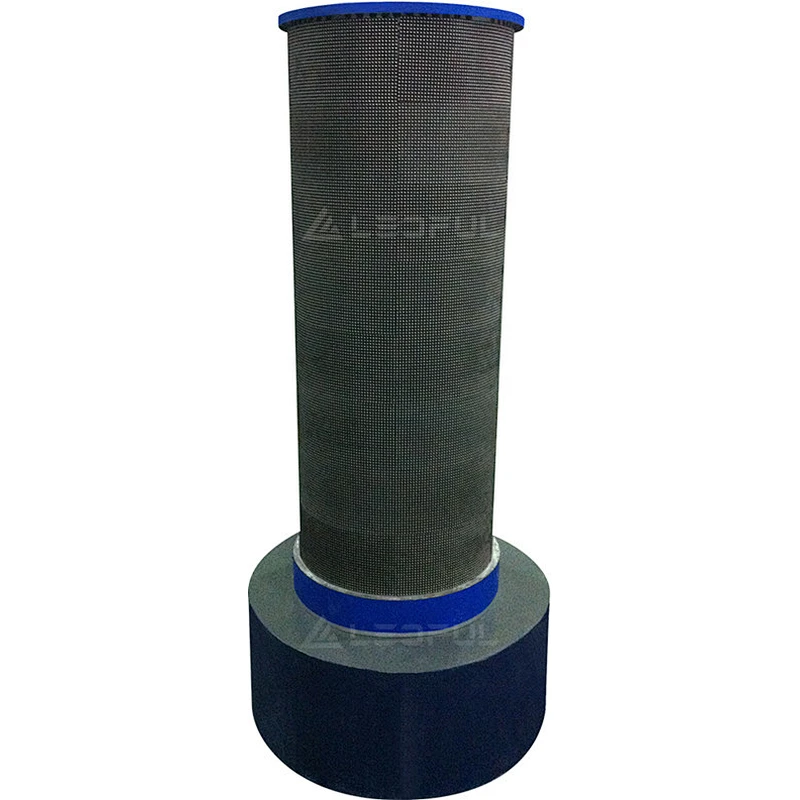

Column Design with FLEX LED modules without cabinets

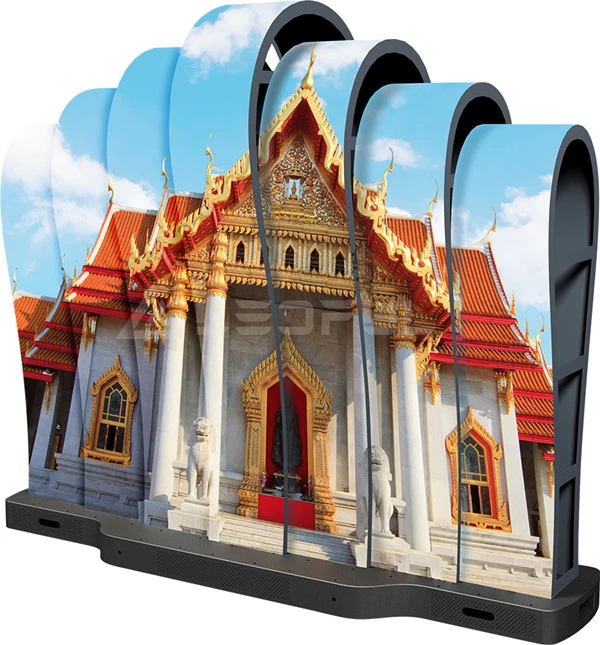

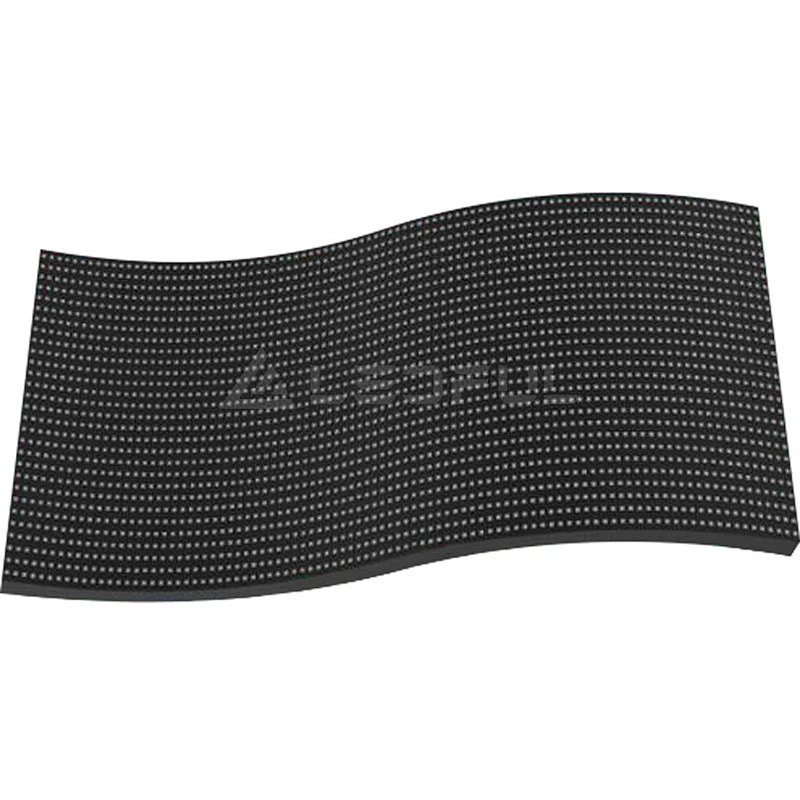

S shaped LED display with FLEX LED modules

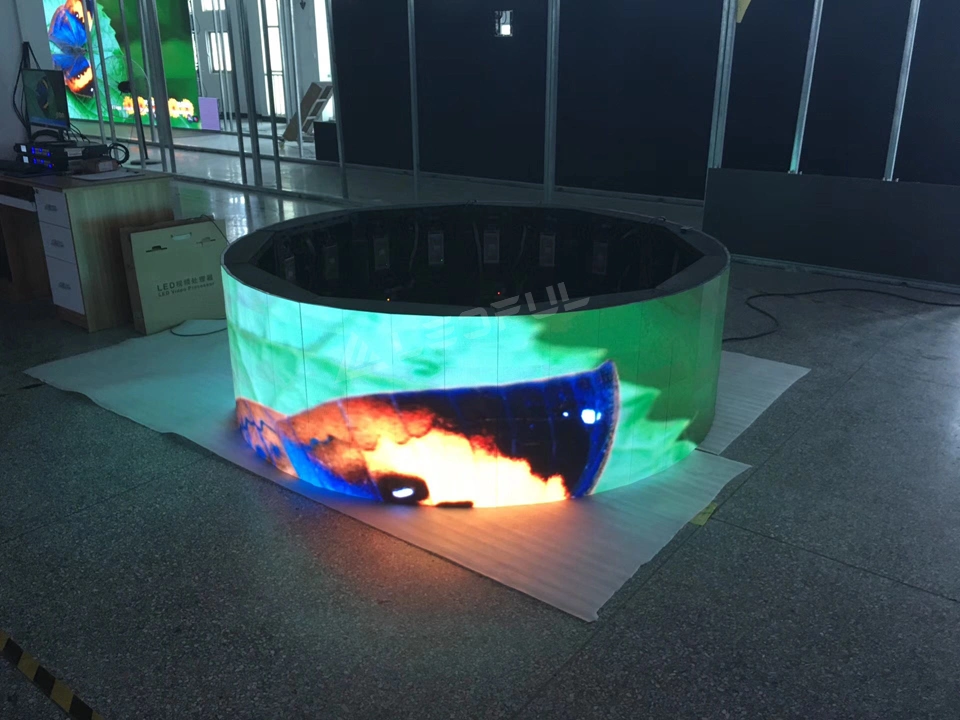

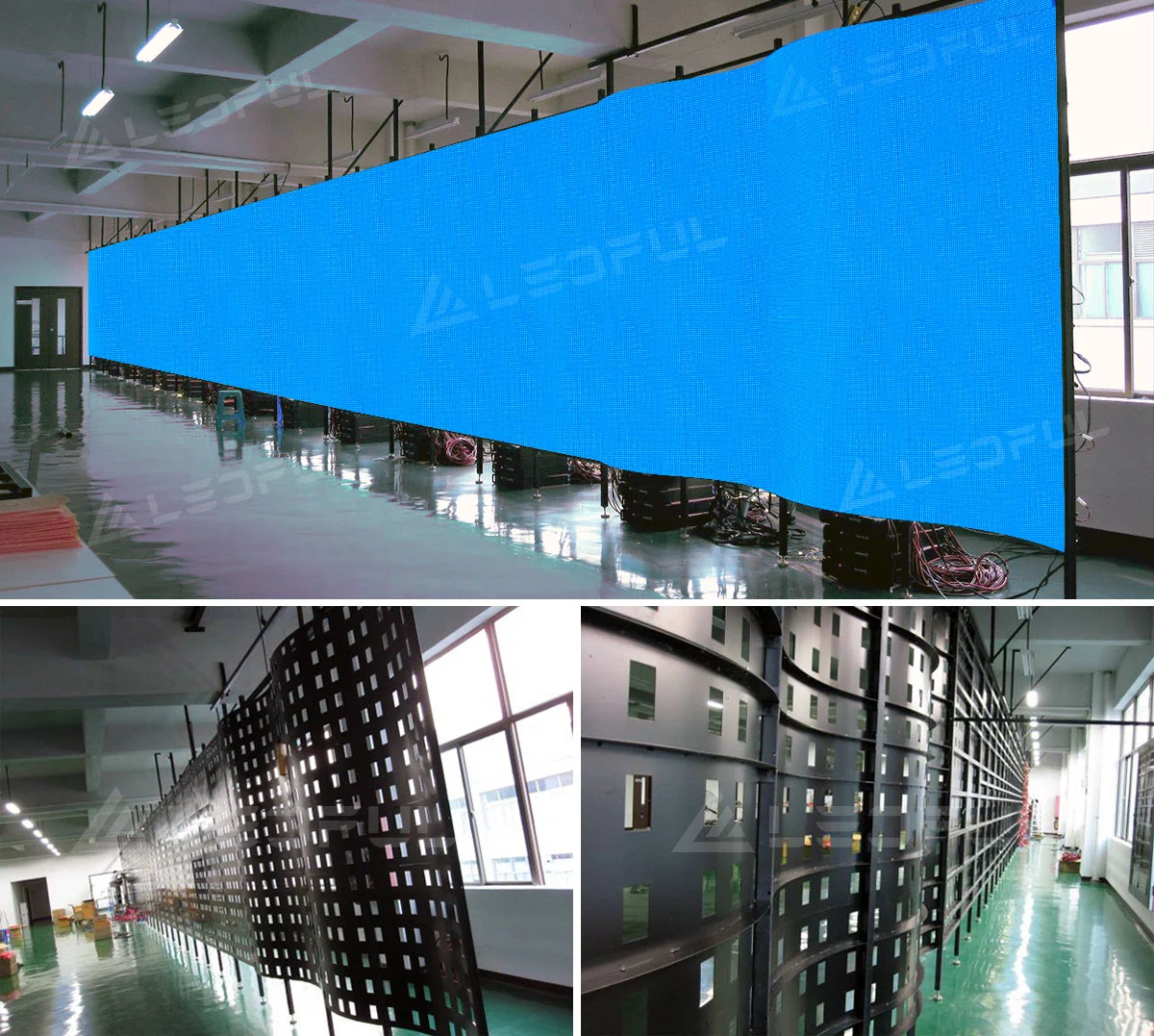

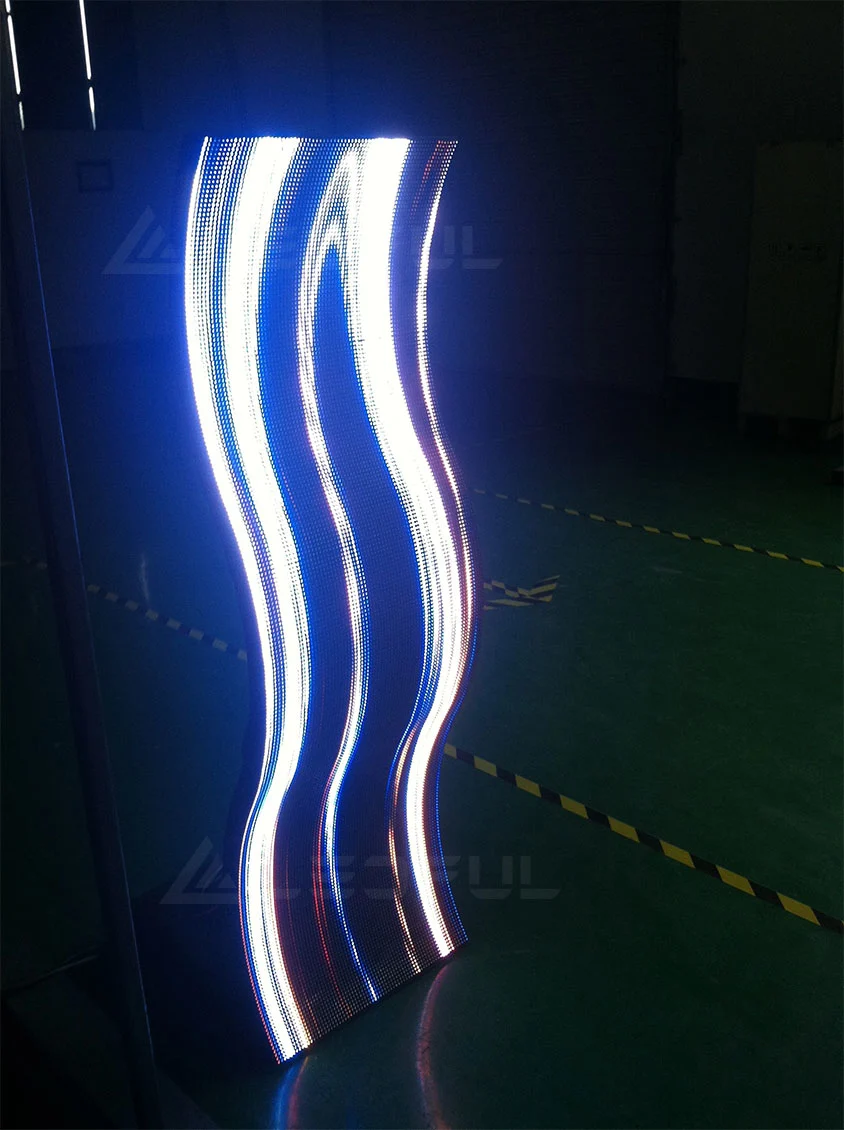

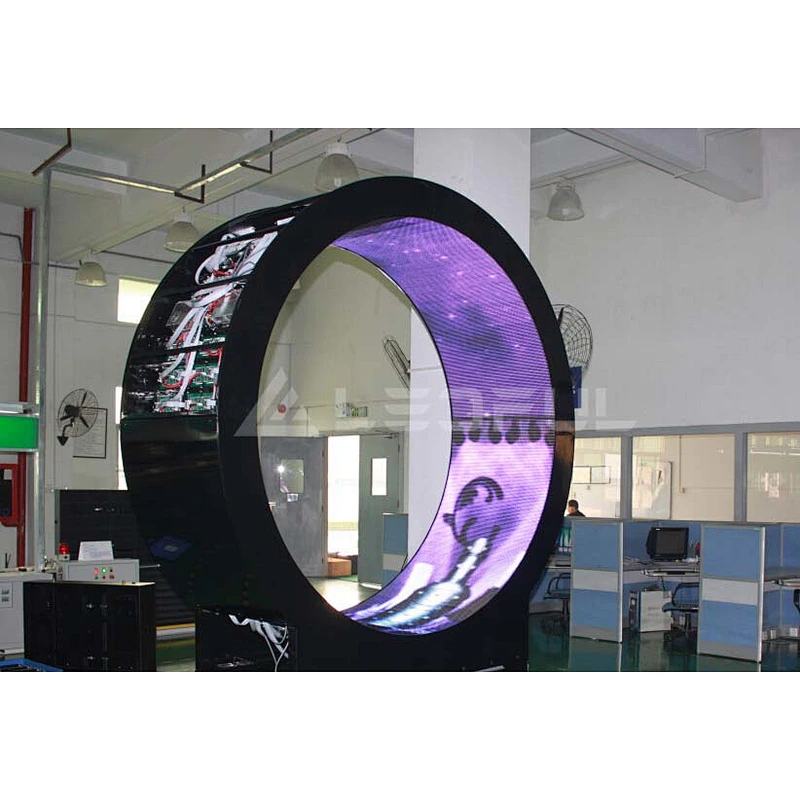

FLEX LED display aging and testing in the workshop in S shaped

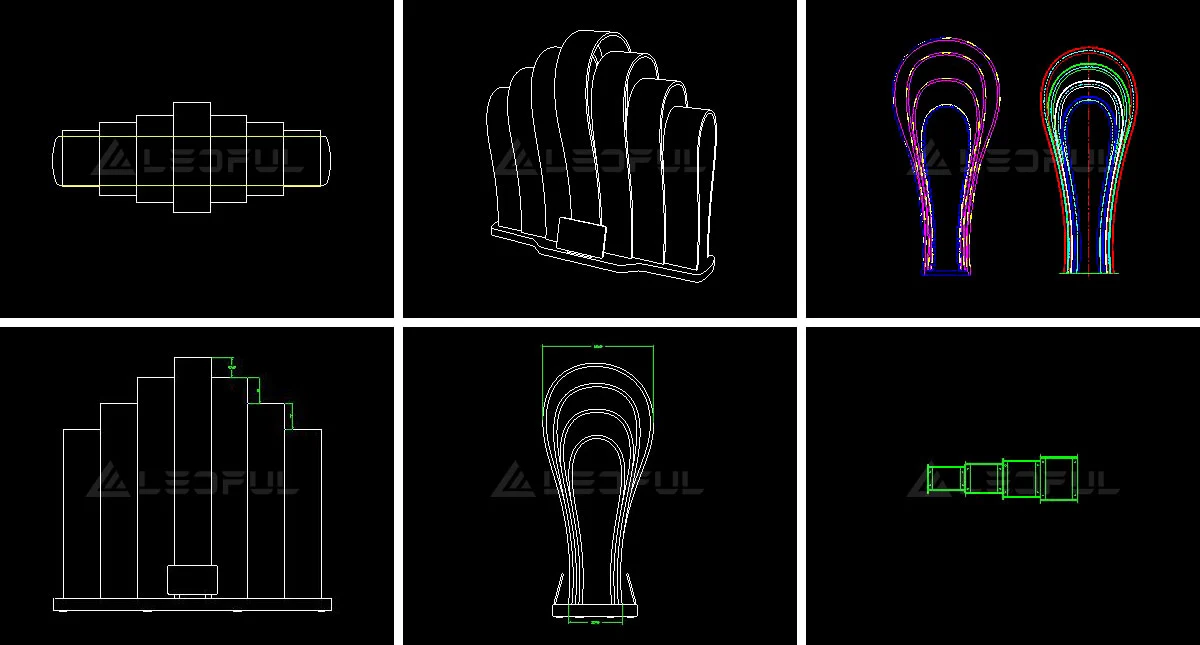

FLEX LED display sample design

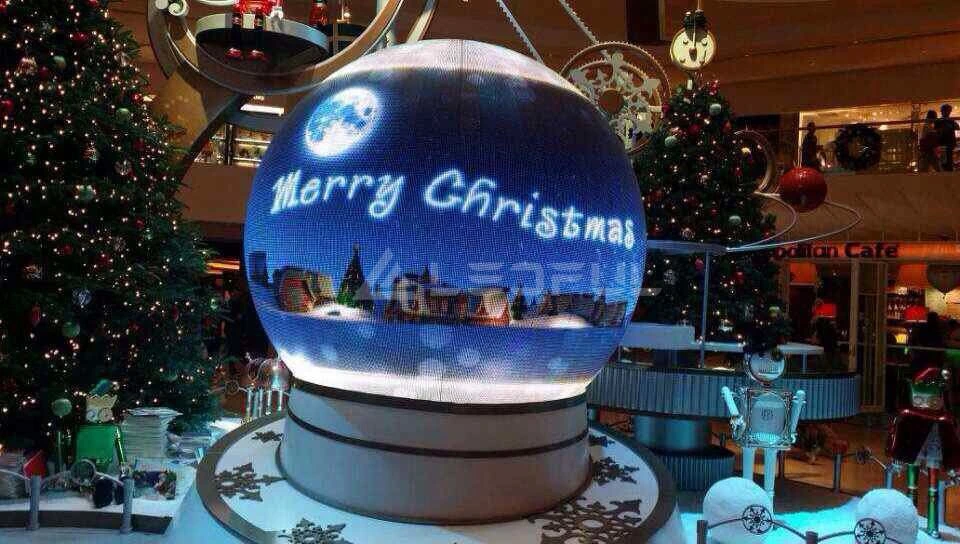

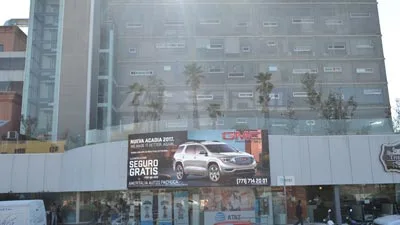

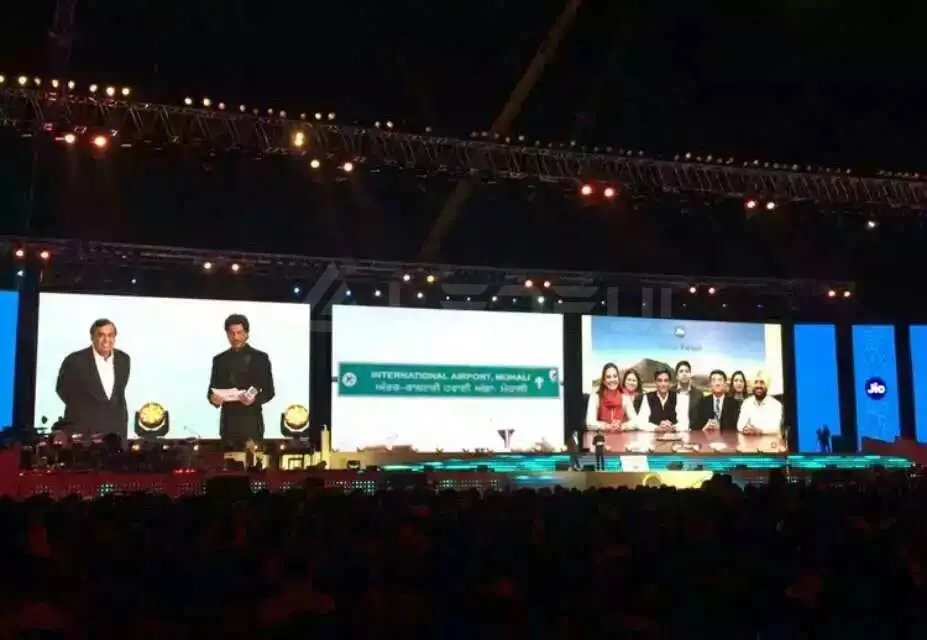

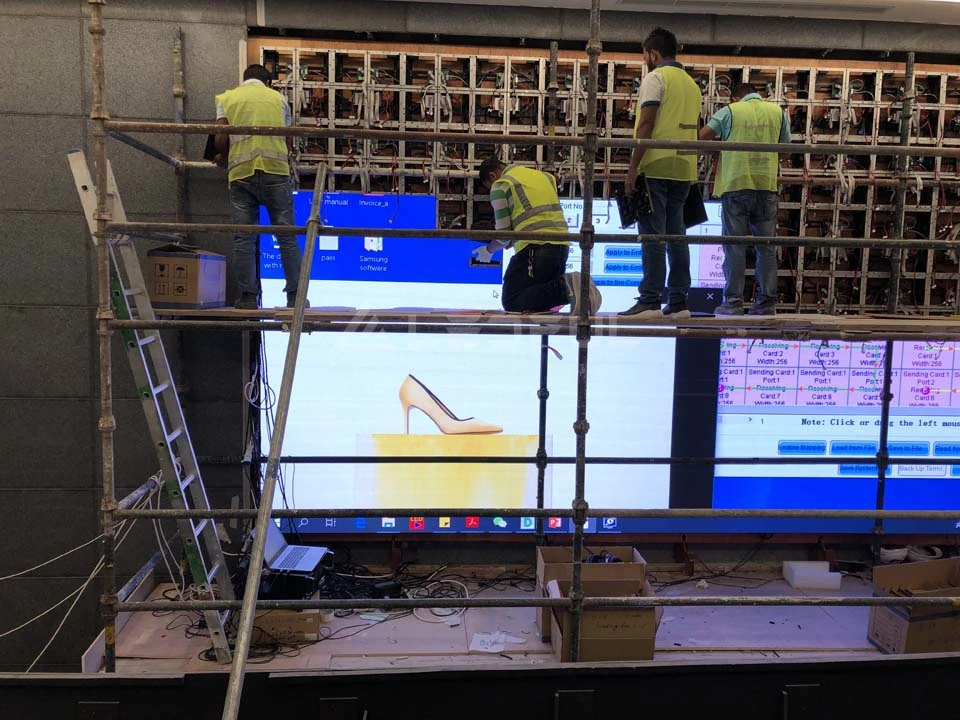

Projects
Recommend Products
Company Profile
How We Do
One-stop solution provider, More designs and more solutions, Wireless control, 4G, Wifi, Cluster controlTruss hanging, stacking, touring, LED ceiling, video floor, Irregular shaped, flex, curved, round, sphere, cubic, customizedFocus on the improvement and innovation of rental LED cabinets, High efficient and enthusiastic team to make reliable LED display, Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
Certifications
Product packaging
Packaging1) Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;2) Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.Shipping1) By sea or by air;2) Customer specified freight forwarder or negotiable mode of transport;3) Delivery Time: 15-25 days for batch goods.
Flight case
Plywood box
EPE(Expandable Polyethylene)
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
