- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Graphics
- Pixels:2.5mm
- Model Number:IF2.5
- Product name:Indoor Fixed Advertising LED Display
- Grey Scale (bit):16
- Brightness (nits):1000
- Pixel Configuration:SMD2121
- Cabinet Resolution:192x192
- Module Dimension:160x160mm / 0.53x0.53feet
- Cabinet Dimension:480x480x100mm /1.57x1.57x0.33feet
- Cabinet Weight:7.6kg /17Ib ( Iron)
- Input Voltage (AC):110 / 240
Product Description

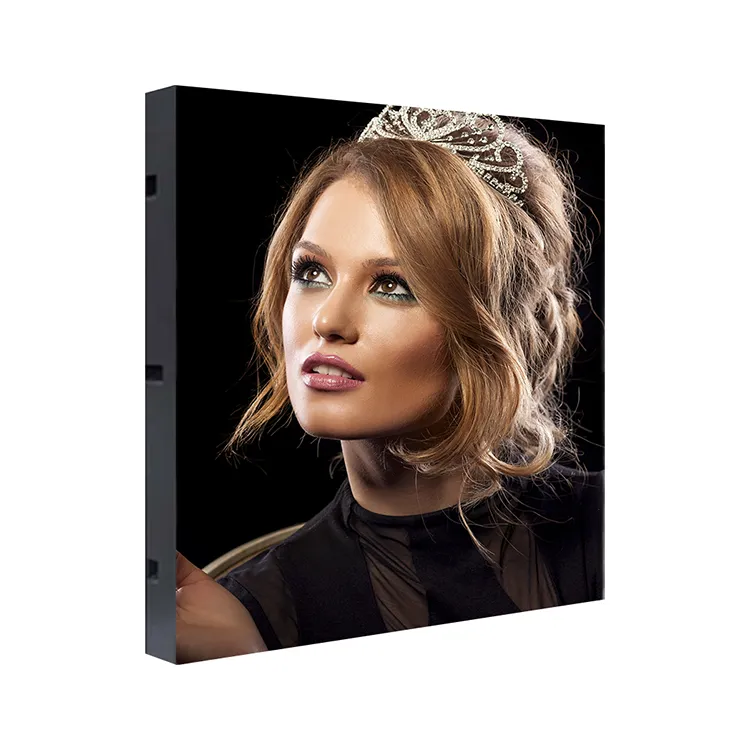

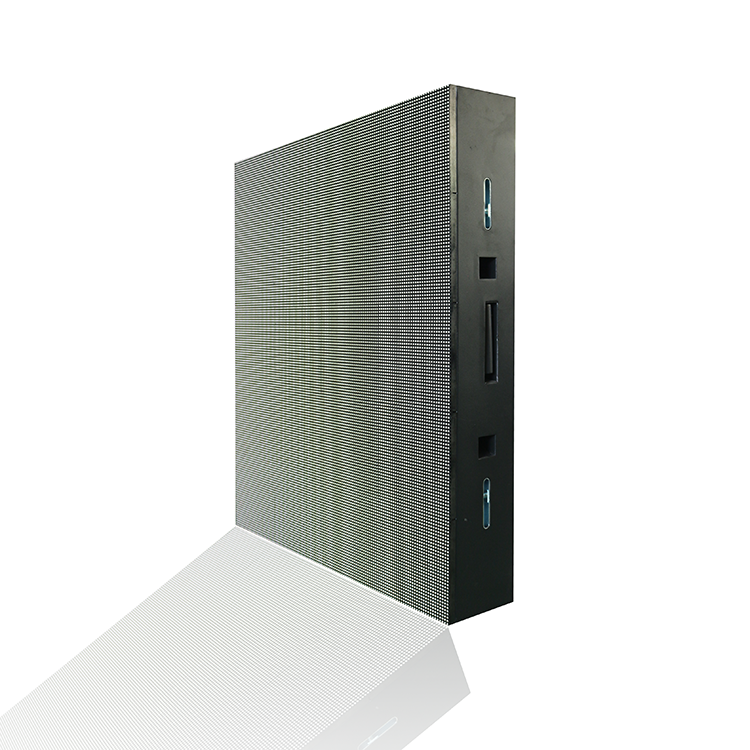

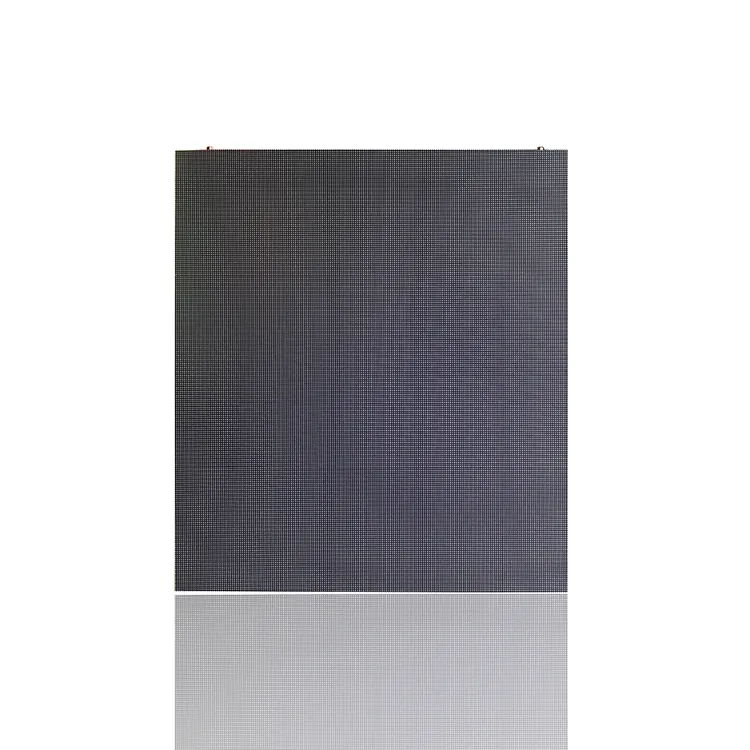

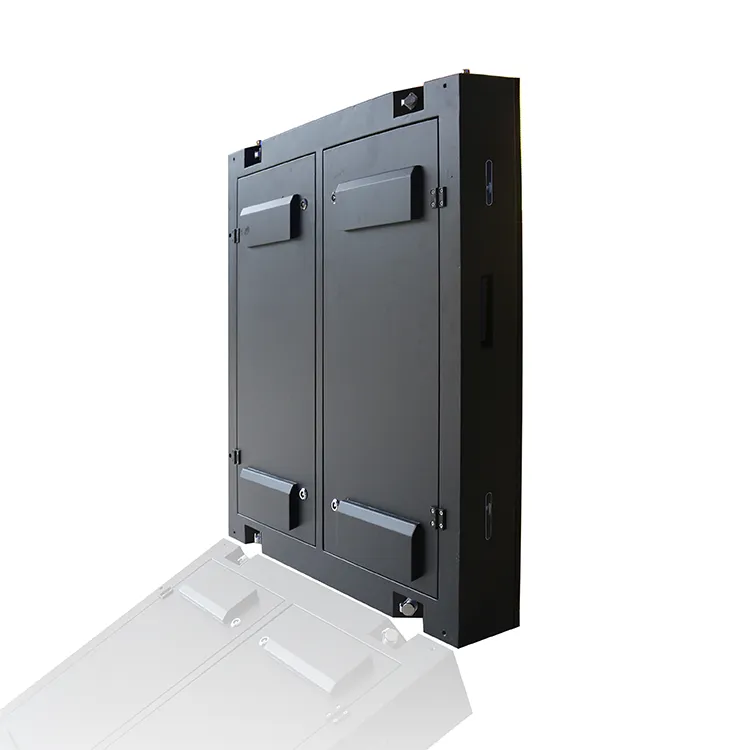

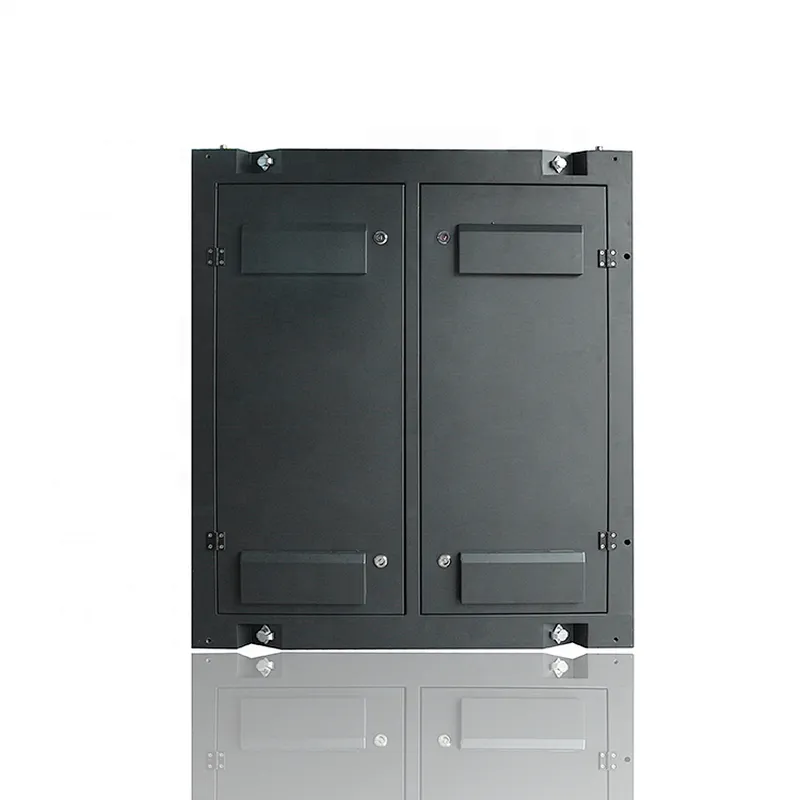

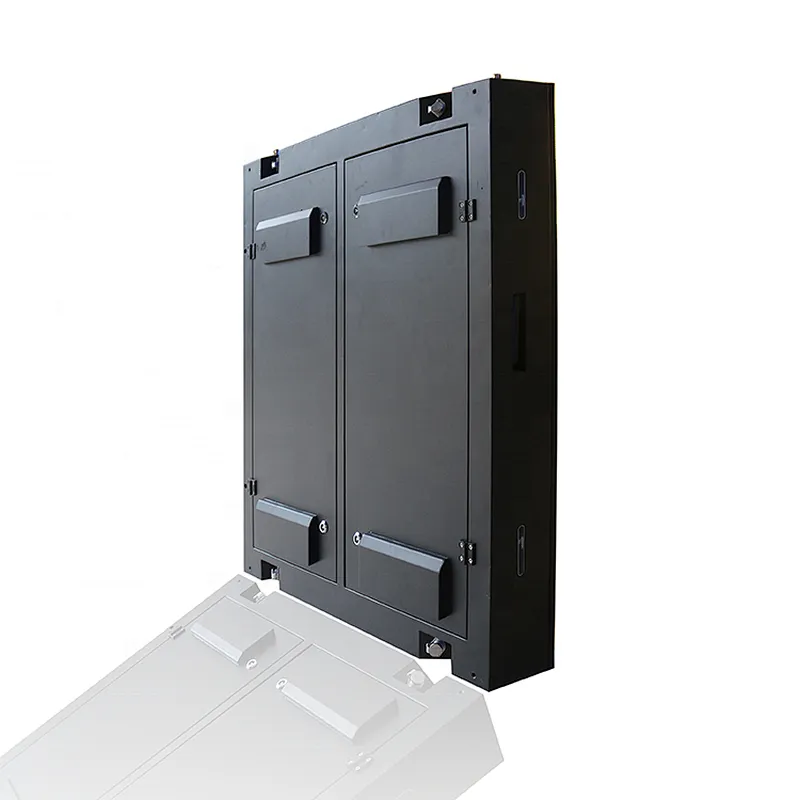

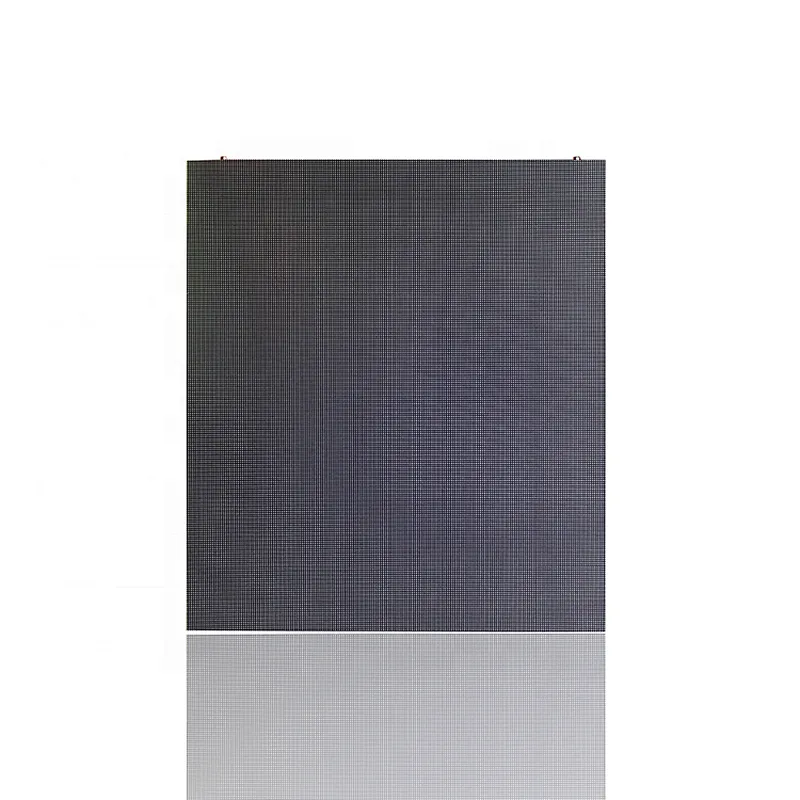

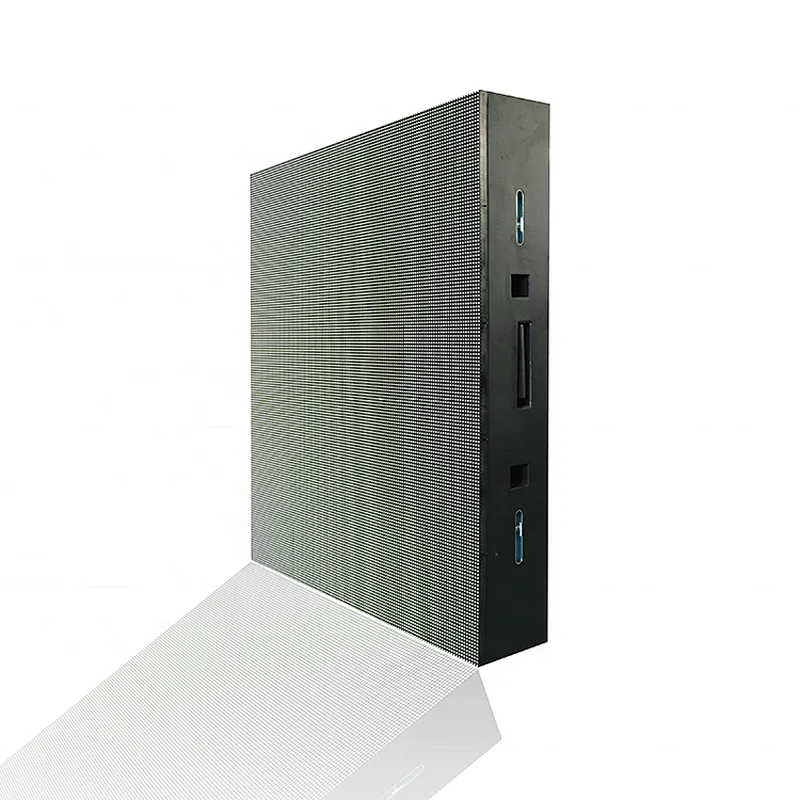

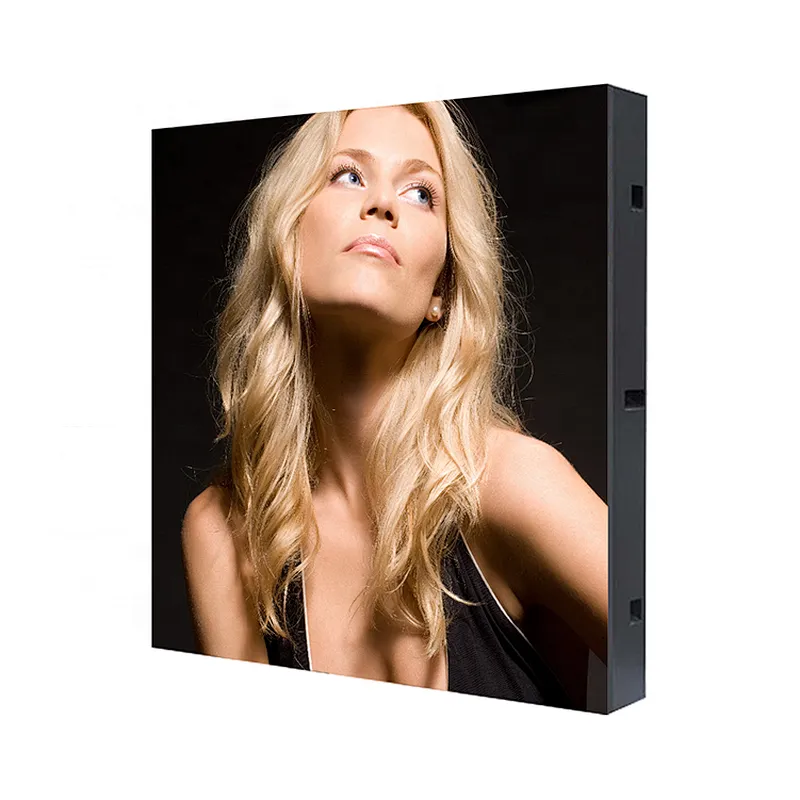

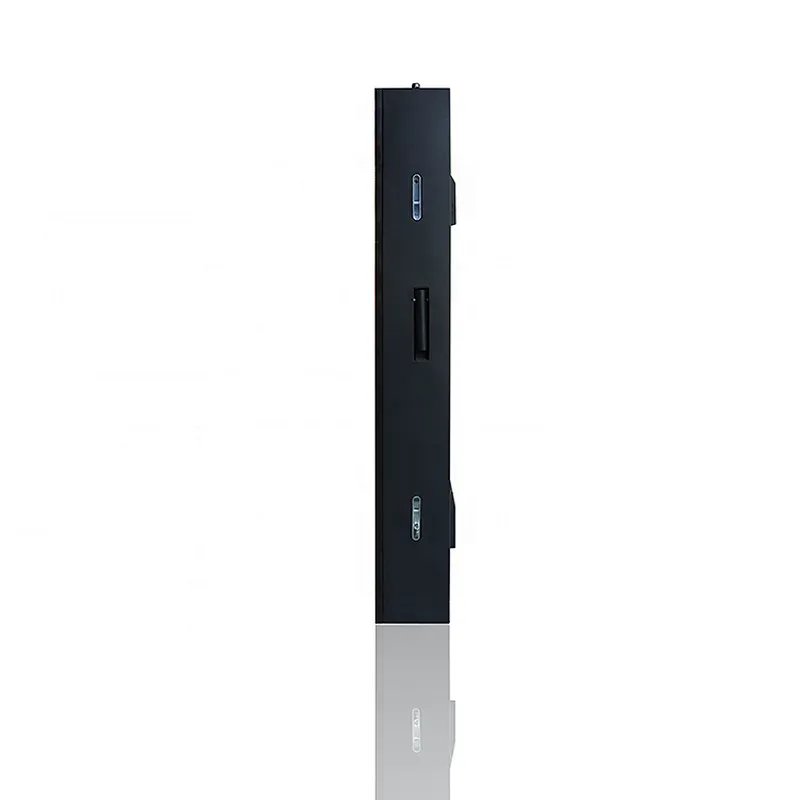

Front maintenance & Front installation Indoor Fixed Advertising LED Display
| IF Series | IF2.5 |
| Pixel Pitch(mm) | 2.5mm |
| Pixel Matrix Per Sq.m | 160000 |
| Pixel Configuration | SMD2121 |
| Brightness (nits) | 1000 |
| Scan | 1/32 |
| Cabinet Resolution | 192x192 |

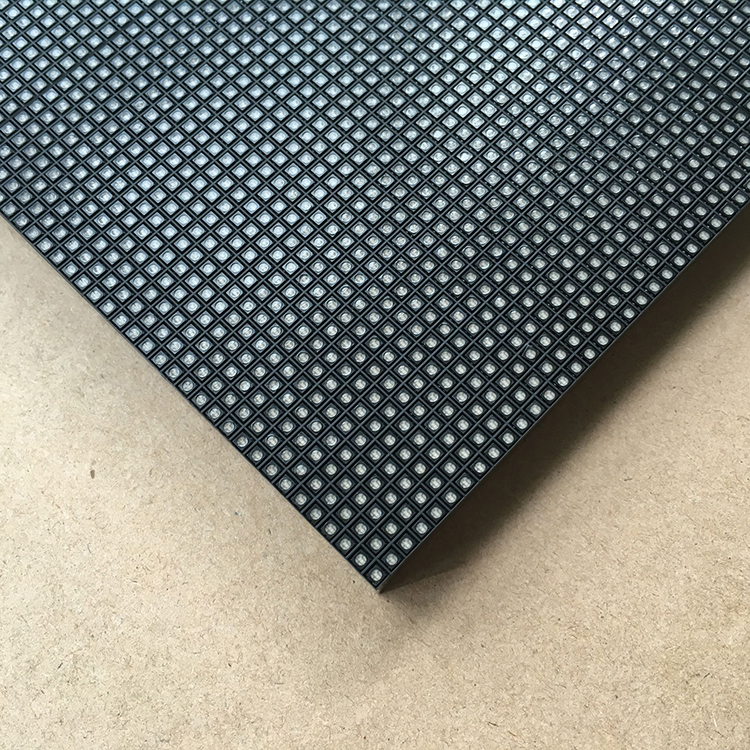

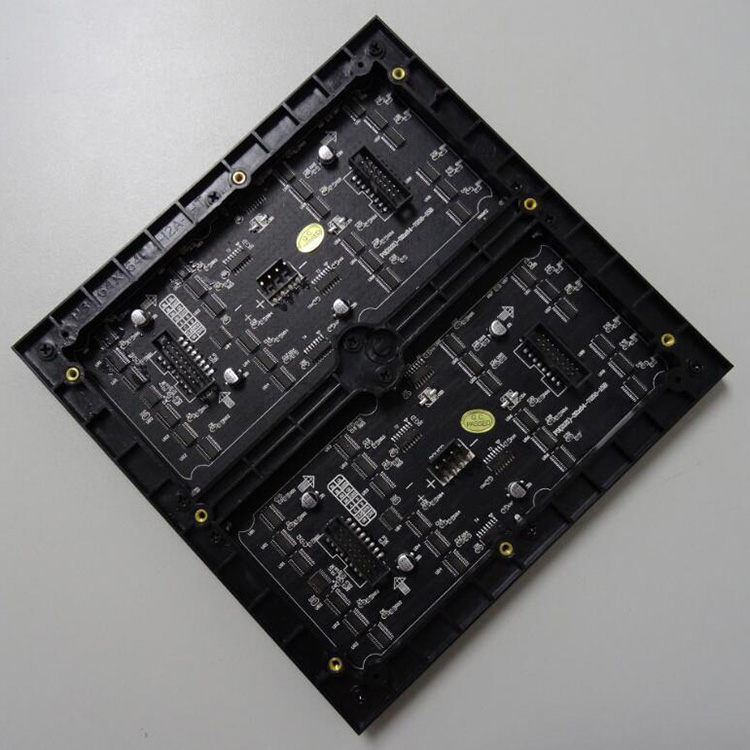

| Module Dimension | 160x160mm / 0.53x0.53feet |
| Cabinet Weight | 7.6kg /17Ib ( Iron) |
| Cabinet Dimension | 480x480x100mm /1.57x1.57x0.33feet |

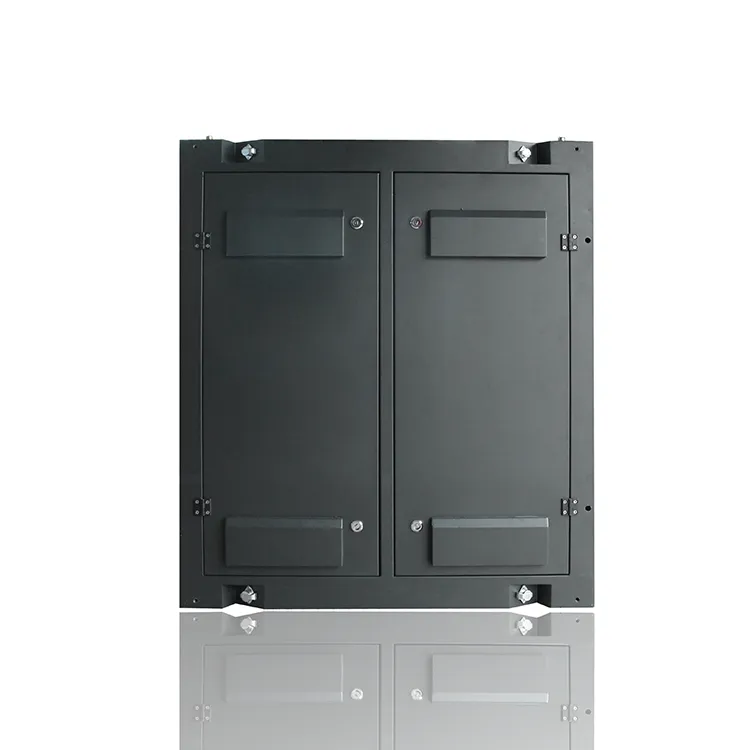

| Service Access | Front/Rear |
| Refresh Rate (HZ) | ≥3840 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| Power Con. (Max / Avg) | 600 / 150 w/sq.m |
| IP Rate | IP34 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
