  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: Flex Series

    Product Description

    • Pixel Pitch:3mm
    • Pixel Configuration:SMD2121
    • Brightness (nits):1000
    • Scan:1/20
    • Module Weight:0.3kg
    • Service Access:Front Magnet
    • IP Rate:IP30
    • Input Voltage (AC):110 / 240
    • Pixel Matrix Per Sq.m:250000
    • Power Con. (Max/Avg):550/110w/sq.m
    • Place of Origin:CN;GUA
    • Application:advertising
    • Color:colorful
    • Panel Size:240x120mm
    • Pixel Pitch:3
    • Model Number:FLEX3
    • Brand Name:LEDFUL
    Product Description

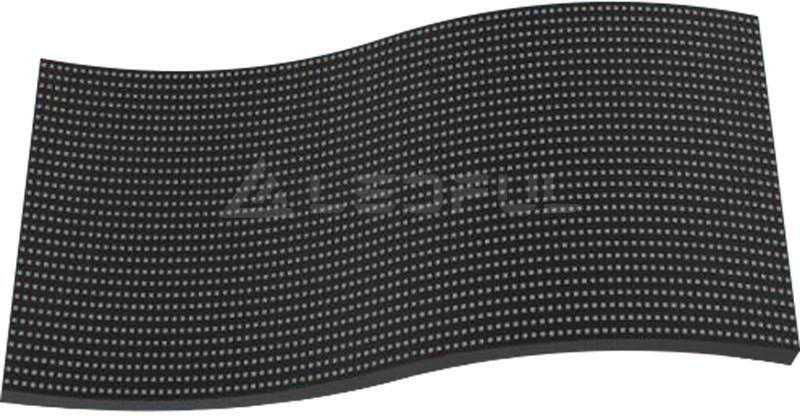

    Flex LED Display-Flex Series

    Flex for any irregular shaped screens
    Concave, convex, round, column, S shaped
    Front Service with Magnetic Module
    Light, thin, easy installation, plug and play
    Design without Limitation


    Creative LED Display Demo

    Details Images
    Value
    FLEX1.5
    FLEX1.8
    FLEX2
    FLEX2.5
    FLEX3
    FLEX4
    Pixel Pitch(mm)
    1.56mm
    1.875mm
    2mm
    2.5mm
    3mm
    4mm
    Pixel Matrix Per Sq.m
    409,600
    284,444
    250,000
    160,000
    111,111
    62,500
    Pixel Configuration
    SMD1010
    SMD1010
    SMD1515
    SMD1515
    SMD2121
    SMD2121
    Brightness (nits)
    1000
    1000
    1000
    1000
    1000
    1000
    Scan
    1/32
    1/32
    1/30
    1/24
    1/20
    1/15
    Module Resolution
    128×96
    128×64
    120×60
    96×48
    80×40
    60×30
    Power Con. (Max/Avg)
    550/110w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    550/110 w/sq.m
    Module Dimension
    200x150mm/0.66x0.49ft
    240x120mm / 0.79x0.39ft
    Module Weight
    0.4kg
    0.3kg
    Cabinet Dimension
    Customized, Concave, Convex, Round, Column, S shaped
    Service Access
    Front Magnet
    Refresh Rate (HZ)
    3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP30
    Input Voltage (AC)
    110 / 240

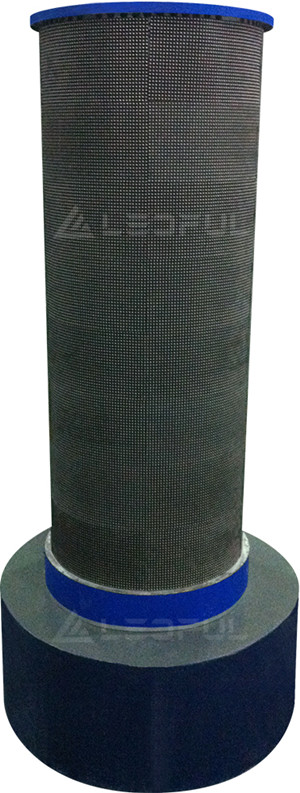

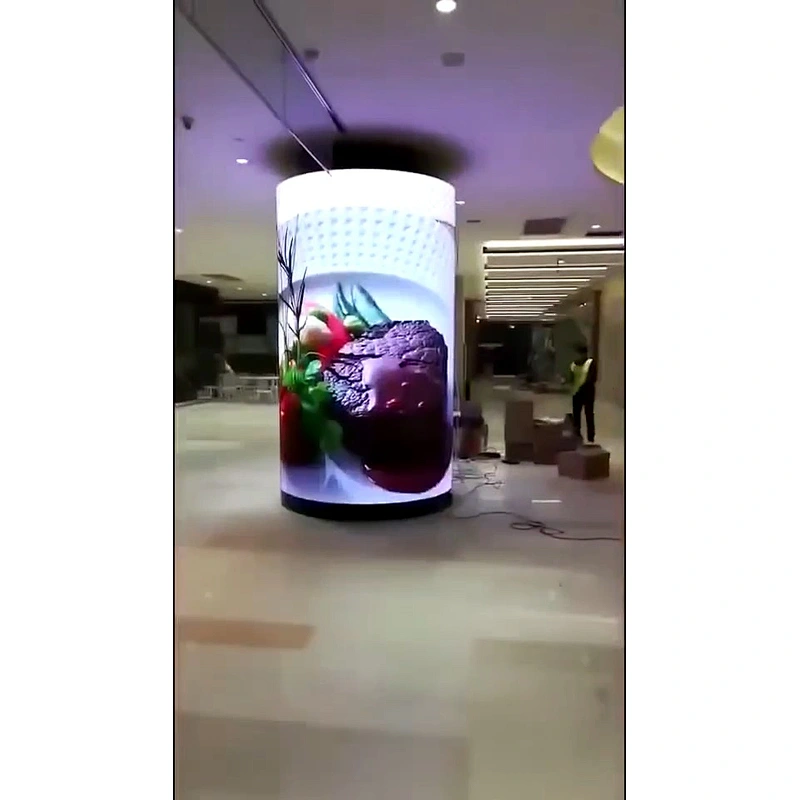

    Column Design withFLEX LED modules without cabinets

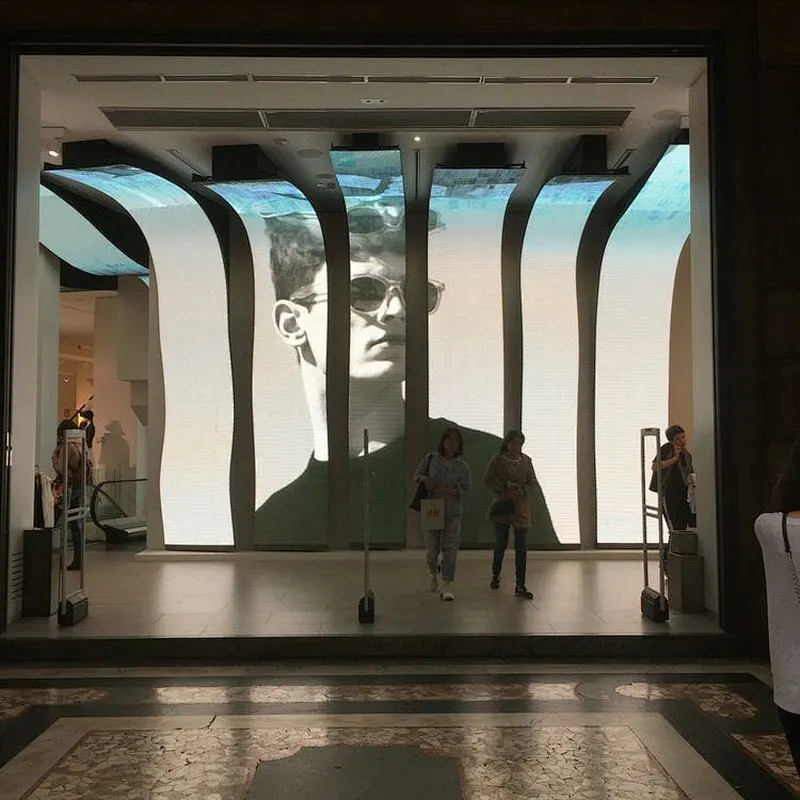

    S shaped LED display with FLEX LED modules

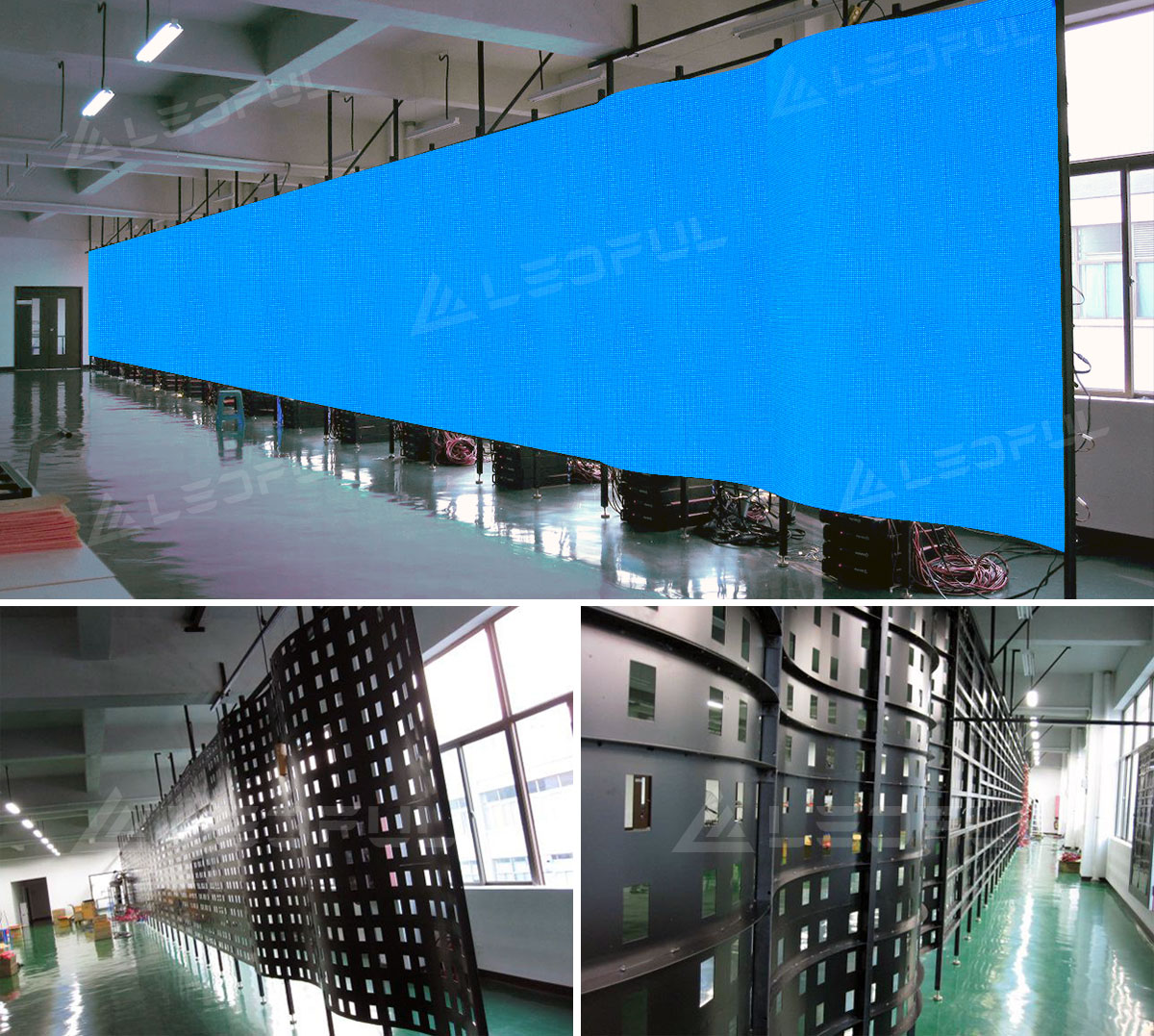

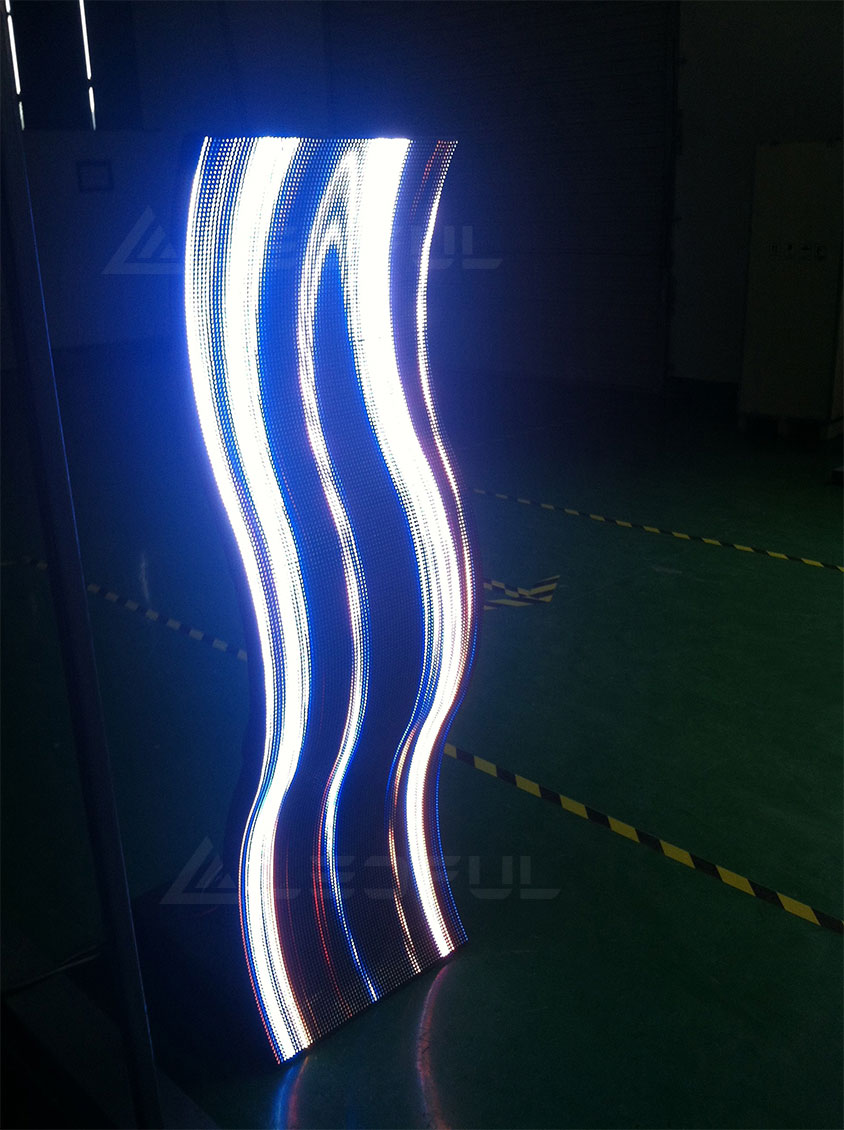

    FLEX LED display aging and testing in the workshop in S shaped

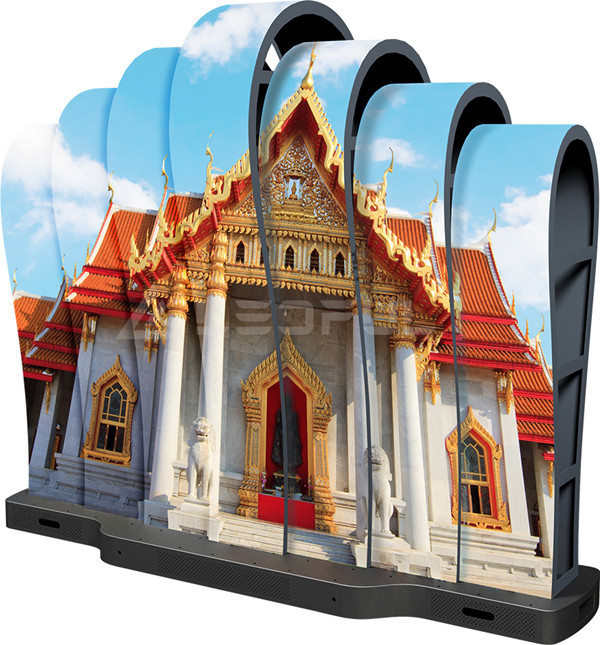

    FLEX LED display sample design

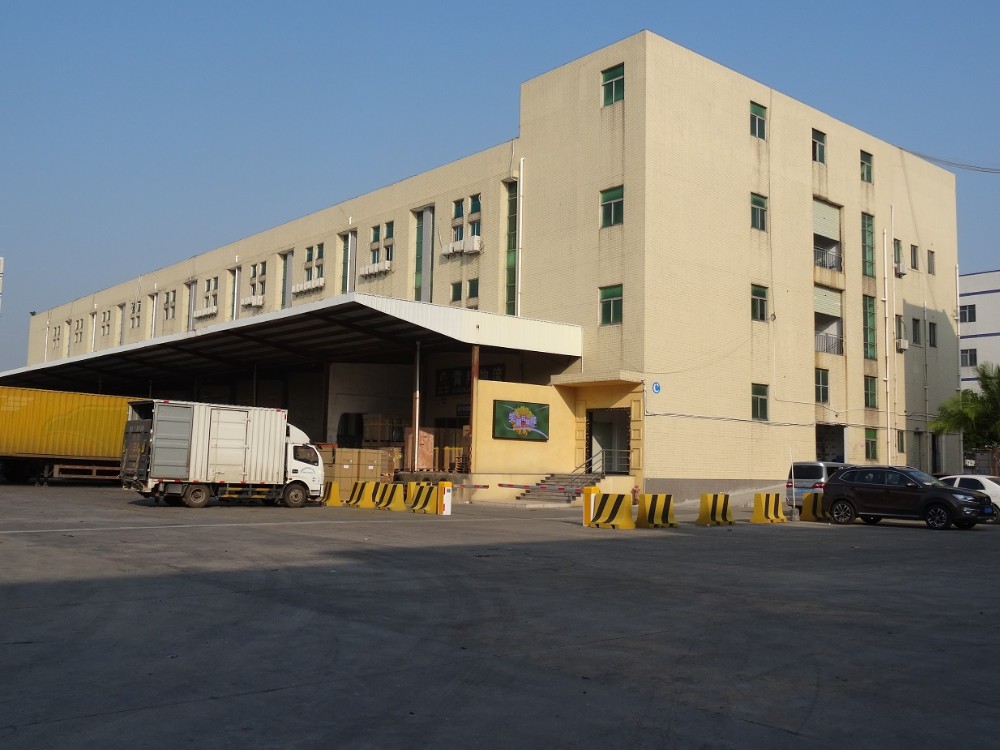

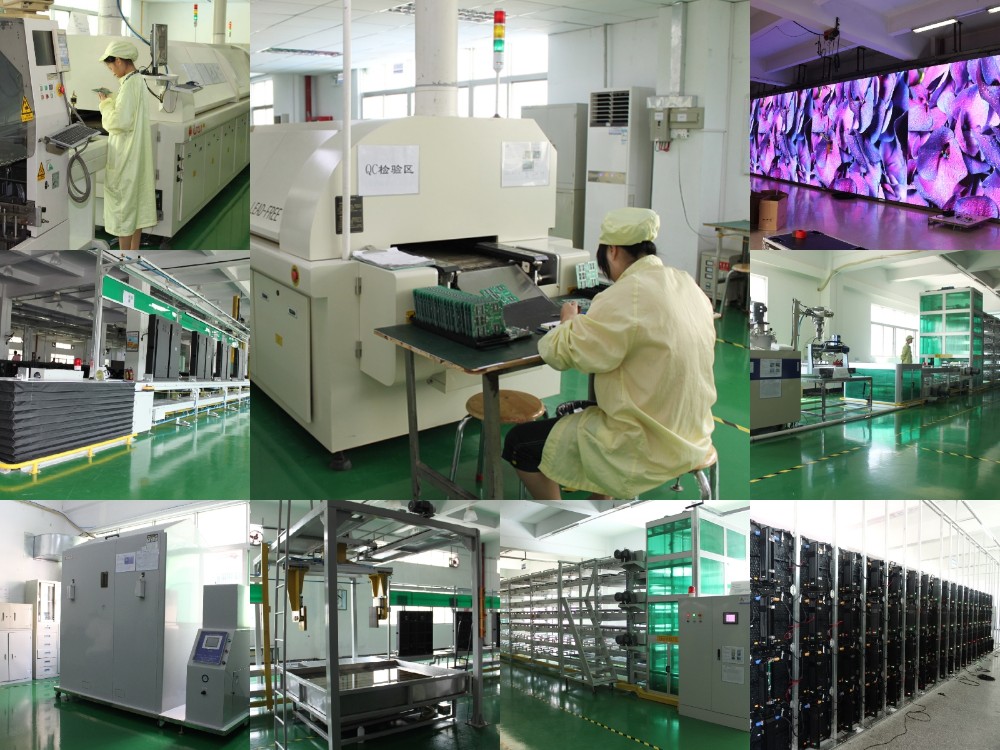

    Company Profile
                               Top LED Display Manufacturer
                        LEDFUL founded in 2008 Total 209 employees in LEDFUL 3~5 years warranty on LED                                                            screen Exported to 83 countries and regions
    Top reliable LEDdisplay manufacturer Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.
    CE, RoHS, FCC, CCC, ISO9001:2008 standard
                         Professional, High Efficient and Caring
                                                                       One-stop solution provider
                       More designs and more solutions Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic,customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising                                 Companies, Entertainment, Show, Event, Rental Cooperation, etc.
    Certifications
    Our Advantages
                                 Best Balance of Quality & Price
                                                                     Deep Customized & OEM
    Listen to you, think more for you. Lifelong maintenance with reasonable price Clear cost initially to save your time and money. Provide with innovative and satisfying products Excellent product quality, quick and professional services Always ready for your any change on LED display details. Recommend the                best proper solution for your LED project. Catch things what you missed before LED display                            production. Take good care of each detail for your products, packages,shipping
    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more
    P10/12/16/20/25: From 10/12/16/20/25 meter and more
    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?
    A:LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.
    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.
    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
