- Application:Indoor
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:4mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:IF4
- Brand Name:LEDFUL
- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Video
- Warranty: 3 Years:LED chip: Epistar
- Certificate: CCC CE ROHS ISO:Life span: 100000 Hours
- Screen Dimension: Customized Size:Cabinet material: Die-casting Aluminum
- Application: Advertising:Control system: Nova
- Scan: 1/32:Service Access:Front/Rear
- Screen Dimension:768*768
- Pixels:4mm
IF Series
Product | IF4 |
Pixel Pitch(mm) | 4 |
Pixel Matrix Per Sq.m | 62500 |
Pixel Configuration | SMD2121 |
Brightness (nits) | 1200 |
Scan | 1/16 |
Module Dimension | 256x128mm/ 0.84x0.42ft |
Cabinet Dimension | 768x768mm / 2.52x2.52ft |
Cabinet Resolution | 192x192 |
Cabinet Weight | 19.5kg /43 Ib ( Iron) |
Power Con. (Max / Avg) | 600/ 150 w/sq.m |
Refresh Rate (HZ) | 1920 |
Service Access | Front / Rear |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
IP Rate | IP31 |
Input Voltage (AC) | 110V / 240V |
IF2.5 | IF3 | IF4 | IF5 | IF6
★Black SMD LED makes perfect
★Front maintenance & Frontinstallation
★Wifi, 4G, cloud, usb, remote control
★Thin, light weight, easy installation
★Low brightness with High grayscale operation

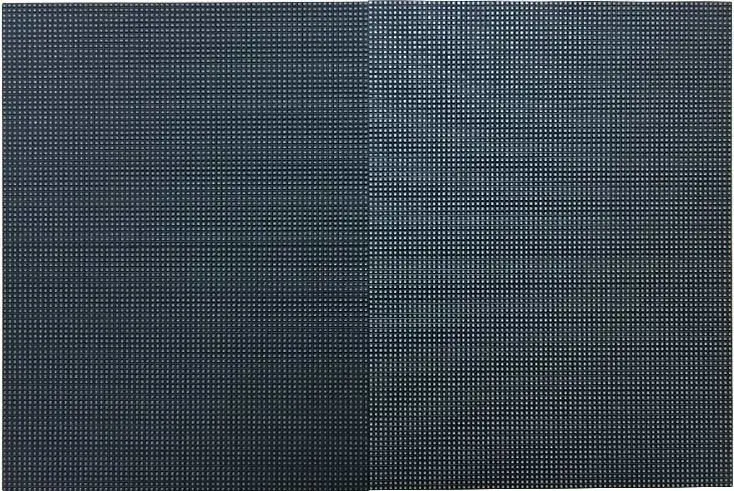

Black SMD LED

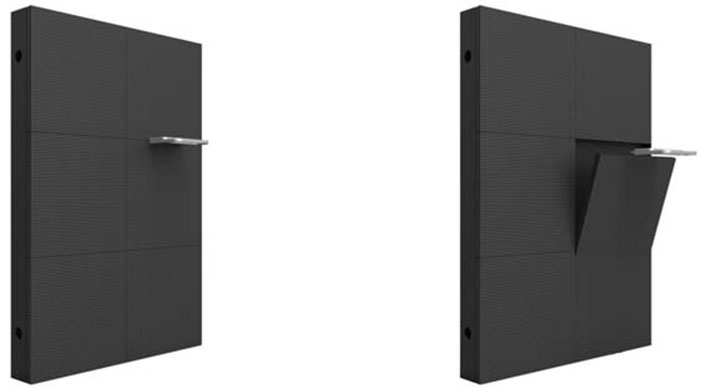

Front Maintenance Saving Space
No back space for LED display maintenance? Go with front. LED modules, power supply, receiver card, cables, etc can be taken out from front side.

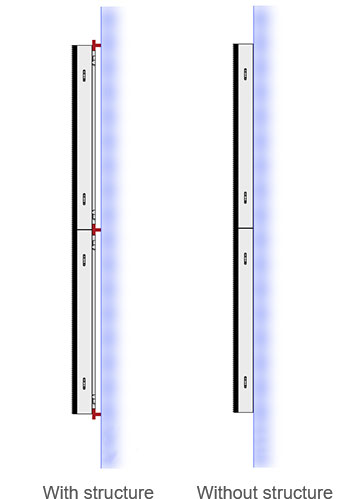

Front Installation Saving Structure

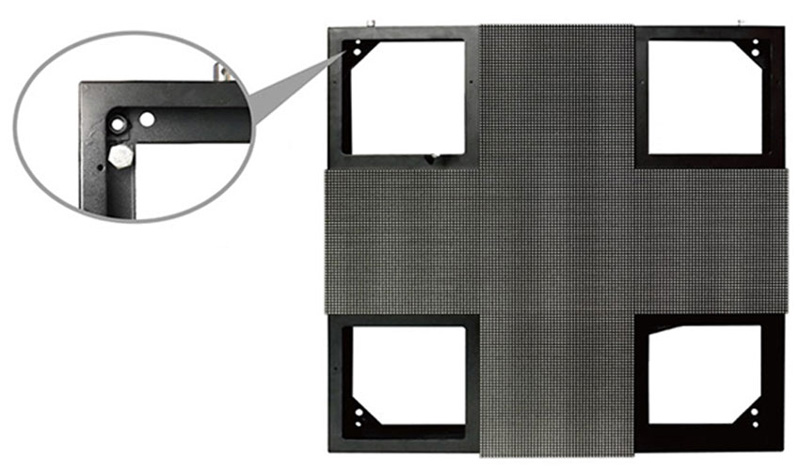

Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
LED Display Wall Mounted Installation
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
Wide Viewing Angle

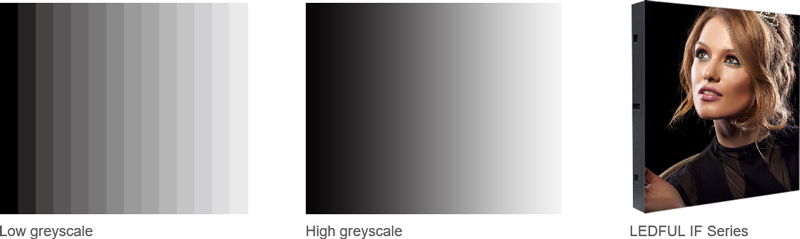

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance

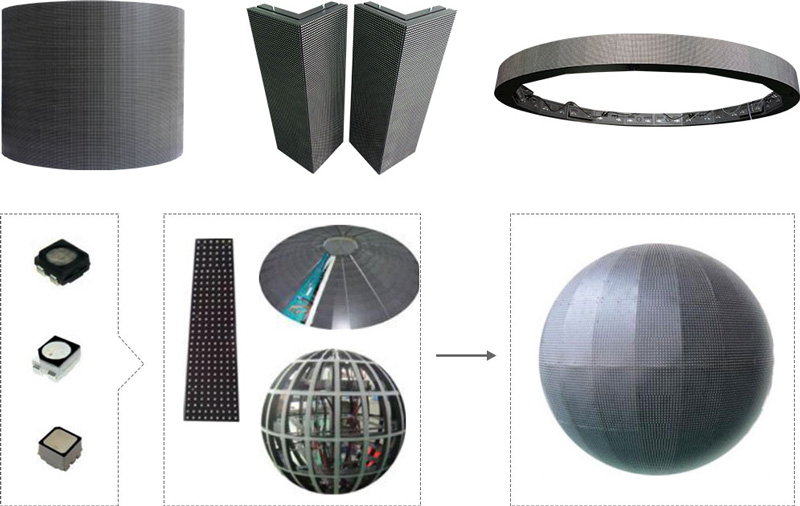

Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc. LEDFUL supply more design and more solutions.
IF Series More Features & More Advantages
★Excellent heat dissipation and noiselessness
★High-performancemetal plate cabinet design
★Macro molecular flexible mask with glare-less surface on LED modules
★High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
★Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.

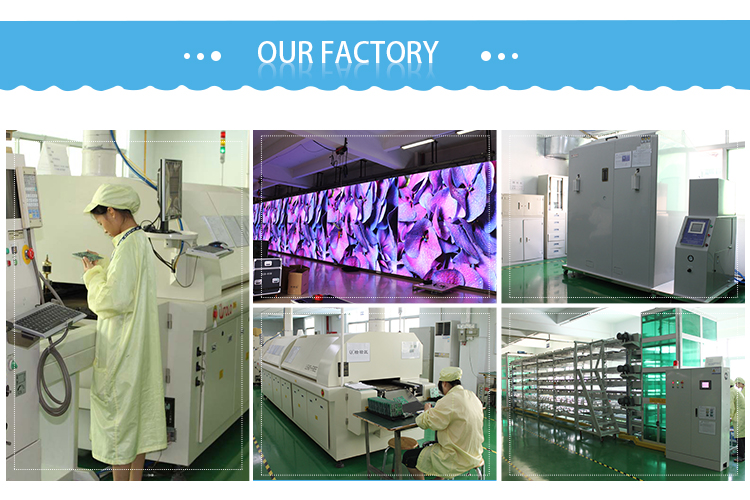

Who We Are
Q1. Are you trading company or manufacturer ?
A: We are LED display manufacturer
Q2: What is the control system?
A: We use Nova control system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
