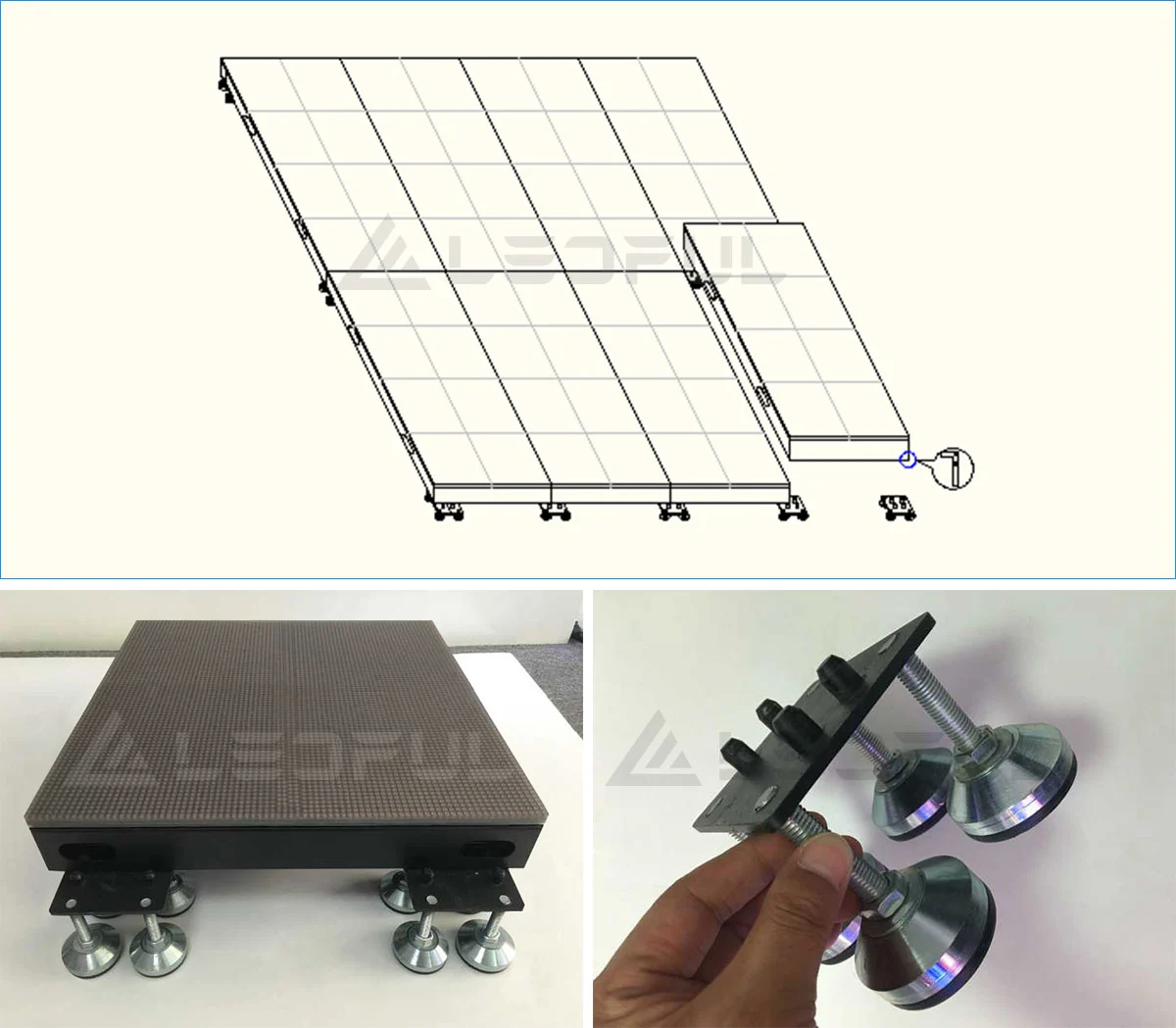

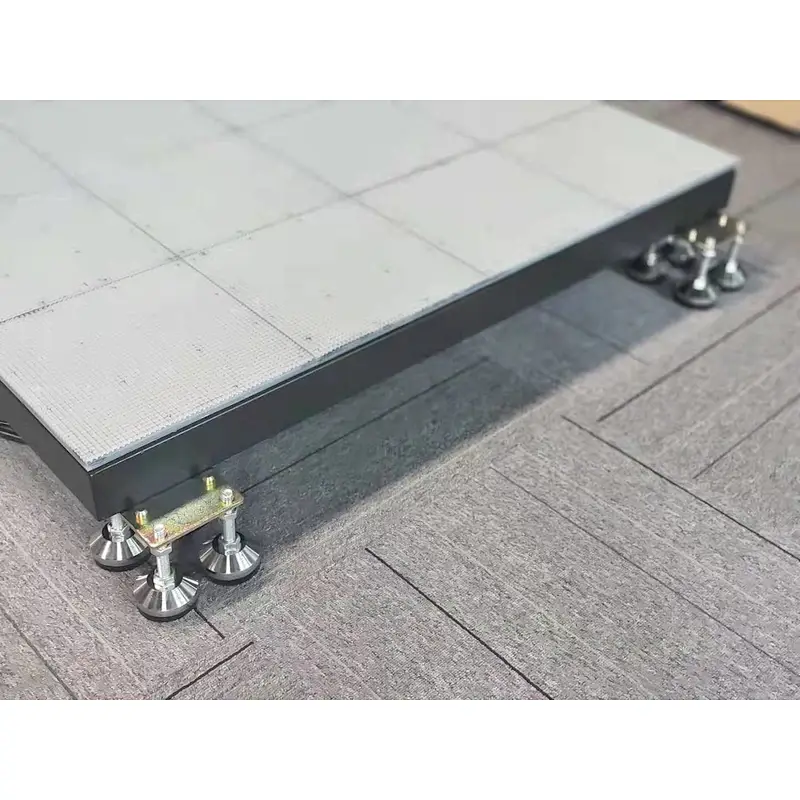

Base Support
- Application:Indoor
- Color:Full Color
- Panel Size:500x1000mm
- Pixel Pitch:6.2
- Place of Origin:Guangdong, China (Mainland)
- Model Number:FI6.2
- Brand Name:LEDFUL
- Warranty:3 Years
- Life span:100000 Hours
- Input Voltage (AC):110V / 240V
- Screen Dimension:Customized
- Service Access:Front/Rear
- LED chip:Epistar
- Certificate:CCC CE ROHS ISO
- Control system:Nova
- Grey Scale:16bit
- Cabinet material:Die-casting Aluminum

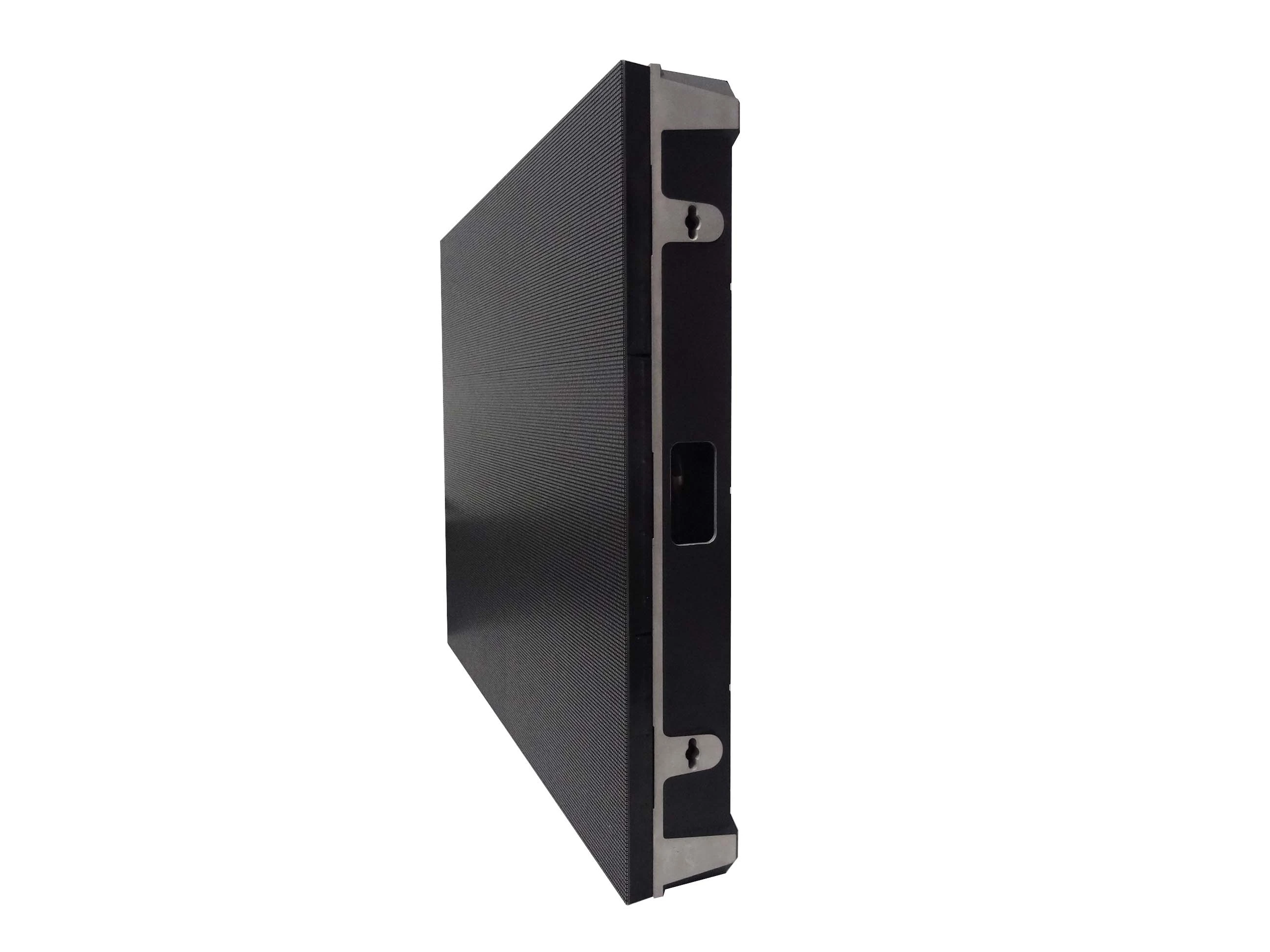

Product Description

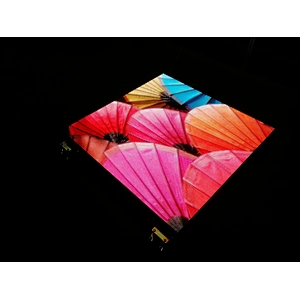

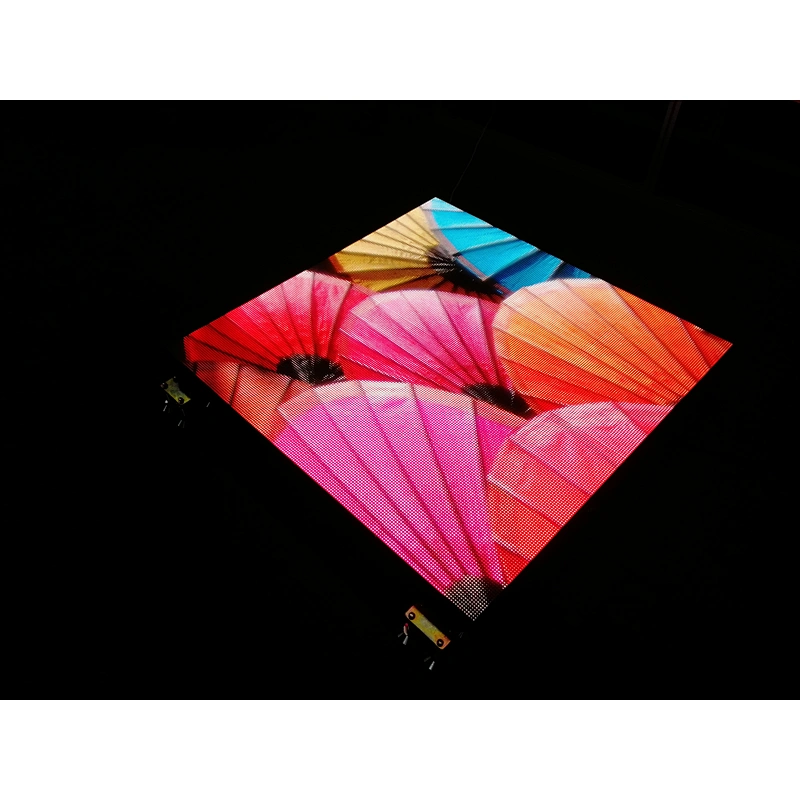

Floor Series

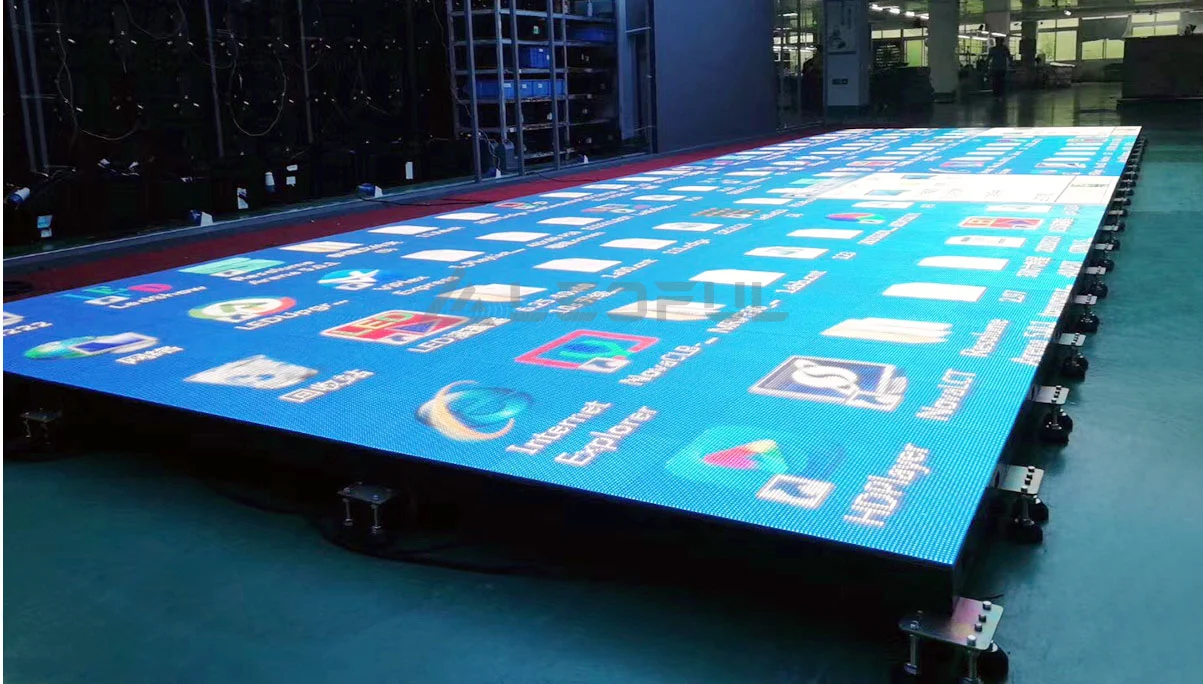

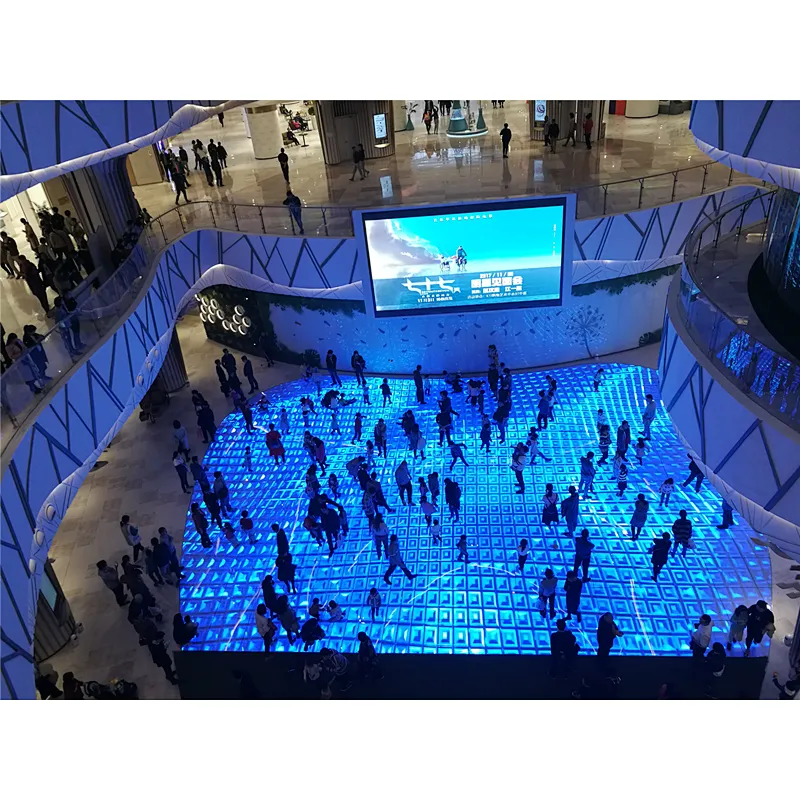

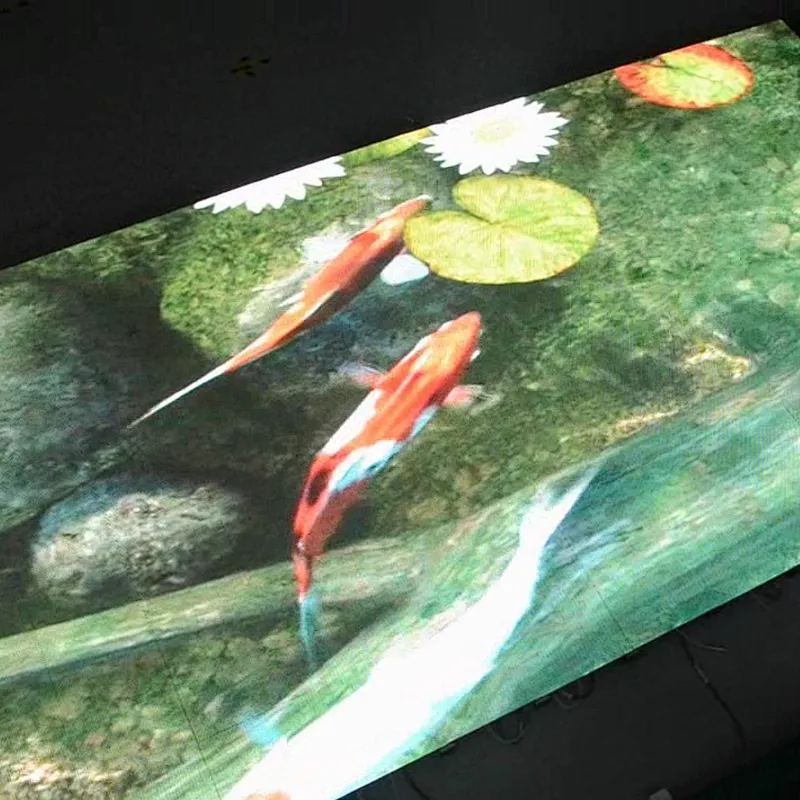

Interactive Floor Display | LED Video Floor | Dance Floor LED Display
Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2
Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2
Parameter | ||
Product | FI 6.2 | |
Pixel Pitch(mm) | 6.25mm | |
Pixel Matrix Per Sq.m | 16000 | |
Pixel Configuration | SMD1921 | |
Brightness (nits) | 2500 | |
Scan | 1/10 | |
Cabinet Resolution | 80×160 | |
Power Con. (Max/Avg) | 710/210 w/sq.m | |
Module Dimension | 250x250mm / 0.82x0.82ft | |
Cabinet Dimension | 500x1000x80mm / 1.64x3.28x0.26ft | |
Cabinet Weight | 14kg/( Die-casting Aluminum) | |
Service Access | Front/Rear | |
Load Bearing | 2T | |
Refresh Rate (HZ) | 1920 | |
Grey Scale (bit) | 16 | |
Viewing Angle (H/V) | 140/140 | |
IP Rate | IP43 | |
Input Voltage (AC) | 110/240 | |
Functions and Features

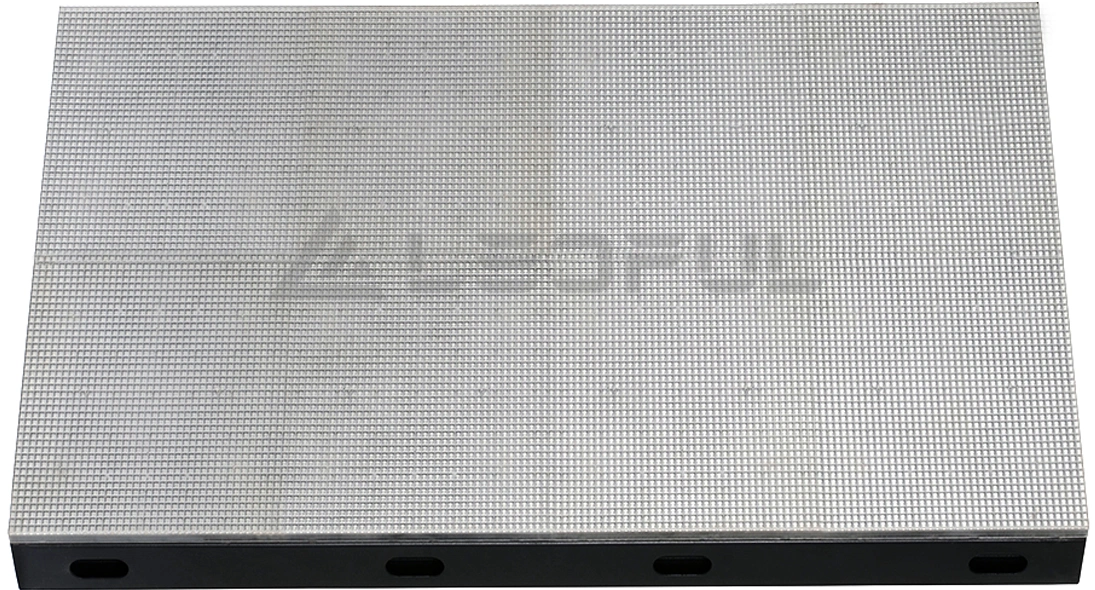

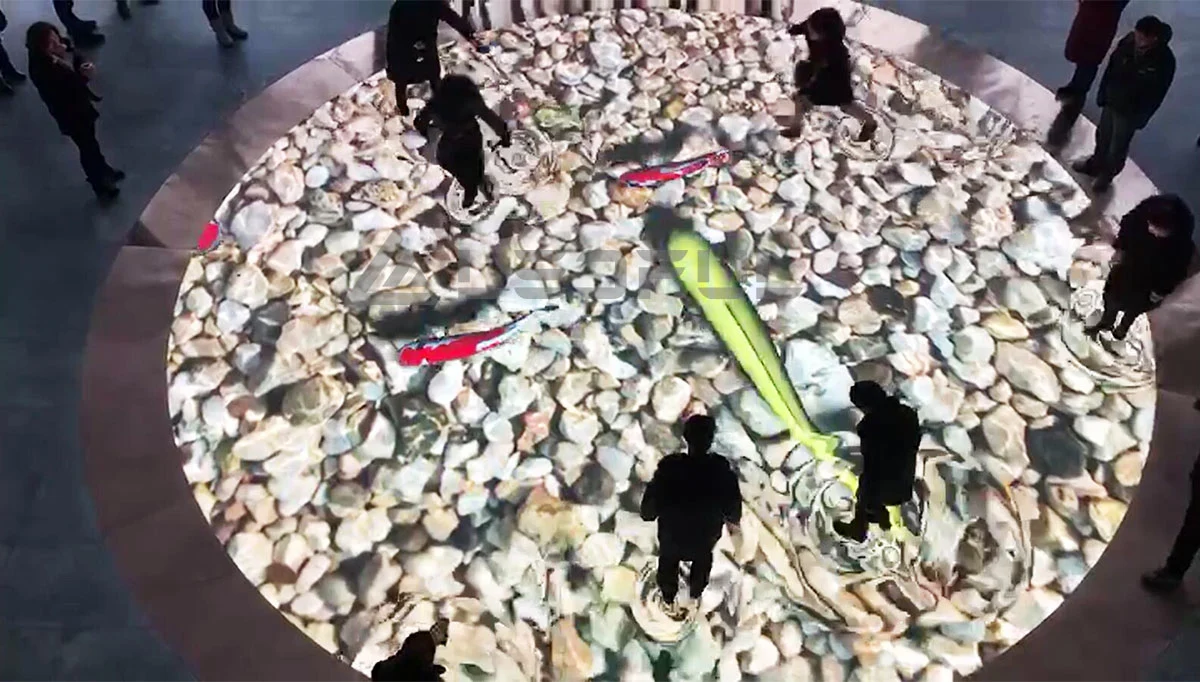

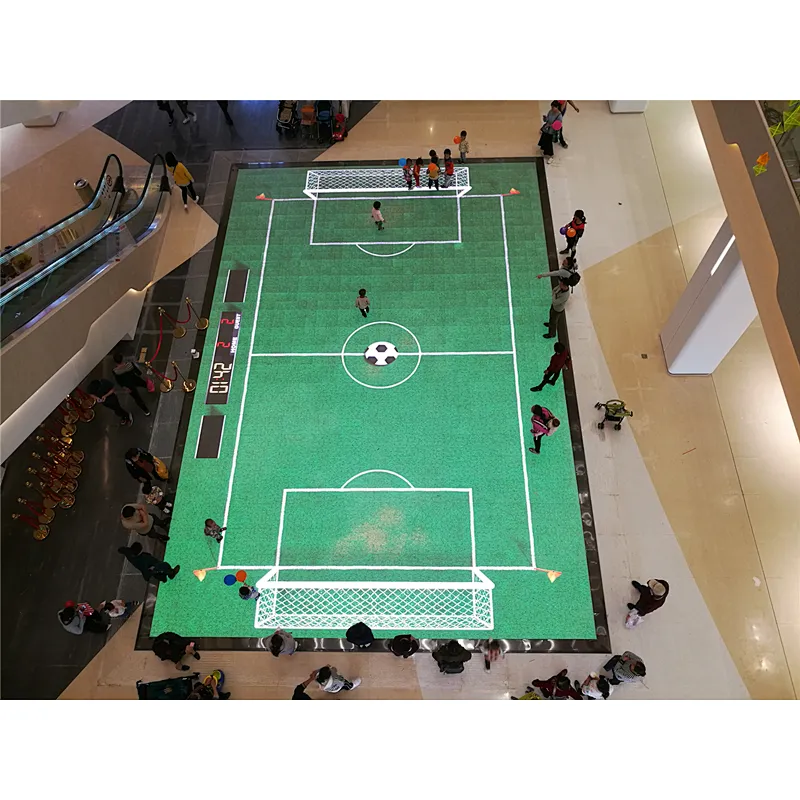

Interactive Floor LED Display
Special driving IC built inside the LED display PCB will work together with interactive control system. It will easily and quickly make you interesting and attractive between the players and display.

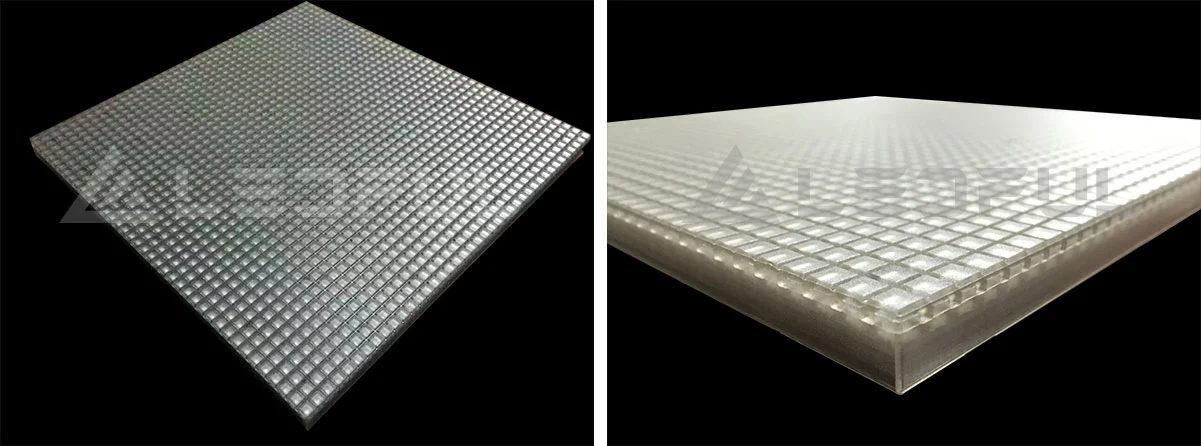

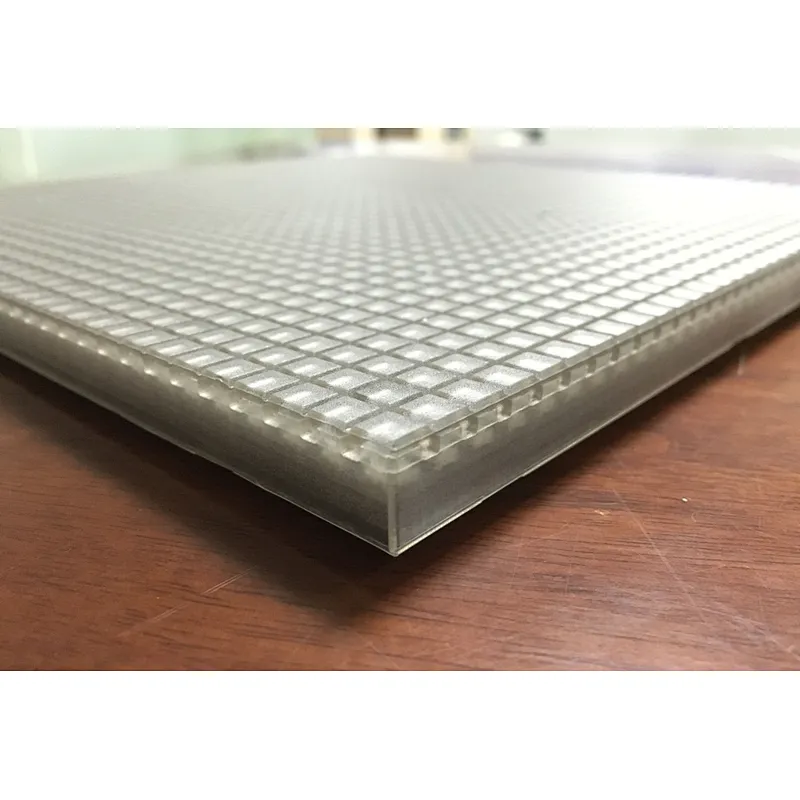

Anti-skid, Anti-knock, Anti-glare Mask
Anti scratch Mask with HI-density PC

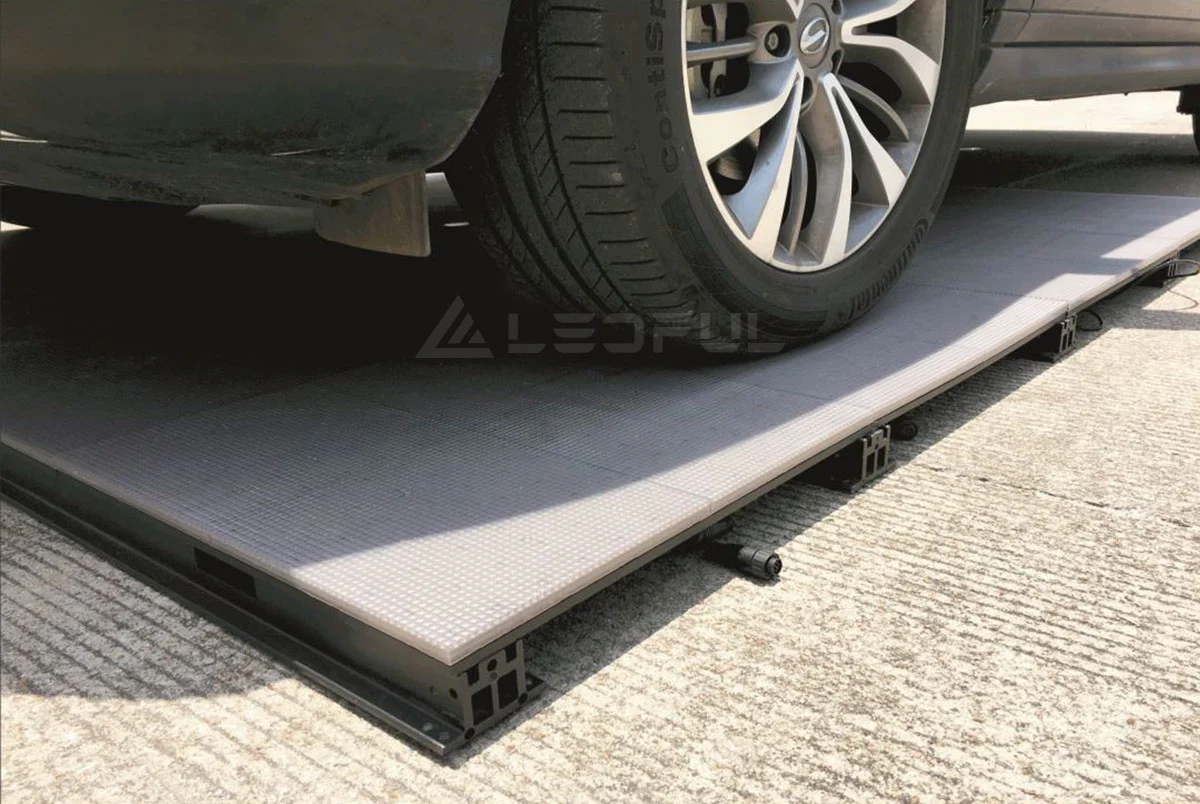

High Load Bearing with 2T weight

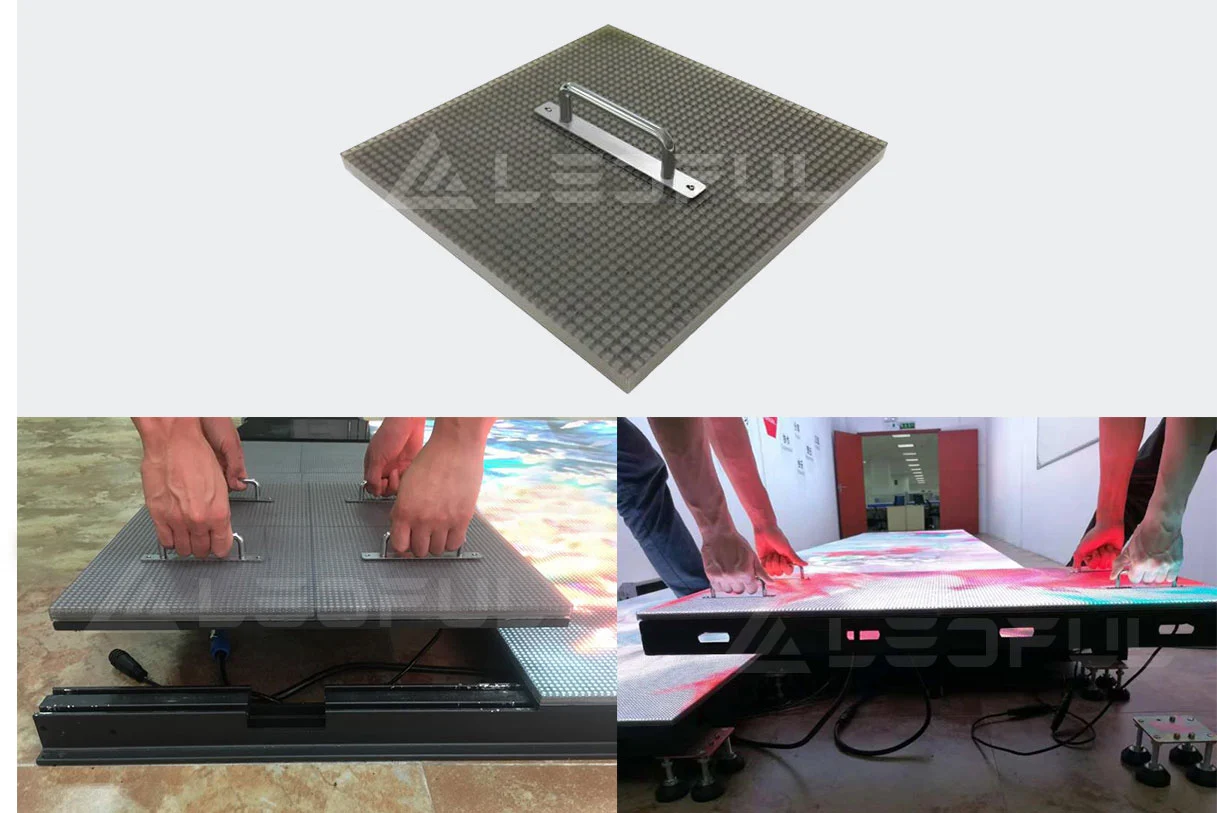

Easy Installation and Maintenance
Two Floor Standing Solutions

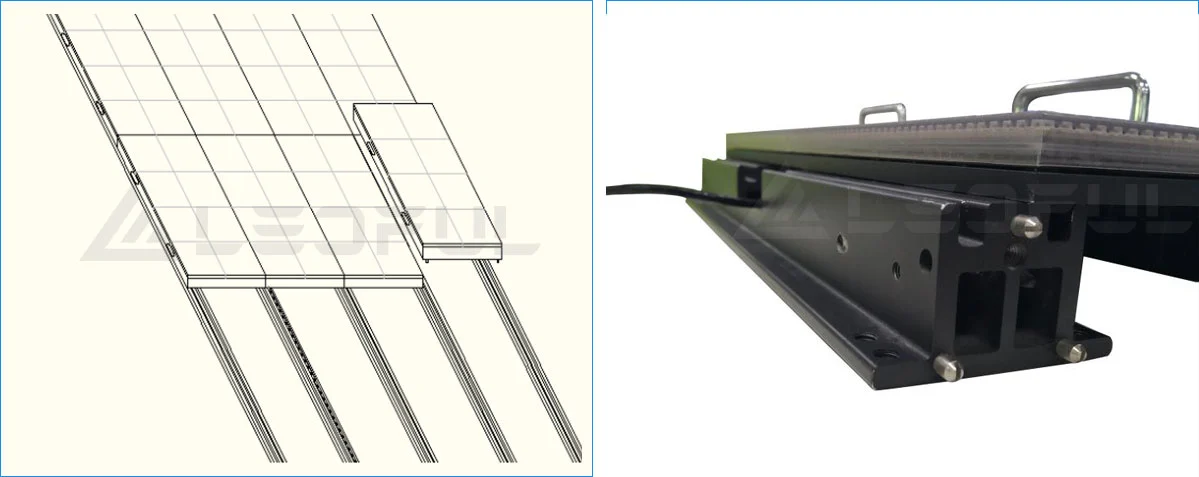

Rail Support
Recommend Products
BM Series
P4 Indoor High Resolution Bracket Mounted LED Display Screen
X Series
Full Color Rental Indoor P5.9 LED Display Sign Board for Shows
LPoster Series
High Grey Scale Media P2.5 Plus Indoor LED Poster Screen

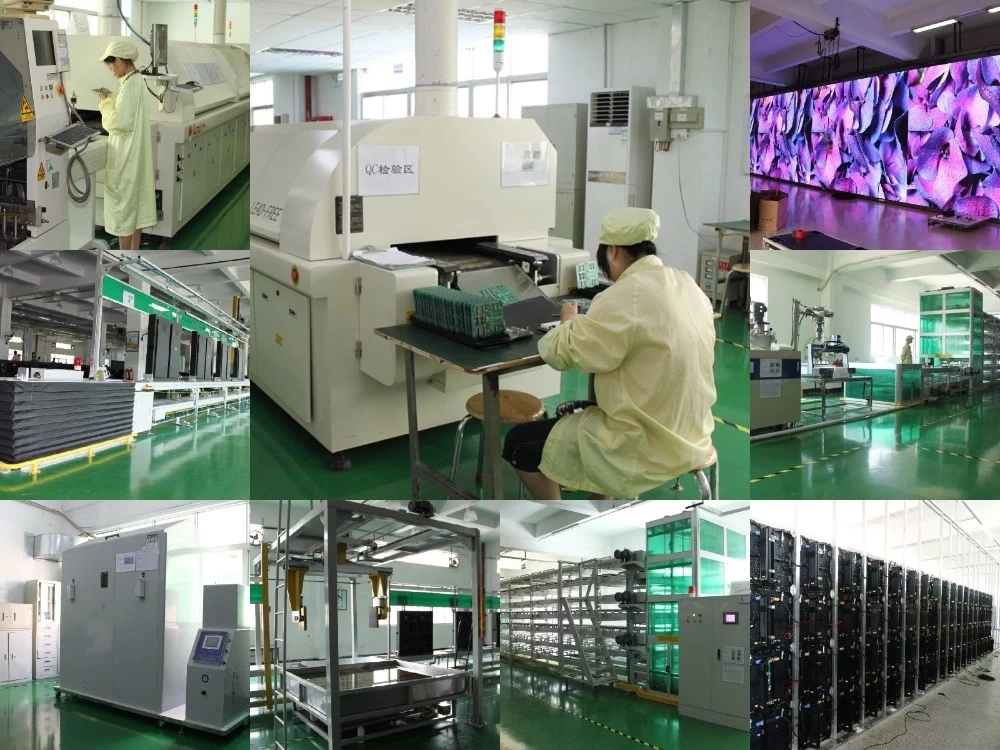

Company Profile
Certifications
Product packaging
Packaging
1) Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;
2) Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock, ensure goods safety.
Shipping
1) By sea or by air;
2) Customer specified freight forwarder or negotiable mode of transport;
3) Delivery Time: 15-25 days for batch goods.

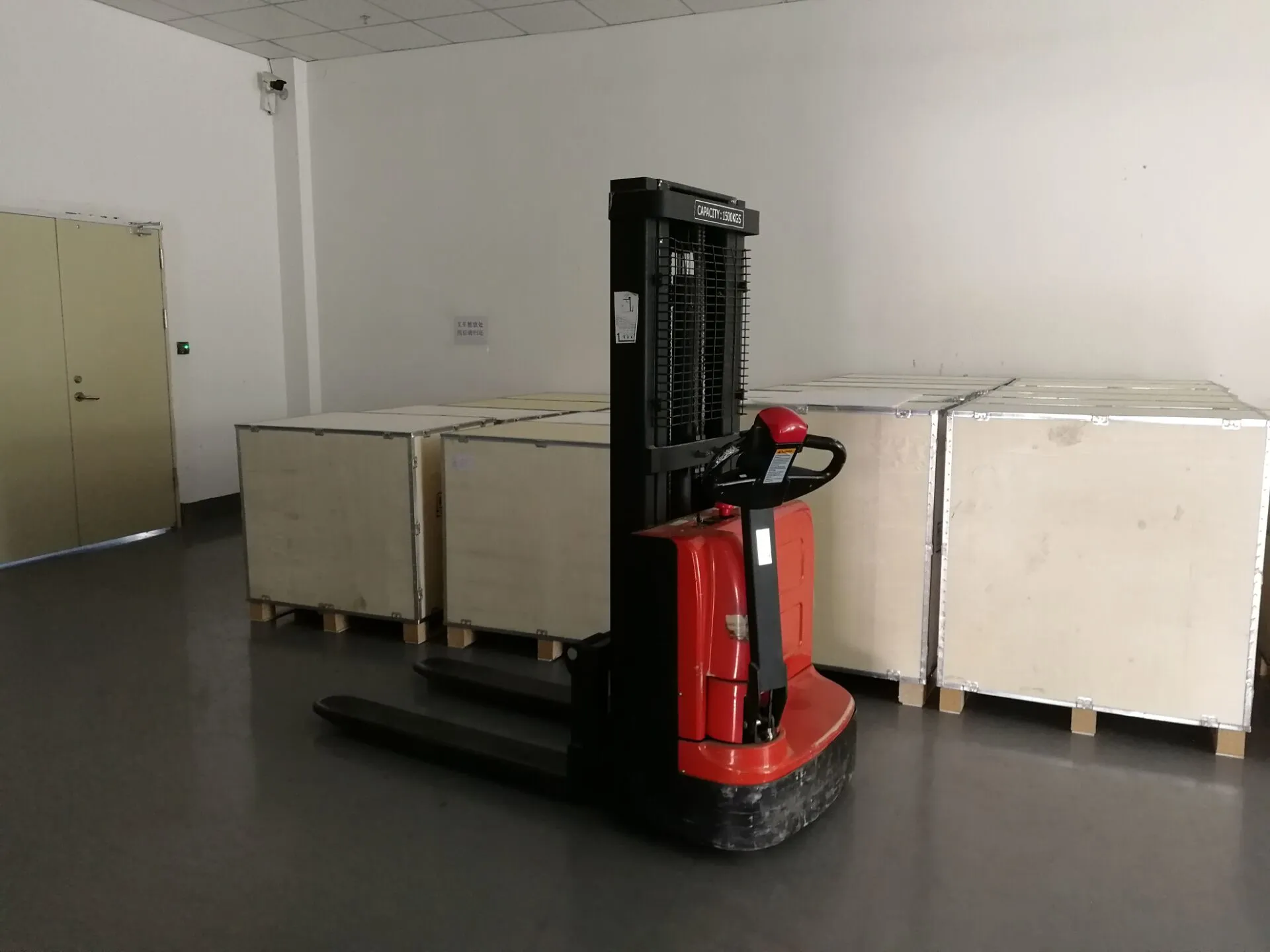

Plywood box

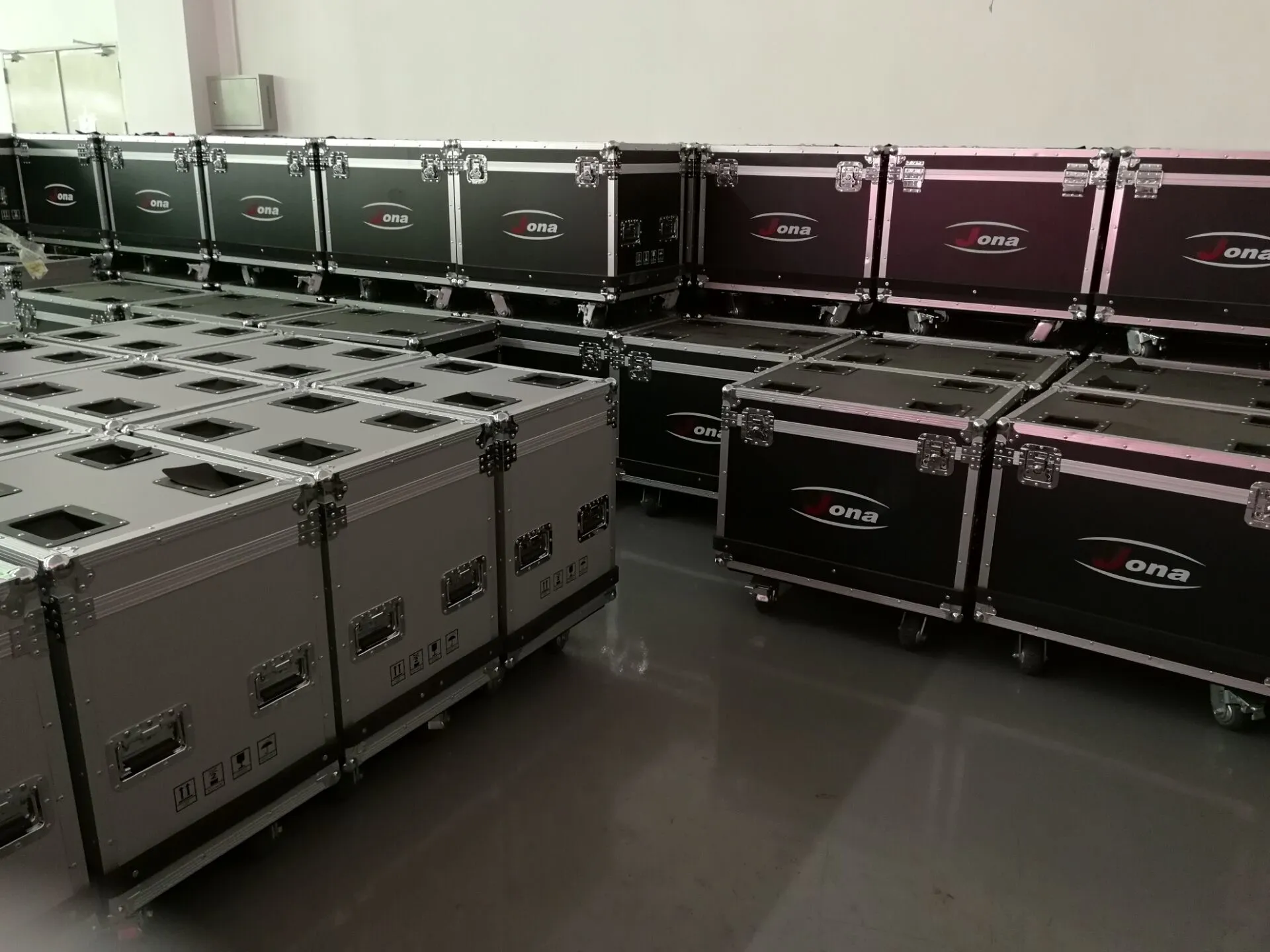

Flight case
EPE(Expandable Polyethylene)
FAQ
Q1. Are you trading company or manufacturer ?A: We are led display manufacturer
Q2: What is the control system? A: We use Nova control system.
Q3. How about your delivery time?A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
