- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:FULL COLOR
- Display Function:Graphics
- Pixels:6mm
- Model Number:IF6
- Product name:Indoor Fixed Advertising LED Display
- Grey Scale (bit):16
- Brightness (nits):1200
- Pixel Configuration:SMD3528
- Cabinet Resolution:160x160
- Module Dimension:192x192mm / 0.63x0.63feet
- Cabinet Dimension:960x960x100mm /3.15x3.15x0.33feet
- Cabinet Weight:28.8kg/63.5 Ib(Iron)
- Input Voltage (AC):110 / 240
Product Description

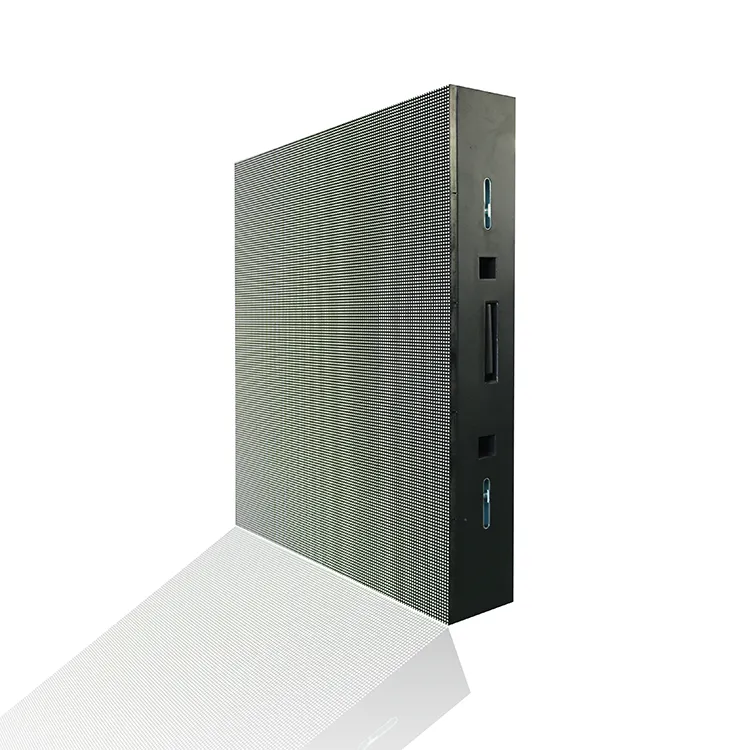

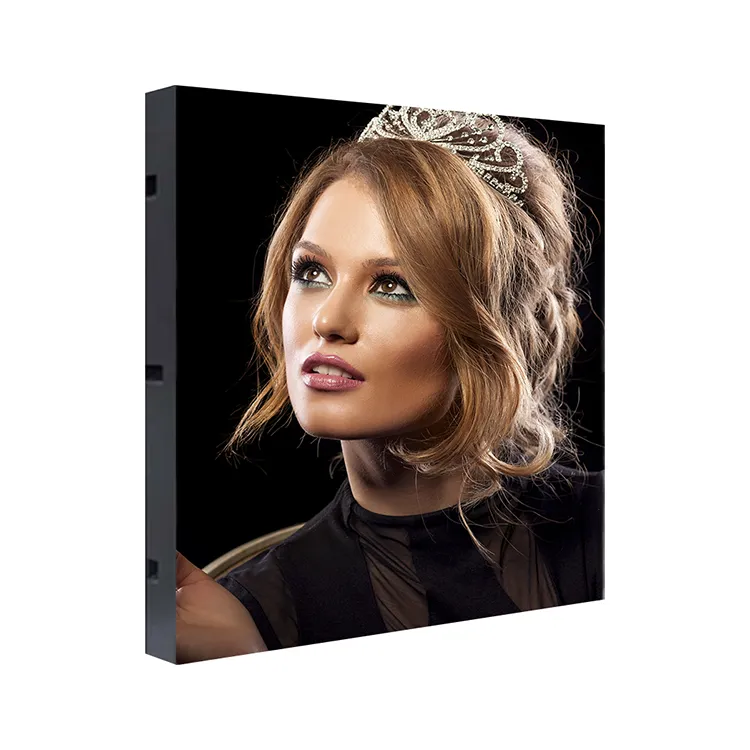

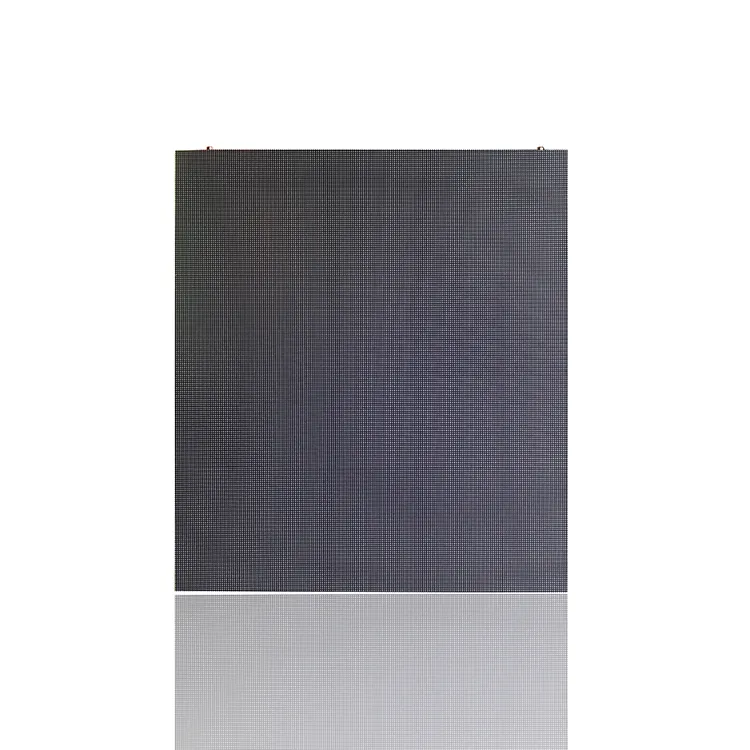

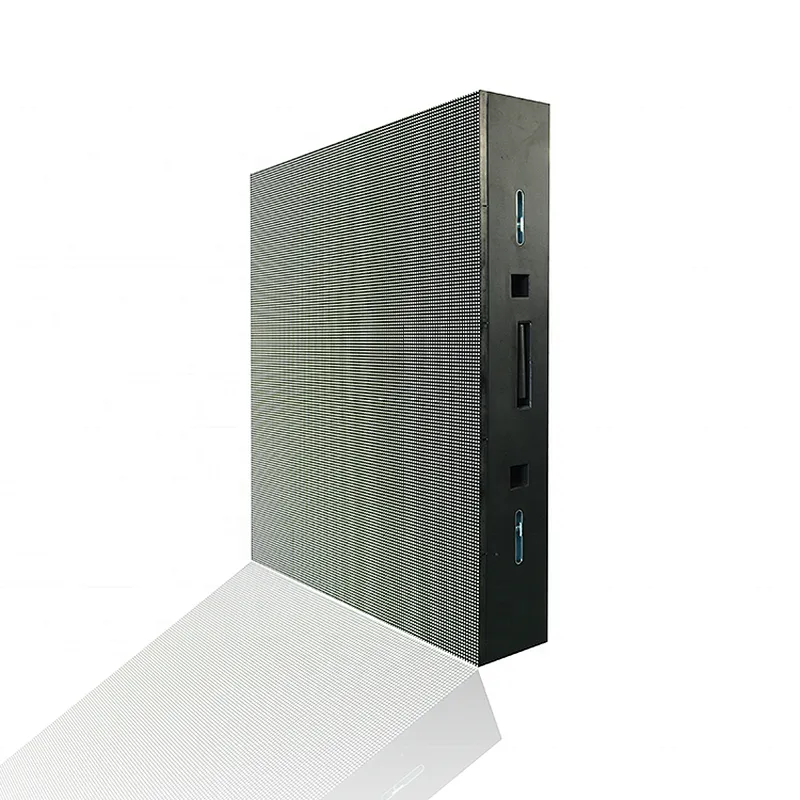

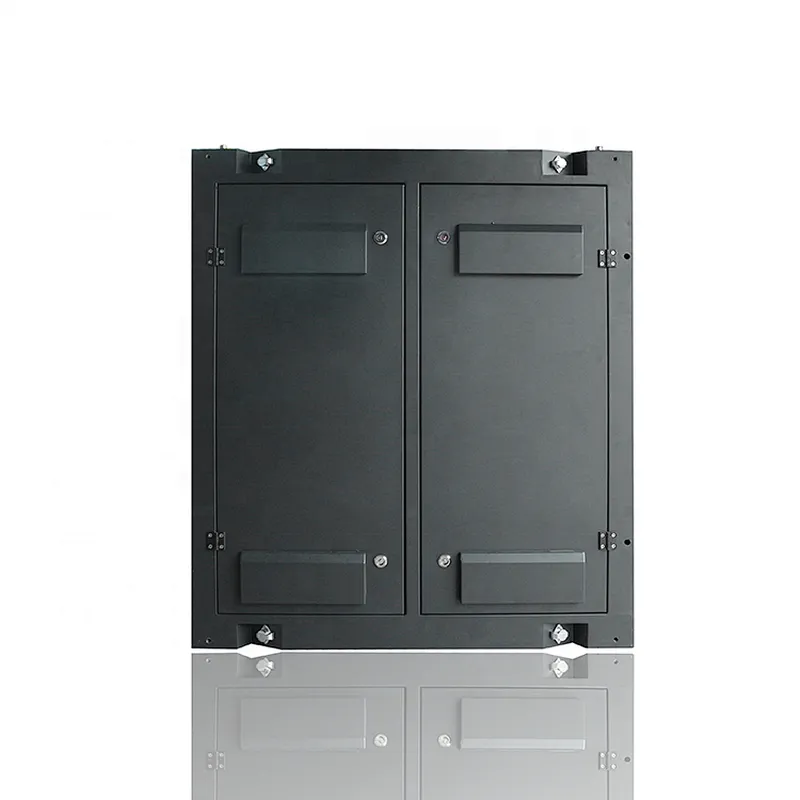

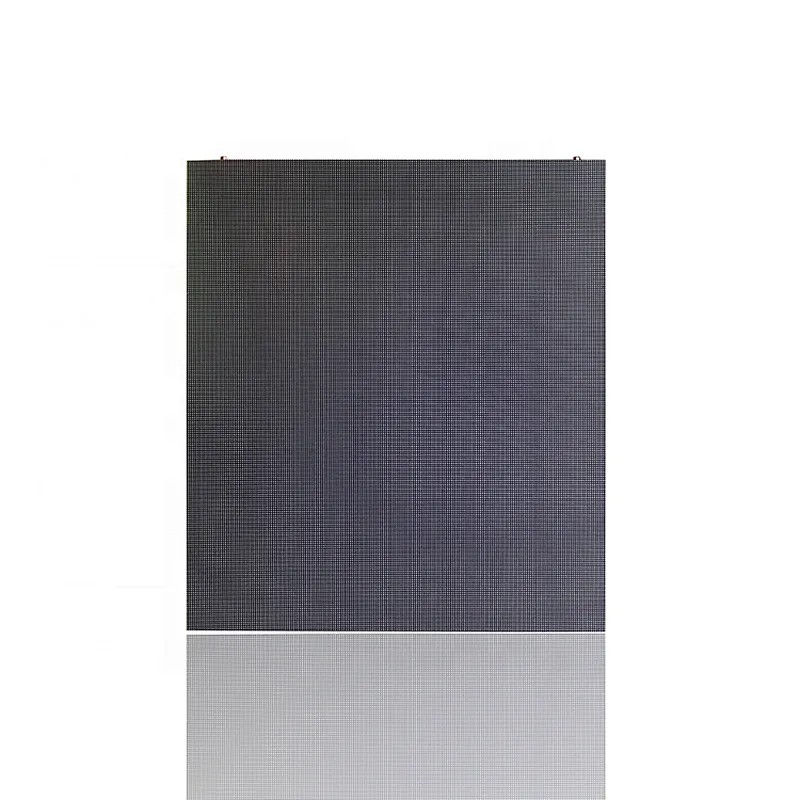

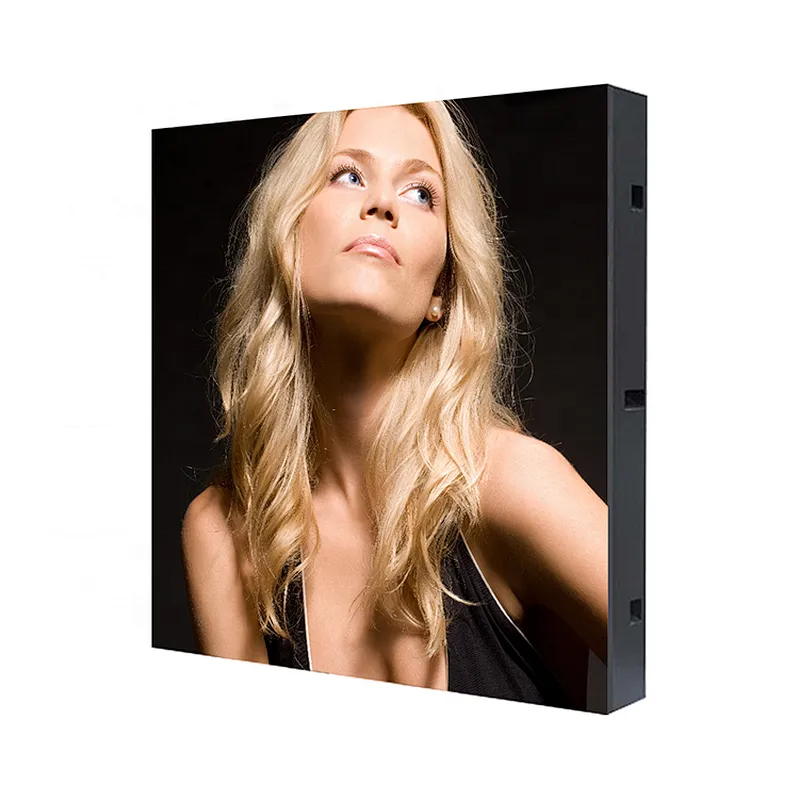

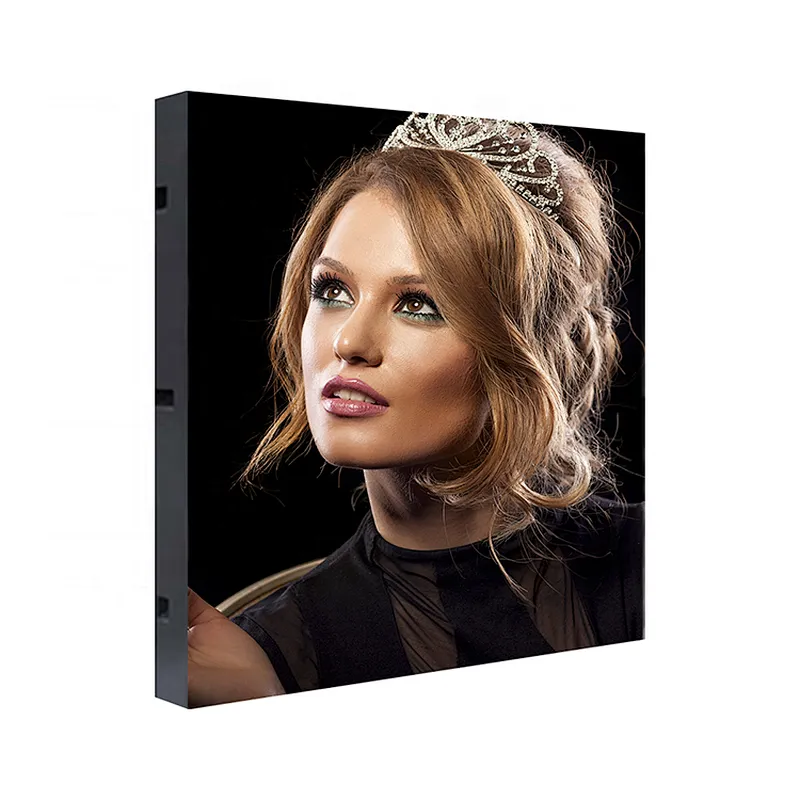

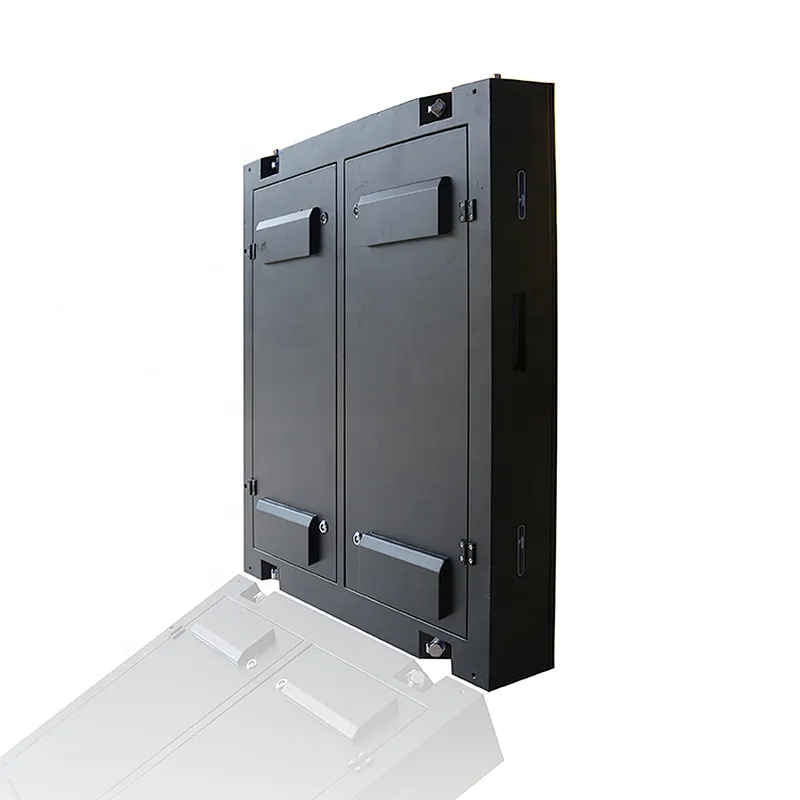

Indoor Fixed Advertising LED Display With Long Service Life
| IF Series | IF6 |
| Pixel Pitch(mm) | 6mm |
| Pixel Matrix Per Sq.m | 27777 |

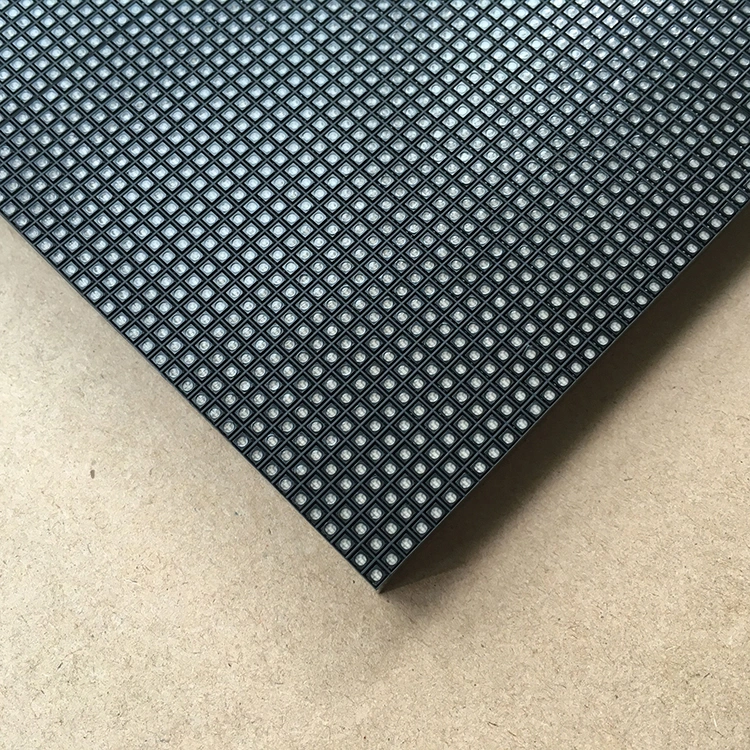

| Pixel Configuration | SMD3528 |
| Brightness (nits) | 1200 |
| Scan | 1/16 |
| Cabinet Resolution | 160x160 |

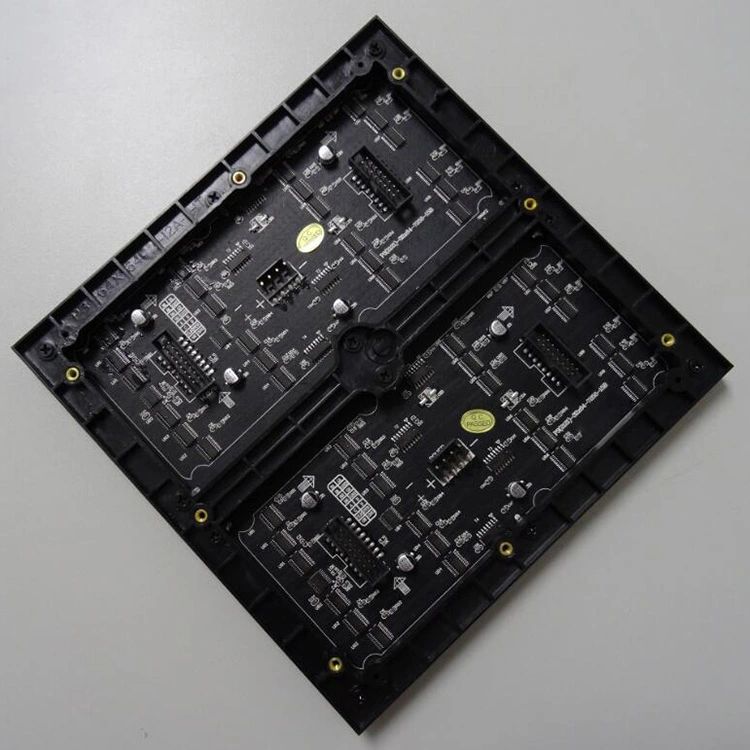

| Module Dimension | 192x192mm / 0.63x0.63feet |
| Cabinet Weight | 28.8kg/63.5 Ib(Iron) |
| Cabinet Dimension | 960x960x100mm /3.15x3.15x0.33feet |

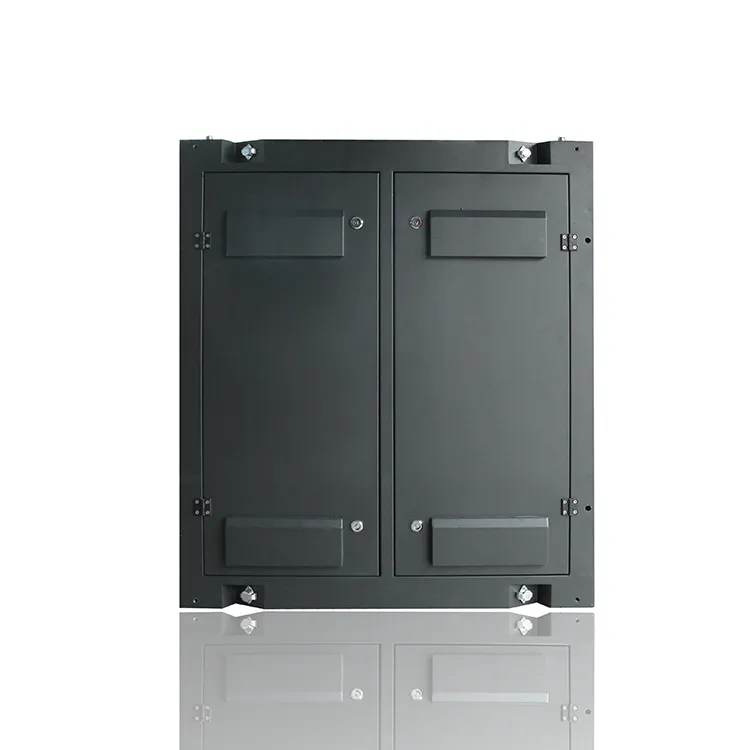

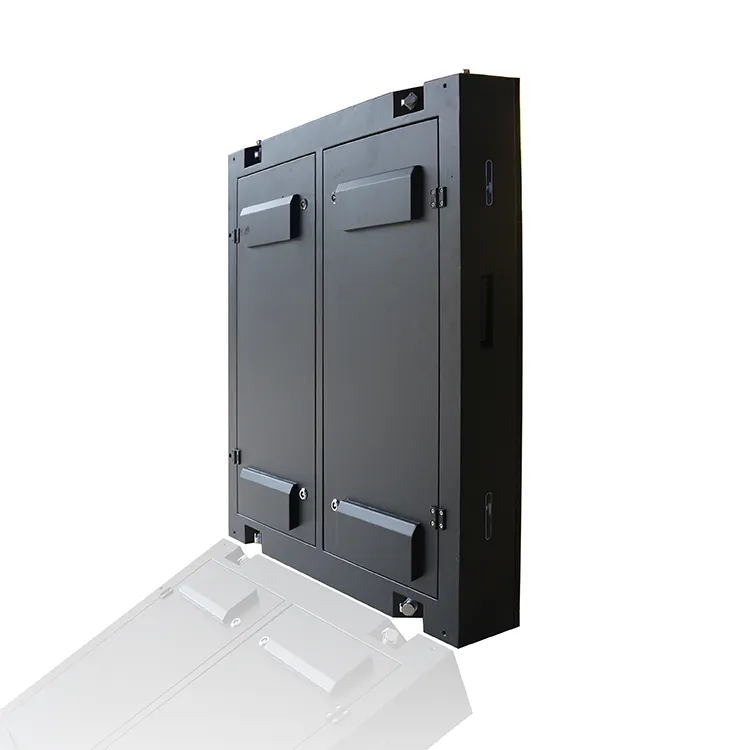

| Service Access | Front/Rear |
| Refresh Rate (HZ) | ≥1920 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 160 / 160 |
| Power Con. (Max / Avg) | 350/ 100 w/sq.m |
| IP Rate | IP34 |
| Input Voltage (AC) | 110 / 240 |
| * Specifications and photos are subject to change without prior notice. | |
