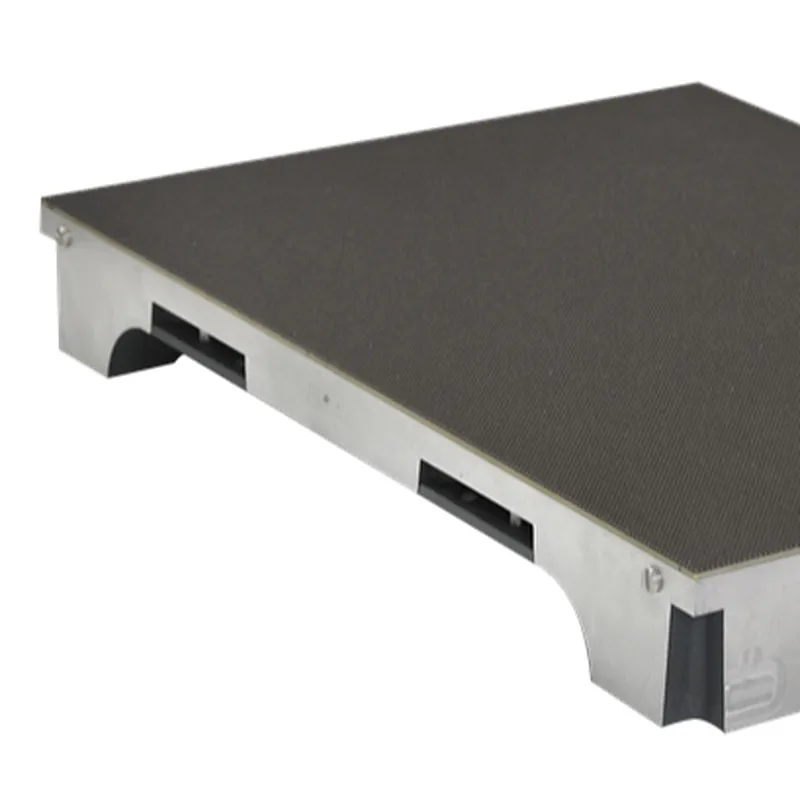

Narrow pixel pitch 4K screen LED display screen
Narrow pixel pitch 4K screen LED display screen
Narrow pixel pitch 4K screen LED display screen
Narrow pixel pitch 4K screen LED display screen
Narrow pixel pitch 4K screen LED display screen
Narrow pixel pitch 4K screen LED display screen
Narrow pixel pitch 4K screen LED display screen

Narrow pixel pitch 4K screen LED display screen

USD9,000.00 -USD11,000.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: HD Series

    Product Description

    • Place of Origin:CN;GUA
    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:1.2mm
    • Brand Name:LEDFUL
    • Model Number:HD1.2
    • Screen Dimension:400*300
    • Product name:Led Video Display Panel
    • Application:Indoor Advertising
    • Certificate:CE ROHS FCC
    • Brightness:800cd/sqm
    • Color:Fullcolor

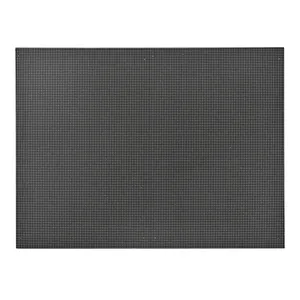

    • Module size:200*150
    • Viewing angle:160H/160V

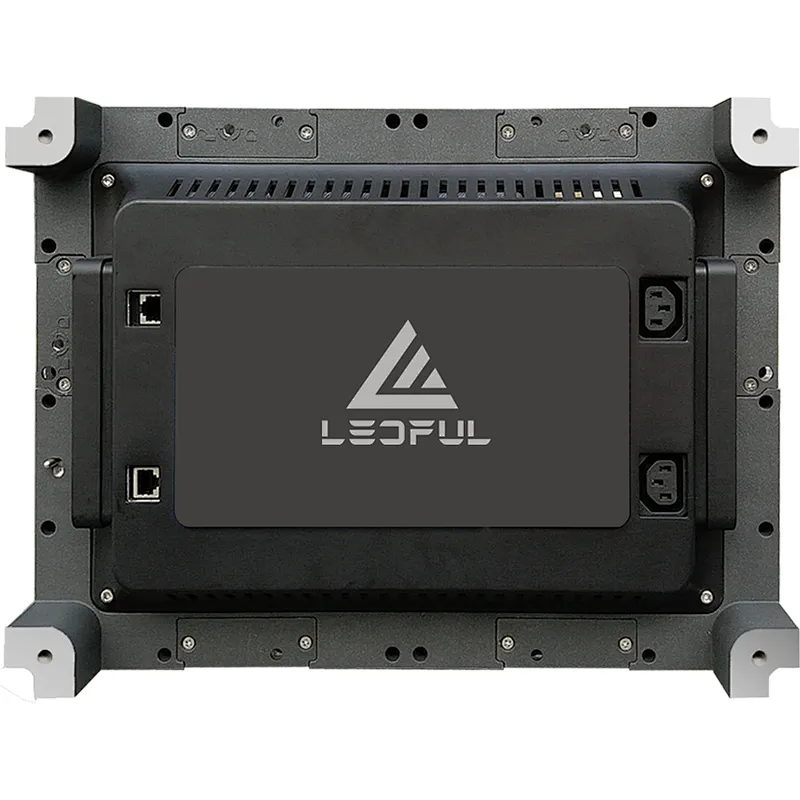

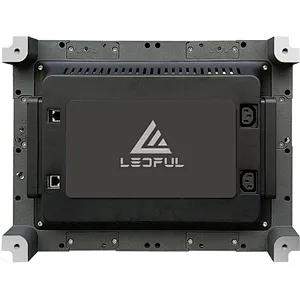

    • Cabinet size:400x300mm
    • Refresh rate:3840
    • Input Voltage:110 / 240
    Product Description

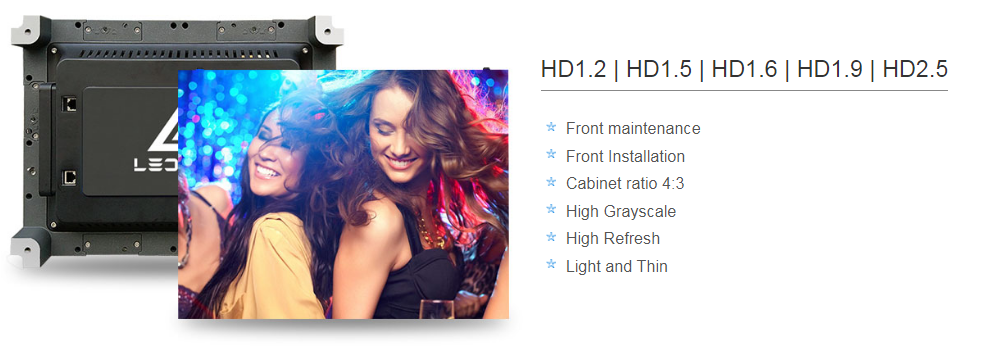

    HD Series

    HD LED Display

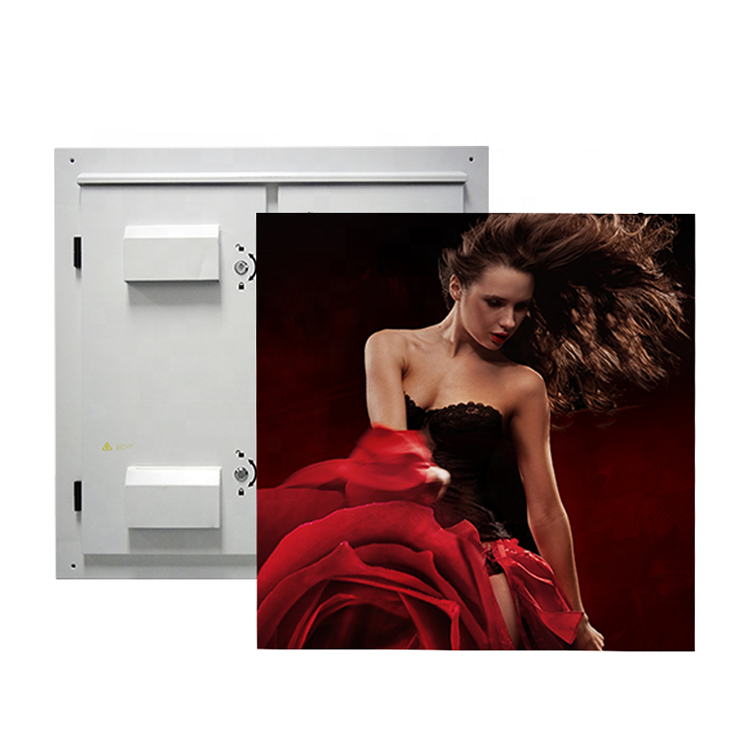

    Full Front Maintenance

    LED modules, power supply, receiver card, hub card, cables are all front service.

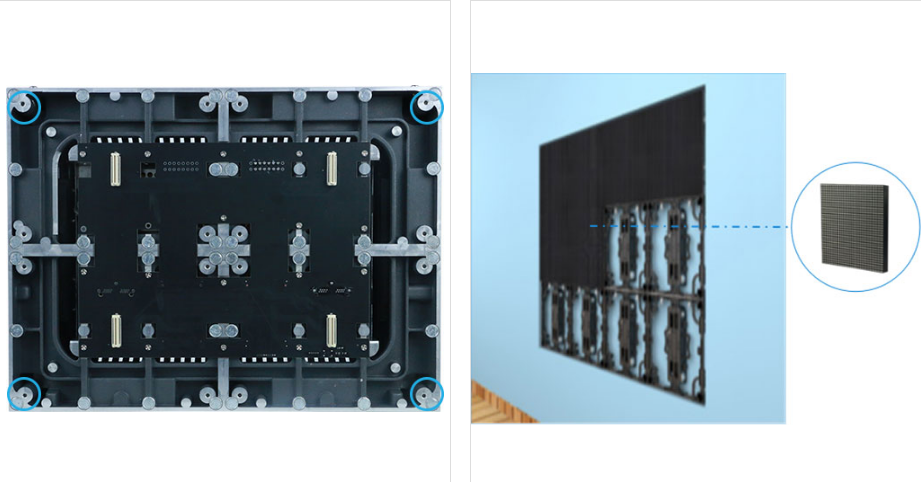

    Front Installation

    Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
    Assembly modules onto the cabinet.

    Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.

    Assemble modules onto the cabinet in order.

    Ultra Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle.
    Seeing from five directions, it would be still the natural and clear image in an LED display.

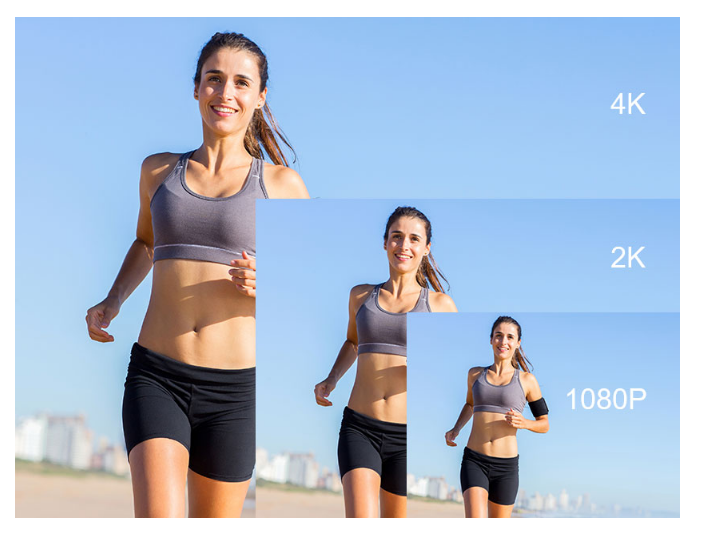

    Ultra High Definition

    It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

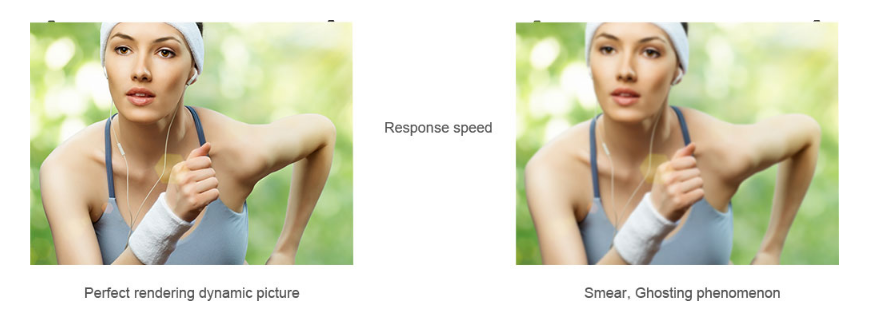

    Ultra Fast Response

    The response speed exceeds the response limit of the naked eyes,
    while playing the high speed dynamic images in an LED Screen,
    it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

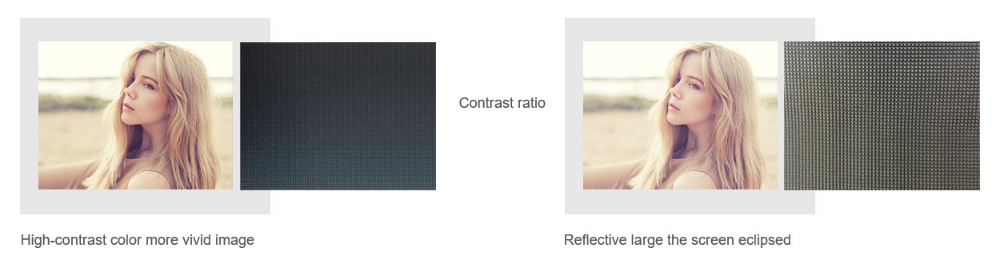

    High Contrast Ratio

    High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
    when works on the color and has very good contrast.

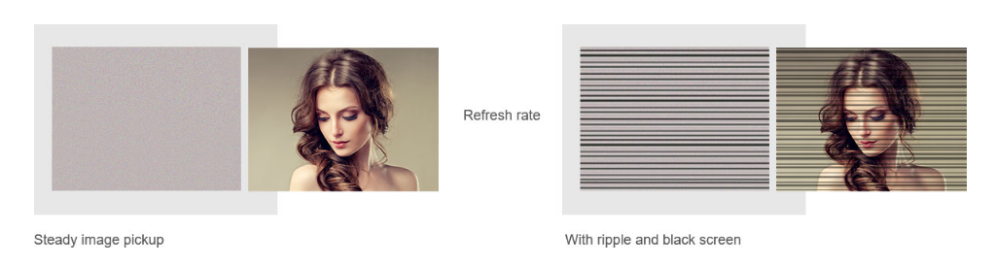

    High Refresh Rate

    It could be reach 3840HZ.

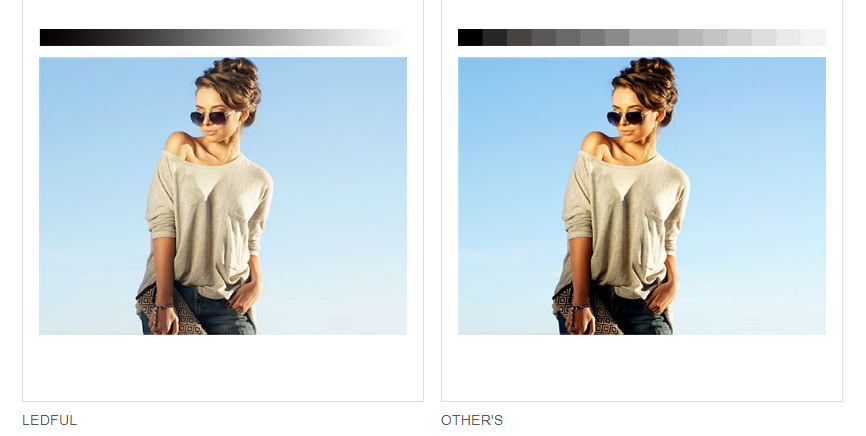

    16 bit Grey Scale

    It has almost the perfect gray scale and gives true color of the images,
    there will have no data loss and you could see every details clearly.
    Parameter
    HD Series
    HD1.2
    Pixel Pitch(mm)
    1.25mm
    Pixel Matrix Per Sq.m
    640000
    Pixel Configuration
    SMD1010
    Scan
    1/30
    Cabinet Resolution
    320x240
    Brightness (nits)
    800
    Module Dimension
    200x150mm / 0.66x0.49feet

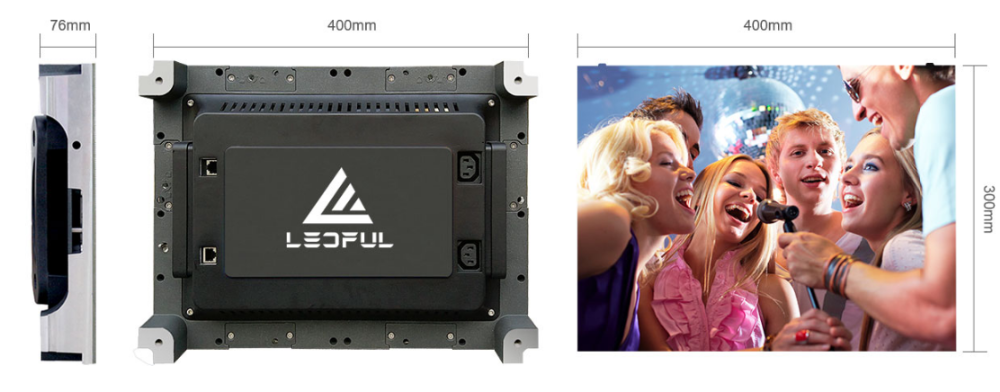

    Cabinet Dimension
    400x300x75mm / 1.31x0.98x0.25feet
    Cabinet Weight
    4.6kg /10.1Ib ( Die-casting Aluminum)
    Service Access
    Front
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    500/ 250 w/sq.m
    IP Rate
    IP31
    Input Voltage (AC)
    110 / 240

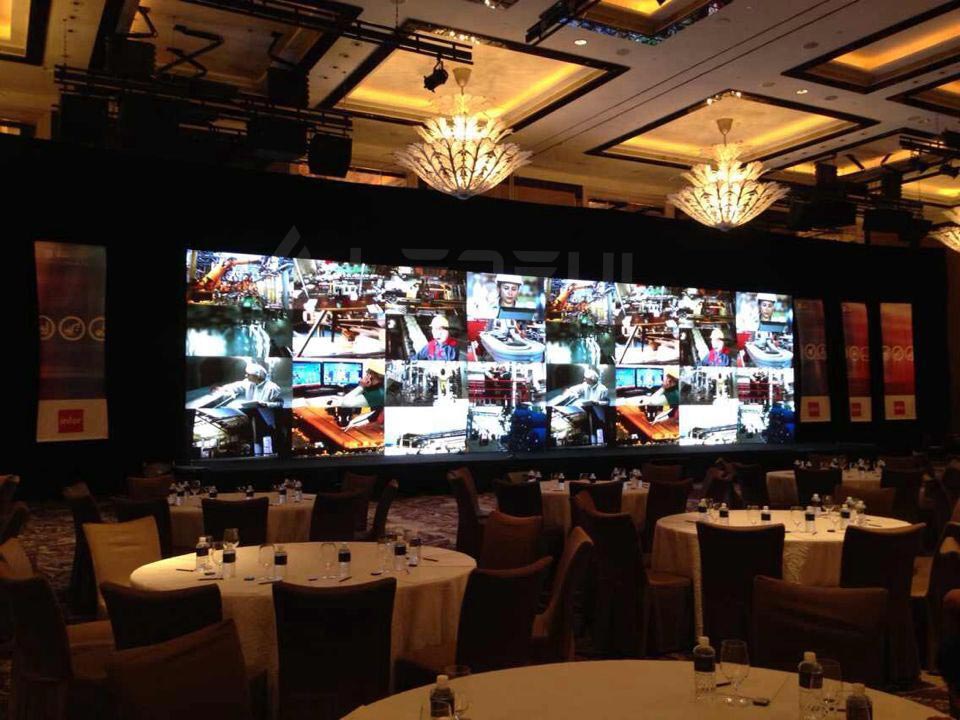

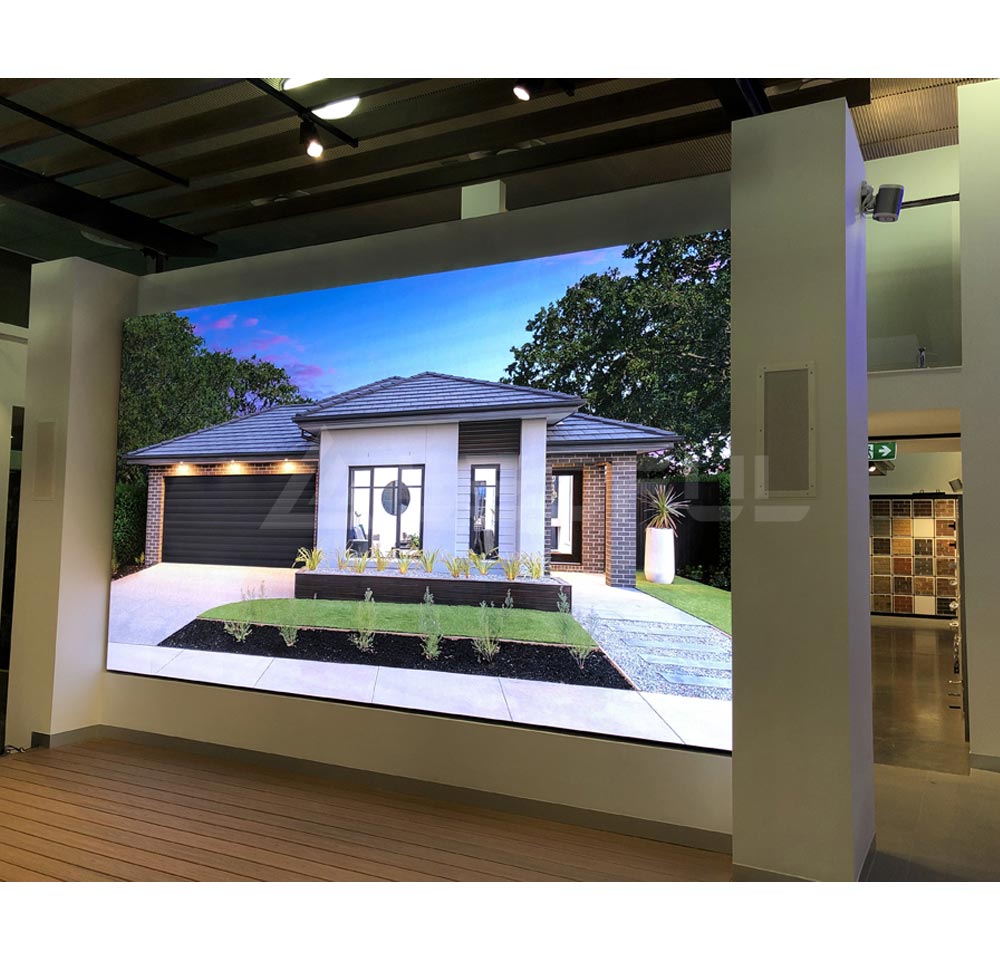

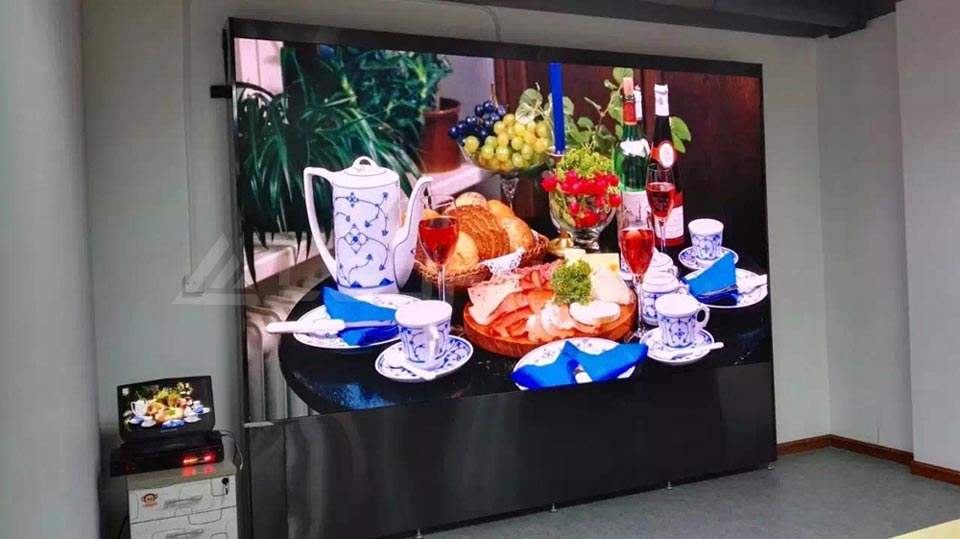

    Application

    Korea Indoor Curved HD Advertising LED Display

    Product Model: IF2.5
    Pitch:2.5mm
    Size: 9.72sqm
    Location:Korea
    This reference project is Indoor IF2.5 Curved fixed installation advertising model, these location photos are shared from one of our clients in Korea.
    The screen size is 9.72sqm, you could enjoy the perfect visual performance even standby the display in very close distance.
    IF2.5 is one of the most popular model widely used for Indoor fixed installation display application, specially for close distance requirements.
    The IF series model, pixel pitch from 2.5mm to 6mm. focus on indoor fine pitch market with more features as the below.
    Black SMD LED makes perfect
    Front maintenance & Front installation
    Wifi, 4G, cloud, usb, remote control
    Thin, light weight, easy installation
    Low brightness with High grayscale operation

    IF Series More Features & More Advantages
    Excellent heat dissipation and noiselessness
    High-performance metal plate cabinet design
    Macro molecular flexible mask with glare-less surface on LED modules
    High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
    Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.

    Our Company

    Top LED Display Manufacturer

    LEDFUL founded in 2008 Total 209 employees in LEDFUL
    3~5 years warranty on LED screen
    Exported to 83 countries and regions Top reliable LED display manufacturer

    Over 5,600 successful projects in the world
    R&D staff occupied 10% of all the employees.

    CE, RoHS, FCC, CCC, ISO9001:2008 standard

    Professional, High Efficient and Caring

    One-stop solution provider More designs and more solutions
    Wireless control, 4G, Wifi, Cluster control
    Truss hanging, stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round, sphere, cubic, customized Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display  Our partners are Media Companies, Stage Designer, Project Manager,

    Pro Audio, Light and Video companies, AV Rental Equipment companies,  Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

    Product Certificate


    Product Patent


    Company Honor


    Our Service

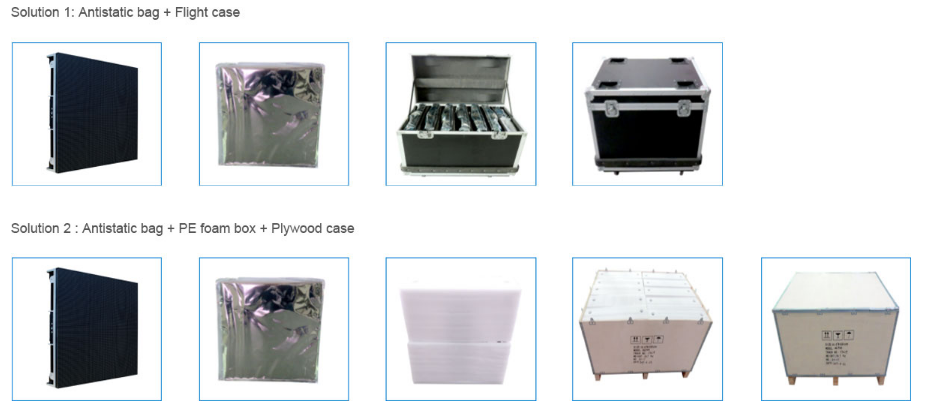

    Packing & Delivery
    FAQ

    Q1. Are you trading company or manufacturer ?

    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4.Minimum distance of the audience? (Viewing distance)

    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more

    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5.How To Play The TVs On LED Display Panel?
    LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can pltomers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.
    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.
