- Screen Dimension:Customized
- Display Function:video
- LED chip:Epistar
- Life span::100000 Hours
- Cabinet material::Die-casting Aluminum
- Control system:Nova
- Grey Scale:16bit
- Warranty:3 Years
- Input Voltage(AC):110/240
- Certificate:CCC CE ROHS ISO
- Application:Indoor
- Color:Full color
- Panel Size:400*300mm
- Pixel Pitch:1.9mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:HD1.9
- Brand Name:LEDFUL

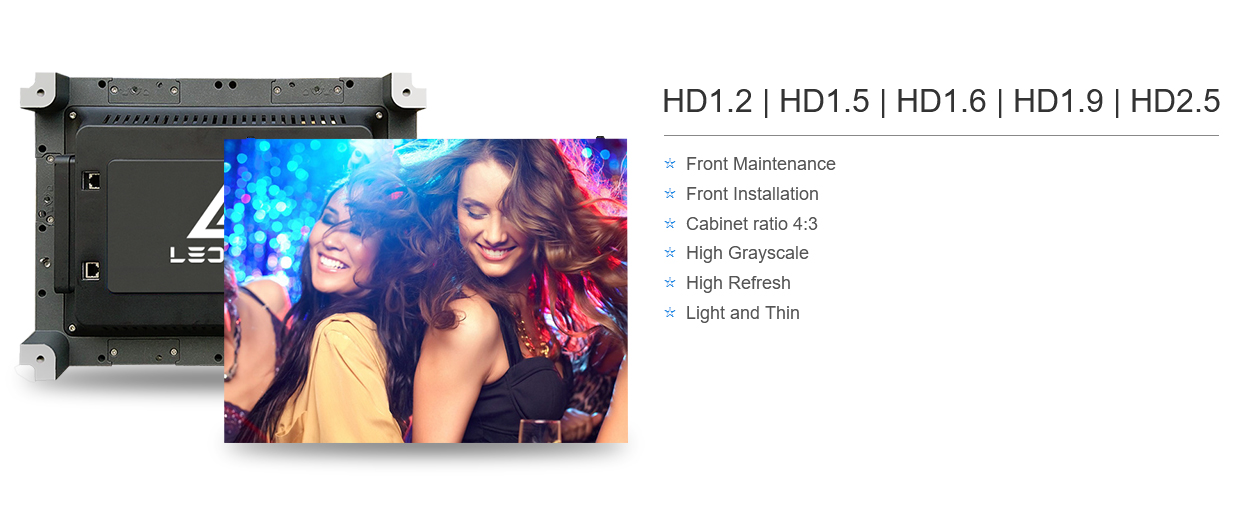

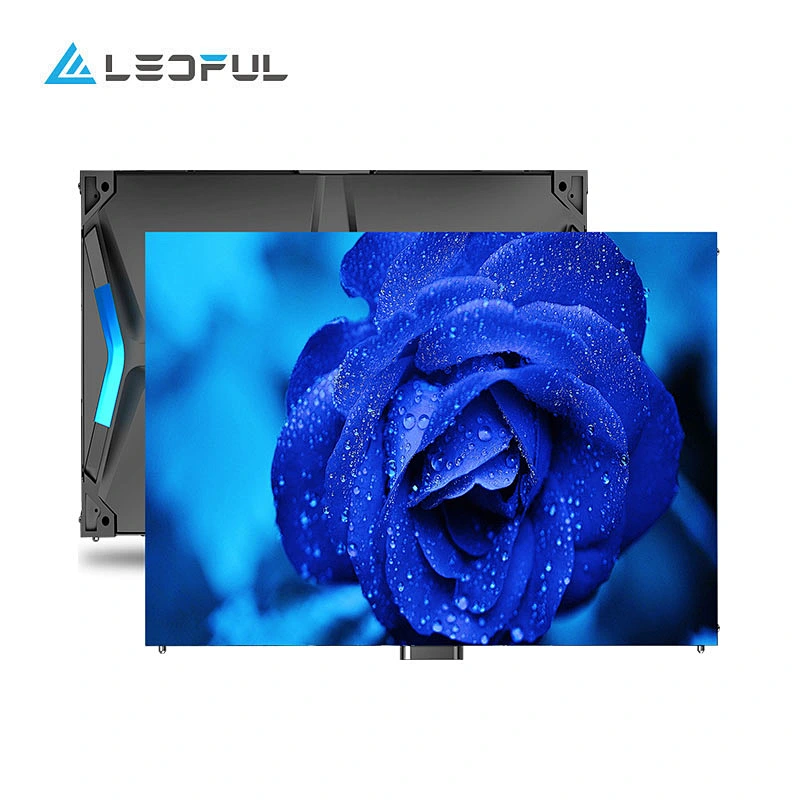

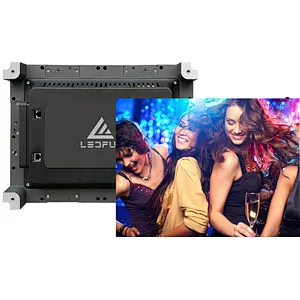

HD Series
HD LED Display
Product Name | HD1.9 |
Pixel Pitch(mm) | 1.923mm |
Pixel Matrix Per Sq.m | 270400 |
Pixel Configuration | SMD1010 |
Scan | 1/26 |
Cabinet Resolution | 208x156 |
Brightness (nits) | 800 |

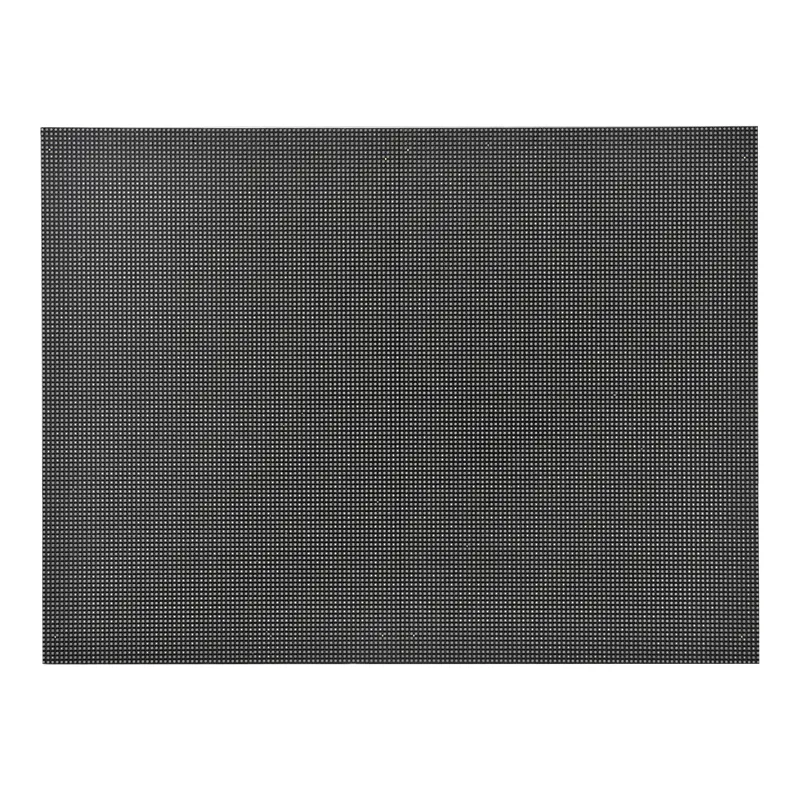

Module Dimension | 200x150mm / 0.66x0.49feet |

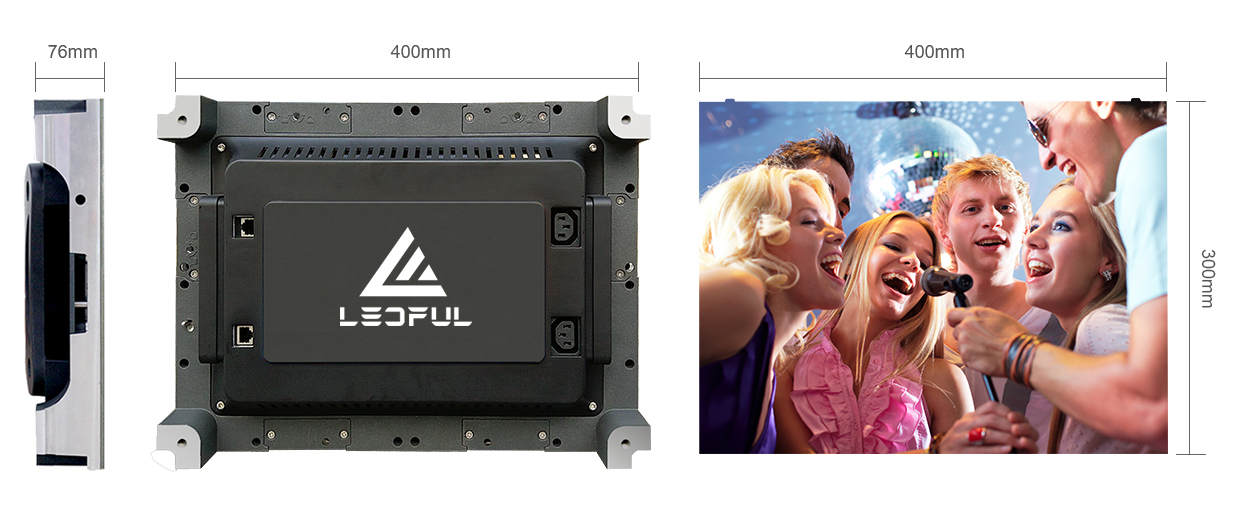

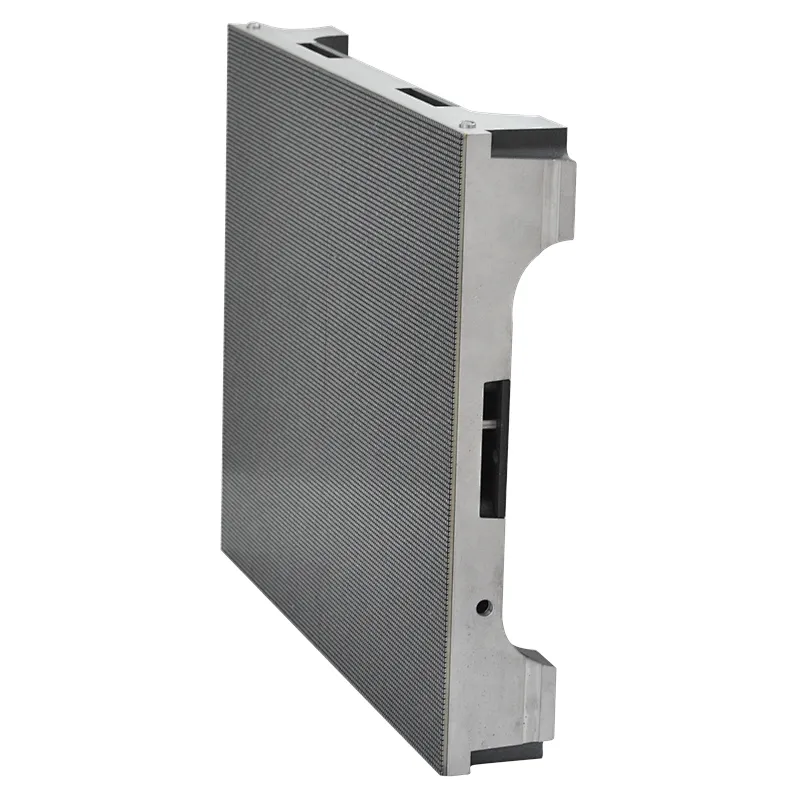

Cabinet Dimension | 400x300x75mm / 1.31x0.98x0.25feet |
Cabinet Weight | 4.6kg /10.1Ib ( Die-casting Aluminum) |
Service Access | Front |
Refresh Rate (HZ) | ≥3840 |
Grey Scale (bit) | 16 |
Viewing Angle (H/V) | 160 / 160 |
Power Con. (Max / Avg) | 500/ 200 w/sq.m |
IP Rate | IP31 |
Input Voltage (AC) | 110 / 240 |

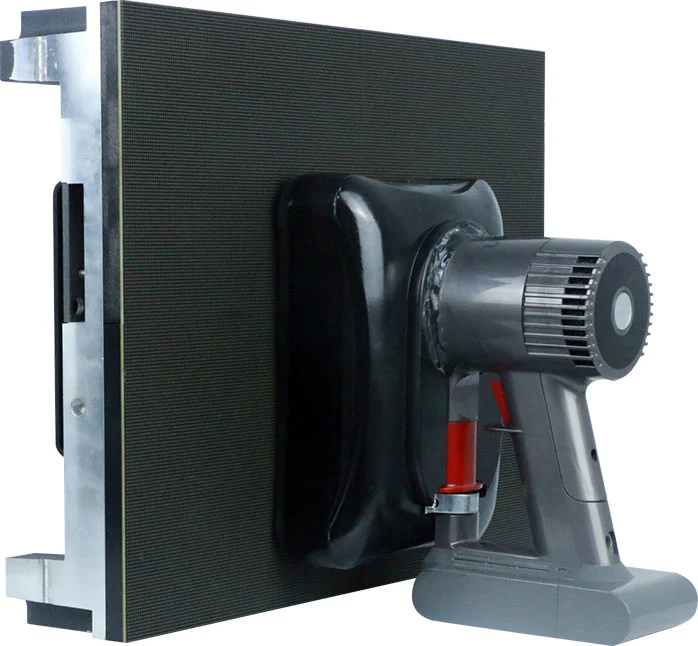

Full Front Maintenance
LED modules, power supply, receiver card, hub card, cables are all front service.
Front Installation

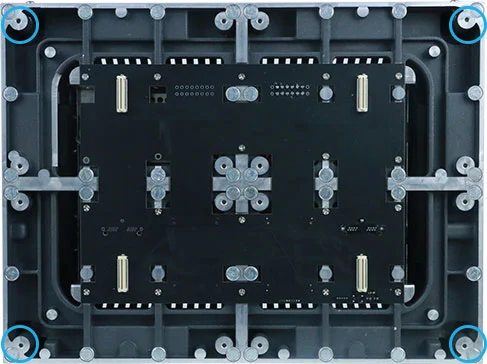

Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall. Assembly modules onto the cabinet.

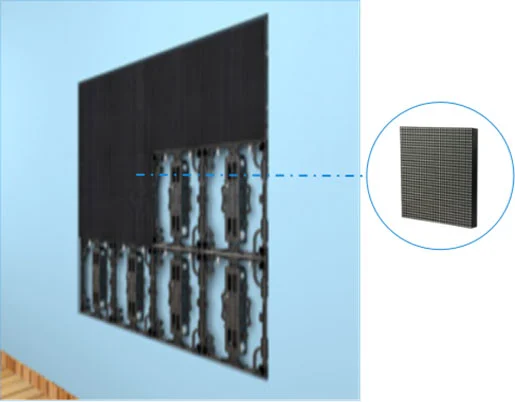

Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.
Assemble modules onto the cabinet in order.
Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra High Definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes, while playing the high speed dynamic images in an LED Screen, it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
High Contrast Ratio
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

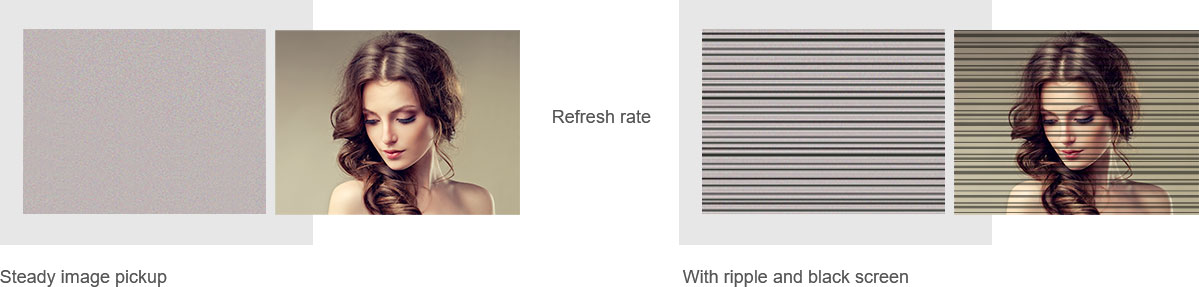

High Refresh Rate
It could be reach 3840HZ.
16 bit Grey Scale
It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.
LEDFUL
OTHER'S
Q1: Are you trading company or manufacturer ?
A: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.
Q2: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/Cloud control. It’s very easy and convenient to control.
Q3: What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
5…6…etc.
Q4. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
Q5:How about your Warranty Term?
A:3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
