  • Minimum order quantity:1
  • Supply Ability:2000.0 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: HD Series

    Product Description

    • Usage:Indoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Warranty: 3 Years:LED chip: Epistar
    • Certificate: CCC CE ROHS ISO:Life span: 100000 Hours

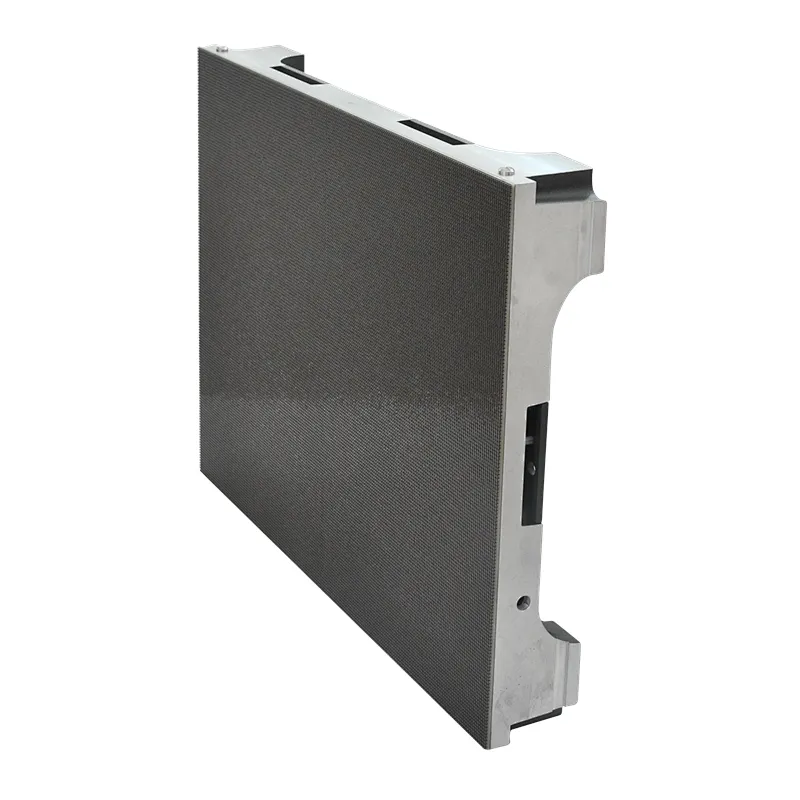

    • Screen Dimension: Customized:Cabinet material: Die-casting Aluminum
    • IC: ICN2038s:Control system: Linsn /Nova
    • Input Voltage(AC):110/240:Grey Scale: 16bit
    • Screen Dimension:400*300mm
    • Pixels:1.923mm
    • Place of Origin:Guangdong, China (Mainland)
    • Model Number:HD1.9
    • Brand Name:LEDFUL
    Product Description

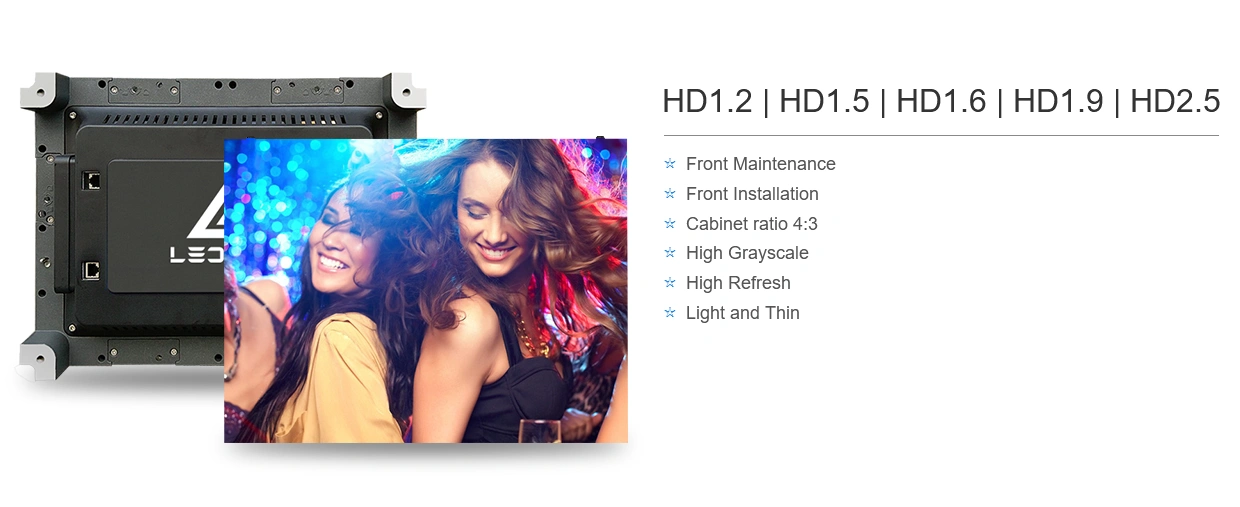

    HD Series

    HD LED Display

    Product Name
    HD1.9
    Pixel Pitch(mm)
    1.923mm
    Pixel Matrix Per Sq.m
    270400
    Pixel Configuration
    SMD1010
    Scan
    1/26
    Cabinet Resolution
    208x156
    Brightness (nits)
    800
    Module Dimension
    200x150mm / 0.66x0.49feet

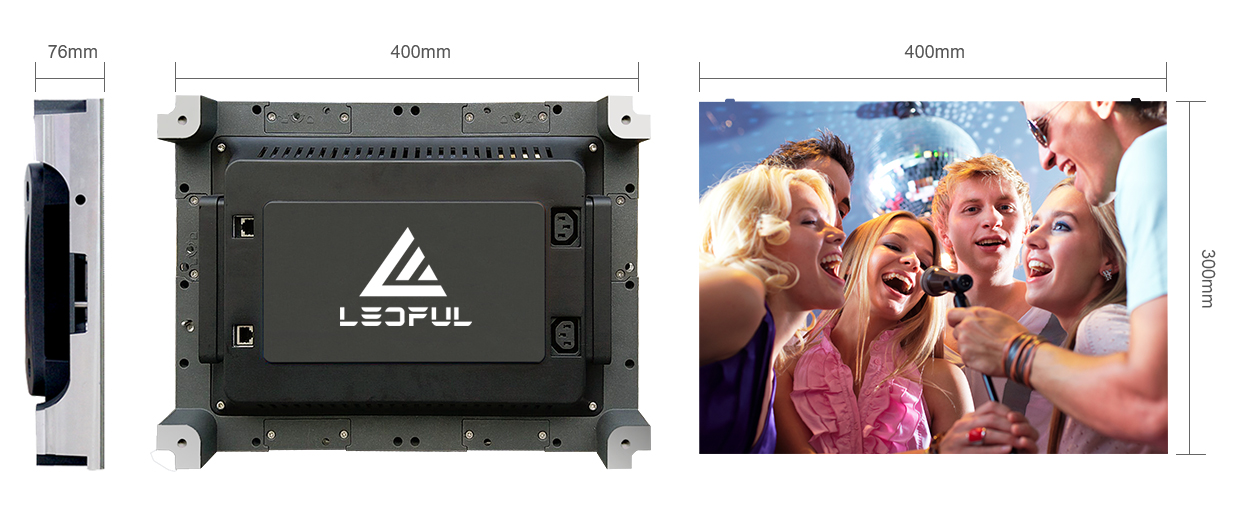

    Cabinet Dimension
    400x300x75mm / 1.31x0.98x0.25feet
    Cabinet Weight
    4.6kg /10.1Ib ( Die-casting Aluminum)
    Service Access
    Front
    Refresh Rate (HZ)
    ≥3840
    Grey Scale (bit)
    16
    Viewing Angle (H/V)
    160 / 160
    Power Con. (Max / Avg)
    500/ 200 w/sq.m
    IP Rate
    IP31
    Input Voltage (AC)
    110 / 240

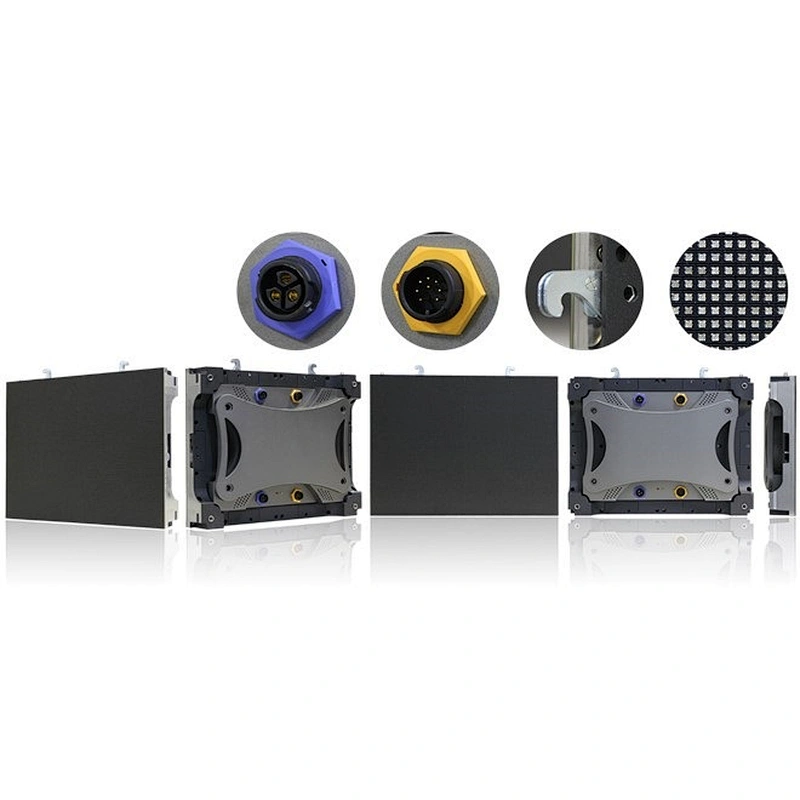

    Products Show

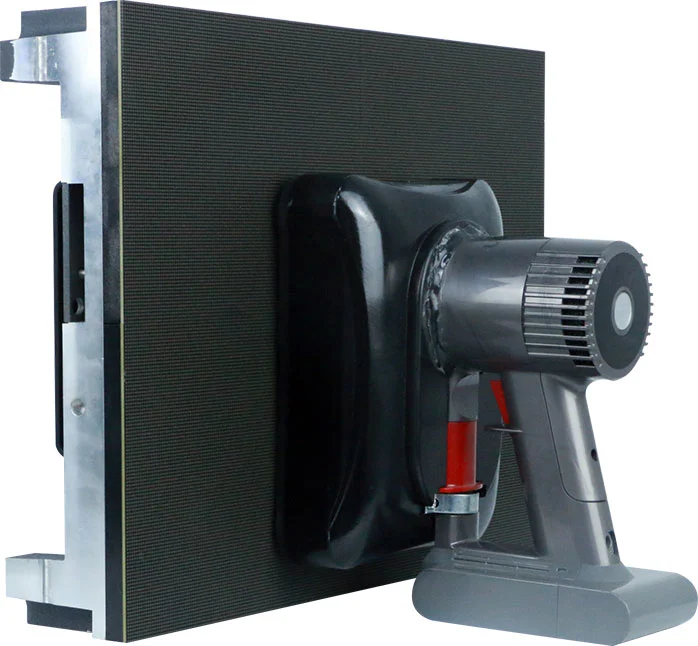

    Full Front Maintenance

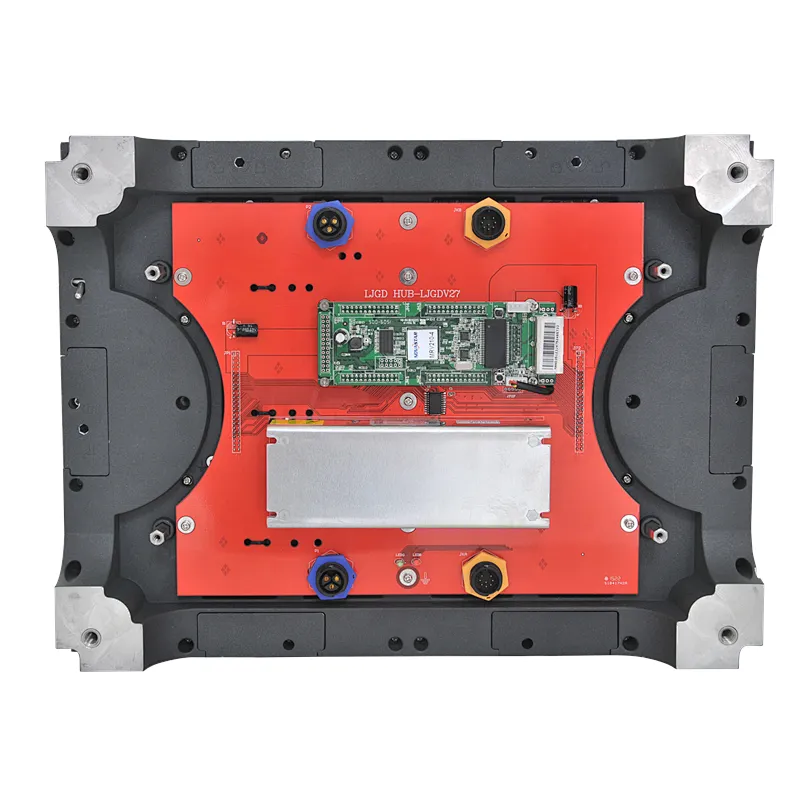

    LED modules, power supply, receiver card, hub card, cables are all front service.

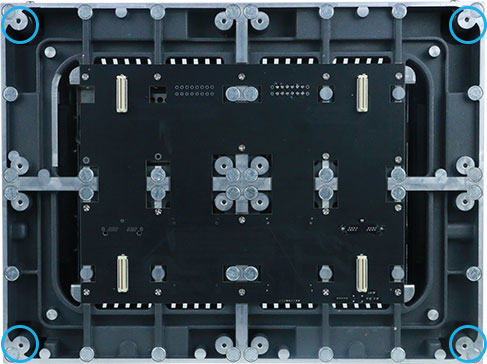

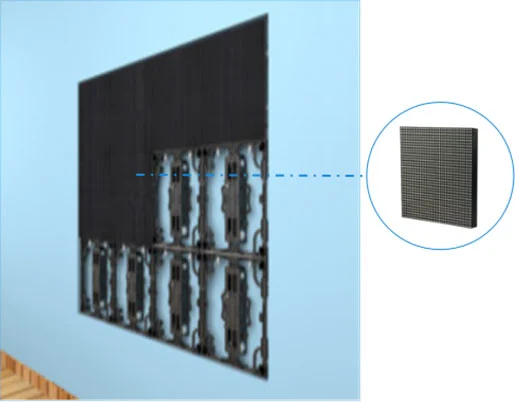

    Front Installation

    Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall. Assembly modules onto the cabinet.

    Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.

    Assemble modules onto the cabinet in order.




    Ultra Wide Viewing Angle

    Both 160° from horizontal & vertical for the viewing angle.Seeing from five directions, it would be still the natural and clear image in an LED display.




    Ultra High Definition

    It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.




    Ultra Fast Response

    The response speed exceeds the response limit of the naked eyes,  while playing the high speed dynamic images in an LED Screen, it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

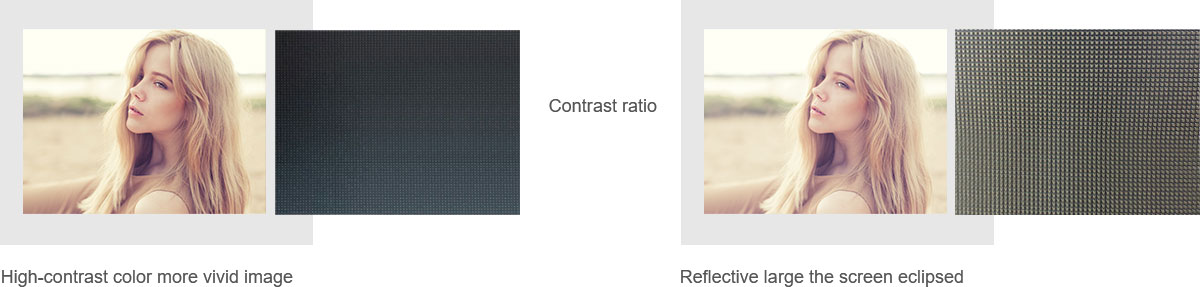

    High Contrast Ratio

    High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance when works on the color and has very good contrast.

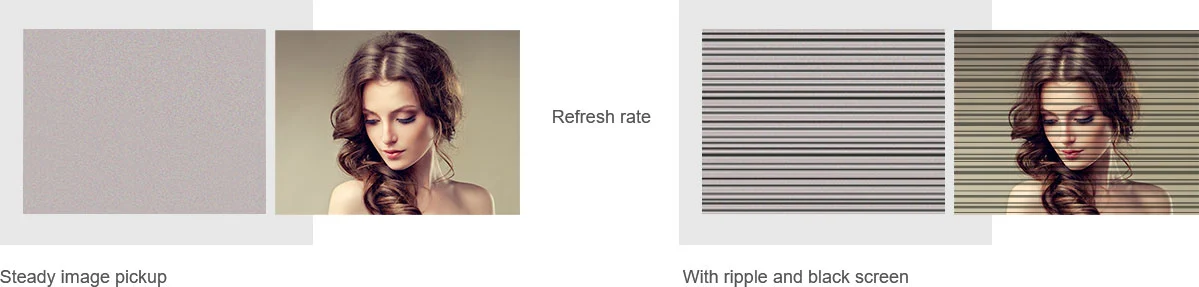

    High Refresh Rate

    It could be reach 3840HZ.




    16 bit Grey Scale

    It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.

    LEDFUL

    OTHER'S

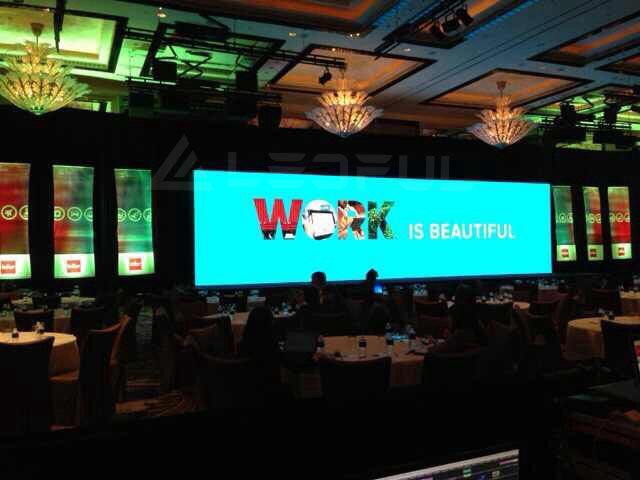

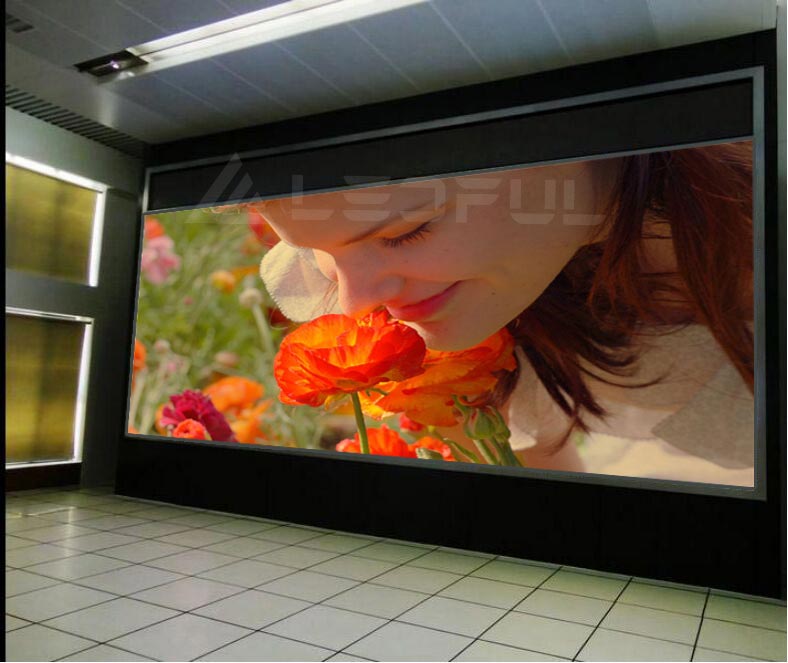

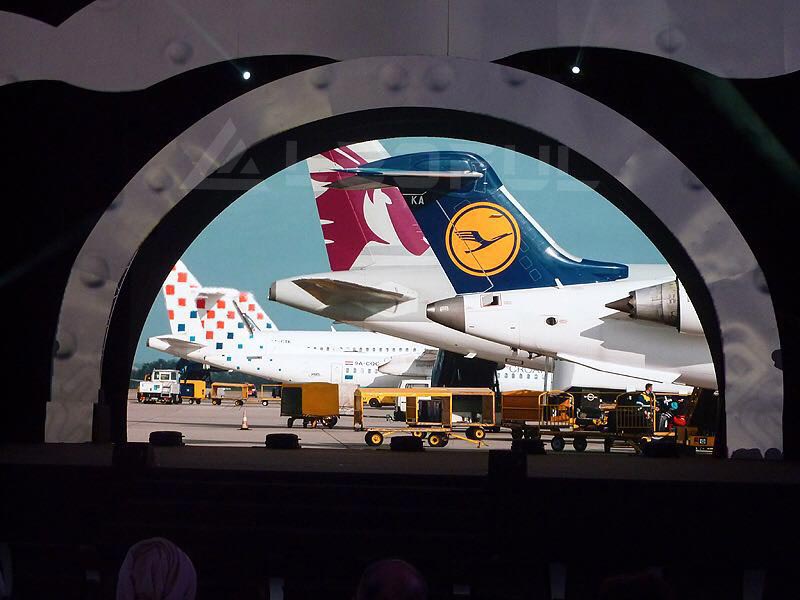

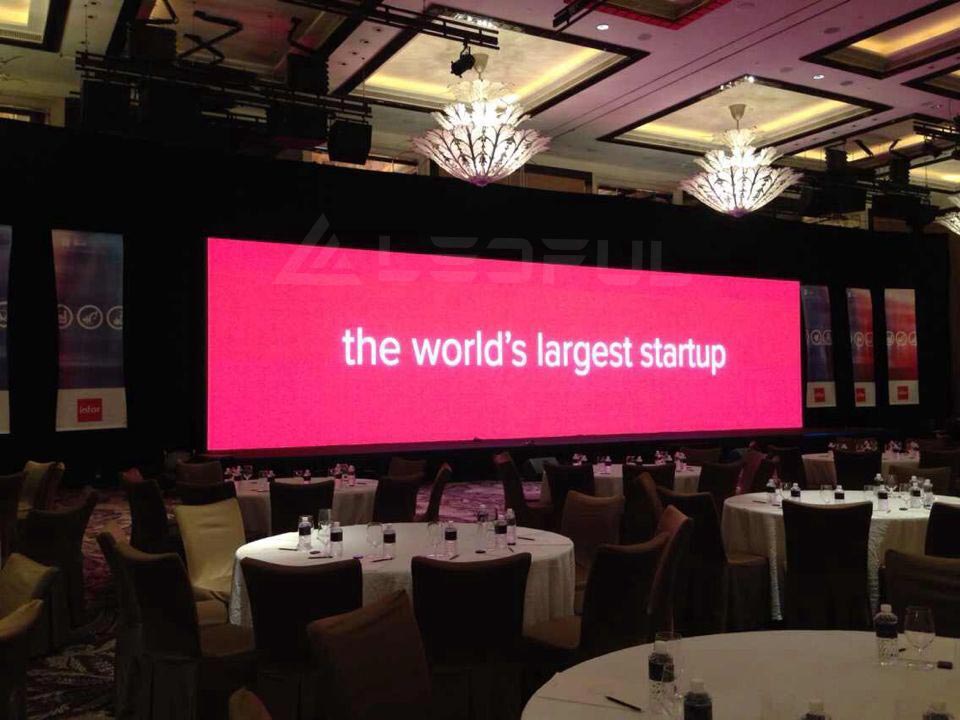

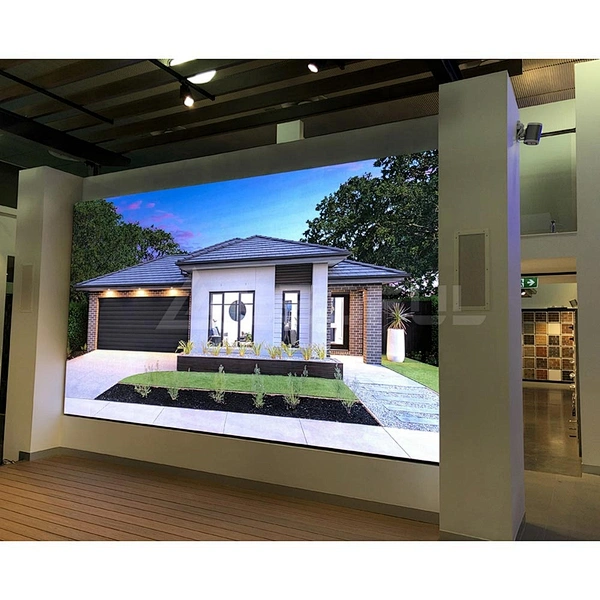

    Applications
    Our Company

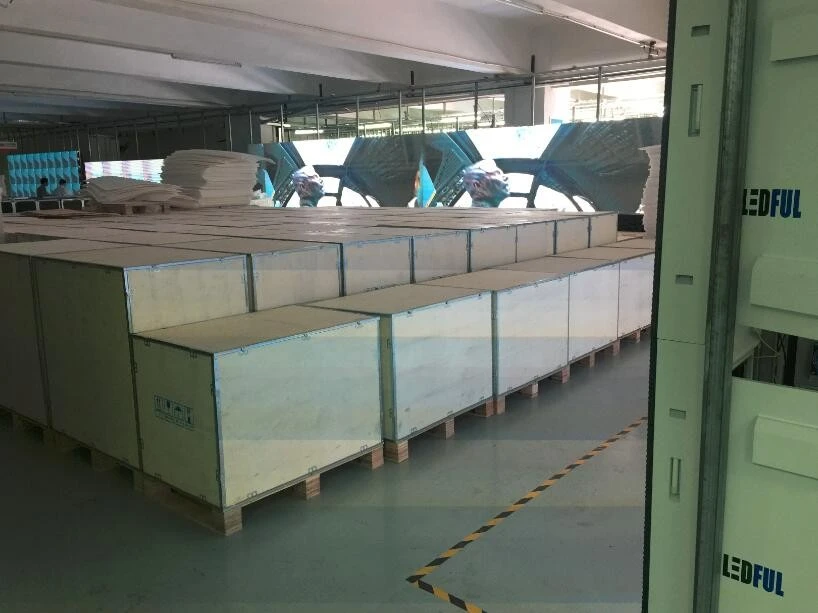

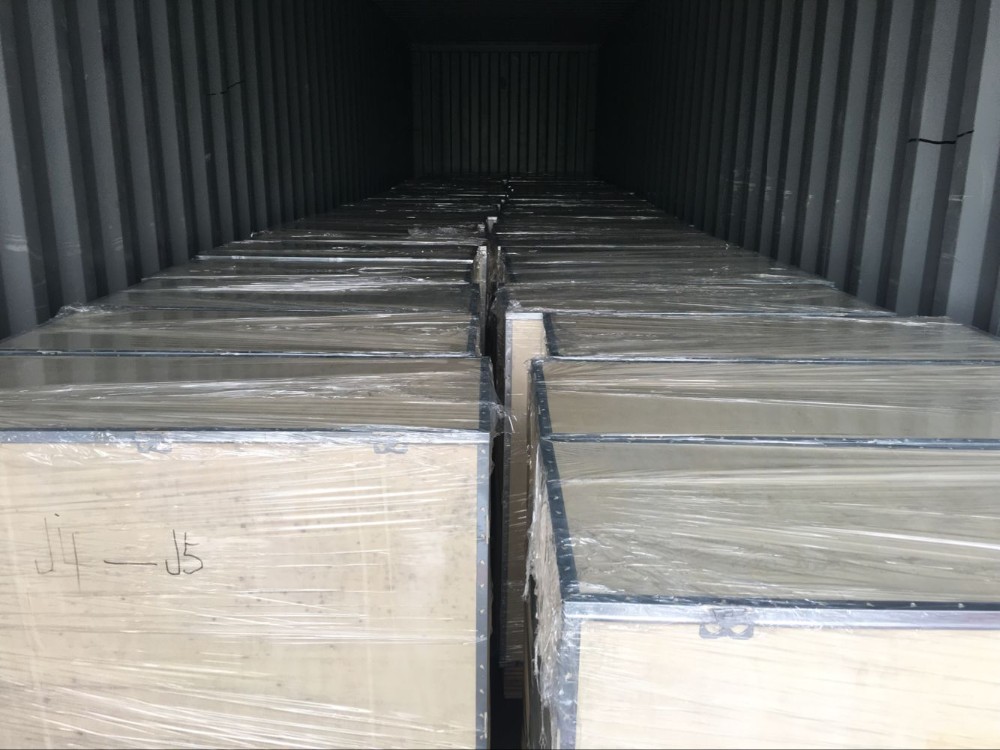

    Packing & Delivery

    1.Plywood box: Covered with eco-friendly wood and aluminum, and pearl cotton is placed inside, which is resistant to pressure, shock and moisture, and effectively prevents damage during transportation;

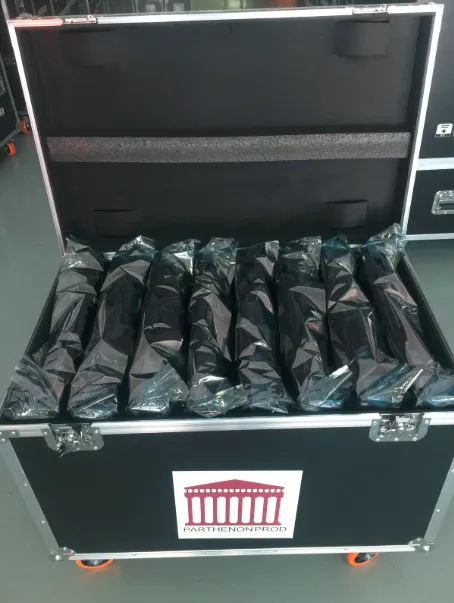

    2.Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.





    Our Service

    1)Reply your inquiry in 24 working hours.


    2)Customized design is available ,OEM & ODM are welcomed.


    3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs


    4)Guidance service: We can guide on line if customers have questions about the installation and usage.

    For large project, we provide your engineer free training, or our engineer can go to customer's country for on-site guidance.

    5) Warranty period: 3-5 years after shipment.


    FAQ

    Q1. Are you trading company or manufacturer ?
    A: We are led display manufacturer

    Q2: What is the control system?
    A: We use Nova control system.

    Q3. How about your delivery time?
    A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q4. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q5: How can you ensure your led display product quality?
    A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
