- Tube Chip Color:FULL COLOR
- Pixels:1.4mm

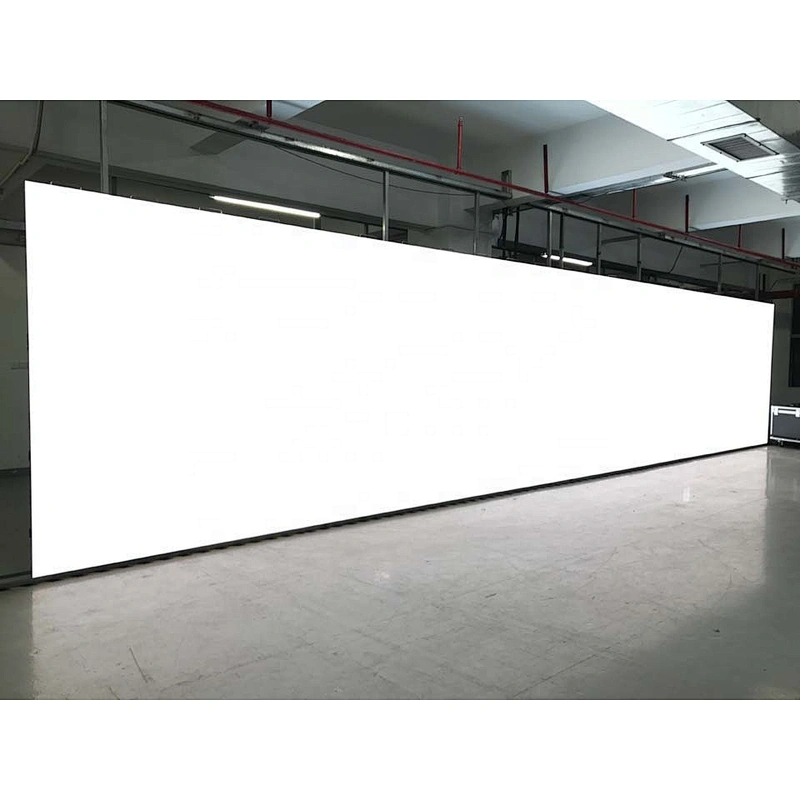

- Product name:Led Video Display Panel
- Certificate:CE ROHS FCC
- Brightness:1000nits
- Refresh rate:3840Hz
- Viewing angle:160H/160V
- Module size:300*168.75
- Cabinet size:600*337.5

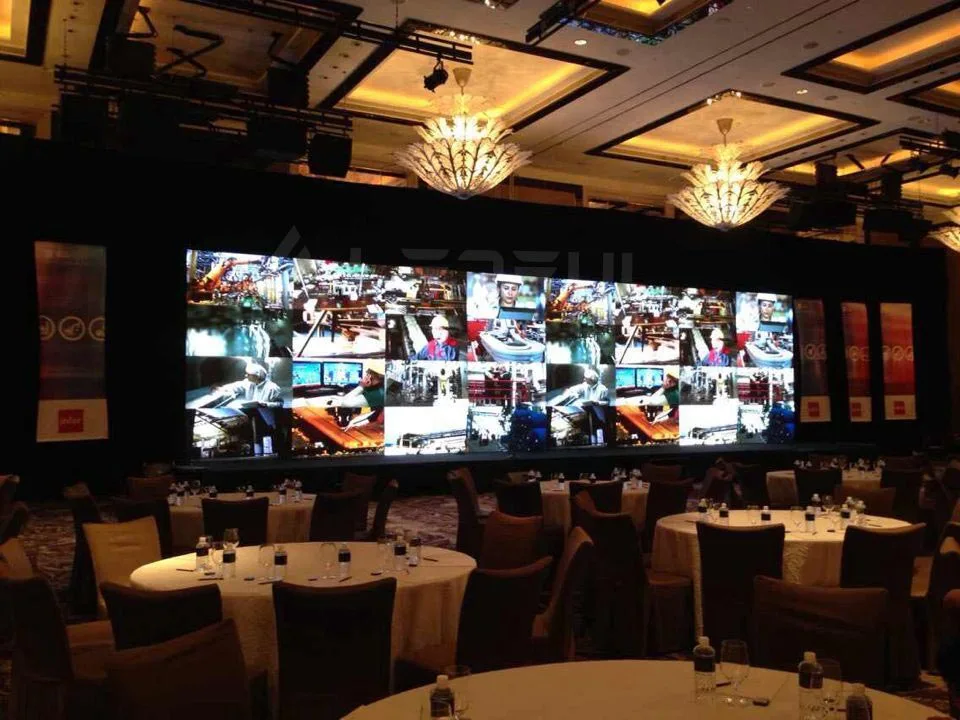

- Application:Indoor Advertising
- Place of Origin:CN;GUA
- Application:Indoor Advertising
- Color:fullcolor
- Panel Size:600*337.5mm
- Pixel Pitch:1.4mm
- Model Number:U1.4
- Brand Name:LEDFUL

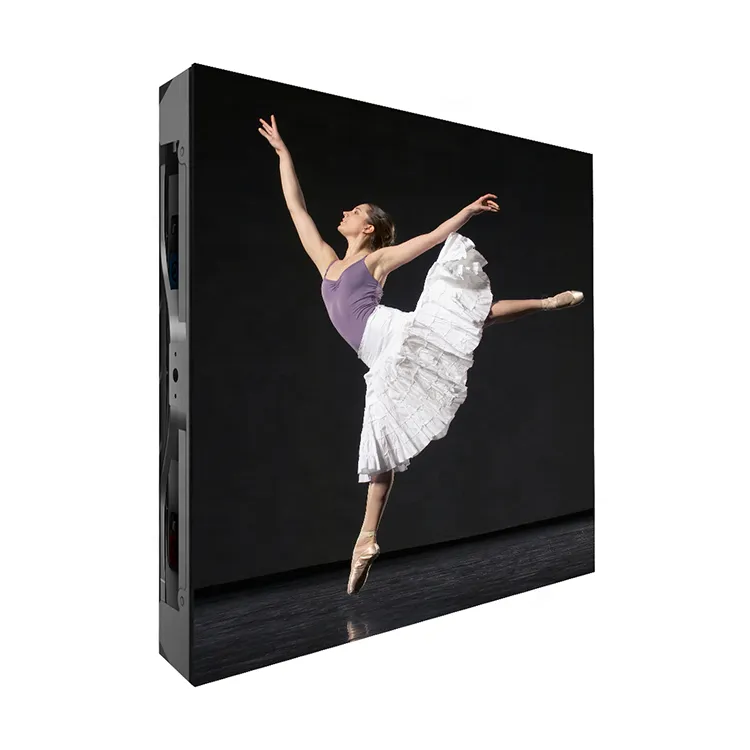

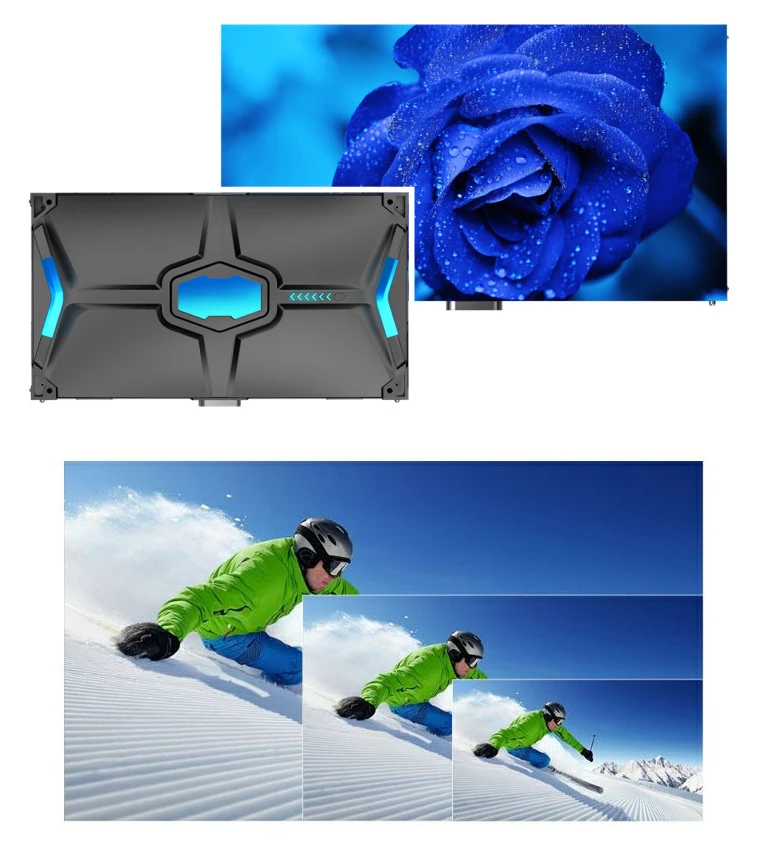

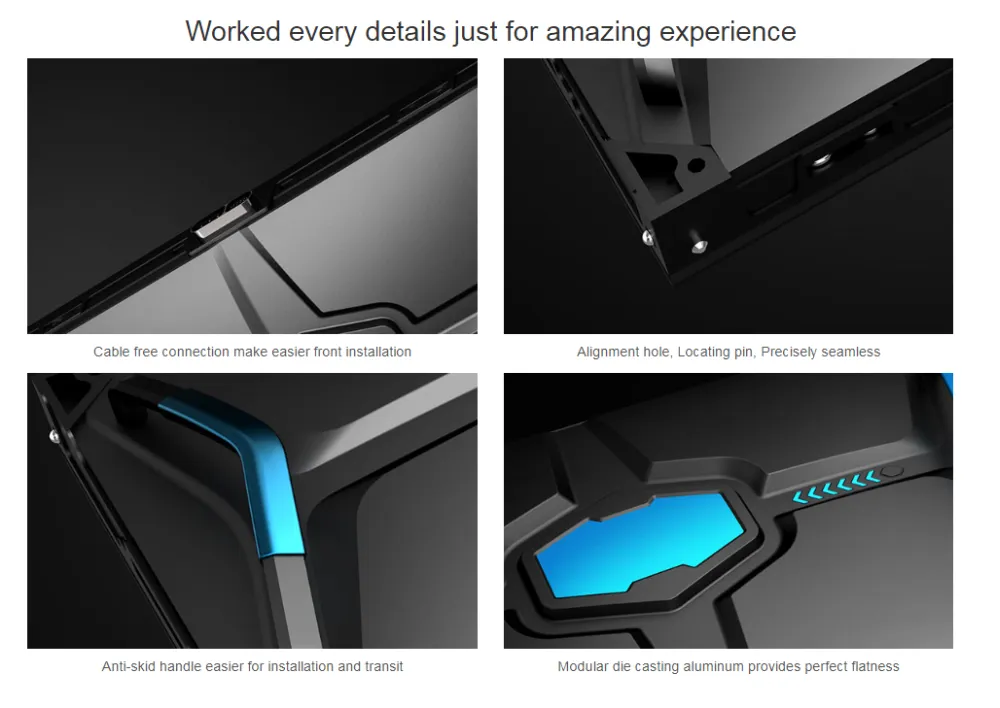

Combing aesthetics and ergonomic design, it has came out with a hard, smooth molding the die-casting aluminum material has
provided the excellent quality, it featured the unique cabinet ratio design, every detail has its excellent performance.
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

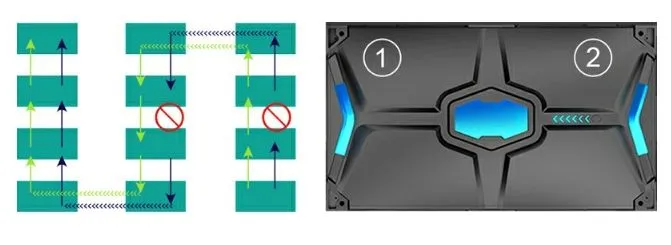

Supporting Dual Control system, Dual Power Supply Backup, each unit cabinet control module, automatic detection of the two input
signal integrity, when the whole screen signal break, the backup signal from another automatic access, Automatically Switch the
picture in an LED Screen when it occurs any problem to make sure a stable and reliable image.
HD LED advertising: almost the perfect gray scale and gives true color of the images

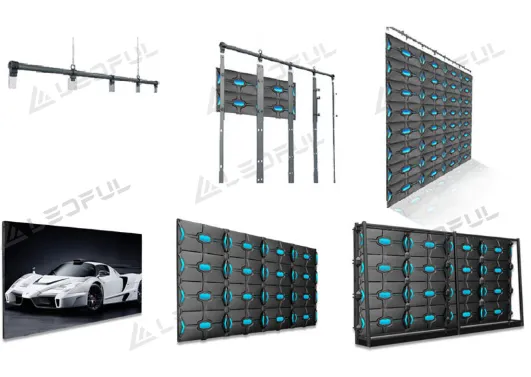

LEDFUL design the CAD drawing on how to fix up the LED display for free and some other expert suggestion. We will send our
engineers to your place if we are expected after our negotiation.
2. For standing installation, We can design drawings for you free of charge so that you can buy the structure locally. If you want
to buy the structure from us, we can also provide it.

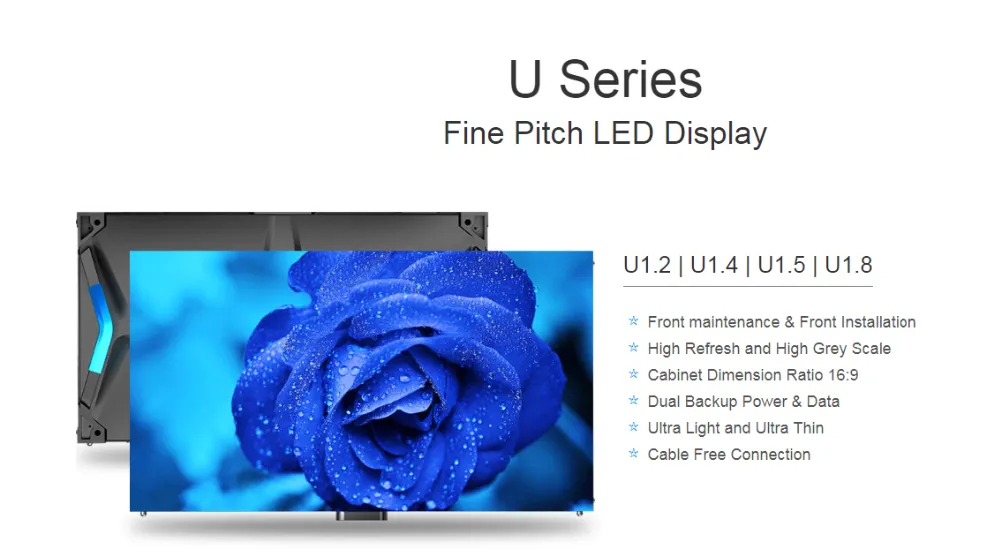

Value | U1.2 | U1.4 | U1.5 | U1.8 | |||
Pixel Pitch(mm) | 1.25 | 1.44 | 1.56 | 1.875 | |||
Pixel Matrix Per Sq.m | 640000 | 480711 | 409600 | 284444 | |||
Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | |||
Brightness (nits) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | |||
Scan | 1/27 | 1/30 | 1/27 | 1/30 | |||
Module Dimension | 200x168.75mm / 0.66x0.55ft | 300x168.75mm / 0.98x0.55ft | 200x168.75mm / 0.66x0.55ft | 300x168.75mm / 0.98x0.55ft | |||
Cabinet Resolution | 480x270 | 417x234 | 385x216 | 320x90 | |||

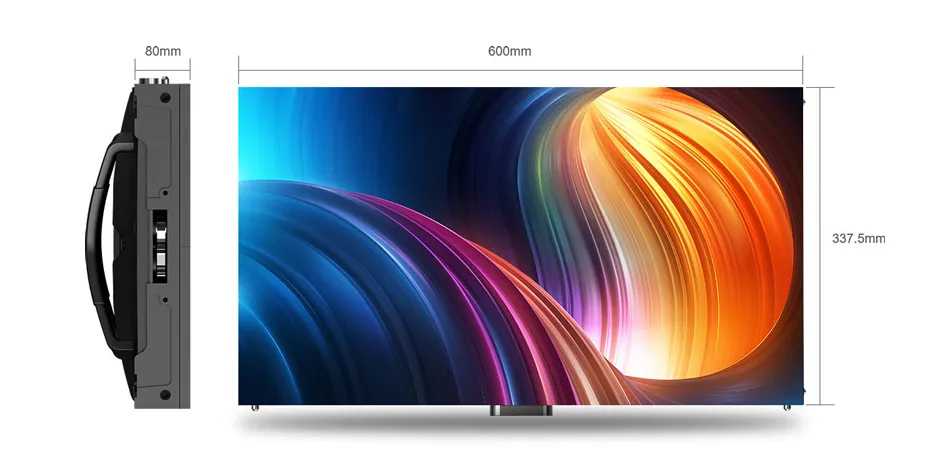

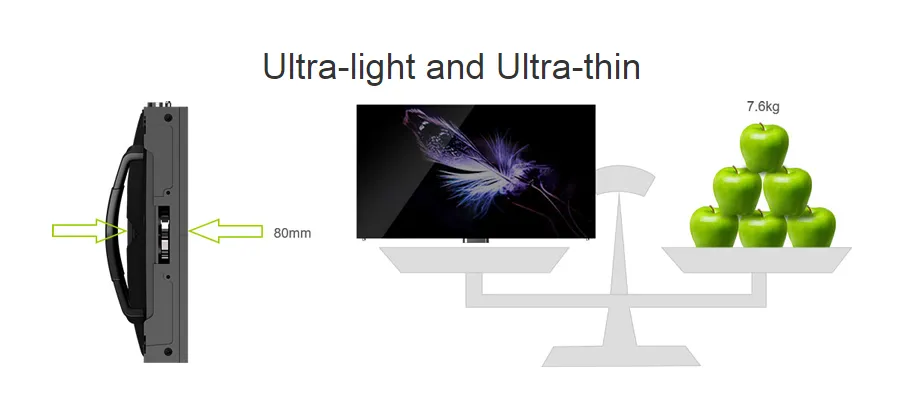

Cabinet Dimension | 600x337.5x80mm / 1.97x1.11x0.26ft | ||||||
Cabinet Weight | 7.8kg /17.2Ib ( Die-casting Aluminum) | ||||||
Service Access | Front | ||||||
Refresh Rate (HZ) | ≥3840 | ||||||
Grey Scale (bit) | 16 | ||||||
Viewing Angle (H/V) | 160 / 160 | ||||||
Power Con. (Max / Avg) | 700 / 200 w/sq.m | ||||||
IP Rate | IP41 | ||||||
Input Voltage (AC) | 110V / 240V | ||||||
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more
This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.
Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: What is the control system?
A: We use Nova control system.
Q9: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
