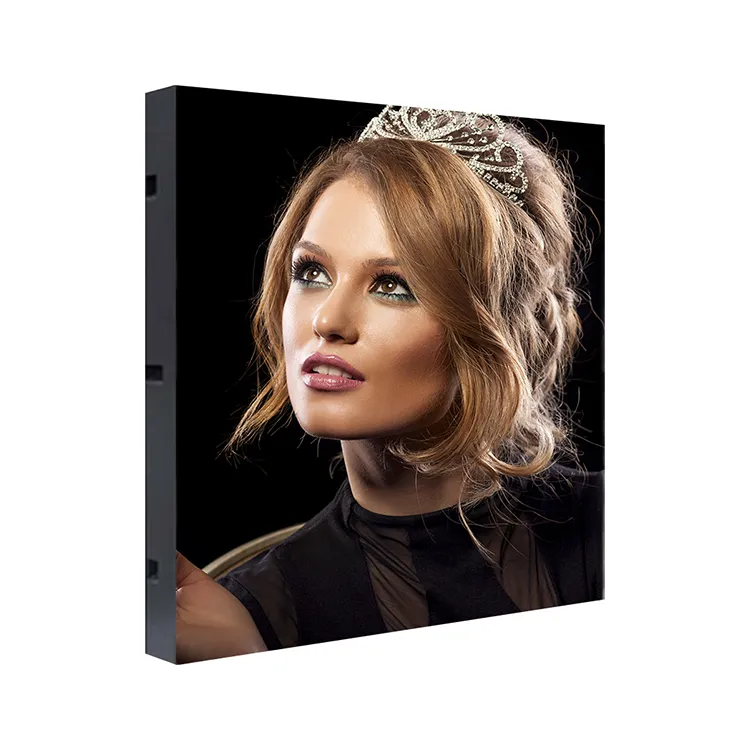

- Usage:Indoor
- Display Function:Video
- Pixels:2.5mm
- Screen Dimension:Customized
- LED chip:Epistar
- Life span:100000 Hours
- Service Access:Front/Rear
- Warranty:3 Years
- Scan:1/32
- Certificate:CCC CE ROHS ISO
- Application:Indoor Advertising
- Color:Full Color
- Panel Size:960x960mm
- Pixel Pitch:2.5mm
- Place of Origin:Guangdong, China (Mainland)
- Model Number:IF2.5
- Brand Name:LEDFUL
IF Series
IF2.5 | IF3 | IF4 | IF5 | IF6
★Black SMD LED makes perfect
★Front maintenance & Front installation
★Wifi, 4G, cloud, usb, remote control
★Thin, light weight, easy installation
★Low brightness with High grayscaleoperation
Parameter—Indoor fixed advertising LED display | ||||||||||||
Value | IF2.5 | IF2.5S | IF3 | IF4 | IF5 | IF6 | ||||||
Pixel Pitch(mm) | 2.5 | 2.5 | 3 | 4 | 5 | 6 | ||||||
Pixel Matrix Per Sq.m | 160000 | 160000 | 111111 | 62500 | 40000 | 27777 | ||||||
Pixel Configuration | SMD2121 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | ||||||
Brightness (nits) | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | ||||||
Scan | 1/32 | 1/32 | 1/32 | 1/16 | 1/16 | 1/16 | ||||||
Module Dimension | 160x160mm | 320x160mm | 192x192mm | 256x128mm | 320x160mm | 192x192mm | ||||||
Cabinet Dimension | 480x480mm | 640x640mm | 576x576mm | 768x768mm | 960x960mm | 960x960mm | ||||||
Cabinet Resolution | 192x192 | 256x256 | 192x192 | 192x192 | 192x192 | 160x160 | ||||||
Cabinet Weight | 7.6kg /17Ib | 13kg / 30Ib | 11kg /24Ib | 19.5kg /43 Ib | 29kg /64 Ib | 28.8kg/63.5 Ib | ||||||
Power Con. (Max / Avg) | 600 / 150 | 600 / 150 | 550 / 138 | 600/ 150 | 450/ 120 | 350/ 100 | ||||||
Refresh Rate (HZ) | 3840 | 3840 | 3840 | 1920 | 1920 | 1920 | ||||||
Service Access | Front / Rear | |||||||||||
Grey Scale (bit) | 16 | |||||||||||
Viewing Angle | 160 / 160 | |||||||||||
IP Rate | IP31 | |||||||||||
Input Voltage (AC) | 110V / 240V | |||||||||||

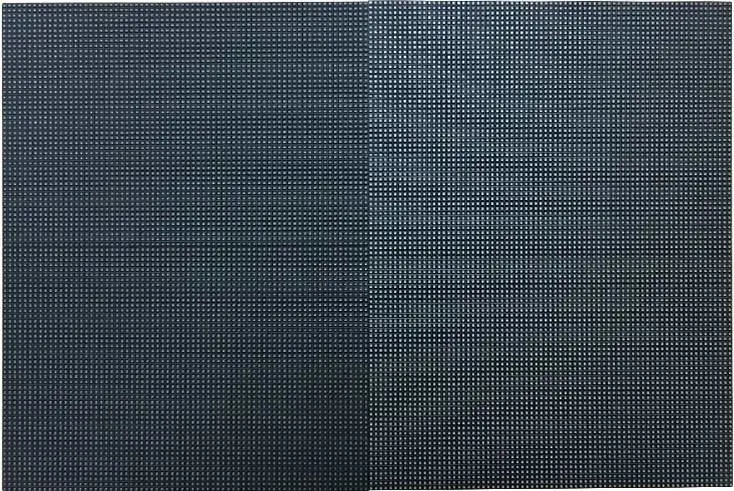

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance
Front Maintenance Saving Space
No back space for LED display maintenance? Go with front. LED modules, power supply, receiver card, cables, etc can be taken out from front side.

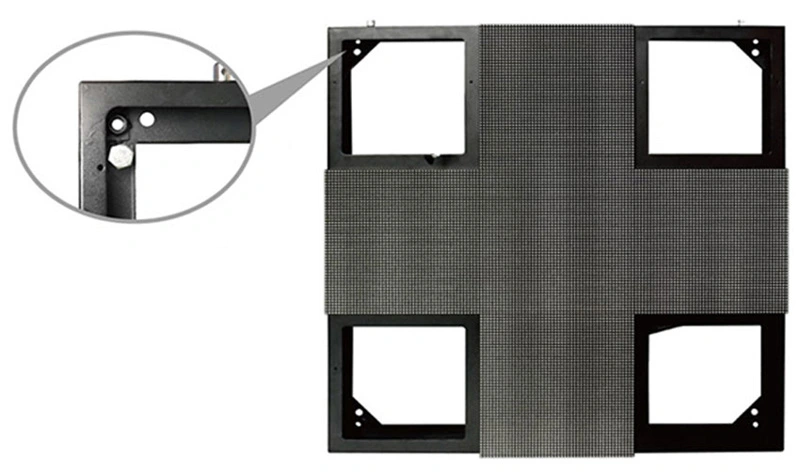

Front Installation Saving Structure

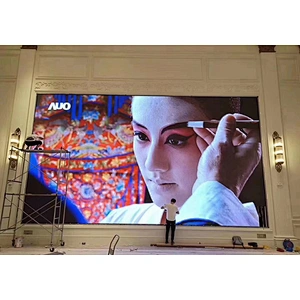

Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
Wide Viewing Angle
Wide viewing angle increasing its value by covering more viewing. Seeing from five directions, it would be still the natural and clear image in an LED display.

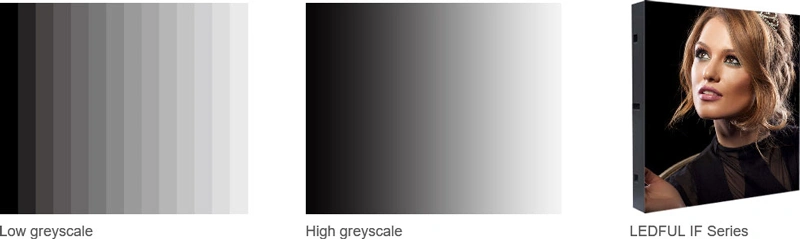

Low brightness with High grayscale
Low brightness with High gray scale to make the LED display in ultimate view performance

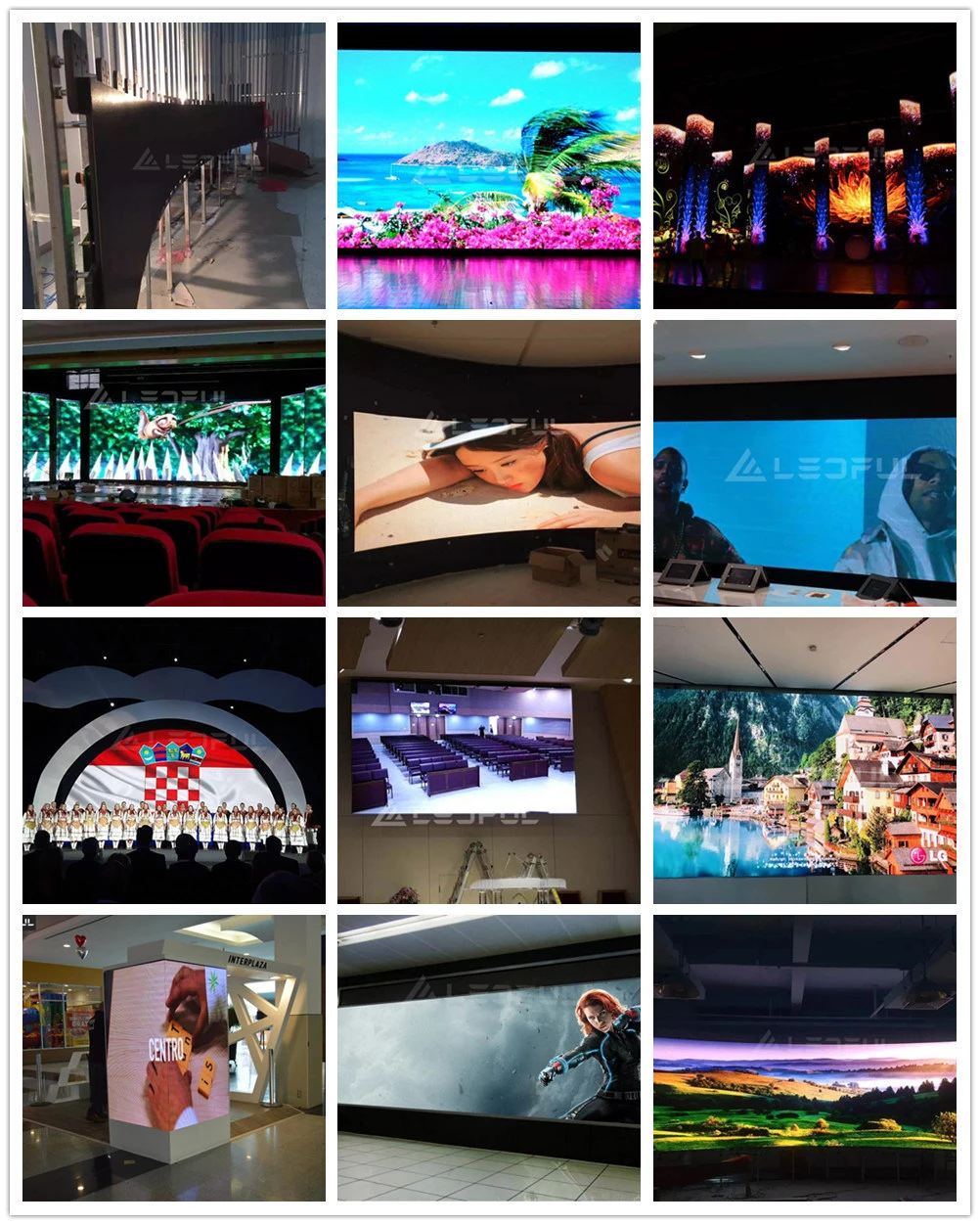

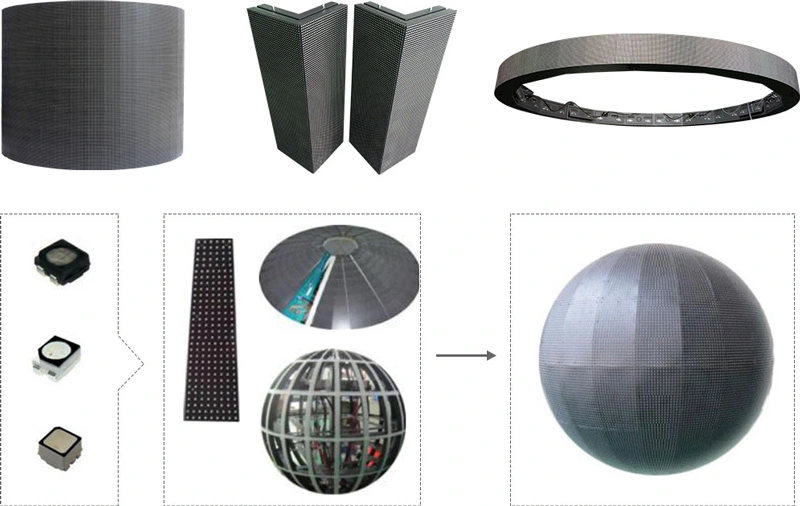

Various Shaped LED Display

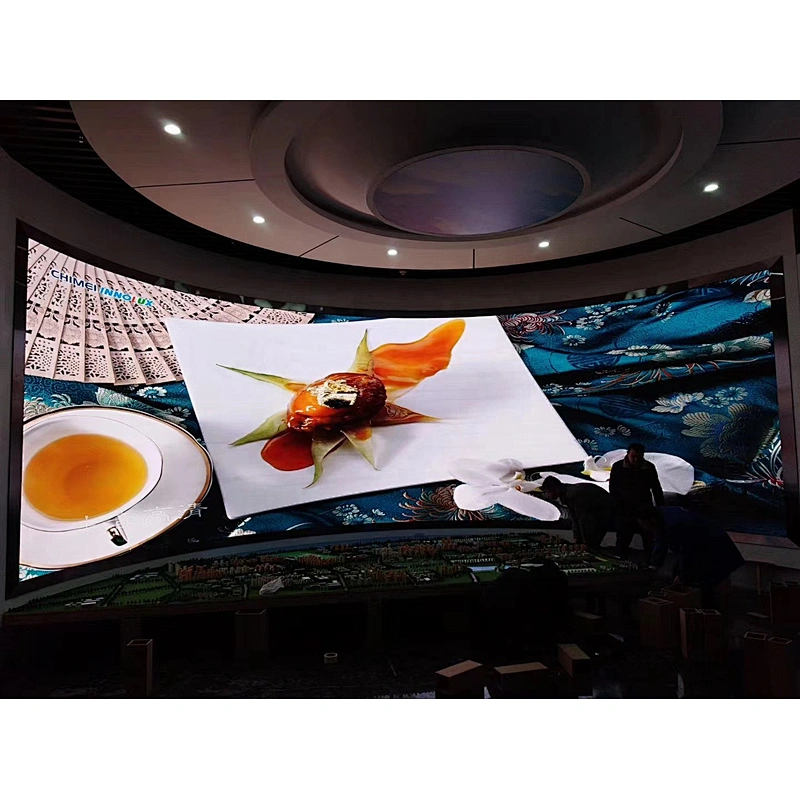

Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc. LEDFUL supply more design and more solutions.
IF Series More Features & More Advantages
◆Excellent heat dissipation and noiselessness
◆High-performance metal plate cabinet design
◆Macro molecular flexible mask with glare-less surface on LED modules
◆High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
◆Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.
Who We Are ?
▲LEDFUL founded in 2008
▲Total209 employees in LEDFUL

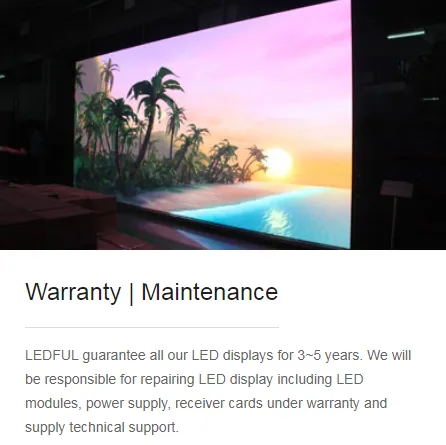

▲3~5 years warranty on LED screen
▲Exported to 83 countries and regions
▲Top reliable LED display manufacturer
▲Over5,600 successful projects in the world
▲R&D staff occupied 10% of all the employees
▲CE, RoHS, FCC, CCC, ISO9001:2008standard.
>>> Top LED Display Manufacturer
Why Choose LEDFUL?
★Listen to you, think more for you.
☆Lifelong maintenance with reasonable price
★Clear cost initially to save your time and money.
☆Provide with innovative and satisfying products
★Excellent product quality, quick and professional services
☆Always ready for your any change on LED display details.
★Recommend the best proper solution for your LED project.
☆Catch things what you missed before LED display production.

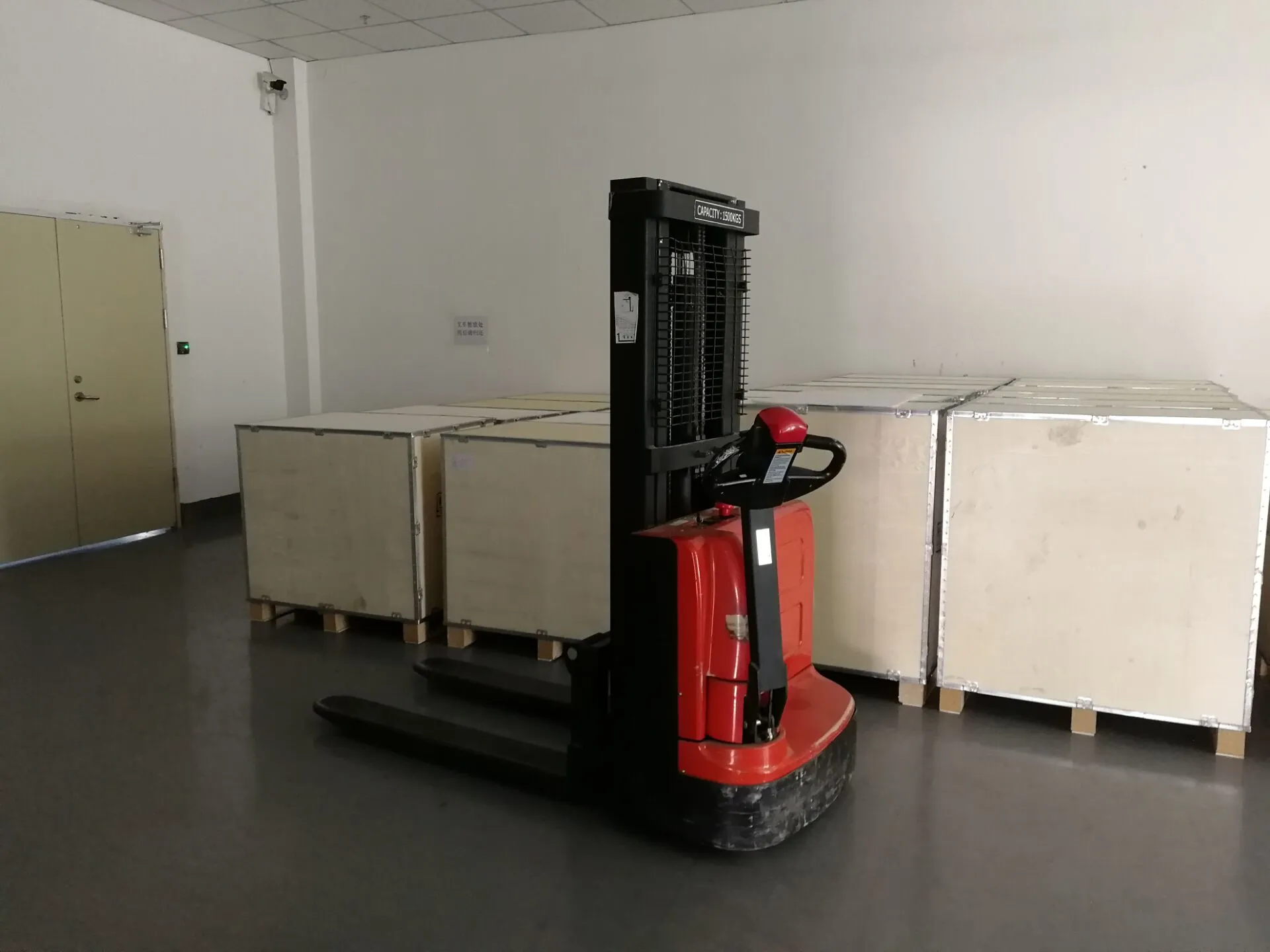

★Take good care of each detail for your products, packages, shipping
︿︿Best Balance of Quality & Price︿︿
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2: What is the control system?
A: We use Novacontrol system.
Q3. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D teamandskilled QC team with standard process to assure quality products.
