- LED chip:Epistar
- Warranty:3 Years
- Certificate:CCC CE ROHS ISO
- Life span:100000 Hours
- Grey Scale:16bits
- Input Voltage (AC):110V / 240V
- Control System:Nova
- Screen Dimension:Customized
- Service Access:Front/ Rear
- Refresh Rate:1920
- Application:Indoor Fixed Advertising
- Color:Full Color

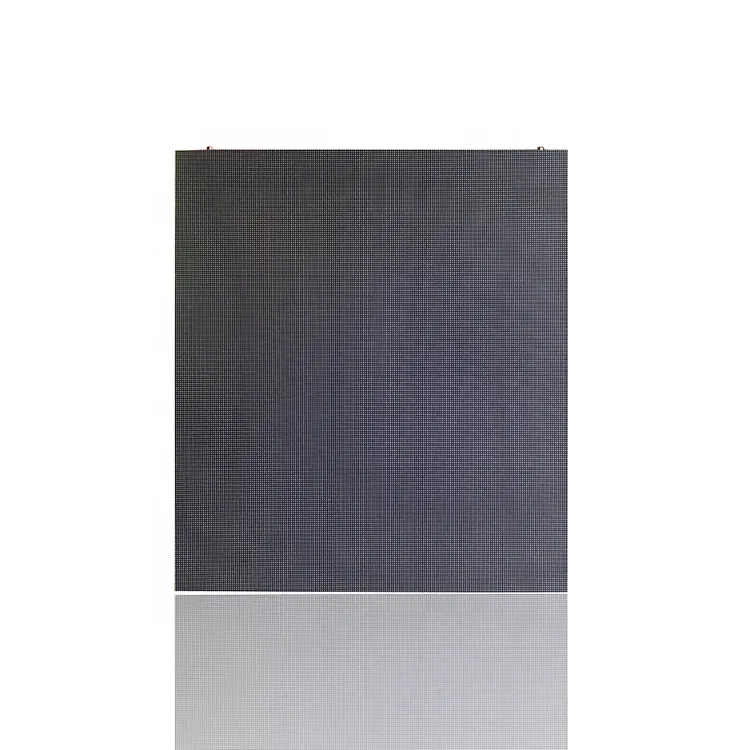

- Panel Size:960x960mm
- Pixel Pitch:P2.5
- Place of Origin:Guangdong, China(Mainland)
- Model Number:IF2.5
- Brand Name:LEDFUL
Product Description
IF Series
Project Cases

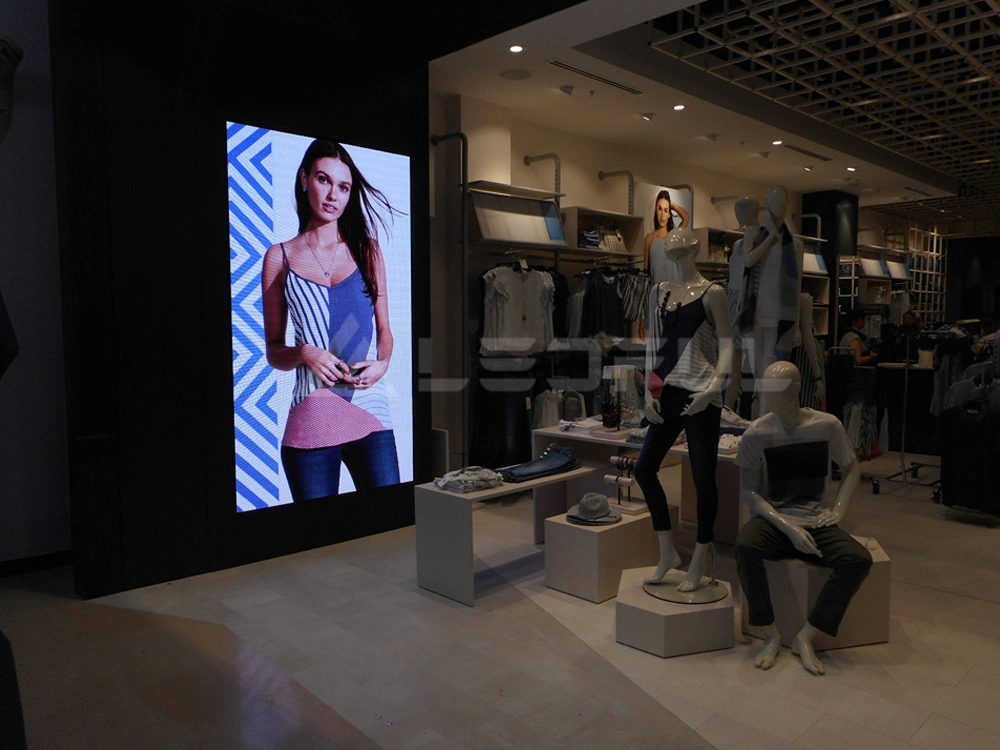

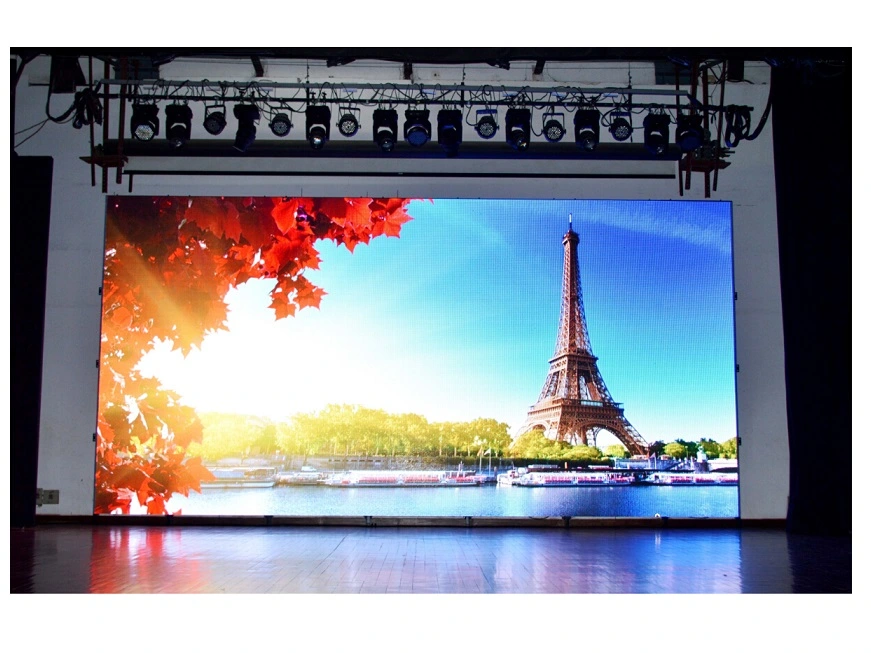

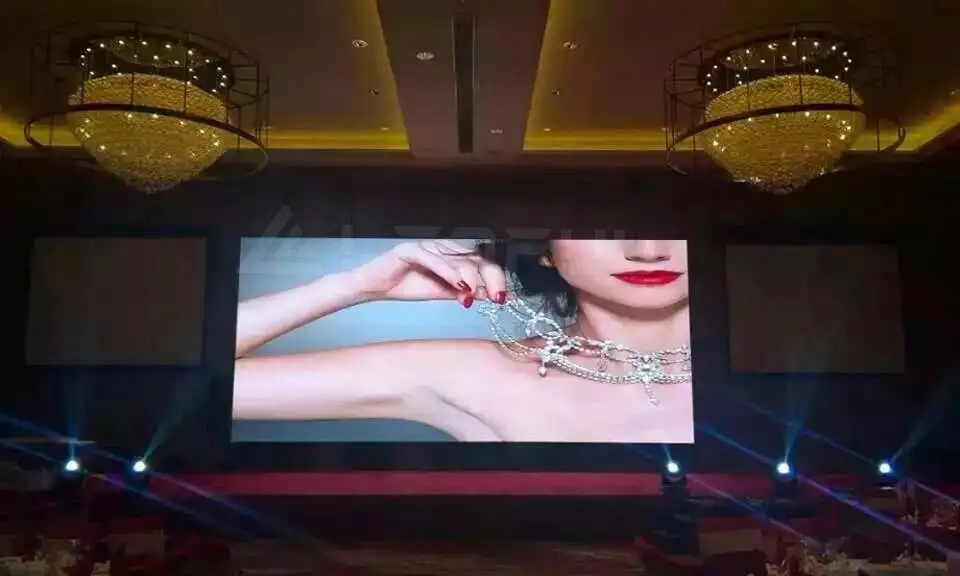

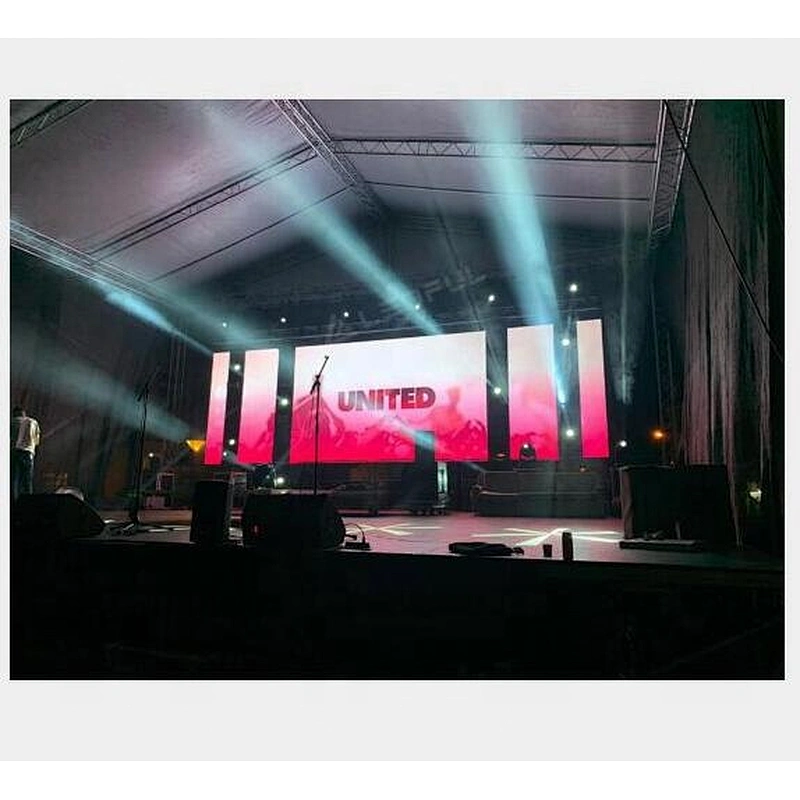

Indoor fixed applications such as Temporary stage, TV studio, nightclub & bar, theater, school, conference room, hotel, shopping mall etc.
>>>IF4 4sqm x5pcs
Australia Wall-mounted Advertising Display
>>>IF3 16.59sqm
Front Maintenance LED Screen In Hotel
>>>IF5 26sqm

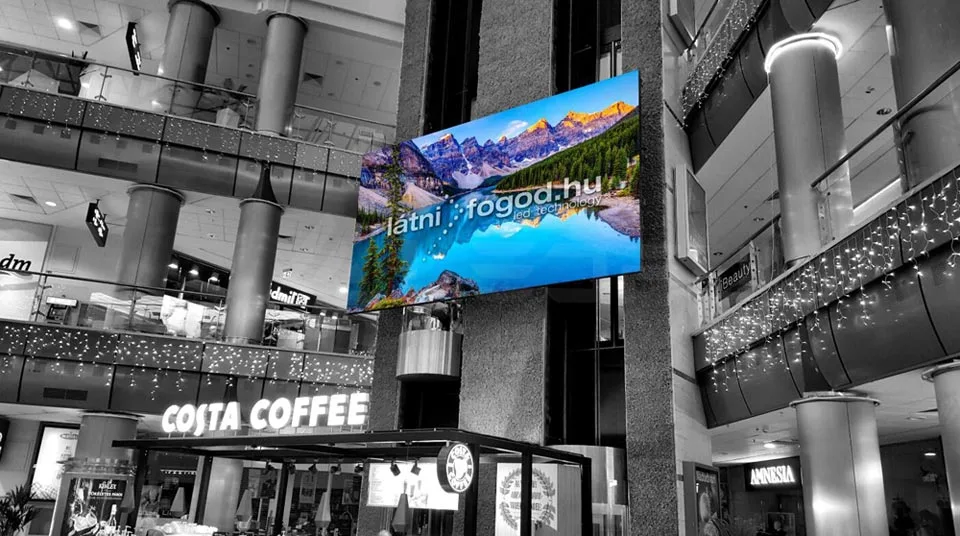

Front Maintenance LED Screen in Plaza Hungary
>>>IF4 4sqm
Mexico 90 Degree Shaped LED Design
Detailed Images
IF2.5 | IF3 | IF4 | IF5 | IF6
★Black SMD LED makes perfect
★Front maintenance & Front installation
★Wifi, 4G, cloud, usb, remote control
★Thin, light weight, easy installation
★Low brightness with High grayscale operation
★Front maintenance & Front installation
★Wifi, 4G, cloud, usb, remote control
★Thin, light weight, easy installation
★Low brightness with High grayscale operation

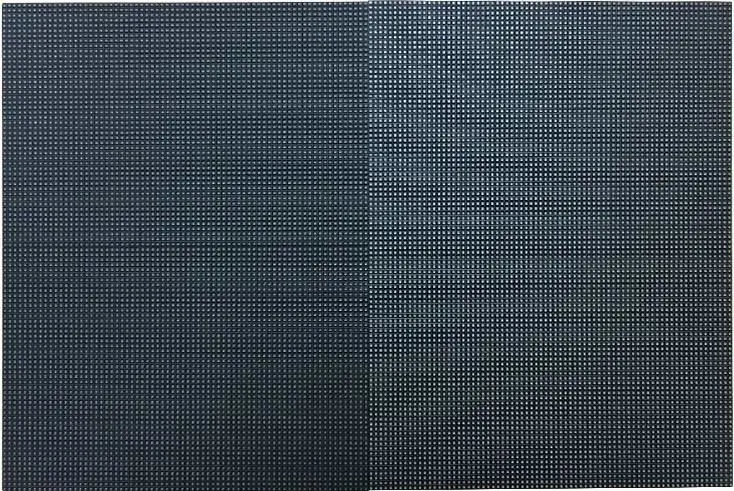

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

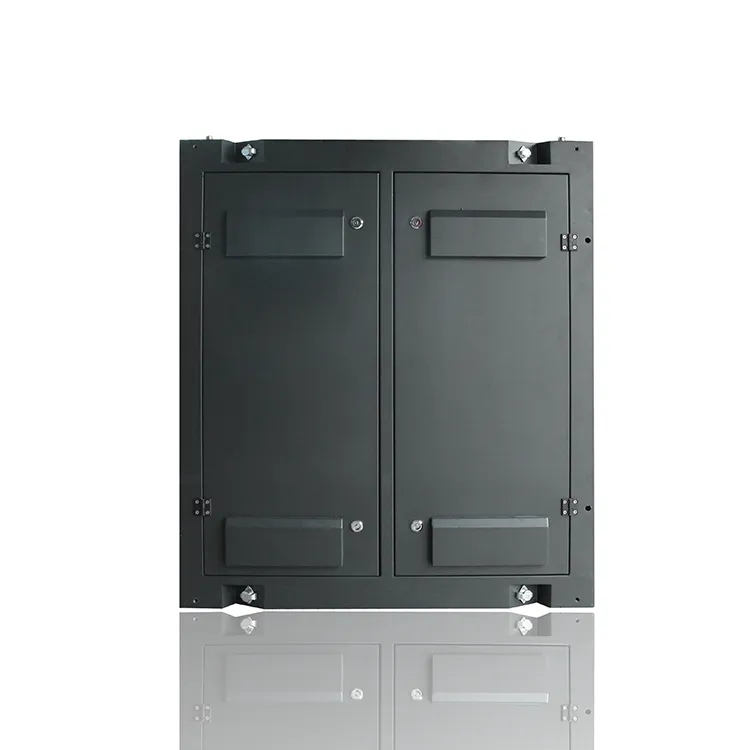

Front Maintenance Saving Space
No back space for LED display maintenance? Go with front. LED modules, power supply, receiver card, cables, etc can be taken out from front side.

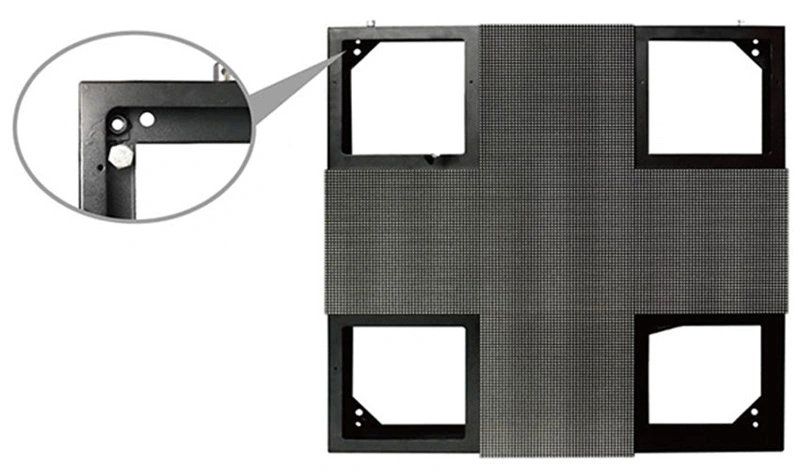

Front Installation Saving Structure
Not only front maintenance, but also front installation. LED display can be installed in front after removing 4 corners modules. Therefore the whole LED display thickness is the cabinet thickness.
LED Display Wall Mounted Installation

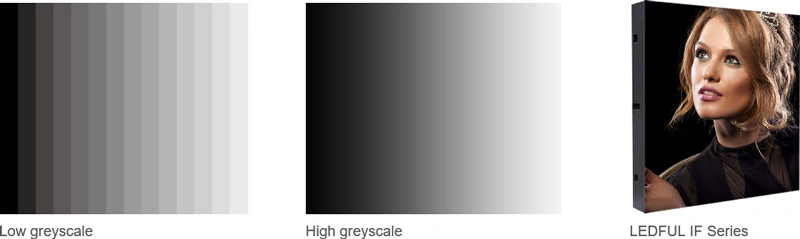

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance.

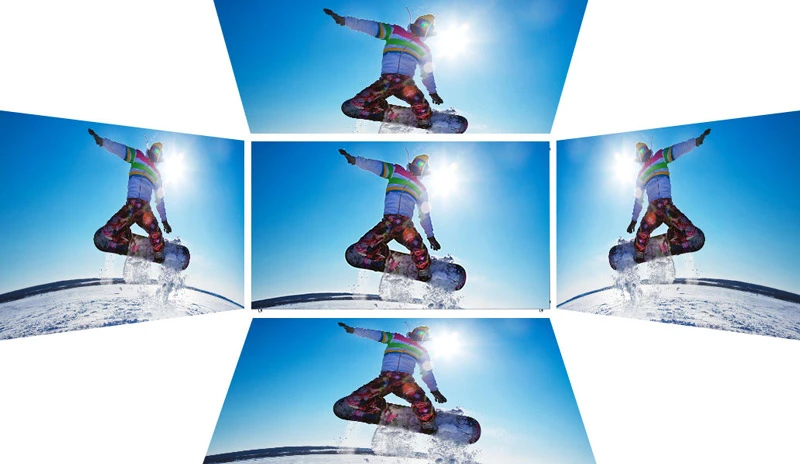

Wide viewing angle increasing its value by covering more viewing. Seeing from five directions, it would be still the natural and clear image in an LED display.

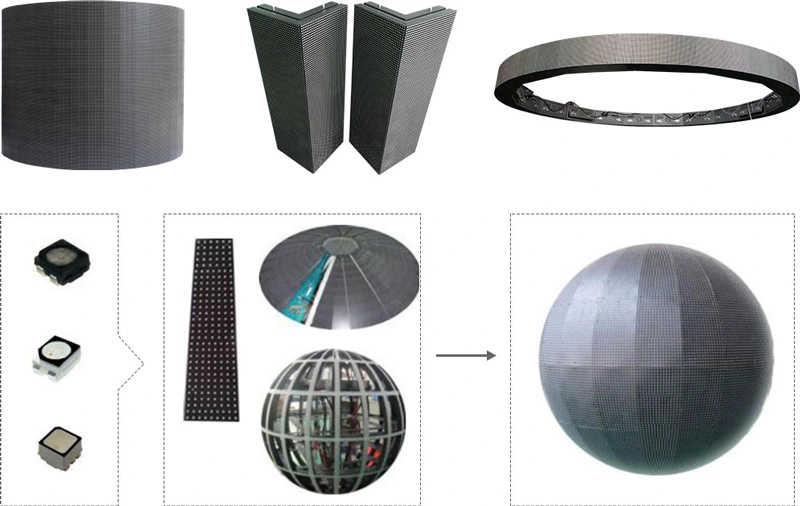

Various Shaped LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc. LEDFUL supply more design and more solutions.
Product Presentation
IF Series More Features & More Advantages
★Excellent heat dissipation and noiselessness
★High-performance metal plate cabinet design
★Macro molecular flexible mask with glare-less surface on LED modules
★High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
★Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.
Value | IF2.5 | IF2.5S | IF3 | IF4 | IF5 | IF6 | |||||
Pixel Pitch(mm) | 2.5 | 2.5 | 3 | 4 | 5 | 6 | |||||
Pixel Matrix Per Sq.m | 160000 | 160000 | 111111 | 62500 | 40000 | 27777 | |||||
Pixel Configuration | SMD2121 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | |||||
Brightness (nits) | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | |||||
Scan | 1/32 | 1/32 | 1/32 | 1/16 | 1/16 | 1/8 | |||||
Module Dimension | 320x160mm | 320x160mm | 192x192mm | 256x128mm | 320x160mm | 192x192mm | |||||
Cabinet Dimension | 960x960mm / 3.15x3.15ft | ||||||||||
Cabinet Resolution | 384x384 | 384x384 | 320x320 | 240x240 | 192x192 | 160x160 | |||||
Cabinet Weight | 31kg | 31kg | 30kg | 30kg | 29kg | 29kg | |||||
Power Con. (Max / Avg) | 600 / 150 w/sq.m | 600 / 150 w/sq.m | 550 / 138 w/sq.m | 600/ 150 w/sq.m | 450/ 120 w/sq.m | 350/ 100 w/sq.m | |||||
Refresh Rate (HZ) | 1920 | ||||||||||
Service Access | Front / Rear | ||||||||||
Grey Scale (bit) | 16 | ||||||||||
Viewing Angle | H160 / V160 | ||||||||||
IP Rate | IP31 | ||||||||||
Input Voltage (AC) | 110V / 240V | ||||||||||
Certificate
Related Products
Company Introduction
>>>>>Why Choose LEDFUL
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
>>>>>Best Balance of Quality & Price

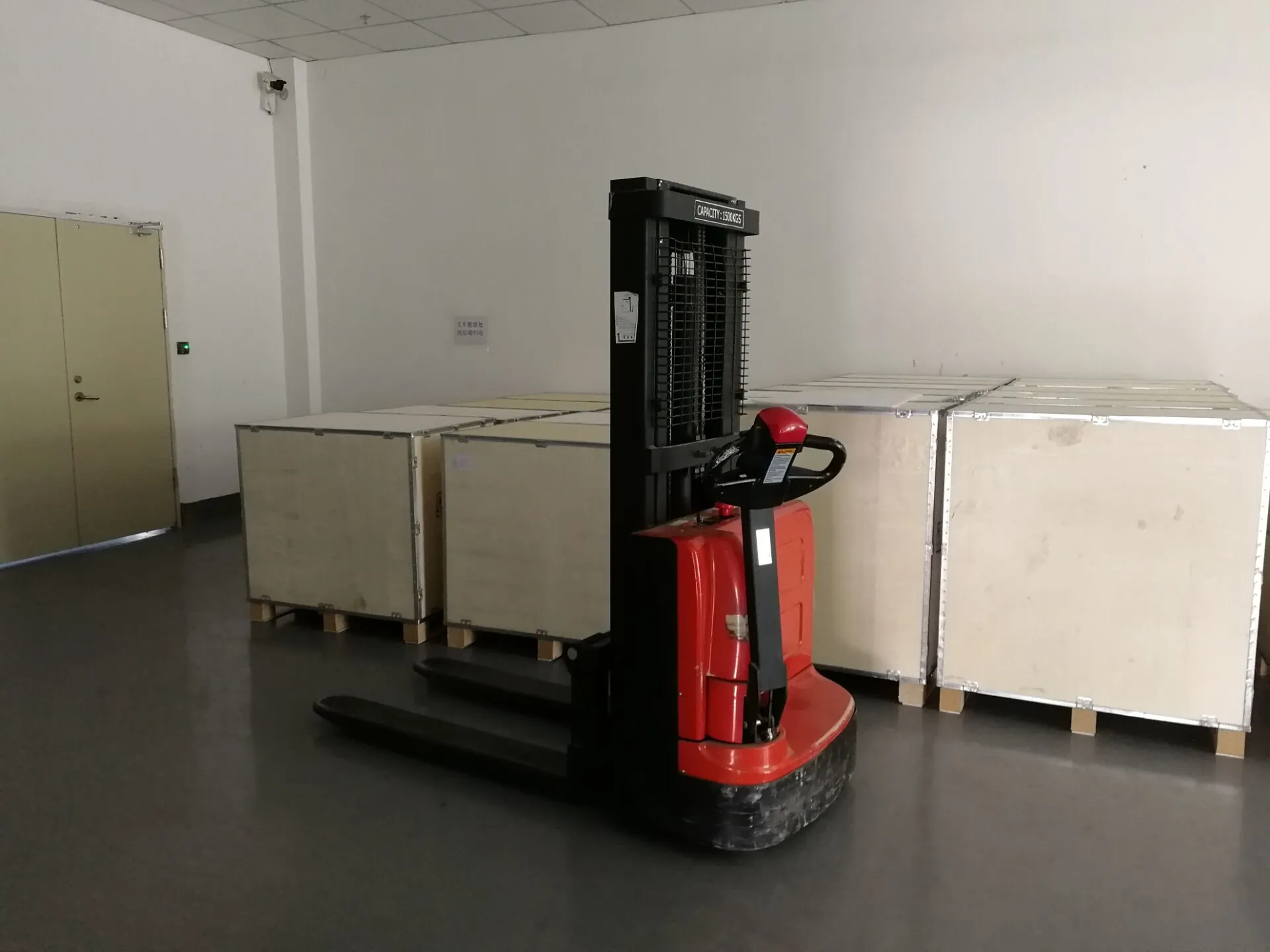

Packing&Shipping
Plywood box
Flight case
EPE(Expandable Polyethylene)
FAQ
Q1: Are you trading company or manufacturer ?
A1: LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years.
Q2: What is the control system? How is it?
A2: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control the LPosters.
Q3: What is your best service?
A3:One to one sales engineer to customer responsibility system. We will do: 1. Know your project and provide the best solution for it; 2. Track your order and let you know each step and detail of it; 3. Teach you how to install and use the screen; 4. Care the subsequent use of your screen and ensure your after - sales service be well, 5…6…etc.
Q4:How about your Warranty Term?
A4:3-year warranty. Structure design, installation problem, program the screen, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
Q5. How about your delivery time?
A5: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
