- Place of Origin:CN;GUA
- Application:advertising
- Color:fullcolor
- Panel Size:500*500mm
- Pixel Pitch:4.8
- Model Number:XO4.8
- Brand Name:LEDFUL
- Display Function:Video
- Screen Dimension:500*500
- Application:Outdoor Advertising Led Screen

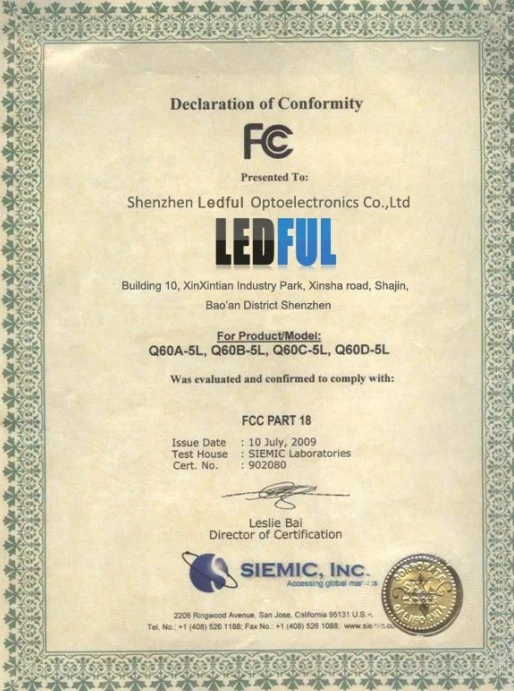

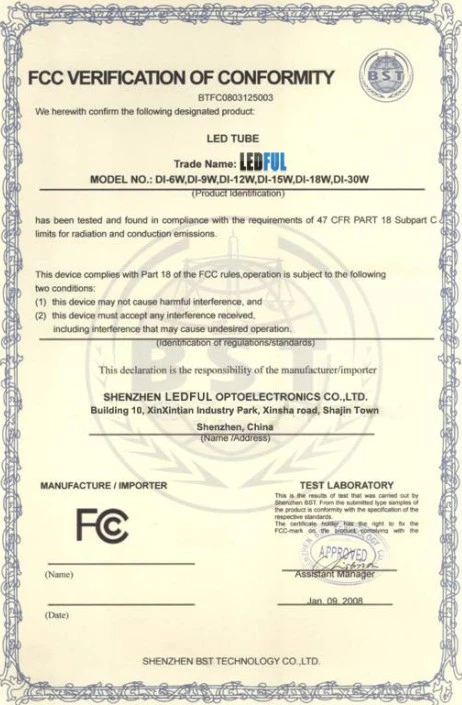

- Certificate:CE ROHS FCC
- Brightness:4500
- Viewing angle:140 /140
- Color:Fullcolor
- Module size:250mm*250mm
- Pixel pitch:4.81mm

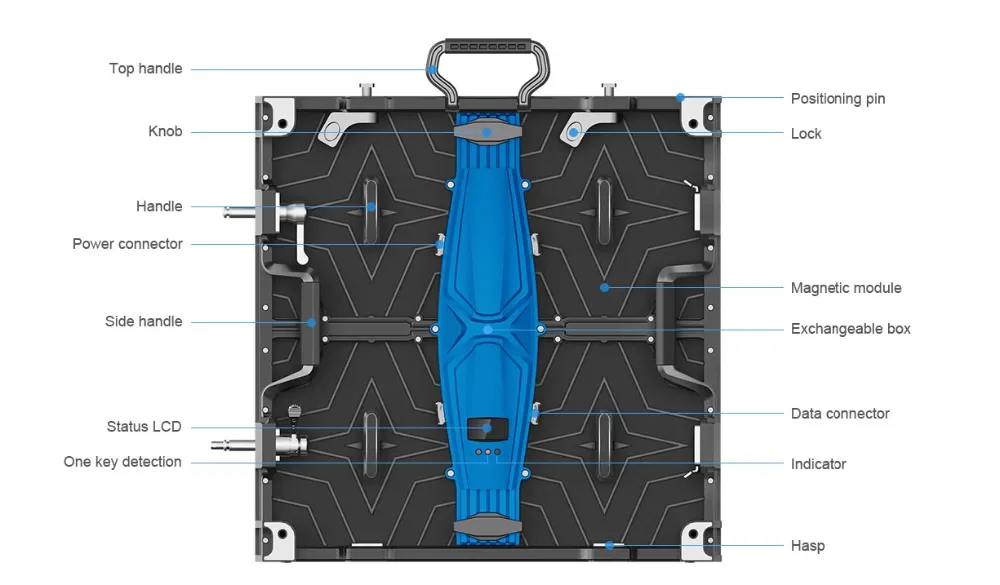

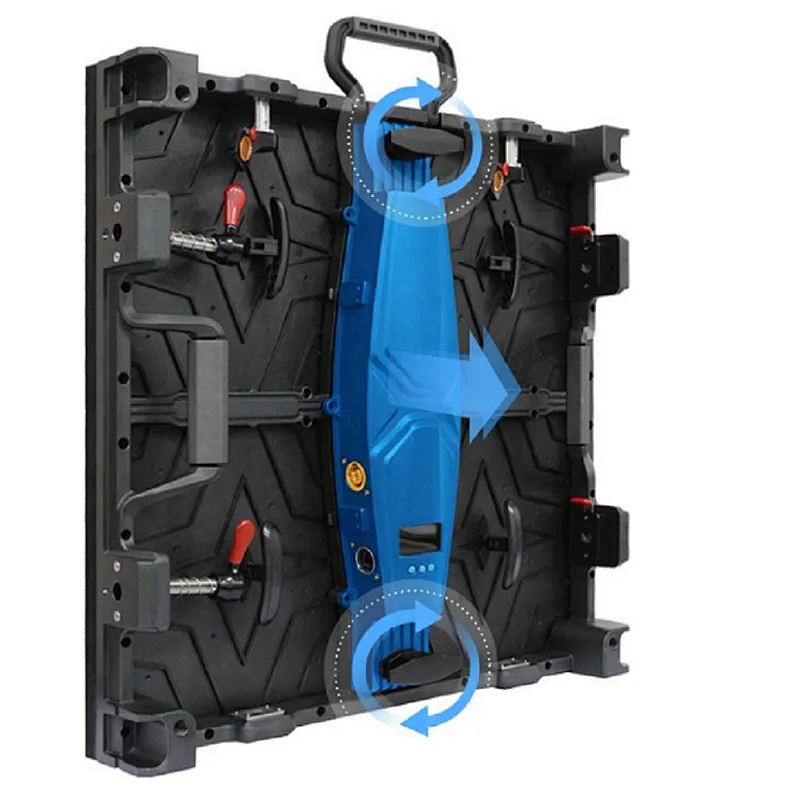

- Cabinet size:500x500mm

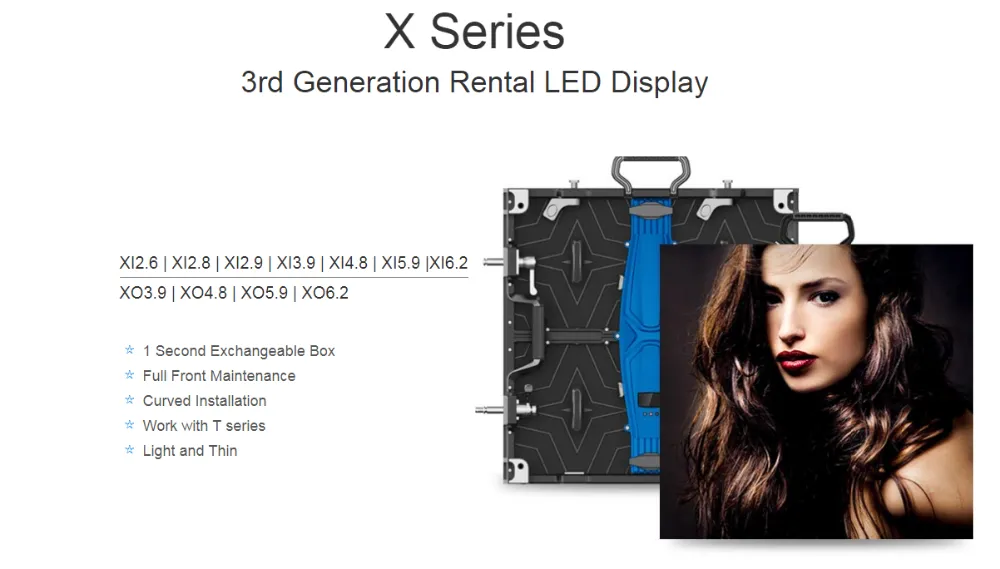

X Series Outdoor | XO 4.8 | |
Pixel Pitch(mm) | 4.81mm | |
Pixel Matrix Per Sq.m | 43264 | |
Pixel Configuration | SMD2727 | |
Brightness (nits) | ≥4500 | |
Scan | 1/13 | |
Cabinet Resolution | 104×104 | |
Power Con. (Max / Avg) | 700 / 220 w/sq.m | |
Module Dimension | 250x250mm / 0.82x0.82ft | |
Cabinet Dimension | 500x500x78mm / 1.64x1.64x0.25ft | |
Cabinet Weight | 7kg / 15.4Ib (( Die-casting Aluminum) | |

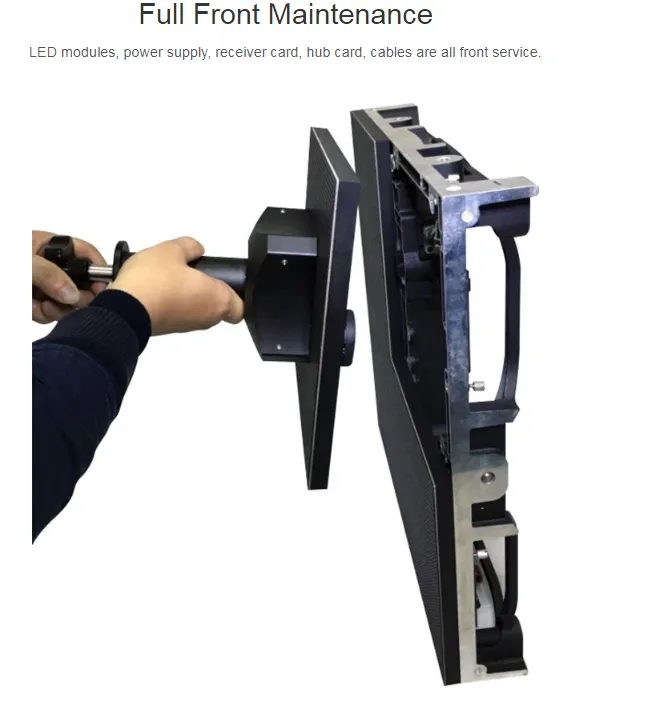

Service Access | Front / Rear | |
Rotation Angle | -7.5° and +7.5° | |
Refresh Rate (HZ) | 2880 | |
Grey Scale (bit) | 16 | |
Viewing Angle (H/V) | 140 / 140 | |
IP Rate | IP65 | |
Input Voltage (AC) | 110 / 240 | |
* Specifications and photos are subject to change without prior notice. | ||
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more.This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

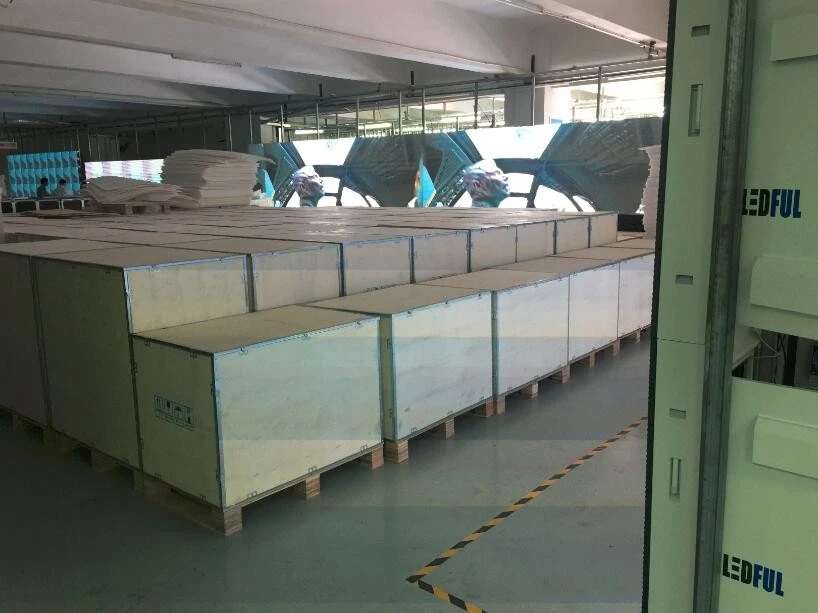

Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: What is the control system?
A: We use Nova control system.
Q9: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
