High Cost-effective Rental LED display
- Pixel Matrix Per Sq.m:65,536
- Pixel Configuration:SMD1921
- Brightness:5000nits
- Scan:16S
- Rotation Angle:-7.5° and +7.5°
- Service Access:Dual (Front and Rear)
- Refresh Rate:1920 / 3840HZ
- Grey Scale:16bit
- Viewing Angle (H/V):160 / 160
- IP Rate:IP65
- Application:Outdoor Rental
- Color:Full color
- Panel Size:500*500mm
- Pixel Pitch:3.9mm
- Place of Origin:Shenzhen, China
- Model Number:XO3.9
- Brand Name:LEDFUL
2020China Rental Show Stage
Full Color SMD P3.91 Indoor 500x500mm Video Wall
For Rental LED Displays screen

X series

Parameter | XO 3.9 |
LED Lamp | Nationstar |
LED Chip | Epistar |
Control System | Novastar |
IC Manufacturer | MBI5124 |
Pixel Configuration | SMD1921 |
Pixel Pitch | 3.91 mm |
Material | Die Casting Aluminum |
Brightness | 5000 nits |
Protective Grade | IP65 |
Certification | EMC CE RoHS FCC CCC ISO9000 |
Input Voltage | AC100 ~ 240 50-60 HZ |
Refresh Rate | ≥ 1920 HZ |
Temperature | -20°C~65°C |
Life Span | 100,000 hours |
Grey Scale | 16 bits |

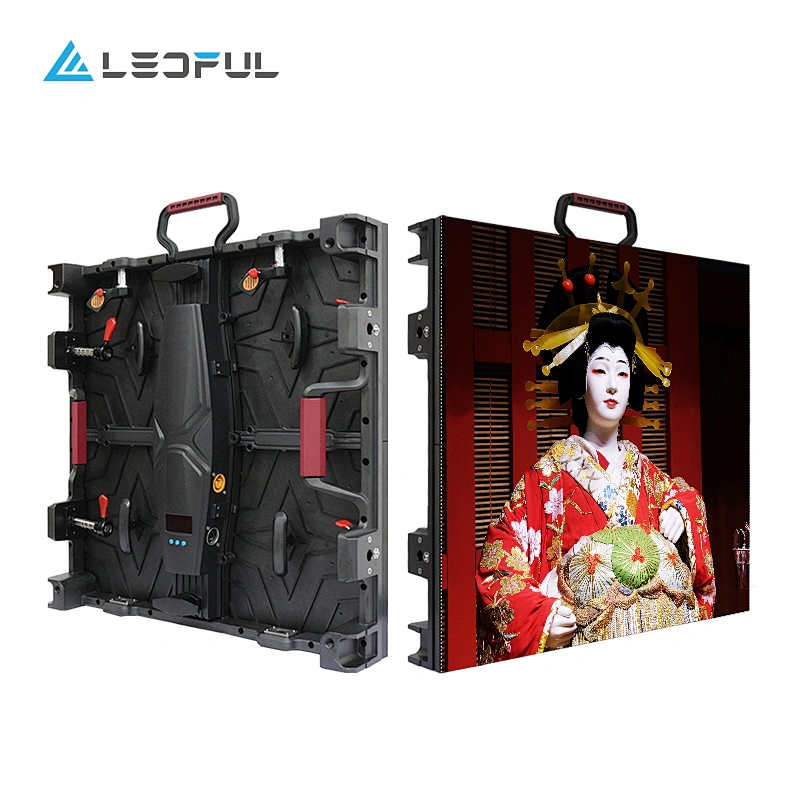

One Second Exchanged Box
Two knobs make the control box exchange in 1 second.


Full Front Maintenance
LED modules, power supply, receiver card, hub card, cables are all front service.
Work With T Series
X series and T series can be installed together for multiple event requirements.


Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Faster & Easier Installation
Hanging or stacking, X series with light and thin features makes installation faster and easier.



Company Information

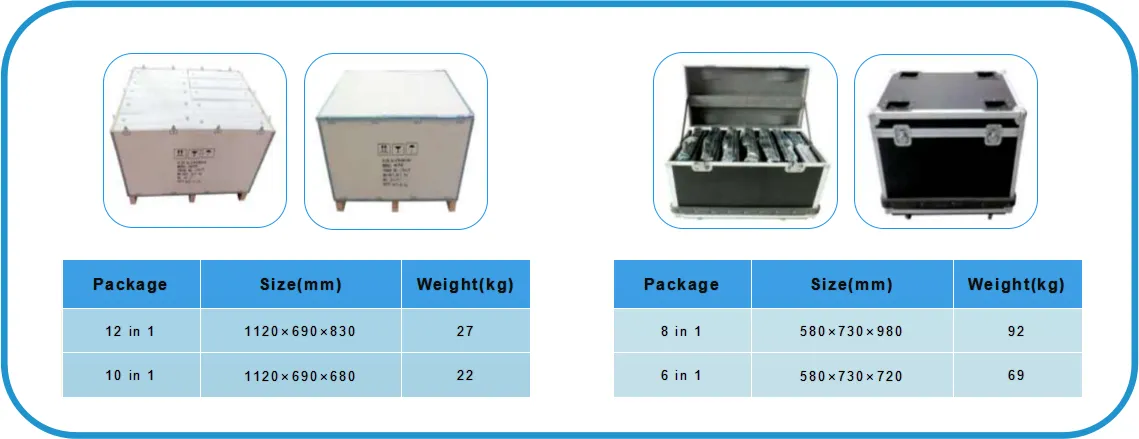

Flight case

Wooden box

EPE(Expandable Polyethylene)


Q1 Are you trading company or manufacturer ?
A1 LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry
withprofessionalR&D team and skilled QC teamfor 12 years.
Q2 What is the control system? How is it?
A2 We use Nova control system.
SupportAPP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control.
SupportAPP/ Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control.
Q3 What is your best service?
A3One to one sales engineer to customer responsibility system.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well.
.......
Q4 What’s the delivery time?
A4 Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
Q5 How about your Warranty Term?
A53-years warranty.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order.
Structure design, installation problem, program the screen, how to use the screen…...
Don’t worry, we have professional after-sale team to solve your any questions after you placed an order.
and your exclusive sales engineer will also help you get over any problems.
