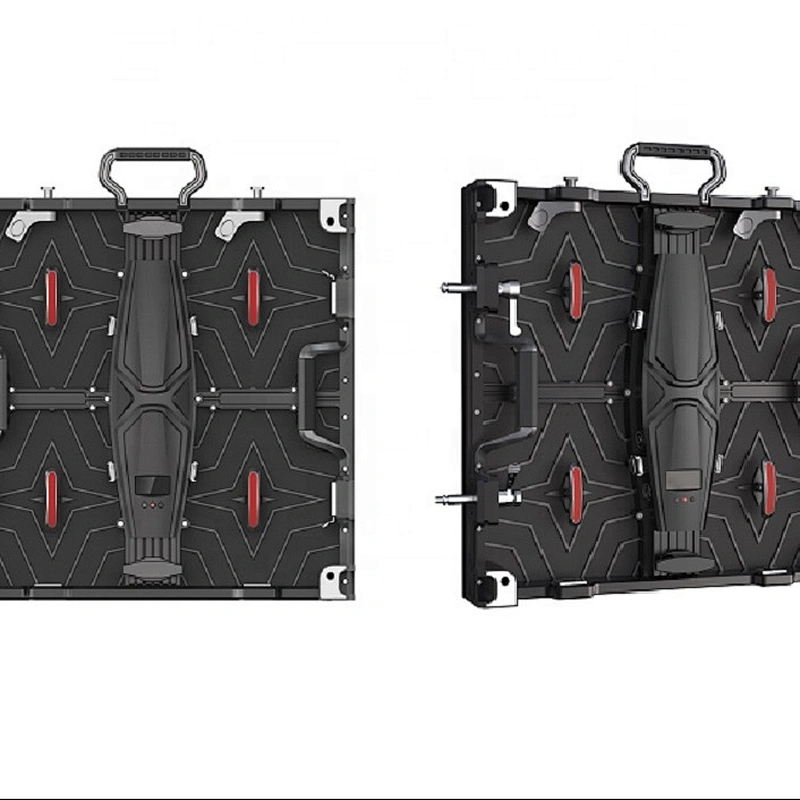

P5.9  advertising billboard video outdoor LED video wall

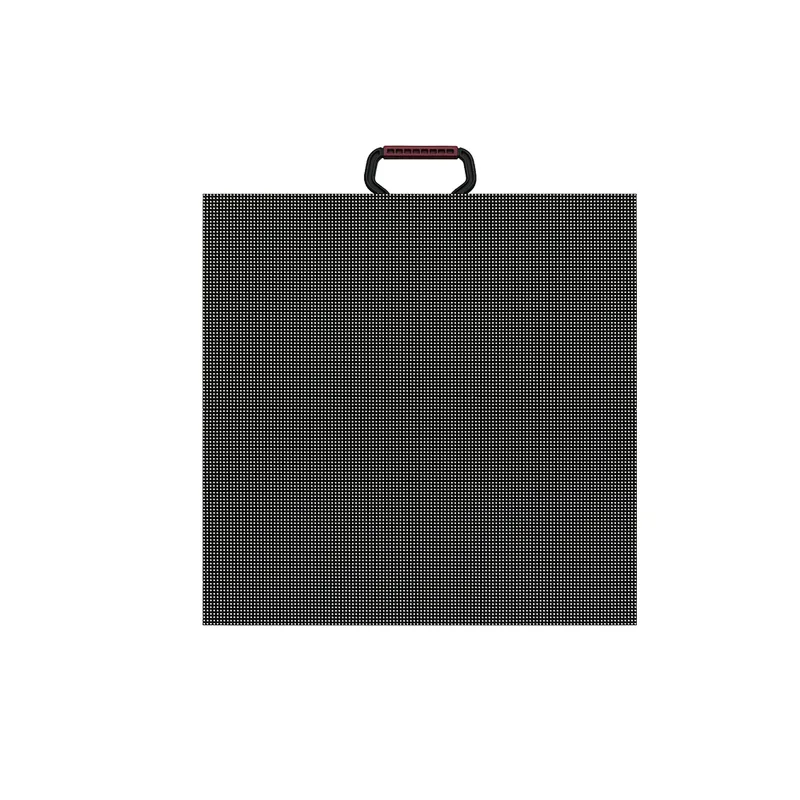

P5.9  advertising billboard video outdoor LED video wall

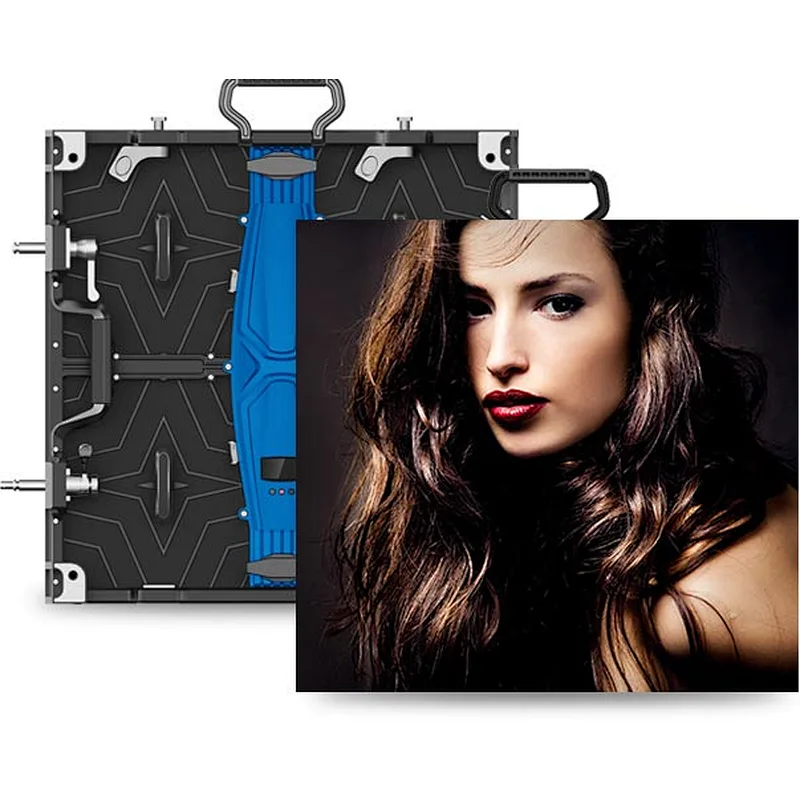

P5.9  advertising billboard video outdoor LED video wall

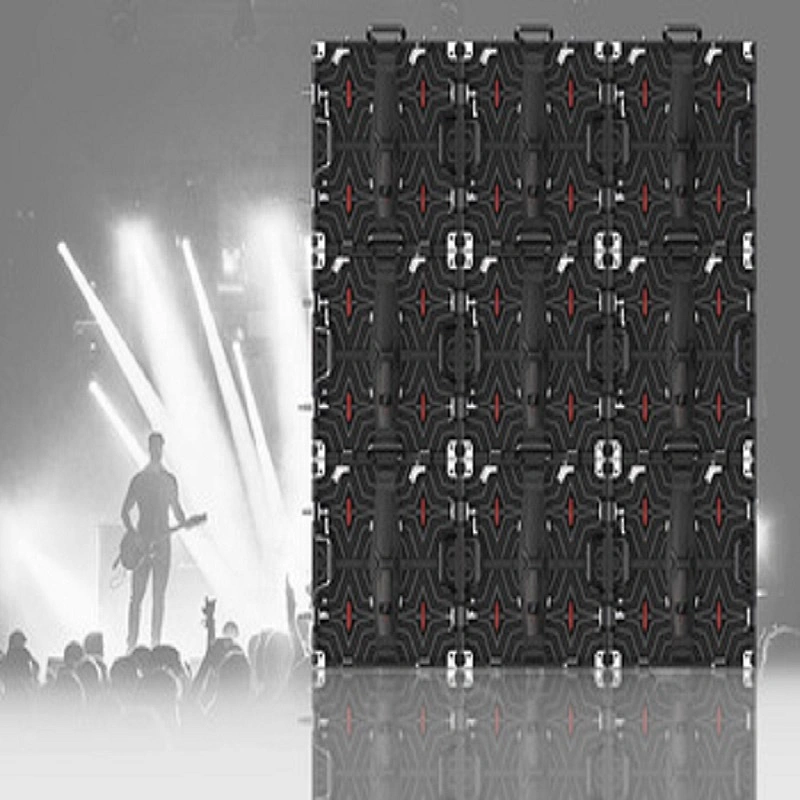

P5.9  advertising billboard video outdoor LED video wall
P5.9  advertising billboard video outdoor LED video wall
P5.9  advertising billboard video outdoor LED video wall
P5.9  advertising billboard video outdoor LED video wall

P5.9 advertising billboard video outdoor LED video wall

USD960.00 -USD1200.00
  • Delivery:
  • Minimum order quantity:1
  • Supply Ability:2000 / Month
  • Country of Origin:YANTIAN,SHEKOU
  • Categories: 500*500 X Series

    Product Description

    • Place of Origin:CN;GUA
    • Usage:Outdoor
    • Tube Chip Color:FULL COLOR
    • Display Function:Video
    • Pixels:5.9mm
    • Brand Name:LEDFUL
    • Model Number:XO5.9
    • Screen Dimension:500*500
    • Product name:Led Video Display Panel
    • Application:Advertising Video Wall Screen
    • Certificate:CE ROHS FCC
    • Brightness:4500
    • Color:Fullcolor
    • Module size:250x250mm
    • Cabinet size:500x500mm
    • Pixel pitch:5.95mm
    • Refresh rate:2880Hz
    • Viewing angle:140 /140
    Product Description
    Parameter

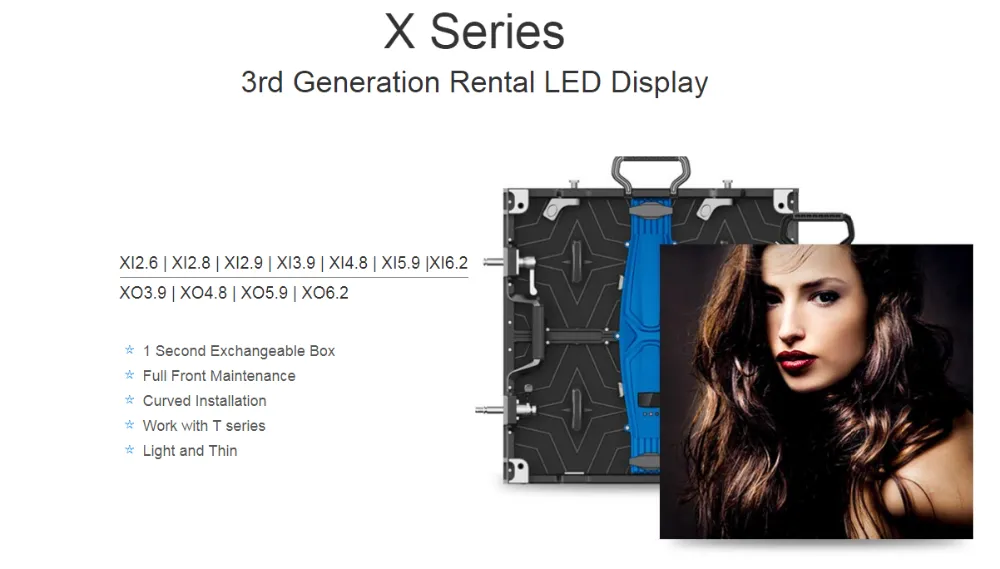

    X Series Outdoor
    XO 5.9
    Pixel Pitch(mm)
    5.95mm
    Pixel Matrix Per Sq.m
    28224
    Pixel Configuration
    SMD3535
    Brightness (nits)
    ≥4500
    Scan
    1/7
    Cabinet Resolution
    84×84
    Power Con. (Max / Avg)
    700 / 200 w/sq.m
    Module Dimension
    250x250mm / 0.82x0.82ft
    Cabinet Dimension
    500x500x78mm / 1.64x1.64x0.25ft
    Cabinet Weight
    7kg / 15.4Ib (( Die-casting Aluminum)

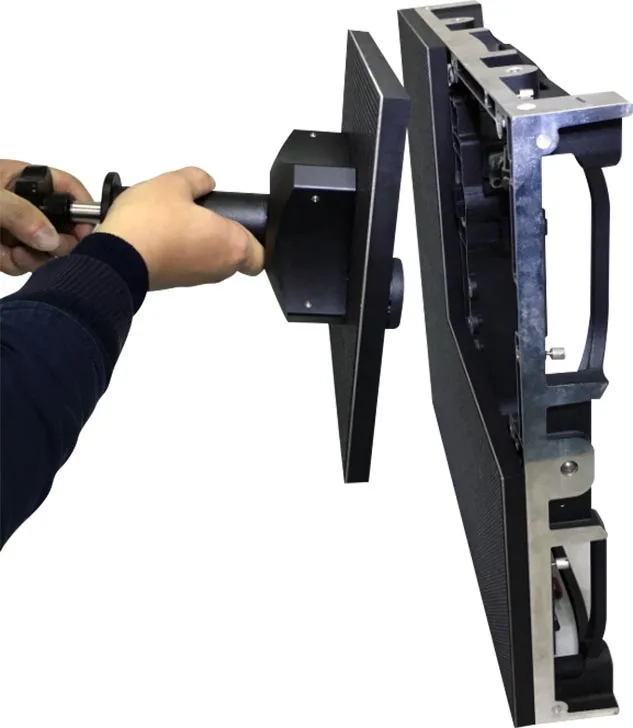

    Service Access
    Front / Rear

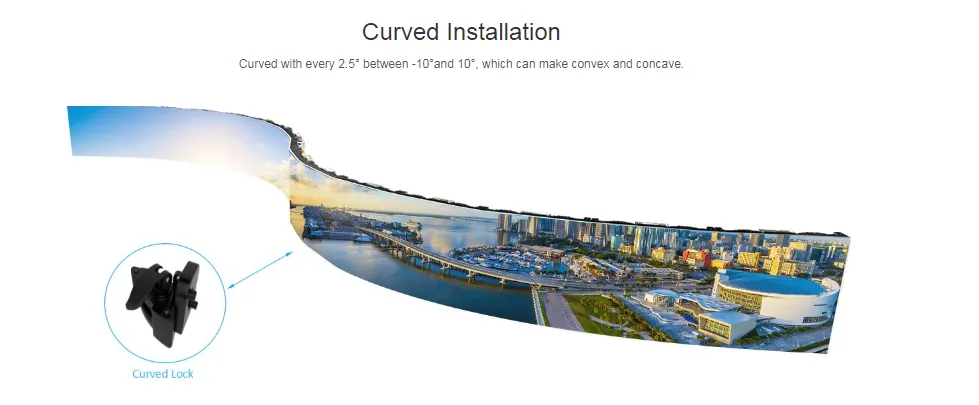

    Rotation Angle
    -7.5° and +7.5°
    Refresh Rate (HZ)
    2880
    Grey Scale (bit)
    16

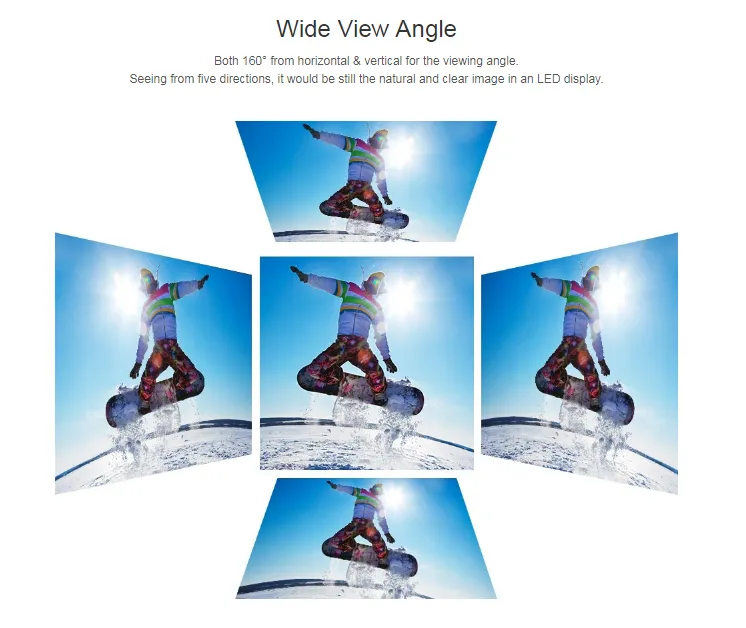

    Viewing Angle (H/V)
    140 / 140
    IP Rate
    IP65
    Input Voltage (AC)
    110 / 240
    * Specifications and photos are subject to change without prior notice.

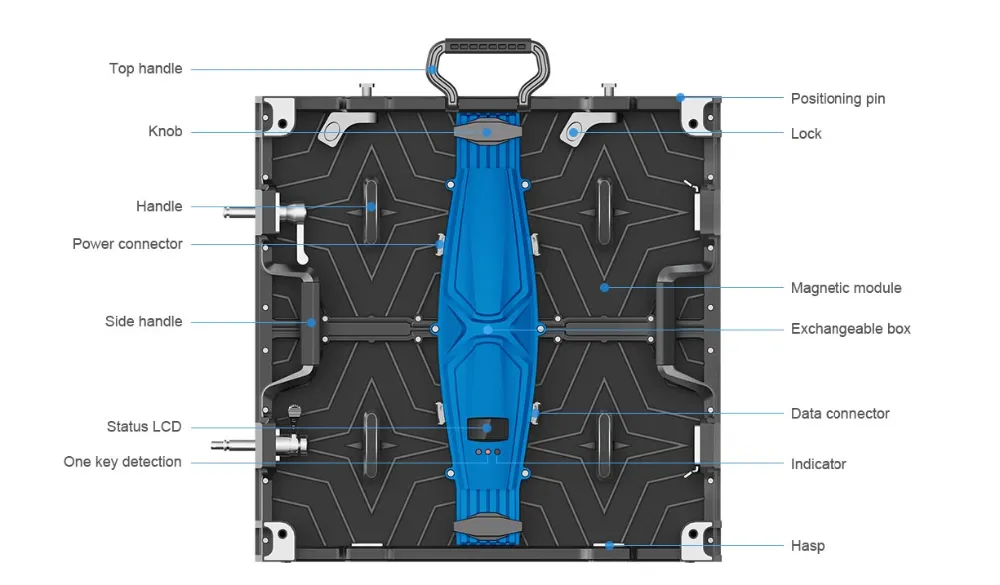

    Feature

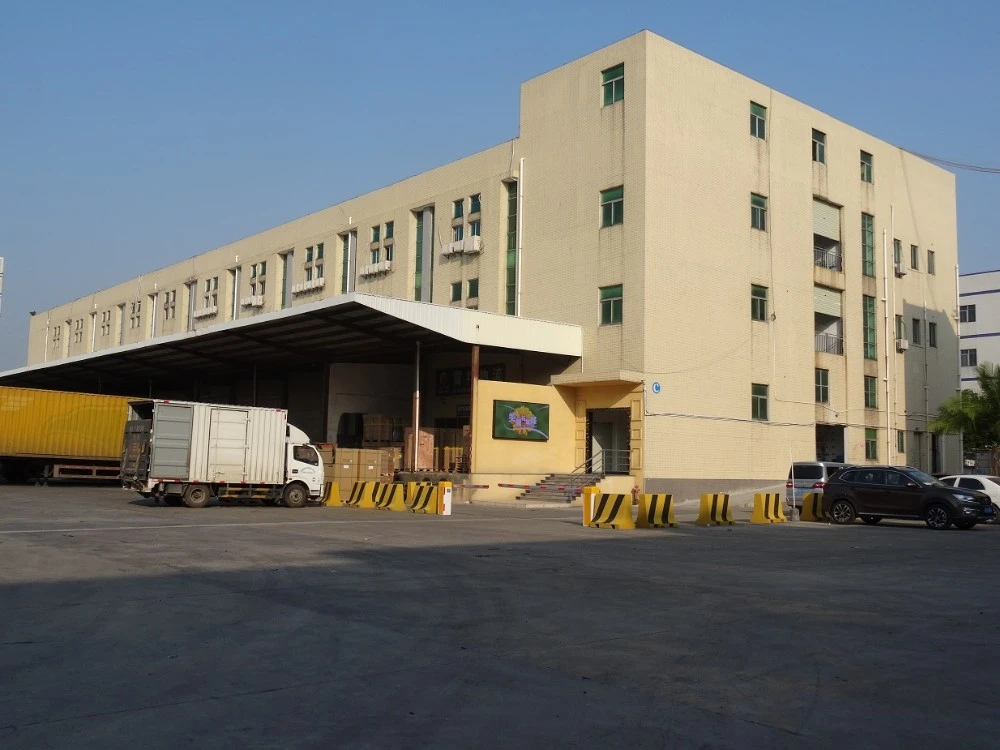

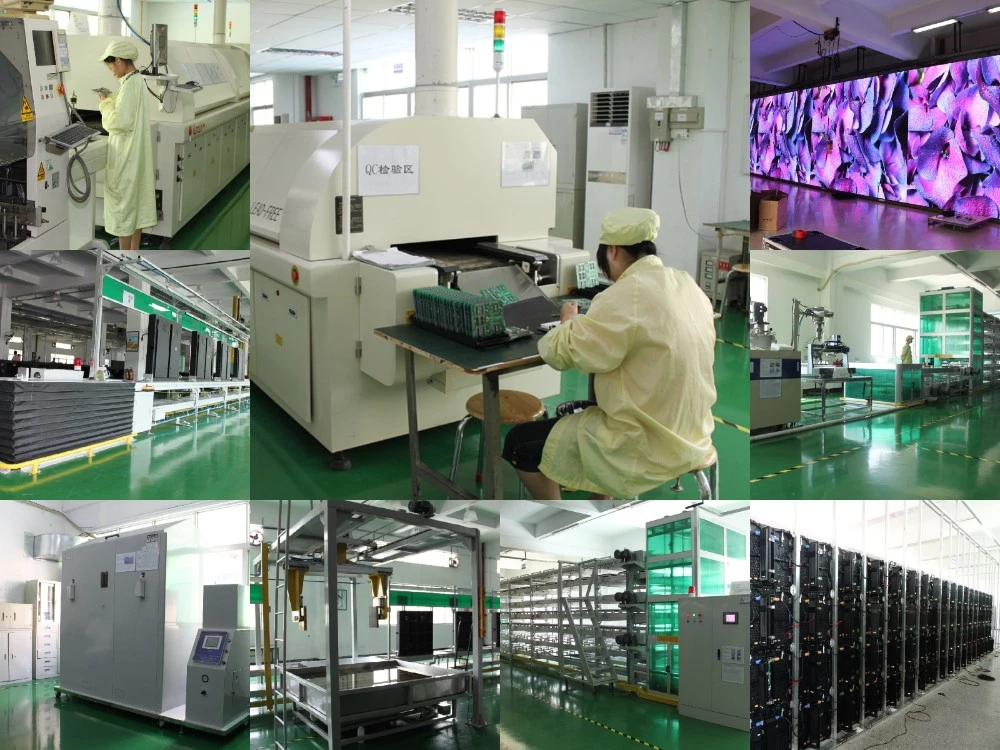

    Our Company

    Top LED Display Manufacturer

    LEDFUL founded in 2008 Total 209 employees in LEDFUL
    3~5 years warranty on LED screenExported to 83 countries and regions
    Top reliable LED display manufacture Over 5,600 successful projects in the world
    R&D staff occupied 10% of all the employees.
    CE, RoHS, FCC, CCC, ISO9001:2008 standard

    How We Do

    One-stop solution provider More designs and more solutions Wireless control, 4G, Wifi, Cluster control

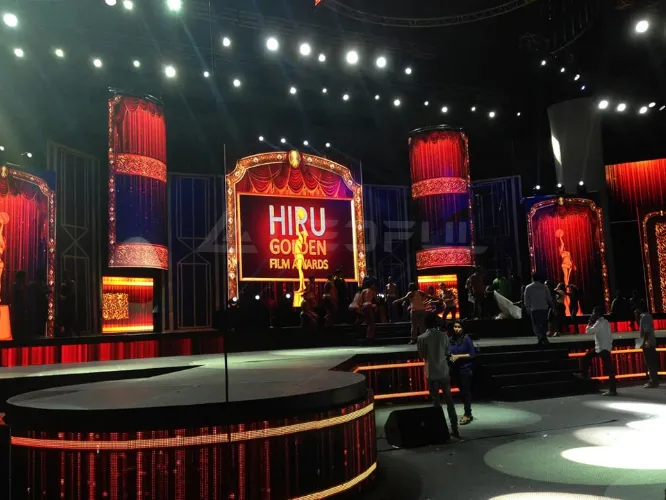

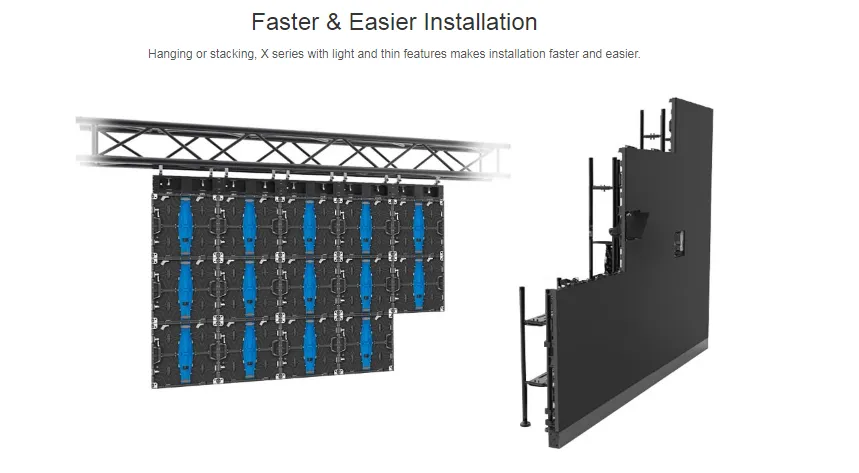

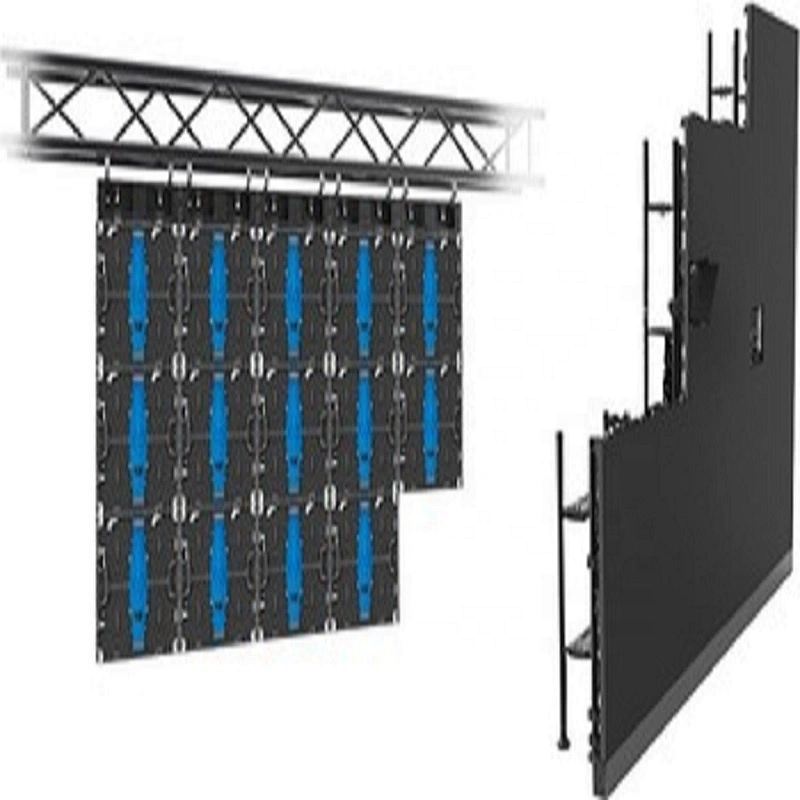

    Truss hanging, stacking, touring, LED ceiling, video floor
    Irregular shaped, flex, curved, round, sphere, cubic, customizedFocus on the improvement and innovation of rental LED cabinetsHigh efficient and enthusiastic team to make reliable LED display
    Our partners are Media Companies, Stage Designer, Project Manager,Pro Audio, Light and Video companies, AV Rental Equipment companies, Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.

    FAQ

    Q1. Are you trading company or manufacturer ?

    A: We are led display manufacturer

    Q2. How about your delivery time?

    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends

    on the items and the quantity of your order.

    Q3. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q4:Minimum distance of the audience? (Viewing distance)

    P2/3/4/5/6mm: From 2/3/4/5/6 meter and more

    P10/12/16/20/25: From 10/12/16/20/25 meter and more

    This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

    Q5:How To Play The TVs On LED Display Panel?

    LED Display has the Features of High Definition, High Brightness and Long Viewing Distance. It can play the videos clearly with a widely viewing scope. Sometimes, many customers want to show the TVs for live sports and news on the LED Display Screen. This article will show you how to play the TVs by LED Display Panel.

    1.We need to prepare a TV Box or TV Card. if you have the TV Card, you can install it in the controlling computer, and play it by the led control system.

    2.For the TV Box, we need a led video processor, the video controller can transfer the TV Signal to the DVI signal, and DVI signal to led sending card.

    3.After we have DVI signal,we can play the TVs on the led display screen.it seems that is easy to control, right? So let us get start to show your TVs on the led display to enjoy the high definition videos.

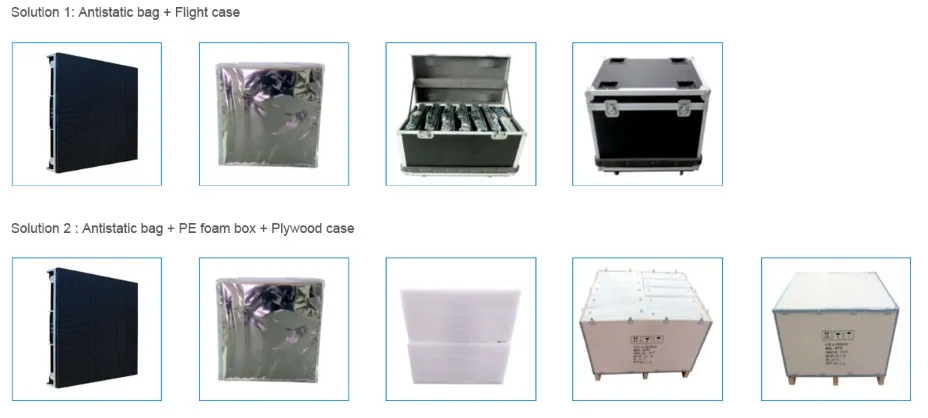

    Packing & Delivery

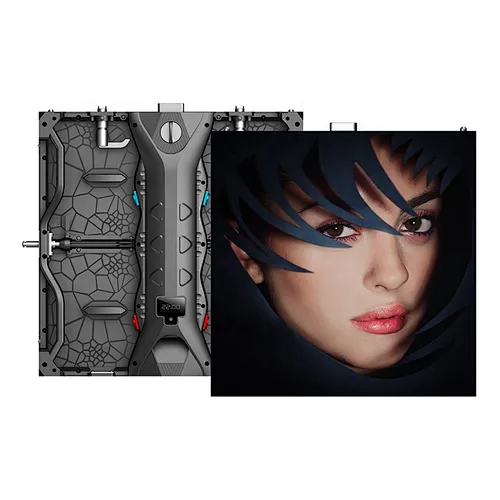

    Related Products
