- Place of Origin:CN;GUA
- Application:outdoor floor display
- Color:fullcolor
- Panel Size:500*1000mm
- Pixel Pitch:5.2
- Model Number:FI5.2
- Brand Name:LEDFUL

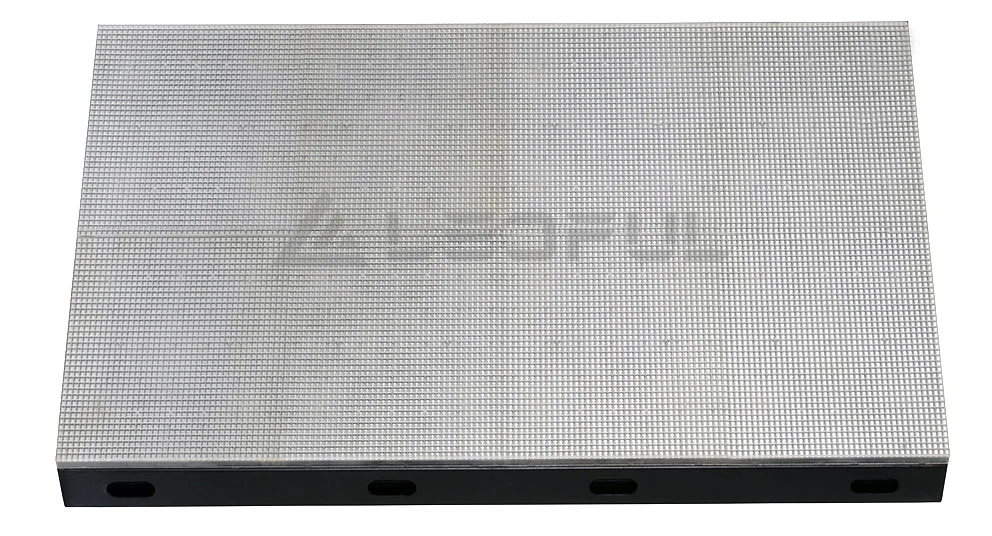

- Product name:Floor display
- Brightness:2500
- Pixel Pitch:5.2
- Pixel Configuration:SMD1921
- Scan:1/10
- Cabinet Resolution:96*192
- Cabinet weight:10kg
- Load bearing:2T
- Refresh Rate:1920
- IP:43
Floor Series

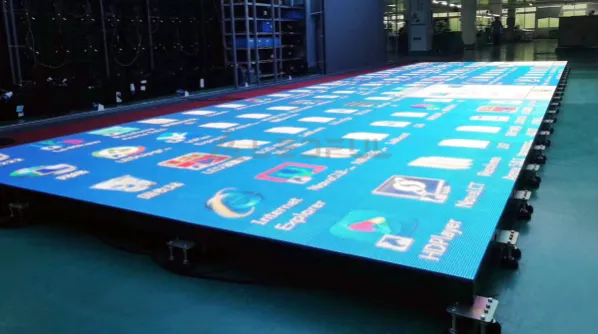

Interactive Floor Display | LED Video Floor | Dance Floor LED Display
Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2
Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2
Features
F Series Indoor | FI 3.9 | FI 4.6 | FI 4.8 | FI 5.2 | FI 6.2 | ||||
Pixel Pitch(mm) | 3.91mm | 4.625mm | 4.81mm | 5.2mm | 6.25mm | ||||
Pixel Matrix Per Sq.m | 65536 | 46656 | 43264 | 36864 | 25600 | ||||
Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | ||||
Brightness (nits) | 2300 | 2500 | 2500 | 2500 | 2800 | ||||
Scan | 1/16 | 1/13 | 1/13 | 1/10 | 1/10 | ||||
Cabinet Resolution | 128×256 | 108×216 | 104×208 | 96×192 | 80×160 | ||||
Power Con. (Max/Avg) | 700/200 w/sq.m | 680/1800 w/sq.m | 700/200 w/sq.m | 710/210 w/sq.m | 730/220 w/sq.m | ||||
Module Dimension | 250x250mm / 0.82x0.82ft | ||||||||
Cabinet Dimension | 500x1000x80mm(1.64x3.28x0.26ft) | ||||||||
Cabinet Weight | 14kg(Iron) | ||||||||
Service Access | Front/Rear | ||||||||
Load Bearing | 2T | ||||||||
Refresh Rate (HZ) | 1920 | ||||||||
Grey Scale (bit) | 16 | ||||||||
Viewing Angle (H/V) | 140/140 | ||||||||
IP Rate | IP43 | ||||||||
Input Voltage (AC) | 110/240 | ||||||||

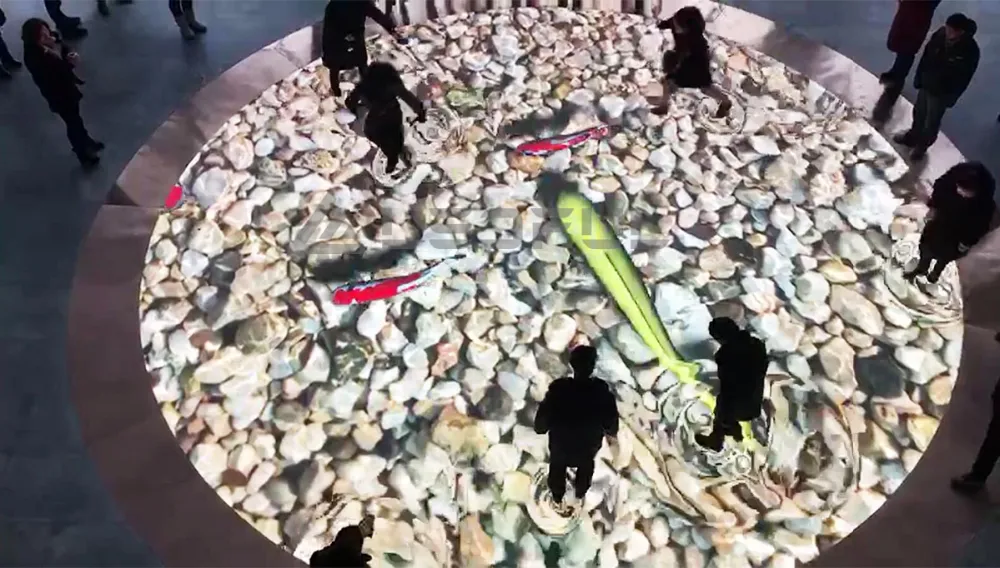

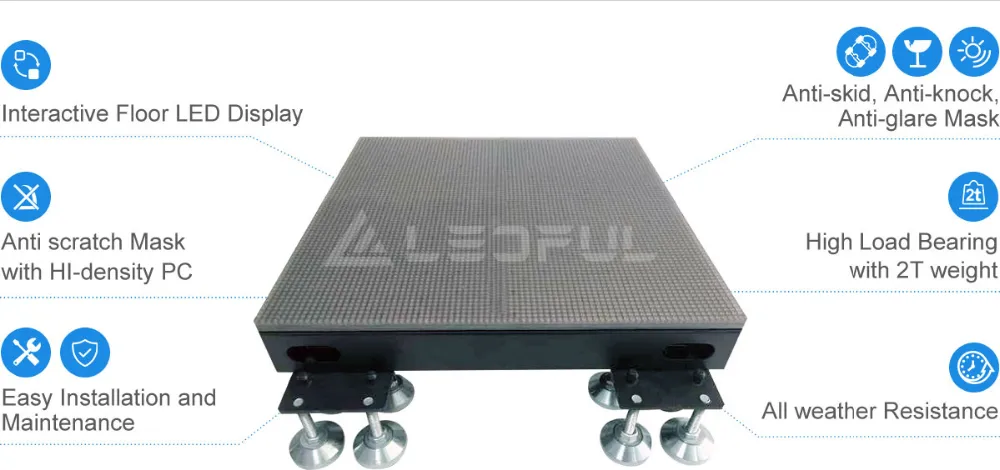

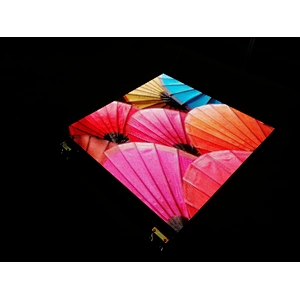

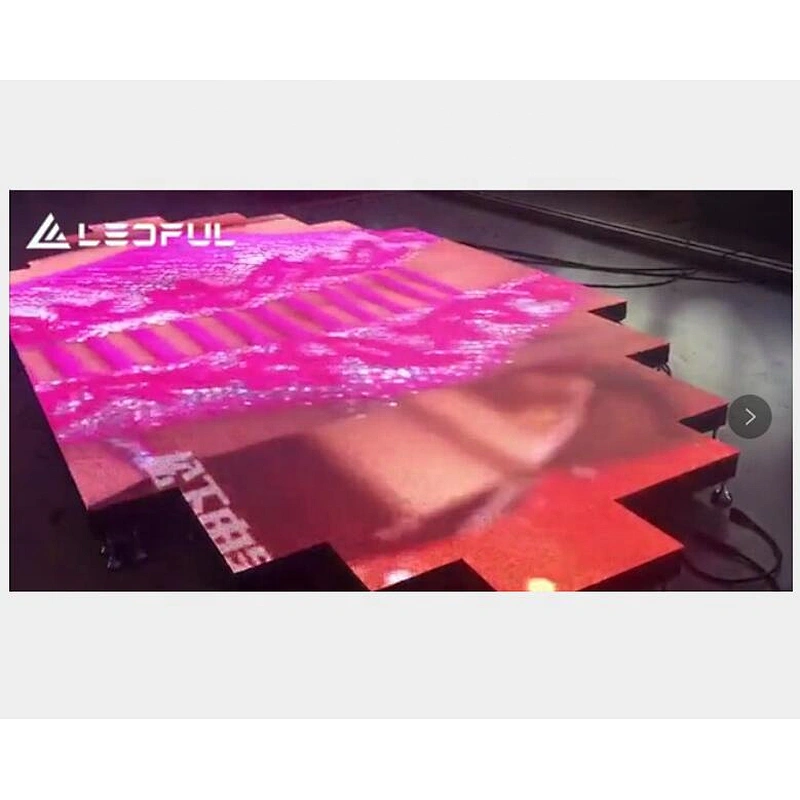

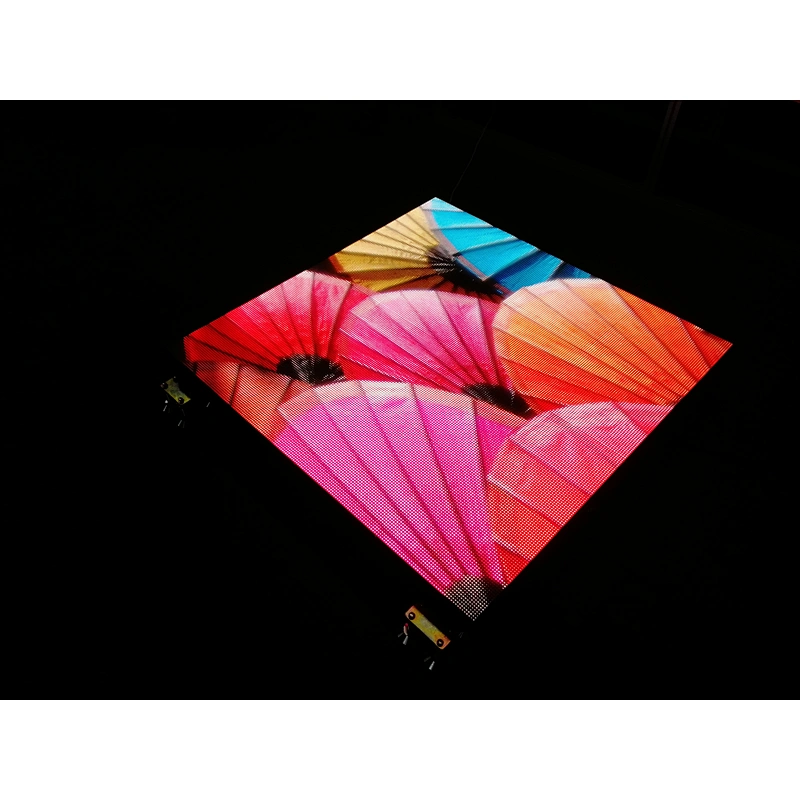

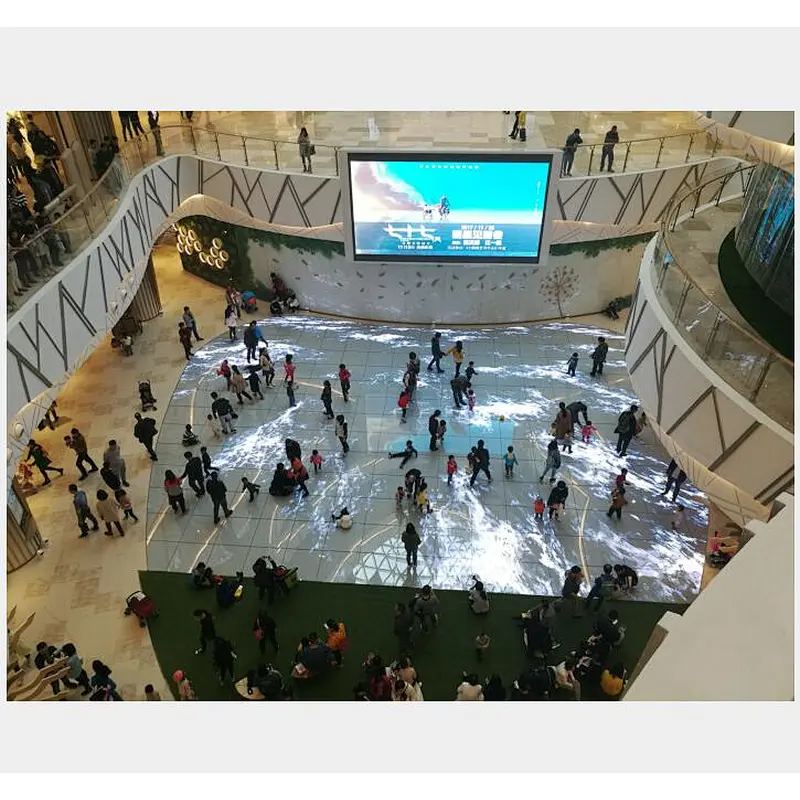

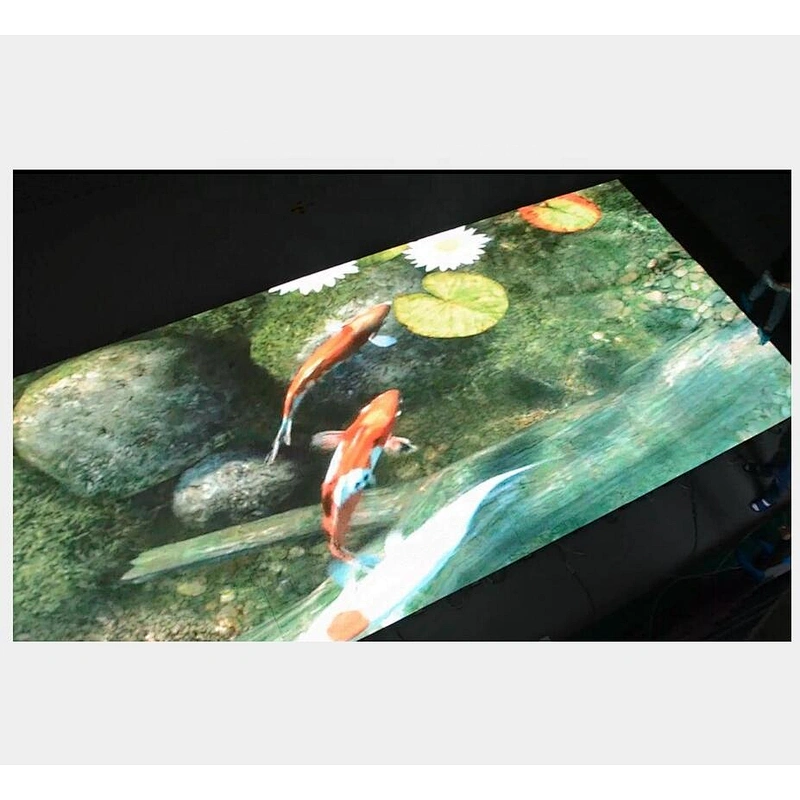

Interactive Floor LED Display
Special driving IC built inside the LED display PCB will work together with interactive control system.
It will easily and quickly make you interesting and attractive between the players and display.

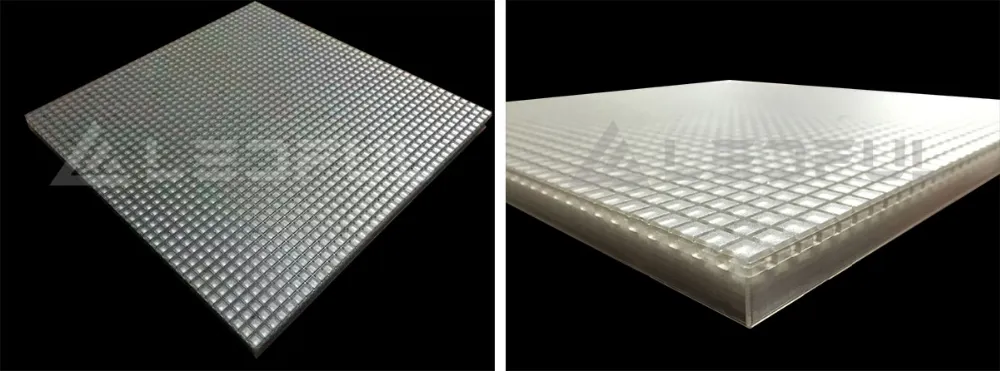

Anti-skid, Anti-knock, Anti-glare Mask
Anti scratch Mask with HI-density PC

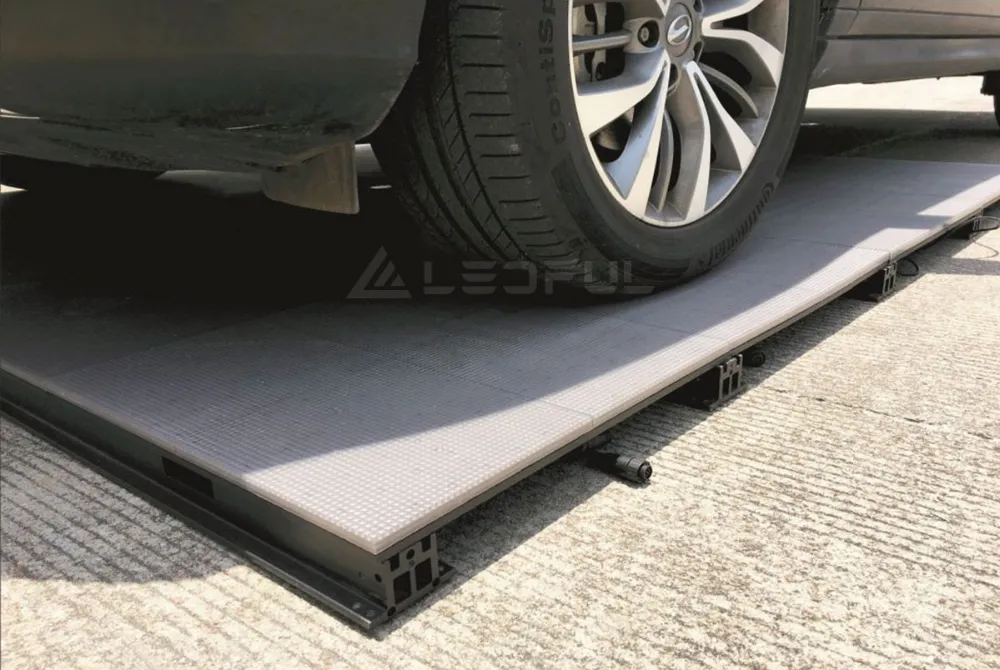

High Load Bearing with 2T weight
.

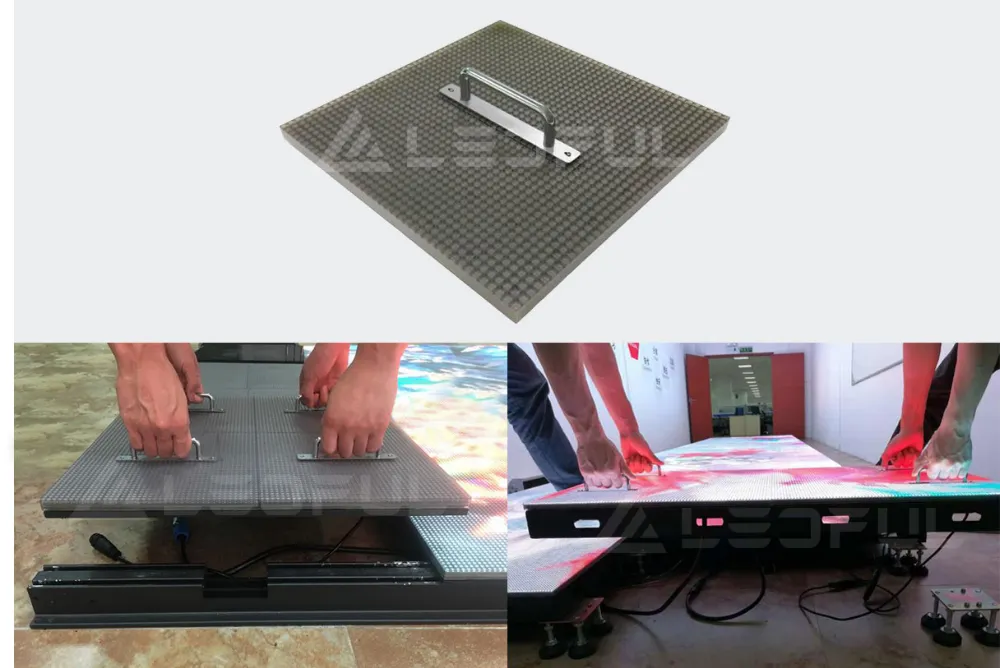

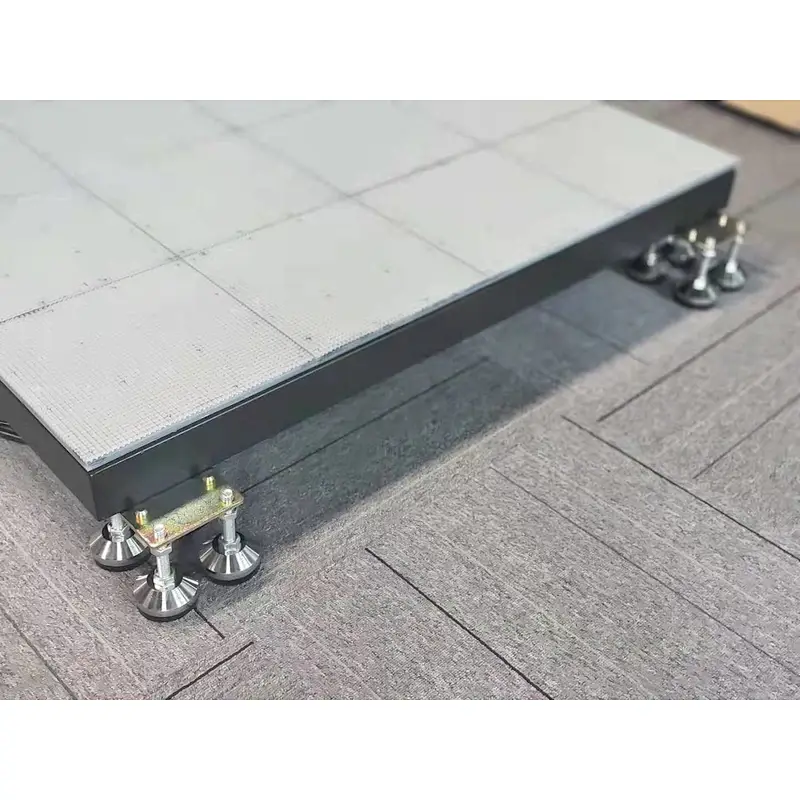

Easy Installation and Maintenance

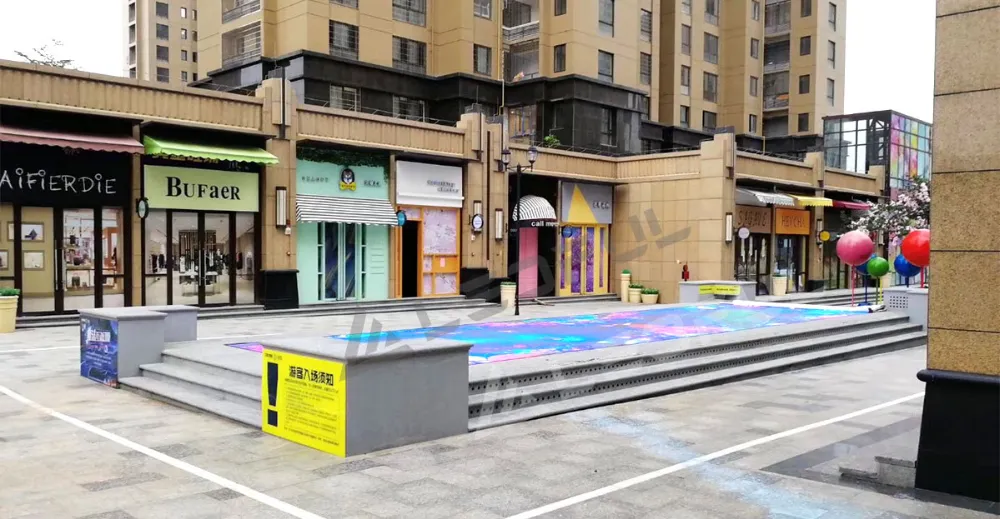

All weather Resistance
LEDFUL floor LED display outdoor series is all weather resistance. For indoor series, the front side is waterproof.
Top LED Display Manufacturer
2.More designs and more solutions Wireless control, 4G, Wifi, Cluster control
3.Truss hanging,stacking, touring, LED ceiling, video floor Irregular shaped, flex, curved, round,sphere, cubic, customized Focus on the improvement LED cabinets
4.High efficient and enthusiastic team to make reliable LED display
Professional, High Efficient and Caring
2.Reasonable price Clear cost initially to save your time and money.
3.Provide with innovative and satisfying products.
5.Always ready for your any change on LED display details.
6.Recommend the best proper solution for your LED project.
7.Catch things what you missed before LED display production. 8.Take good care of each detail for your products,packages,shipping.
Certifactions
Q1. Are you trading company or manufacturer?
A: We are led display manufacturer
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more.This very important option
determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

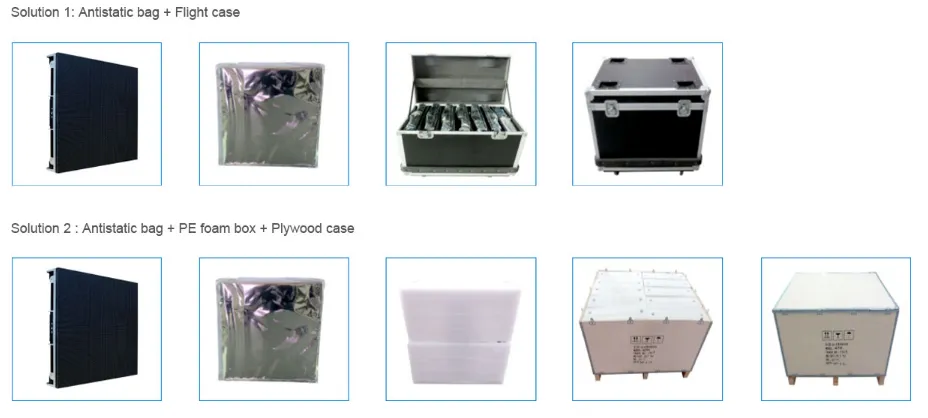

Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q6. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: What is the control system?
A: We use Nova control system.
Q9: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
